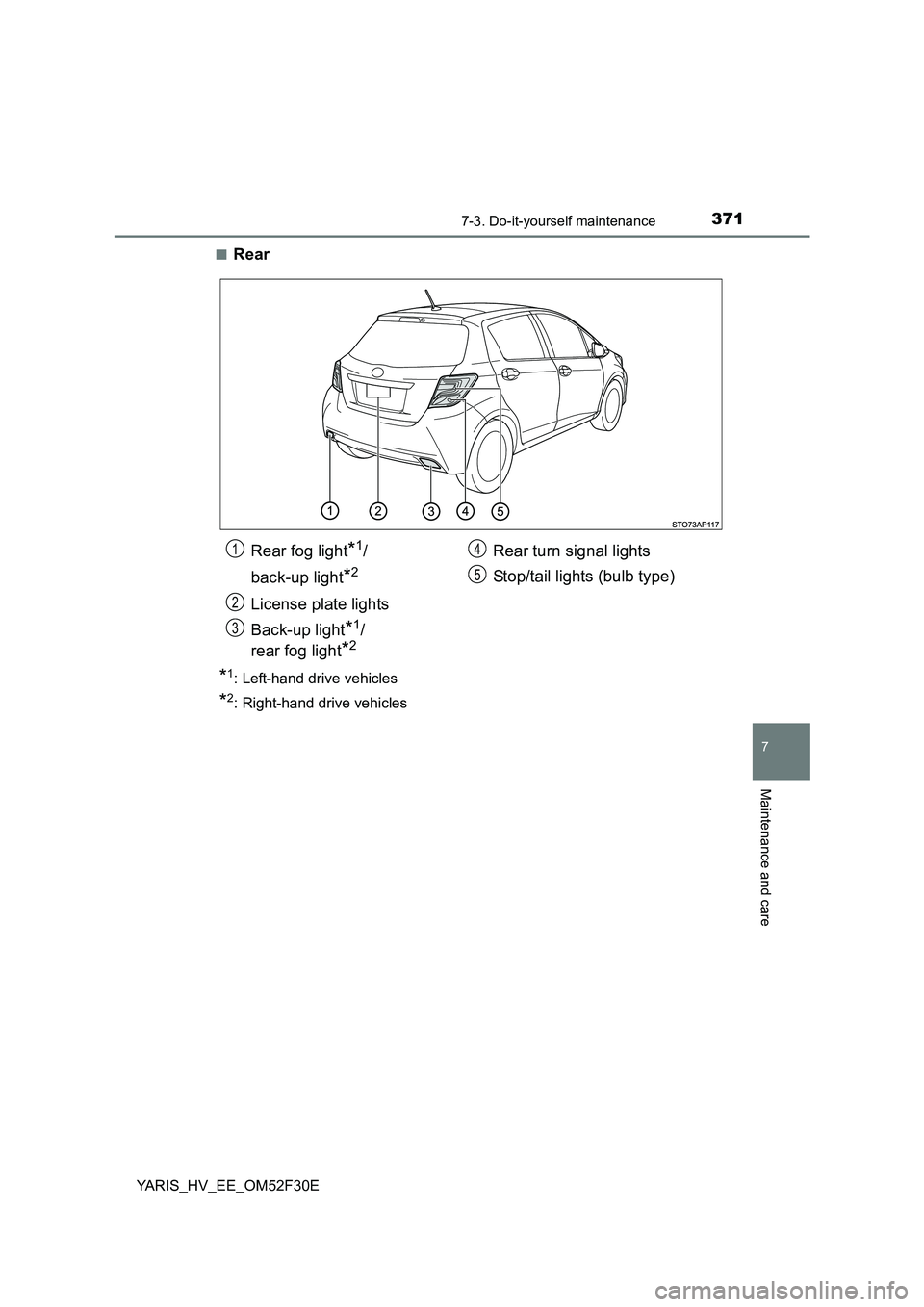

TOYOTA YARIS HYBRID 2015 Owners Manual

3717-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52F30E
■Rear
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
Rear fog light*1/
back-up light*2
License plate lights
Back-up light*1/
rear fog light*2
Rear turn signal lights
Stop/tail lights (bulb type)
1
2
3
4
5

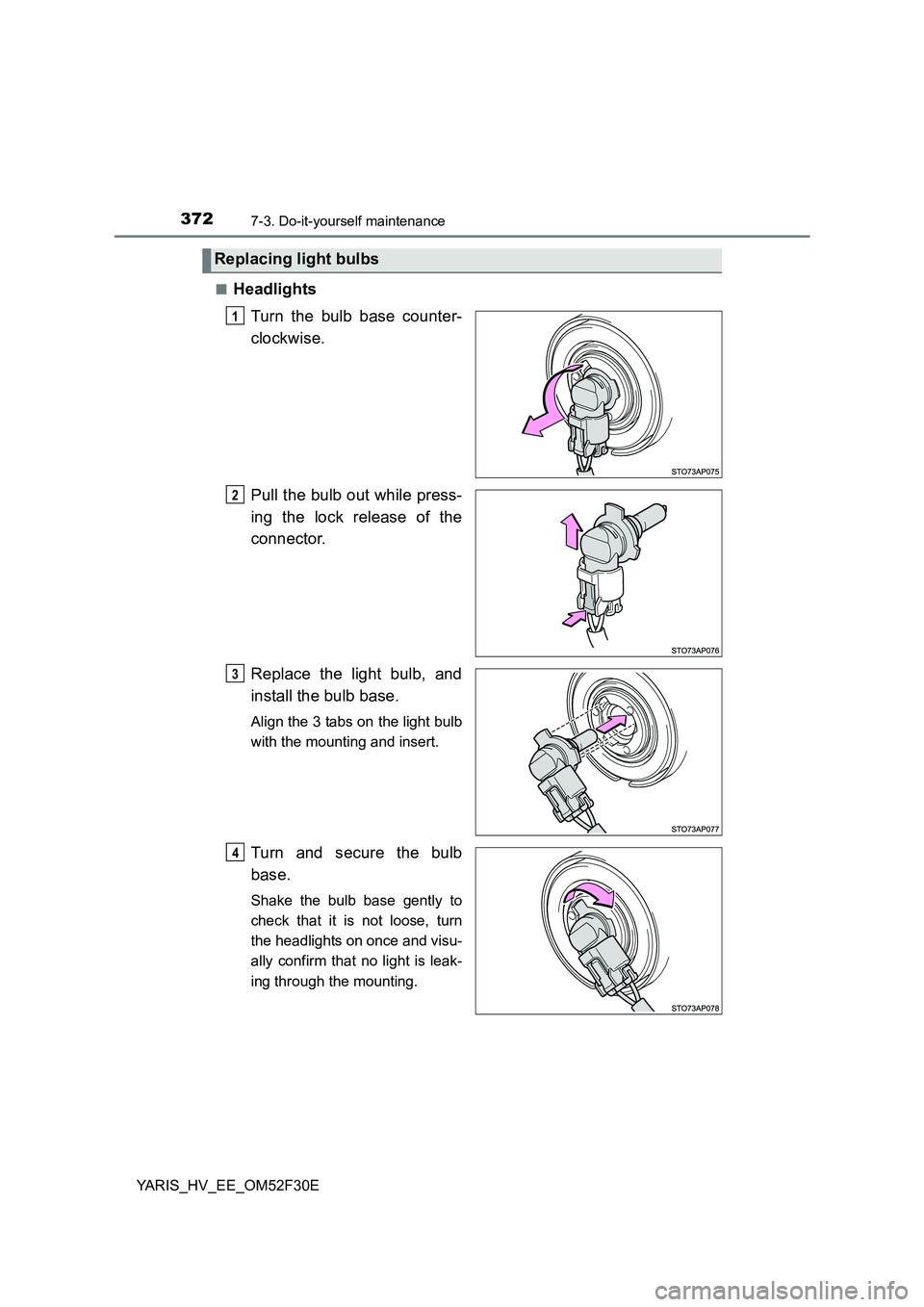

3727-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52F30E
■Headlights
Turn the bulb base counter-
clockwise.
Pull the bulb out while press-
ing the lock release of the
connector.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Replacing light bulbs
1
2
3
14

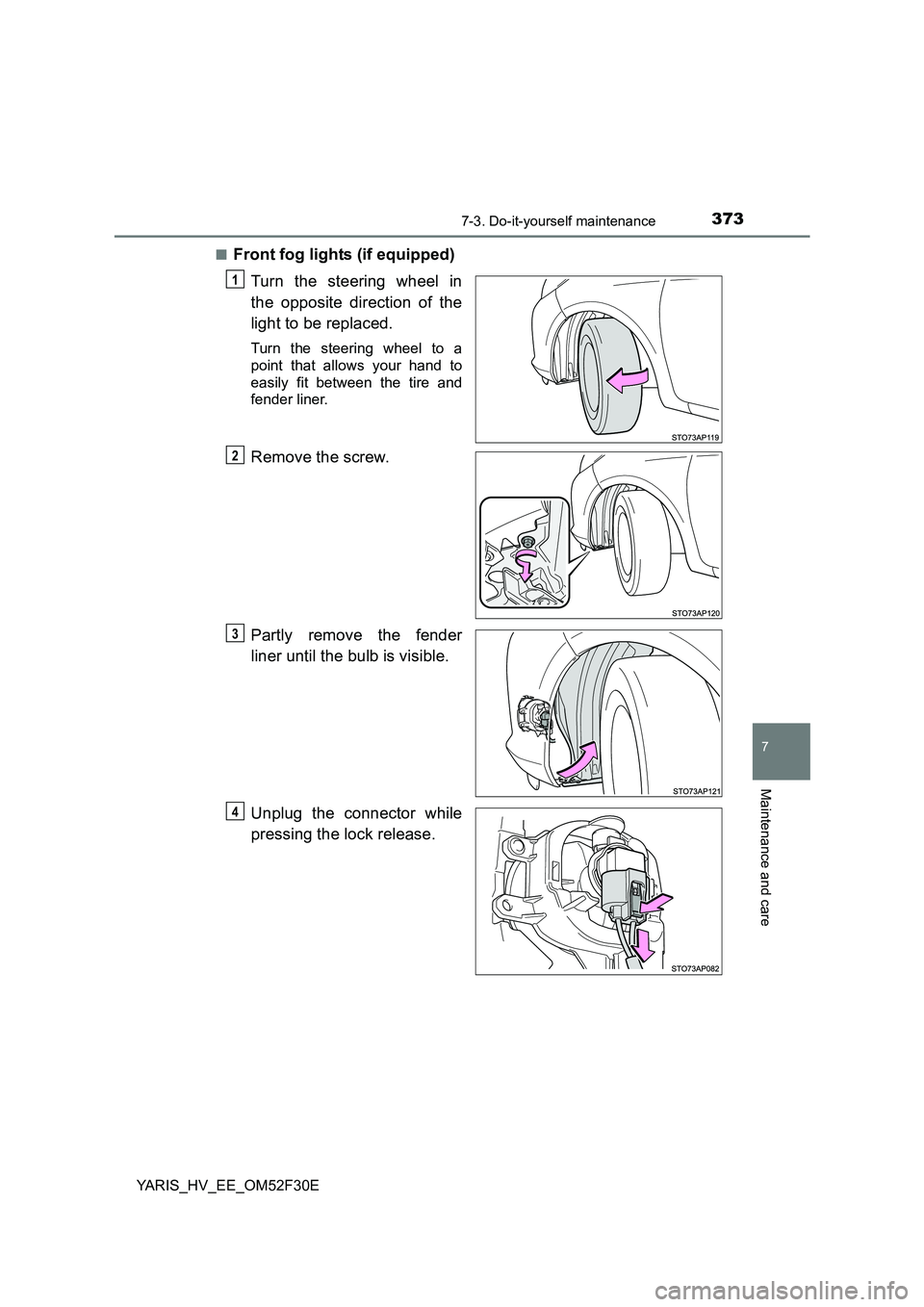

3737-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52F30E
■Front fog lights (if equipped)
Turn the steering wheel in
the opposite direction of the
light to be replaced.
Turn the steering wheel to a
point that allows your hand to
easily fit between the tire and
fender liner.
Remove the screw.
Partly remove the fender
liner until the bulb is visible.
Unplug the connector while
pressing the lock release.
1
2
3
4

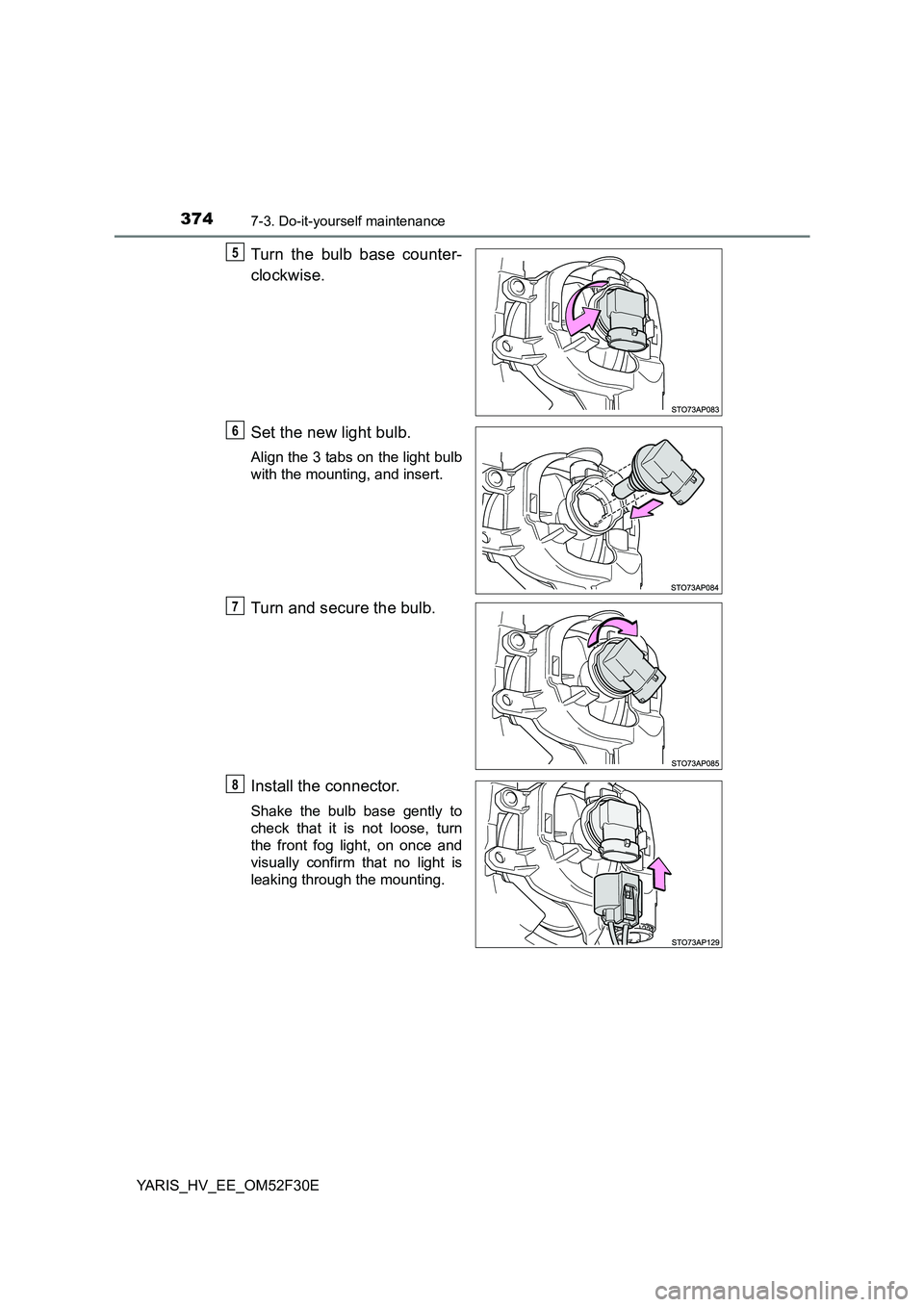

3747-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52F30E
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog light, on once and
visually confirm that no light is
leaking through the mounting.
5
6
7
8

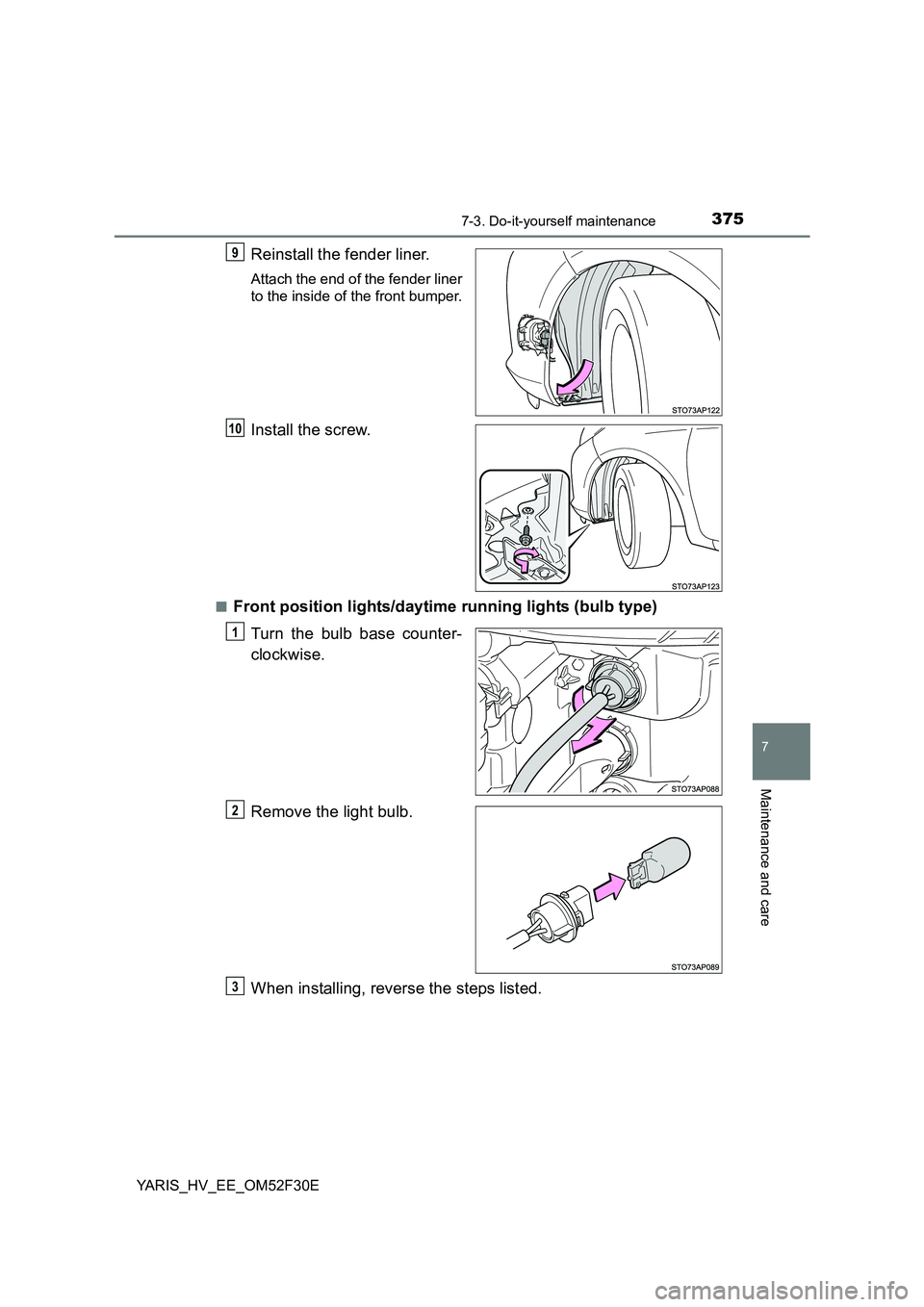

3757-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52F30E
Reinstall the fender liner.
Attach the end of the fender liner
to the inside of the front bumper.
Install the screw.
■Front position lights/daytime running lights (bulb type)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
9
10
1
2
3

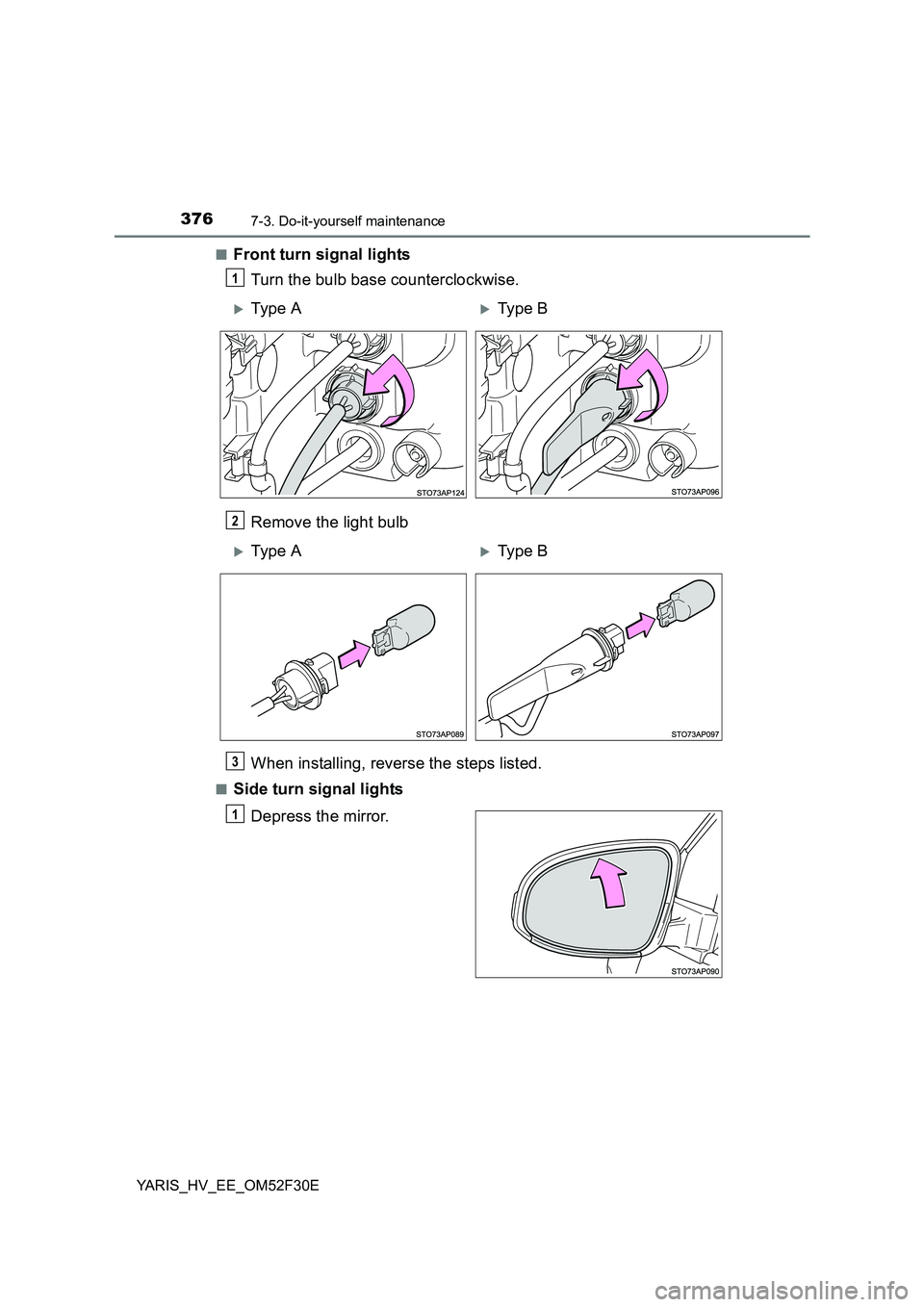

3767-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52F30E
■Front turn signal lights
Turn the bulb base counterclockwise.
Remove the light bulb
When installing, reverse the steps listed.
■Side turn signal lights
Depress the mirror.
1
XType AXType B
2
XType AXType B
3
1

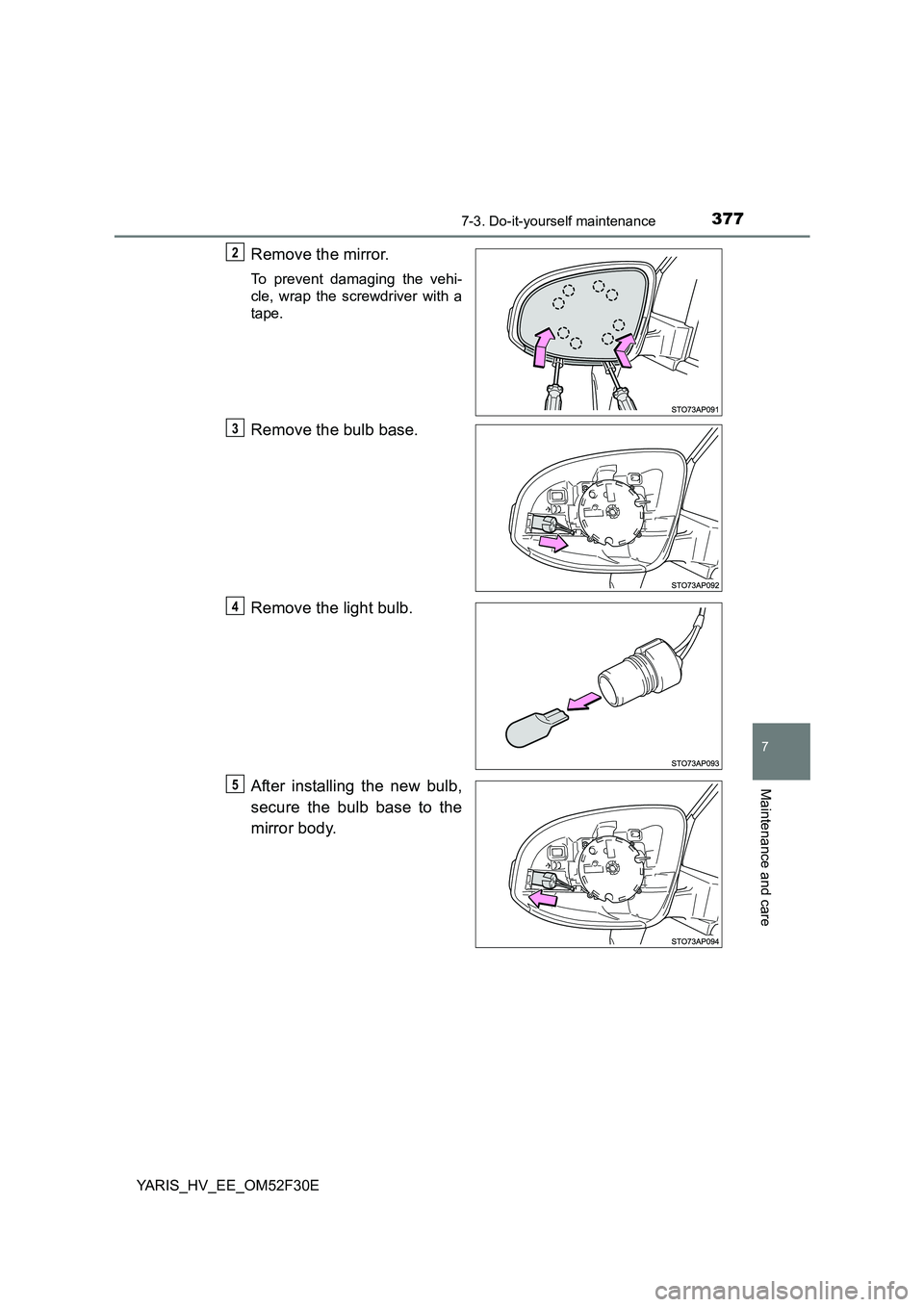

3777-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52F30E
Remove the mirror.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Remove the bulb base.
Remove the light bulb.
After installing the new bulb,
secure the bulb base to the
mirror body.
2
3
4
5

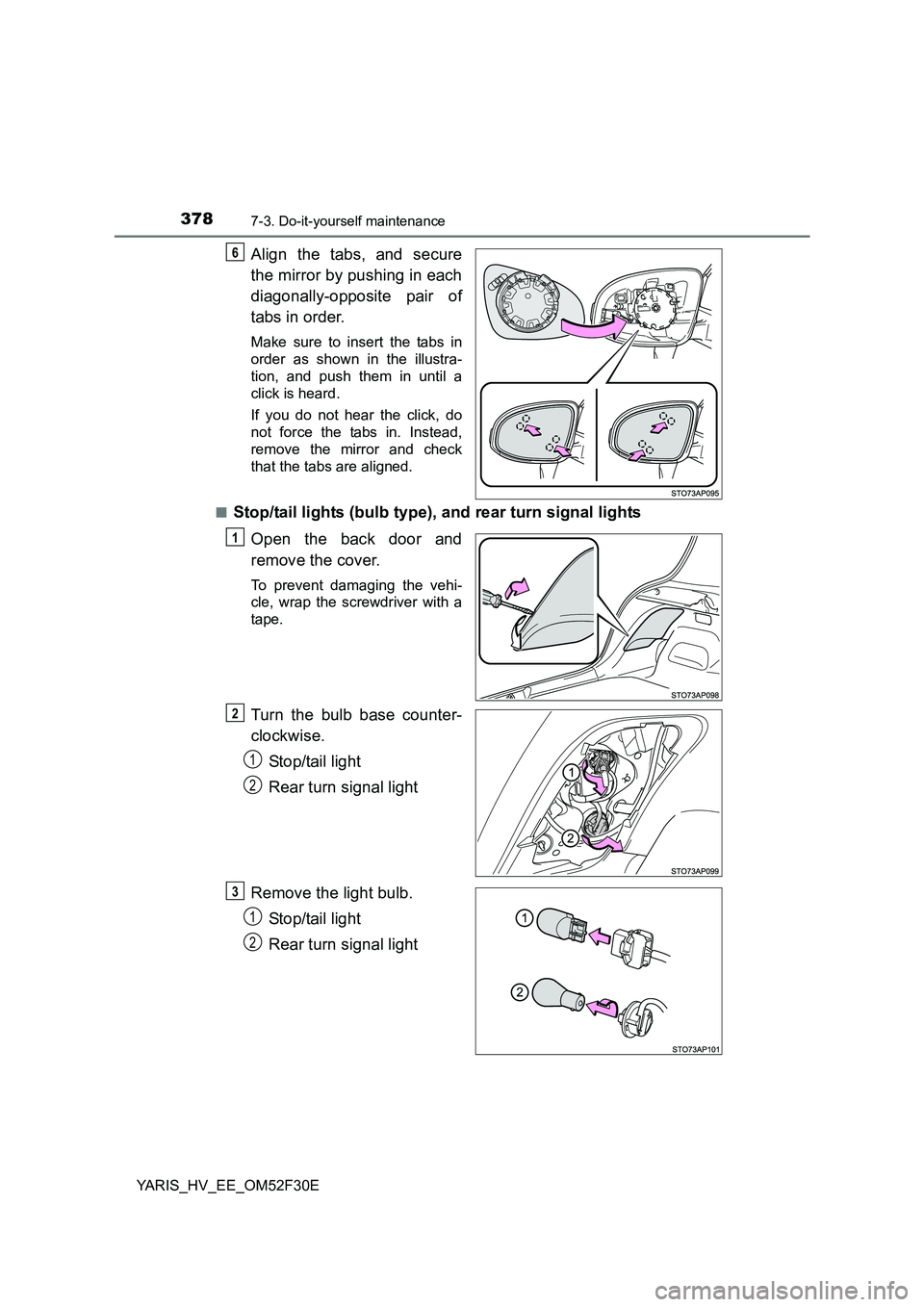

3787-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52F30E
Align the tabs, and secure
the mirror by pushing in each
diagonally-opposite pair of
tabs in order.
Make sure to insert the tabs in
order as shown in the illustra-
tion, and push them in until a
click is heard.
If you do not hear the click, do
not force the tabs in. Instead,
remove the mirror and check
that the tabs are aligned.
■Stop/tail lights (bulb type), and rear turn signal lights
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Turn the bulb base counter-
clockwise.
Stop/tail light
Rear turn signal light
Remove the light bulb.
Stop/tail light
Rear turn signal light
6
1
2
1
2
3
1
2

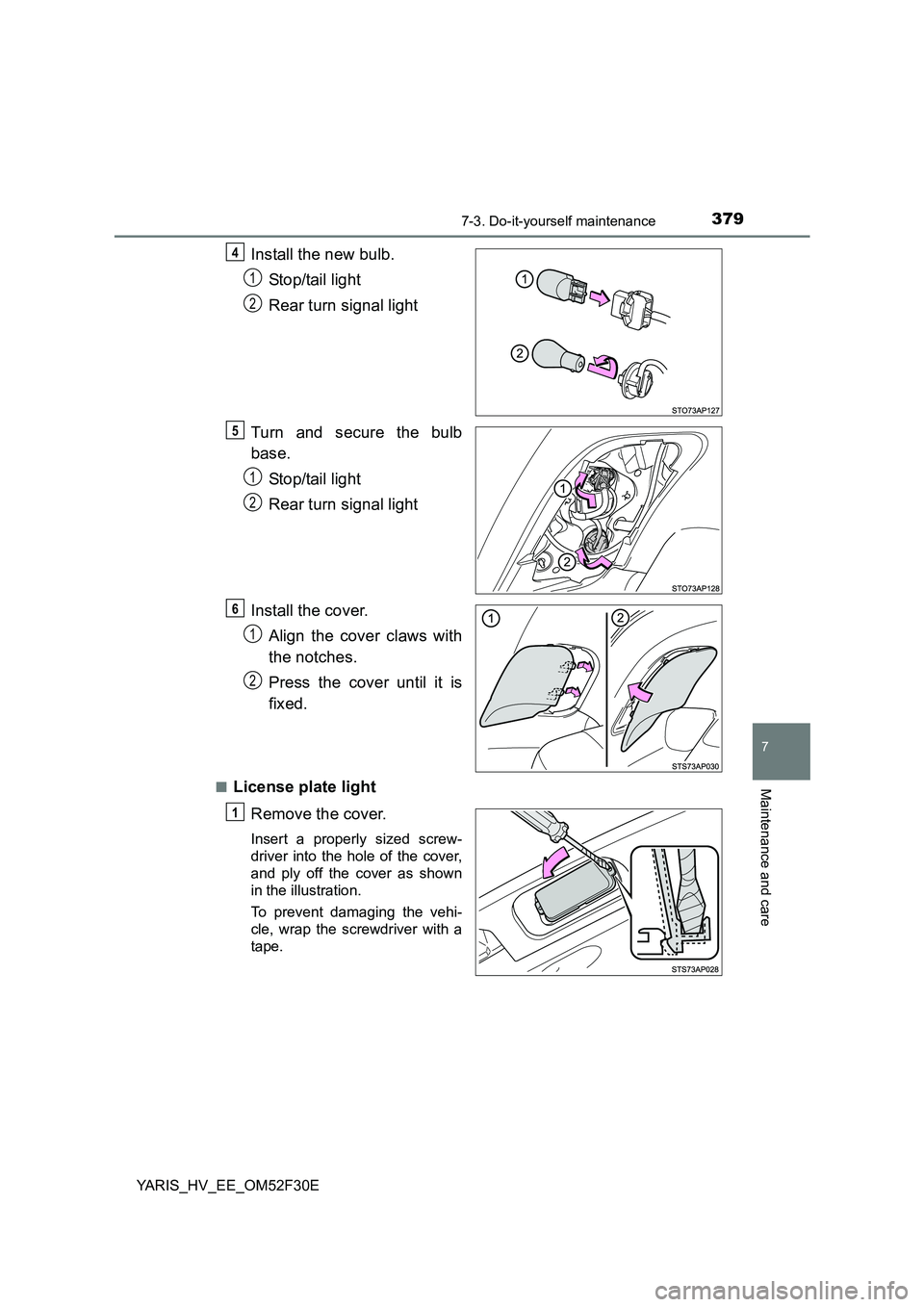

3797-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52F30E
Install the new bulb.
Stop/tail light
Rear turn signal light
Turn and secure the bulb
base.
Stop/tail light
Rear turn signal light
Install the cover.
Align the cover claws with
the notches.
Press the cover until it is
fixed.
■License plate light
Remove the cover.
Insert a properly sized screw-
driver into the hole of the cover,
and ply off the cover as shown
in the illustration.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
4
1
2
5
1
2
6
1
2
1

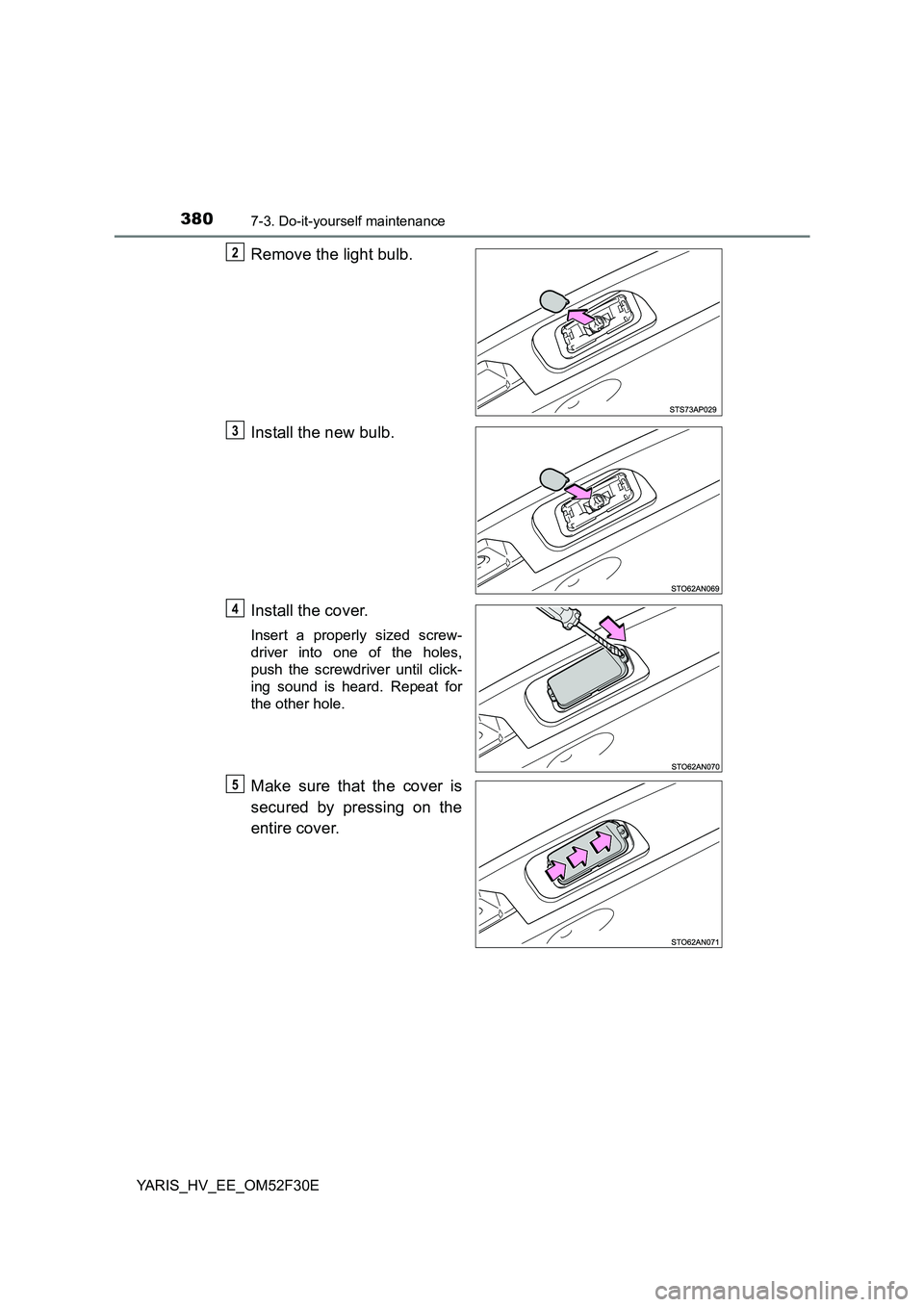

3807-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52F30E
Remove the light bulb.
Install the new bulb.
Install the cover.
Insert a properly sized screw-
driver into one of the holes,
push the screwdriver until click-
ing sound is heard. Repeat for
the other hole.
Make sure that the cover is
secured by pressing on the
entire cover.
2
3
4
5
