TOYOTA YARIS HYBRID 2015 Owners Manual

3617-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52F30E

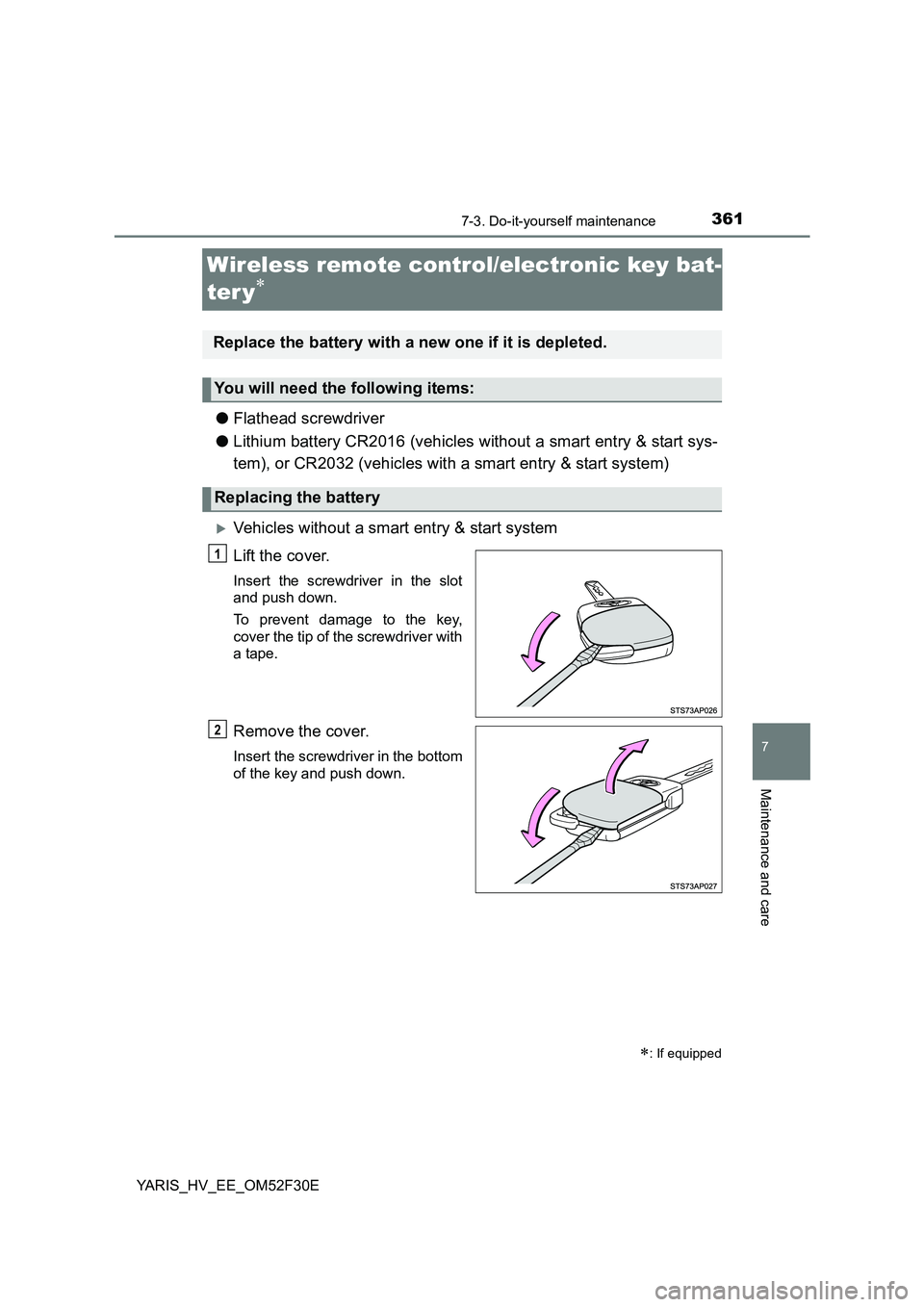

Wireless remote control/electronic key bat-
ter y∗
● Flathead screwdriver
● Lithium battery CR2016 (vehicles without a smart entry & start sys-
tem), or CR2032 (vehicles with a smart entry & start system)
XVehicles without a smart entry & start system
Lift the cover.
Insert the screwdriver in the slot
and push down.
To prevent damage to the key,
cover the tip of the screwdriver with
a tape.
Remove the cover.
Insert the screwdriver in the bottom
of the key and push down.
∗: If equipped
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2

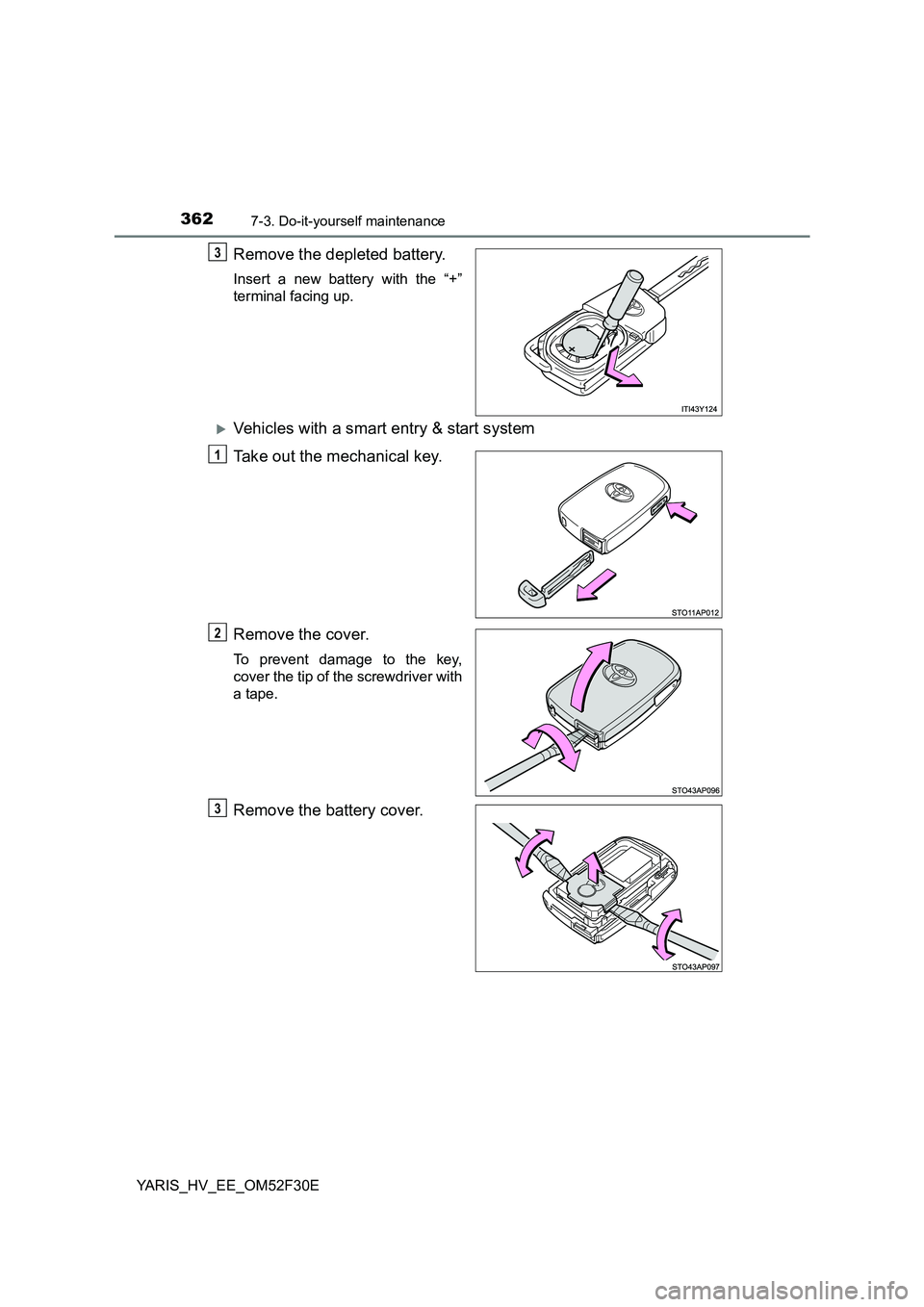

3627-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52F30E
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
XVehicles with a smart entry & start system
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a tape.
Remove the battery cover.
3
1
2
3

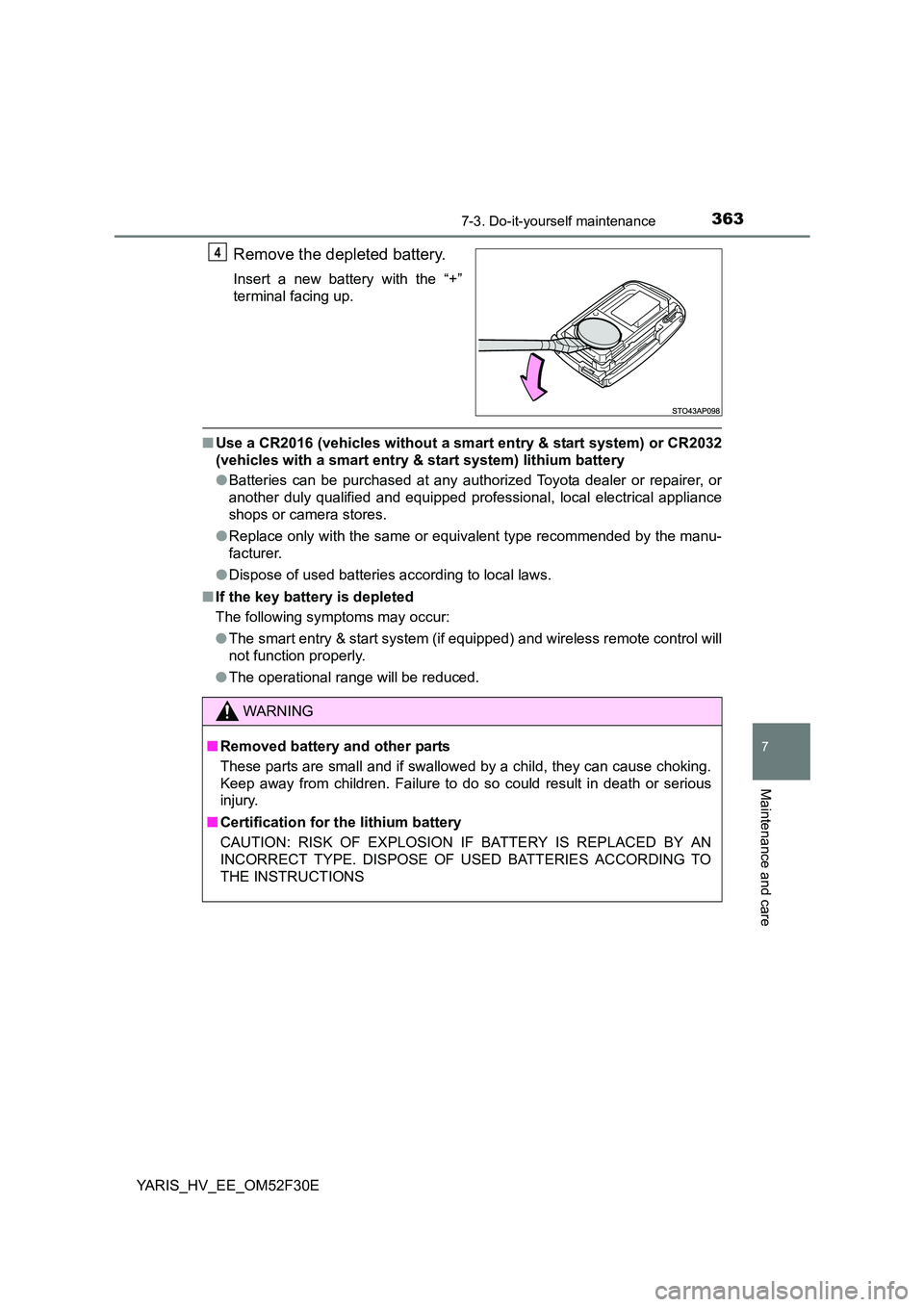

3637-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52F30E
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
■ Use a CR2016 (vehicles without a smart entry & start system) or CR2032
(vehicles with a smart entry & start system) lithium battery
● Batteries can be purchased at any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur:
● The smart entry & start system (if equipped) and wireless remote control will
not function properly.
● The operational range will be reduced.
4
WARNING
■ Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
■ Certification for the lithium battery
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO
THE INSTRUCTIONS

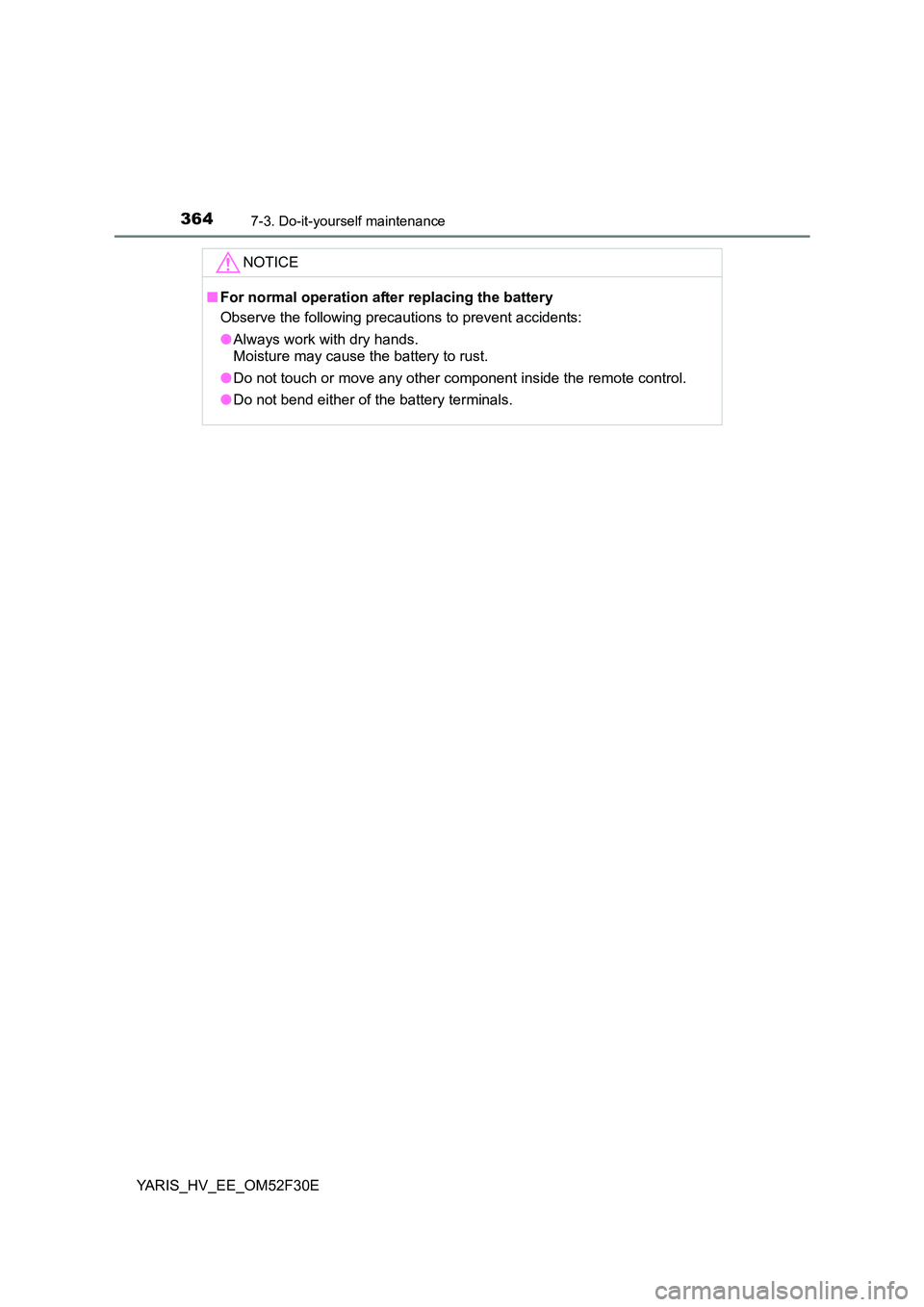

3647-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52F30E
NOTICE
■ For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

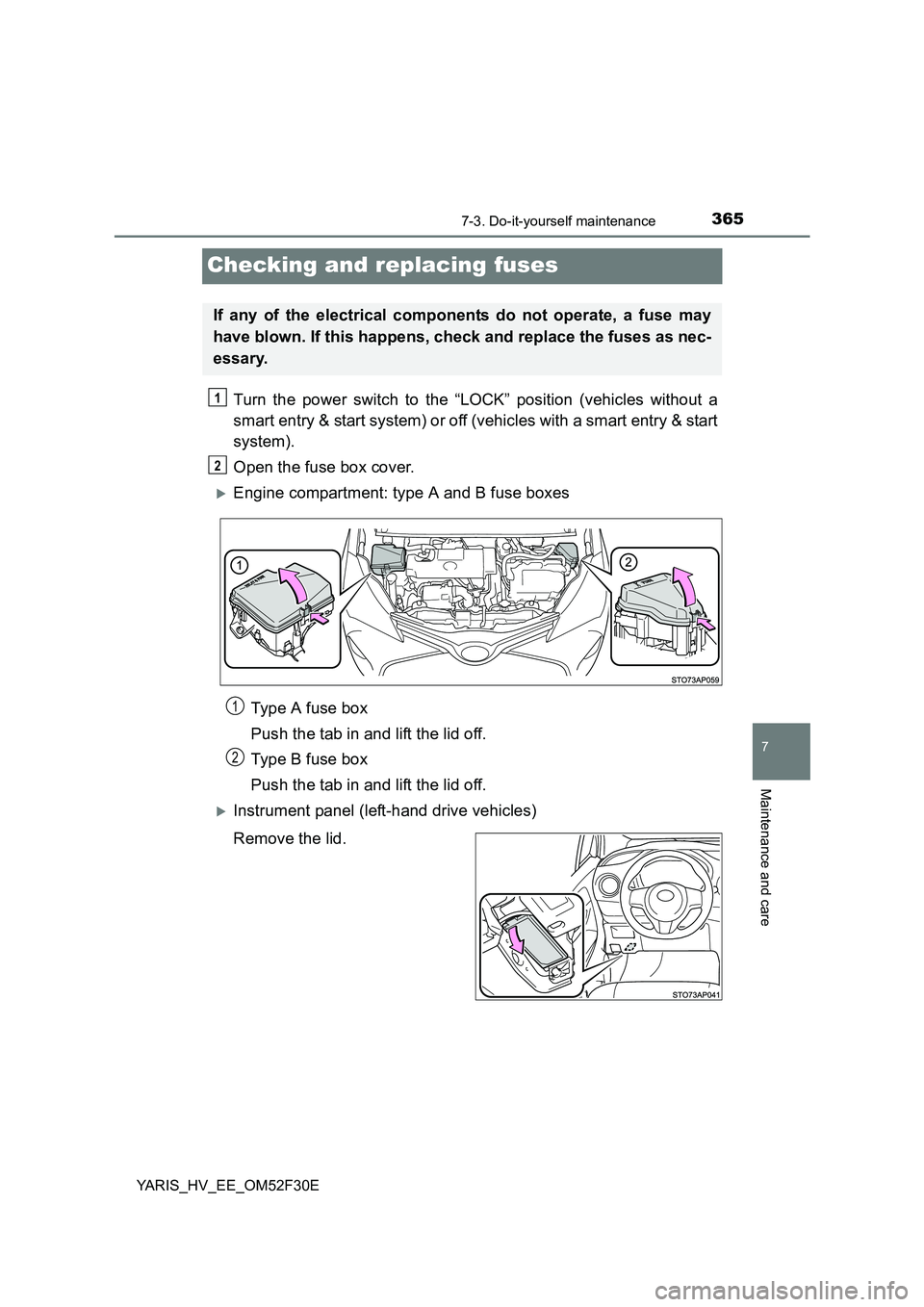

3657-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52F30E
Checking and replacing fuses
Turn the power switch to the “LOCK” position (vehicles without a
smart entry & start system) or off (vehicles with a smart entry & start
system).
Open the fuse box cover.
XEngine compartment: type A and B fuse boxes
Type A fuse box
Push the tab in and lift the lid off.
Type B fuse box
Push the tab in and lift the lid off.
XInstrument panel (left-hand drive vehicles)
Remove the lid.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
1
2

3667-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52F30E

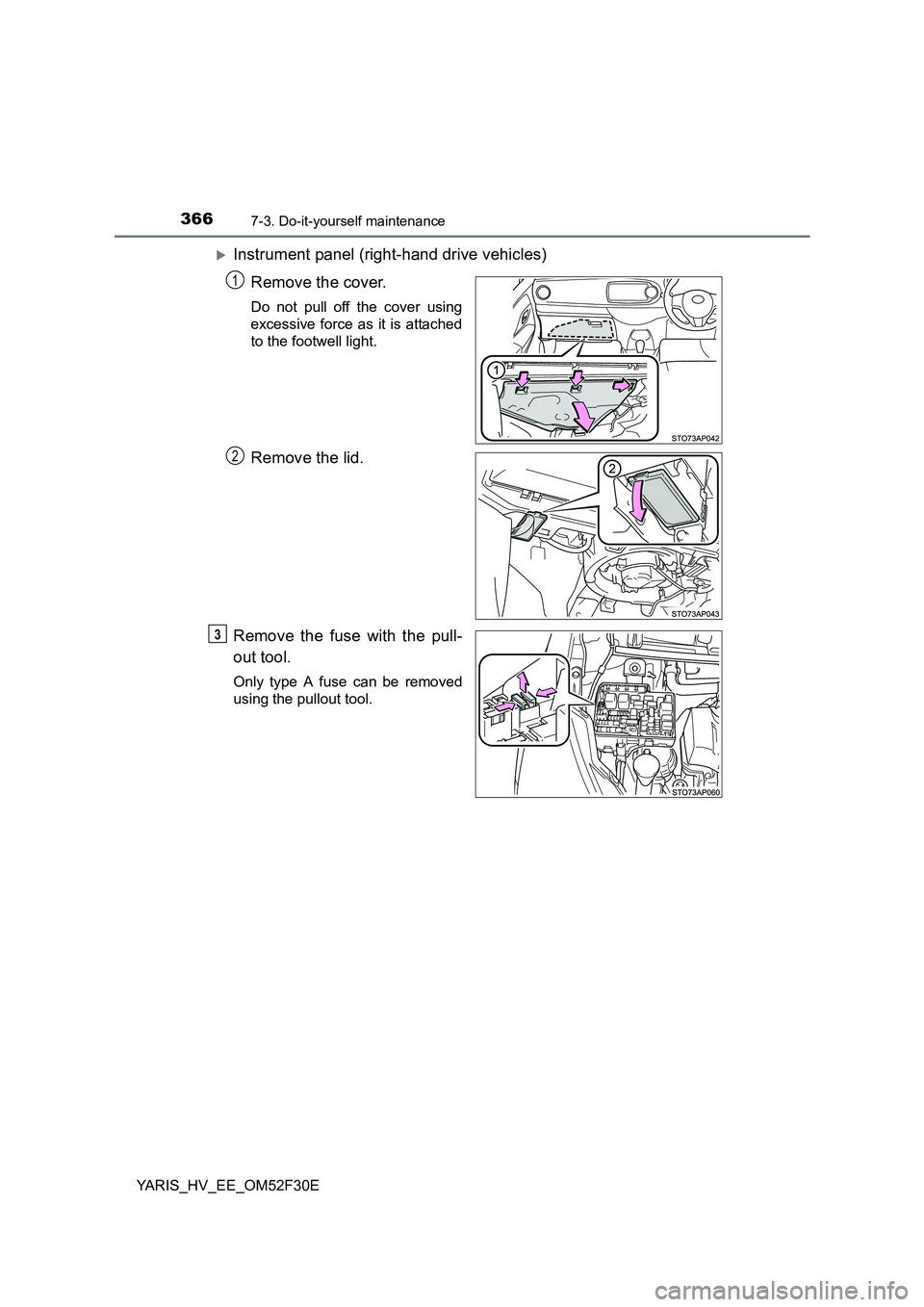

XInstrument panel (right-hand drive vehicles)
Remove the cover.
Do not pull off the cover using
excessive force as it is attached
to the footwell light.
Remove the lid.
Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.
1
2
3

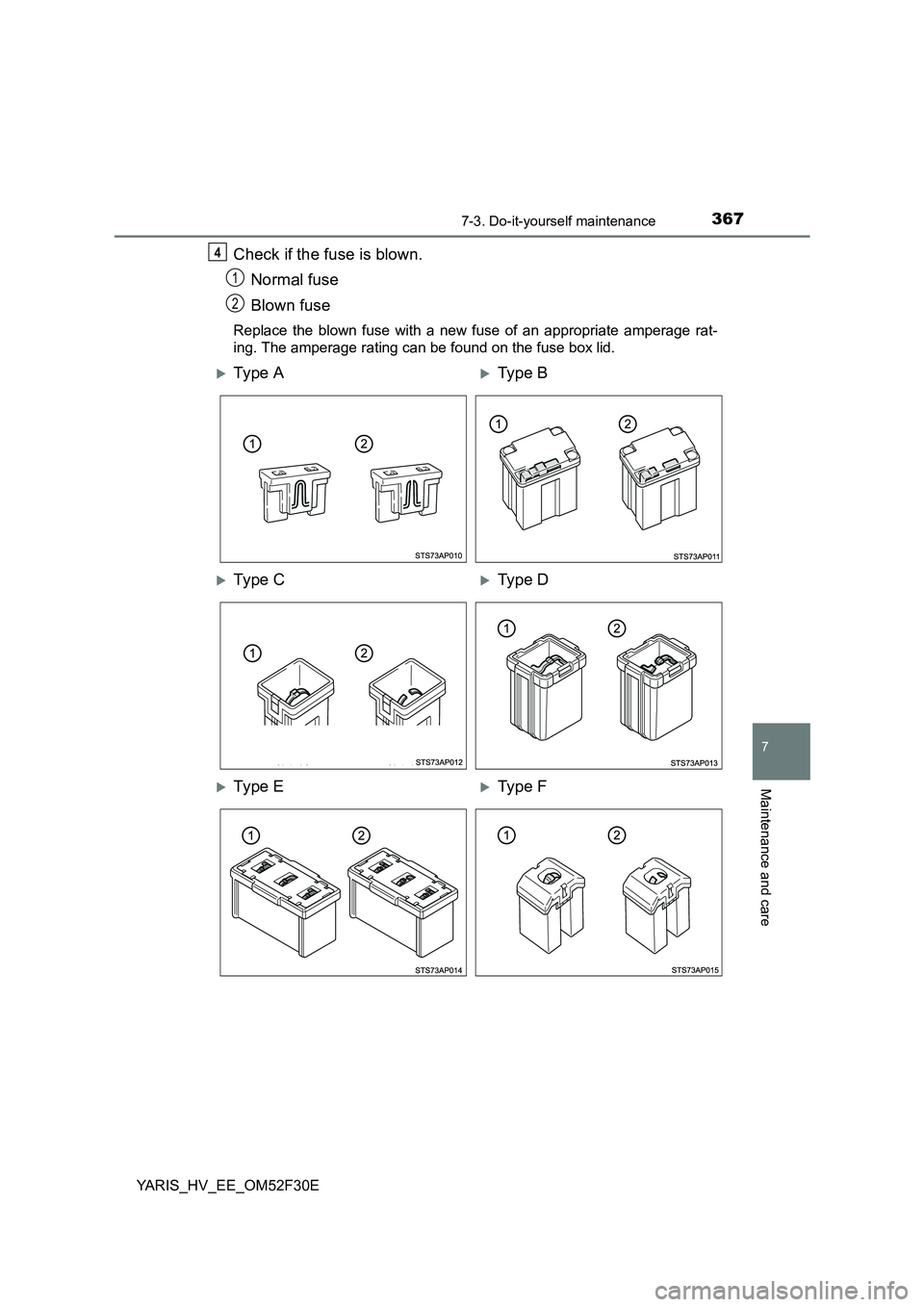

3677-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52F30E
Check if the fuse is blown.
Normal fuse
Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
4
1
2
XTy pe AXType B
XTy pe CXType D
XTy pe EXType F

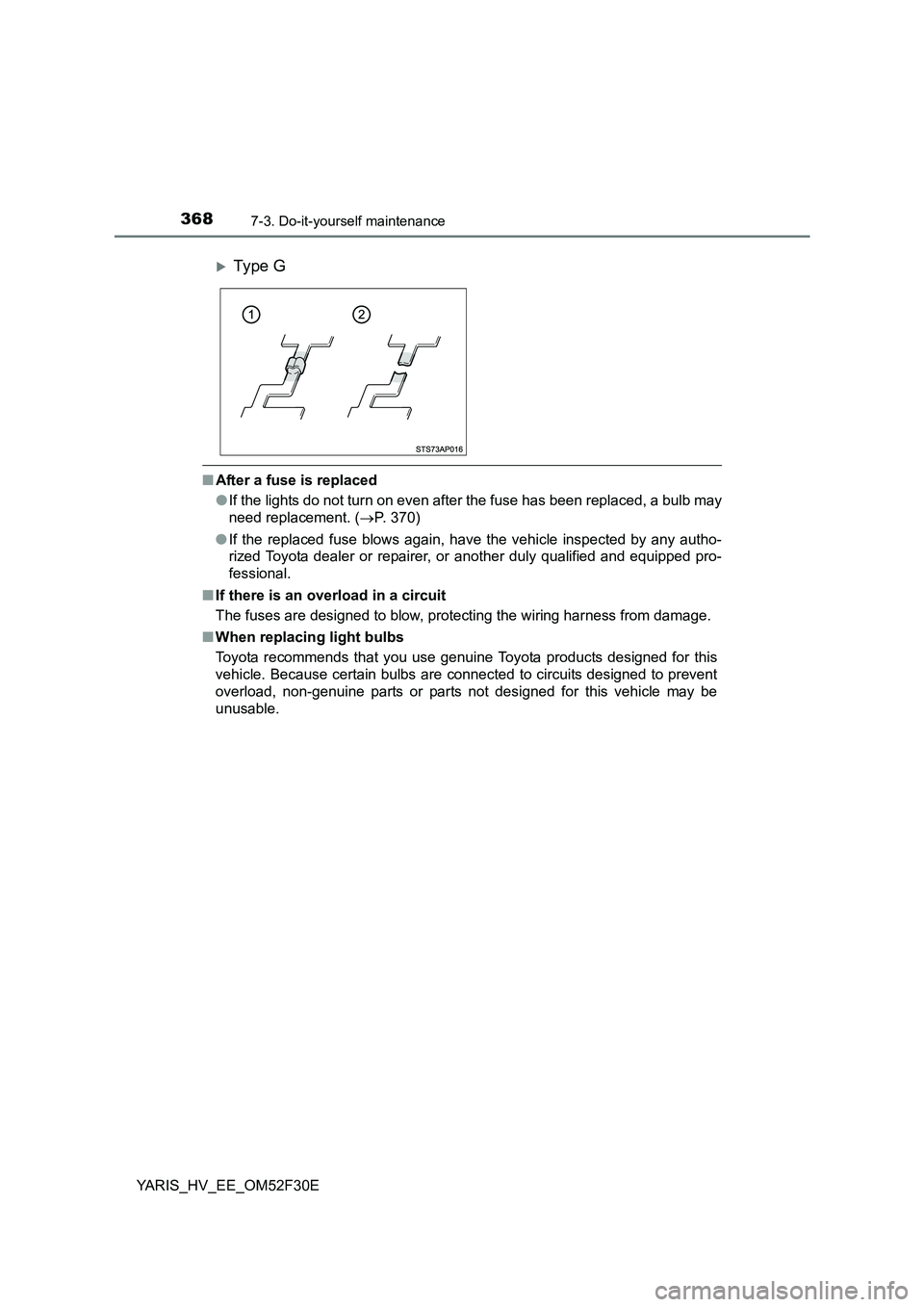

3687-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52F30E
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( →P. 370)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
XTy pe G

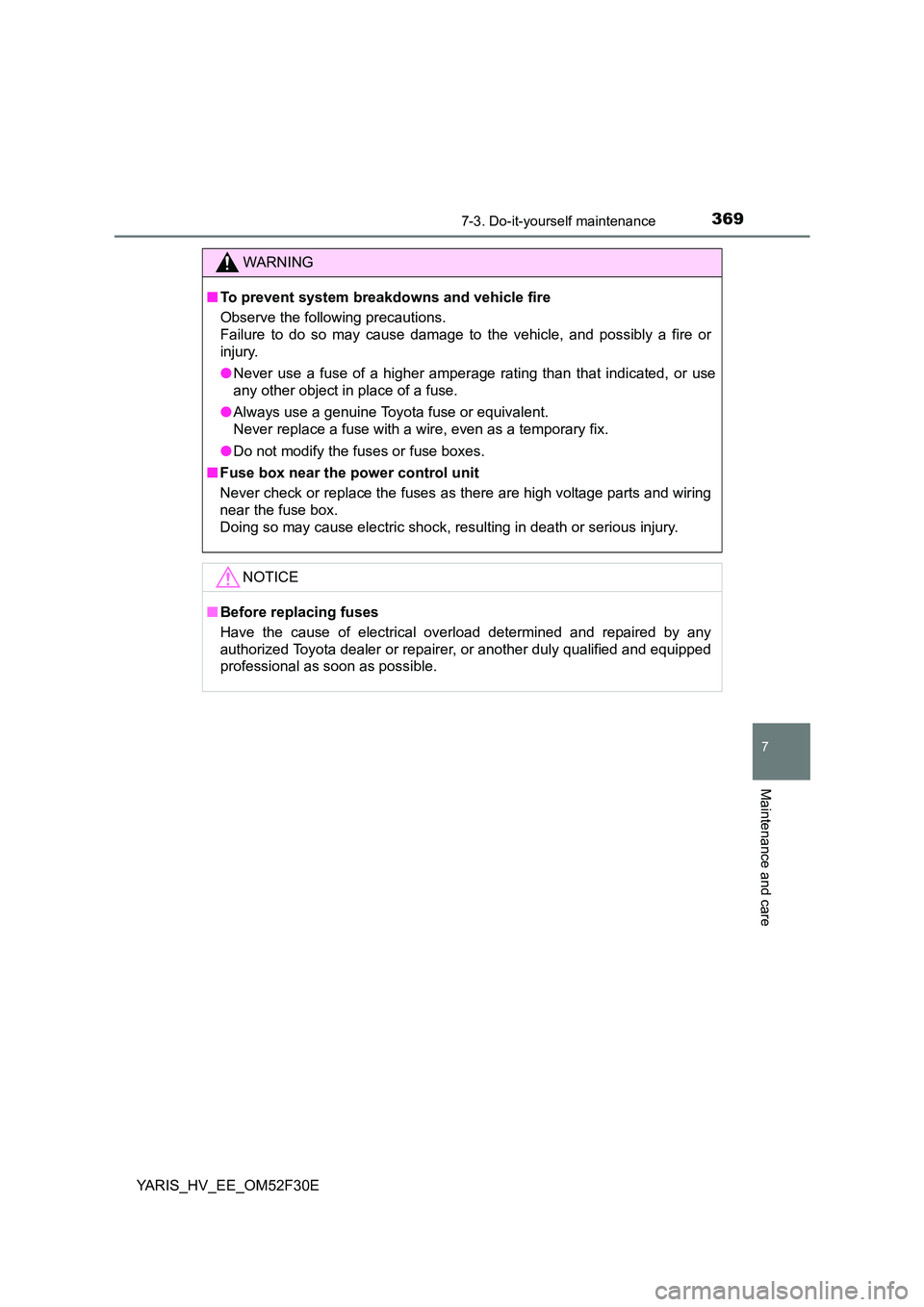

3697-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_EE_OM52F30E
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
■ Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
■ Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional as soon as possible.

3707-3. Do-it-yourself maintenance
YARIS_HV_EE_OM52F30E

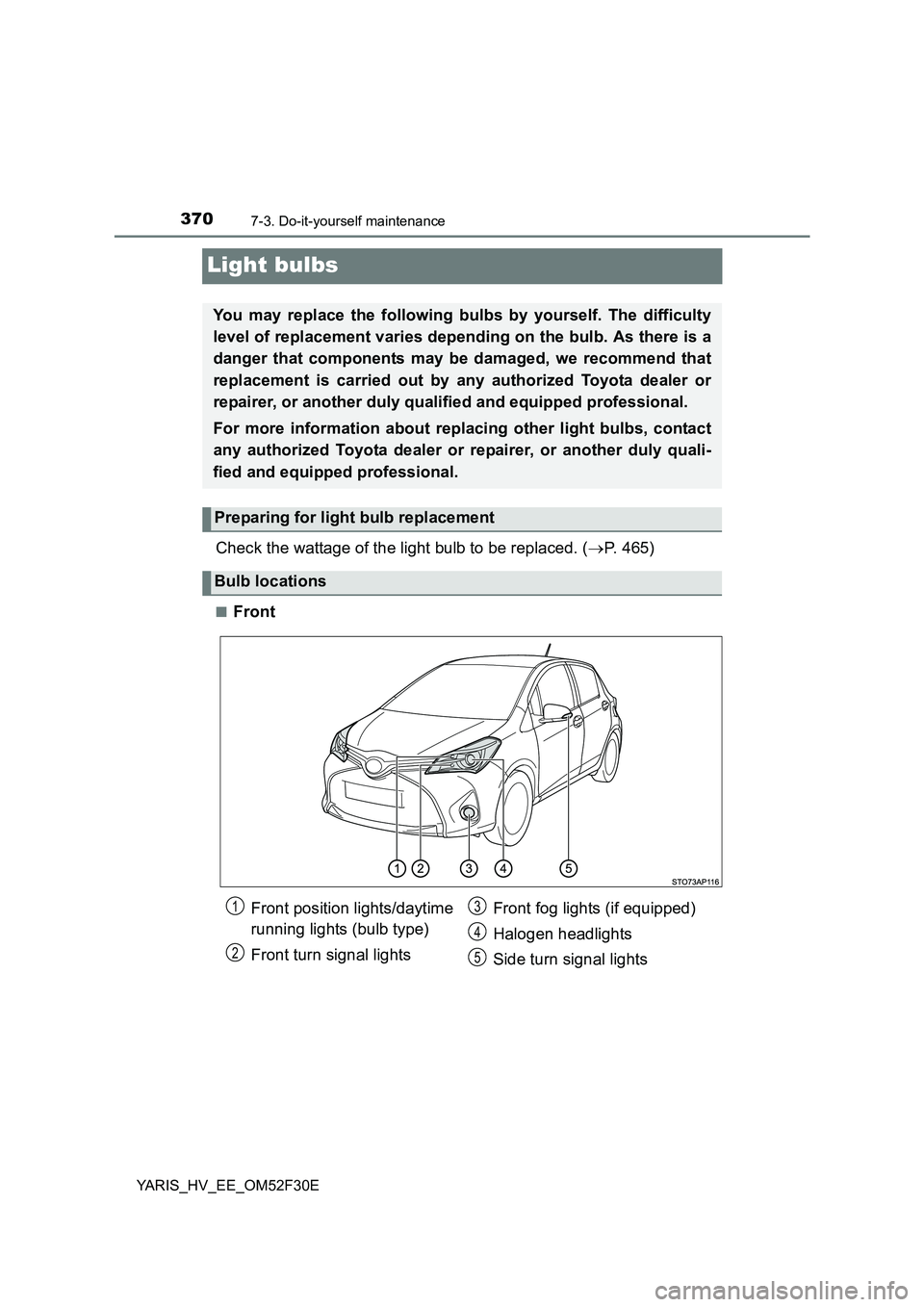

Light bulbs
Check the wattage of the light bulb to be replaced. (→P. 465)
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
For more information about replacing other light bulbs, contact
any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
Preparing for light bulb replacement
Bulb locations
Front position lights/daytime
running lights (bulb type)
Front turn signal lights
Front fog lights (if equipped)
Halogen headlights
Side turn signal lights
1
2
3
4
5
