TOYOTA YARIS HYBRID 2016 Owners Manual

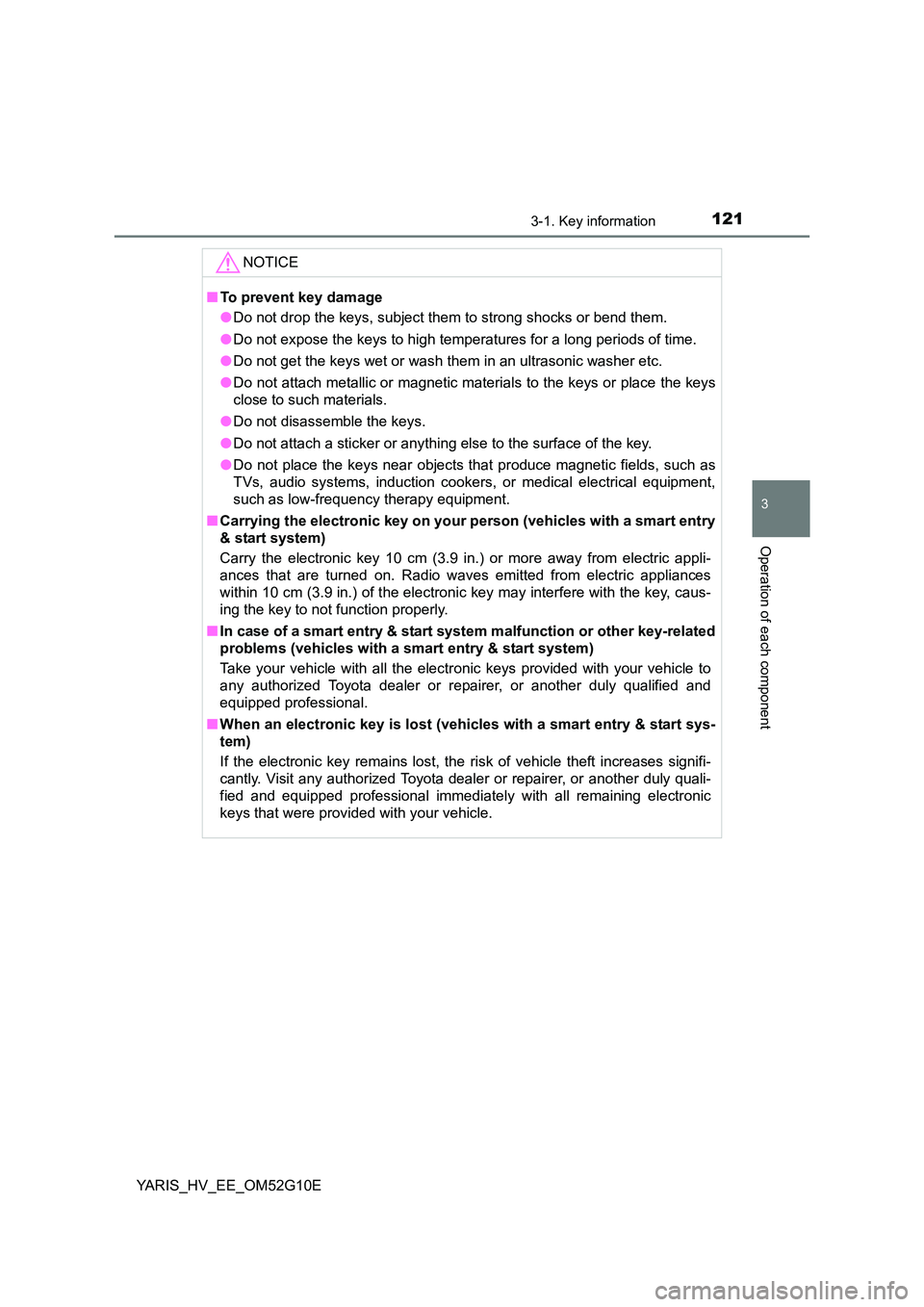

1213-1. Key information
3
Operation of each component
YARIS_HV_EE_OM52G10E
NOTICE
■To prevent key damage
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for a long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems, induction cookers, or medical electrical equipment,
such as low-frequency therapy equipment.
■ Carrying the electronic key on your person (vehicles with a smart entry
& start system)
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio wave s emitted from electric appliances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart entry & start system malfunction or other key-related
problems (vehicles with a smart entry & start system)
Take your vehicle with all the electronic keys provided with your vehicle to
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ When an electronic key is lost (vehicles with a smart entry & start sys-
tem)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately with all remaining electronic
keys that were provided with your vehicle.

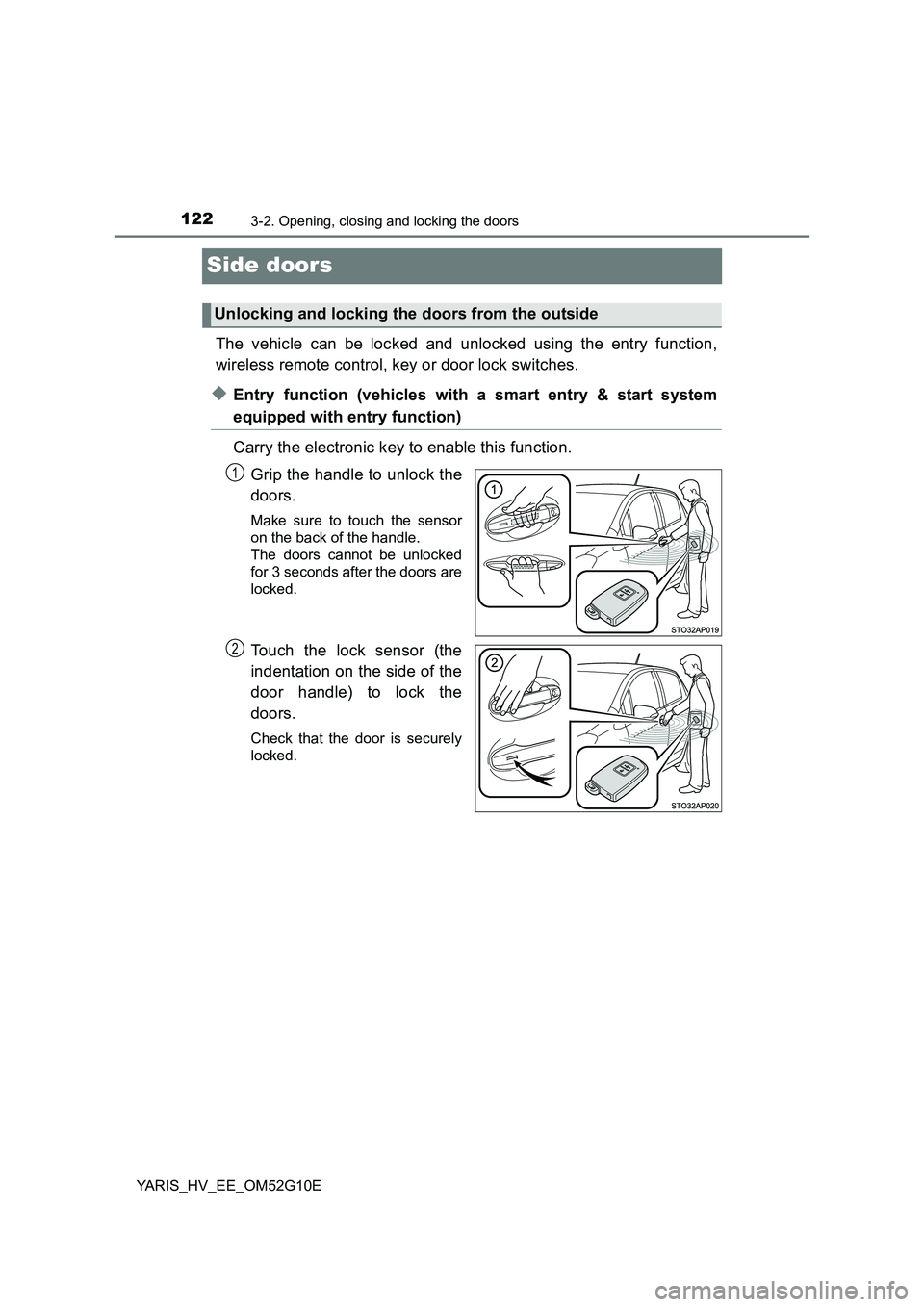

1223-2. Opening, closing and locking the doors
YARIS_HV_EE_OM52G10E
Side doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control, key or door lock switches.
◆Entry function (vehicles with a smart entry & start system
equipped with entry function)
Carry the electronic key to enable this function.
Grip the handle to unlock the
doors.
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Touch the lock sensor (the
indentation on the side of the
door handle) to lock the
doors.
Check that the door is securely
locked.
Unlocking and locking the doors from the outside
1
2

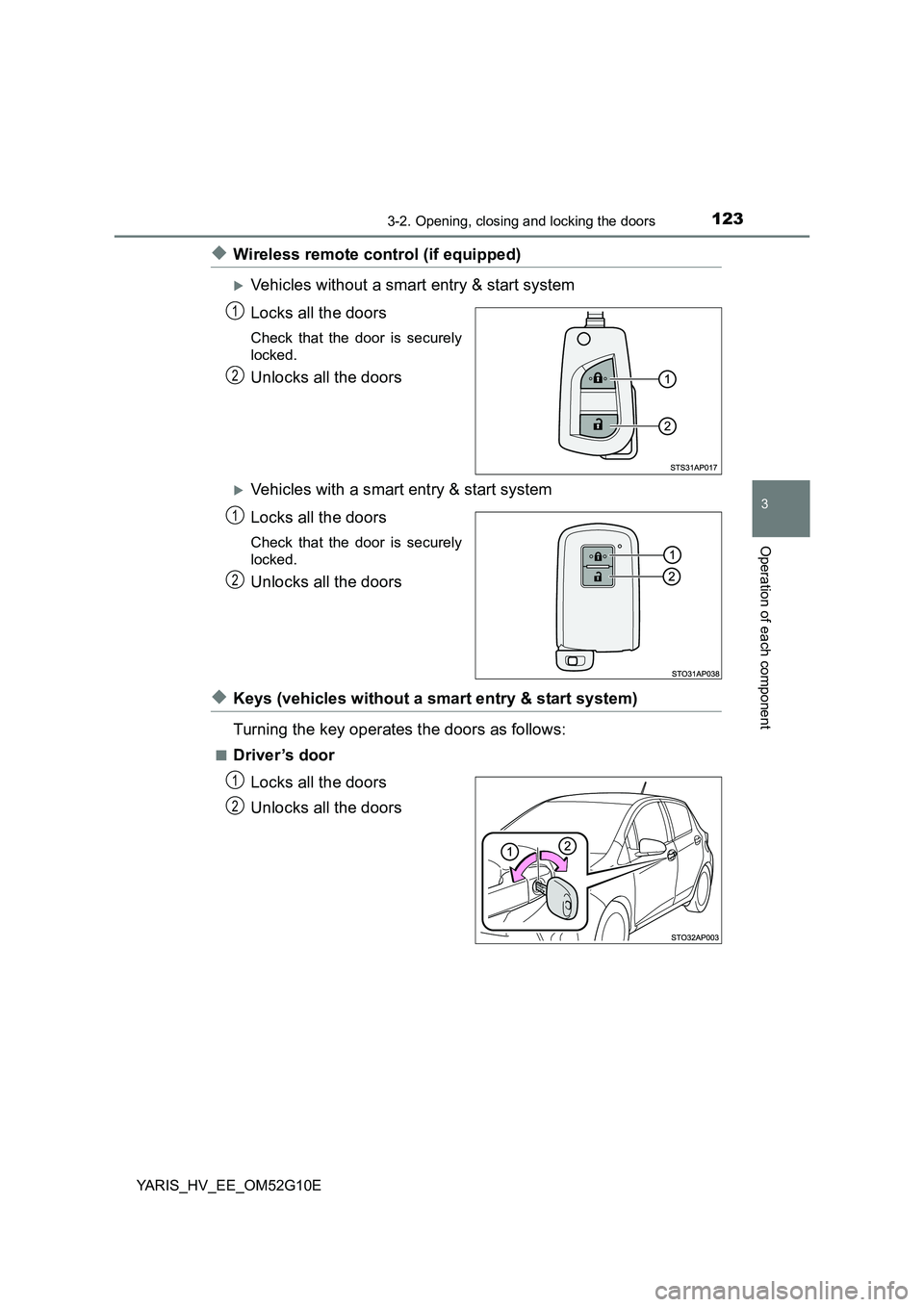

1233-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_HV_EE_OM52G10E
◆Wireless remote control (if equipped)
Vehicles without a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Vehicles with a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
◆Keys (vehicles without a smart entry & start system)
Turning the key operates the doors as follows:
■Driver ’s door
Locks all the doors
Unlocks all the doors
1
2
1
2
1
2

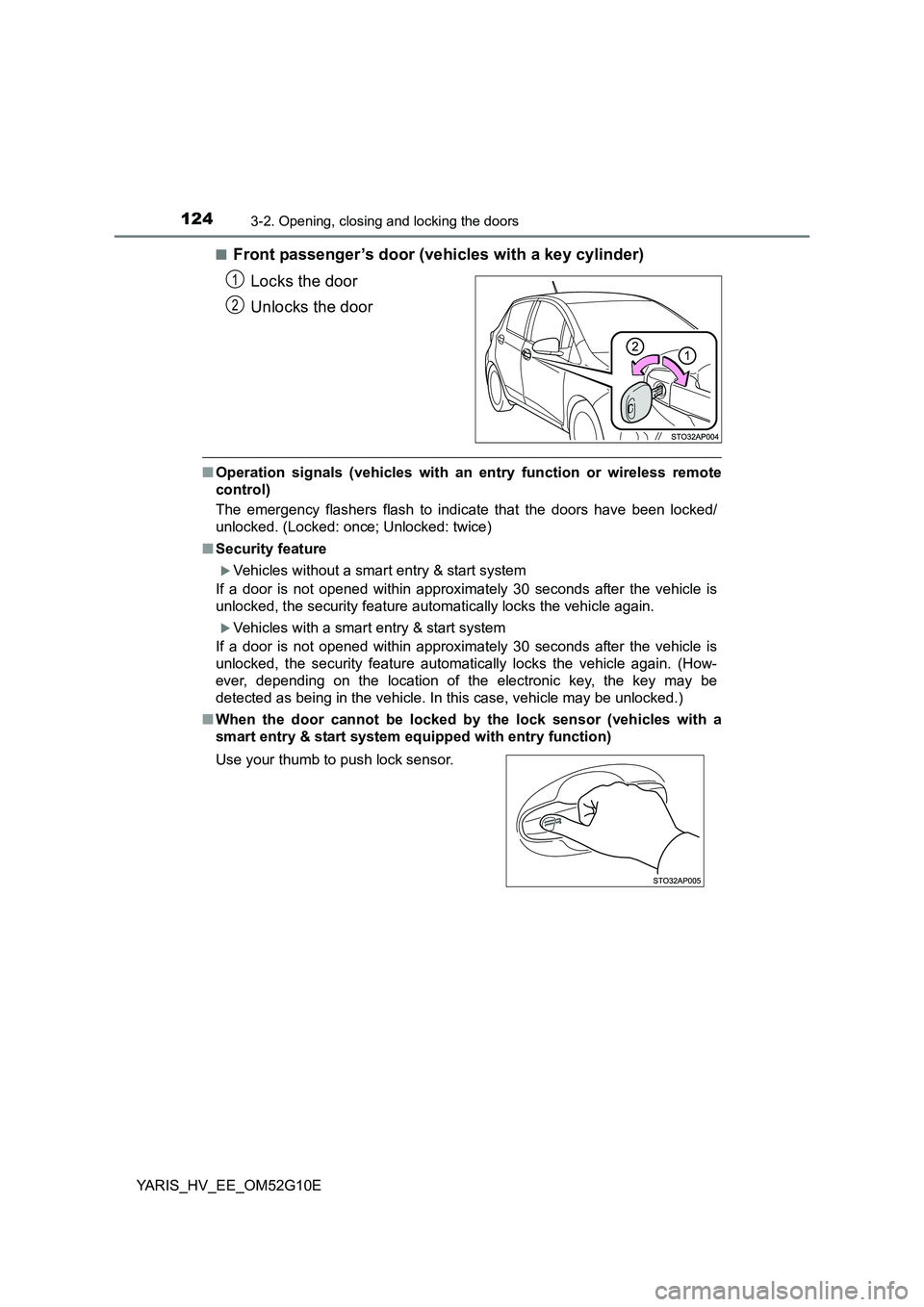

1243-2. Opening, closing and locking the doors
YARIS_HV_EE_OM52G10E
■Front passenger ’s door (vehicles with a key cylinder)
Locks the door
Unlocks the door
■ Operation signals (vehicles with an entry function or wireless remote
control)
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: once; Unlocked: twice)
■ Security feature
Vehicles without a smart entry & start system
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
Vehicles with a smart entry & start system
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again. (How-
ever, depending on the location of the electronic key, the key may be
detected as being in the vehicle. In this case, vehicle may be unlocked.)
■ When the door cannot be locked by the lock sensor (vehicles with a
smart entry & start system equipped with entry function)
1
2
Use your thumb to push lock sensor.

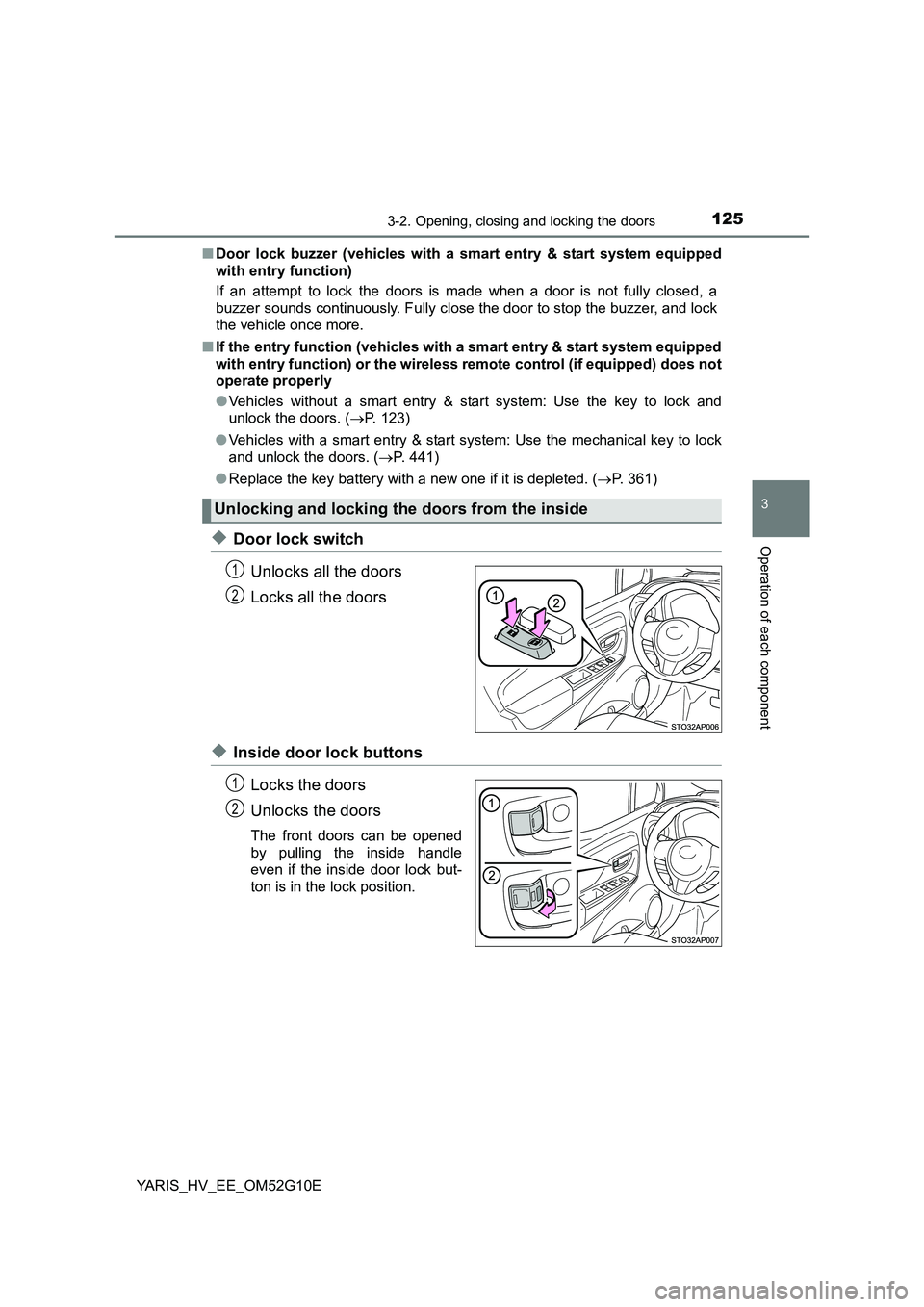

1253-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_HV_EE_OM52G10E
■ Door lock buzzer (vehicles with a smart entry & start system equipped
with entry function)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.
■ If the entry function (vehicles with a smart entry & start system equipped
with entry function) or the wireless remote control (if equipped) does not
operate properly
● Vehicles without a smart entry & start system: Use the key to lock and
unlock the doors. ( P. 123)
● Vehicles with a smart entry & start system: Use the mechanical key to lock
and unlock the doors. ( P. 441)
● Replace the key battery with a new one if it is depleted. (P. 361)
◆Door lock switch
Unlocks all the doors
Locks all the doors
◆Inside door lock buttons
Locks the doors
Unlocks the doors
The front doors can be opened
by pulling the inside handle
even if the inside door lock but-
ton is in the lock position.
Unlocking and locking the doors from the inside
1
2
1
2

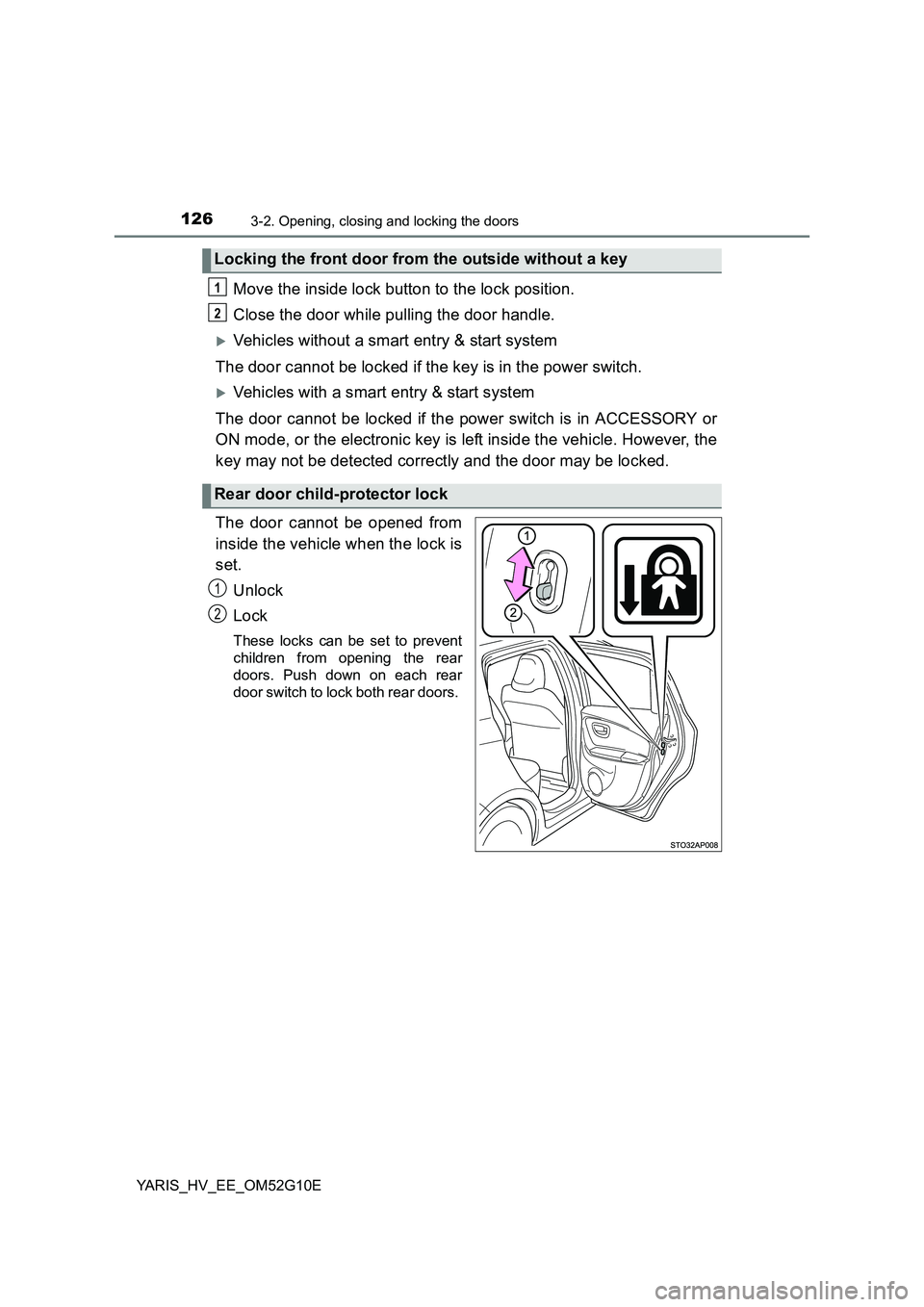

1263-2. Opening, closing and locking the doors
YARIS_HV_EE_OM52G10E
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
Vehicles without a smart entry & start system
The door cannot be locked if the key is in the power switch.
Vehicles with a smart entry & start system
The door cannot be locked if the power switch is in ACCESSORY or
ON mode, or the electronic key is left inside the vehicle. However, the
key may not be detected correctly and the door may be locked.
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
Locking the front door from the outside without a key
Rear door child-protector lock
1
2
1
2

1273-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_HV_EE_OM52G10E
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident, how-
ever, the system may not operate.
■ Using the mechanical key (vehicles with a smart entry & start system)
The doors can also be locked and unlocked with the mechanical key.
( P. 441)
■ Conditions affecting the operation of the wireless remote control or
smart entry & start system
 P. 113, 137
■ If the smart entry & start system has been deactivated in a customized
setting (vehicles with a smart entry & start system)
Use the wireless remote control or mechanical key. ( P. 123, 441)
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Always use a seat belt.
● Ensure that all the doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the front doors, as the doors may be opened
even if the inside lock buttons are in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seats.

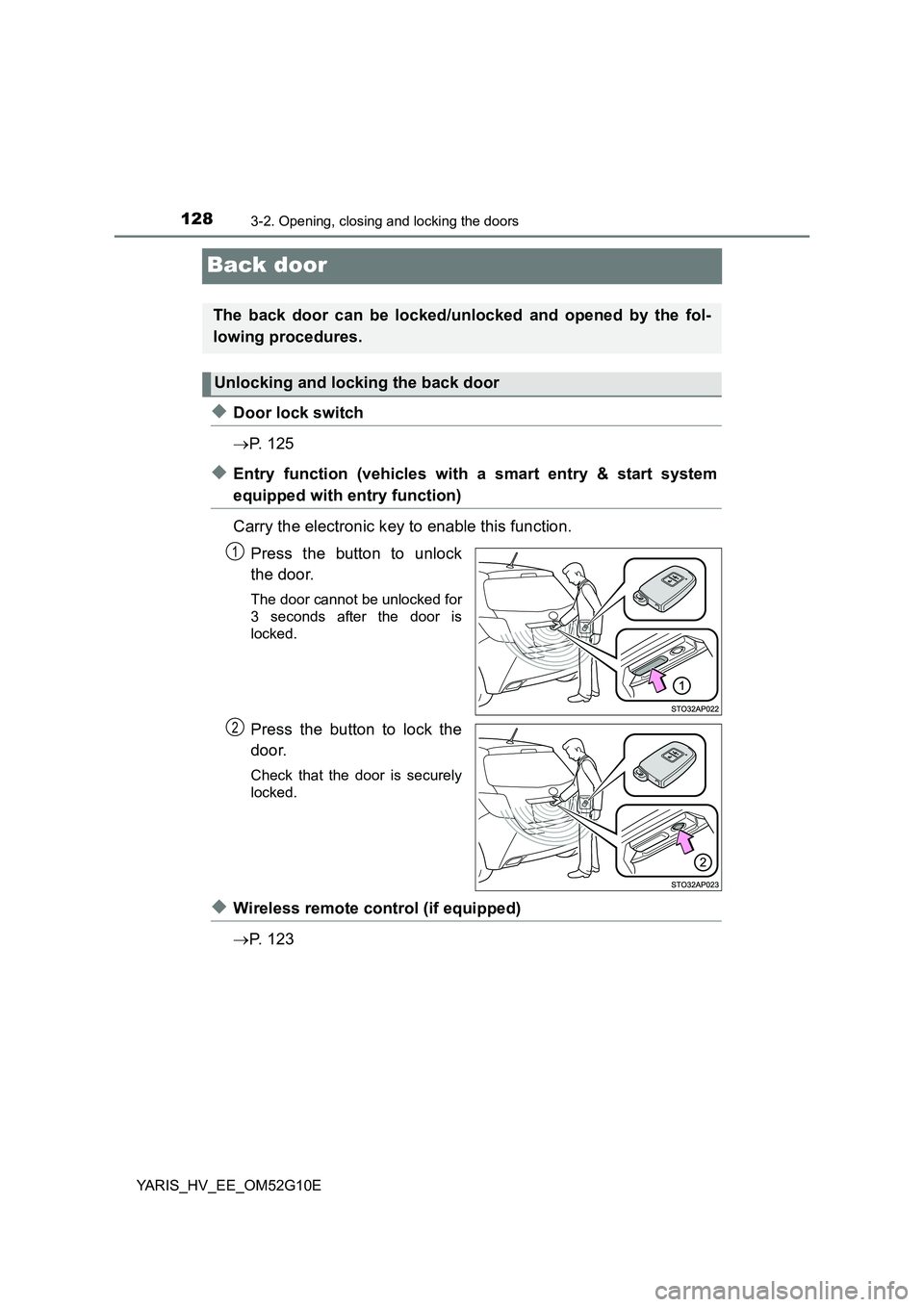

1283-2. Opening, closing and locking the doors
YARIS_HV_EE_OM52G10E
Back door
◆Door lock switch
 P. 1 2 5
◆Entry function (vehicles with a smart entry & start system
equipped with entry function)
Carry the electronic key to enable this function.
Press the button to unlock
the door.
The door cannot be unlocked for
3 seconds after the door is
locked.
Press the button to lock the
door.
Check that the door is securely
locked.
◆Wireless remote control (if equipped)
 P. 1 2 3
The back door can be locked/unlocked and opened by the fol-
lowing procedures.
Unlocking and locking the back door
1
2

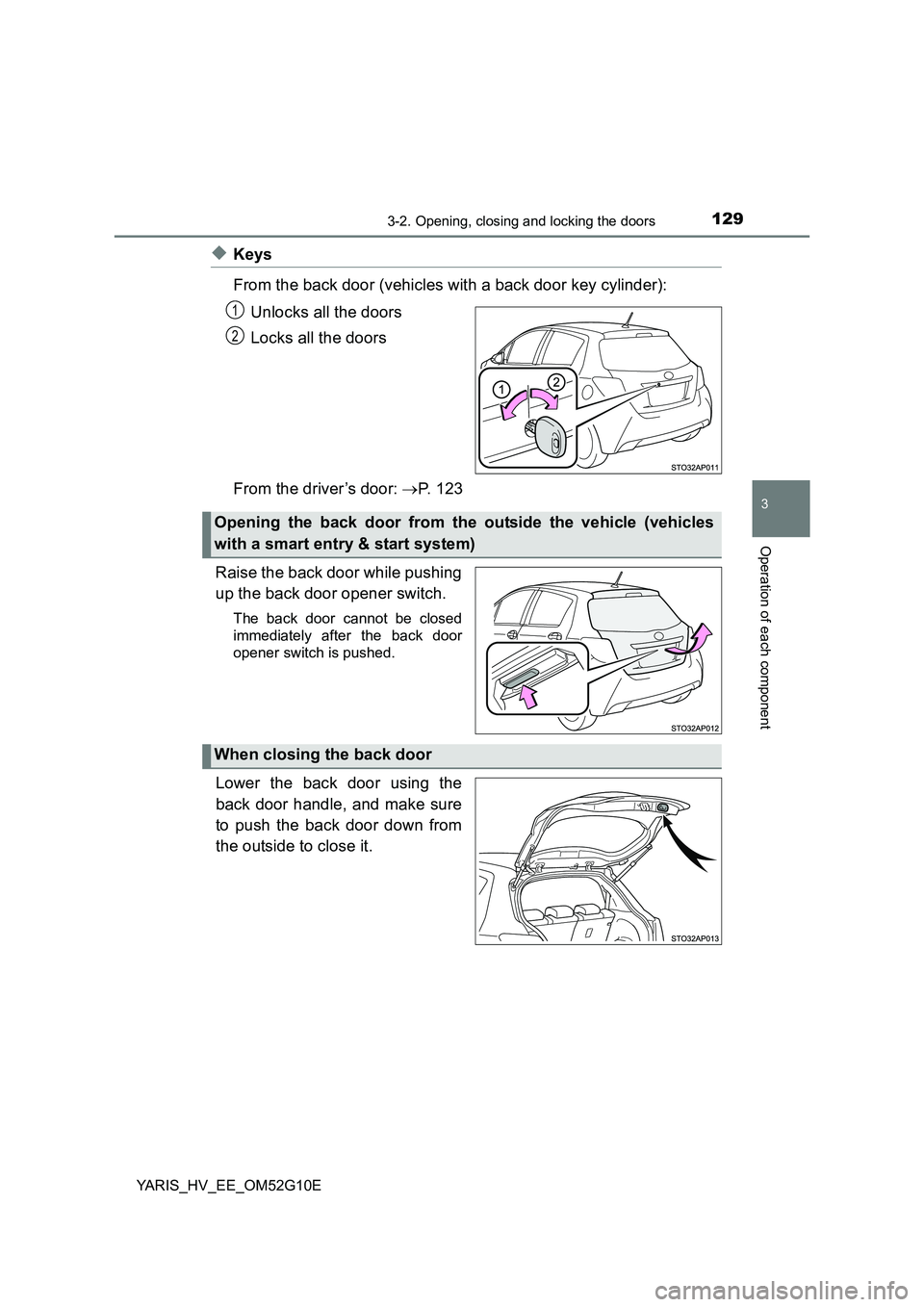

1293-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_HV_EE_OM52G10E
◆Keys
From the back door (vehicles with a back door key cylinder):
Unlocks all the doors
Locks all the doors
From the driver’s door: P. 123
Raise the back door while pushing
up the back door opener switch.
The back door cannot be closed
immediately after the back door
opener switch is pushed.
Lower the back door using the
back door handle, and make sure
to push the back door down from
the outside to close it.
1
2
Opening the back door from the outside the vehicle (vehicles
with a smart entry & start system)
When closing the back door

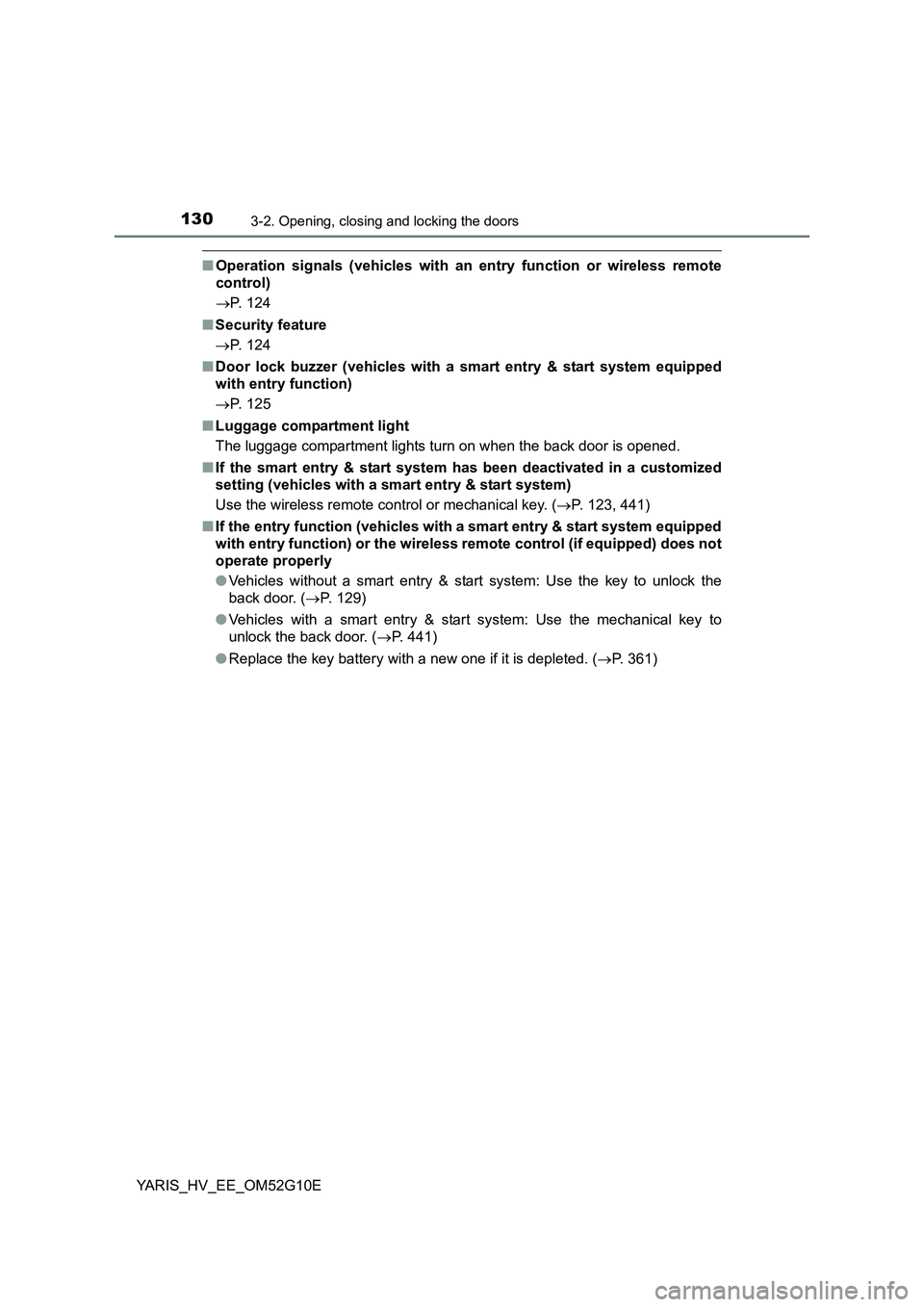

1303-2. Opening, closing and locking the doors
YARIS_HV_EE_OM52G10E
■Operation signals (vehicles with an entry function or wireless remote
control)
 P. 124
■ Security feature
 P. 124
■ Door lock buzzer (vehicles with a smart entry & start system equipped
with entry function)
 P. 125
■ Luggage compartment light
The luggage compartment lights turn on when the back door is opened.
■ If the smart entry & start system has been deactivated in a customized
setting (vehicles with a smart entry & start system)
Use the wireless remote control or mechanical key. ( P. 123, 441)
■ If the entry function (vehicles with a smart entry & start system equipped
with entry function) or the wireless remote control (if equipped) does not
operate properly
● Vehicles without a smart entry & start system: Use the key to unlock the
back door. ( P. 129)
● Vehicles with a smart entry & start system: Use the mechanical key to
unlock the back door. ( P. 441)
● Replace the key battery with a new one if it is depleted. (P. 361)
