TOYOTA YARIS HYBRID 2016 Owners Manual

91
2Instrument cluster
YARIS_HV_EE_OM52G10E
2. Instrument cluster
Warning lights and
indicators ........................... 92
Gauges and meters ............. 97
Multi-information display .... 100
Energy monitor/
consumption screen ........ 104

922. Instrument cluster
YARIS_HV_EE_OM52G10E

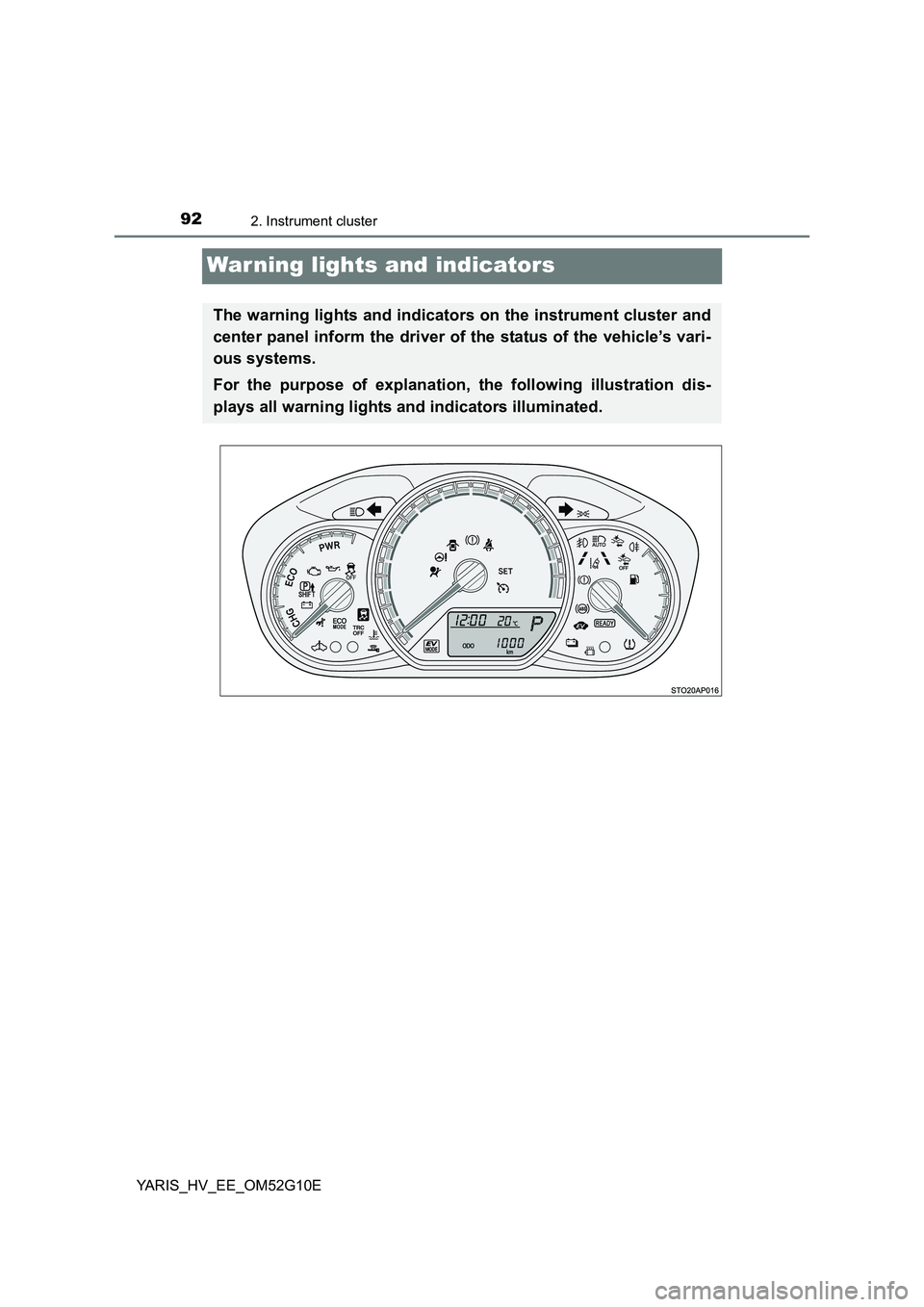

War ning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

932. Instrument cluster
2
Instrument cluster
YARIS_HV_EE_OM52G10E

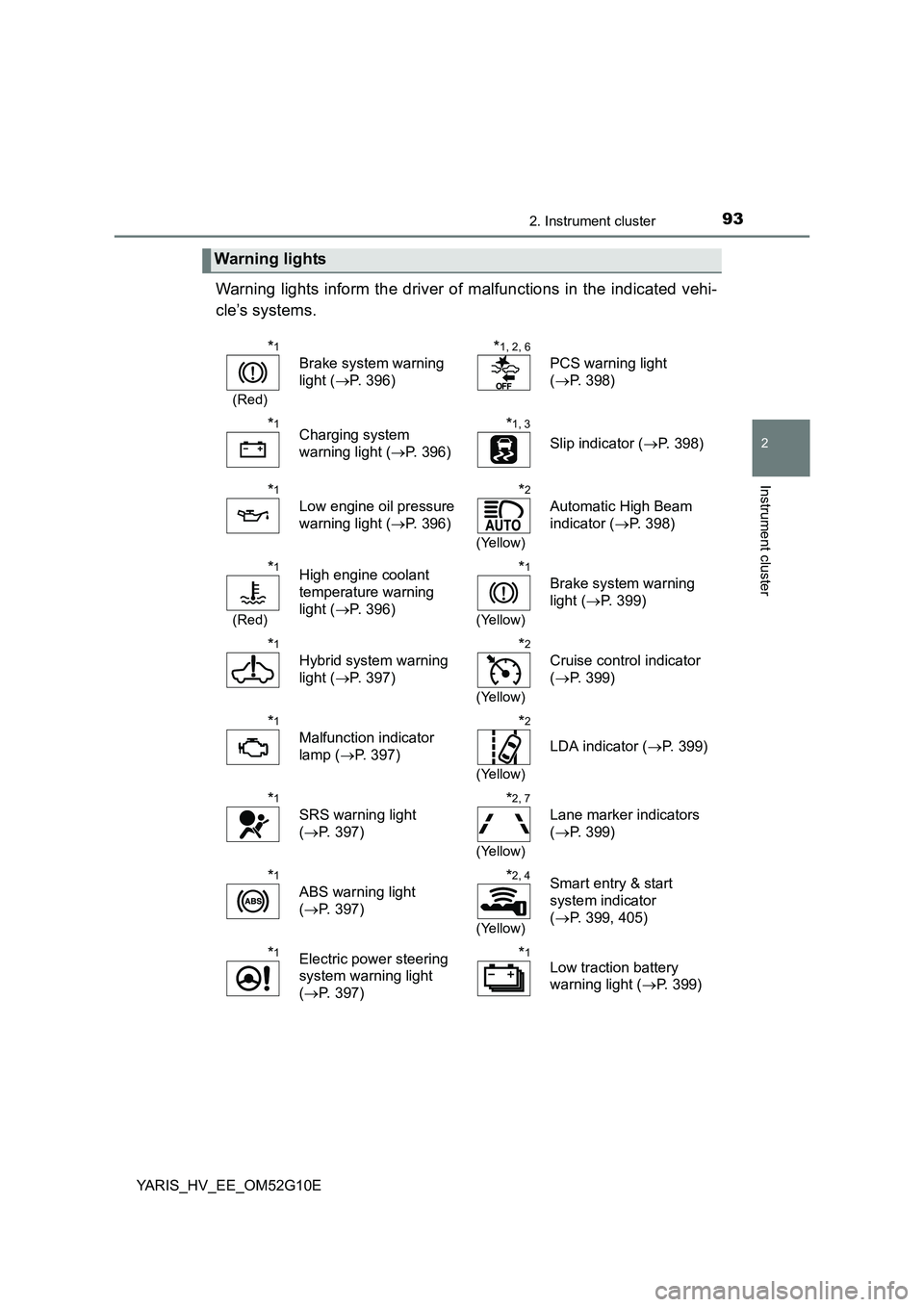

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(Red)
Brake system warning
light ( P. 396)
*1, 2, 6
PCS warning light
( P. 398)
*1Charging system
warning light ( P. 396)
*1, 3
Slip indicator (P. 398)
*1
Low engine oil pressure
warning light ( P. 396)
*2
(Yellow)
Automatic High Beam
indicator ( P. 398)
*1
(Red)
High engine coolant
temperature warning
light ( P. 396)
*1
(Yellow)
Brake system warning
light ( P. 399)
*1
Hybrid system warning
light ( P. 397)
*2
(Yellow)
Cruise control indicator
( P. 399)
*1
Malfunction indicator
lamp ( P. 397)
*2
(Yellow)
LDA indicator (P. 399)
*1
SRS warning light
( P. 397)
*2, 7
(Yellow)
Lane marker indicators
( P. 399)
*1
ABS warning light
( P. 397)
*2, 4
(Yellow)
Smart entry & start
system indicator
( P. 399, 405)
*1Electric power steering
system warning light
( P. 397)
*1
Low traction battery
warning light ( P. 399)

942. Instrument cluster
YARIS_HV_EE_OM52G10E

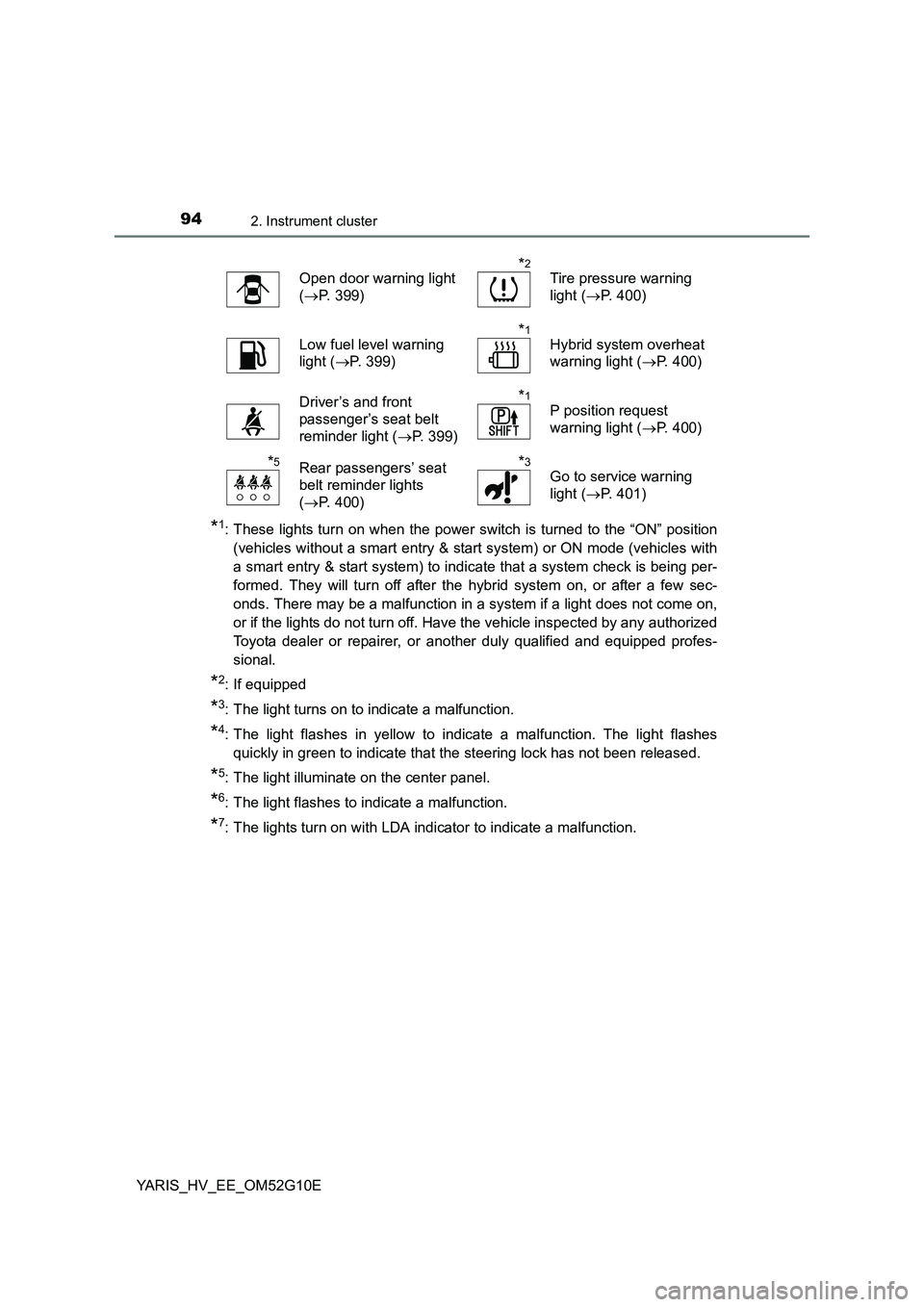

*1: These lights turn on when the power switch is turned to the “ON” position
(vehicles without a smart entry & star t system) or ON mode (vehicles with
a smart entry & start system) to indicate that a system check is being per-
formed. They will turn off after the hybrid system on, or after a few sec-
onds. There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
*2: If equipped
*3: The light turns on to indicate a malfunction.
*4: The light flashes in yellow to indicate a malfunction. The light flashes
quickly in green to indicate that the steering lock has not been released.
*5: The light illuminate on the center panel.
*6: The light flashes to indicate a malfunction.
*7: The lights turn on with LDA indicator to indicate a malfunction.
Open door warning light
( P. 399)
*2
Tire pressure warning
light ( P. 400)
Low fuel level warning
light ( P. 399)
*1
Hybrid system overheat
warning light ( P. 400)
Driver’s and front
passenger’s seat belt
reminder light ( P. 399)
*1
P position request
warning light ( P. 400)
*5Rear passengers’ seat
belt reminder lights
( P. 400)
*3
Go to service warning
light ( P. 401)

952. Instrument cluster
2
Instrument cluster
YARIS_HV_EE_OM52G10E

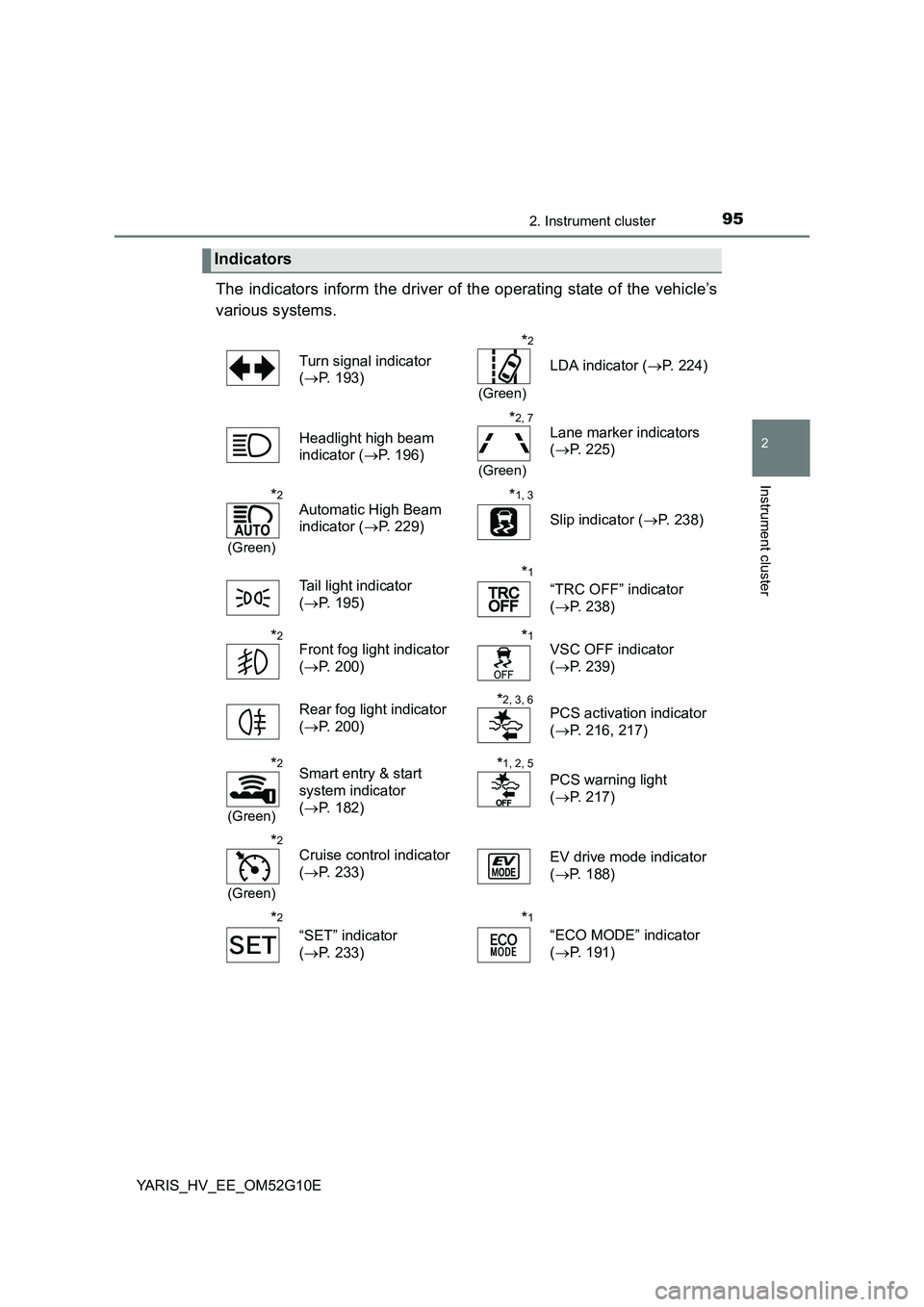

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 193)
*2
(Green)
LDA indicator (P. 224)
Headlight high beam
indicator ( P. 196)
*2, 7
(Green)
Lane marker indicators
( P. 225)
*2
(Green)
Automatic High Beam
indicator ( P. 229)
*1, 3
Slip indicator (P. 238)
Tail light indicator
( P. 195)
*1
“TRC OFF” indicator
( P. 238)
*2Front fog light indicator
( P. 200)
*1VSC OFF indicator
( P. 239)
Rear fog light indicator
( P. 200)
*2, 3, 6PCS activation indicator
( P. 216, 217)
*2
(Green)
Smart entry & start
system indicator
( P. 182)
*1, 2, 5
PCS warning light
( P. 217)
*2
(Green)
Cruise control indicator
( P. 233) EV drive mode indicator
( P. 188)
*2
“SET” indicator
( P. 233)
*1
“ECO MODE” indicator
( P. 191)

962. Instrument cluster
YARIS_HV_EE_OM52G10E

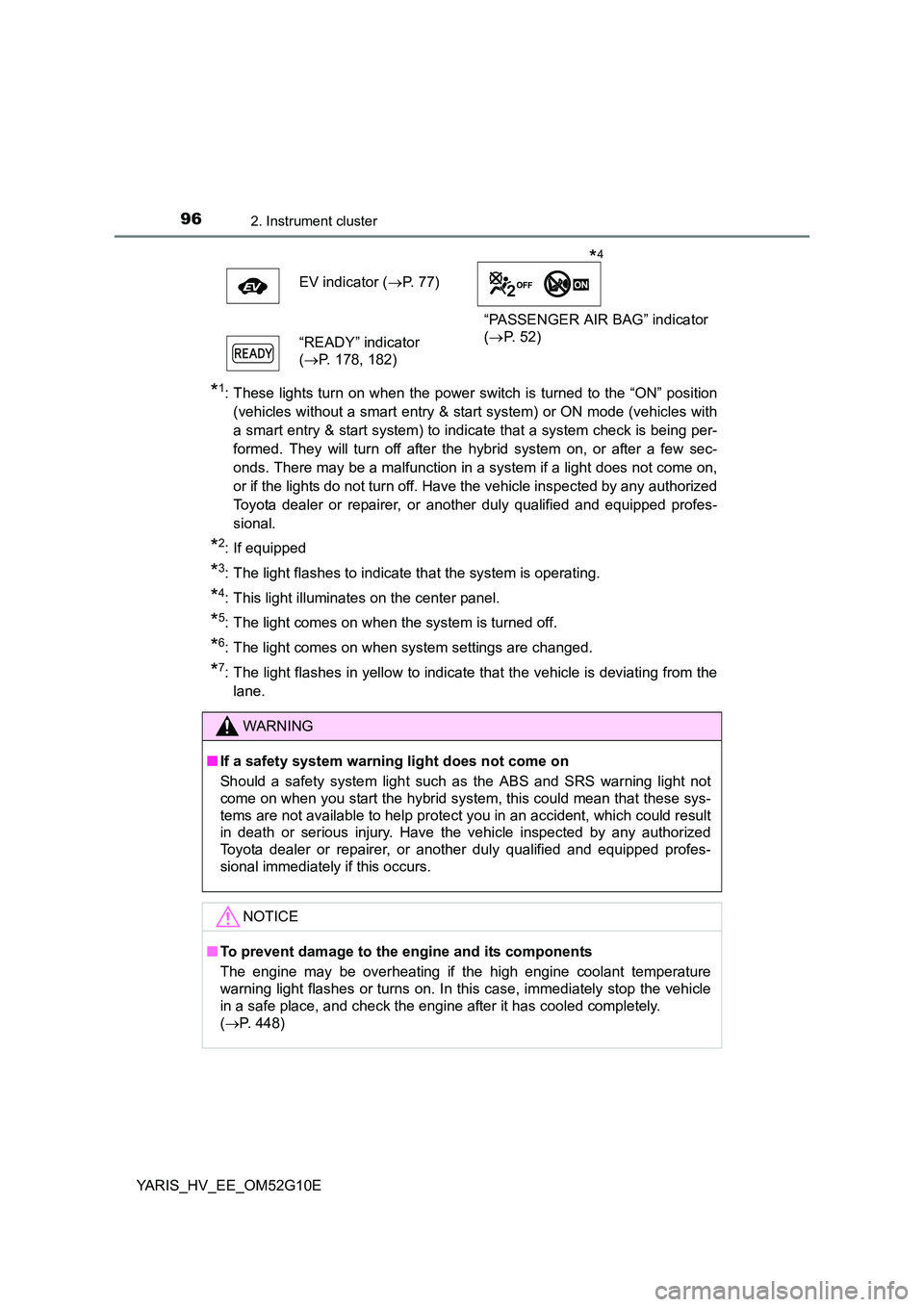

*1: These lights turn on when the power switch is turned to the “ON” position
(vehicles without a smart entry & star t system) or ON mode (vehicles with
a smart entry & start system) to indicate that a system check is being per-
formed. They will turn off after the hybrid system on, or after a few sec-
onds. There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
*2: If equipped
*3: The light flashes to indicate that the system is operating.
*4: This light illuminates on the center panel.
*5: The light comes on when the system is turned off.
*6: The light comes on when system settings are changed.
*7: The light flashes in yellow to indicate that the vehicle is deviating from the
lane.
EV indicator ( P. 77)
“PASSENGER AIR BAG” indicator
( P. 52) “READY” indicator
( P. 178, 182)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately if this occurs.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the high engine coolant temperature
warning light flashes or turns on. In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled completely.
( P. 448)
*4

97
2
2. Instrument cluster
Instrument cluster
YARIS_HV_EE_OM52G10E

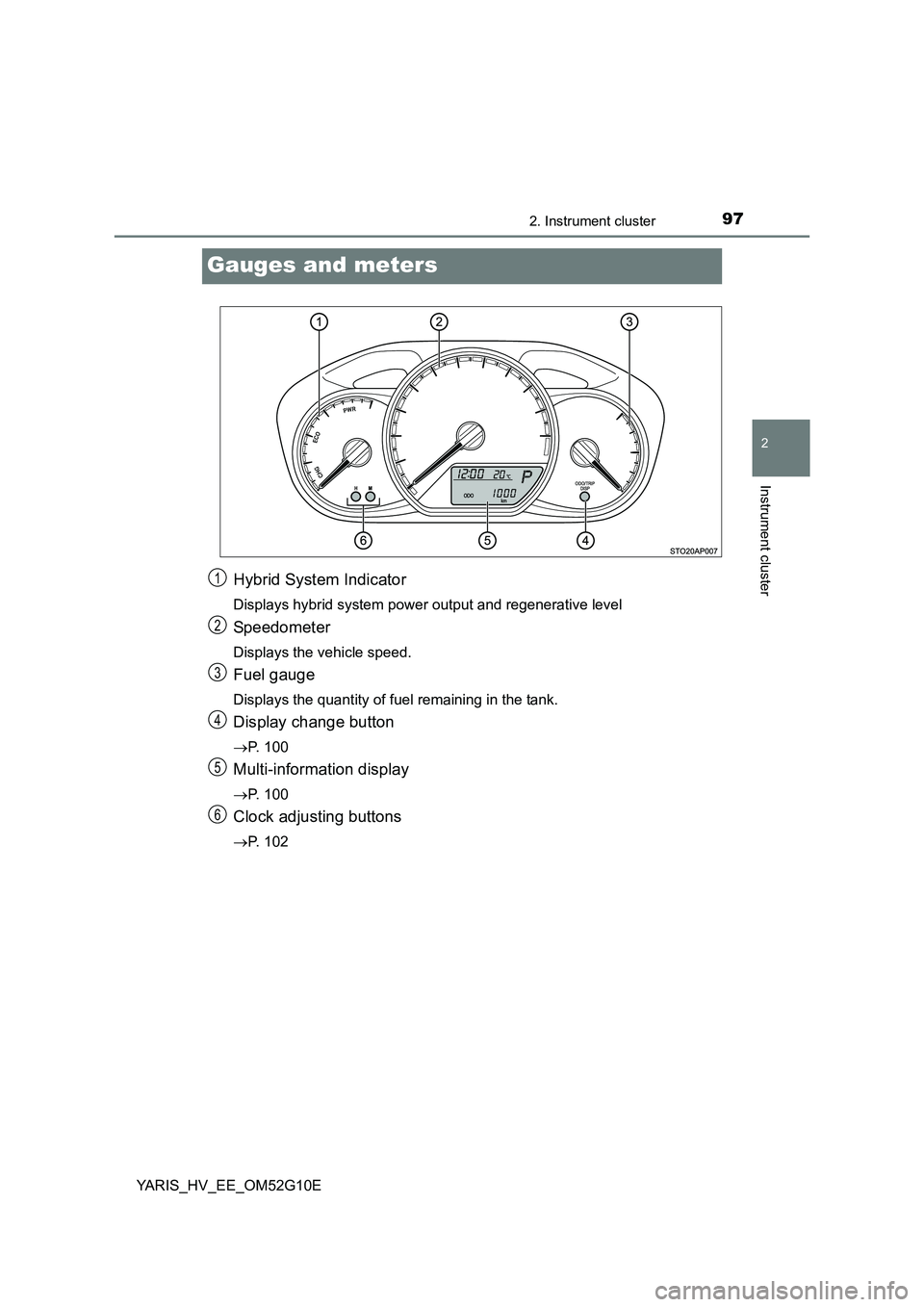

Gauges and meters
Hybrid System Indicator
Displays hybrid system power output and regenerative level
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Display change button
P. 100
Multi-information display
P. 100
Clock adjusting buttons
P. 102
1
2
3
4
5
6

982. Instrument cluster
YARIS_HV_EE_OM52G10E

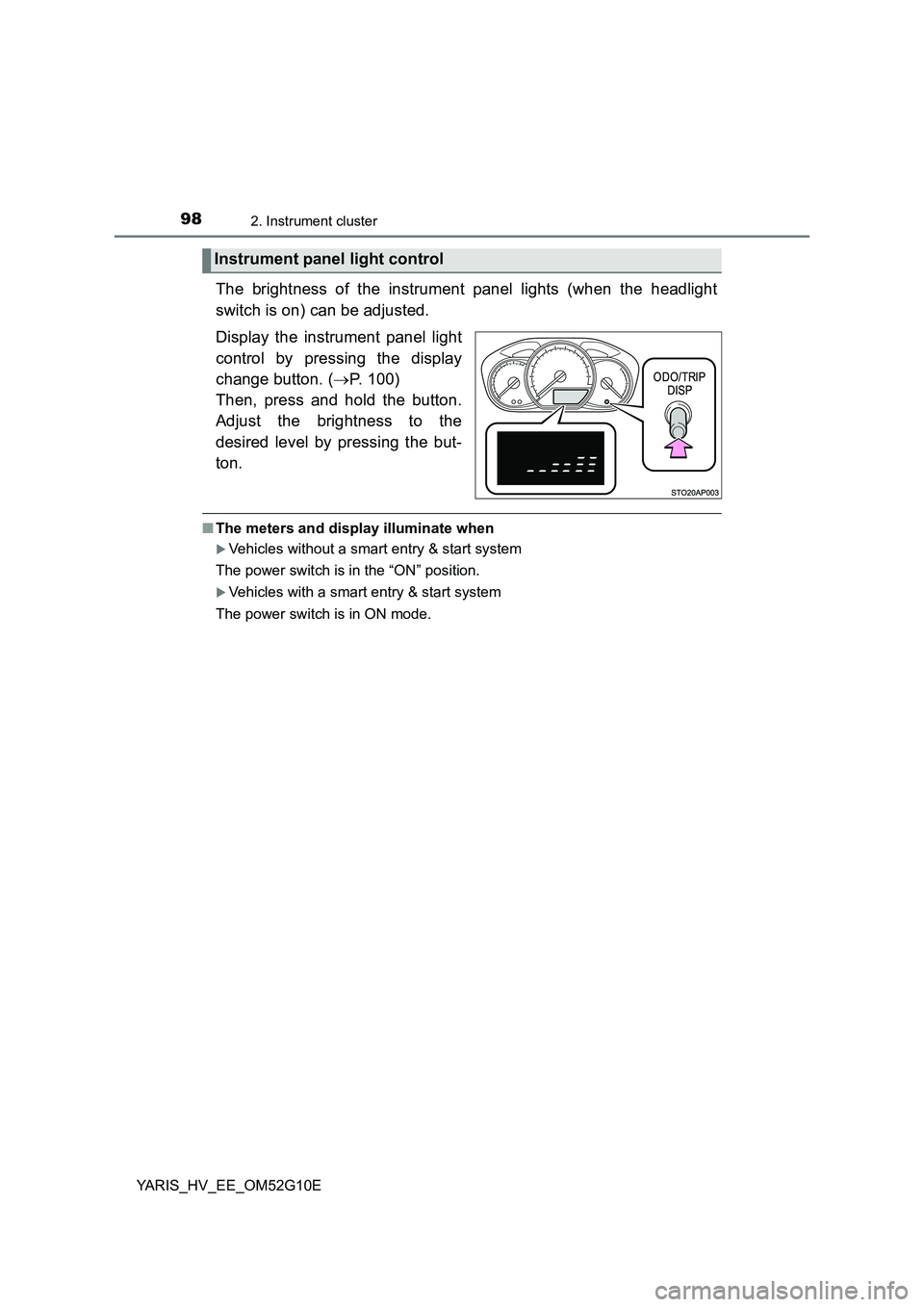

The brightness of the instrument panel lights (when the headlight
switch is on) can be adjusted.
Display the instrument panel light
control by pressing the display
change button. ( P. 100)
Then, press and hold the button.
Adjust the brightness to the
desired level by pressing the but-
ton.
■ The meters and display illuminate when
Vehicles without a smart entry & start system
The power switch is in the “ON” position.
Vehicles with a smart entry & start system
The power switch is in ON mode.
Instrument panel light control

992. Instrument cluster
2
Instrument cluster
YARIS_HV_EE_OM52G10E

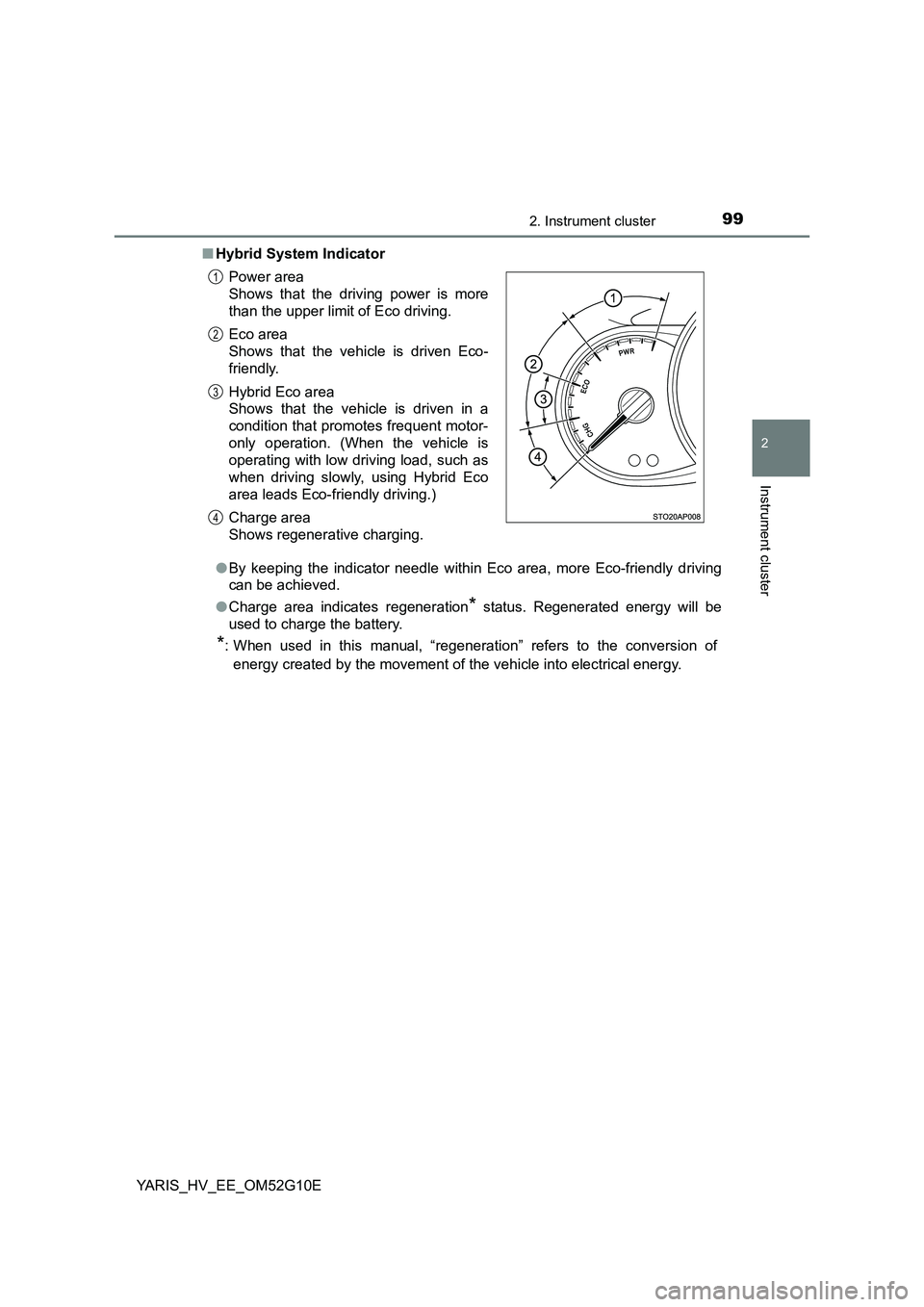

■ Hybrid System Indicator
● By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
● Charge area indicates regeneration* status. Regenerated energy will be
used to charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
Power area
Shows that the driving power is more
than the upper limit of Eco driving.
Eco area
Shows that the vehicle is driven Eco-
friendly.
Hybrid Eco area
Shows that the vehicle is driven in a
condition that promotes frequent motor-
only operation. (When the vehicle is
operating with low driving load, such as
when driving slowly, using Hybrid Eco
area leads Eco-friendly driving.)
Charge area
Shows regenerative charging.
1
2
3
4

1002. Instrument cluster
YARIS_HV_EE_OM52G10E

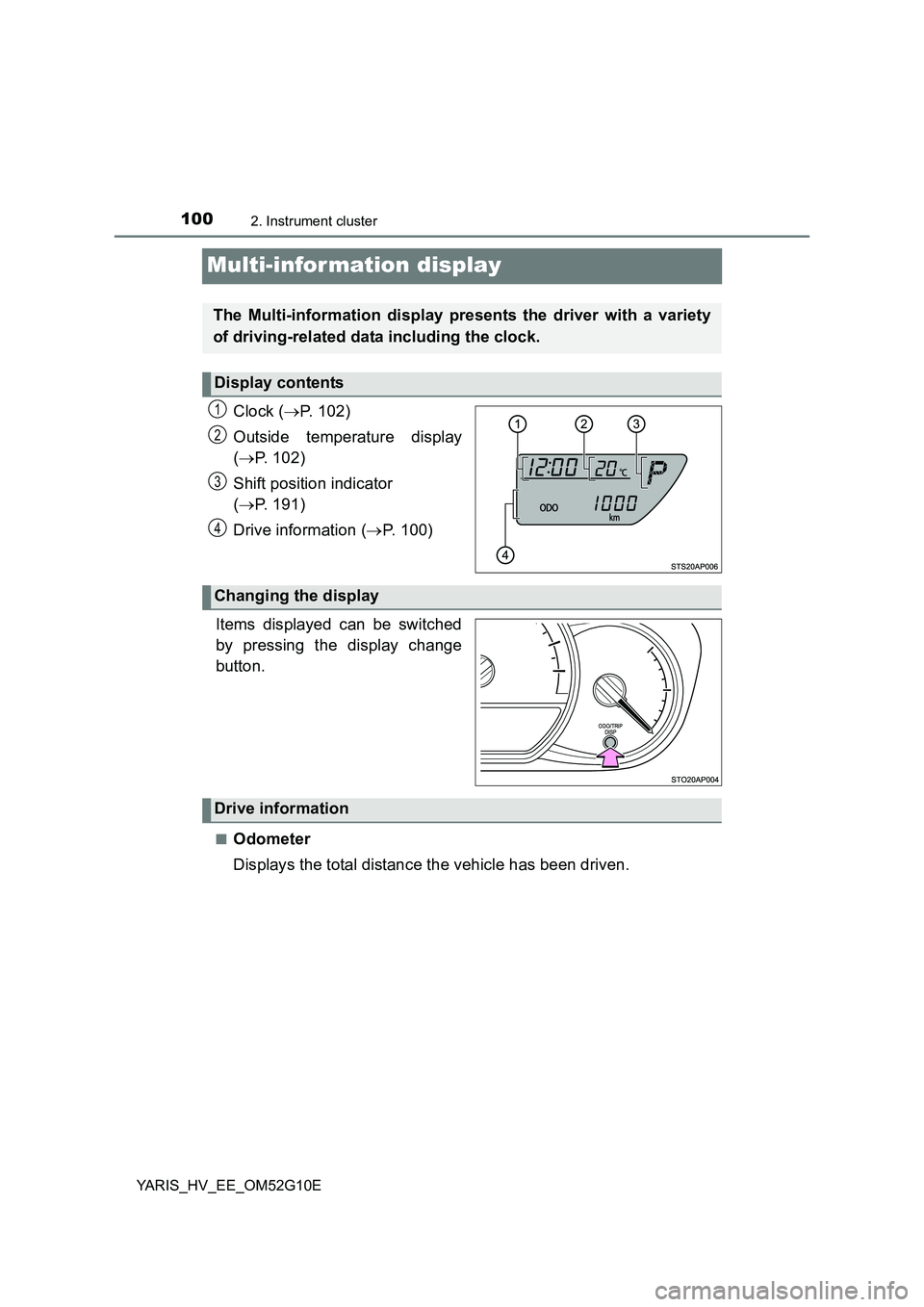

Multi-information display
Clock (P. 102)
Outside temperature display
( P. 102)
Shift position indicator
( P. 191)
Drive information ( P. 100)
.
Items displayed can be switched
by pressing the display change
button.
■Odometer
Displays the total distance the vehicle has been driven.
The Multi-information display presents the driver with a variety
of driving-related data including the clock.
Display contents
1
2
3
4
Changing the display
Drive information
