4218-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_EE_OM52G10E

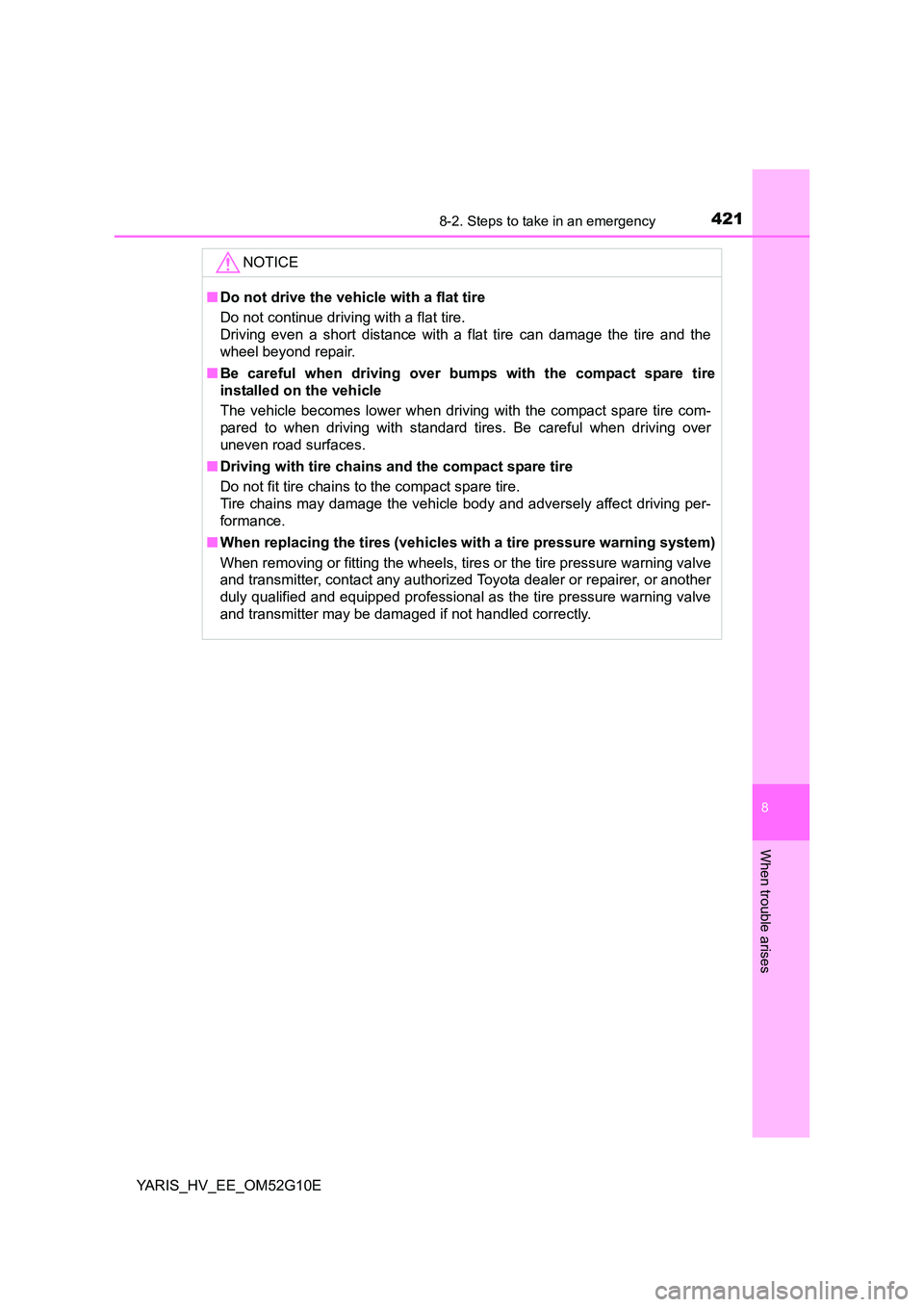

NOTICE
■Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
■ Be careful when driving over bumps with the compact spare tire
installed on the vehicle
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
■ Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.
■ When replacing the tires (vehicles with a tire pressure warning system)
When removing or fitting the wheels, tire s or the tire pressure warning valve
and transmitter, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional as the tire pressure warning valve
and transmitter may be damaged if not handled correctly.

4228-2. Steps to take in an emergency
YARIS_HV_EE_OM52G10E

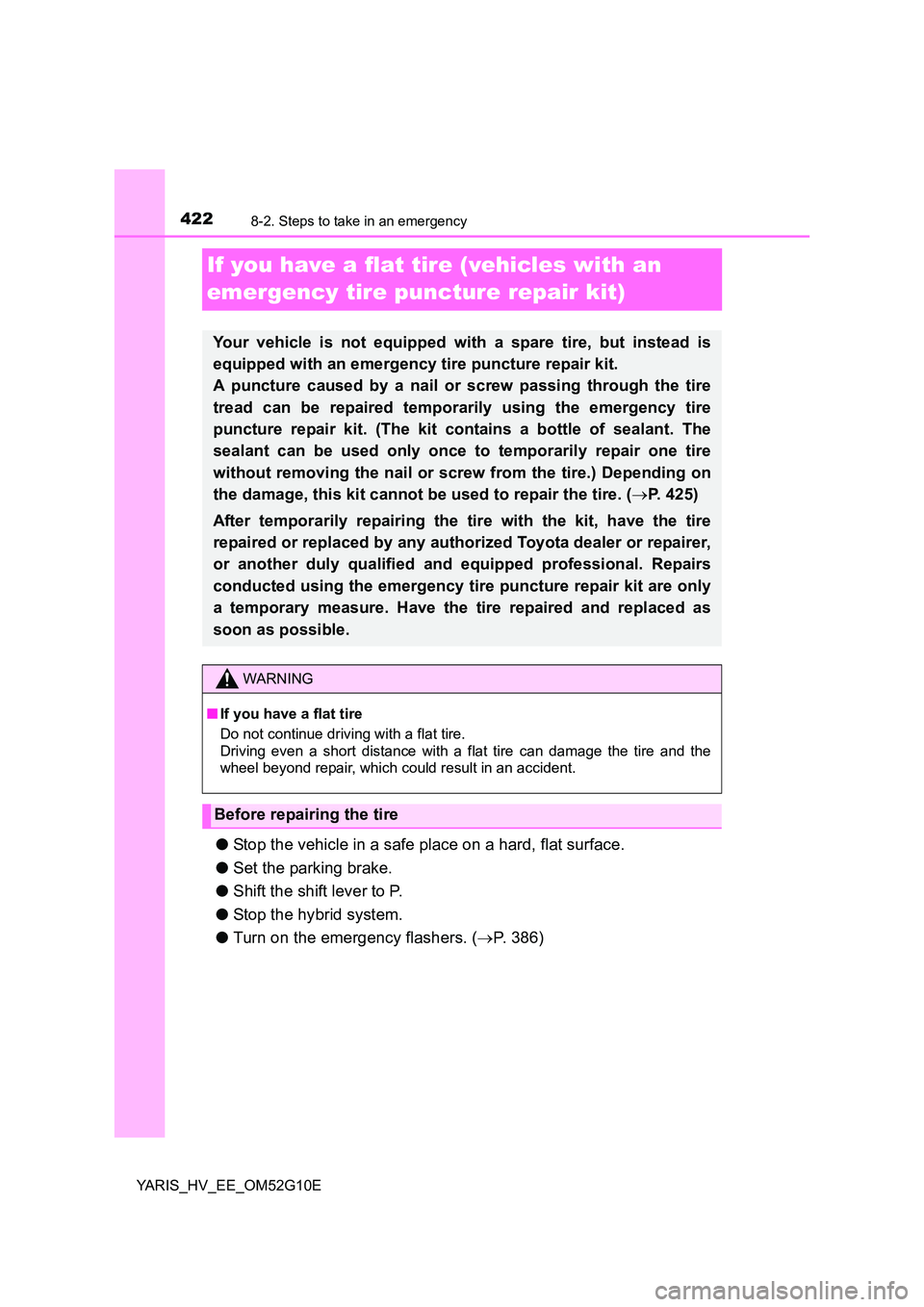

If you have a flat tire (vehicles with an
emergency tire puncture repair kit)
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the hybrid system.
● Turn on the emergency flashers. (P. 386)
Your vehicle is not equipped with a spare tire, but instead is
equipped with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire
tread can be repaired temporarily using the emergency tire
puncture repair kit. (The kit contains a bottle of sealant. The
sealant can be used only once to temporarily repair one tire
without removing the nail or screw from the tire.) Depending on
the damage, this kit cannot be used to repair the tire. ( P. 425)
After temporarily repairing the tire with the kit, have the tire
repaired or replaced by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional. Repairs
conducted using the emergency tire puncture repair kit are only
a temporary measure. Have the tire repaired and replaced as
soon as possible.
WARNING
■ If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before repairing the tire

4238-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_EE_OM52G10E
*: Use of the jack, jack handle and wheel nut wrench. (if equipped) (P. 408)
A jack, jack handle and wheel nut wrench can be purchased at any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
Location of the emergency tire puncture repair kit
Wheel cap clip (if equipped)
Towing eyelet
Jack handle*
Wheel nut wrench*
Emergency tire puncture
repair kit
1
2
3
4
5

4248-2. Steps to take in an emergency
YARIS_HV_EE_OM52G10E
Emergency tire puncture repair kit components
Nozzle
Power plug
Hose
Compressor switch
Air pressure gauge
Stickers
1
2
3
4
5
6

4258-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_EE_OM52G10E

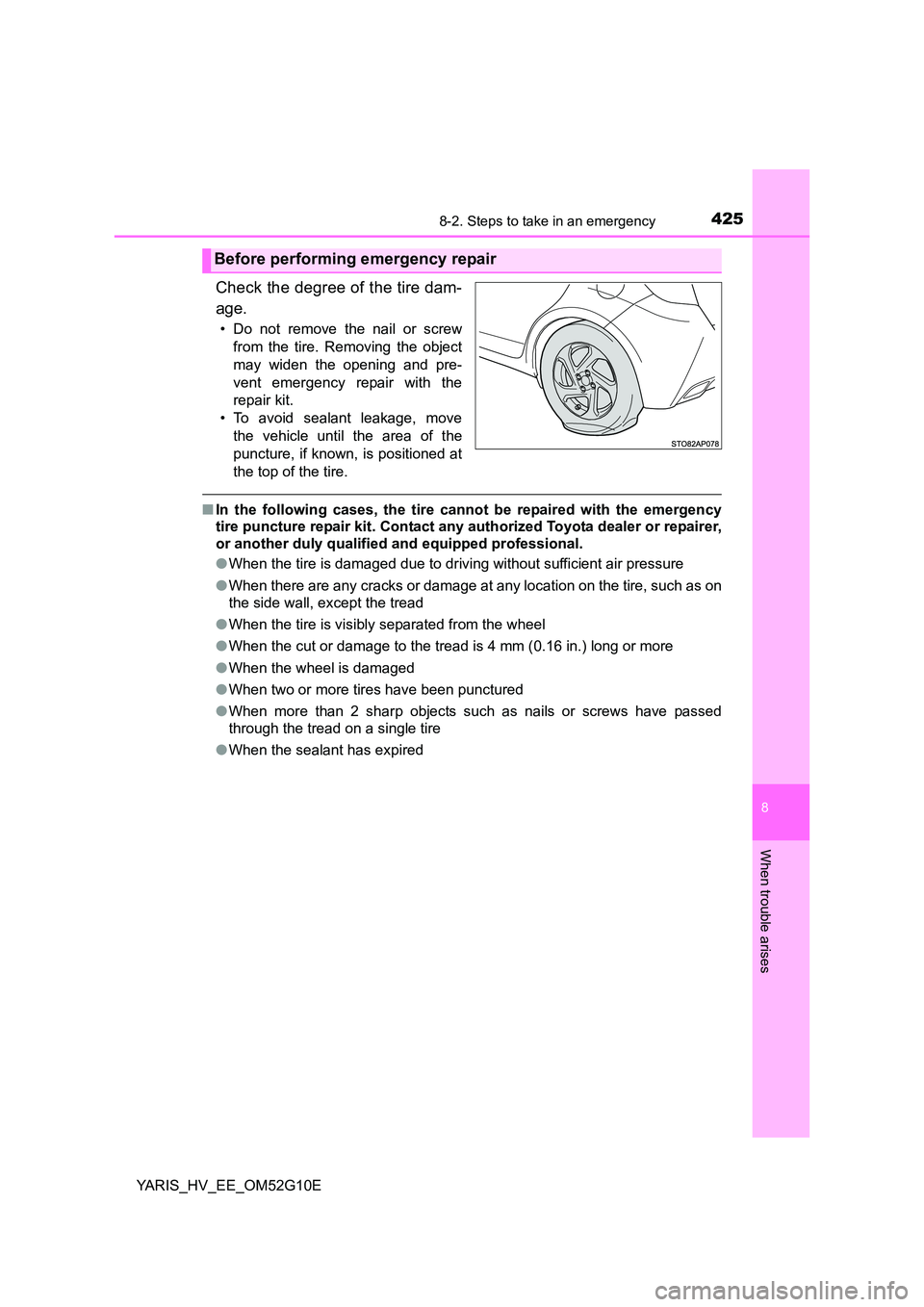

Check the degree of the tire dam-
age.
• Do not remove the nail or screw
from the tire. Removing the object
may widen the opening and pre-
vent emergency repair with the
repair kit.
• To avoid sealant leakage, move
the vehicle until the area of the
puncture, if known, is positioned at
the top of the tire.
■ In the following cases, the tire cannot be repaired with the emergency
tire puncture repair kit. Contact any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional.
● When the tire is damaged due to driving without sufficient air pressure
● When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
● When the tire is visibly separated from the wheel
● When the cut or damage to the tread is 4 mm (0.16 in.) long or more
● When the wheel is damaged
● When two or more tires have been punctured
● When more than 2 sharp objects such as nails or screws have passed
through the tread on a single tire
● When the sealant has expired
Before performing emergency repair

4268-2. Steps to take in an emergency
YARIS_HV_EE_OM52G10E
Vehicles with a deck board: Lift the deck board and pull it toward
you to remove it. ( P. 302)
Remove the luggage floor
cover.
Take out the emergency tire
puncture repair kit.
Take out the repair kit from the tool box.
When taking out the bottle from the origi nal bag, do not tear or discard the
bag.
Remove the valve cap from the
valve of the punctured tire.
Taking out the emergency tire puncture repair kit
1
2
3
Emergency repair method
1
2

4278-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_EE_OM52G10E
Remove the cap from the bot-
tle.
Connect the nozzle to the
valve.
Screw the end of the nozzle clock-
wise as far as possible.
The bottle should hang vertically
without contacting the ground. If
the bottle does not hang vertically,
move the vehicle so that the tire
valve is located properly.
Make sure that the compressor
switch is off.
Remove the power plug from
the compressor.
3
4
5
6

4288-2. Steps to take in an emergency
YARIS_HV_EE_OM52G10E

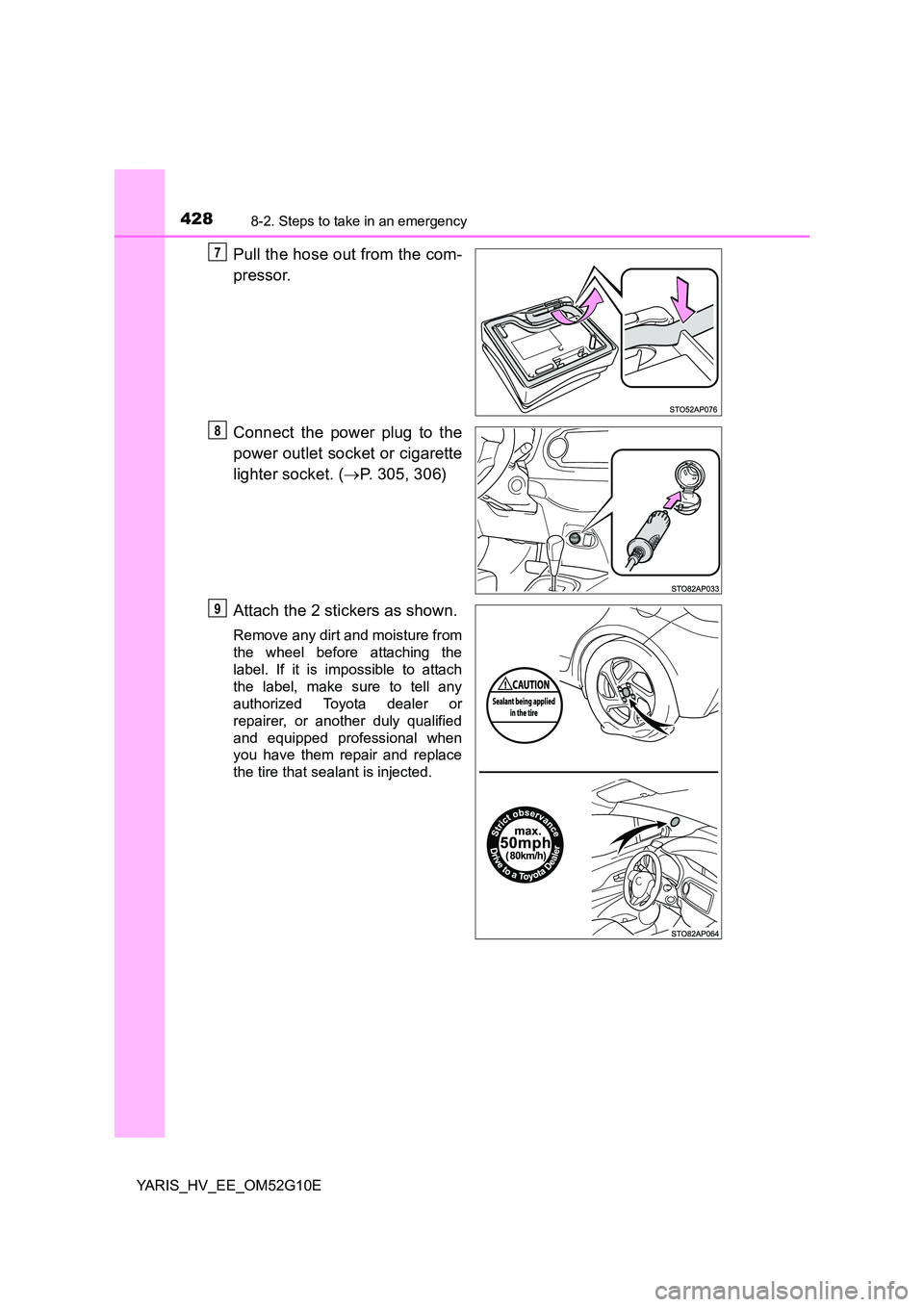

Pull the hose out from the com-
pressor.
Connect the power plug to the
power outlet socket or cigarette
lighter socket. ( P. 305, 306)
Attach the 2 stickers as shown.
Remove any dirt and moisture from
the wheel before attaching the
label. If it is impossible to attach
the label, make sure to tell any
authorized Toyota dealer or
repairer, or another duly qualified
and equipped professional when
you have them repair and replace
the tire that sealant is injected.
7
8
9

4298-2. Steps to take in an emergency
8
When trouble arises
YARIS_HV_EE_OM52G10E

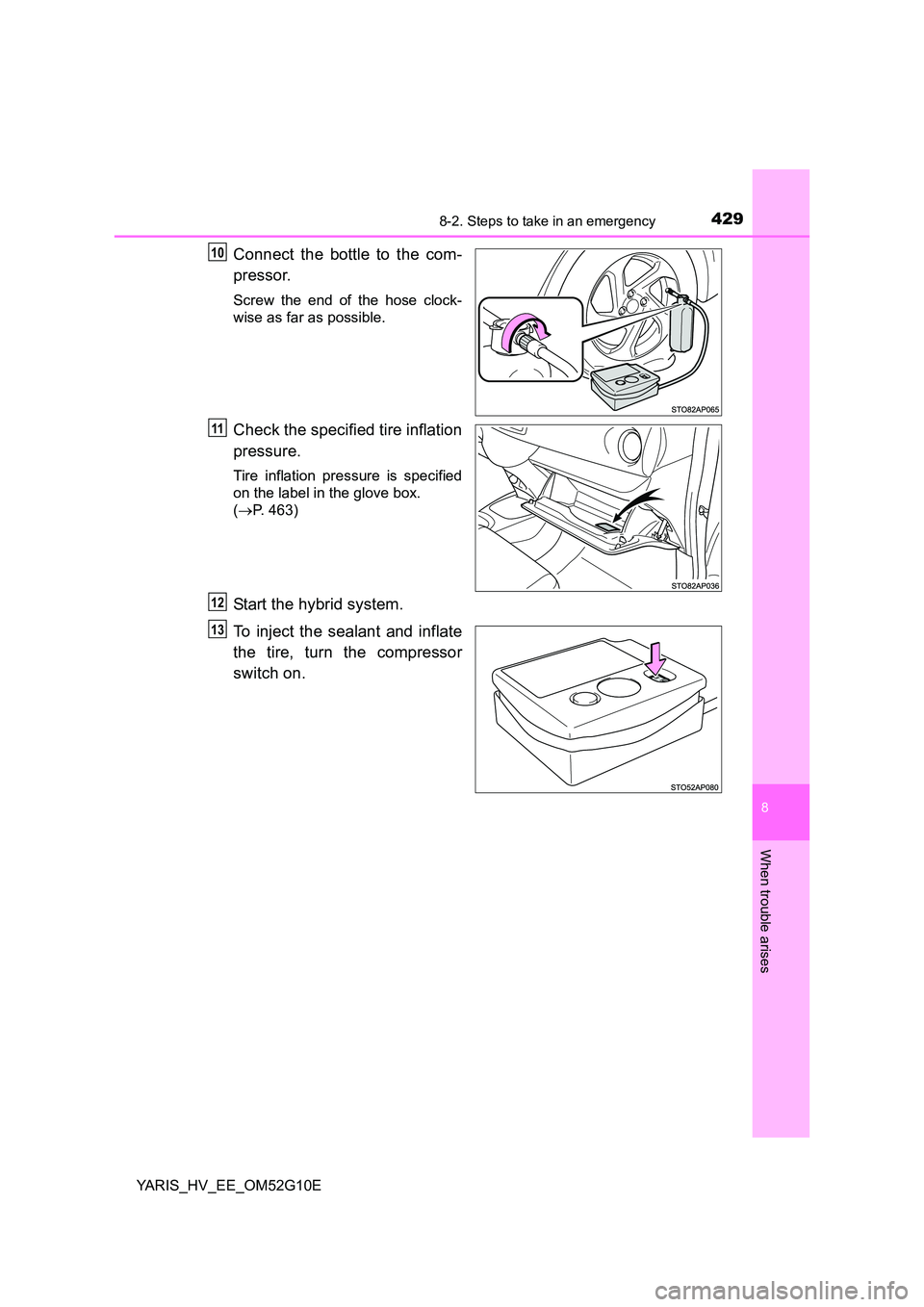

Connect the bottle to the com-
pressor.
Screw the end of the hose clock-
wise as far as possible.
Check the specified tire inflation
pressure.
Tire inflation pressure is specified
on the label in the glove box.
( P. 463)
Start the hybrid system.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
10
11
12
13

4308-2. Steps to take in an emergency
YARIS_HV_EE_OM52G10E
Inflate the tire until the specified
air pressure is reached.
The sealant will be injected
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
display the actual tire infla-
tion pressure about 1 minute
(5 minutes at low tempera-
ture) after the switch is
turned on.
Inflate the tire until the speci-
fied air pressure.
• If the tire inflation pressure is
still lower than the specified
point after inflation for 35 min-
utes with the switch on, the tire
is too damaged to be repaired.
Turn the compressor switch off
and contact any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
• If the tire inflation pressure exceeds the specified air pressure, let out
some air to adjust the tire inflation pressure. ( P. 433,463)
14
1
2
3
