TOYOTA YARIS HYBRID 2016 Owners Manual

4619-1. Specifications
9
Vehicle specifications
YARIS_HV_EE_OM52G10E

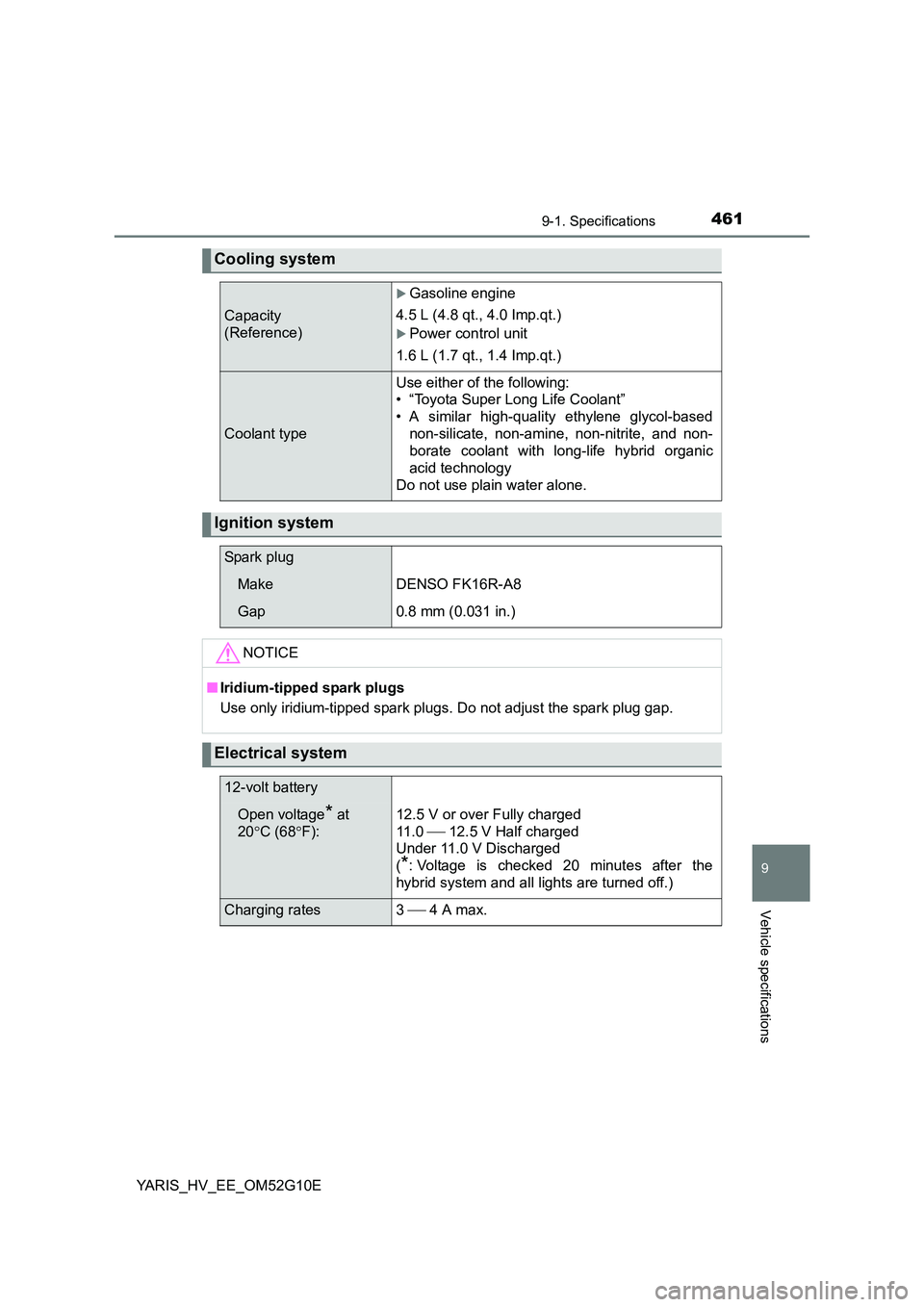

Cooling system
Capacity
(Reference)
Gasoline engine
4.5 L (4.8 qt., 4.0 Imp.qt.)
Power control unit
1.6 L (1.7 qt., 1.4 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO FK16R-A8
Gap0.8 mm (0.031 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage* at
20 C (68F):
12.5 V or over Fully charged
11 . 0  12.5 V Half charged
Under 11.0 V Discharged
(*: Voltage is checked 20 minutes after the
hybrid system and all lights are turned off.)
Charging rates 3  4 A max.

4629-1. Specifications
YARIS_HV_EE_OM52G10E
*: The fluid capacity is the reference quantity. If replacement is necessary,
contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
*1: Minimum pedal clearance when depressed with a force of 300 N (31 kgf,
67.4 lbf) while the hybrid system is operating
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
*3: Follow the indications of the designated fluid types for the brake reservoir
tank.

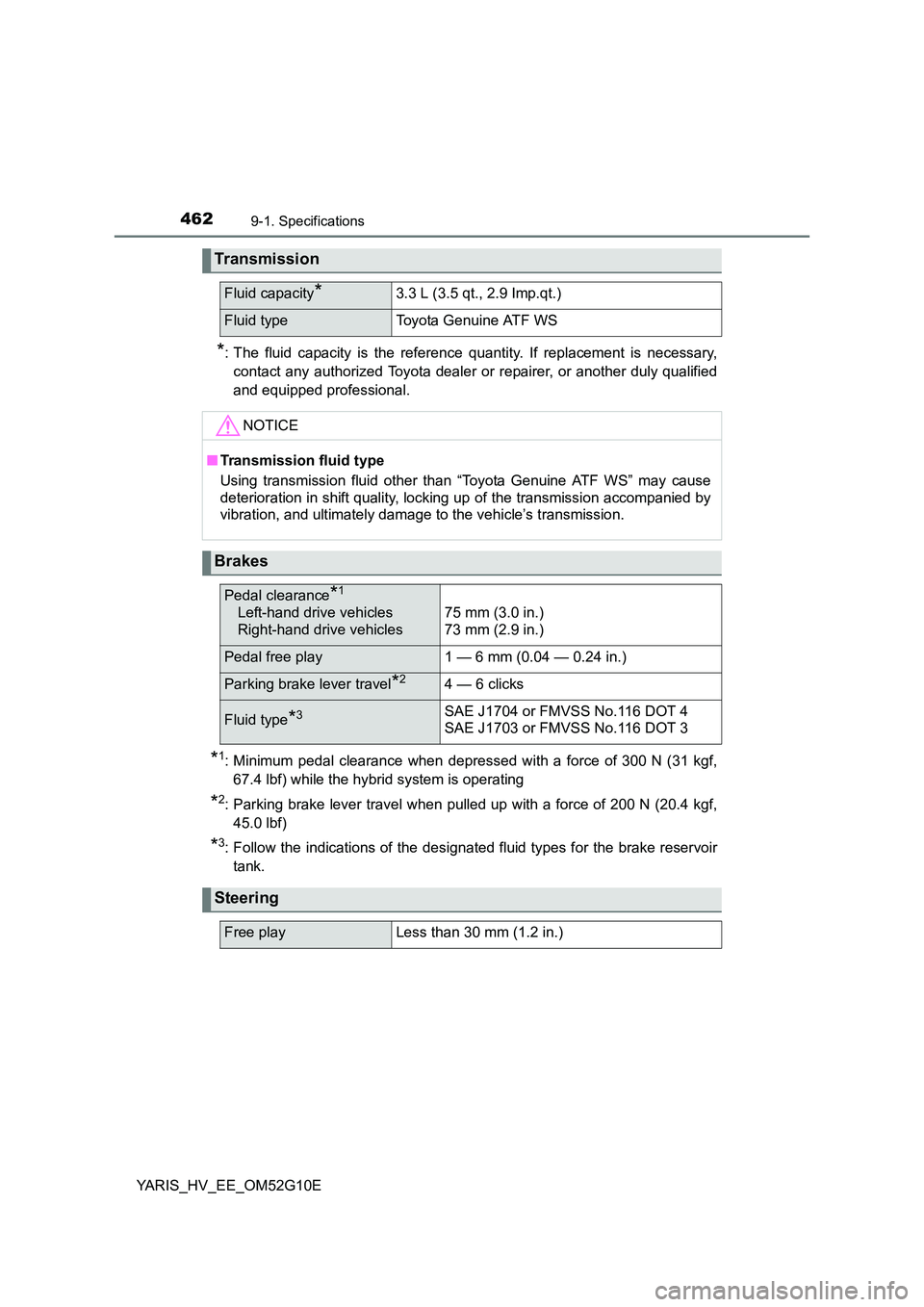

Transmission
Fluid capacity*3.3 L (3.5 qt., 2.9 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration, and ultimately damage to the vehicle’s transmission.
Brakes
Pedal clearance*1
Left-hand drive vehicles
Right-hand drive vehicles
75 mm (3.0 in.)
73 mm (2.9 in.)
Pedal free play 1 — 6 mm (0.04 — 0.24 in.)
Parking brake lever travel*24 — 6 clicks
Fluid type*3SAE J1704 or FMVSS No.116 DOT 4
SAE J1703 or FMVSS No.116 DOT 3
Steering
Free playLess than 30 mm (1.2 in.)

4639-1. Specifications
9
Vehicle specifications
YARIS_HV_EE_OM52G10E

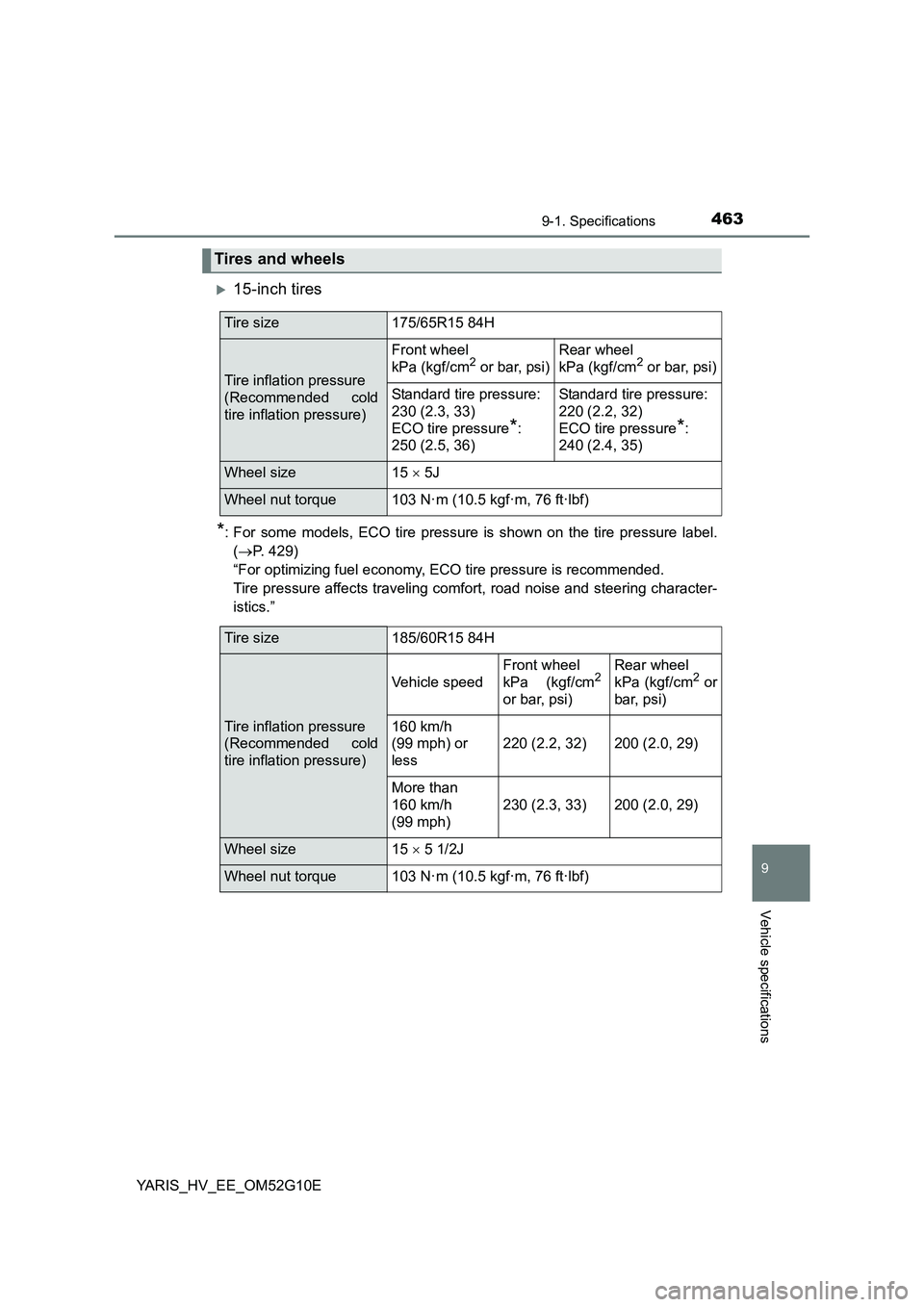

15-inch tires
*: For some models, ECO tire pressure is shown on the tire pressure label.
( P. 429)
“For optimizing fuel economy, ECO tire pressure is recommended.
Tire pressure affects traveling comfort, road noise and steering character-
istics.”
Tires and wheels
Tire size175/65R15 84H
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front wheel
kPa (kgf/cm2 or bar, psi)
Rear wheel
kPa (kgf/cm2 or bar, psi)
Standard tire pressure:
230 (2.3, 33)
ECO tire pressure*:
250 (2.5, 36)
Standard tire pressure:
220 (2.2, 32)
ECO tire pressure*:
240 (2.4, 35)
Wheel size15  5J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size185/60R15 84H
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
160 km/h
(99 mph) or
less
220 (2.2, 32)200 (2.0, 29)
More than
160 km/h
(99 mph)
230 (2.3, 33)200 (2.0, 29)
Wheel size15  5 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

4649-1. Specifications
YARIS_HV_EE_OM52G10E
16-inch tires
Compact spare tires
Tire size195/50R16 84V
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
160 km/h
(99 mph) or
less
220 (2.2, 32)200 (2.0, 29)
More than
160 km/h
(99 mph)
240 (2.4, 35)210 (2.1, 30)
Wheel size16  6J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire sizeT125/70D16 96M
Tire inflation pressure
(Recommended cold
tire inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size16  4T
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

4659-1. Specifications
9
Vehicle specifications
YARIS_HV_EE_OM52G10E

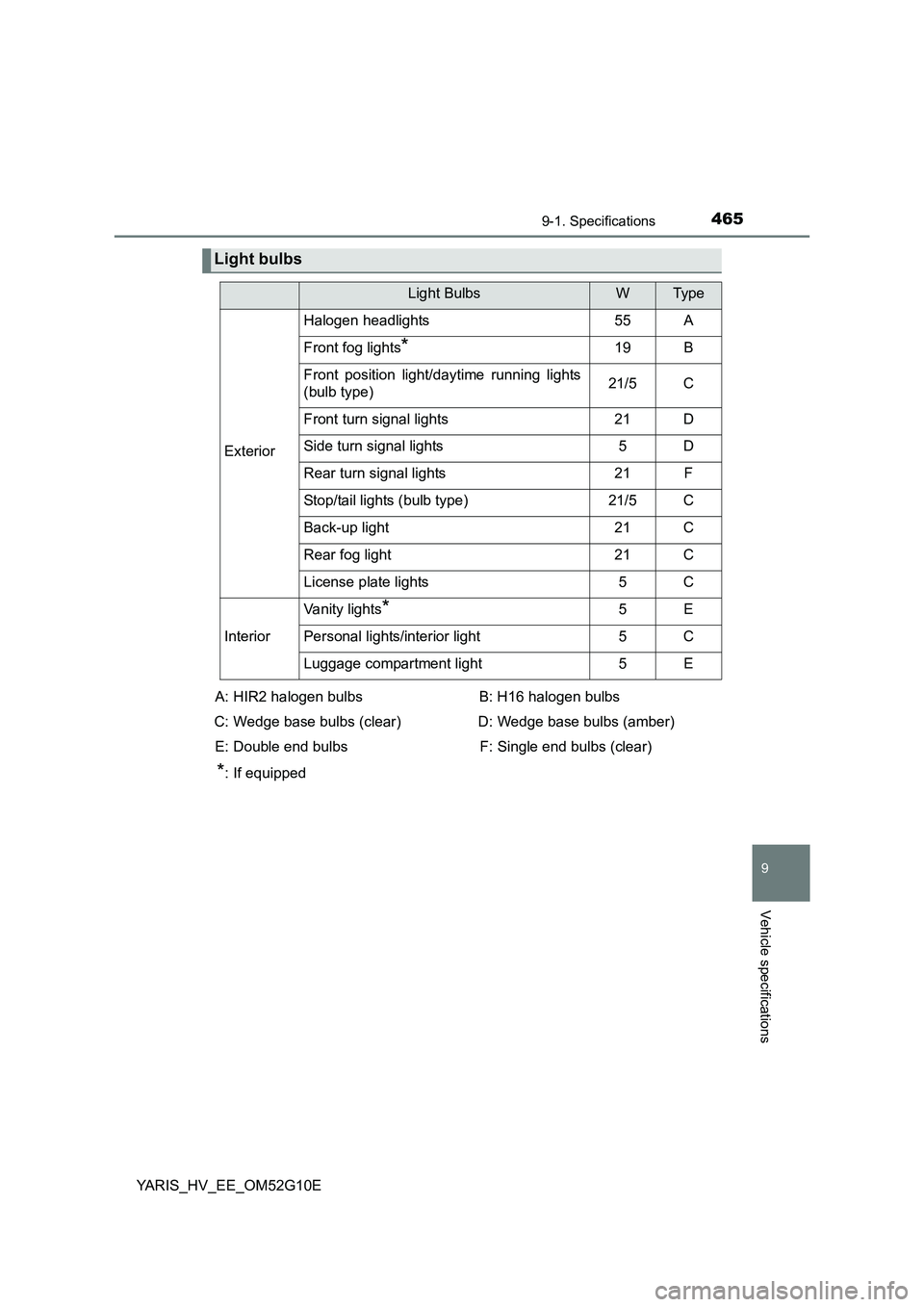

Light bulbs
Light BulbsWTyp e
Exterior
Halogen headlights55A
Front fog lights*19B
Front position light/daytime running lights
(bulb type)21/5C
Front turn signal lights21D
Side turn signal lights5D
Rear turn signal lights21F
Stop/tail lights (bulb type)21/5C
Back-up light21C
Rear fog light21C
License plate lights5C
Interior
Vanity lights*5E
Personal lights/interior light5C
Luggage compartment light5E
A: HIR2 halogen bulbs
C: Wedge base bulbs (clear)
E: Double end bulbs
B: H16 halogen bulbs
D: Wedge base bulbs (amber)
F: Single end bulbs (clear)
*: If equipped

4669-1. Specifications
YARIS_HV_EE_OM52G10E
Fuel infor mation
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content is up to 10%. Make sure that the ethanol blended gasoline to be used has aResearch Octane Number that follows the above.
■ If your engine knocks
● Consult any authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
● You may occasionally notice light knocking for a short time while accelerat- ing or driving uphill. This is normal and there is no need for concern.
EU area:
You must only use unleaded gasoline conforming to European stan-
dard EN228.
Select unleaded gasoline with a Research Octane Number of 95 or
higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95 or
higher for optimum engine performance.
NOTICE
■ Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be damaged.
● Do not use leaded gasoline. Leaded gasoline will cause the three-way catalytic converter to lose itseffectiveness and the emission control system to function improperly.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel containing a large amount of ethanol should not be used. The use ofthese fuels will damage the vehicle’s fuel system. In case of any doubt,ask any authorized Toyota dealer or repairer, or another duly qualified and equipped professional.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel containing a large amount of ethanol should not be used. Yourvehicle can use gasoline mixed with 10% max ethanol. The use of fuelwith more than 10% ethanol content (E10) will damage the vehicle’s fuelsystem. You must ensure that refueling is carried out only from a sourcewhere fuel specification and quality can be guaranteed. In case of anydoubt, ask any authorized Toyota dealer or repairer, or another duly quali-fied and equipped professional.
● Do not use the methanol blended gasoline such as M15, M85, M100. The use of gasoline containing methanol may cause engine damage orfailure.

4679-2. Customization
9
Vehicle specifications
YARIS_HV_EE_OM52G10E

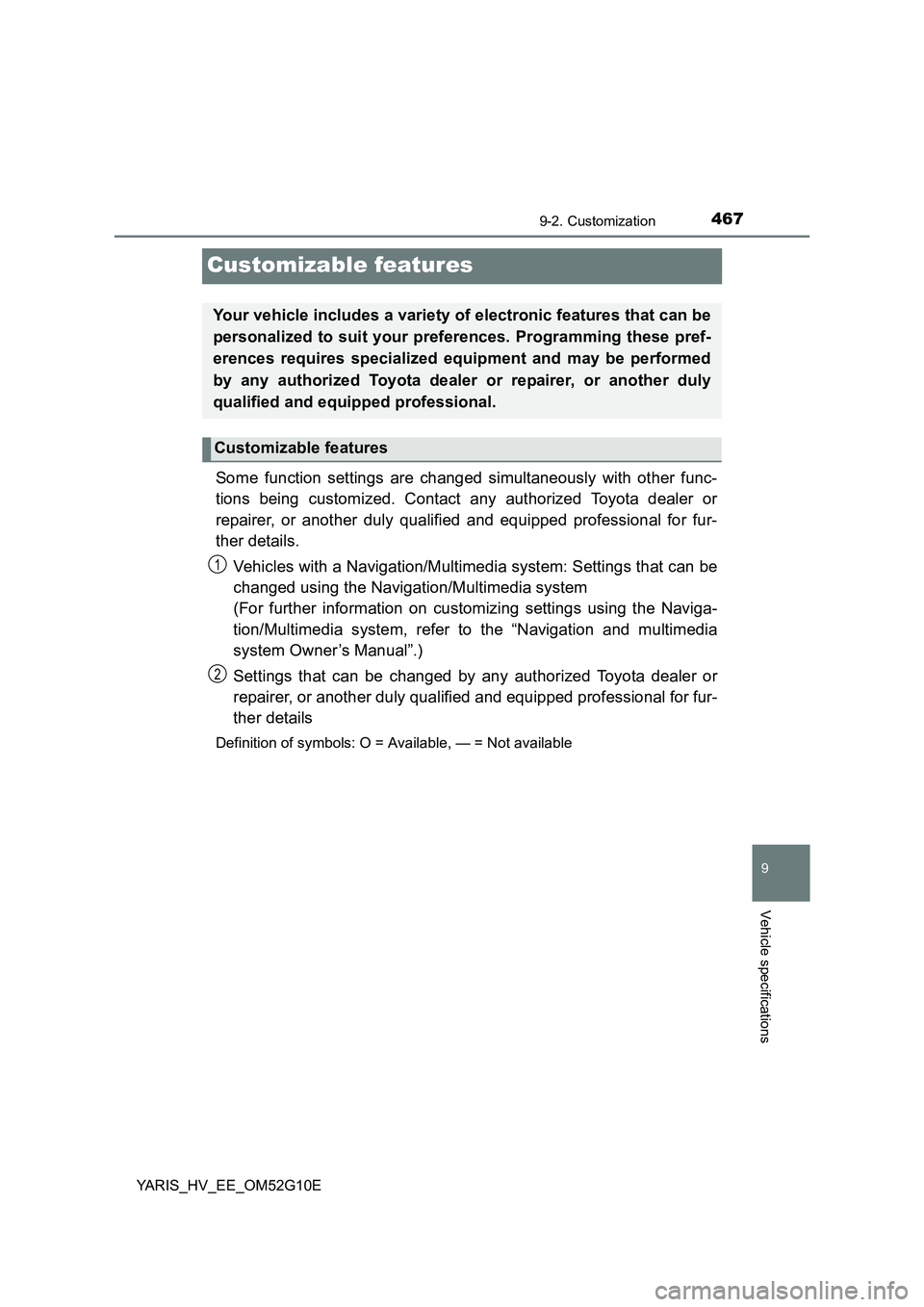

Customizable features
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for fur-
ther details.
Vehicles with a Navigation/Multimedia system: Settings that can be
changed using the Navigation/Multimedia system
(For further information on customizing settings using the Naviga-
tion/Multimedia system, refer to the “Navigation and multimedia
system Owner’s Manual”.)
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for fur-
ther details
Definition of symbols: O = Av ailable, — = Not available
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. Programming these pref-
erences requires specialized equipment and may be performed
by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Customizable features
1
2

4689-2. Customization
YARIS_HV_EE_OM52G10E

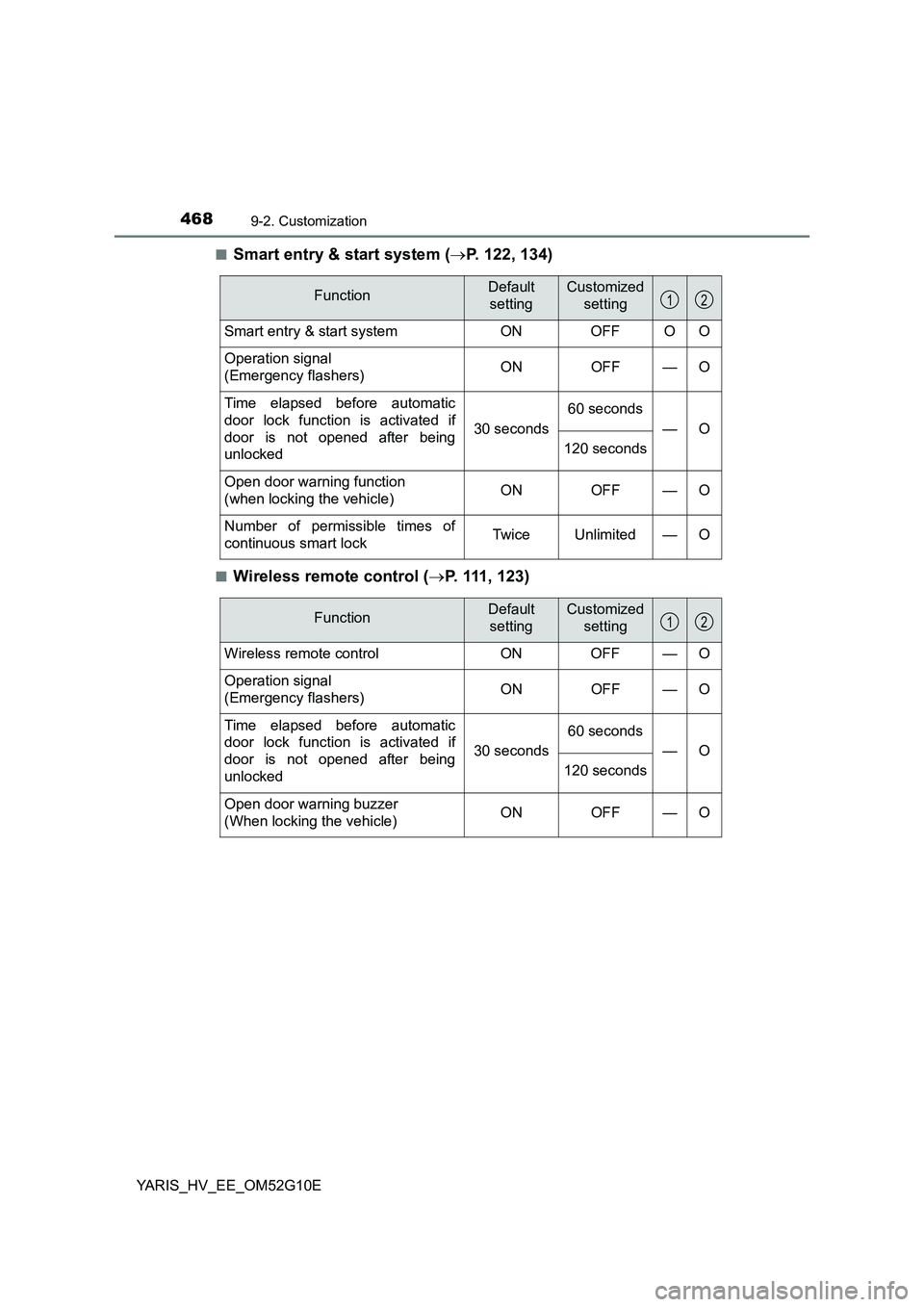

■Smart entry & start system ( P. 122, 134)
■Wireless remote control (P. 111, 12 3 )
FunctionDefault
setting
Customized
setting
Smart entry & start system ON OFF O O
Operation signal
(Emergency flashers) ON OFF — O
Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked
30 seconds
60 seconds
—O
120 seconds
Open door warning function
(when locking the vehicle) ON OFF — O
Number of permissible times of
continuous smart lock Twice Unlimited — O
12
FunctionDefault
setting
Customized
setting
Wireless remote control ON OFF — O
Operation signal
(Emergency flashers) ON OFF — O
Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked
30 seconds
60 seconds
—O
120 seconds
Open door warning buzzer
(When locking the vehicle) ON OFF — O
12

4699-2. Customization
9
Vehicle specifications
YARIS_HV_EE_OM52G10E

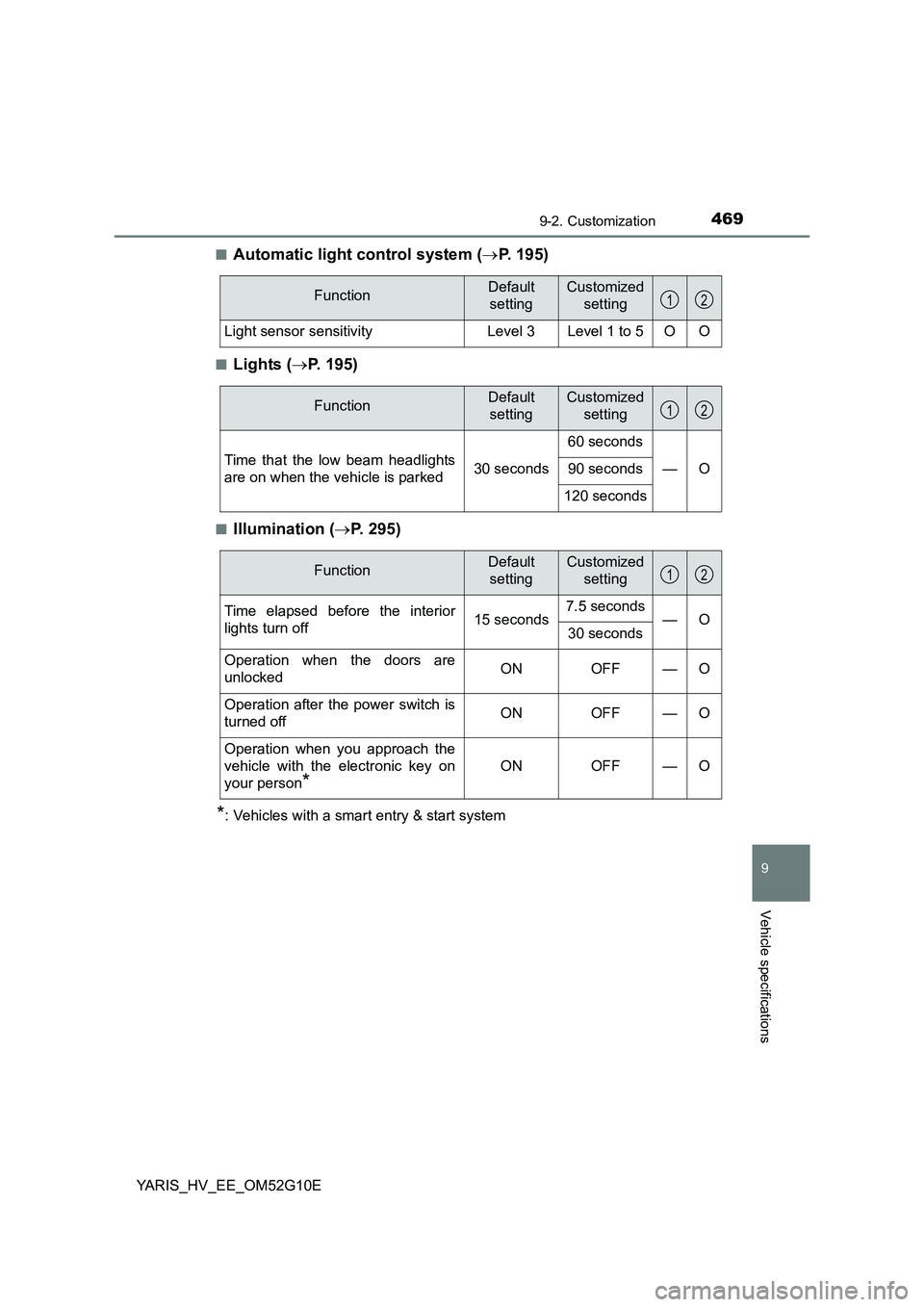

■Automatic light control system ( P. 195)
■Lights (P. 195)
■Illumination (P. 295)
*: Vehicles with a smart entry & start system
FunctionDefault
setting
Customized
setting
Light sensor sensitivity Level 3 Level 1 to 5 O O
12
FunctionDefault
setting
Customized
setting
Time that the low beam headlights
are on when the vehicle is parked30 seconds
60 seconds
—O90 seconds
120 seconds
12
FunctionDefault
setting
Customized
setting
Time elapsed before the interior
lights turn off15 seconds7.5 seconds—O30 seconds
Operation when the doors are
unlocked ON OFF — O
Operation after the power switch is
turned off ON OFF — O
Operation when you approach the
vehicle with the electronic key on
your person*
ON OFF — O
12

4709-2. Customization
YARIS_HV_EE_OM52G10E
■Automatic air conditioning system ( P. 284)
FunctionDefault
setting
Customized
setting
Air conditioning control of Eco drive
mode ON OFF — O
WARNING
■ During customization
As the hybrid system needs to be operating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ens ure that the hybrid system is oper-
ating while customizing features.
12
