611-1. For safe use
1
For safety and security
YARIS_HV_EE_OM52G10E

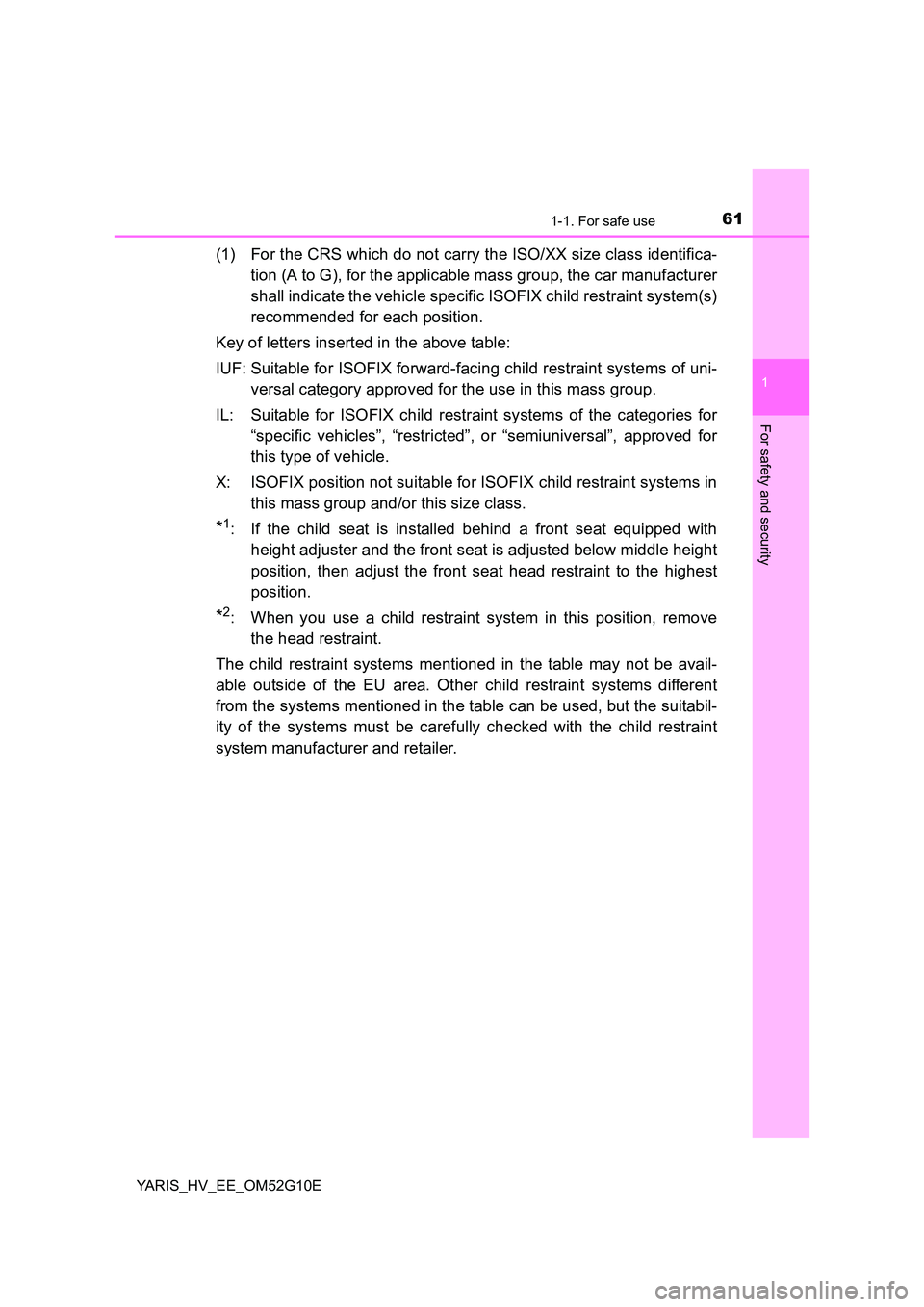

(1) For the CRS which do not carry the ISO/XX size class identifica-
tion (A to G), for the applicable mass group, the car manufacturer
shall indicate the vehicle specific ISOFIX child restraint system(s)
recommended for each position.
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of uni-
versal category approved for the use in this mass group.
IL: Suitable for ISOFIX child restraint systems of the categories for
“specific vehicles”, “restricted”, or “semiuniversal”, approved for
this type of vehicle.
X: ISOFIX position not suitable for ISOFIX child restraint systems in
this mass group and/or this size class.
*1: If the child seat is installed behind a front seat equipped with
height adjuster and the front seat is adjusted below middle height
position, then adjust the front seat head restraint to the highest
position.
*2: When you use a child restraint system in this position, remove
the head restraint.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area. Other child restraint systems different
from the systems mentioned in the table can be used, but the suitabil-
ity of the systems must be carefully checked with the child restraint
system manufacturer and retailer.

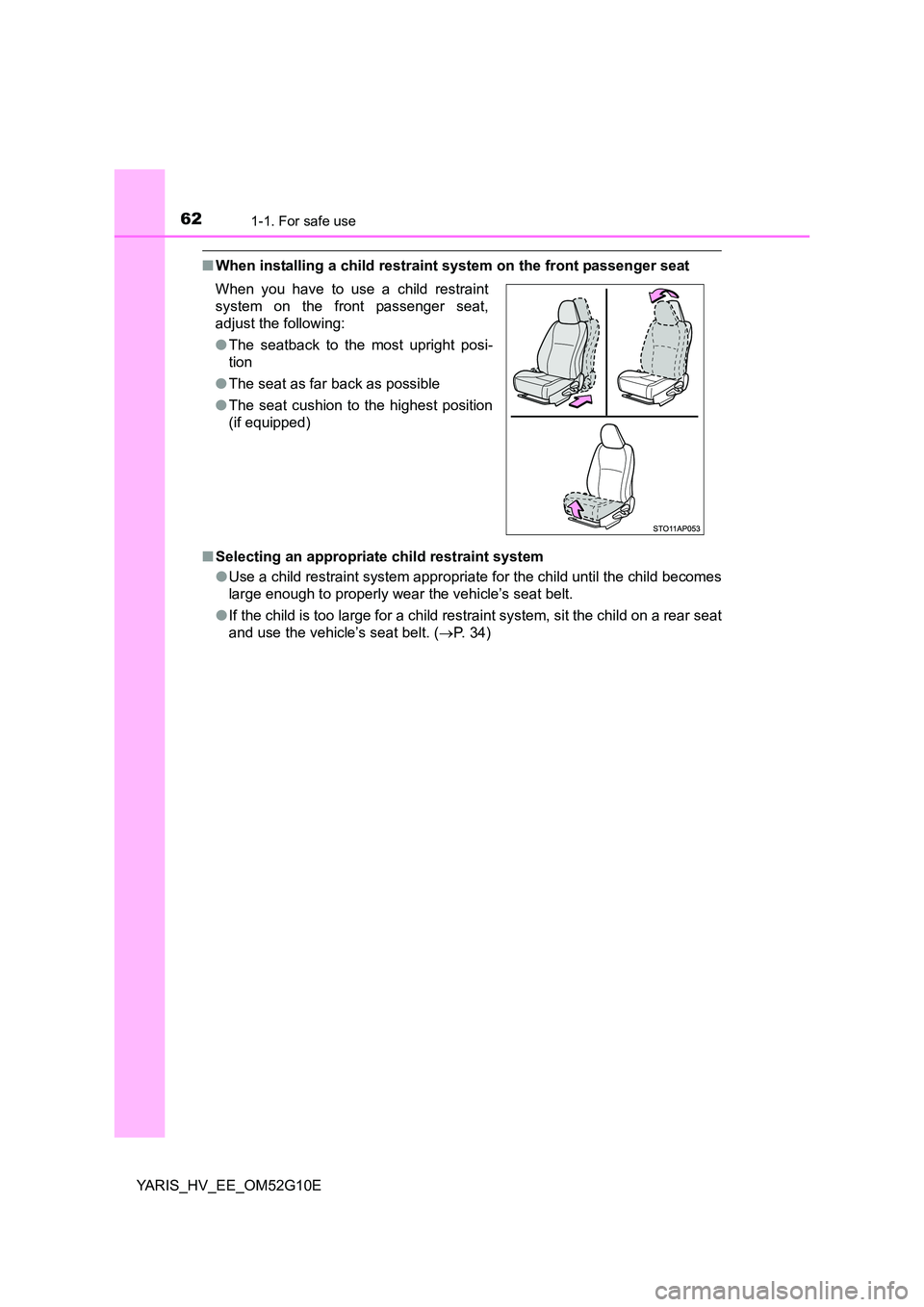

621-1. For safe use
YARIS_HV_EE_OM52G10E
■When installing a child restraint system on the front passenger seat
■ Selecting an appropriate child restraint system
● Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
● If the child is too large for a child restraint system, sit the child on a rear seat
and use the vehicle’s seat belt. ( P. 34)
When you have to use a child restraint
system on the front passenger seat,
adjust the following:
● The seatback to the most upright posi-
tion
● The seat as far back as possible
● The seat cushion to the highest position
(if equipped)

631-1. For safe use
1
For safety and security
YARIS_HV_EE_OM52G10E

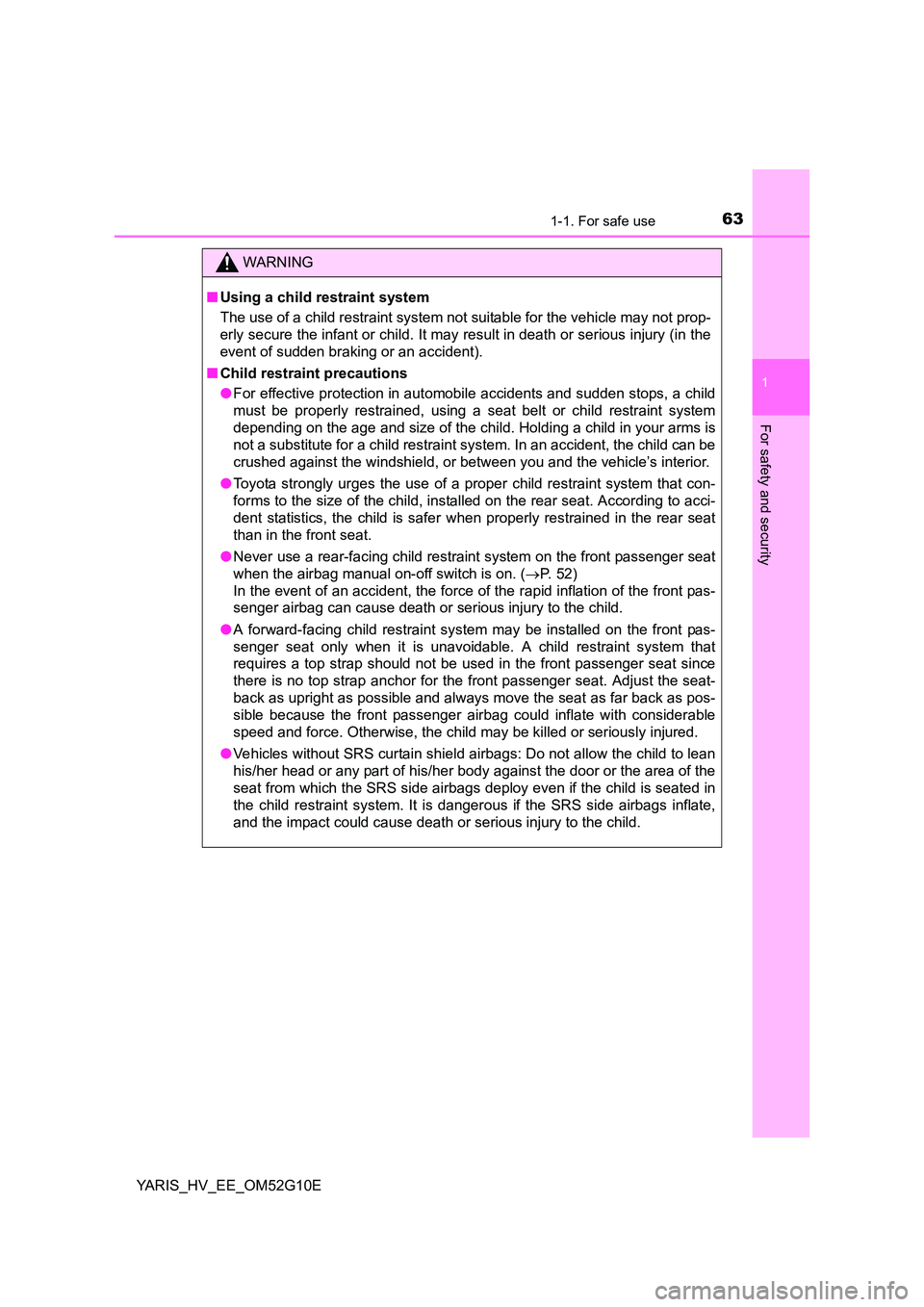

WARNING
■Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not prop-
erly secure the infant or child. It may result in death or serious injury (in the
event of sudden braking or an accident).
■ Child restraint precautions
● For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
● Never use a rear-facing child restraint system on the front passenger seat
when the airbag manual on-off switch is on. ( P. 52)
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child.
● A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top strap should not be used in the front passenger seat since
there is no top strap anchor for the front passenger seat. Adjust the seat-
back as upright as possible and always move the seat as far back as pos-
sible because the front passenger airbag could inflate with considerable
speed and force. Otherwise, the child may be killed or seriously injured.
● Vehicles without SRS curtain shield airbags: Do not allow the child to lean
his/her head or any part of his/her body against the door or the area of the
seat from which the SRS side airbags deploy even if the child is seated in
the child restraint system. It is dangerous if the SRS side airbags inflate,
and the impact could cause death or serious injury to the child.

641-1. For safe use
YARIS_HV_EE_OM52G10E
WARNING

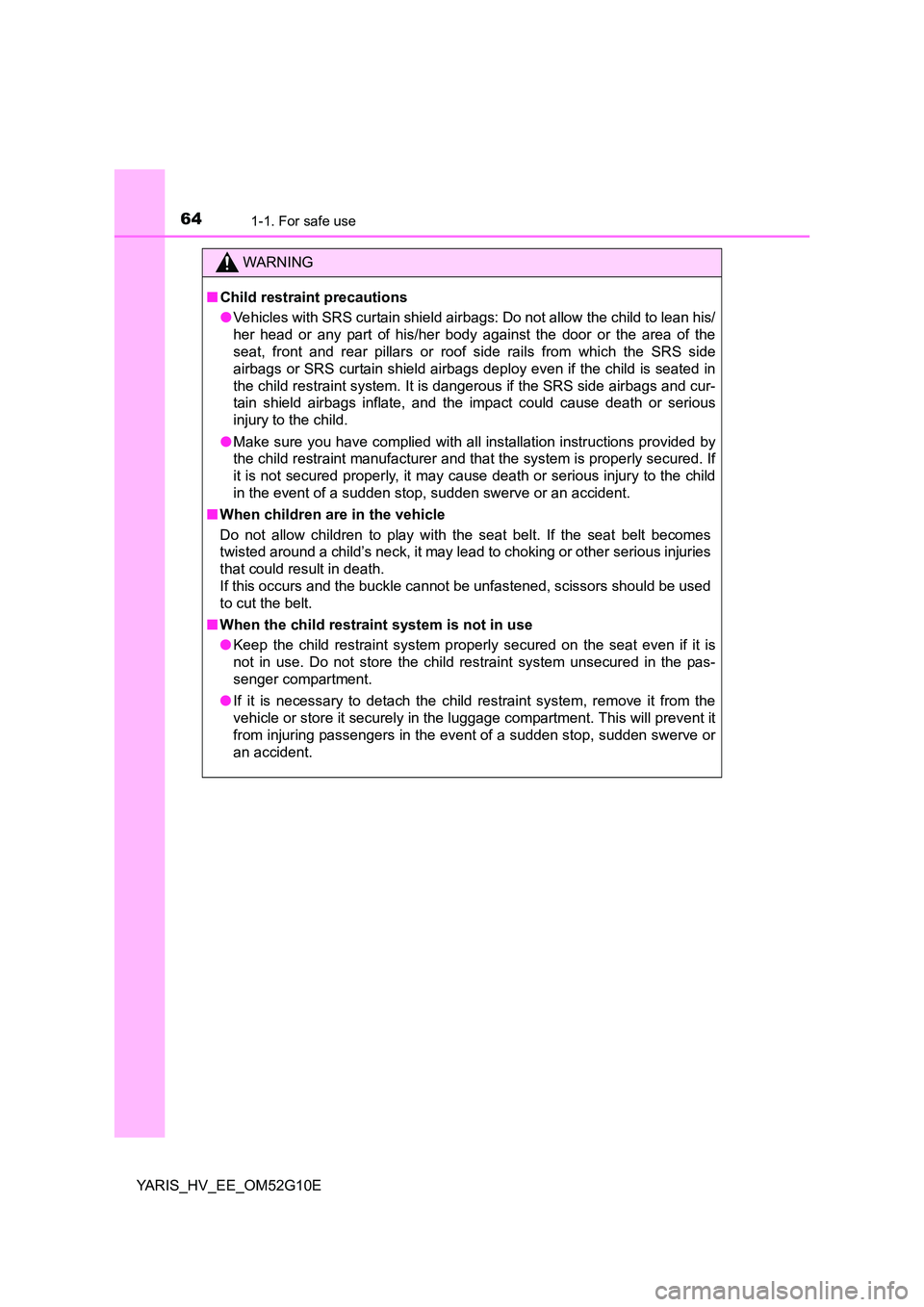

■Child restraint precautions
● Vehicles with SRS curtain shield airbags: Do not allow the child to lean his/
her head or any part of his/her body against the door or the area of the
seat, front and rear pill ars or roof side rails from which the SRS side
airbags or SRS curtain shield airbags deploy even if the child is seated in
the child restraint system. It is dangerous if the SRS side airbags and cur-
tain shield airbags inflate, and the impact could cause death or serious
injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or an accident.
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restraint system is not in use
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
an accident.

651-1. For safe use
1
For safety and security
YARIS_HV_EE_OM52G10E

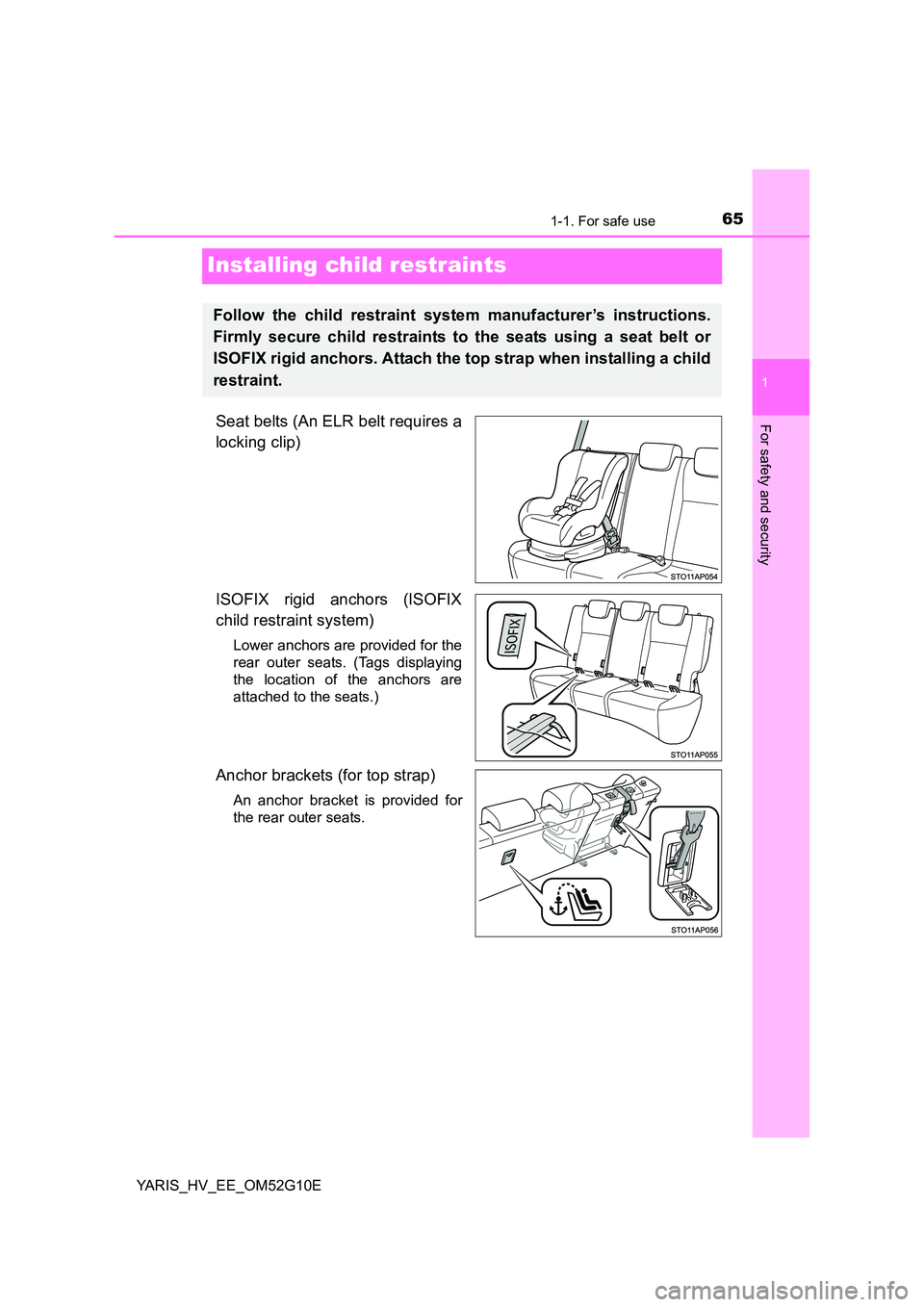

Installing child restraints
Seat belts (An ELR belt requires a
locking clip)
ISOFIX rigid anchors (ISOFIX
child restraint system)
Lower anchors are provided for the
rear outer seats. (Tags displaying
the location of the anchors are
attached to the seats.)
Anchor brackets (for top strap)
An anchor bracket is provided for
the rear outer seats.
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using a seat belt or
ISOFIX rigid anchors. Attach the top strap when installing a child
restraint.

661-1. For safe use
YARIS_HV_EE_OM52G10E

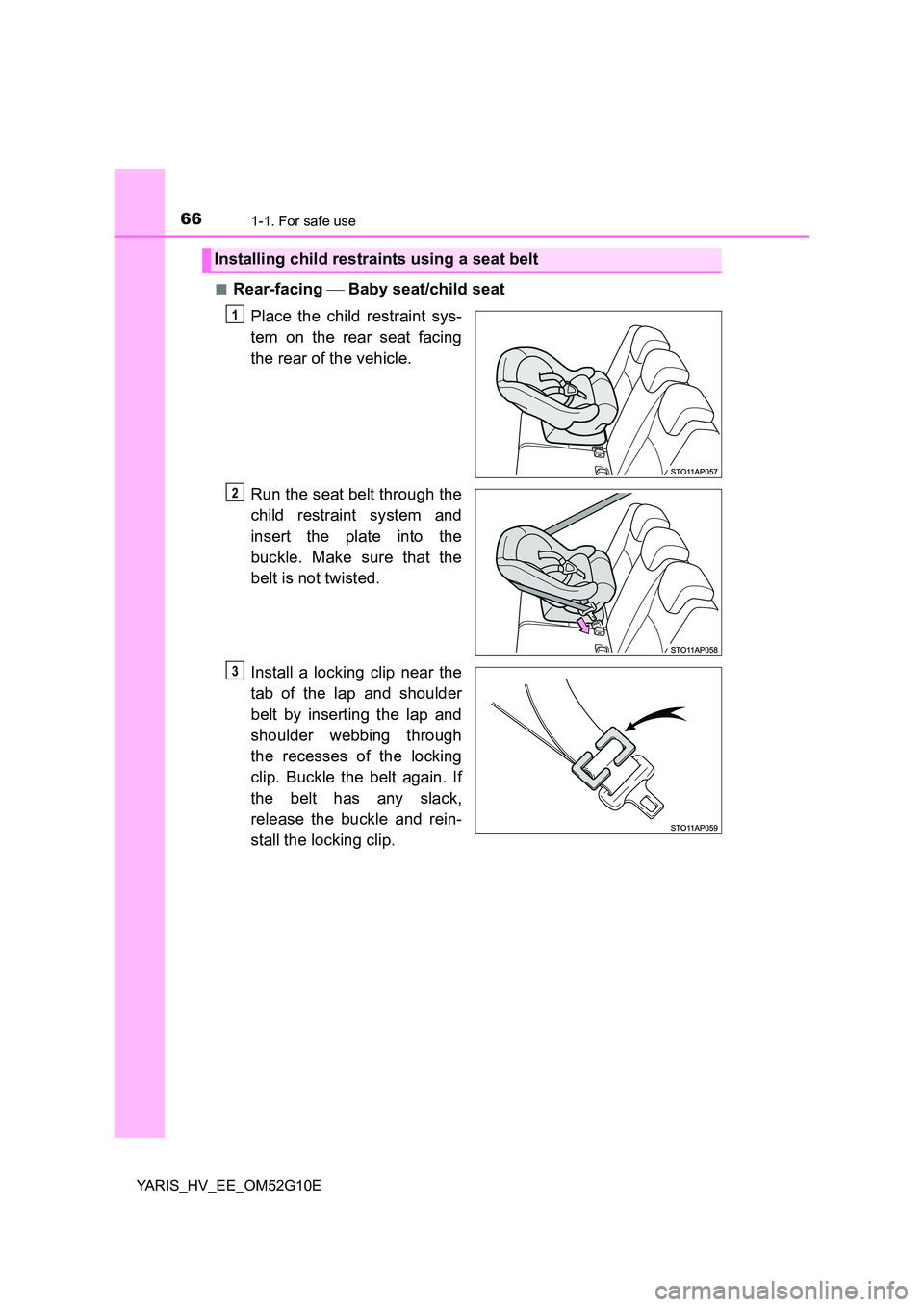

■Rear-facing  Baby seat/child seat
Place the child restraint sys-
tem on the rear seat facing
the rear of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Install a locking clip near the
tab of the lap and shoulder
belt by inserting the lap and
shoulder webbing through
the recesses of the locking
clip. Buckle the belt again. If
the belt has any slack,
release the buckle and rein-
stall the locking clip.
Installing child restraints using a seat belt
1
2
3

671-1. For safe use
1
For safety and security
YARIS_HV_EE_OM52G10E

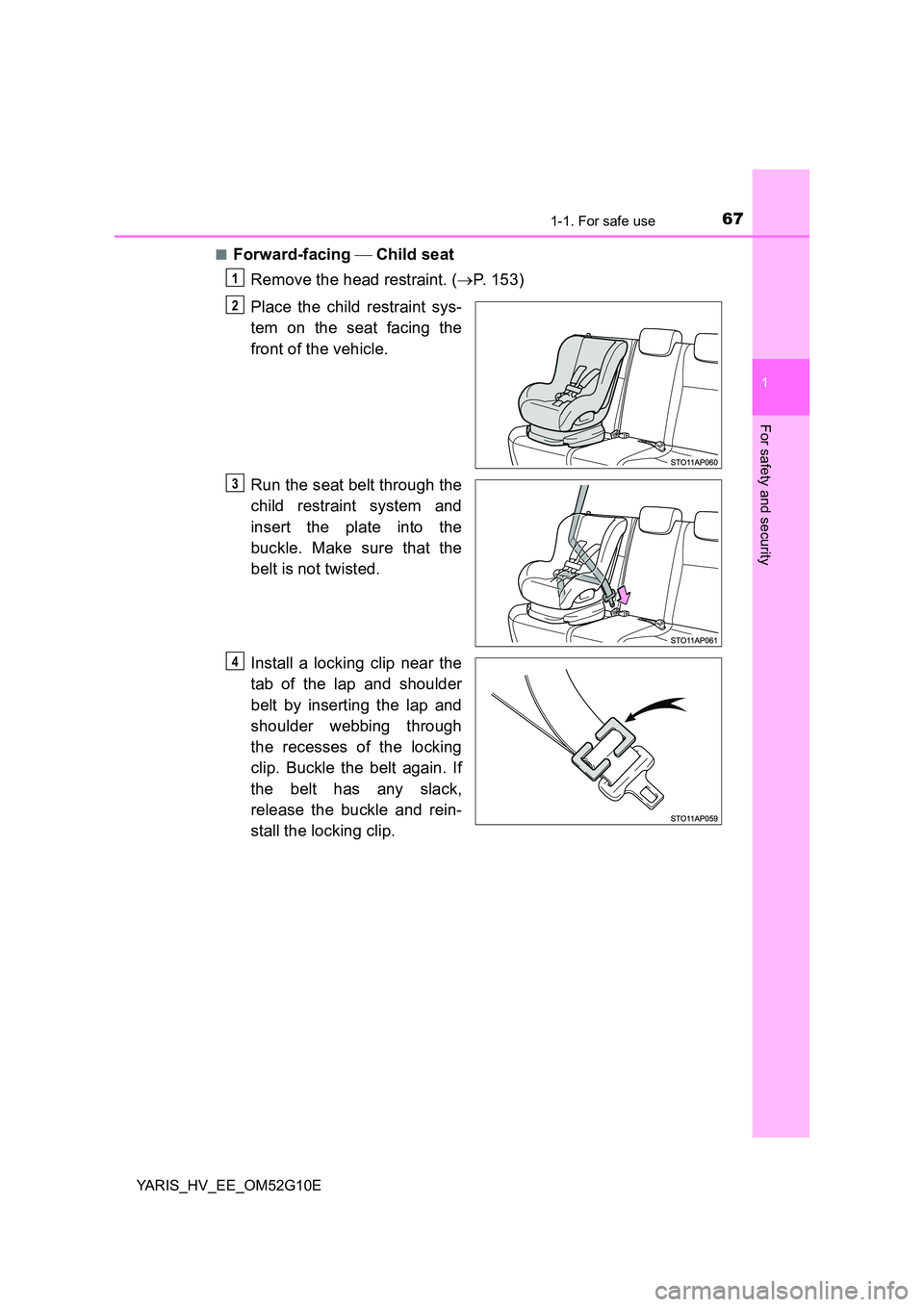

■Forward-facing  Child seat
Remove the head restraint. ( P. 153)
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Install a locking clip near the
tab of the lap and shoulder
belt by inserting the lap and
shoulder webbing through
the recesses of the locking
clip. Buckle the belt again. If
the belt has any slack,
release the buckle and rein-
stall the locking clip.
1
2
3
4

681-1. For safe use
YARIS_HV_EE_OM52G10E

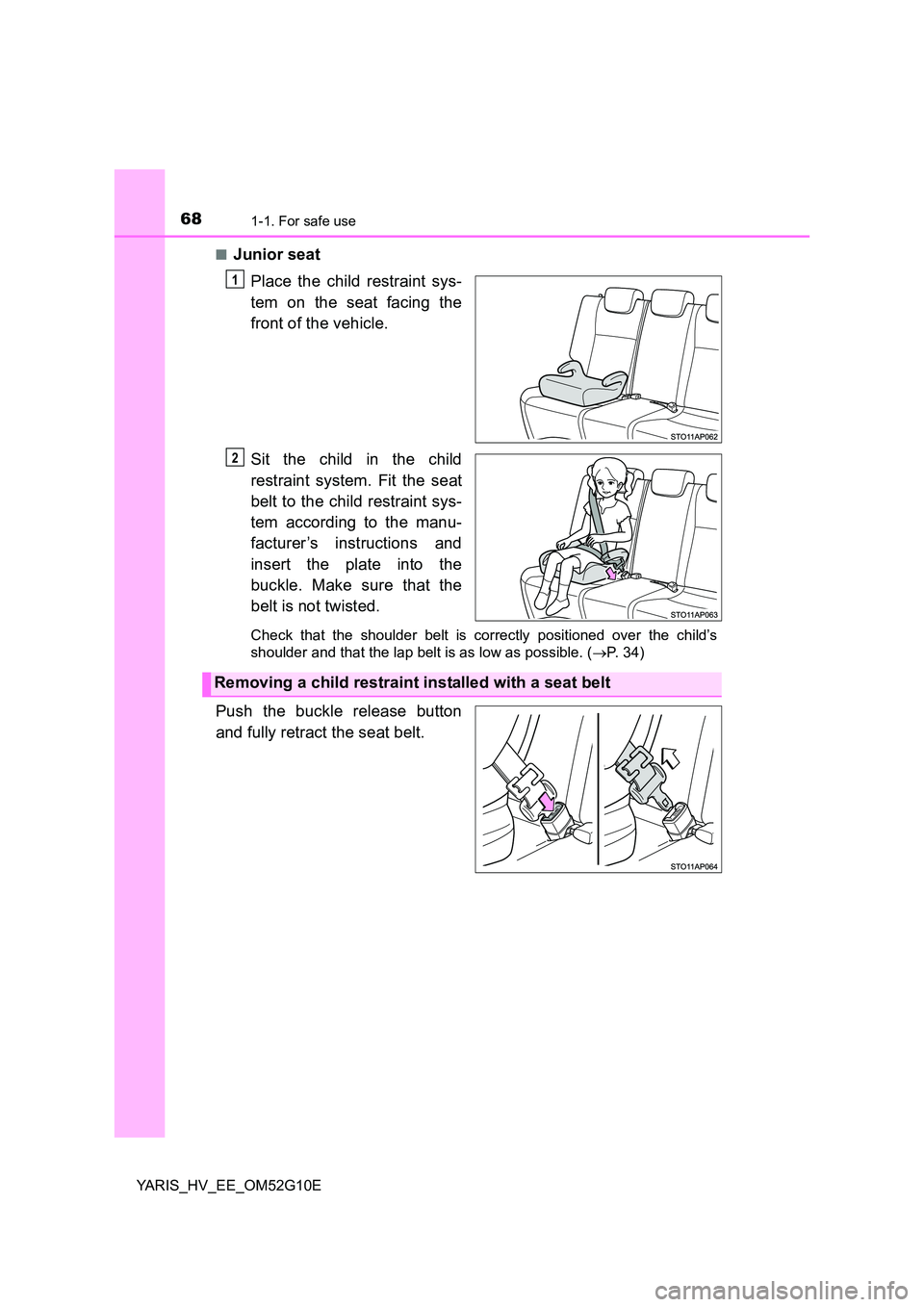

■Junior seat
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is correctly positioned over the child’s
shoulder and that the lap belt is as low as possible. ( P. 34)
Push the buckle release button
and fully retract the seat belt.
1
2
Removing a child restraint installed with a seat belt

691-1. For safe use
1
For safety and security
YARIS_HV_EE_OM52G10E
Remove the head restraint. (P. 153)
Widen the gap between the seat cushion and seatback slightly.
Latch the buckles onto the
exclusive fixing bars.
If the child restraint has a top strap,
the top strap should be latched
onto the anchor bracket.
Installation with ISOFIX rigid anchors (ISOFIX child restraint sys-
tem)
1
2
3

701-1. For safe use
YARIS_HV_EE_OM52G10E

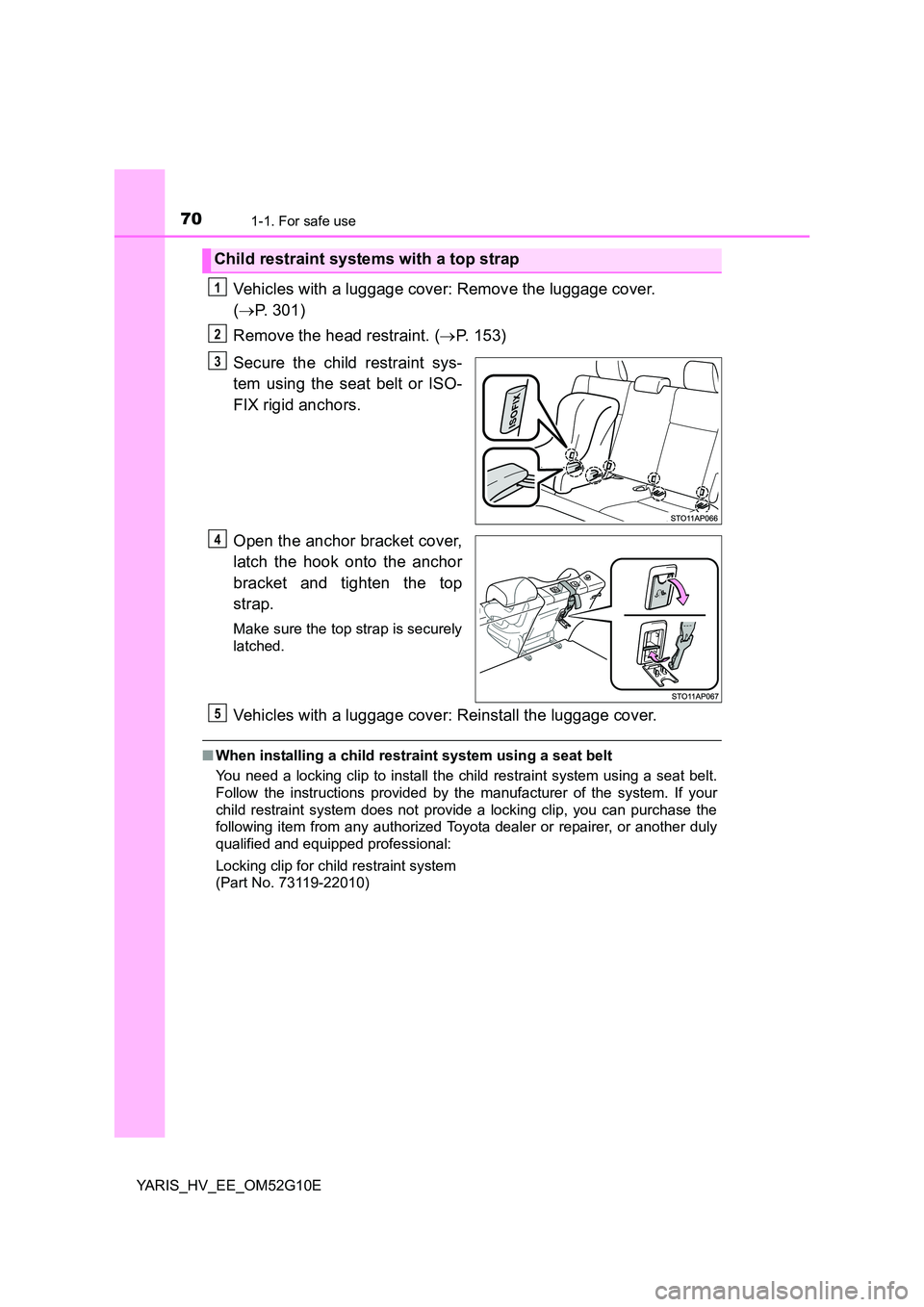

Vehicles with a luggage cover: Remove the luggage cover.
( P. 301)
Remove the head restraint. ( P. 153)
Secure the child restraint sys-
tem using the seat belt or ISO-
FIX rigid anchors.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top
strap.
Make sure the top strap is securely
latched.
Vehicles with a luggage cover: Reinstall the luggage cover.
■ When installing a child restraint system using a seat belt
You need a locking clip to install the child restraint system using a seat belt.
Follow the instructions provided by the manufacturer of the system. If your
child restraint system does not provide a locking clip, you can purchase the
following item from any authorized Toyo ta dealer or repairer, or another duly
qualified and equipped professional:
Locking clip for child restraint system
(Part No. 73119-22010)
Child restraint systems with a top strap
1
2
3
4
5
