TOYOTA YARIS HYBRID 2017 Owners Manual

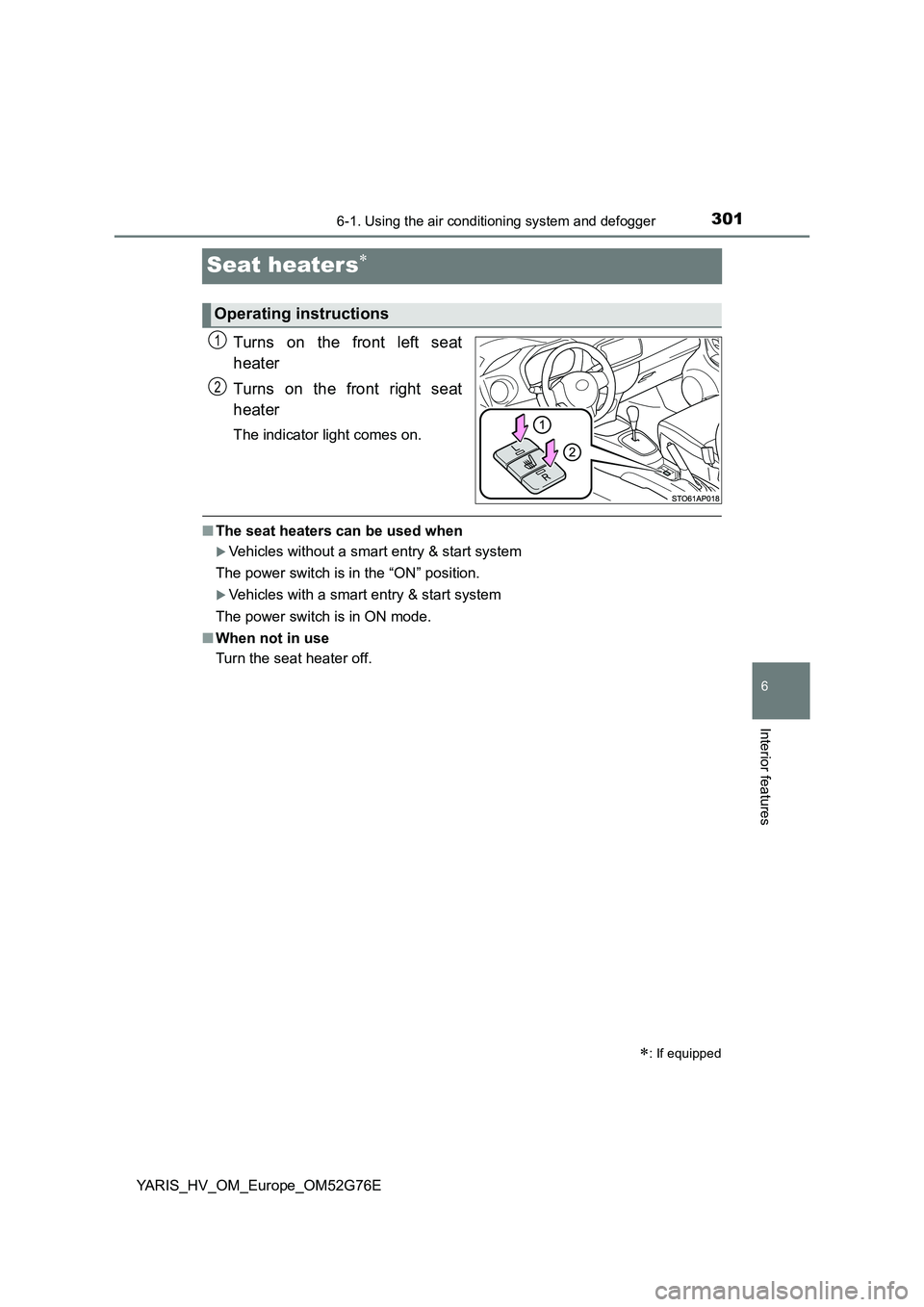

3016-1. Using the air conditioning system and defogger
6
Interior features
YARIS_HV_OM_Europe_OM52G76E
Seat heaters
Turns on the front left seat
heater
Turns on the front right seat
heater
The indicator light comes on.
■ The seat heaters can be used when
Vehicles without a smart entry & start system
The power switch is in the “ON” position.
Vehicles with a smart entry & start system
The power switch is in ON mode.
■ When not in use
Turn the seat heater off.
: If equipped
Operating instructions
1
2

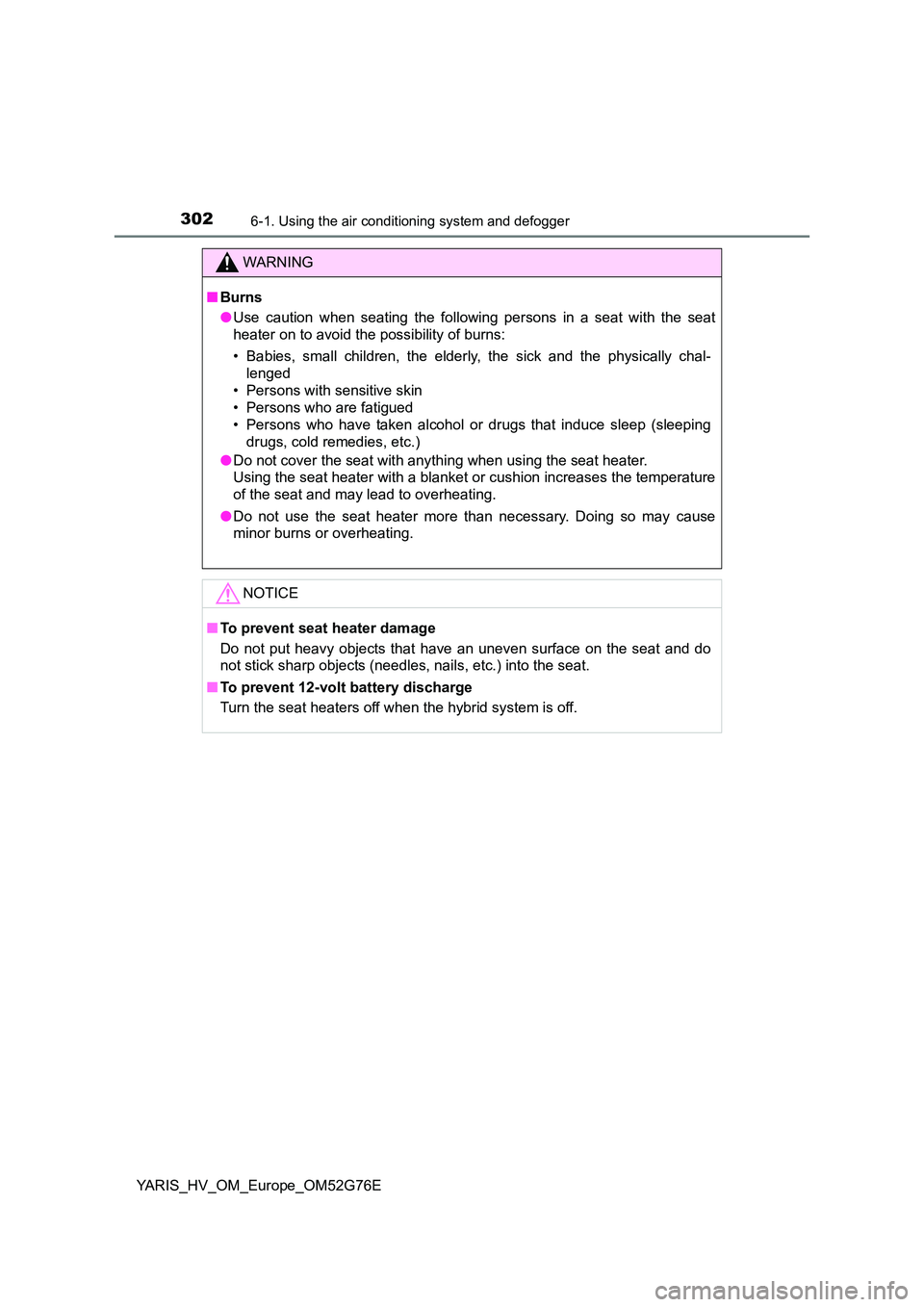

3026-1. Using the air conditioning system and defogger
YARIS_HV_OM_Europe_OM52G76E
WARNING
■Burns
● Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
● Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
■ To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
■ To prevent 12-volt battery discharge
Turn the seat heaters off when the hybrid system is off.

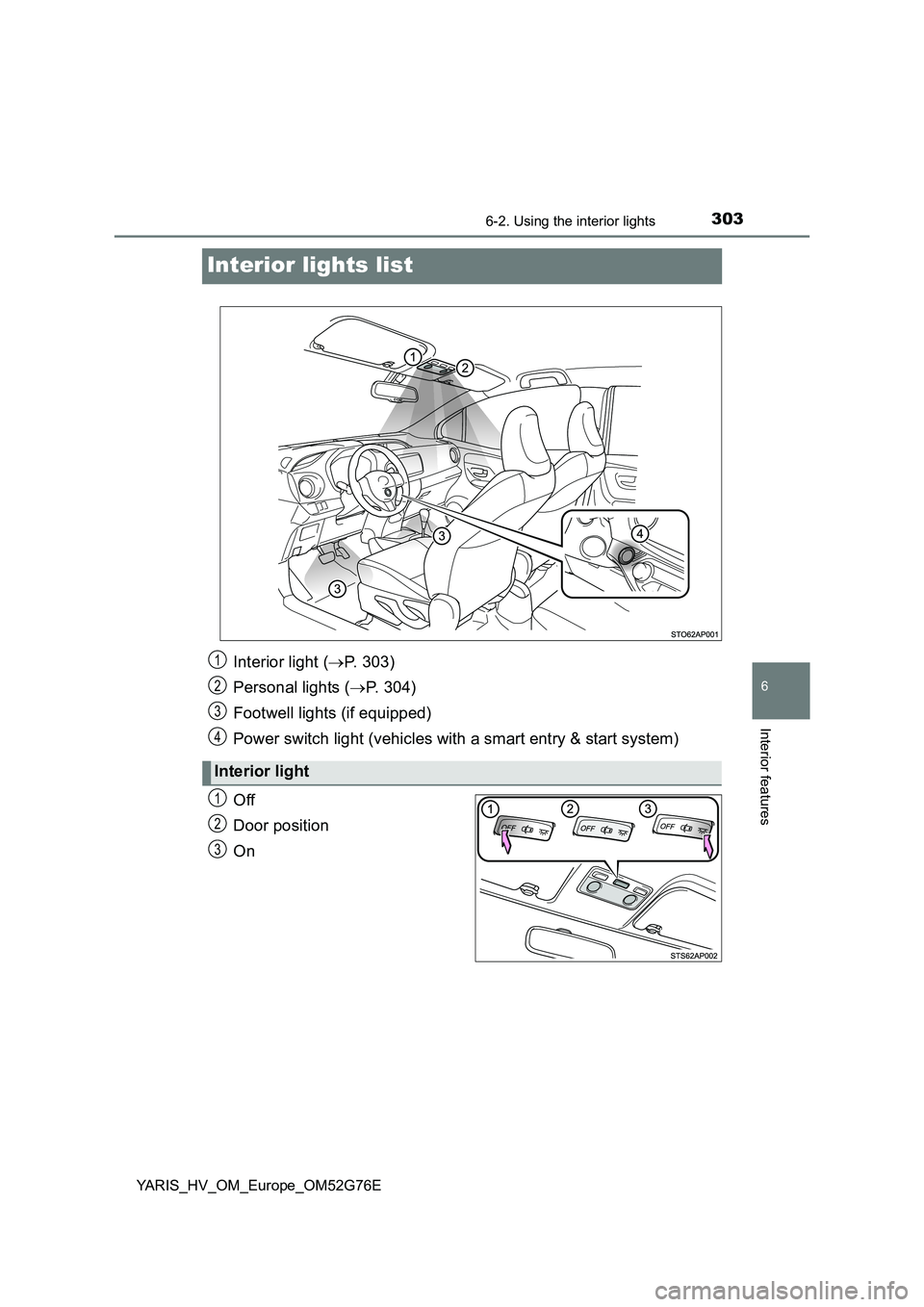

3036-2. Using the interior lights
6
Interior features
YARIS_HV_OM_Europe_OM52G76E
Interior lights list
Off
Door position
On
Interior light ( P. 303)
Personal lights ( P. 304)
Footwell lights (if equipped)
Power switch light (vehicles with a smart entry & start system)
Interior light
1
2
3
4
1
2
3

3046-2. Using the interior lights
YARIS_HV_OM_Europe_OM52G76E
On
Off
■ Illuminated entry system
Vehicles without a smart entry & start system
The lights automatically turn on/off according to the power switch position,
whether the doors are locked/unloc ked, and whether the doors are opened/
closed.
Vehicles with a smart entry & start system
The lights automatically turn on/off according to power switch mode, the pres-
ence of the electronic key, whether the doors are locked/unlocked, and
whether the doors are opened/closed.
■ To prevent 12-volt battery from being discharged
If the following lights remain on when the door is not fully closed, the lights will
go off automatically after 20 minutes:
● Interior light (when the switch is in the door position)
● Power switch light
● Footwell lights
■ Customization
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features P. 475)
Personal lights
1
2

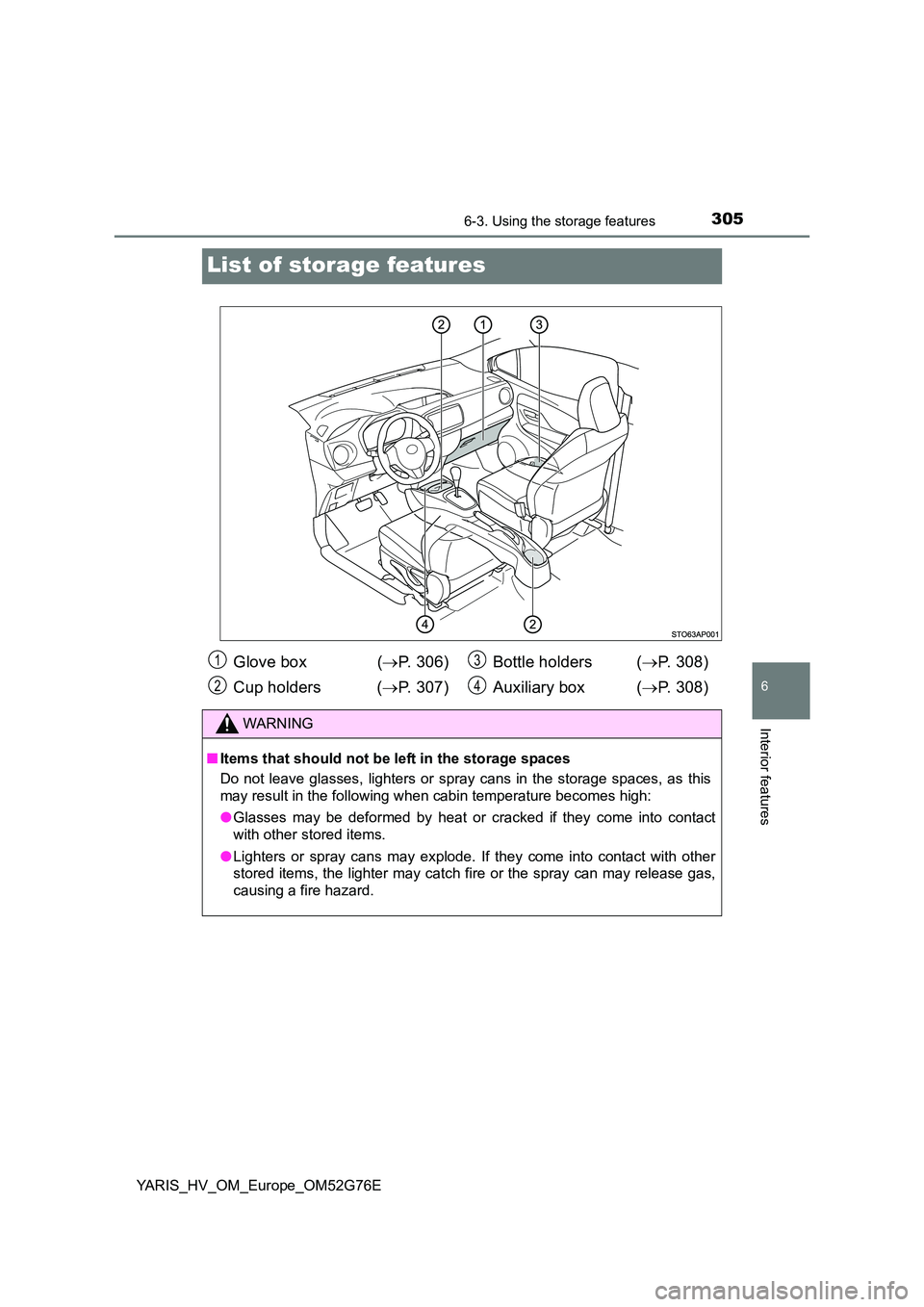

3056-3. Using the storage features
6
Interior features
YARIS_HV_OM_Europe_OM52G76E
List of storage features
Glove box (P. 306)
Cup holders ( P. 307)
Bottle holders ( P. 308)
Auxiliary box ( P. 308)
WARNING
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may result in the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
1
2
3
4

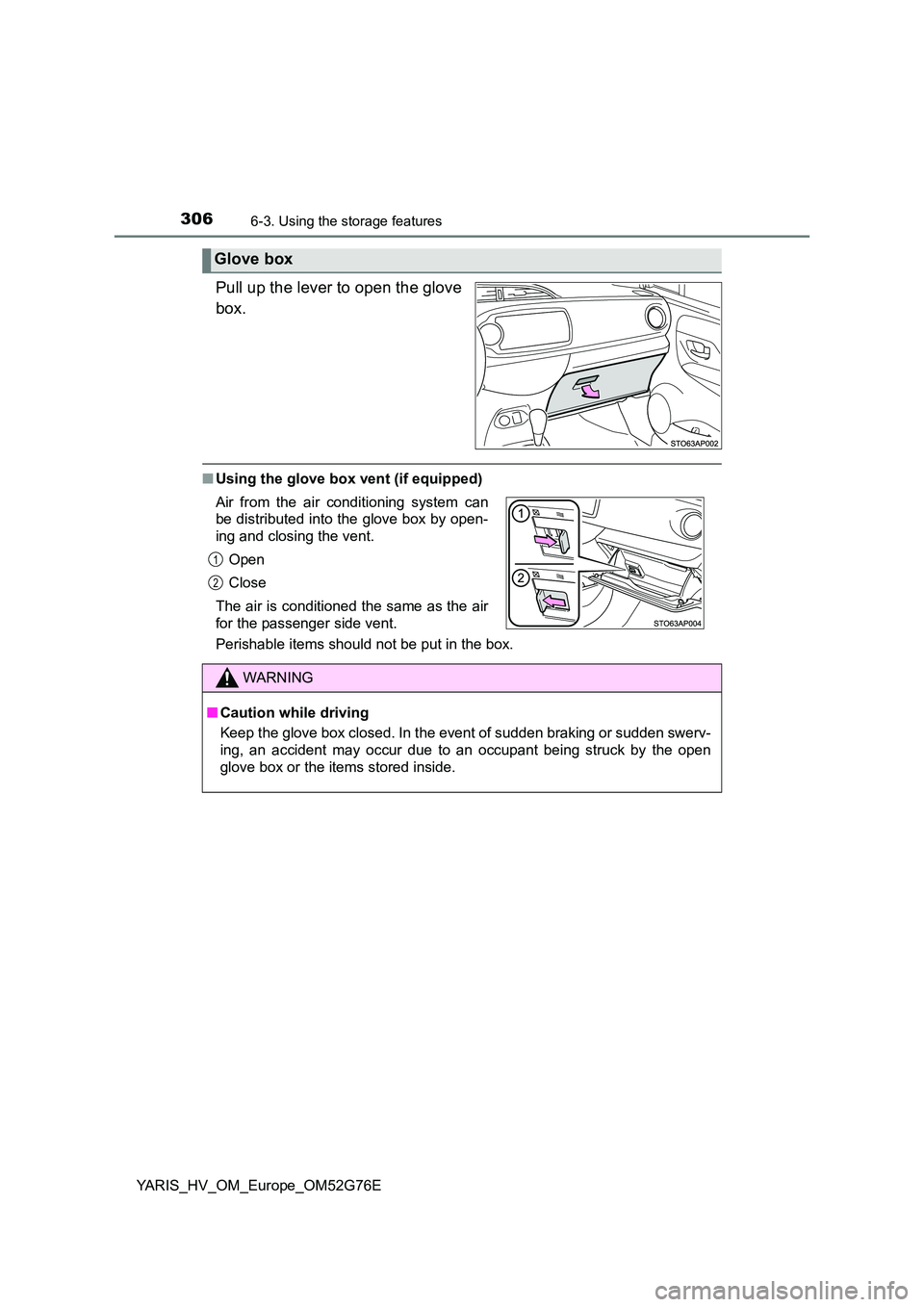

3066-3. Using the storage features
YARIS_HV_OM_Europe_OM52G76E
Pull up the lever to open the glove
box.
■ Using the glove box vent (if equipped)
Perishable items should not be put in the box.
Glove box
Air from the air conditioning system can
be distributed into the glove box by open-
ing and closing the vent.
Open
Close
The air is conditioned the same as the air
for the passenger side vent.
WARNING
■ Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
glove box or the items stored inside.
1
2

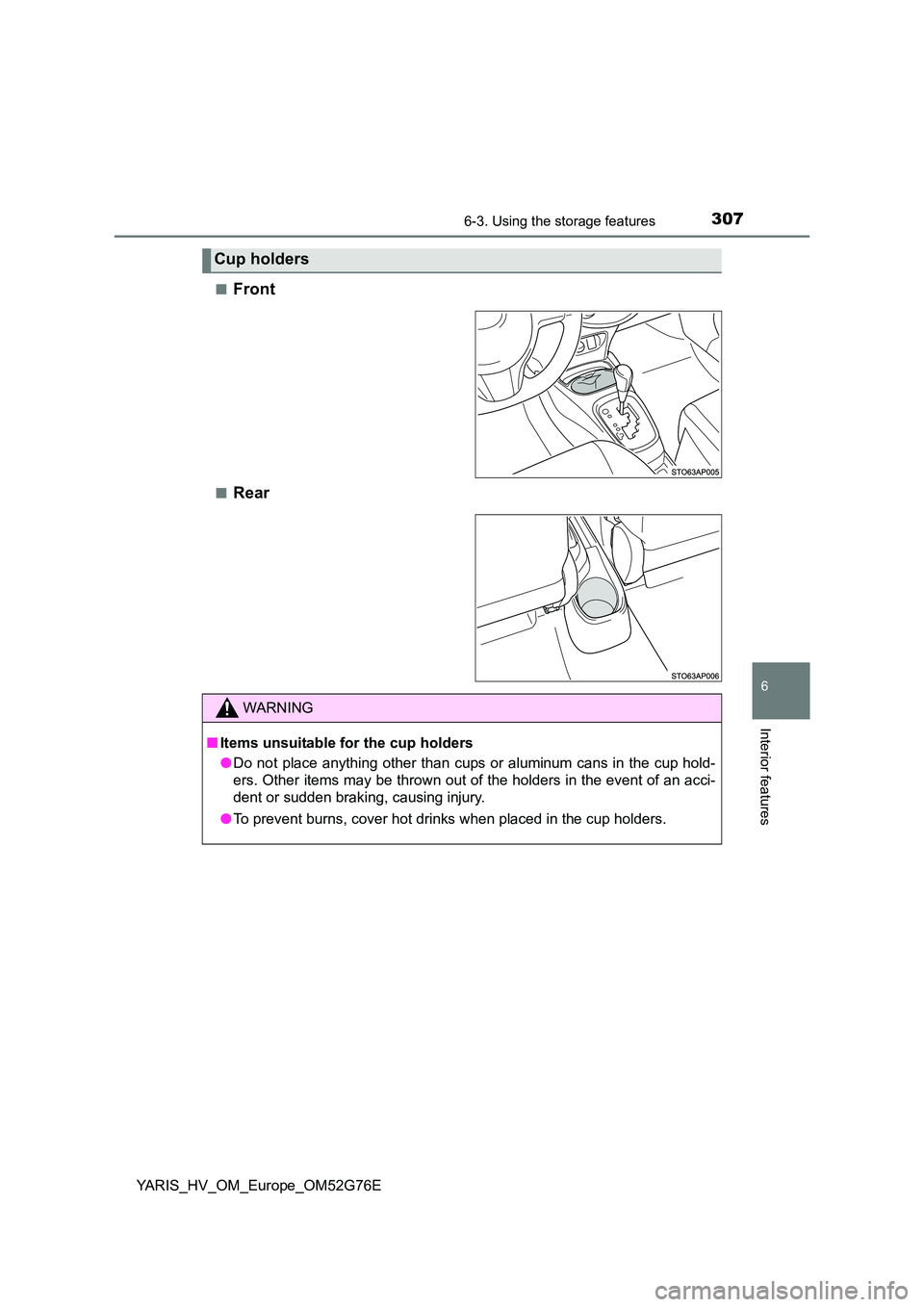

3076-3. Using the storage features
6
Interior features
YARIS_HV_OM_Europe_OM52G76E
■Front
■Rear
Cup holders
WARNING
■ Items unsuitable for the cup holders
● Do not place anything other than cups or aluminum cans in the cup hold-
ers. Other items may be thrown out of the holders in the event of an acci-
dent or sudden braking, causing injury.
● To prevent burns, cover hot drinks when placed in the cup holders.

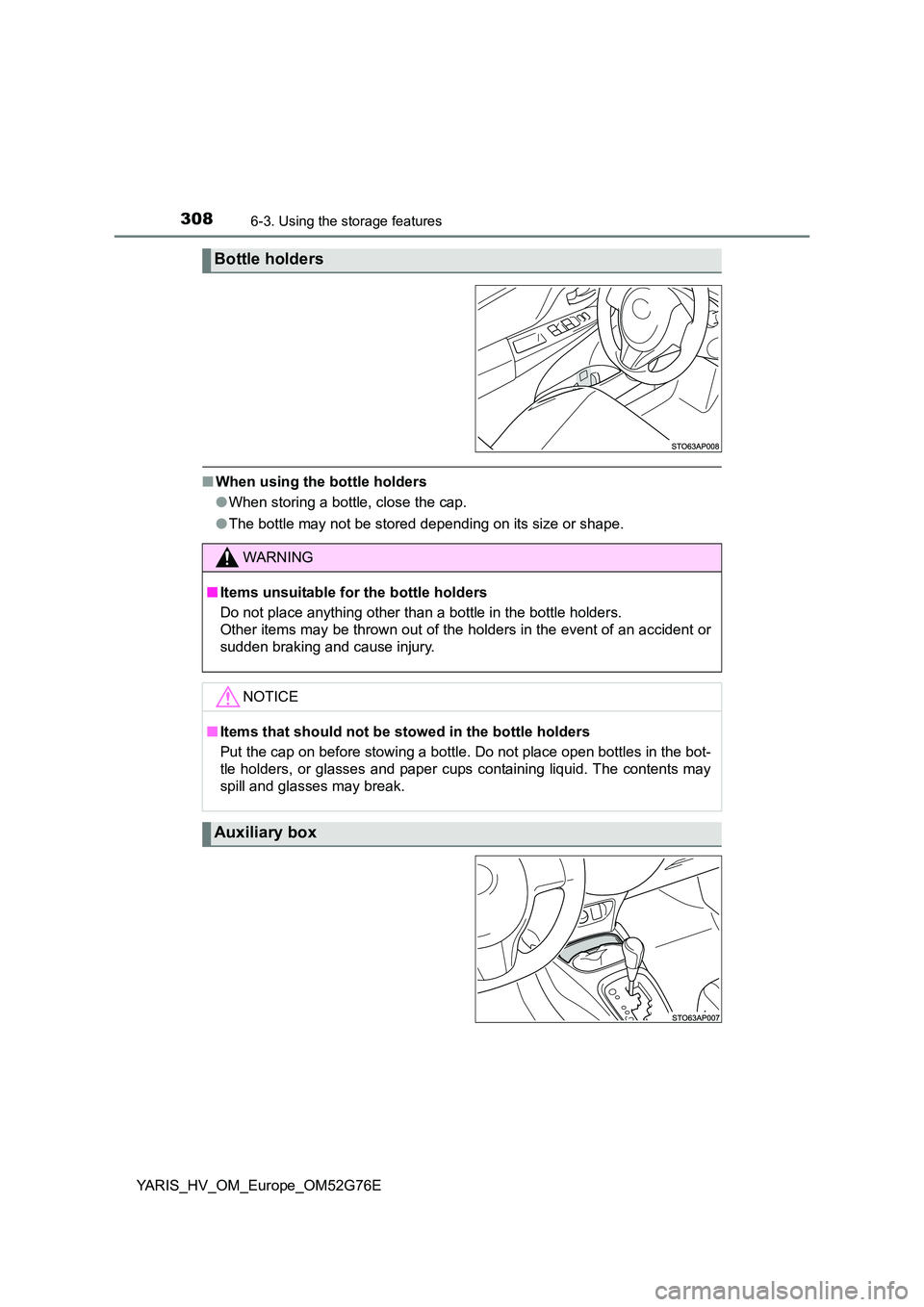

3086-3. Using the storage features
YARIS_HV_OM_Europe_OM52G76E
■When using the bottle holders
● When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
Bottle holders
WARNING
■Items unsuitable for the bottle holders
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
■ Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Auxiliary box

3096-3. Using the storage features
6
Interior features
YARIS_HV_OM_Europe_OM52G76E

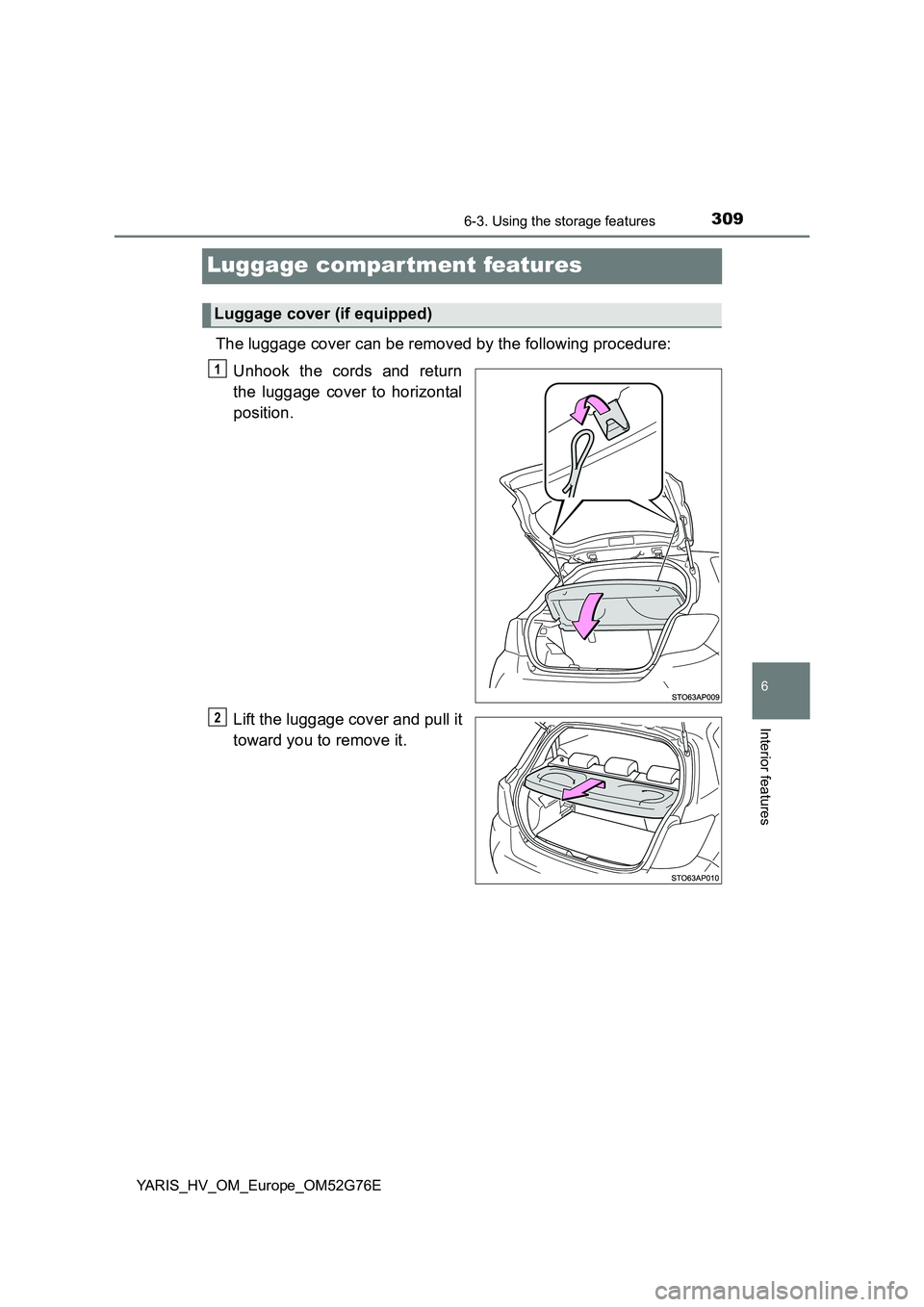

Luggage compartment features
The luggage cover can be removed by the following procedure:
Unhook the cords and return
the luggage cover to horizontal
position.
Lift the luggage cover and pull it
toward you to remove it.
Luggage cover (if equipped)
1
2

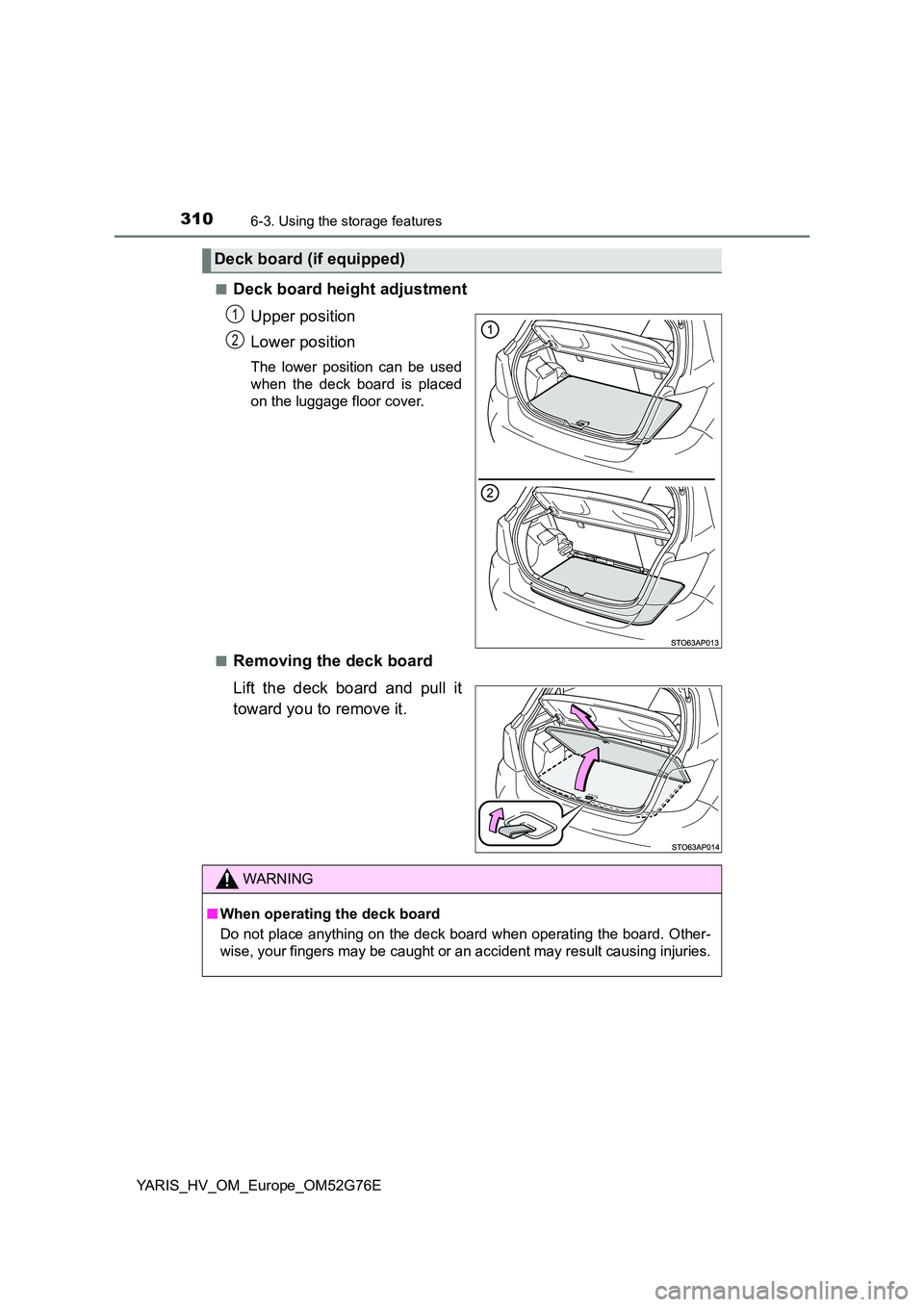

3106-3. Using the storage features
YARIS_HV_OM_Europe_OM52G76E
■Deck board height adjustment
Upper position
Lower position
The lower position can be used
when the deck board is placed
on the luggage floor cover.
■Removing the deck board
Lift the deck board and pull it
toward you to remove it.
Deck board (if equipped)
1
2
WARNING
■ When operating the deck board
Do not place anything on the deck board when operating the board. Other-
wise, your fingers may be caught or an accident may result causing injuries.
