TOYOTA YARIS HYBRID 2017 Owners Manual

3817-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52G76E

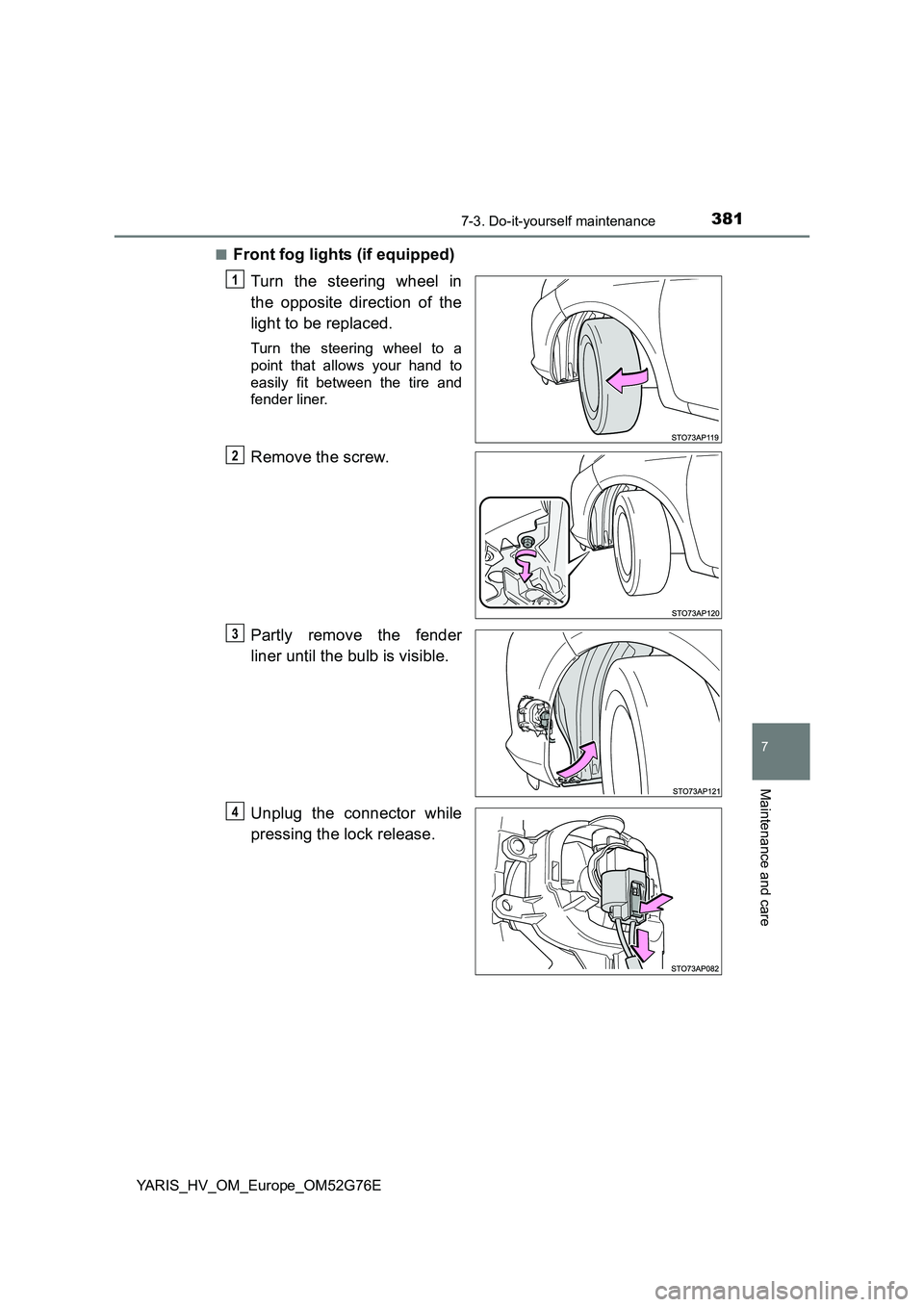

■Front fog lights (if equipped)
Turn the steering wheel in
the opposite direction of the
light to be replaced.
Turn the steering wheel to a
point that allows your hand to
easily fit between the tire and
fender liner.
Remove the screw.
Partly remove the fender
liner until the bulb is visible.
Unplug the connector while
pressing the lock release.
1
2
3
4

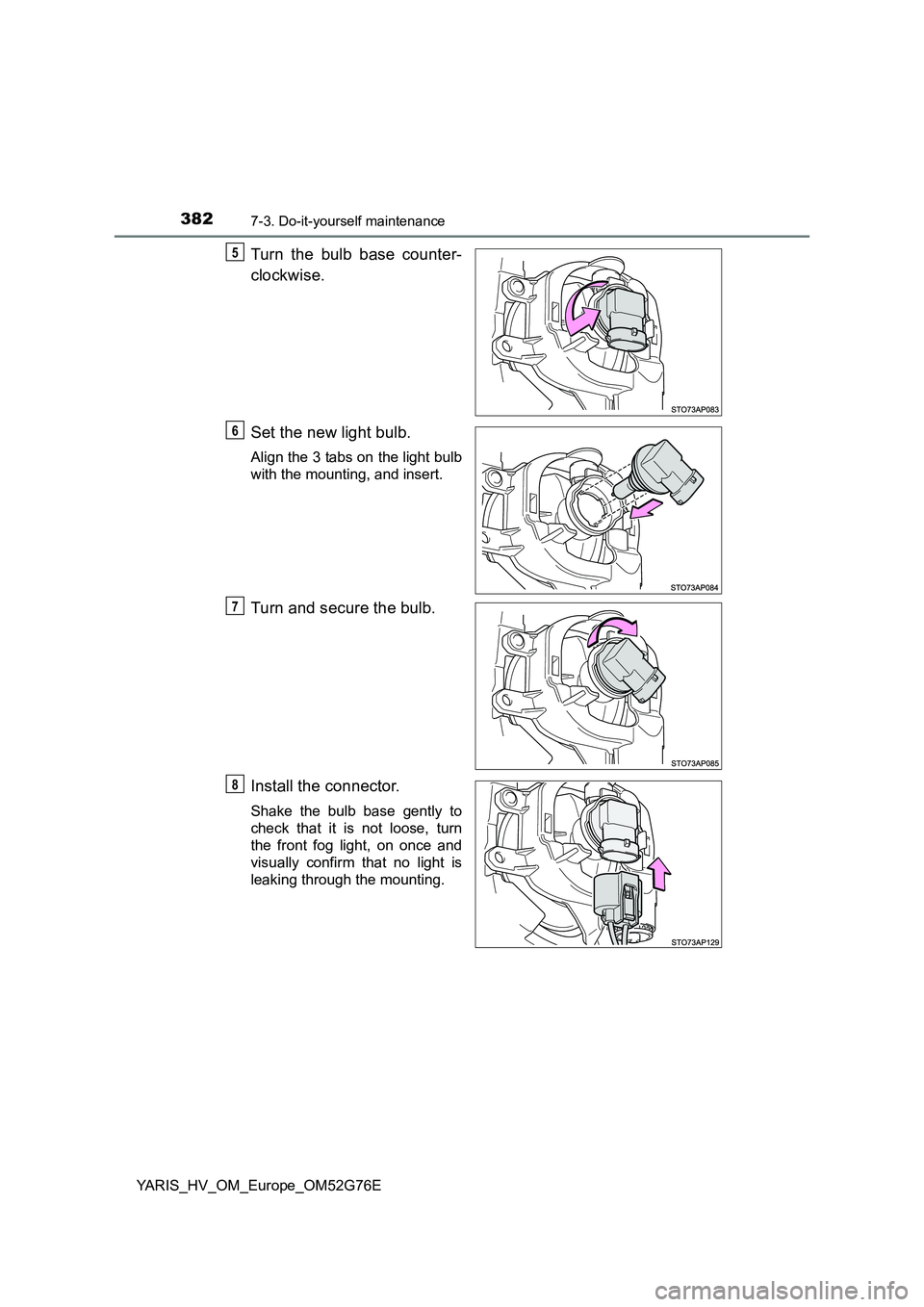

3827-3. Do-it-yourself maintenance
YARIS_HV_OM_Europe_OM52G76E
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog light, on once and
visually confirm that no light is
leaking through the mounting.
5
6
7
8

3837-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52G76E

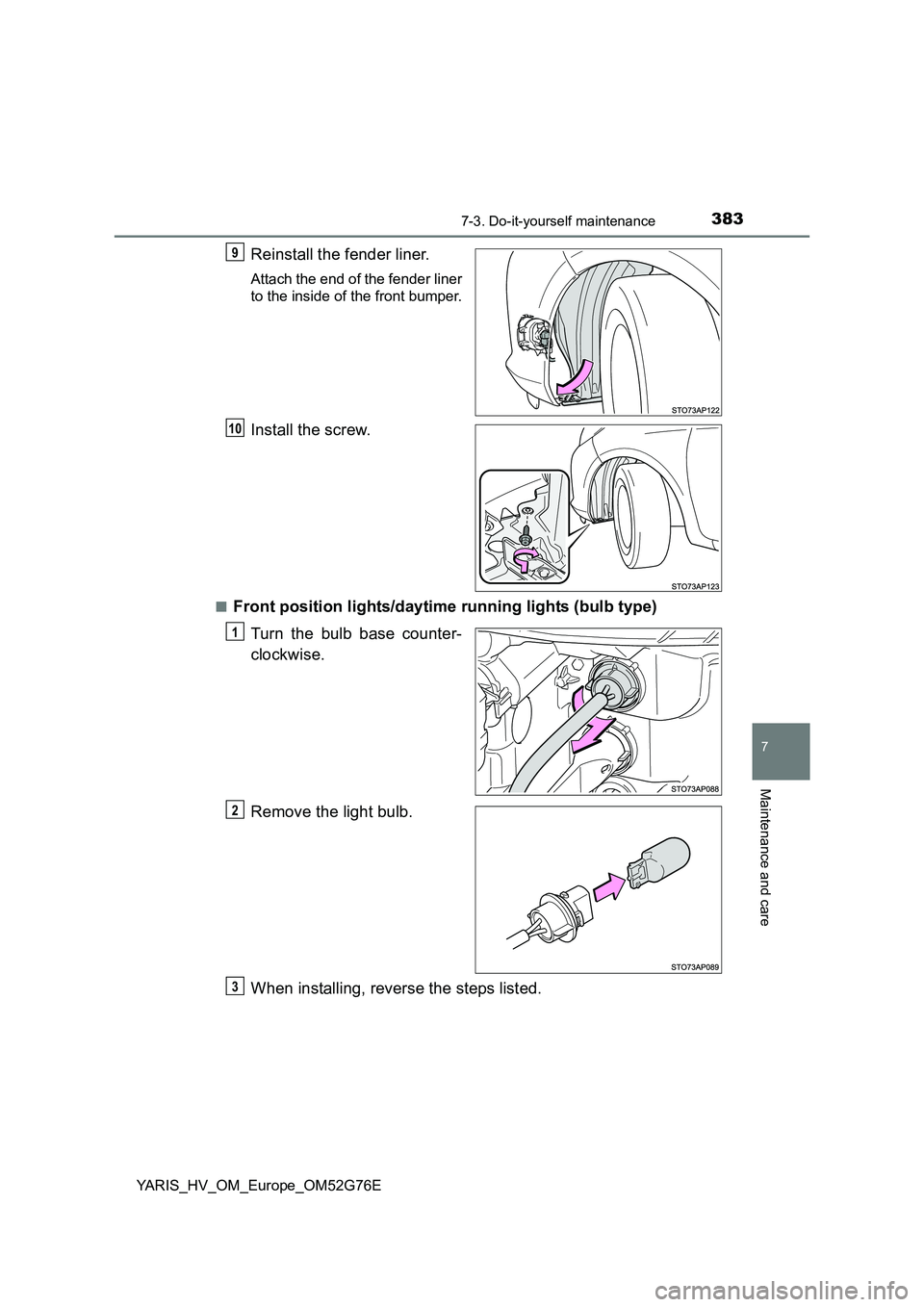

Reinstall the fender liner.
Attach the end of the fender liner
to the inside of the front bumper.
Install the screw.
■Front position lights/daytime running lights (bulb type)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
9
10
1
2
3

3847-3. Do-it-yourself maintenance
YARIS_HV_OM_Europe_OM52G76E

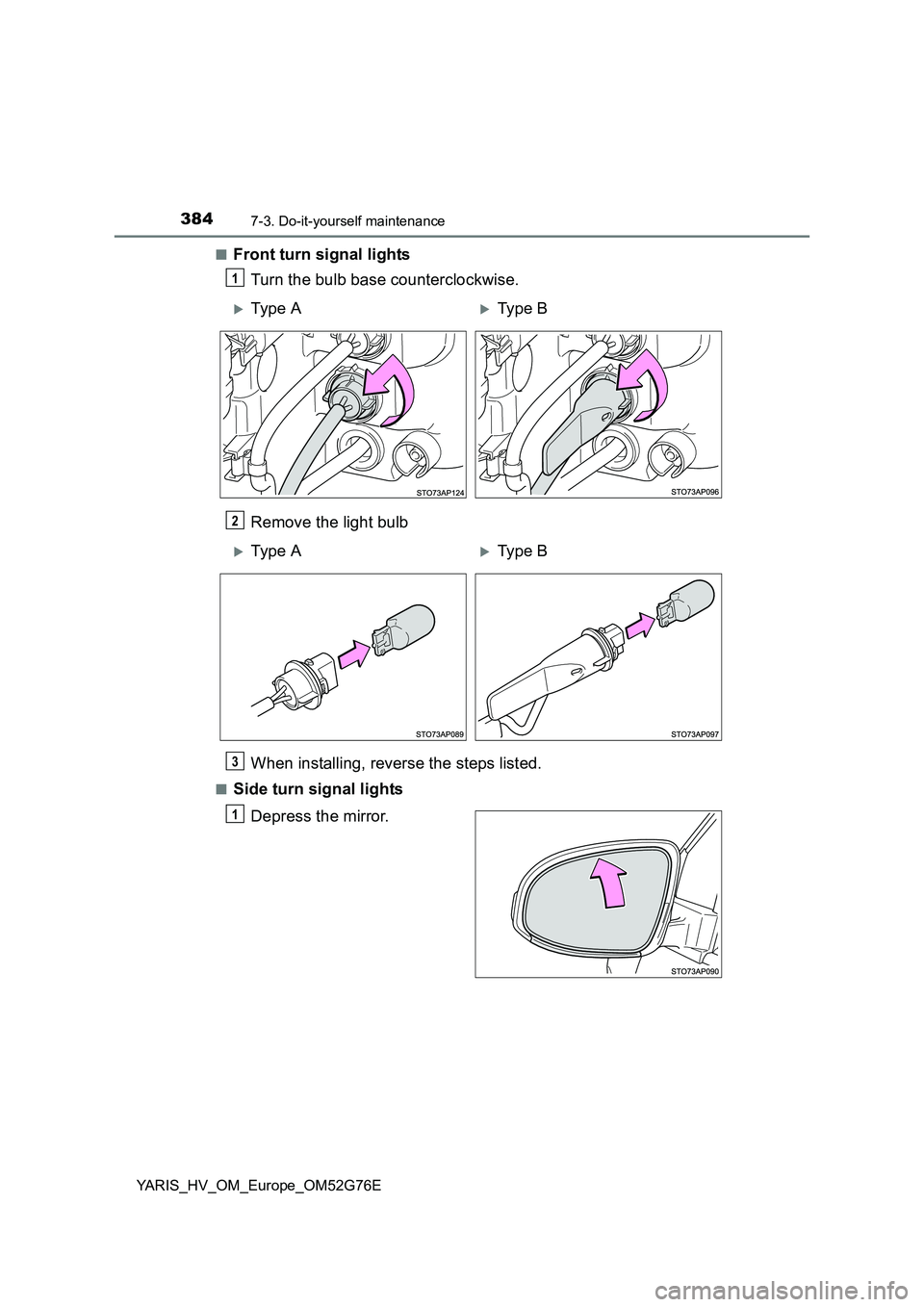

■Front turn signal lights
Turn the bulb base counterclockwise.
Remove the light bulb
When installing, reverse the steps listed.
■Side turn signal lights
Depress the mirror.
1
Type AType B
2
Type AType B
3
1

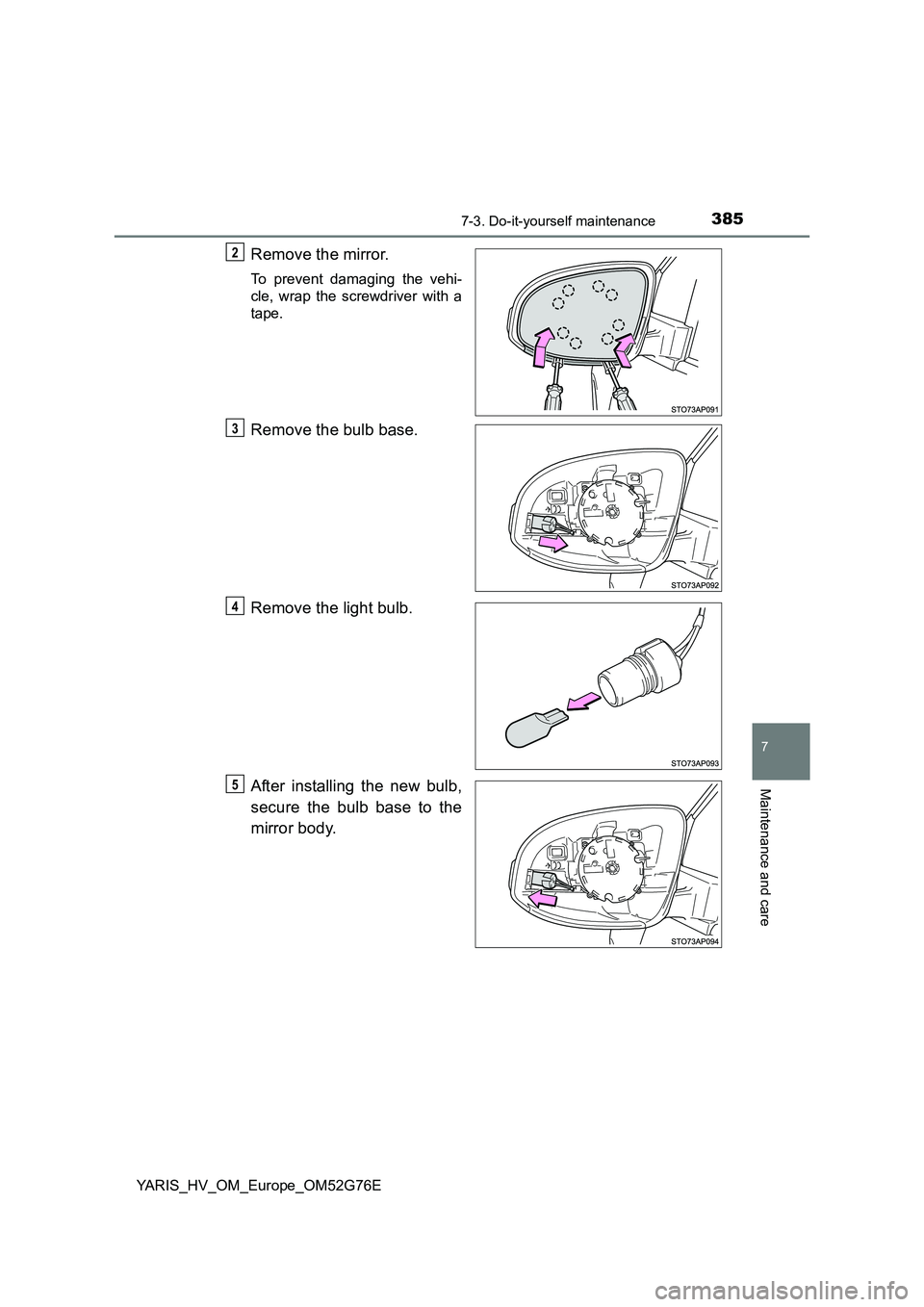

3857-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52G76E
Remove the mirror.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Remove the bulb base.
Remove the light bulb.
After installing the new bulb,
secure the bulb base to the
mirror body.
2
3
4
5

3867-3. Do-it-yourself maintenance
YARIS_HV_OM_Europe_OM52G76E

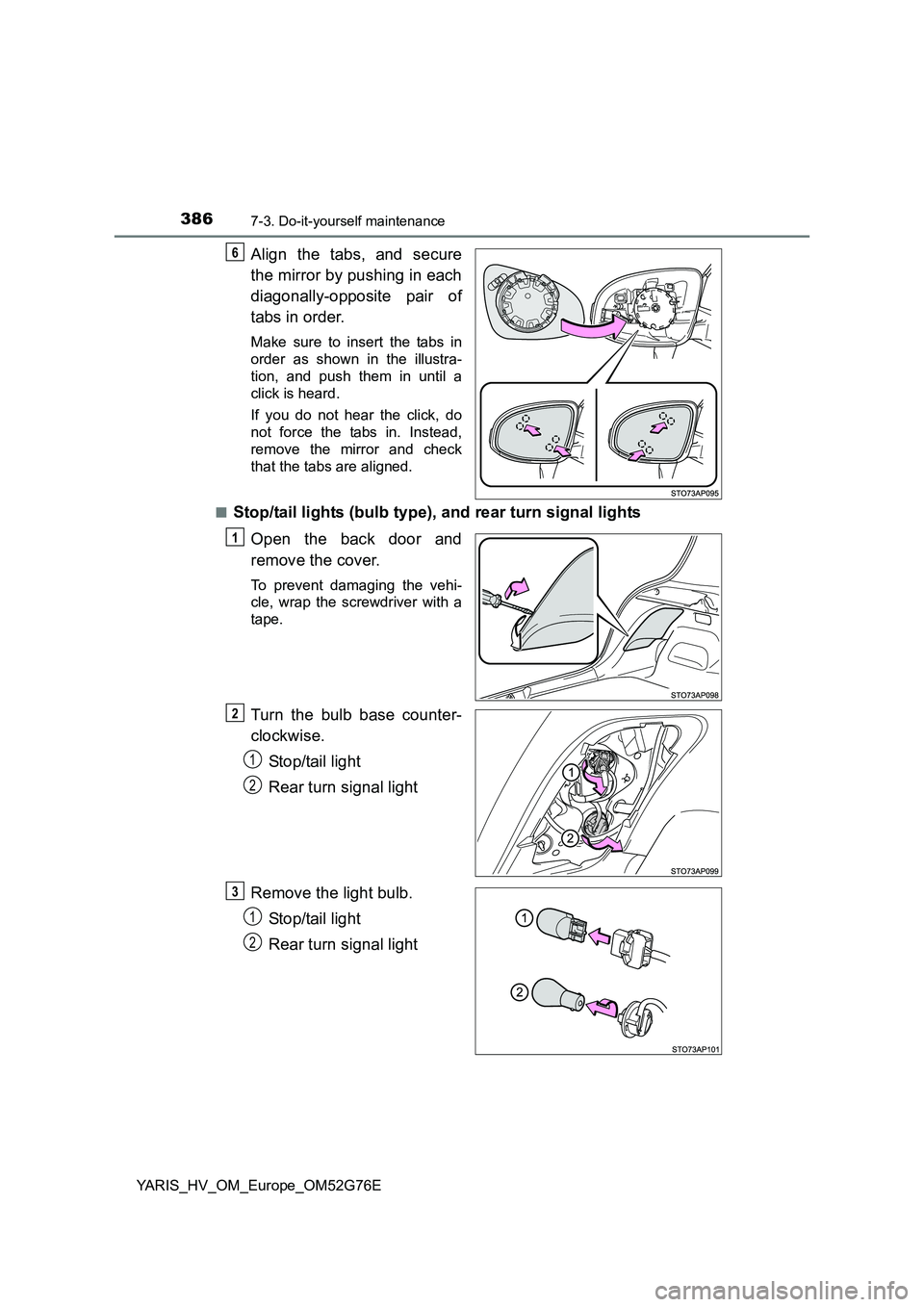

Align the tabs, and secure
the mirror by pushing in each
diagonally-opposite pair of
tabs in order.
Make sure to insert the tabs in
order as shown in the illustra-
tion, and push them in until a
click is heard.
If you do not hear the click, do
not force the tabs in. Instead,
remove the mirror and check
that the tabs are aligned.
■Stop/tail lights (bulb type), and rear turn signal lights
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Turn the bulb base counter-
clockwise.
Stop/tail light
Rear turn signal light
Remove the light bulb.
Stop/tail light
Rear turn signal light
6
1
2
1
2
3
1
2

3877-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52G76E

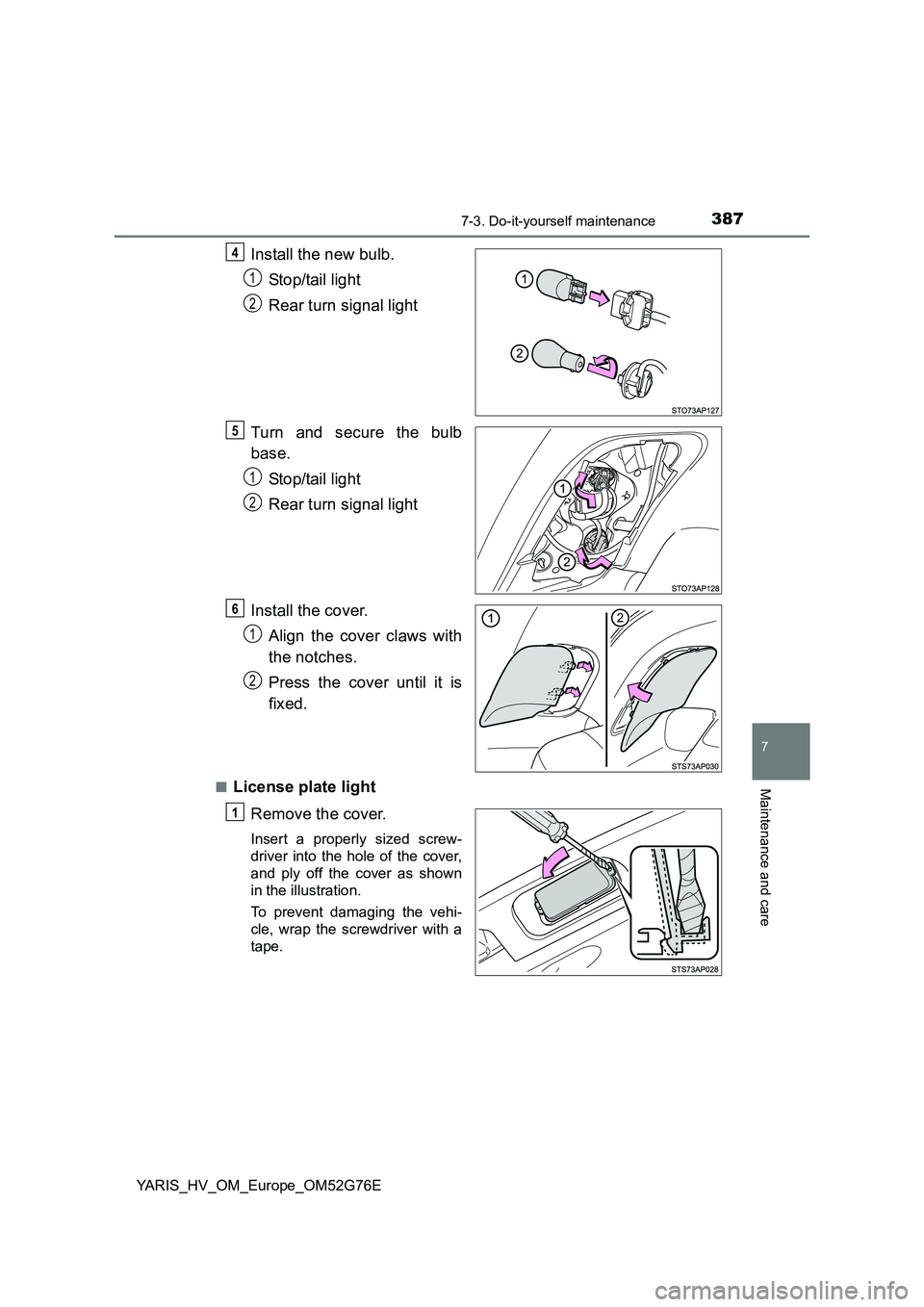

Install the new bulb.
Stop/tail light
Rear turn signal light
Turn and secure the bulb
base.
Stop/tail light
Rear turn signal light
Install the cover.
Align the cover claws with
the notches.
Press the cover until it is
fixed.
■License plate light
Remove the cover.
Insert a properly sized screw-
driver into the hole of the cover,
and ply off the cover as shown
in the illustration.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
4
1
2
5
1
2
6
1
2
1

3887-3. Do-it-yourself maintenance
YARIS_HV_OM_Europe_OM52G76E

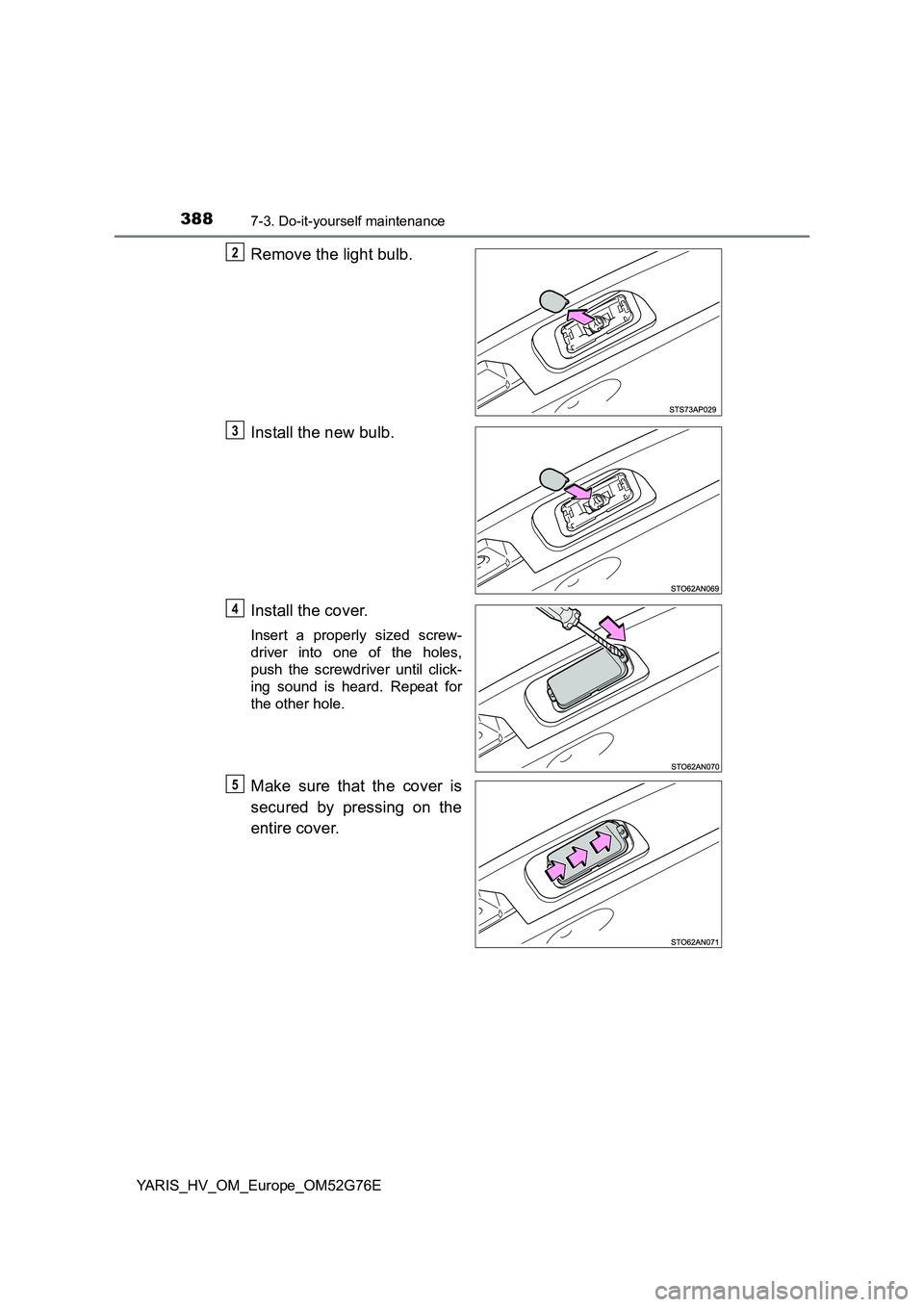

Remove the light bulb.
Install the new bulb.
Install the cover.
Insert a properly sized screw-
driver into one of the holes,
push the screwdriver until click-
ing sound is heard. Repeat for
the other hole.
Make sure that the cover is
secured by pressing on the
entire cover.
2
3
4
5

3897-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_HV_OM_Europe_OM52G76E

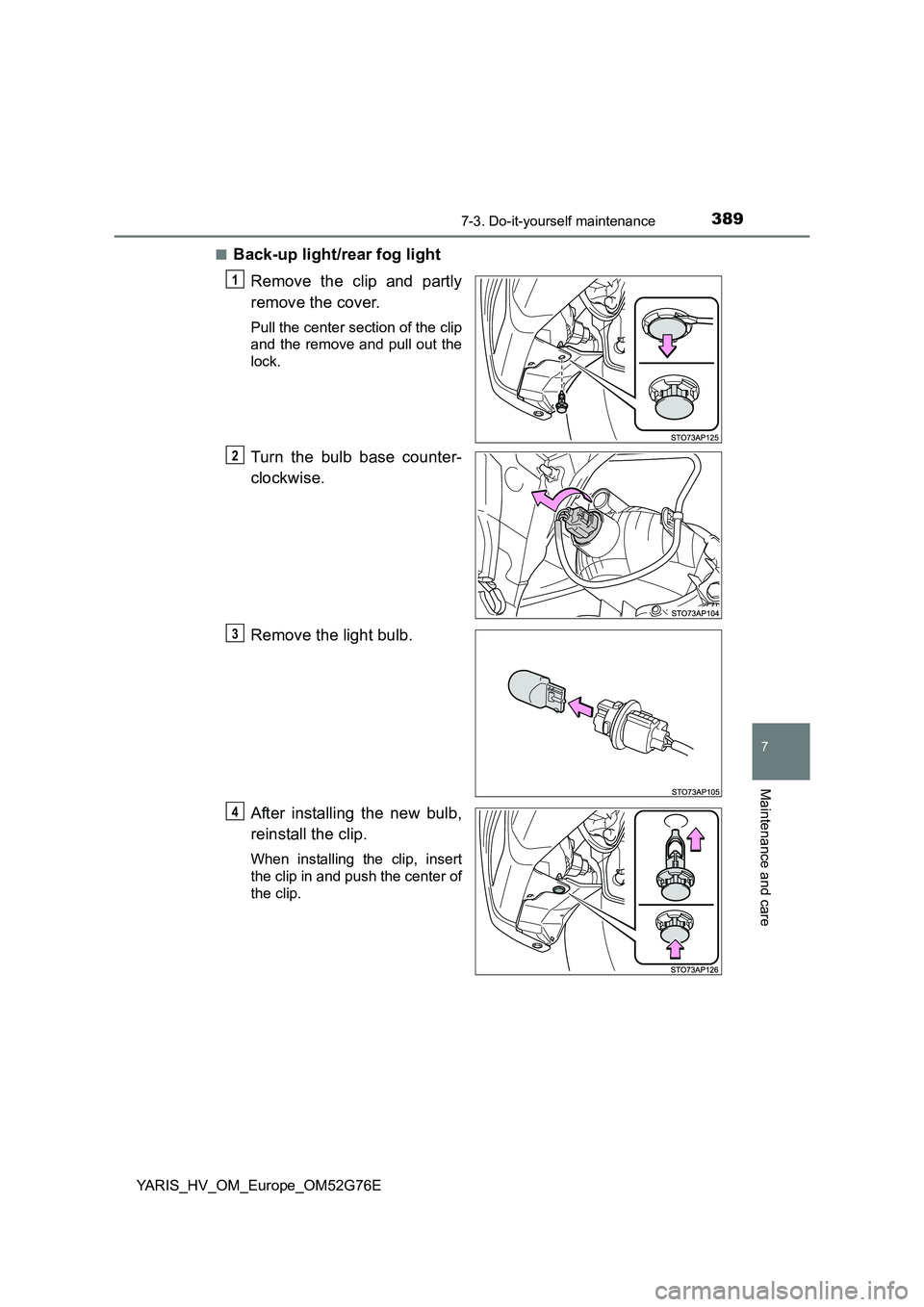

■Back-up light/rear fog light
Remove the clip and partly
remove the cover.
Pull the center section of the clip
and the remove and pull out the
lock.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
After installing the new bulb,
reinstall the clip.
When installing the clip, insert
the clip in and push the center of
the clip.
1
2
3
4

3907-3. Do-it-yourself maintenance
YARIS_HV_OM_Europe_OM52G76E

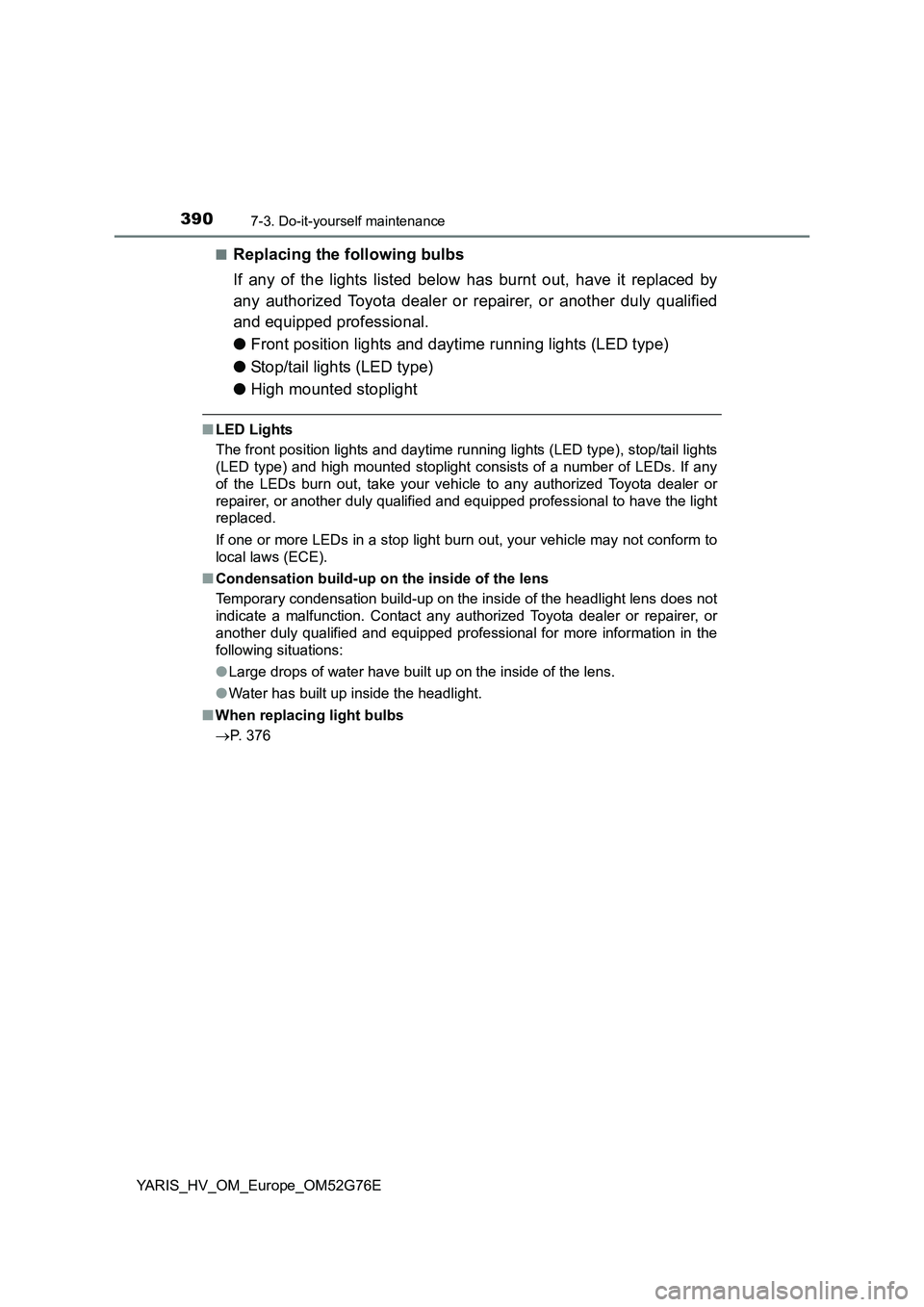

■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● Front position lights and daytime running lights (LED type)
● Stop/tail lights (LED type)
● High mounted stoplight
■LED Lights
The front position lights and daytime running lights (LED type), stop/tail lights
(LED type) and high mounted stoplight consists of a number of LEDs. If any
of the LEDs burn out, take your vehicle to any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional to have the light
replaced.
If one or more LEDs in a stop light burn out, your vehicle may not conform to
local laws (ECE).
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for more information in the
following situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
 P. 376
