5066-7. Warning/Indicator Lights and Warning Sounds
YARIS iA_OM_OM99N89z_(U)
WARNING
■Never tamper with the air bag/pr etensioner systems and always have
your Toyota dealer perform all servicing and repairs
Self-servicing or tampering with the systems is dangerous. An air bag/pre-
tensioner could accidentally activate or become disabled causing serious
injury or death.
■
If the tire pressure monitoring system warning light illuminates or
flashes, or the tire pressure warning beep sound is heard, decrease
vehicle speed immediately and avoid sudden maneuvering and
braking
If the tire pressure monitoring system warning light illuminates or
flashes, or the tire pressure warning beep sound is heard, it is danger-
ous to drive the vehicle at high speeds, or perform sudden maneuvering
or braking. Vehicle drivability could worsen and re sult in an accident.
To determine if you have a slow leak or a flat, pull over to a safe position
where you can check the visual condition of the tire and determine if you
have enough air to proceed to a place where air may be added and the
system monitored again by your Toyota dealer or a tire repair station.
■Do not ignore the TPMS Warning Light
Ignoring the TPMS warning light is da ngerous, even if you know why it
is illuminated. Have the problem taken care of as soon as possible
before it develops into a more serious situation that could lead to tire
failure and a dangerous accident.
NOTICE
■ Automatic Transaxle Warning Light
If the automatic transaxle warning light illuminates, the transaxle has an
electrical problem. Continuing to drive your Toyota in this condition could
cause damage to your transaxle. Consult your Toyota dealer as soon as
possible.
■ KEY Warning Light
If the key warning indicator light illuminates or the push button start indicator
light (amber) flashes, the engine may not start. If the engine cannot be
started, try starting it using the emergency operation for starting the engine,
and have the vehicle inspected at your Toyota dealer as soon as possible.

YARIS iA_OM_OM99N89z_(U)
5076-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises
Take the appropriate action and verify that the warning light turns off.
Taking Action

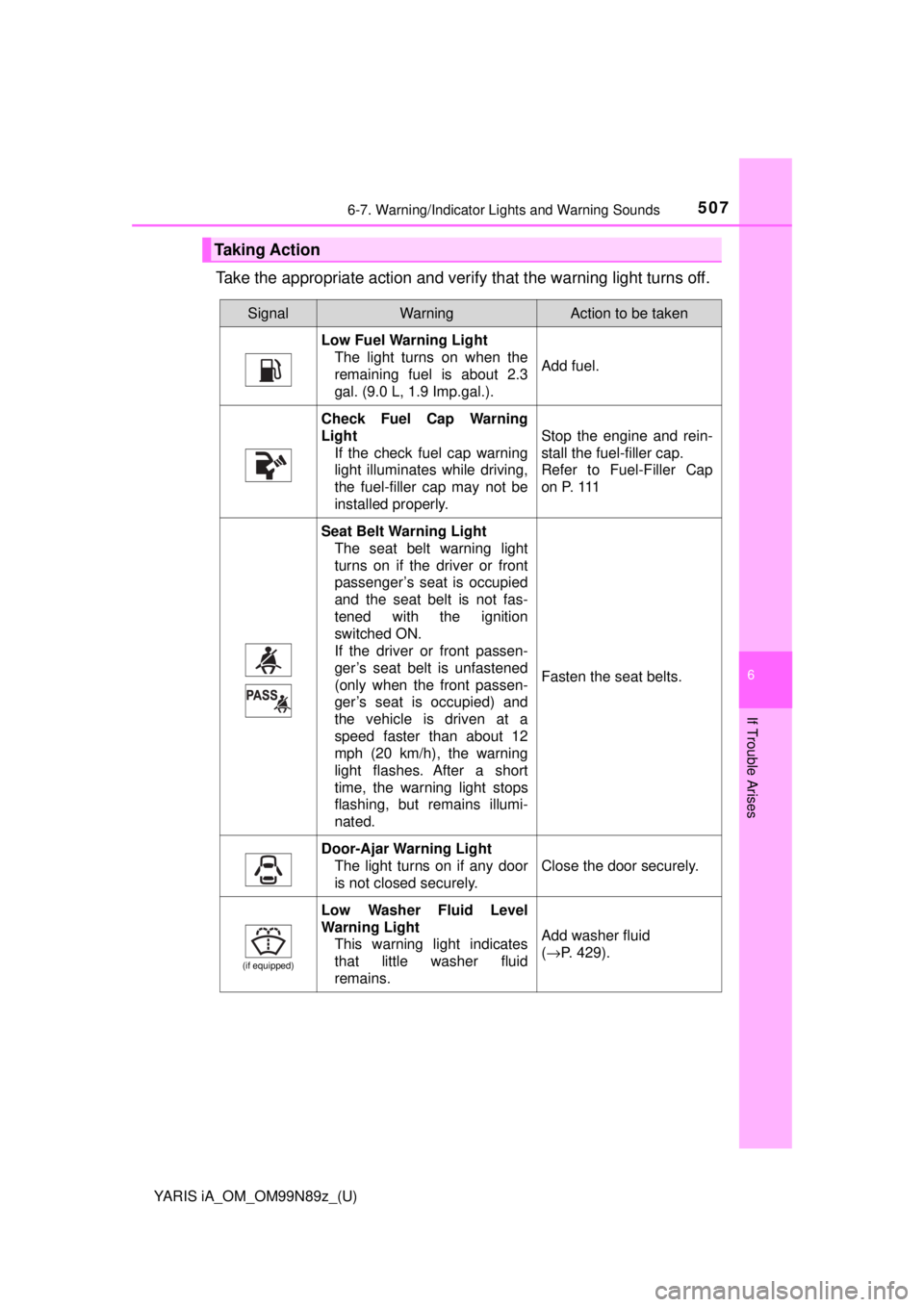

SignalWarningAction to be taken
Low Fuel Warning Light The light turns on when the
remaining fuel is about 2.3
gal. (9.0 L, 1.9 Imp.gal.). Add fuel.
Check Fuel Cap Warning
Light
If the check fuel cap warning
light illuminates while driving,
the fuel-filler cap may not be
installed properly.
Stop the engine and rein-
stall the fuel-filler cap.
Refer to Fuel-Filler Cap
on P. 111
Seat Belt Warning LightThe seat belt warning light
turns on if the driver or front
passenger’s seat is occupied
and the seat belt is not fas-
tened with the ignition
switched ON.
If the driver or front passen-
ger’s seat belt is unfastened
(only when the front passen-
ger’s seat is occupied) and
the vehicle is driven at a
speed faster than about 12
mph (20 km/h), the warning
light flashes. After a short
time, the warning light stops
flashing, but remains illumi-
nated.
Fasten the seat belts.
Door-Ajar Warning LightThe light turns on if any door
is not closed securely.
Close the door securely.
(if equipped)
Low Washer Fluid Level
Warning LightThis warning light indicates
that little washer fluid
remains.
Add washer fluid
(→P. 429).

5126-7. Warning/Indicator Lights and Warning Sounds
YARIS iA_OM_OM99N89z_(U)
If the following messages are displayed in the center display (Type B
audio), a vehicle system may be malfunctioning. Stop the vehicle in a
safe place and contact your Toyota dealer.
Displays in the following cases:
Stop Vehicle in Safe Place Immediately
DisplayIndicated Condition
Displays if the engine coolant
temperature has increased
excessively.
Displays if the charging system
has a malfunction.
Verify Display Content
DisplayIndicated Condition/ Action to be taken
The following message is dis-
played when the temperature
around the center display is high.
Lowering the temperature in the
cabin or the temperature around
the center display by avoiding
direct sunlight is recommended.

521
YARIS iA_OM_OM99N89z_(U)
7-2. Warranty
7
Customer Information and Reporting Safety Defects
Outside the United States/Canada
Government regulations in the United States/Canada require that
automobiles meet specific emission regulations and safety standards.
Therefore, vehicles built for use in the United States/Canada may dif-
fer from those sold in other countries.
The differences may make it difficult or even impossible for your vehi-
cle to receive satisfactory servicing in other countries. We strongly
recommend that you NOT take your Toyota outside the United States/
Canada.
United States
However, in the event that you are moving to Canada permanently,
Toyota vehicles built for use in the United States could be eligible for
exportation to Canada with specific vehicle modifications to comply
with the Canadian Motor Vehicle Safety Standards (CMVSS).
Canada
However, in the event that you are moving to the United States per-
manently, Toyota vehicles built for use in Canada could be eligible for
exportation to the United States with specific vehicle modifications to
comply with the United States Federal Motor Vehicle Safety Standards
(FMVSS).
You may have the following problems if you do take your vehicle out-
side of the United States/Canada: • Recommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will affect vehi cle performance and damage the
emission controls and engine.
• Proper repair facilities, tools, testing equipment, and replacement
parts may not be available.
Please refer to your Manufacturer’ s “Owner’s Warranty Information
Booklet” or “Owner’s Manual Supplement/Scheduled Maintenance
Guide” for more information.
The above is applicable for a permanent import/export situation and not
related to travelers on vacation.

522
YARIS iA_OM_OM99N89z_(U)
7-2. Warranty
Add-On Non-Genuine Parts and Accesso-
ries
Non-genuine parts and accessories for Toyota vehicles can be found
in stores.
These may fit your vehicle, but they are not approved by Toyota for
use with Toyota vehicles. When you install non-genuine parts or
accessories, they could affect your vehicle’s performance or safety
systems; the Toyota warranty doesn’t cover this. Before you install
any non-genuine parts or accessories, consult your Toyota dealer.
Toyota assumes no responsibility for death, injury, or expenses that
may result from the installation of add-on non-genuine parts or acces-
sories.
WARNING
■ Always consult your Toyota dealer before you install non-genuine
parts or accessories
Improperly designed parts or accessories could seriously affect your vehi-
cle’s performance or safety systems. This could cause you to have an acci-
dent or increase your chances of injuries in an accident.
■ Be very careful in choosing and installing add-on electrical equipment,
such as mobile telephones, two-w ay radios, stereo systems, and car
alarm systems
Incorrectly choosing or installing improper add-on equipment or choosing
an improper installer is dangerous. Essential systems could be damaged,
causing engine stalling, airbag (SRS) activation, ABS/TCS/DSC inactiva-
tion, or a fire in the vehicle.

526
YARIS iA_OM_OM99N89z_(U)
7-5. Vehicle Data Recordings
Vehicle Data Recordings
Your Toyota is equipped with several sophisticated computers that will
record certain data, such as:• Engine speed
• Accelerator status
• Brake status
• Vehicle speed
• Shift position
The recorded data varies according to the vehicle grade level and
options with which it is equipped.
● Data usage
Toyota may use the data recorded in these computers to diagnose
malfunctions, conduct research and development, and improve
quality.
Toyota will not disclose the recor ded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if the vehicle is leased
• In response to an official request by the police, a court of law or a
government agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or vehicle owner

546
YARIS iA_OM_OM99N89z_(U)
7-7. Tire Information (U.S.A.)
GCWR (Gross Combination Weight Rating) is the maximum allowable
weight of the vehicle - including all cargo and passengers - that the
vehicle can handle without risking damage. The GCW must never
exceed the GCWR.
WARNING
■Do not tow a trailer with this vehicle
Towing a trailer with this vehicle is dangerous because it has not been
designed to tow a trailer and doing so will affect the drive system which
could result in vehicle damage.
■Overloaded Vehicle
Overloading a vehicle is dangerous. The results of overloading can
have serious consequences in terms of passenger safety. Too much
weight on a vehicle’s suspension system can cause spring or shock
absorber failure, brake failure, handling or steering problems, irregular
tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also
increases the distance requ ired for stopping. In cases of serious over-
loading, brakes can fail completely, particularly on steep grades. The
load a tire will carry safely is a combin ation of the size of the tire, its load
range, and corresponding inflation pressure.
Never overload the vehicle and always observe the vehicle’s weight rat-
ings from the vehicle’s Safety Cert ification and Tire and Load Informa-
tion labels.
■Never Exceed Axle Weight Rating Limits
Exceeding the Safety Certification Label axle weight rating limits is dan-
gerous and could result in death or serious injury as a result of substan-
dard vehicle handling, performanc e, engine, transmission and/or
structural damage, serious damage to the vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
■Never Exceed GVWR or GAWR Specifications
Exceeding the GVWR or the GAWR sp ecified on the certification label is
dangerous. Exceeding any vehicle rating limitation could result in a seri-
ous accident, injury, or damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than
the originals because they may lo wer the vehicle’s GVWR and GAWR
limitations. Replacement tires with a higher limit than the originals do
not increase the GVWR and GAWR limitations. Never exceed the
GVWR or the GAWR specified on the certification label.

5538-1. Identification Numbers
YARIS iA_OM_OM99N89z_(U)
8
Specifications
Vehicle Emission Control Information Label
Tire Pressure Label
Engine Number
Forward

554
YARIS iA_OM_OM99N89z_(U)
8-2. Specifications
Specifications
*: The spark plugs provide the engine its optimum performance. Consult yourToyota dealer for details.
Engine
ItemSpecification
Ty p eDOHC-16V in-line, 4-cylinder
Bore × Stroke2.93 × 3.38 in. (74.5 × 85.8 mm)
Displacement1,496.1 ml (1,496.1 cc)
Compression ratio12.0
Electrical System
ItemClassification
Battery12V-60Ah/20HR
Spark-plug numberspark plug required*P51R-18-110
NOTICE
When cleaning the iridium plugs, do not use a wire brush. The fine particu-
late coating on the iridium alloy and platinum tips could be damaged.

5558-2. Specifications
YARIS iA_OM_OM99N89z_(U)
8
Specifications
Refer to Introduction on P. 412 for owner’s responsibility in protecting your
investment.
Approximate Quantities:
Check oil and fluid levels with dipsticks or reservoir gauges.
Lubricant Quality
ItemClassification
Engine oilRefer to Recommended Oil on P. 422.
Manual transaxle oilAPI ServiceGL-4
SAE75W-80
Automatic transaxle fluidATF required
Brake/Clutch fluidSAE J1703 or FMVSS116 DOT-3
Capacities
ItemCapacity
Engine oil
With oil filter replacement4.4 qt. (4.2 L, 3.7 Imp.qt.)
Without oil filter replace-
ment4.1 qt. (3.9 L, 3.4 Imp.qt.)
CoolantManual transaxle5.7 qt. (5.4 L, 4.8 Imp.qt.)
Automatic transaxle5.9 qt. (5.6 L, 4.9 Imp.qt.)
Manual transaxle oil1.68 qt. (1.59 L, 1.40 Imp.qt.)
Automatic transaxle fluid7.6 qt. (7.2 L, 6.3 Imp.qt.)
Fuel tank11.6 gal. (44.0 L, 9.68 Imp.gal.)
