TOYOTA YARIS iA 2017 Owners Manual (in English)

YARIS iA_OM_OM99N89z_(U)
3514-3. Bluetooth®
4
Interior Features
■To prevent a deterioration in the voice recognition rate and
voice quality, the following points should be observed:• The voice recognition cannot be performed while voice guidance or the beep sound is operating. Wait until the voice guidance or
the beep sound is finished before saying your commands.
• Phone related commands are available only when your phone is connected via Bluetooth
®. Make sure your phone is connected
via Bluetooth® before you operate phone related voice com-
mands.
• Music play commands, such as Play Artist and Play Album can
be used only in USB audio mode.
• Do not speak too slowly or loudly (no loud voice).
• Speak clearly, without pausing between words or numbers.
• Dialects or different wording other than hands-free prompts can- not be recognized by voice rec ognition. Speak in the wording
specified by the voice commands.
• It is not necessary to face th e microphone or approach it. Speak
the voice commands while maintaining a safe driving position.
• Close the windows to reduce loud noises from outside the vehi- cle, or turn down the airflow of the air-conditioning system while
Bluetooth
® Hands-Free is being used.
• Make sure the vents are not directing air up towards the micro- phone.
If the voice recognition performance is not satisfactory.
Refer to Troubleshooting on P. 395.

352
YARIS iA_OM_OM99N89z_(U)
4-3. Bluetooth®

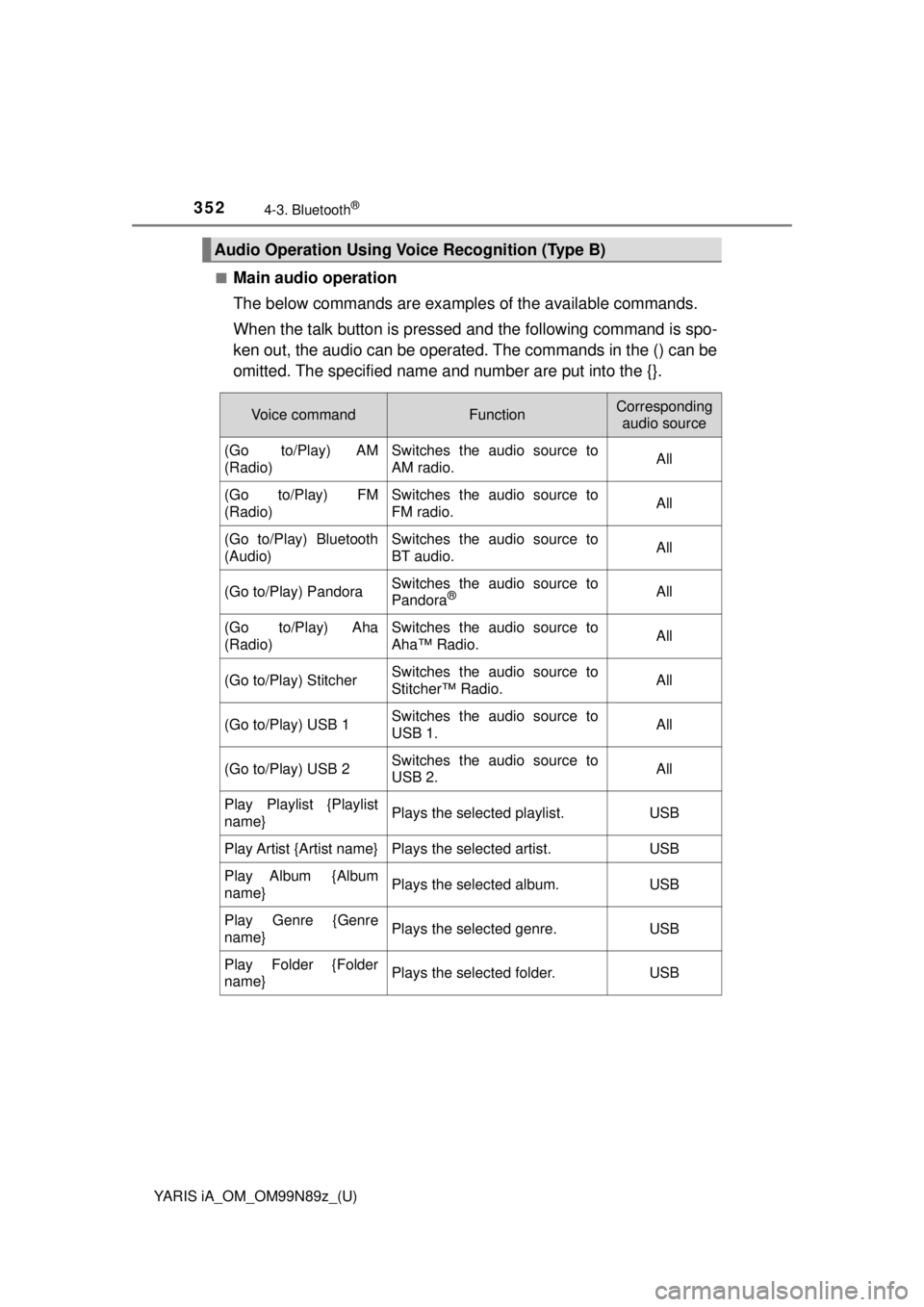

■Main audio operation
The below commands are examples of the available commands.
When the talk button is pressed and the following command is spo-
ken out, the audio can be operated. The commands in the () can be
omitted. The specified name and number are put into the {}.
Audio Operation Using Voice Recognition (Type B)
Voice commandFunctionCorresponding audio source
(Go to/Play) AM
(Radio)Switches the audio source to
AM radio.All
(Go to/Play) FM
(Radio)Switches the audio source to
FM radio.All
(Go to/Play) Bluetooth
(Audio)Switches the audio source to
BT audio.All
(Go to/Play) PandoraSwitches the audio source to
Pandora®All
(Go to/Play) Aha
(Radio)Switches the audio source to
Aha™ Radio.All
(Go to/Play) StitcherSwitches the audio source to
Stitcher™ Radio.All
(Go to/Play) USB 1Switches the audio source to
USB 1.All
(Go to/Play) USB 2Switches the audio source to
USB 2.All
Play Playlist {Playlist
name}Plays the selected playlist.USB
Play Artist {Artist name}Plays the selected artist.USB
Play Album {Album
name}Plays the selected album.USB
Play Genre {Genre
name}Plays the selected genre.USB
Play Folder {Folder
name}Plays the selected folder.USB

YARIS iA_OM_OM99N89z_(U)
3534-3. Bluetooth®
4
Interior Features
●Some commands cannot be used depending on devices and use condi-
tions.
● If the Bluetooth
® device, USB, or AUX is not connected, the related com-
mands cannot be used.

354
YARIS iA_OM_OM99N89z_(U)
4-3. Bluetooth®
Bluetooth® Hands-Free (Type A)
●Phonebook Usage
Telephone calls can be made by saying the name of a person
(voice tag) whose phone number has been registered in Bluetooth
®
Hands-Free in advance. Refer to Phonebook registration.
Press the pick-up button or talk button with a short press.
Say: [Beep] “Call”
Prompt: “Name please.”
Say: [Beep] “XXXXX... (Ex. “J ohn’s phone”)” (Say a voice tag
registered in the phonebook.)
Prompt: “Calling XXXXX... (Ex. “John’s phone”) XXXX (Ex. “at
home”). Is this correct?” (Voice tag and phone number location
registered in phonebook).
Say: [Beep] “Yes”
Prompt: “Dialing”
The “Call” command and the voice tag can be combined.
Ex. In Step , say, “Call John’s phone”, then, Steps and can be
skipped.
● Phonebook registration
Phone numbers can be registered to the Bluetooth
® Hands-Free
phonebook.
Do this function only when parked. It is too distracting to attempt while
driving and you may make too many errors to be effective.
Press the pick-up button or talk button with a short press.
Say: [Beep] “Phonebook”
Prompt: “Select one of the following: New entry, edit, list names,
delete, erase all or import contact.”
Say: [Beep] “New entry”
Prompt: “Name please.”
Say: [Beep] “XXXXX... (Ex. “Mary’ s phone”)” (Say a voice tag for
the name registered.)
Prompt: “Adding XXXXX... (E x. “Mary’s phone”) (Registered
voice tag). Is this correct?”
Making a Call
1
2
3
4
5
6
7
234
1
2
3
4
5
6
7

YARIS iA_OM_OM99N89z_(U)
3554-3. Bluetooth®
4
Interior Features
Say: [Beep] “Yes”
Prompt: “Home, Work, Mobile, or Other?”
Say: [Beep] “Mobile” (Say “Home”, “Work”, “Mobile”, or “Other”,
for the desired location to be registered.)
Prompt: “Mobile (Location to be registered). Is this correct?”
Say: [Beep] “Yes”
Prompt: “Number, please.”
Say: [Beep] “XXXXXXXXXXX” (Say the phone number to be reg-
istered.)
Prompt: “XXXXXXXXXXX (Phone number registration). After the
beep, continue to add numbers, or say Go-Back to re-enter the
last entered numbers, or press the Pick-Up button to save the
number.”
Registration:
Press the pick-up button or sa y “Enter”, then go to Step .
Adding/inputting telephone number:
Say, “XXXX” (desired telephone number), then go to Step .
Telephone number correction:
Say, “Go Back”. The prompt replies, “Go Back. The last entered
numbers have been removed.”. Then go back to Step .
Prompt: “Number saved. Would you like to add another number
for this entry?”
Say: [Beep] “Yes” or “No”.
If “Yes”, an additional phone number registration can be made for
the same entry.
If “No”, the system returns to standby status.8
9
10
11
12
13
14
15
16
17
15
13
17
18
19

356
YARIS iA_OM_OM99N89z_(U)
4-3. Bluetooth®
Import contact:
Phonebook data from your device (Mobile phone) can be sent and
registered to your Bluetooth
® Hands-Free phonebook using Blue-
tooth®.
Press the pick-up button or talk button with a short press.
Say: [Beep] “Phonebook”
Prompt: “Select one of the following: New entry, edit, list names,
delete, erase all or import contact.”
Say: [Beep] “Import contact”
Prompt: “The hands free System is ready to receive a contact
from a phone. Only a home, a work, and a mobile number can be
imported, This process requires operation of a mobile phone.
refer to the phone’s manual for more information”
Device (Mobile phone) operation: Select one entry from the
phonebook and send it using Bluetooth
®.
Prompt: “X (Number of locations which include data) numbers
have been imported. What name would you like to use for these
numbers?”
Say: [Beep] “XXXXX... (Ex. “Mary’ s phone”)” (Say a voice tag for
the name registered.)
Prompt: “Adding XXXXX... (Ex. “Mary’s phone”) (Voice tag). Is
this correct?”
Say: [Beep] “Yes”
Prompt: “Number saved. Would you like to import another con-
tact?”
Say: [Beep] “Yes” or “No”
If “Yes”, the procedure proceeds to Step .
If “No”, the system returns to standby status.
● Editing phonebook
The data registered to the Bluetooth
® Hands-Free phonebook can
be edited.
Do this function only when parked. It is too distracting to attempt while
driving and you may make too many errors to be effective.
1
2
3
4
5
6
7
8
9
10
11
12
135

YARIS iA_OM_OM99N89z_(U)
3574-3. Bluetooth®
4
Interior Features
Press the pick-up button or talk button with a short press.
Say: [Beep] “Phonebook”
Prompt: “Select one of the following: New entry, edit, list names,
delete, erase all or import contact.”
Say: [Beep] “Edit”
Prompt: “Please say the name of the entry you would like to edit
or say, “List names”.”
Say: [Beep] “XXXXX... (Ex. “Mary’s phone”)” (Say the voice tag
for the registered name to be edited in the phonebook.)
Prompt: “Home, Work, Mobile, or Other?”
Say: [Beep] “Home” (Say the registered location to be edited:
“Home”, “Work”, “Mobile”, or “Other”.)
Prompt: “XXXXX... (Ex. “Mary’s phone”) (Registered voice tag)
XXXX (Ex. “Home”) (Registered location). Is this correct?”
Say: [Beep] “Yes”
Prompt: “The current number is XXXXXXXXXXX (Ex. “555-
1234”) (Currently registered number). New number, please.”
If there was no previous phone number registered to a location (Ex.
“Work”), the prompt will only read out “Number, please”
Say: [Beep] “XXXXXXXXXXX (Ex. “555-5678”)” (Say the new
phone number to be registered.)
Prompt: “XXXXXXXX (Telephone number) After the beep, con-
tinue to add numbers, or say Go-B ack to re-enter the last entered
numbers, or press the Pick-Up button to save the number.”
Number Change:
Press the pick-up button, then go to Step .
Adding/inputting telephone number:
Say, “XXXX” (desired telephone number), then go to Step .
Telephone number correction:
Say, “Go Back”. The prompt replies, “Go Back. The last entered
numbers have been removed. Number, please.”. Then go back
to Step .
Prompt: “Number changed.”
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
13
12
15

358
YARIS iA_OM_OM99N89z_(U)
4-3. Bluetooth®
●Phonebook data deletion
Erasing individual phonebook data:
Individual data registered to the Bluetooth
® Hands-Free phonebook
can be cleared.
Do this function only when parked. It is too distracting to attempt while
driving and you may make too many errors to be effective.
Press the pick-up button or talk button with a short press.
Say: [Beep] “Phonebook”
Prompt: “Select one of the following: New entry, edit, list names,
delete, erase all or import contact.”
Say: [Beep] “Delete”
Prompt: “Please say the name of the entry you would like to
delete or say, “List names”.”
Say: [Beep] “XXXXX... (Ex. “John ’s phone”)” (Say the registered
voice tag to be deleted from the phonebook.)
Prompt: “Deleting XXXXX... (E x. “John’s phone”) (Registered
voice tag) Home (Registered location). Is this correct?”
Say: [Beep] “Yes”
Prompt: “XXXXX... (Ex. “John’s phone”) (Registered voice tag)
Home (Registered location) deleted.”
Complete deletion of the phonebook data:
All data registered to the Bluetooth
® Hands-Free phonebook can
be erased.
Do this function only when parked. It is too distracting to attempt while
driving and you may make too many errors to be effective.
Press the pick-up button or talk button with a short press.
Say: [Beep] “Phonebook”
Prompt: “Select one of the following: New entry, edit, list names,
delete, erase all or import contact.”
Say: [Beep] “Erase all”
Prompt: “Are you sure you want to erase everything from your
Hands Free system phonebook?”
Say: [Beep] “Yes”
Prompt: “You are about to delete everything from your Hands
Free system phonebook. Do you want to continue?”
Say: [Beep] “Yes”
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8

YARIS iA_OM_OM99N89z_(U)
3594-3. Bluetooth®
4
Interior Features
Prompt: “Please wait, erasing the Hands Free system phone-
book.”
Prompt: “Hands-Free system phonebook erased.”
● Read-out of names registered to the Bluetooth
® Hands-Free
phonebook
Bluetooth
® Hands-Free can read out the list of names registered to
its phonebook.
Press the pick-up button or talk button with a short press.
Say: [Beep] “Phonebook”
Prompt: “Select one of the following: New entry, edit, list names,
delete, erase all or import contact.”
Say: [Beep] “List names”
Prompt: “XXXXX..., XXXXX..., XXXXX... (Ex. “John’s phone”,
Mary’s phone, Bill’s phone)” (Voice guidance reads out the voice
tags registered to the phonebook.)
Press the talk button with a short press during the read-out at the
desired name, and then say one of the following voice com-
mands to execute it. • “Continue”: Conti nues the list readout.
• “Call”: Calls the registered phonebook data when the talk but- ton is short-pressed.
• “Edit”: Edits the registered phonebook data when the talk but-
ton is short-pressed.
• “Delete”: Deletes the registered phonebook data when the talk button is short-pressed.
• “Previous”: Returns to the previous phonebook data in read- out when the talk button is short-pressed.
Prompt: “End of list, would you like to start from the beginning?”
Say: [Beep] “No”
The procedure returns to Step .
9
10
1
2
3
4
5
6
7
83

360
YARIS iA_OM_OM99N89z_(U)
4-3. Bluetooth®
■Redial Function
Redialing the number of the person previously dialed using the
phone is possible.
Press the pick-up button or talk button with a short press.
Say: [Beep] “Redial”
Prompt: “Dialing”
■Telephone Number Input
Press the pick-up button or talk button with a short press.
Say: [Beep] “Dial”
Prompt: “Number, please”
Say: [Beep] “XXXXXXXXXXX (Telephone number)”
Prompt: “XXXXXXXXXXX. (Telephone number) After the beep,
continue to add numbers, or say
Go-Back to re-enter the last entered numbers, or press the Pick-
Up button to execute dialing.”
Dialing:
Press the pick-up button or say “Dial”, then go to Step .
Adding/inputting telephone number:
Say, “XXXX” (desired telephone number), then go to Step .
Telephone number correction:
Say, “Go Back”. The prompt replies, “Go Back. The last entered
numbers have been removed.”. Then go back to Step .
Prompt: “Dialing”
The “Dial” command and a telephone number can be combined.
Ex. In Step , say, “Dial 123-4567” then, Steps and can be
skipped.
1
2
3
1
2
3
4
5
6
7
5
3
7
234
