4-4. Interior Equipment
4
Interior Features
Interior Lights

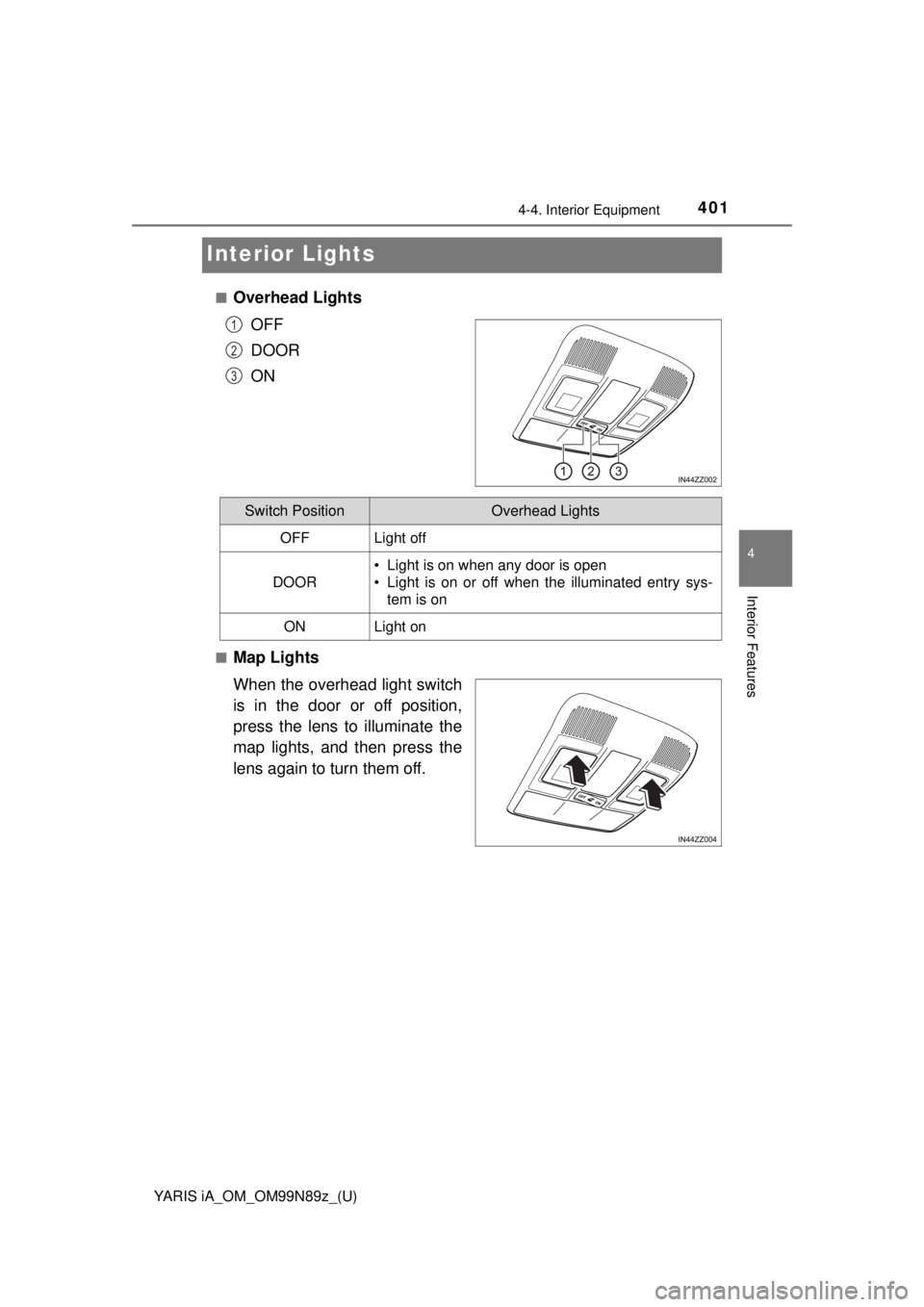

■Overhead LightsOFF
DOOR
ON
■Map Lights
When the overhead light switch
is in the door or off position,
press the lens to illuminate the
map lights, and then press the
lens again to turn them off.
1
2
3
Switch PositionOverhead Lights
OFFLight off
DOOR
• Light is on when any door is open
• Light is on or off when the illuminated entry sys-tem is on
ONLight on

402
YARIS iA_OM_OM99N89z_(U)
4-4. Interior Equipment
■Trunk Light
The trunk light is on when the
lid is open and off when it’s
closed.
■Map Lights
The map lights will not turn off even if the lens is pressed in the following
cases:
●The overhead light switch is in the ON position.
● The overhead light switch is in the door position with the door open.
● The illuminated entry system is on.
The overhead lights turn on when any of the following operations is
done with the overhead light switch in the DOOR position and the igni-
tion switched off.
• Turn on for about 30 seconds when the driver’s door is unlocked.
• Turn on for about 15 seconds when a door is opened with a key left in the vehicle and then the door is closed.
• Turn on for about 5 seconds when a door is opened from the out- side with a key being carried and then the door is closed.
The overhead lights turn on for about 15 seconds when the ignition is
switched off with the overhead light switch in the DOOR position.
The overhead lights turn off immediately in the following cases: • The ignition is switched on and all doors are closed.
• The driver’s door is locked.
NOTICE
■ Overhead Lights and Map Lights
Do not leave the lights on for long periods while the engine is turned off.
Otherwise, the battery power could be depleted.
■ Trunk Light
To prevent the battery from being discharged, do not leave the trunk open
for a long period when the engine is not running.
Illuminated Entry System

YARIS iA_OM_OM99N89z_(U)
4034-4. Interior Equipment
4
Interior Features
●Battery saver
If any door is left open with the overhead light switch in the DOOR posi\
tion,
or the trunk lid is left open, the overhead light or trunk light turns off after
about 30 minutes to prevent battery depletion.
● To prevent battery depletion, if the interior lights remain turned on (the inte-
rior light switch is in the ON position or an interior light is turned on by press-
ing the lens of the interior light), they turn off automatically under the
following conditions:
• No operations are done for about 30 minutes after the ignition is switched
off.
• When the LOCK button on the key is pressed after the ignition is switched off (interior lights turn off a few seconds).
In addition, if the following operations are performed after turning the inte-
rior lights off, they will turn on again.
• The ignition is switched to a position other than OFF.
• A door is opened.
• A door is unlocked.
● The operation of the illuminated entry system can be changed.
Refer to Customizable Features on P. 560.

YARIS iA_OM_OM99N89z_(U)
4535-3. Owner Maintenance
5
Maintenance and Care

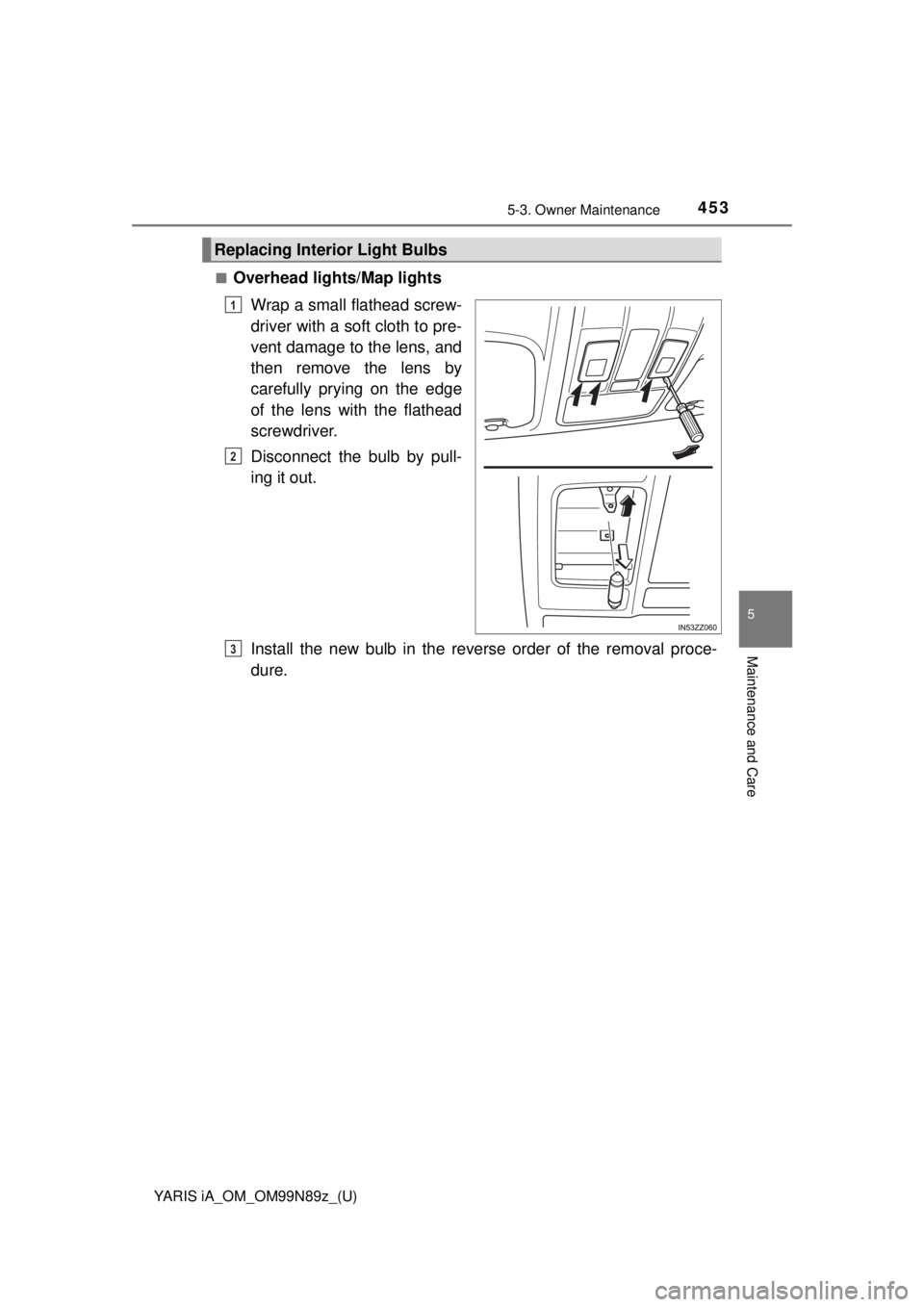

■Overhead lights/Map lightsWrap a small flathead screw-
driver with a soft cloth to pre-
vent damage to the lens, and
then remove the lens by
carefully prying on the edge
of the lens with the flathead
screwdriver.
Disconnect the bulb by pull-
ing it out.
Install the new bulb in the reverse order of the removal proce-
dure.
Replacing Interior Light Bulbs
1
2
3

5588-2. Specifications
YARIS iA_OM_OM99N89z_(U)■
Interior light
*1: UNECE stands for United Nations Economic Commission for Europe.
Check the tire pressure label for
tire size and inflation pressure.
Refer to Tire Inflation Pressure on P. 439.
After adjusting the tire pressure, init ialization of the tire pressure mon-
itoring system is necessary to make the system operates normally.
Refer to Tire Pressure Monitoring System Initialization on P. 221.
■Standard tire
■Temporary spare tire

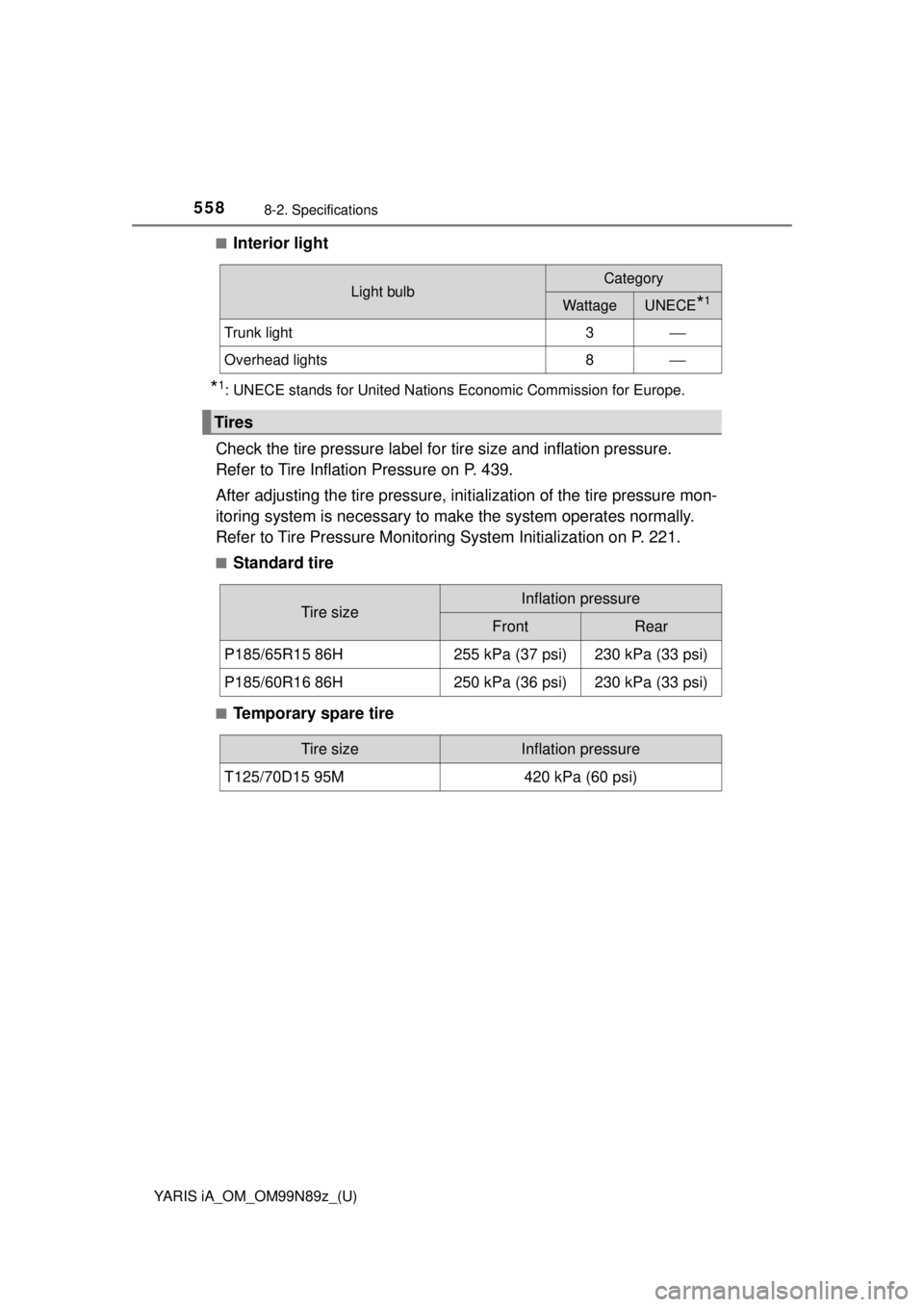

Light bulbCategory
WattageUNECE*1
Trunk light 3⎯
Overhead lights8⎯
Tires
Tire sizeInflation pressure
FrontRear
P185/65R15 86H255 kPa (37 psi)230 kPa (33 psi)
P185/60R16 86H250 kPa (36 psi)230 kPa (33 psi)
Tire sizeInflation pressure
T125/70D15 95M420 kPa (60 psi)

5628-3. Customizable Features
YARIS iA_OM_OM99N89z_(U)
●Illuminated entry system ( →P. 402)
● Daytime running lights ( →P. 178)
● Auto headlight off ( →P. 175)
*: When set to Off, the lights-on reminder is operable.
FeatureFactory
