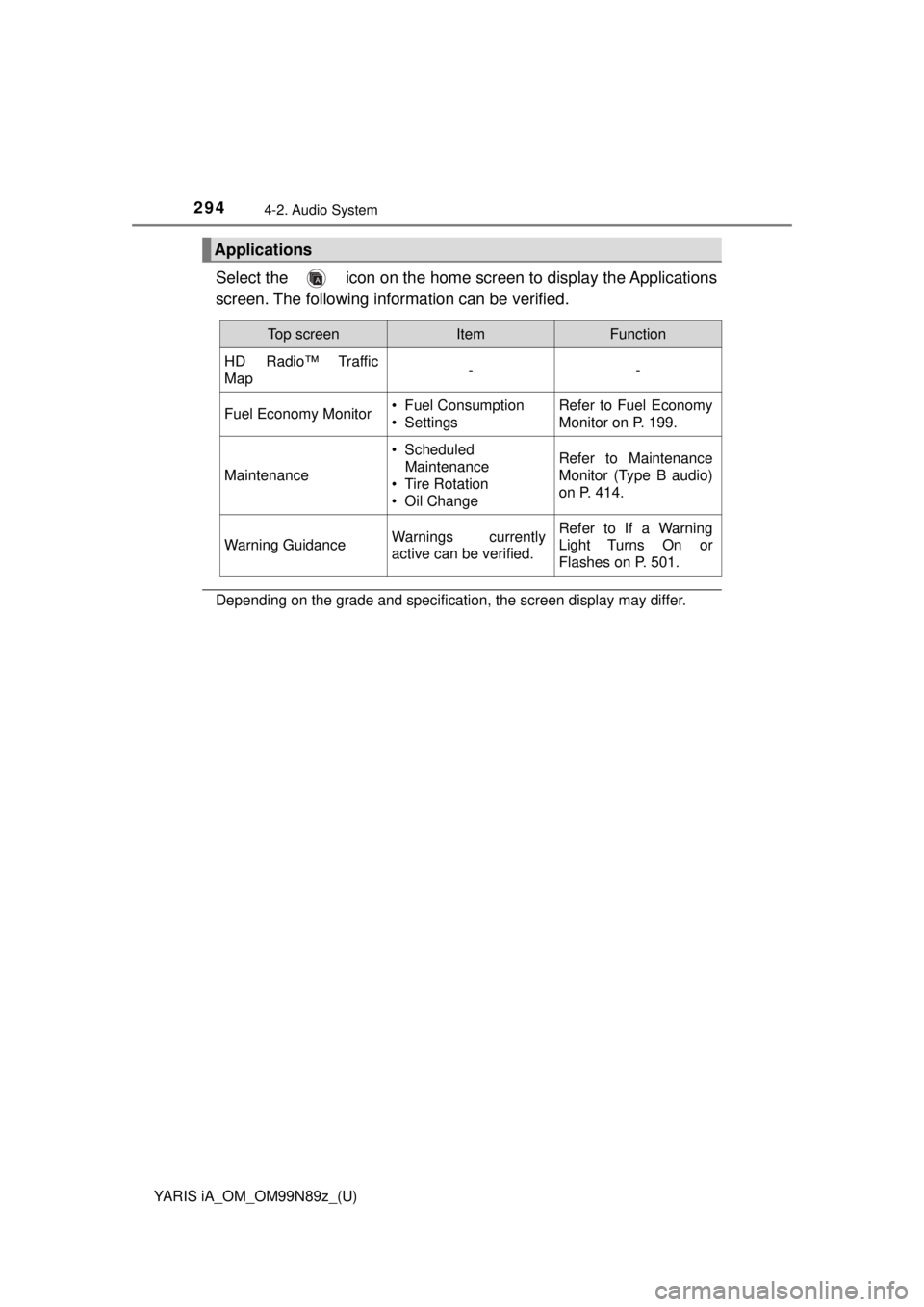

294
YARIS iA_OM_OM99N89z_(U)
4-2. Audio System
Select the icon on the home screen to display the Applications
screen. The following information can be verified.
Depending on the grade and specification, the screen display may differ.
Applications
Top screenItemFunction
HD Radio™ Traffic
Map--
Fuel Economy Monitor• Fuel Consumption
• SettingsRefer to Fuel Economy
Monitor on P. 199.
Maintenance
• Scheduled Maintenance
• Tire Rotation
• Oil ChangeRefer to Maintenance
Monitor (Type B audio)
on P. 414.
Warning GuidanceWarnings currently
active can be verified.Refer to If a Warning
Light Turns On or
Flashes on P. 501.

414
YARIS iA_OM_OM99N89z_(U)
5-2. Scheduled Maintenance
Maintenance Monitor
“Oil Change” with a flexible setting*1 is available. Consult your Toyota
dealer when you want to change the setting
*2. Once the system turns
on, the wrench indi cator light in the combinat ion meter will be illumi-
nated when remaining oil life becomes less than 300 miles (500 km),
or remaining days are less than 15 (whichever comes first).
*1: The flexible setting is available in the United States and Puerto Rico. Based on the engine operating conditions, the onboard computer in your
vehicle calculates the remaining oil life. Toyota Genuine Motor Oil 0W-20
or equivalent are required to achieve optimum calculation performance.
*2: Once the Flexible Oil Maintenance Setting is selected, the system must bereset whenever replacing the engine oil.
■
Reset method
Press and hold the selector with
the ignition switched off, then
switch it on. Keep pressing the
selector for mo re than 5 sec-
onds. The master warning light
will flash for a few seconds
when the reset is completed.
Select the icon on the home screen to display the “Applica-
tions” screen.
Select “Maintenance” to display the maintenance list screen.
Switch the tab and select the se tting item you want to change.
Maintenance Monitor (Type A audio)
Selector
Maintenance Monitor (Type B audio)
1
2
3

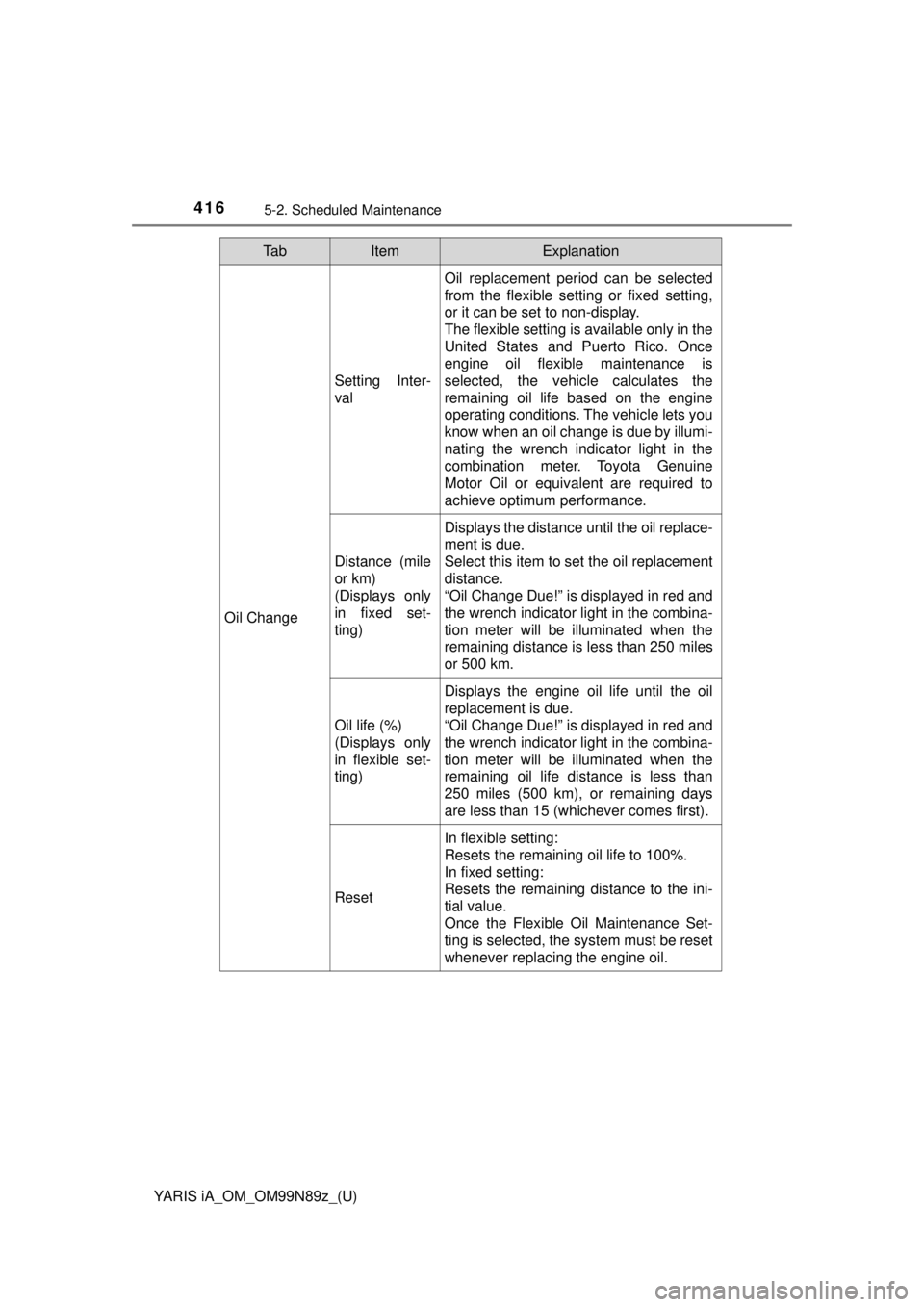

4165-2. Scheduled Maintenance
YARIS iA_OM_OM99N89z_(U)
Oil Change
Setting Inter-
val
Oil replacement period can be selected
from the flexible setting or fixed setting,
or it can be set to non-display.
The flexible setting is available only in the
United States and Puerto Rico. Once
engine oil flexible maintenance is
selected, the vehicle calculates the
remaining oil life based on the engine
operating conditions. The vehicle lets you
know when an oil change is due by illumi-
nating the wrench indicator light in the
combination meter. Toyota Genuine
Motor Oil or equivalent are required to
achieve optimum performance.
Distance (mile
or km)
(Displays only
in fixed set-
ting)
Displays the distance until the oil replace-
ment is due.
Select this item to set the oil replacement
distance.
“Oil Change Due!” is displayed in red and
the wrench indicator light in the combina-
tion meter will be illuminated when the
remaining distance is less than 250 miles
or 500 km.
Oil life (%)
(Displays only
in flexible set-
ting)
Displays the engine oil life until the oil
replacement is due.
“Oil Change Due!” is displayed in red and
the wrench indicator light in the combina-
tion meter will be illuminated when the
remaining oil life distance is less than
250 miles (500 km), or remaining days
are less than 15 (whichever comes first).
Reset
In flexible setting:
Resets the remaining oil life to 100%.
In fixed setting:
Resets the remaining distance to the ini-
tial value.
Once the Flexible Oil Maintenance Set-
ting is selected, the system must be reset
whenever replacing the engine oil.
Ta bItemExplanation

417
YARIS iA_OM_OM99N89z_(U)
5-3. Owner Maintenance
5
Maintenance and Care
Owner Maintenance Precautions
The owner or a qualified service technician should make these vehicle
inspections at the indicated inte rvals to ensure safe and dependable
operation.
Bring any problem to the attention of your Toyota dealer or qualified
service technician as soon as possible.
■When Refueling • Brake and clutch fluid level ( →P. 428)
• Engine coolant level ( →P. 425)
• Engine oil level ( →P. 424)
• Washer fluid level ( →P. 429)
■At Least Monthly
• Tire inflation pressures ( →P. 439)
■At Least Twice a Year (For Example, Every Spring and Fall)
You can do the following scheduled maintenance items if you have
some mechanical ability and a few basic tools and if you closely fol-
low the directions in this manual.
• Engine coolant ( →P. 425)
• Engine oil ( →P. 422)
Improper or incomplete service may result in problems. This section
gives instructions only for items that are easy to perform.
As explained in the Introduction ( →P. 412), several procedures can be
done only by a qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect
warranty coverage. Refer to Introduction ( →P. 412) for owner’s
responsibility in protecting your in vestment. For details, read the sep-
arate Toyota Warranty and Mainten ance Guide provided with the vehi-
cle. If you are unsure about any se rvicing or maintenance procedure,
have it done by your Toyota dealer.
There are strict environmental laws regarding the disposal of waste oil
and fluids. Please dispose of your waste properly and with due regard
to the environment.
We recommend that you entrust the oil and fluid changes of your vehi-
cle to your Toyota dealer.

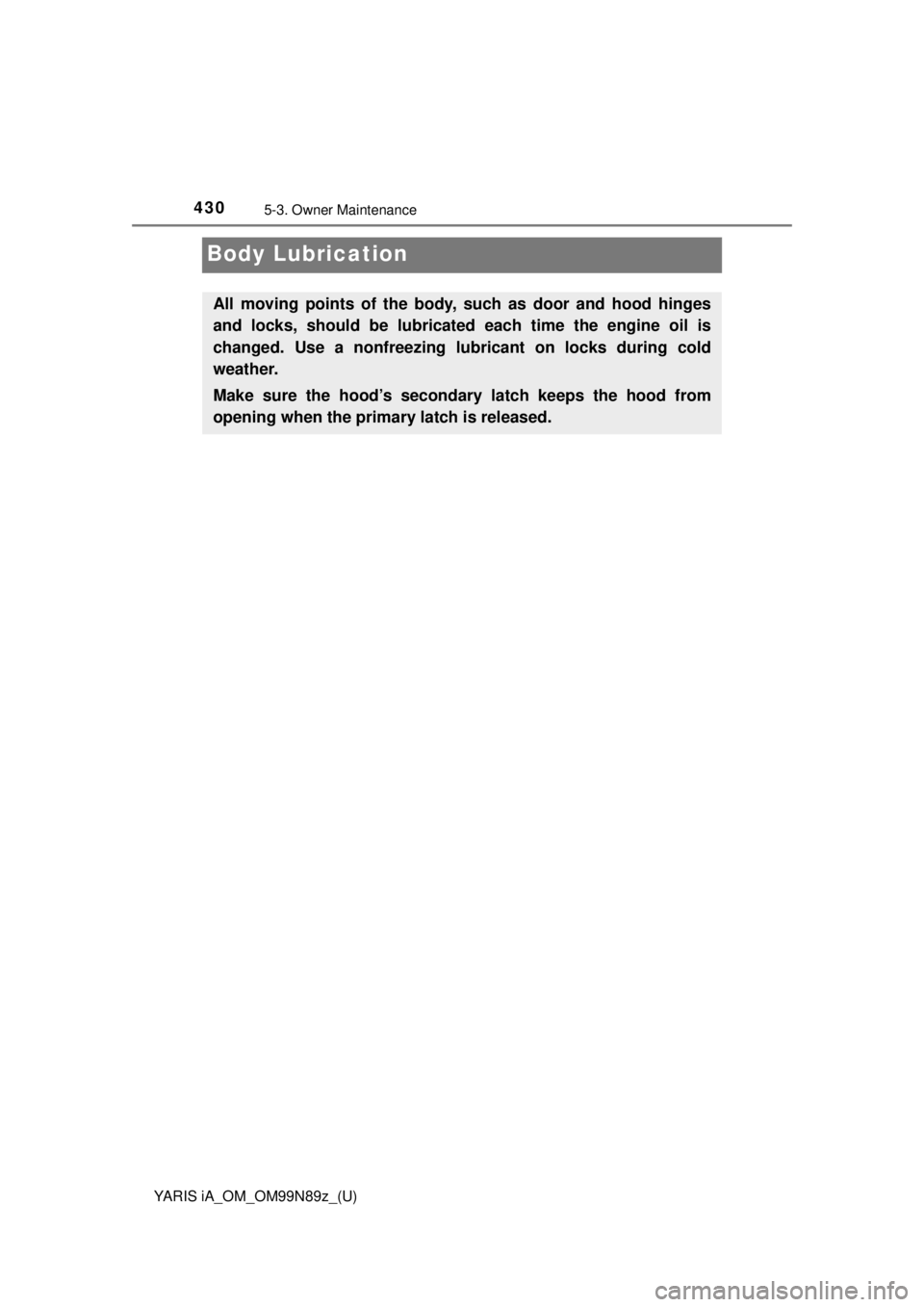

430
YARIS iA_OM_OM99N89z_(U)
5-3. Owner Maintenance
Body Lubrication
All moving points of the body, such as door and hood hinges
and locks, should be lubricated each time the engine oil is
changed. Use a nonfreezing l ubricant on locks during cold
weather.
Make sure the hood’s secondary latch keeps the hood from
opening when the primary latch is released.
