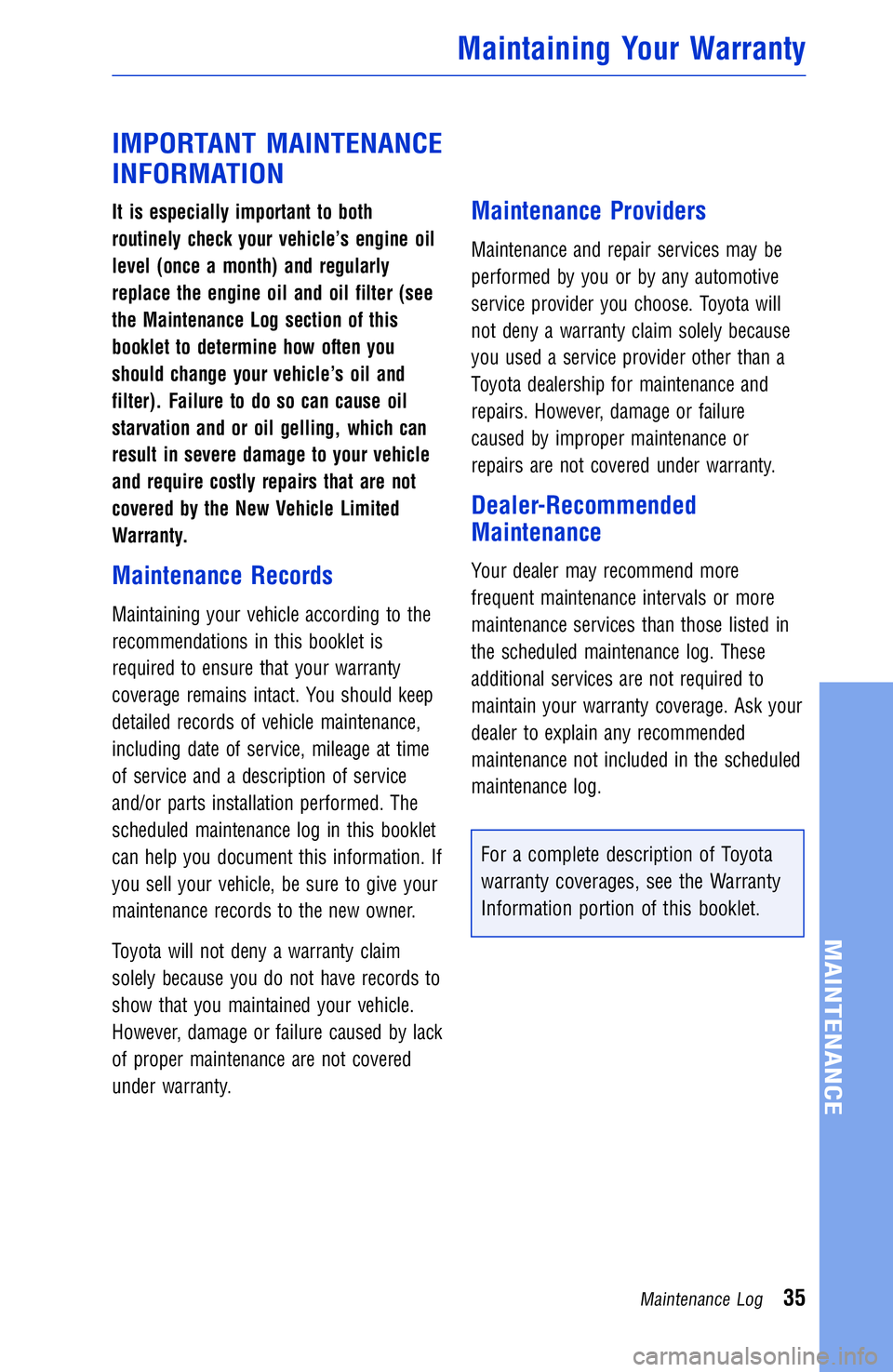

IMPORTANT MAINTENANCE
INFORMATION
It is especially important to both
routinely check your vehicle’s engine oil
level (once a month) and regularly
replace the engine oil and oil filter (see
the Maintenance Log section of this
booklet to determine how often you
should change your vehicle’s oil and
filter). Failure to do so can cause oil
starvation and or oil gelling, which can
result in severe damage to your vehicle
and require costly repairs that are not
covered by the New Vehicle Limited
Warranty.
Maintenance Records
Maintaining your vehicle according to the
recommendations in this booklet is
required to ensure that your warranty
coverage remains intact. You should keep
detailed records of vehicle maintenance,
including date of service, mileage at time
of service and a description of service
and/or parts installation performed. The
scheduled maintenance log in this booklet
can help you document this information. If
you sell your vehicle, be sure to give your
maintenance records to the new owner.
Toyota will not deny a warranty claim
solely because you do not have records to
show that you maintained your vehicle.
However, damage or failure caused by lack
of proper maintenance are not covered
under warranty.
Maintenance Providers
Maintenance and repair services may be
performed by you or by any automotive
service provider you choose. Toyota will
not deny a warranty claim solely because
you used a service provider other than a
Toyota dealership for maintenance and
repairs. However, damage or failure
caused by improper maintenance or
repairs are not covered under warranty.
Dealer-Recommended
Maintenance
Your dealer may recommend more
frequent maintenance intervals or more
maintenance services than those listed in
the scheduled maintenance log. These
additional services are not required to
maintain your warranty coverage. Ask your
dealer to explain any recommended
maintenance not included in the scheduled
maintenance log.
For a complete description of Toyota
warranty coverages, see the Warranty
Information portion of this booklet.
Maintaining Your Warranty
Maintenance Log35
MAINTENANCE

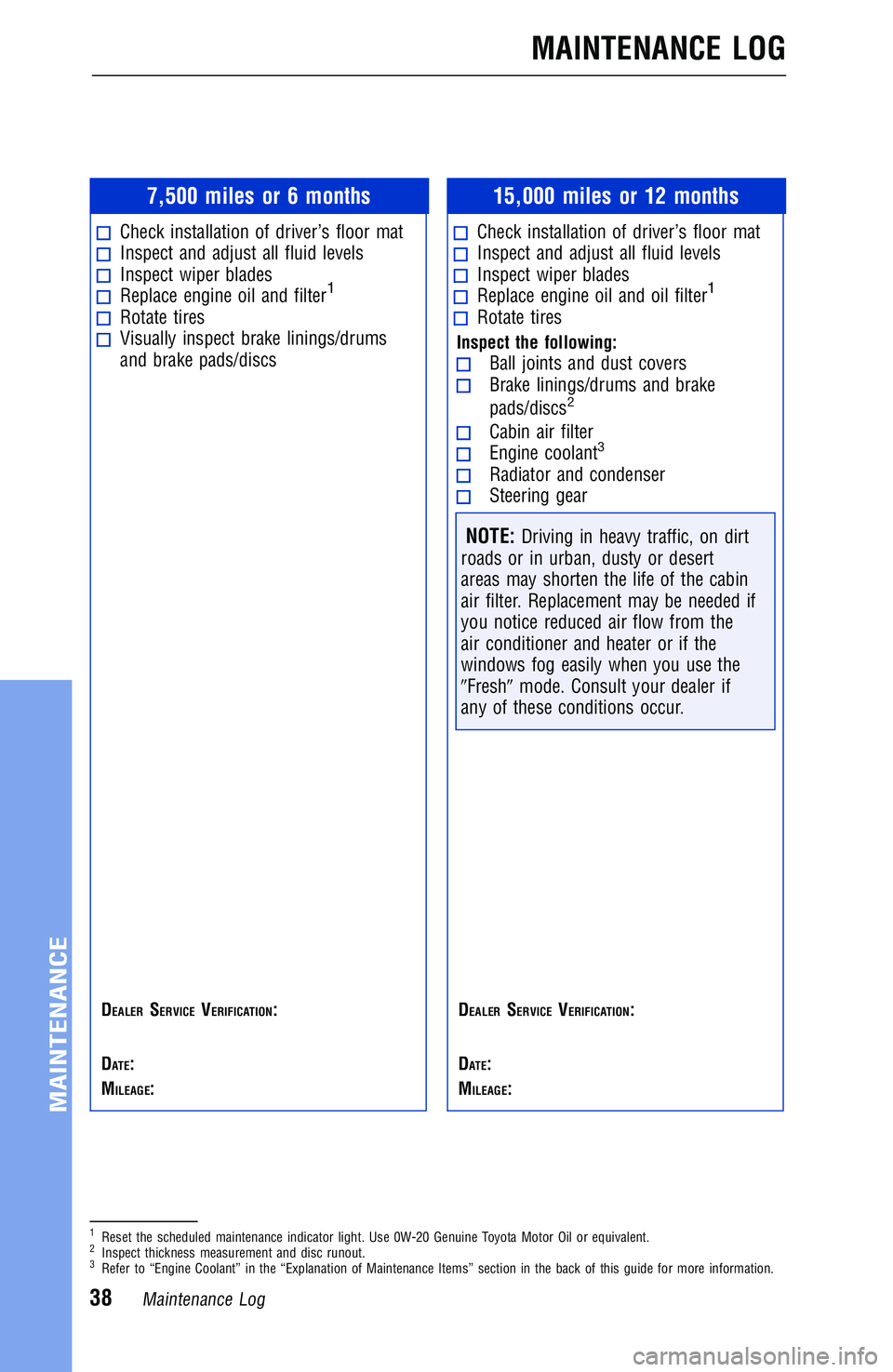

7,500 miles or 6 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
15,000 miles or 12 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tires
Inspect the following:Ball joints and dust coversBrake linings/drums and brake
pads/discs2
Cabin air filterEngine coolant3
Radiator and condenserSteering gear
NOTE:Driving in heavy traffic, on dirt
roads or in urban, dusty or desert
areas may shorten the life of the cabin
air filter. Replacement may be needed if
you notice reduced air flow from the
air conditioner and heater or if the
windows fog easily when you use the
Freshmode. Consult your dealer if
any of these conditions occur.
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.2Inspect thickness measurement and disc runout.3Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log38

22,500 miles or 18 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
30,000 miles or 24 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace cabin air filterReplace engine oil and oil filter1
Rotate tiresTighten nuts and bolts on body and
chassis
Inspect the following:Ball joints and dust coversBrake lines and hosesBrake linings/drums and brake
pads/discs2
Drive shaft bootsEngine coolant3
Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
Fuel tank cap gasketRadiator and condenserSteering gearSteering linkage and bootsTransmission fluid or oil
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.2Inspect thickness measurement and disc runout.3Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log39

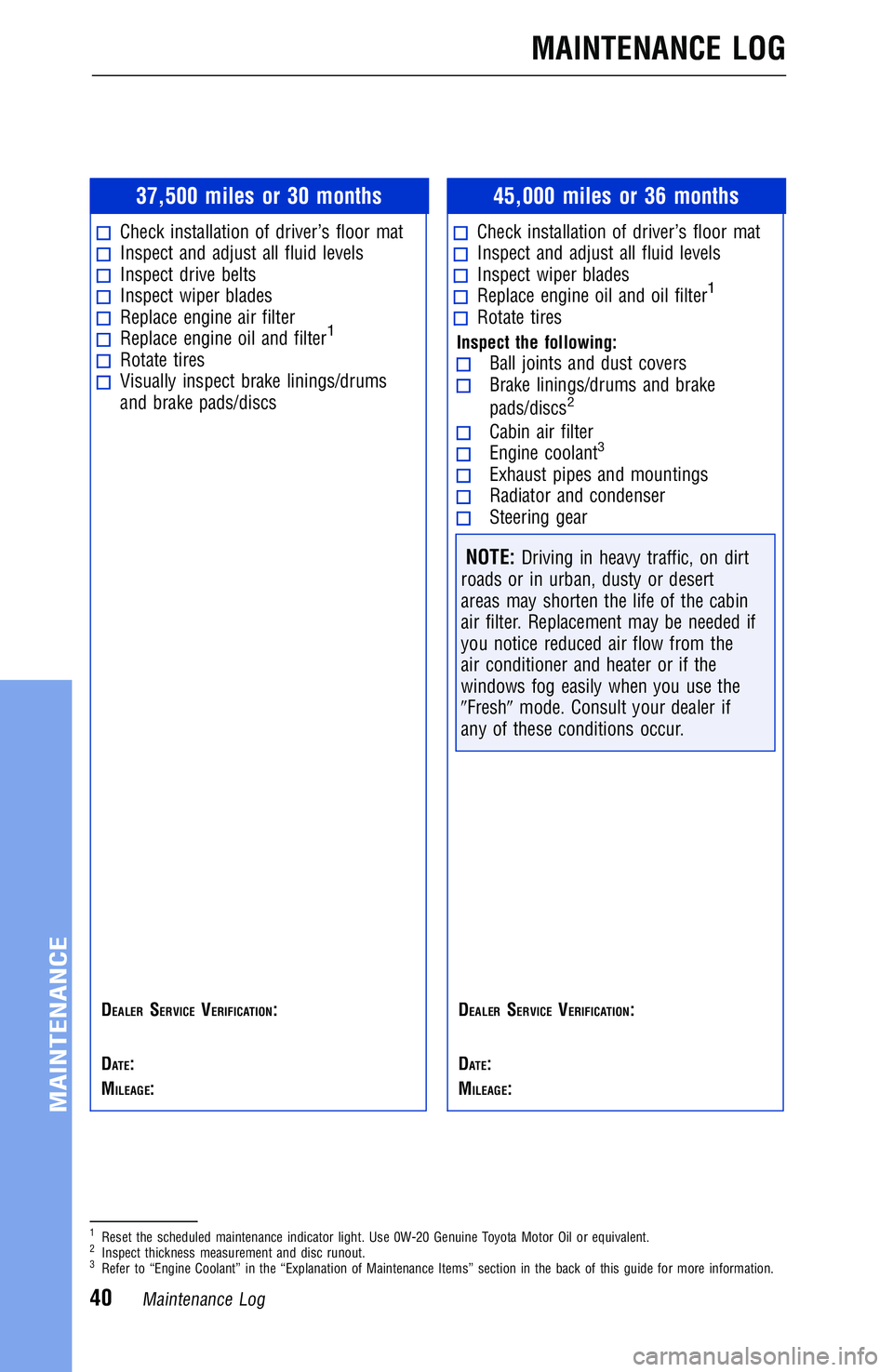

37,500 miles or 30 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect drive beltsInspect wiper bladesReplace engine air filterReplace engine oil and filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
45,000 miles or 36 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tires
Inspect the following:Ball joints and dust coversBrake linings/drums and brake
pads/discs2
Cabin air filterEngine coolant3
Exhaust pipes and mountingsRadiator and condenserSteering gear
NOTE:Driving in heavy traffic, on dirt
roads or in urban, dusty or desert
areas may shorten the life of the cabin
air filter. Replacement may be needed if
you notice reduced air flow from the
air conditioner and heater or if the
windows fog easily when you use the
Freshmode. Consult your dealer if
any of these conditions occur.
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.2Inspect thickness measurement and disc runout.3Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log40

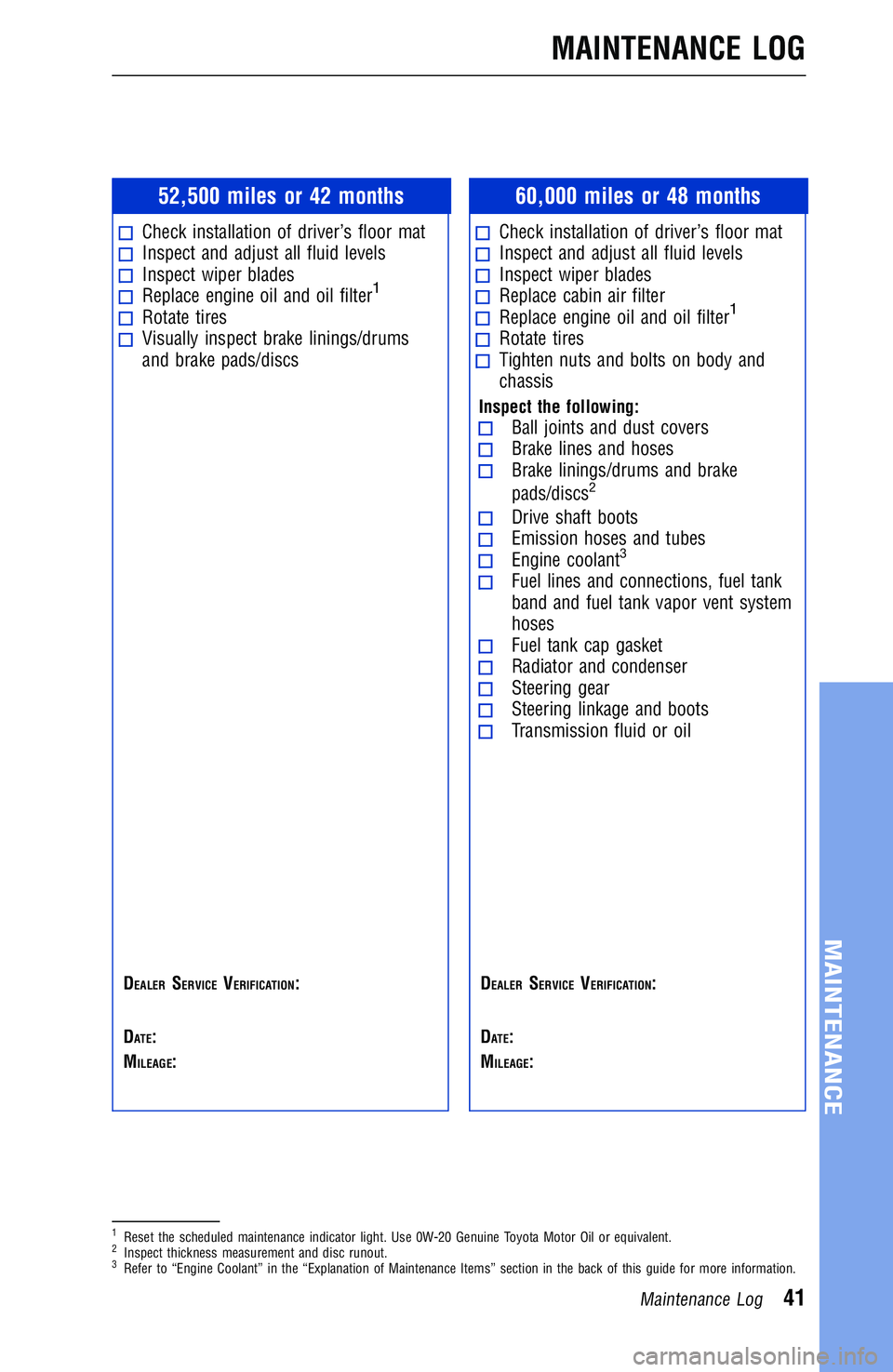

52,500 miles or 42 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
60,000 miles or 48 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace cabin air filterReplace engine oil and oil filter1
Rotate tiresTighten nuts and bolts on body and
chassis
Inspect the following:Ball joints and dust coversBrake lines and hosesBrake linings/drums and brake
pads/discs2
Drive shaft bootsEmission hoses and tubesEngine coolant3
Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
Fuel tank cap gasketRadiator and condenserSteering gearSteering linkage and bootsTransmission fluid or oil
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.2Inspect thickness measurement and disc runout.3Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log41

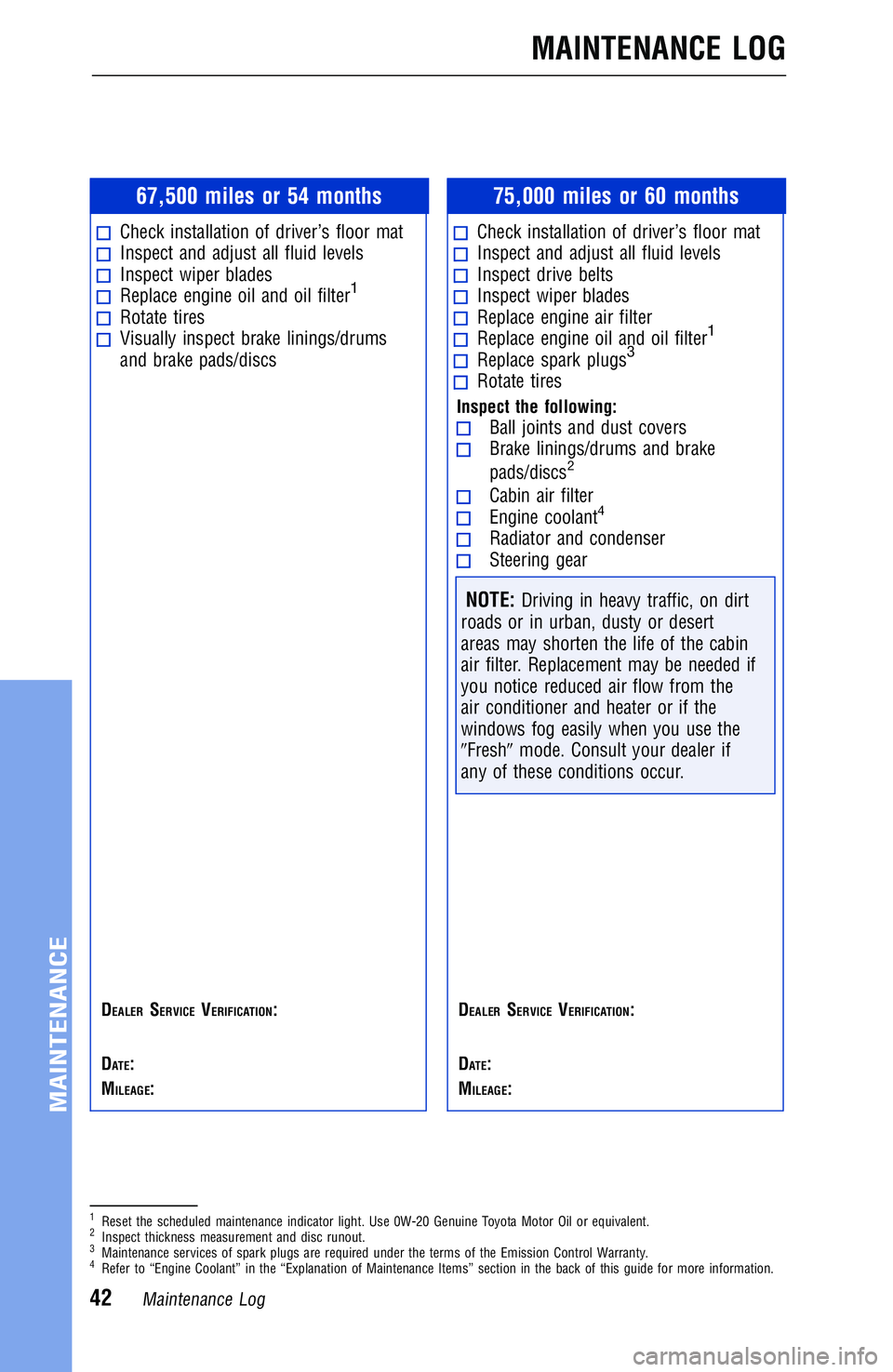

67,500 miles or 54 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
75,000 miles or 60 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect drive beltsInspect wiper bladesReplace engine air filterReplace engine oil and oil filter1
Replace spark plugs3
Rotate tires
Inspect the following:Ball joints and dust coversBrake linings/drums and brake
pads/discs2
Cabin air filterEngine coolant4
Radiator and condenserSteering gear
NOTE:Driving in heavy traffic, on dirt
roads or in urban, dusty or desert
areas may shorten the life of the cabin
air filter. Replacement may be needed if
you notice reduced air flow from the
air conditioner and heater or if the
windows fog easily when you use the
Freshmode. Consult your dealer if
any of these conditions occur.
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.2Inspect thickness measurement and disc runout.3Maintenance services of spark plugs are required under the terms of the Emission Control Warranty.4Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log42

82,500 miles or 66 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
90,000 miles or 72 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace cabin air filterReplace engine oil and oil filter1
Rotate tiresTighten nuts and bolts on body and
chassis
Inspect the following:Ball joints and dust coversBrake lines and hosesBrake linings/drums and brake
pads/discs2
Drive shaft bootsEngine coolant3
Exhaust pipes and mountingsFuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
Fuel tank cap gasketRadiator and condenserSteering gearSteering linkage and bootsTransmission fluid or oil
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.2Inspect thickness measurement and disc runout.3Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log43

97,500 miles or 78 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
105,000 miles or 84 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tires
Inspect the following:Ball joints and dust coversBrake linings/drums and brake
pads/discs2
Cabin air filterEngine coolant3
Radiator and condenserSteering gear
NOTE:Driving in heavy traffic, on dirt
roads or in urban, dusty or desert
areas may shorten the life of the cabin
air filter. Replacement may be needed if
you notice reduced air flow from the
air conditioner and heater or if the
windows fog easily when you use the
Freshmode. Consult your dealer if
any of these conditions occur.
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.2Inspect thickness measurement and disc runout.3Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log44

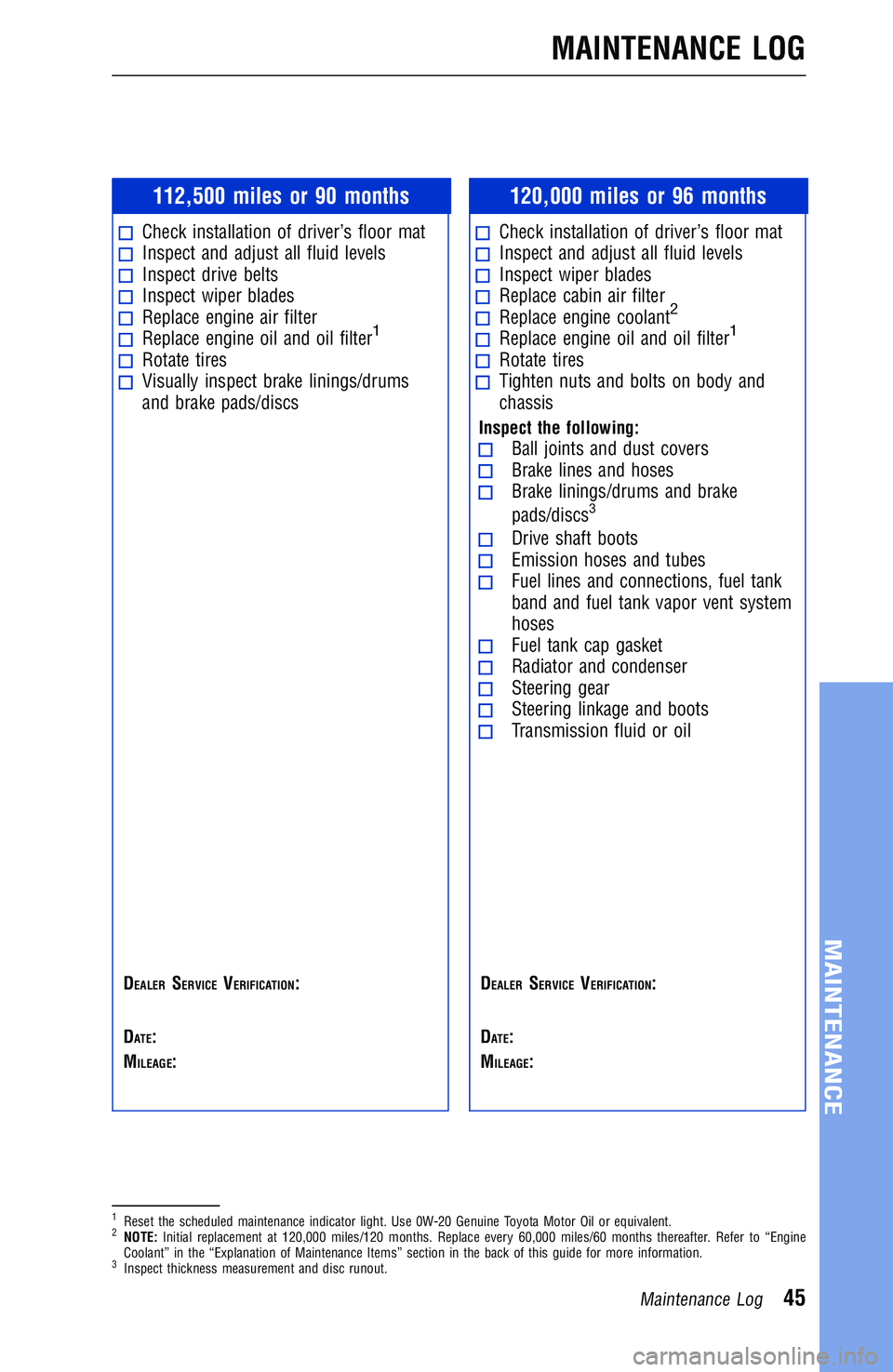

112,500 miles or 90 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect drive beltsInspect wiper bladesReplace engine air filterReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
120,000 miles or 96 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace cabin air filterReplace engine coolant2
Replace engine oil and oil filter1
Rotate tiresTighten nuts and bolts on body and
chassis
Inspect the following:Ball joints and dust coversBrake lines and hosesBrake linings/drums and brake
pads/discs3
Drive shaft bootsEmission hoses and tubesFuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
Fuel tank cap gasketRadiator and condenserSteering gearSteering linkage and bootsTransmission fluid or oil
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.2NOTE:Initial replacement at 120,000 miles/120 months. Replace every 60,000 miles/60 months thereafter. Refer to “Engine
Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.
3Inspect thickness measurement and disc runout.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log45
