TOYOTA YARIS iA 2018 Owners Manual (in English)

YARIS iA_OM_OM99Q46z_(U)
2714-2. Audio System
4
Interior Features

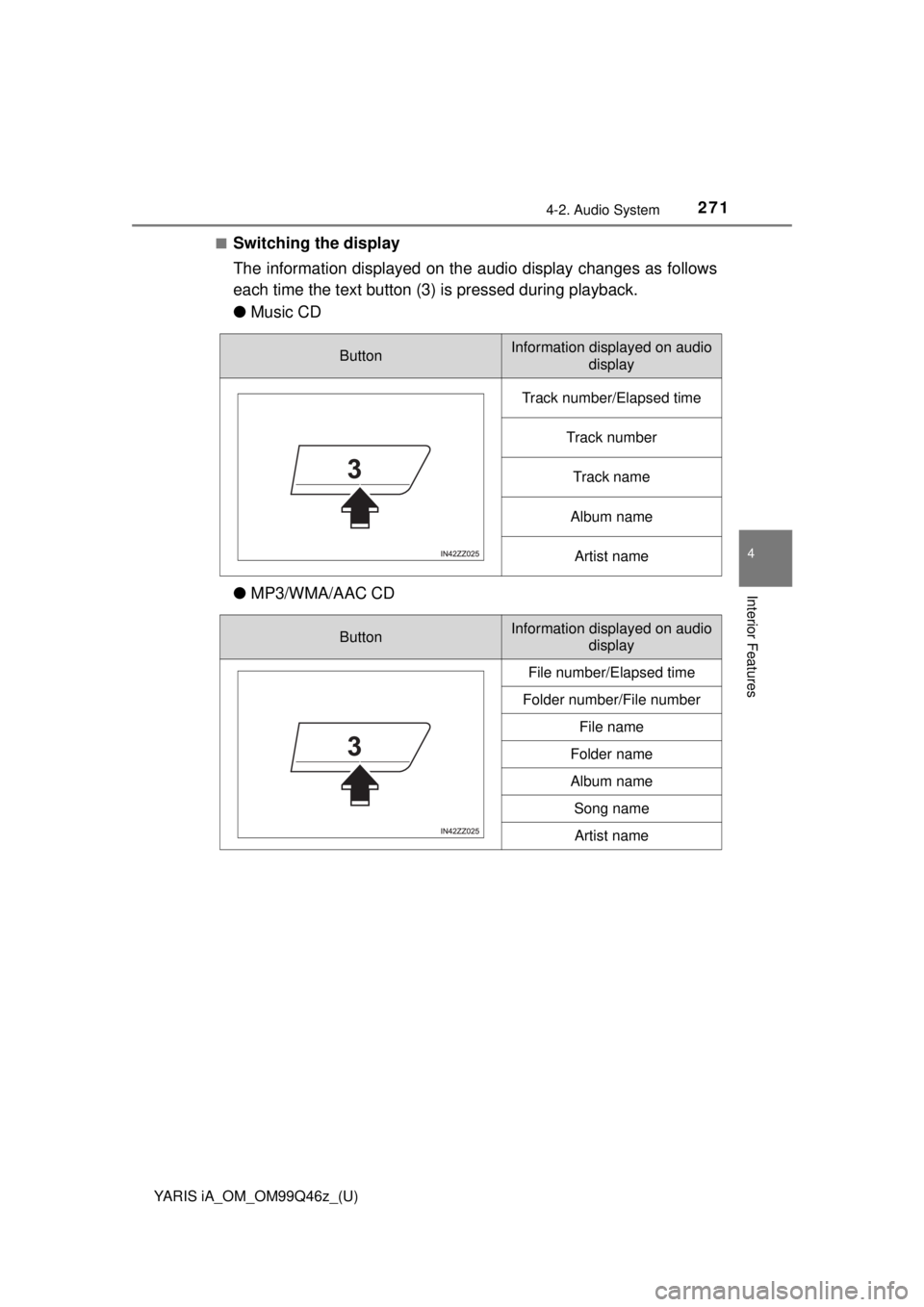

■Switching the display
The information displayed on the audio display changes as follows
each time the text button (3) is pressed during playback.
●Music CD
● MP3/WMA/AAC CD
ButtonInformation displayed on audio
display
Track number/Elapsed time
Track number
Track name
Album name
Artist name
ButtonInformation displayed on audio display
File number/Elapsed time
Folder number/File number
File name
Folder name
Album name
Song name
Artist name

272
YARIS iA_OM_OM99Q46z_(U)
4-2. Audio System
■Display scroll
Only 13 characters can be displayed at one time. To display the rest
of the characters of a long title, press and hold the text button (3).
The display scrolls the next 13 characters. Press and hold the text
button (3) again after the last 13 characters have been displayed to
return to the beginning of the title.
The number of characters which can be displayed is restricted.
■
Message display
If “CHECK CD” is displayed, it means that there is some CD mal-
function. Check the CD for dama ge, dirt, or smudges, and then
properly reinsert it. If the message appears again, insert another
known good CD. If the message continues to appear, take the unit
to your Toyota dealer for service.
■ Operating the Compact Disc (CD) Player
If a disc has both music data (CD-DA) and MP3/WMA/AAC files, playback of
the two or three file types differs depending on how the disc was recorded.
■ Music scan
If the unit is left in scan, normal playback will resume where scan was
selected.
■ Switching the display
●The information viewable in the display is only CD information (such as art-
ist name, song title) which has been recorded to the CD.
● This unit cannot display some characters. Characters which cannot be dis-
played are indicated by an asterisk ( ).

YARIS iA_OM_OM99Q46z_(U)
2734-2. Audio System
4
Interior Features
Audio can be heard from the vehicle’s speakers by connecting a com-
mercially-available portable audi o unit to the auxiliary jack.
Use a commercially-available, non-impedance (3.5 ∅) stereo mini plug
cable. Contact your Toyota dealer for details.
In addition, audio can be played from the vehicle audio device by con-
necting a USB device to the USB port.
Refer to AUX/USB mode on P. 298.
If you see an error indication on the audio display, find the cause in
the chart. If you cannot clear the error indication, take the vehicle to
your Toyota dealer.
How to use Auxiliary jack/USB port
Error Indications
IndicationCauseSolution
CHECK CD
CD is inserted
upside downInsert the CD properly. If the error indica-
tion continues to display, consult your
Toyota dealer.
CD is defec-
tiveInsert another CD properly. If the error
indication continues to display, consult
your Toyota dealer.

274
YARIS iA_OM_OM99Q46z_(U)
4-2. Audio System
Audio Set (Type B [touchscreen])∗
The explanation of functions describe d in this manual may differ from
the actual operation, and the shape s of screens and buttons and the
letters and characters displayed may also differ from the actual
appearance.
Additionally, depending on future so ftware updates, the content may
successively change without notice.
■Commander switch operation
For safety reasons, some operations are disabled while the vehicle
is being driven.
● Volume dial operation
Press the volume dial to
switch the audio MUTE on
and off.
Turn the volume dial to adjust
the volume. The volume
increases by turning the dial
clockwise, and decreases by
turning it counterclockwise.
∗: If equipped
Audio Set (Type B) has three different human interfaces.
• Commander switch
• Touch panel
• Voice recognition with steer ing switch and microphone
Vo l u m e d i al

YARIS iA_OM_OM99Q46z_(U)
2754-2. Audio System
4
Interior Features
●Switches around commander knob
The following operations can be done by pressing the switches
around the commander knob.
: Displays the homescreen.
: Displays the Enter- tainment screen.
: Displays the Naviga- tion screen (Only
navigation-equipped
vehicles).
For operation of the Navigation screen, refer to the navi-
gation system manual . If the SD card for the navigation
system is not inserted, the compass indicating the direc-
tion in which the vehicle is moving is displayed.
: Displays the Favorites screen. Long-press to store par- ticular items in Favorites. (Radio, phonebook and desti-
nation of the navigation sy stem can be programmed.)
: Returns to previous screen.
● Commander knob operation
Selection of icons on screen:
Tilt or turn the commander
knob and move the cursor
to the desired icon.
Press the commander
knob and select the icon.
1
2

276
YARIS iA_OM_OM99Q46z_(U)
4-2. Audio System
■Touch panel operation
For safety reasons, operation of
the center display is disabled
while the vehicle is being
driven. However, items not dis-
played in gray can be operated
using the commander switch
while the vehicle is being
driven.
■Commander switch operation
Long-press operation of the commander knob is also possible for some func-
tions.
■
TOUCH & TAP
Touch or tap on the item indi-
cated on the screen.
The operation is launched
and the next item is dis-
played.
NOTICE
■Touch panel operation
Do not press the screen strongly or pr ess it with a sharp-pointed object.
Otherwise, the screen could be damaged.
Basic Operation Method
1
2

YARIS iA_OM_OM99Q46z_(U)
2774-2. Audio System
4
Interior Features
■SLIDETouch the setting item dis-
playing a slider bar.
Touch the slider with your fin-
ger and move to the desired
level.
■SWIPETouch the screen with your
finger and move up or down.
Items which were not dis-
played can be displayed.
1
2
1
2

278
YARIS iA_OM_OM99Q46z_(U)
4-2. Audio System

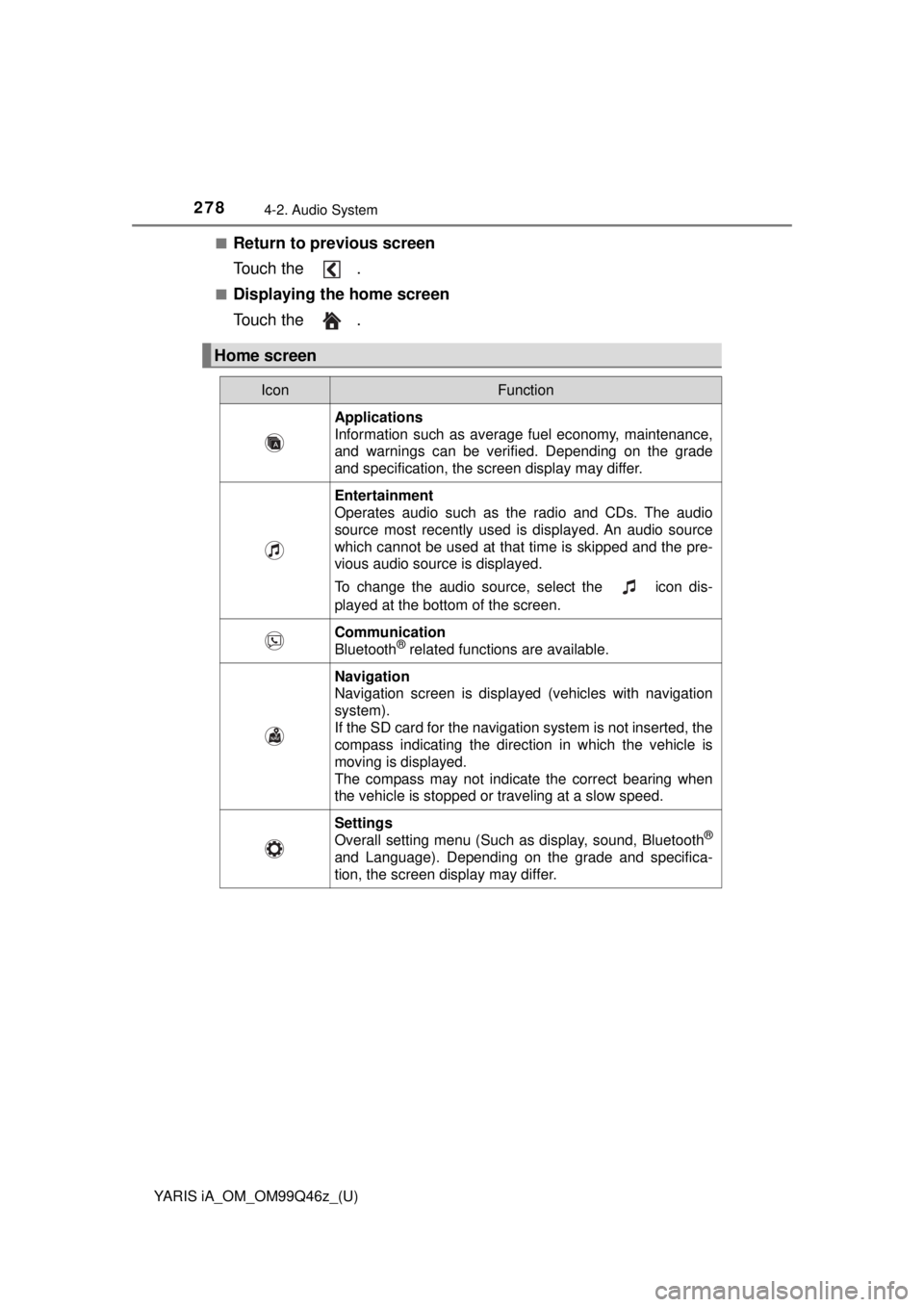

■Return to previous screen
Touch the .
■Displaying the home screen
Touch the .
Home screen
IconFunction
Applications
Information such as average fuel economy, maintenance,
and warnings can be verified. Depending on the grade
and specification, the screen display may differ.
Entertainment
Operates audio such as the radio and CDs. The audio
source most recently used is displayed. An audio source
which cannot be used at that time is skipped and the pre-
vious audio source is displayed.
To change the audio source, select the icon dis-
played at the bottom of the screen.
Communication
Bluetooth® related functions are available.
Navigation
Navigation screen is displayed (vehicles with navigation
system).
If the SD card for the navigation system is not inserted, the
compass indicating the direction in which the vehicle is
moving is displayed.
The compass may not indicate the correct bearing when
the vehicle is stopped or traveling at a slow speed.
Settings
Overall setting menu (Such as display, sound, Bluetooth®
and Language). Depending on the grade and specifica-
tion, the screen display may differ.

YARIS iA_OM_OM99Q46z_(U)
2794-2. Audio System
4
Interior Features
■Volume adjustment
Turn the commander switch volume dial. The volume switch on the
steering switch can also be pressed.
■Display setting
Select the icon on the home screen and display the Settings
screen.
Select the tab to select the item you would like to change.
● Display OFF/Clock
The center display can be turned off. Select to turn
the display off. When is selected the cen-
ter display turns off and the clock is displayed.
The center display can be turned back on as follows:
• Touch the center display.
• Operate the commander switch.
● Daytime/nighttime (System) screen setting
The daytime or nighttime screen can be selected.
: Switches screen automatically according to headlight illumi-nation condition
*1
: Daytime screen setting
: Nighttime screen setting
*1: The display is constantly on daytime screen when the illumination dim-mer is cancelled.
Volume/Display/Sound Controls
Commander switchAudio control switch
Vo l u m e d i al
Vo l u m e
switch

280
YARIS iA_OM_OM99Q46z_(U)
4-2. Audio System
●Brightness adjustment
Adjust the center display brightness using the slider.
● Contrast adjustment
Adjust the center display contrast using the slider.
● Display setting reset
All of the screen setting values can be reset to their initial set-
tings.
Select .
Select .
■Audio sound adjustment
Select the icon on the home screen and display the Settings
screen.
Select the tab to select the item you would like to change.
1
2
IndicationSetting value
Bass (Low pitch sound)
Side: Low pitch enhance- ment
Side: Low pitch reduction
Treble (Treble sound) Side: Treble enhancement
Side: Treble reduction
Fade (Front/Rear volume balance)
Front: Front speaker volume
enhancement
Rear: Rear speaker volume enhancement
Balance (Left/right volume balance)
Right: Right speaker volumeenhancement
Left: Left speaker volume enhancement
ALC (Automatic volume adjustment)Off—Adjustment at seven levels
Beep (Audio operation sound)On/Off
