TOYOTA YARIS iA 2018 Warranties & Maintenance Guides (in English)

37,500 miles or 30 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect drive beltsInspect wiper bladesReplace engine air filterReplace engine oil and filter2
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
45,000 miles or 36 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect emergency flat tire repair kit (if
equipped)3
Inspect wiper bladesReplace engine oil and oil filter2
Rotate tires
Inspect the following:Ball joints and dust coversBrake linings/drums and
brake pads/discs4
Cabin air filterEngine coolant5
Exhaust pipes and mountingsRadiator and condenserSteering gear
NOTE:Driving in heavy traffic, on dirt
roads or in urban, dusty or desert
areas may shorten the life of the cabin
air filter. Replacement may be needed if
you notice reduced air flow from the
air conditioner and heater or if the
windows fog easily when you use the
Freshmode. Consult your dealer if
any of these conditions occur.
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Inspect sealed transmissions, transfer cases, and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.3Check the tire repair fluid expiration date every year during inspection. Replace the tire repair fluid bottle with a new
one before the expiration date.
4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log40

52,500 miles or 42 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesReplace engine oil and oil filter2
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
60,000 miles or 48 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect emergency flat tire repair kit (if
equipped)3
Inspect wiper bladesReplace cabin air filterReplace engine oil and oil filter2
Rotate tiresTighten nuts and bolts on body and
chassis
Inspect the following:Ball joints and dust coversBrake lines and hosesBrake linings/drums and
brake pads/discs4
Drive shaft bootsEmission hoses and tubesEngine coolant5
Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
Fuel tank cap gasketRadiator and condenserSteering gearSteering linkage and bootsTransmission fluid or oil
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Inspect sealed transmissions, transfer cases, and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.3Check the tire repair fluid expiration date every year during inspection. Replace the tire repair fluid bottle with a new
one before the expiration date.
4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log41

67,500 miles or 54 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesReplace engine oil and oil filter2
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
75,000 miles or 60 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect emergency flat tire repair kit (if
equipped)3
Inspect drive beltsInspect wiper bladesReplace engine air filterReplace engine oil and oil filter2
Replace spark plugs4
Rotate tires
Inspect the following:Ball joints and dust coversBrake linings/drums and
brake pads/discs5
Cabin air filterEngine coolant6
Radiator and condenserSteering gear
NOTE:Driving in heavy traffic, on dirt
roads or in urban, dusty or desert
areas may shorten the life of the cabin
air filter. Replacement may be needed if
you notice reduced air flow from the
air conditioner and heater or if the
windows fog easily when you use the
Freshmode. Consult your dealer if
any of these conditions occur.
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Inspect sealed transmissions, transfer cases, and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.3Check the tire repair fluid expiration date every year during inspection. Replace the tire repair fluid bottle with a new
one before the expiration date.
4Maintenance services of spark plugs are required under the terms of the Emission Control Warranty.5Inspect thickness measurement and disc runout.6Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log42

82,500 miles or 66 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesReplace engine oil and oil filter2
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
90,000 miles or 72 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect emergency flat tire repair kit (if
equipped)3
Inspect wiper bladesReplace cabin air filterReplace engine oil and oil filter2
Rotate tiresTighten nuts and bolts on body and
chassis
Inspect the following:Ball joints and dust coversBrake lines and hosesBrake linings/drums and
brake pads/discs4
Drive shaft bootsEngine coolant5
Exhaust pipes and mountingsFuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
Fuel tank cap gasketRadiator and condenserSteering gearSteering linkage and bootsTransmission fluid or oil
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Inspect sealed transmissions, transfer cases, and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.3Check the tire repair fluid expiration date every year during inspection. Replace the tire repair fluid bottle with a new
one before the expiration date.
4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log43

97,500 miles or 78 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper bladesReplace engine oil and filter2
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
105,000 miles or 84 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect emergency flat tire repair kit (if
equipped)3
Inspect wiper bladesReplace engine oil and oil filter2
Rotate tires
Inspect the following:Ball joints and dust coversBrake linings/drums and
brake pads/discs4
Cabin air filterEngine coolant5
Radiator and condenserSteering gear
NOTE:Driving in heavy traffic, on dirt
roads or in urban, dusty or desert
areas may shorten the life of the cabin
air filter. Replacement may be needed if
you notice reduced air flow from the
air conditioner and heater or if the
windows fog easily when you use the
Freshmode. Consult your dealer if
any of these conditions occur.
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Inspect sealed transmissions, transfer cases, and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.3Check the tire repair fluid expiration date every year during inspection. Replace the tire repair fluid bottle with a new
one before the expiration date.
4Inspect thickness measurement and disc runout.5Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more
information.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log44

112,500 miles or 90 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect drive beltsInspect wiper bladesReplace engine air filterReplace engine oil and oil filter2
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
120,000 miles or 96 months
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect emergency flat tire repair kit (if
equipped)3
Inspect wiper bladesReplace cabin air filterReplace engine coolant4
Replace engine oil and oil filter2
Rotate tiresTighten nuts and bolts on body and
chassis
Inspect the following:Ball joints and dust coversBrake lines and hosesBrake linings/drums and
brake pads/discs5
Drive shaft bootsEmission hoses and tubesFuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
Fuel tank cap gasketRadiator and condenserSteering gearSteering linkage and bootsTransmission fluid or oil
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Inspect sealed transmissions, transfer cases, and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2Reset the scheduled maintenance indicator light. Use 0W-20 Genuine Toyota Motor Oil or equivalent.3Check the tire repair fluid expiration date every year during inspection. Replace the tire repair fluid bottle with a new
one before the expiration date.
4NOTE:Initial replacement at 120,000 miles/120 months. Replace every 60,000 miles/60 months thereafter. Refer to
“Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.
5Inspect thickness measurement and disc runout.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log45

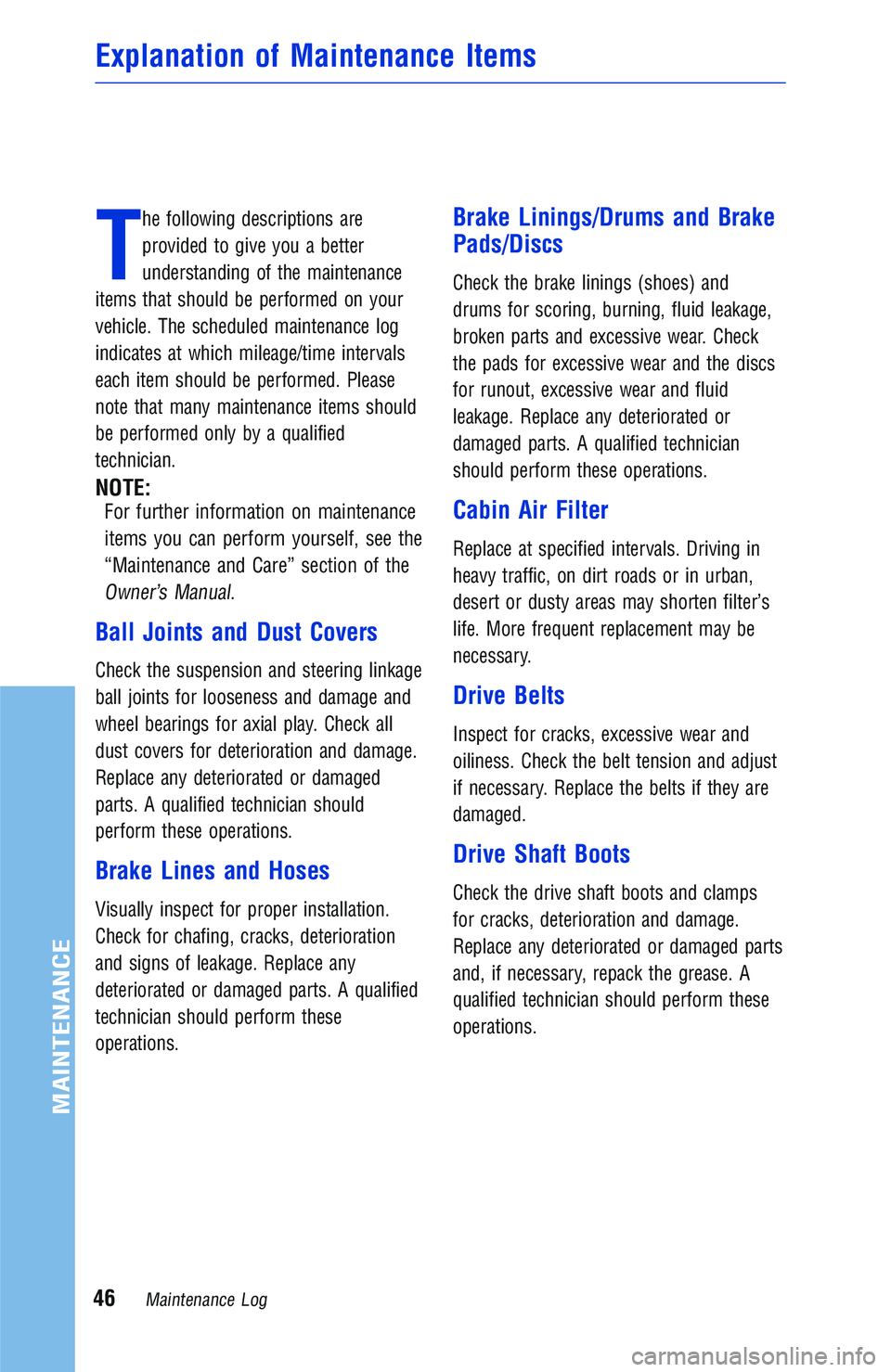

T
he following descriptions are
provided to give you a better
understanding of the maintenance
items that should be performed on your
vehicle. The scheduled maintenance log
indicates at which mileage/time intervals
each item should be performed. Please
note that many maintenance items should
be performed only by a qualified
technician.
NOTE:
For further information on maintenance
items you can perform yourself, see the
“Maintenance and Care” section of the
Owner’s Manual.
Ball Joints and Dust Covers
Check the suspension and steering linkage
ball joints for looseness and damage and
wheel bearings for axial play. Check all
dust covers for deterioration and damage.
Replace any deteriorated or damaged
parts. A qualified technician should
perform these operations.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chafing, cracks, deterioration
and signs of leakage. Replace any
deteriorated or damaged parts. A qualified
technician should perform these
operations.
Brake Linings/Drums and Brake
Pads/Discs
Check the brake linings (shoes) and
drums for scoring, burning, fluid leakage,
broken parts and excessive wear. Check
the pads for excessive wear and the discs
for runout, excessive wear and fluid
leakage. Replace any deteriorated or
damaged parts. A qualified technician
should perform these operations.
Cabin Air Filter
Replace at specified intervals. Driving in
heavy traffic, on dirt roads or in urban,
desert or dusty areas may shorten filter’s
life. More frequent replacement may be
necessary.
Drive Belts
Inspect for cracks, excessive wear and
oiliness. Check the belt tension and adjust
if necessary. Replace the belts if they are
damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps
for cracks, deterioration and damage.
Replace any deteriorated or damaged parts
and, if necessary, repack the grease. A
qualified technician should perform these
operations.
Explanation of Maintenance Items
Maintenance Log46
MAINTENANCE

Driver’s Floor Mat
•Only use the driver’s floor mat
designed specifically for the model and
model year of your vehicle.
•Always properly secure the driver’s
floor mat using the retaining hooks.
•Never install another floor mat on top
of the existing driver’s floor mat.
•Never install the driver’s floor mat
upside down.
Emergency Flat Tire Repair Kit
Inspect at specified intervals.
Emission Hoses and Tubes
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts as
necessary.
Engine Air Filter
Inspect or replace at specified intervals.
When performing inspections, check for
damage, excessive wear and oiliness, and
replace if necessary.
Engine Coolant
NOTE:
Initial replacement is at
120,000 miles/120 months. Replace
every 60,000 miles/60 months
thereafter.
Drain the cooling system and refill with
the coolant specified by Toyota for your
vehicle. Inspect hoses and connections for
corrosion and leaks. Tighten connections
and replace parts when necessary. A
qualified technician should perform these
operations.
Engine Oil and Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the
Owner’s Manual.
Your vehicle is equipped with
0W-20 synthetic oil which allows for
extended oil change intervals and optimum
fuel economy. It is recommended that
Toyota Genuine 0W-20 Motor Oil be used
during scheduled oil changes. For normal
operating conditions, Toyota recommends
changing your oil and filter every 7,500
miles or 6 months, whichever occurs first.
For special operating condition
maintenance recommendations, refer to
page 37 of this publication.
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts as
necessary.
Explanation of Maintenance Items
Maintenance Log47
MAINTENANCE

Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts as
necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis and
Body
Re-tighten the seat-mounting bolts and
front/rear suspension member retaining
bolts to specified torque.
Radiator and Condenser
Inspect for debris, corrosion and signs of
damage. Have any problem repaired
immediately by a qualified technician.
Spark Plugs
Replace at specified intervals. Install new
plugs of the same type as originally
equipped. A qualified technician should
perform this operation.
Steering Gear
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for
deterioration, cracks and damage. Replace
any damaged parts. A qualified technician
should perform these operations.
Tire Rotation
Tires should be rotated according to the
instructions in the Owner’s Manual. When
rotating tires, check for damage and
uneven wear. Replace if necessary.
Transmission Fluid or Oil
Inspect at specified intervals. When
performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired by a
qualified technician immediately.
Wiper Blades
The wiper blades should not show any
signs of cracking, splitting, wear,
contamination or deformation. The wiper
blades should clear the windshield without
streaking or skipping.
Explanation of Maintenance Items
Maintenance Log48
MAINTENANCE

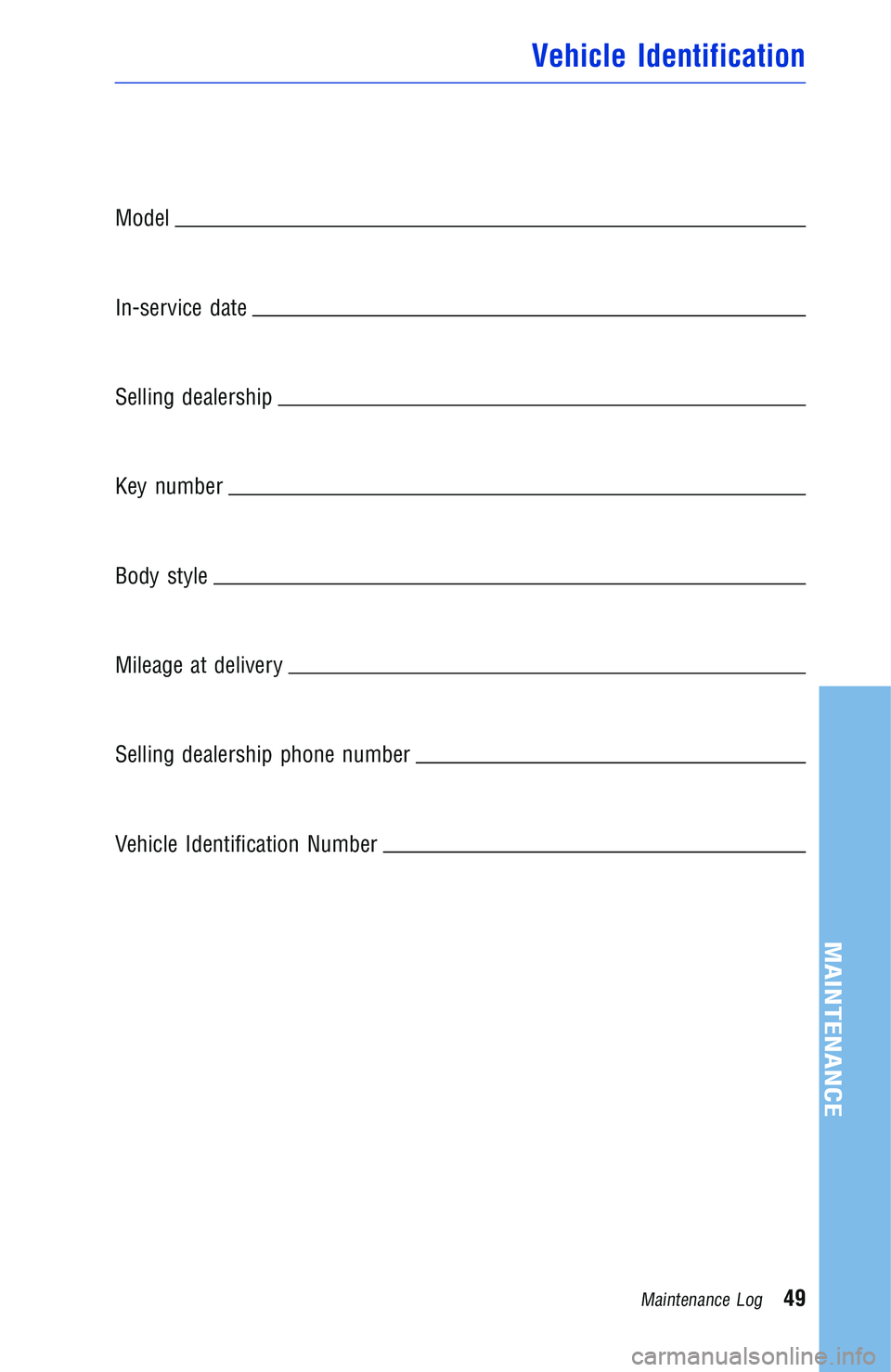

Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identification Number
Vehicle Identification
MAINTENANCE
Maintenance Log49
