Engine maintenance 7
Fuel tank door release and cap
7
Hood release
7
Indicator symbols
4-5
Instrument cluster
4
Instrument panel
2-3
Instrument panel light control
6
Keyless entry*
6
Air conditioning/heating
14
Audio
18
Automatic transmission
8
Clock
16
Cruise control
12
Door-Back door lock/unlock
8
Door locks-Power
16
Lights & turn signals
9
Manual transmission
8
Multi-Information Display (MID)
14
Parking brake
11
Power outlet
16
Rear view monitor system
15
Seat adjustments-Front
12
Seats Folding-Rear
13
Seats-Head restraints
13
Steering wheel switches
17
Tilt steering wheel
11
USB/AUX port
17
Windows-Power
11
Windshield wipers & washers
101
INDEX
OVERVIEW
FEATURES & OPERATIONS TOYOTA SAFETY SENSE™ C (TSS-C)
SAFETY & EMERGENCY FEATURES
PAIRING A BLUETOOTH
® DEVICE 29
YARIS HB 2018
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Yaris HB.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Yaris HB operati\
ons.
Every Yaris HB owner should review the Owner’s Manual that accompanie\
s
this vehicle.
Pay special attention to the boxed
information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
Auto High Beams (AHB) 24
Lane Departure Alert (LDA)
22-23
Pre-Collision System (PCS)
20-21
Quick overview-
Toyota Safety Sense
TM C (TSS-C) 19
Sensors
19
Doors-Child protector rear door locks
25
Floor mat installation
28
Seat belts
25
Spare tire & tools
26
Star Safety SystemTM 27-28
Tire Pressure Monitoring
(warning) System (TPMS)
26
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Page 3 of 17
3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
2 3

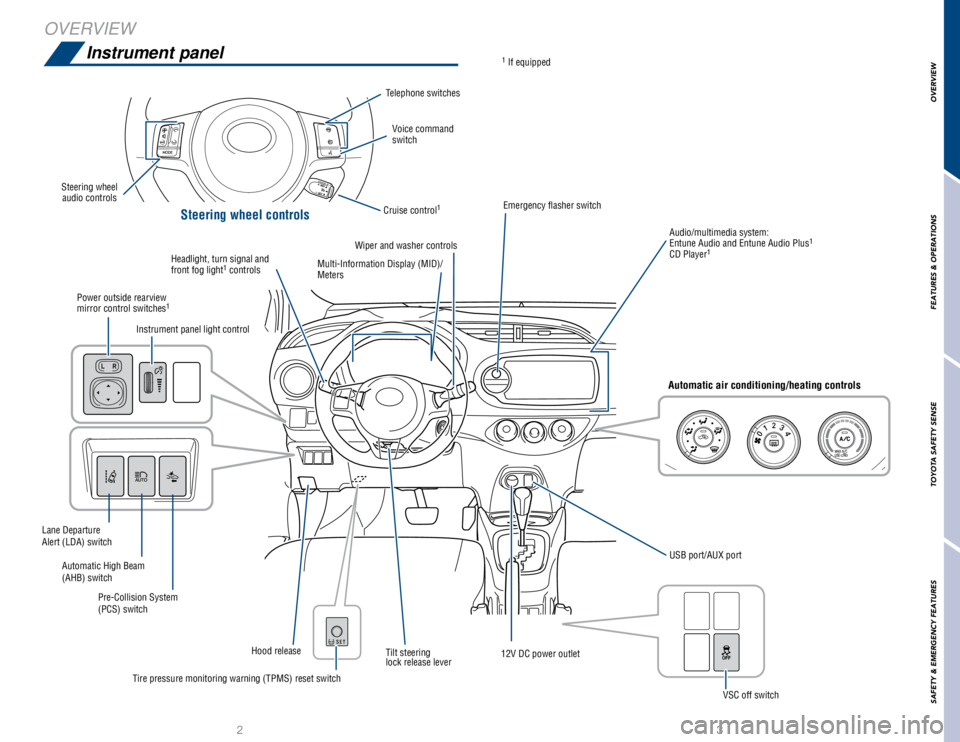

Instrument panel
OVERVIEW
Automatic air conditioning/heating controls
Voice command
switch
Telephone switches
Headlight, turn signal and
front fog light1 controls
Power outside rearview
mirror control switches
1
Instrument panel light control
Hood release Tilt steering
lock release lever
Tire pressure monitoring warning (TPMS) reset switch 12V DC power outlet
Lane Departure
Alert (LDA) switch
Automatic High Beam
(AHB) switch Pre-Collision System
(PCS) switch USB port/AUX port Audio/multimedia system:
Entune Audio and Entune Audio Plus
1
CD Player1
Emergency flasher switch
1 If equipped
Cruise control1
Wiper and washer controls
Multi-Information Display (MID)/
Meters
Steering wheel audio controls
Steering wheel controls
VSC off switch
Page 4 of 17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
4 5
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2018 Owner’s
Manual.

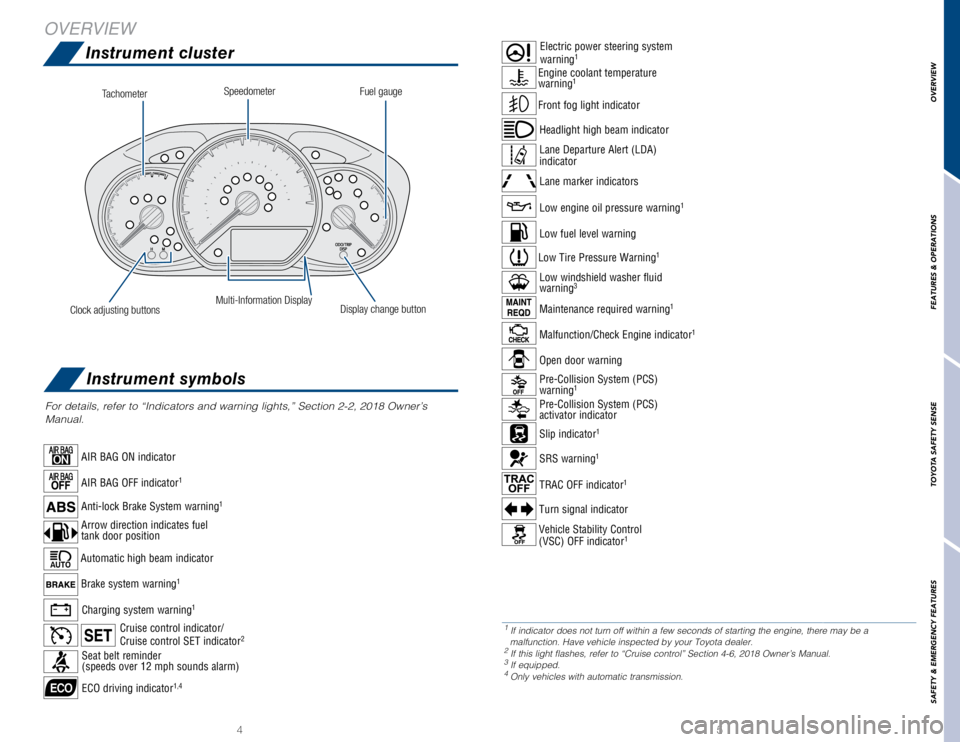

Instrument cluster
1 If indicator does not turn off within a few seconds of starting the engi\
ne, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2 If this light flashes, refer to “Cruise control” Section 4-6, 2018\
Owner’s Manual.3 If equipped.4 Only vehicles with automatic transmission.
Seat belt reminder
(speeds over 12 mph sounds alarm)
Cruise control indicator/
Cruise control SET indicator2
Low Tire Pressure Warning1
Electric power steering system
warning1
ECO driving indicator1,4
OVERVIEW
AIR BAG ON indicator
AIR BAG OFF indicator1
Brake system warning1
Malfunction/Check Engine indicator1
Maintenance required warning1
Low windshield washer fluid
warning3
Lane marker indicators
Lane Departure Alert (LDA)
indicator
Pre-Collision System (PCS)
warning1
Pre-Collision System (PCS)
activator indicator
Low fuel level warning
Arrow direction indicates fuel
tank door position
Charging system warning
1
Low engine oil pressure warning1
Open door warning
Engine coolant temperature
warning1
Anti-lock Brake System warning1
Vehicle Stability Control
(VSC) OFF indicator1
Slip indicator1
SRS warning1
TRAC OFF indicator1
Turn signal indicator
Front fog light indicator
Headlight high beam indicator
Automatic high beam indicator
Instrument symbols
Fuel gauge
Display change button
Multi-Information Display Speedometer
Tachometer
Clock adjusting buttons
Page 5 of 17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
6

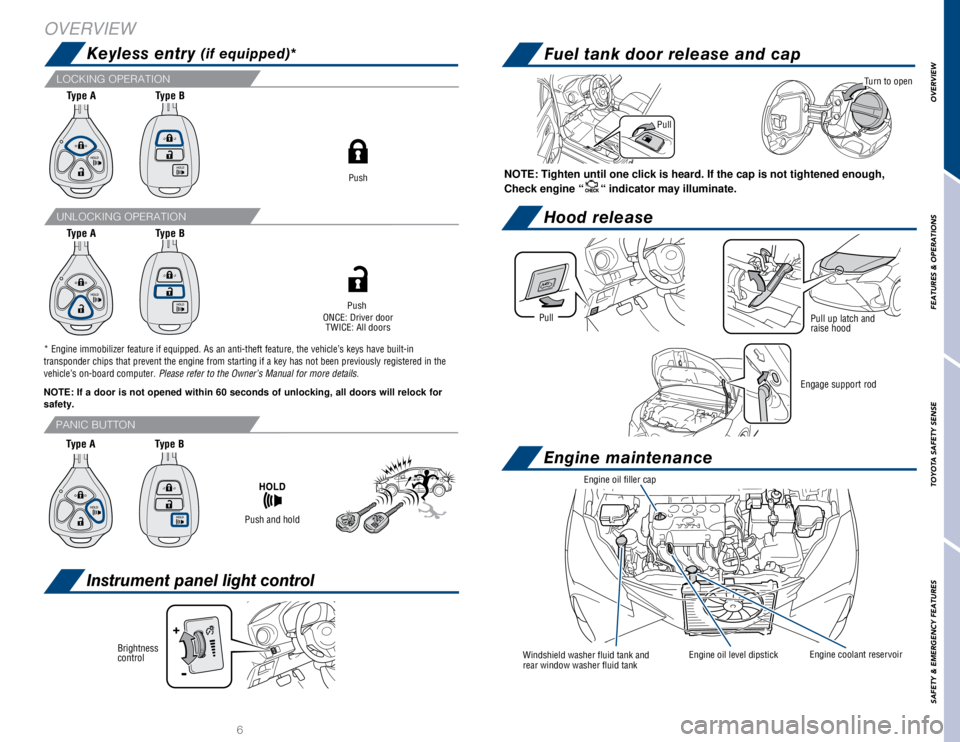

LOCKING OPERATION
UNLOCKING OPERATION
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety. * Engine immobilizer feature if equipped. As an anti-theft feature, the \
vehicle’s keys have built-in
transponder chips that prevent the engine from starting if a key has not\
been previously registered in the
vehicle’s on-board computer. Please refer to the Owner’s Manual for more details.
7
Fuel tank door release and capKeyless entry (if equipped)*
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check engine “
“ indicator may illuminate.
OVERVIEW
Type A
Type A
Type A Type B
Type B
Type B
Pull up latch and
raise hood
Engage support rod
Hood release
Engine maintenance
Push
ONCE: Driver door TWICE: All doors
Push
Pull
PANIC BUTTON
Brightness
control
+
-
Instrument panel light control
Push and hold
Pull
Turn to open
Engine oil filler cap Engine coolant reservoir
Engine oil level dipstick
Windshield washer fluid tank and
rear window washer fluid tank
Page 6 of 17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
8 9
Automatic transmission (if equipped)
Manual transmission (if equipped)
FEATURES & OPERATIONS
Type AType B
Front fog lights turn on only when the headlights are on low beam.
TurnTurn
* The ignition switch must be “ON” and the brake pedal depressed t\
o shift from Park.
Downshifting increases power going uphill, or provides engine braking do\
wnhill. For
best fuel economy during normal driving conditions, always drive with th\
e shift lever
in the “D” position.
Park*P
ReverseR
NeutralN
DriveD
Third gear3
Second gear2
First gearL
Lights & turn signals
HEADLIGHTS
TURN SIGNALS
FRONT FOG LIGHTS (IF EQUIPPED)
Door-Back door lock/unlock
OPEN/CLOSE
Push
High beam flasherLow beam
High beam
Headlights
Parking lights DRL ON
OFF
Right turn
Lane change
Lane change Left turn
Page 7 of 17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
10 11
FEATURES & OPERATIONS

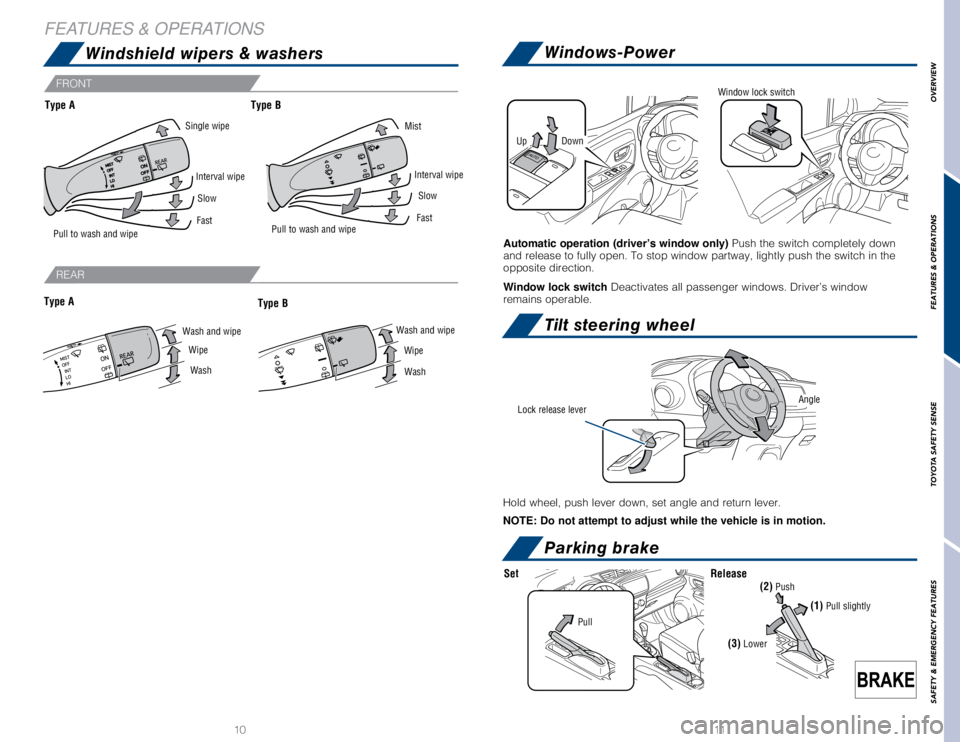

Windshield wipers & washers
Windows-Power
Automatic operation (driver’s window only) Push the switch completely down
and release to fully open. To stop window partway, lightly push the swit\
ch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Tilt steering wheel
Parking brake
Hold wheel, push lever down, set angle and return lever.
NOTE:
Do not attempt to adjust while the vehicle is in motion.
Set Release
Type AType B
Single wipe
Interval wipeSlow
Fast
Pull to wash and wipe Mist
Interval wipeSlow
FastPull to wash and wipe
Wipe
Wash and wipe
WashWipe
Wash and wipe
Wash
Window lock switch
UpDown
Lock release lever
Angle
Pull
(2) Push
(1) Pull slightly
(3) Lower
Type BType A
FRONT
REAR
Page 8 of 17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
12 13
Seat adjustments-Front
Seats-Head restraints
Driver seatPassenger seat
FEATURES & OPERATIONS
Seats Folding-Rear
1 The set speed may also be cancelled by depressing the brake pedal or the\
clutch
pedal (manual transmission).
2 Unless vehicle speed drops below 10 mph, the set speed may be resumed on\
ce
vehicle exceeds 25 mph.
Refer to the Owner’s Manual for more details.

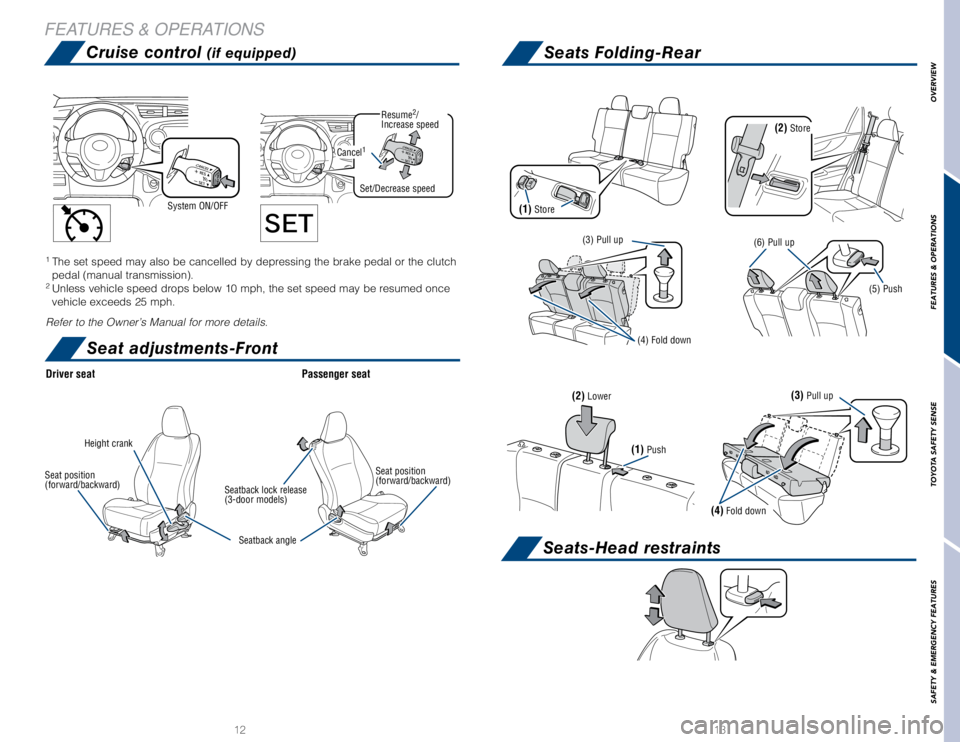

Cruise control (if equipped)
Seatback angle
Seat position
(forward/backward)
Seat position
(forward/backward)
Seatback lock release
(3-door models)
Height crank
(1) Store
(2) Store
(3) Pull up
(4) Fold down
(6) Pull up
(5) Push
(1) Push
(3) Pull up(2) Lower
(4) Fold down
Resume2/
Increase speed
Set/Decrease speed
Cancel1
System ON/OFF
Page 9 of 17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
14 15
WITH AIR CONDITIONING ON/OFF BUTTON
FEATURES & OPERATIONS

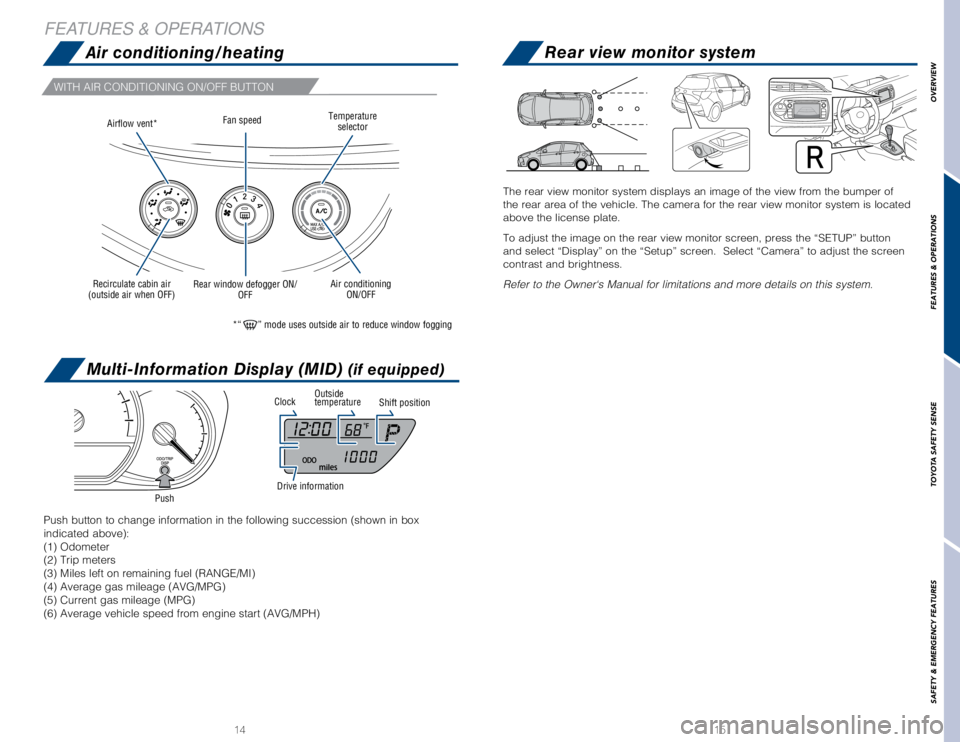

Air conditioning/heating
Multi-Information Display (MID) (if equipped)
Rear view monitor system
The rear view monitor system displays an image of the view from the bump\
er of
the rear area of the vehicle. The camera for the rear view monitor syste\
m is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “SETUP\
” button
and select “Display” on the “Setup” screen. Select “Came\
ra” to adjust the screen
contrast and brightness.
Refer to the Owner‘s Manual for limitations and more details on this \
system.
Push button to change information in the following succession (shown in\
box
indicated above):
(1) Odometer
(2) Trip meters
(3) Miles left on remaining fuel (RANGE/MI)
(4) Average gas mileage (AVG/MPG)
(5) Current gas mileage (MPG)
(6) Average vehicle speed from engine start (AVG/MPH)
ClockOutside
temperatureShift position
Drive information
Push
*“” mode uses outside air to reduce window fogging
Airflow vent* Fan speedTemperature
selector
Air conditioning ON/OFF
Rear window defogger ON/
OFF
Recirculate cabin air
(outside air when OFF)
Page 10 of 17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
16 17

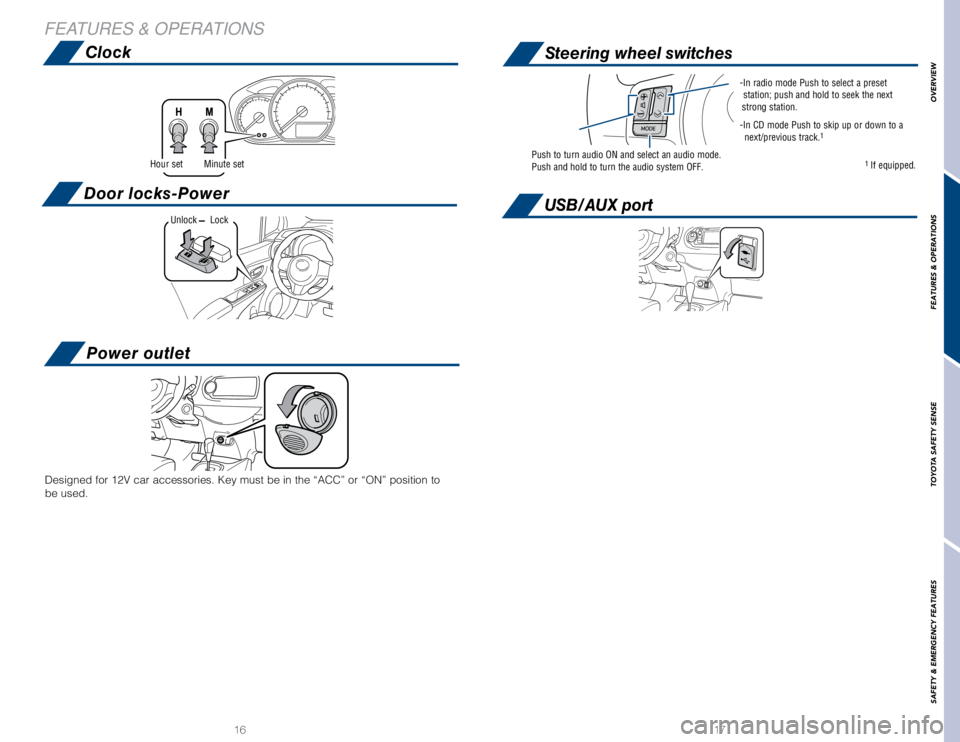

Clock
Power outlet
FEATURES & OPERATIONS
Designed for 12V car accessories. Key must be in the “ACC” or “\
ON” position to
be used.
Door locks-Power
LockUnlock
-In radio mode Push to select a preset
station; push and hold to seek the next
strong station.
-In CD mode Push to skip up or down to a next/previous track.
1
Push to turn audio ON and select an audio mode.
Push and hold to turn the audio system OFF.Hour setMinute set1 If equipped.
Steering wheel switches
USB/AUX port
