TOYOTA YARIS SEDAN 2009 User Guide

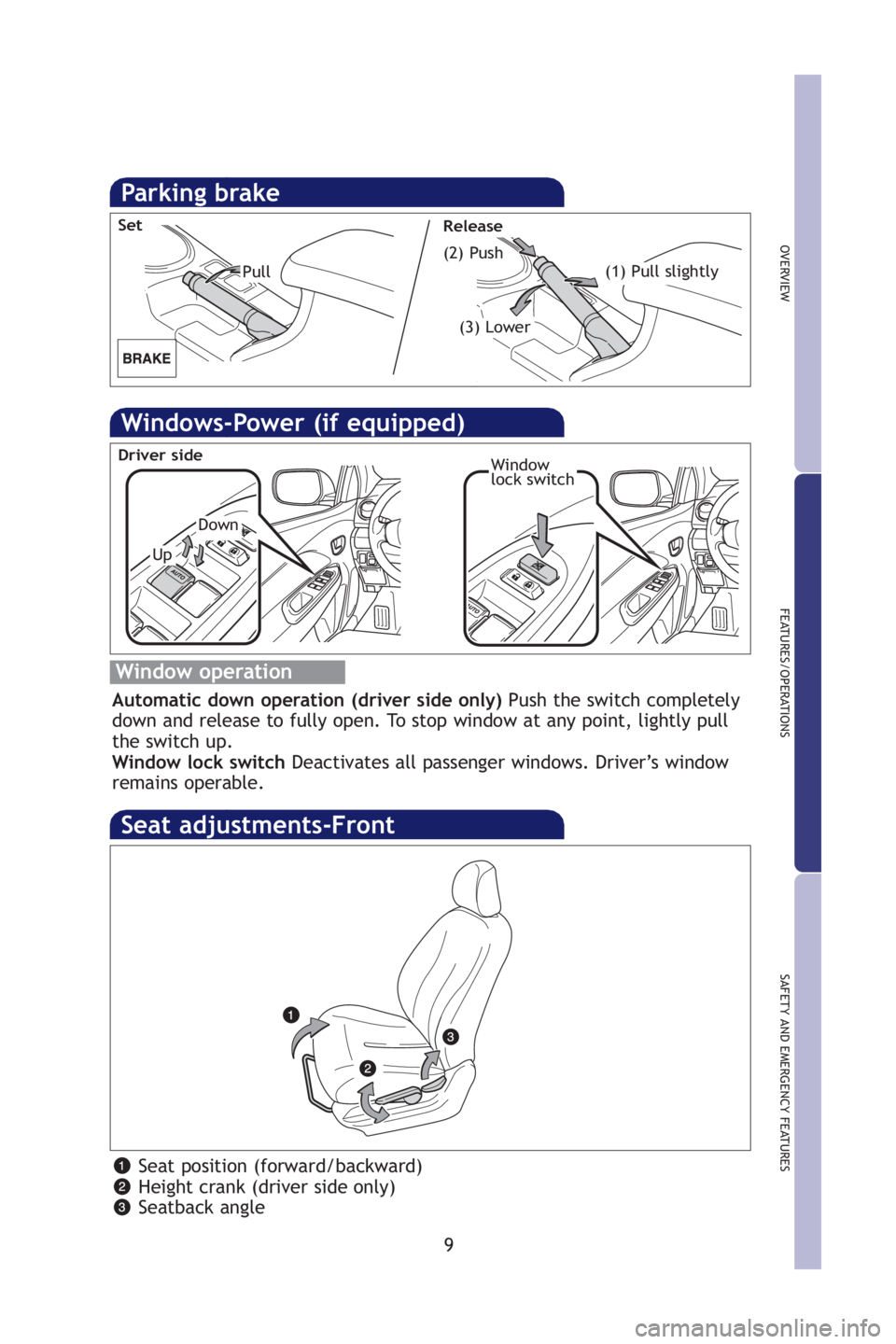

9
OVERVIEW
FEAT URES/OPER AT IONS
SAFETY AND EMERGENCY FEAT URES
Seat adjustments-Front
Seat position (forward/backward )
Height crank (driver side only)
Seatback angle
Parking brake
Windows-Power (if equipped)
Window operation
Window
lock switch
Up
Driver side
Down
Pull (2)
Push
Set
Release
(1) Pull slightly
(3) Lower
Automatic down operation (driver side only) Push the switch completely
down and release to fully open. To stop window at any point, lightly pull
the switch up.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
M2.qxd 7/28/08 3:45 PM Page 9

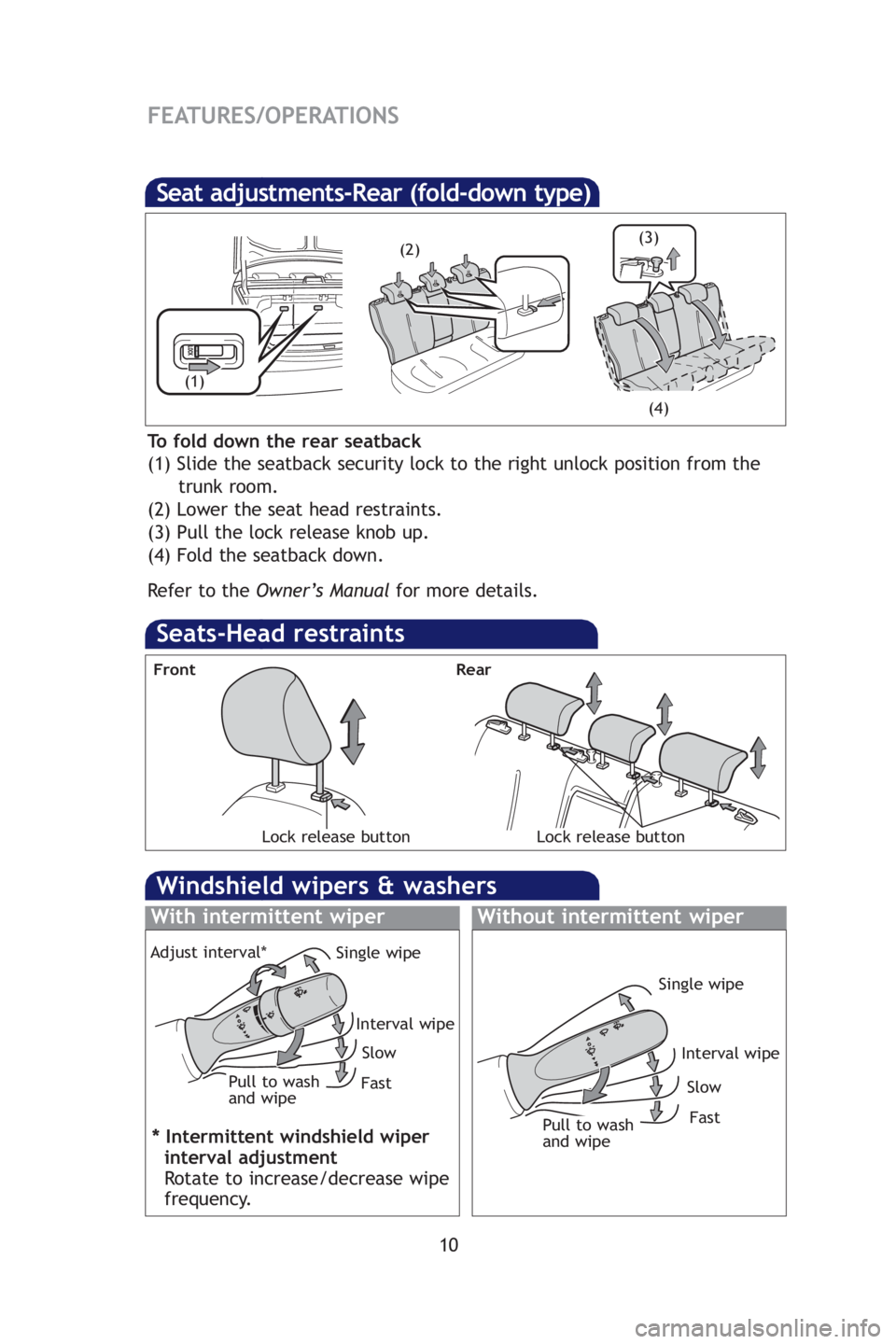

10
FEATURES/OPERATIONS
Seats-Head restraints
Lock release button
Front
Seat adjustments-Rear (fold-down type)
To fold down the rear seatback
(1) Slide the seatback security lock to the right unlock position from the
trunk room.
(2) Lower the seat head restraints.
(3) Pull the lock release knob up.
(4) Fold the seatback down.
R efer to the Owner’s Manual for more details.
Windshield wipers & washers
Rear
(1)
(4)
(3)
(2)
Without intermittent wiperWith intermittent wiper
Pull to wash
and wipe
Single wipe
Interval wipe
Slow
Fast
Interval wipe
Single wipe
Slow
Fast
Adjust interval*
* Intermittent windshield wiper
interval adjustment
Rotate to increase /decrease wipe
frequency.
Pull to wash
and wipe
Lock release button
M2.qxd 7/28/08 3:45 PM Page 10

11
OVERVIEW
FEAT URES/OPER AT IONS
SAFETY AND EMERGENCY FEAT URES

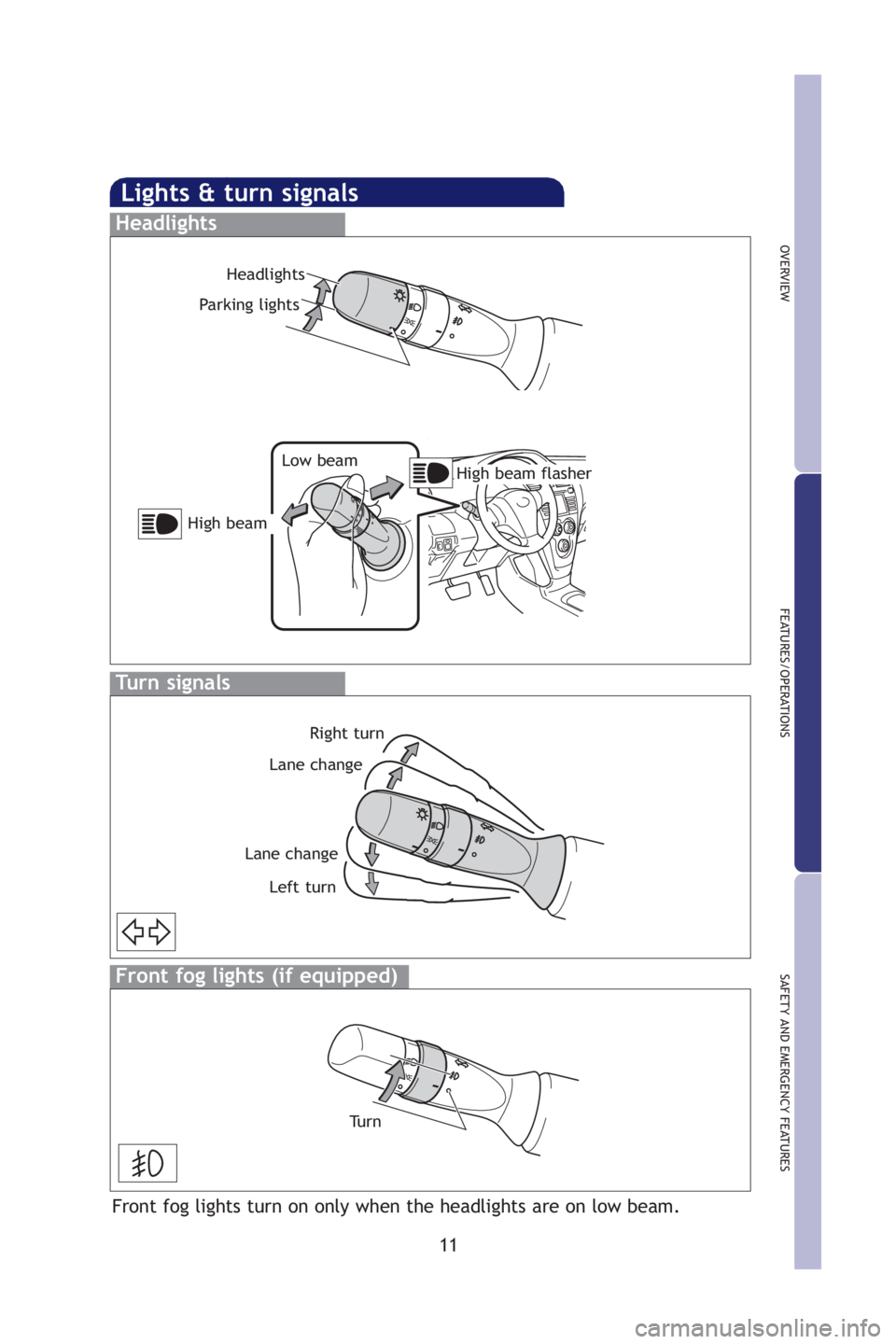

Lights & turn signals
Headlights
Turn signals
High beam flasher
Right turn
Lane change
Lane change Left turnLow beam
Front fog lights (if equipped)
Tu r n
Headlights
P arking lights
High beam
Front fog lights turn on only when the headlights are on low beam.
M2.qxd 7/28/08 3:45 PM Page 11

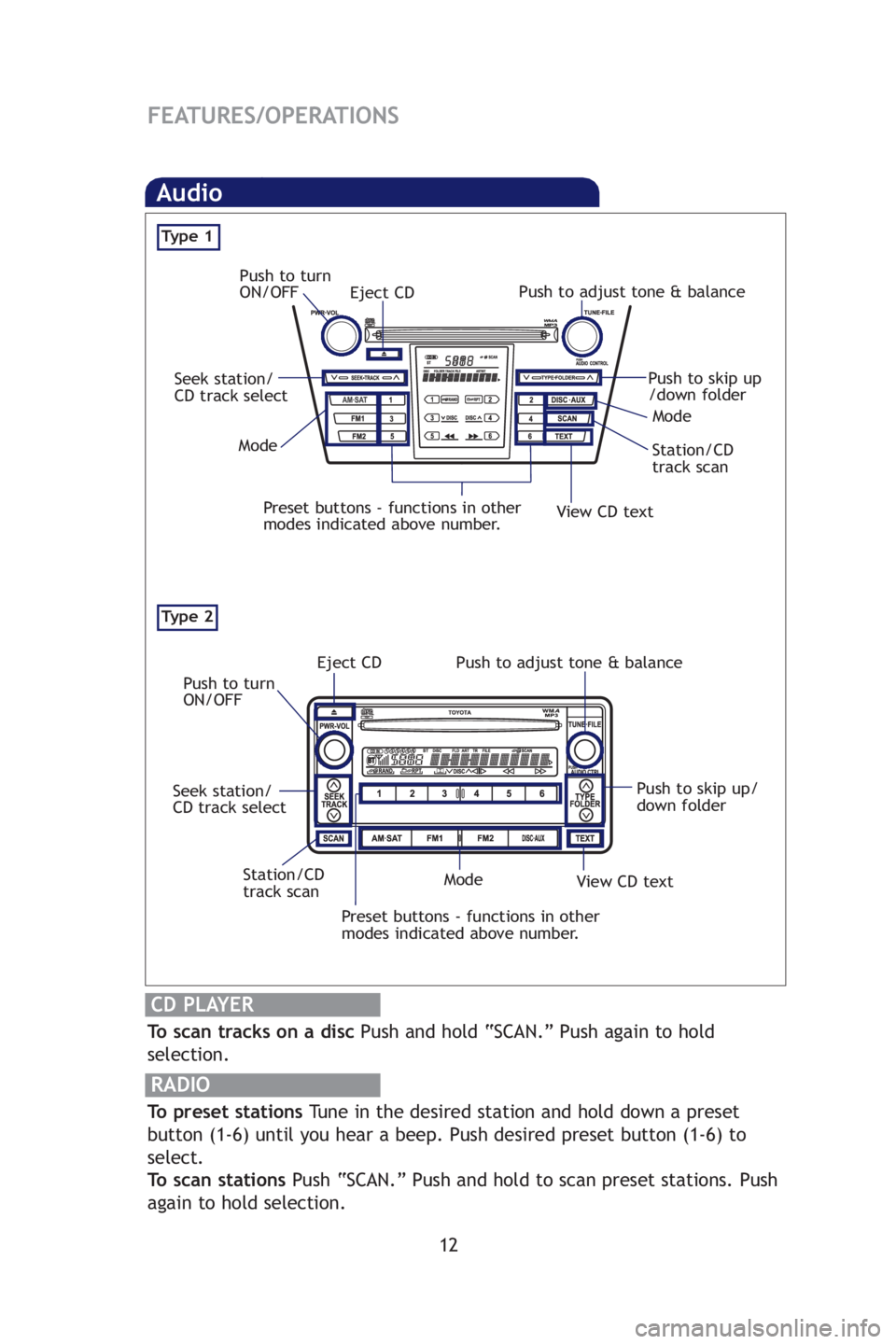

12
FEATURES/OPERATIONS
Ty p e 2
Audio
Eject CD
Push to turn
ON/OFF
Push to ad
just tone & balance
Seek station /
CD track select
Station/CD
track scan Mode
P reset buttons - functions in other
modes indicated above number.
To scan tracks on a disc Push and hold “S CAN.” Push again to hold
selection.
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push “SCAN.” Push and hold to scan preset stations. Push
again to hold selection.
CD PLAYER
Push to skip up
/down folder
V iew CD text
Mode
Ty p e 1
Preset buttons - functions in other
modes indicated above number.
V iew CD text
Push to skip up /
down folder
Ej
ect CD
Push to turn
ON/OFF Push to ad
just tone & balance
Mode
Seek station
/
CD track select
Station/CD
track scan
M2.qxd 7/28/08 3:45 PM Page 12

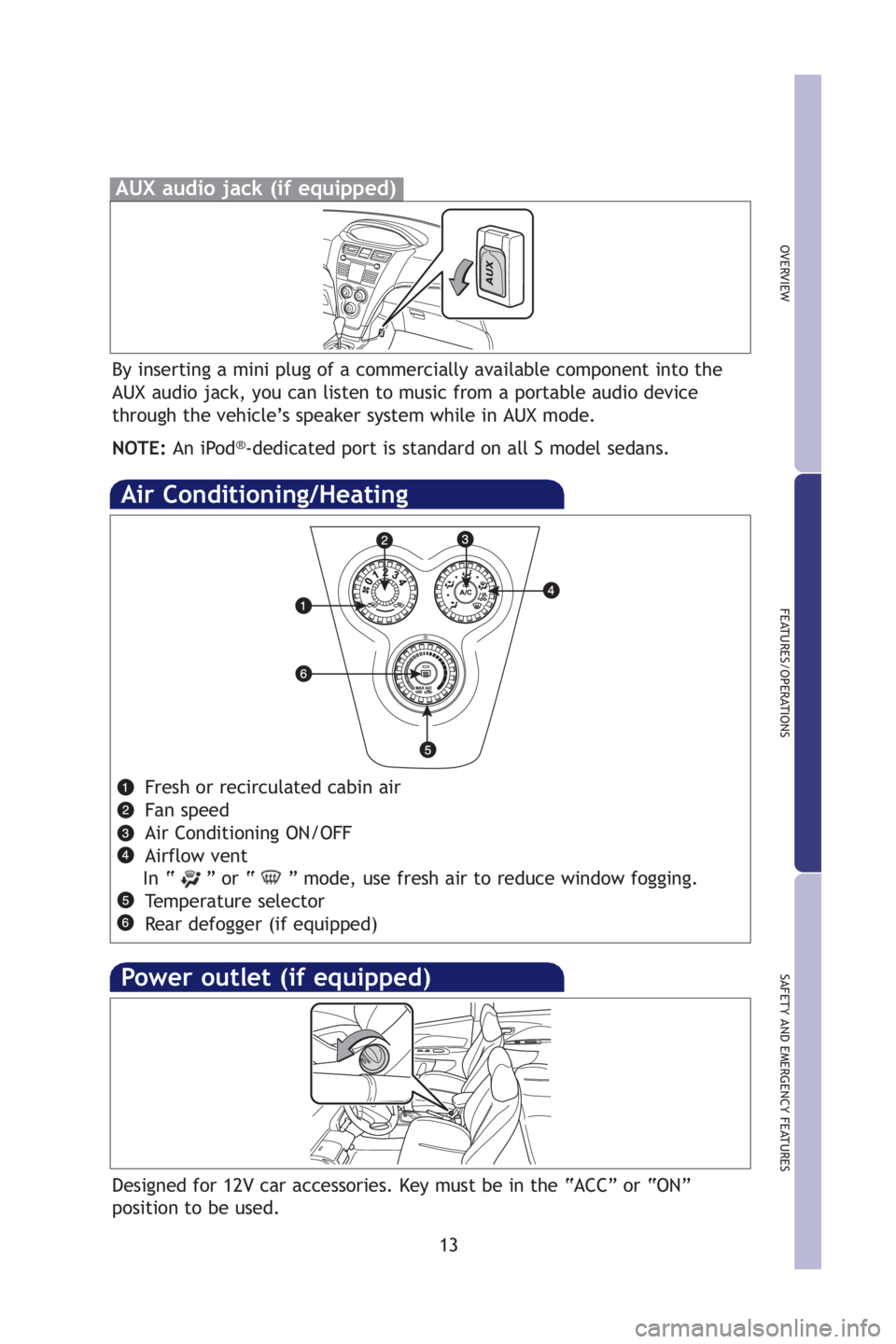

13
OVERVIEW
FEAT URES/OPER AT IONS
SAFETY AND EMERGENCY FEAT URES
Fresh or recirculated cabin air
Fan speed
Air Conditioning ON/OFF
Airflow vent
In “ ” or “ ” mode, use fresh air to reduce window fogging. Temperature selector
R ear defogger (if equipped )
Air Conditioning/Heating
By inserting a mini plug of a commercially available component into the
AUX audio jack, you can listen to music from a portable audio device
through the vehicle’s speaker system while in AUX mode.
NOTE: An iPod
®-dedicated port is standard on all S model sedans.
AUX audio jack (if equipped)
Power outlet (if equipped)
Designed for 12V car accessories. Key must be in the “A CC” or “ON”
position to be used.
M2.qxd 7/28/08 3:45 PM Page 13

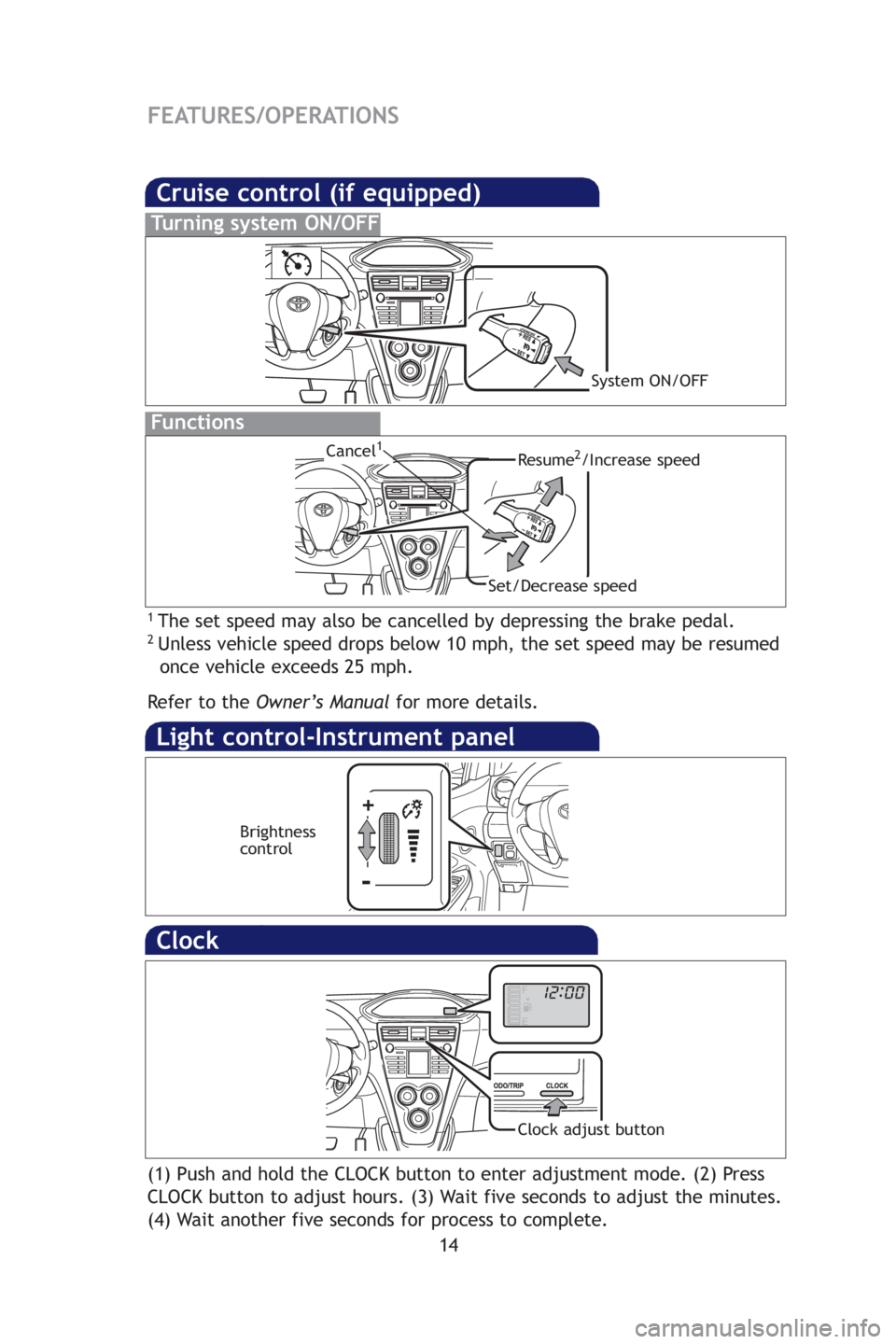

14
FEATURES/OPERATIONS
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 Unless vehicle speed drops below 10 mph, the set speed may be resumed
once vehicle exceeds 25 mph.
R efer to the Owner’s Manual for more details.
Turning system ON/OFF
Functions
Resume2/Increase speed
Set /Decrease speed
Cancel1
System ON/OFF
Clock
(1) Push and hold the CLOCK button to enter ad justment mode. (2) P ress
CLOCK button to ad just hours. (3) Wait five seconds to ad just the minutes.
(4) Wait another five seconds for process to complete.
Light control-Instrument panel
Brightness
control
+
-
Clock ad just button
M2.qxd 7/28/08 3:45 PM Page 14

15
OVERVIEW
FEAT URES/OPER AT IONS
SAFETY AND EMERGENCY FEAT URES
Cup holders
Front
Rear
Rear console boxRear seat armrest (if equipped)
Bottle holders-Rear seat
M2.qxd 7/28/08 3:45 PM Page 15

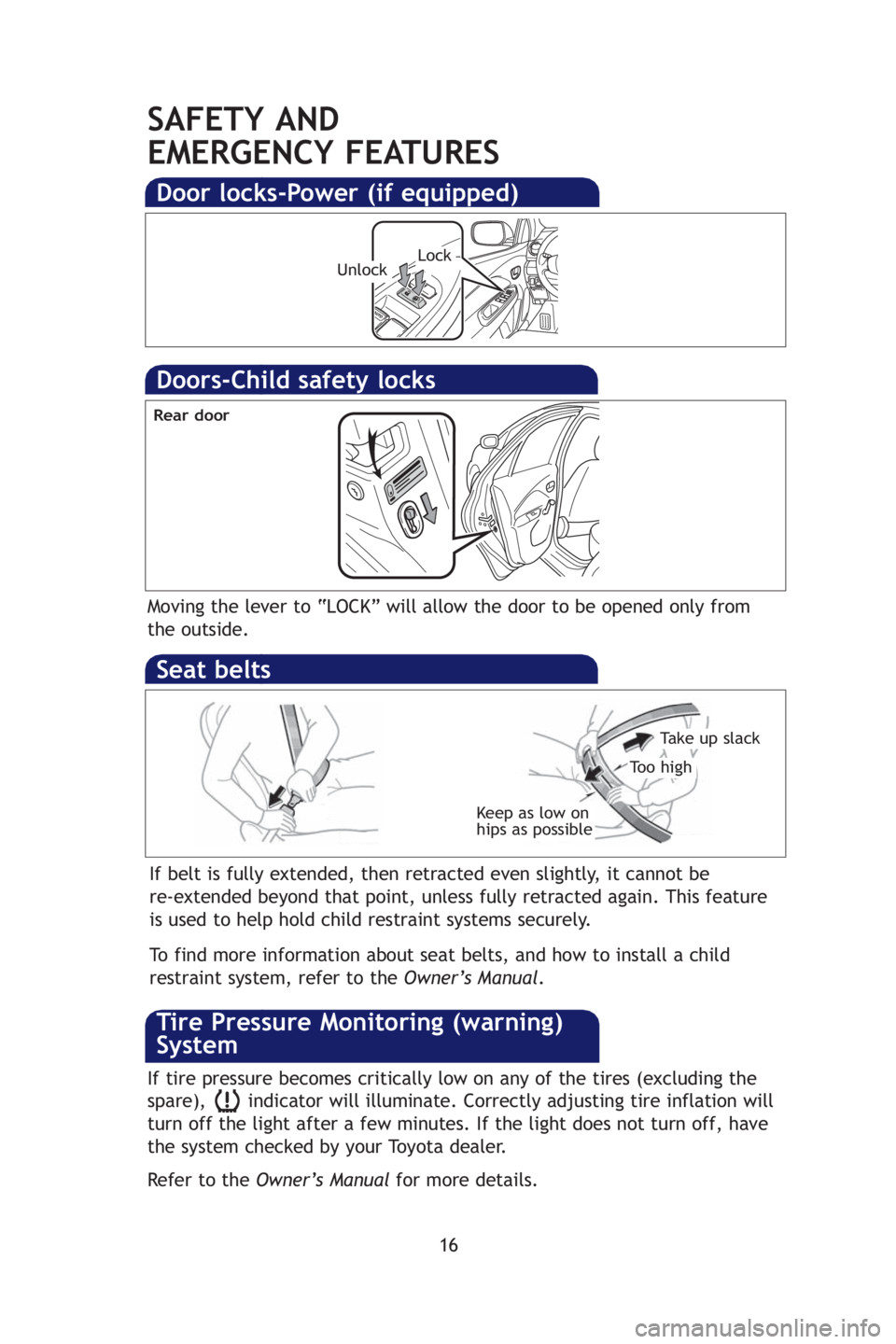

16
SAFETY AND
EMERGENCY FEATURES
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Doors-Child safety locks
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
If belt is fully extended, then retracted even slightly, it cannot be
re -extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner’s Manual.
Rear door
Door locks-Power (if equipped)
UnlockLock
If tire pressure becomes critically low on any of the tires (excluding the
spare), indicator will illuminate. Correctly adjusting tire inflation will
turn off the light after a few minutes. If the light does not turn off, \
have
the system checked by your Toyota dealer.
R efer to the Owner’s Manual for more details.
Tire Pressure Monitoring (warning)
System
M2.qxd 7/28/08 3:45 PM Page 16

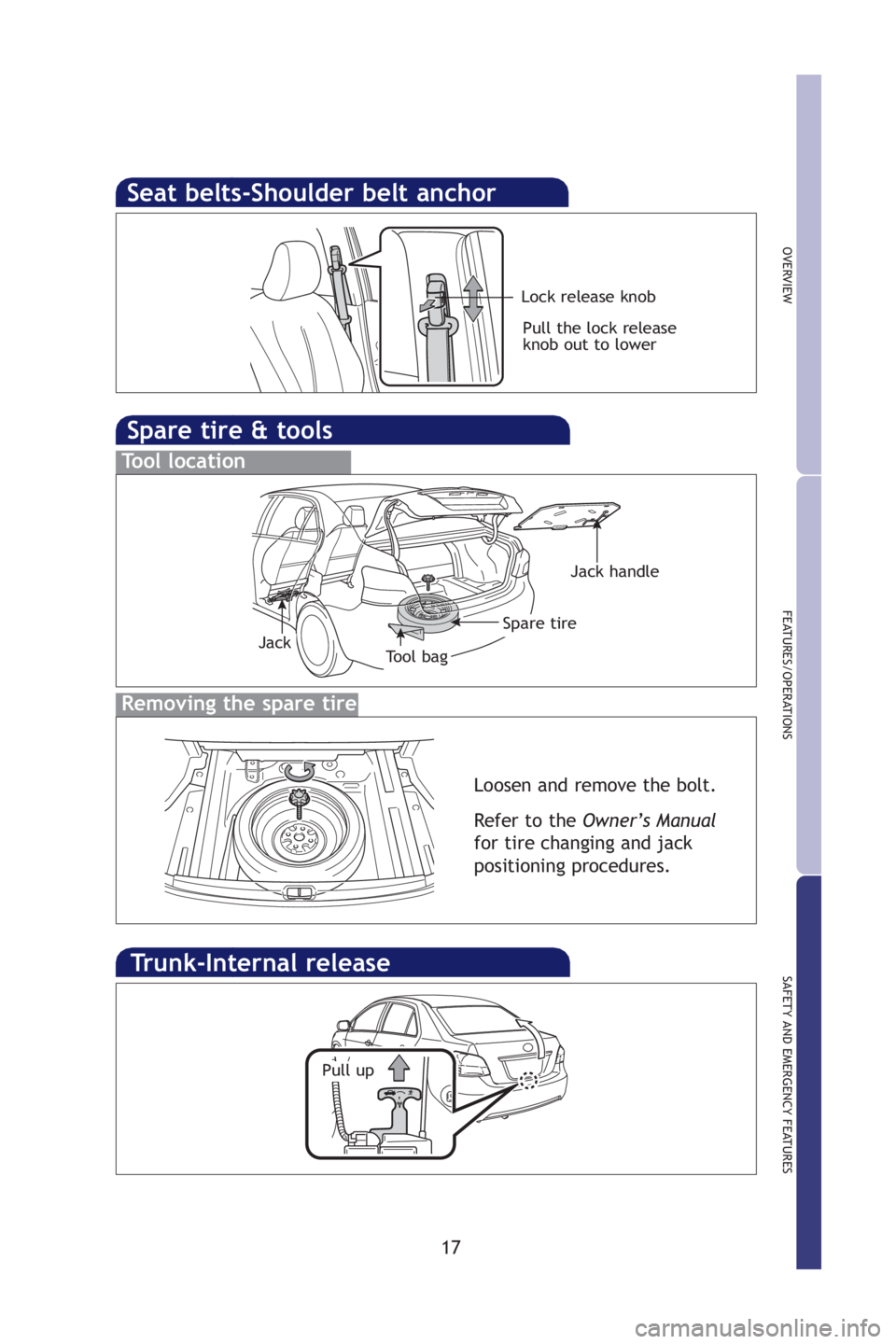

17
OVERVIEW
FEAT URES/OPER AT IONS
SAFETY AND EMERGENCY FEAT URES
Spare tire & tools
Tool location
Removing the spare tire
Loosen and remove the bolt.
Refer to the Owner’s Manual
for tire changing and jack
positioning procedures.
Trunk-Internal release
Pull up
Seat belts-Shoulder belt anchor
Tool bag
Spare tire
Jack handle
Jack
Pull the lock release
knob out to lower
Lock release knob
M1.qxd 7/28/08 3:44 PM Page 4

MN 00505-QRG09-YARS
Printed in the USA 7/08
