9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Seat adjustments-Front
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle

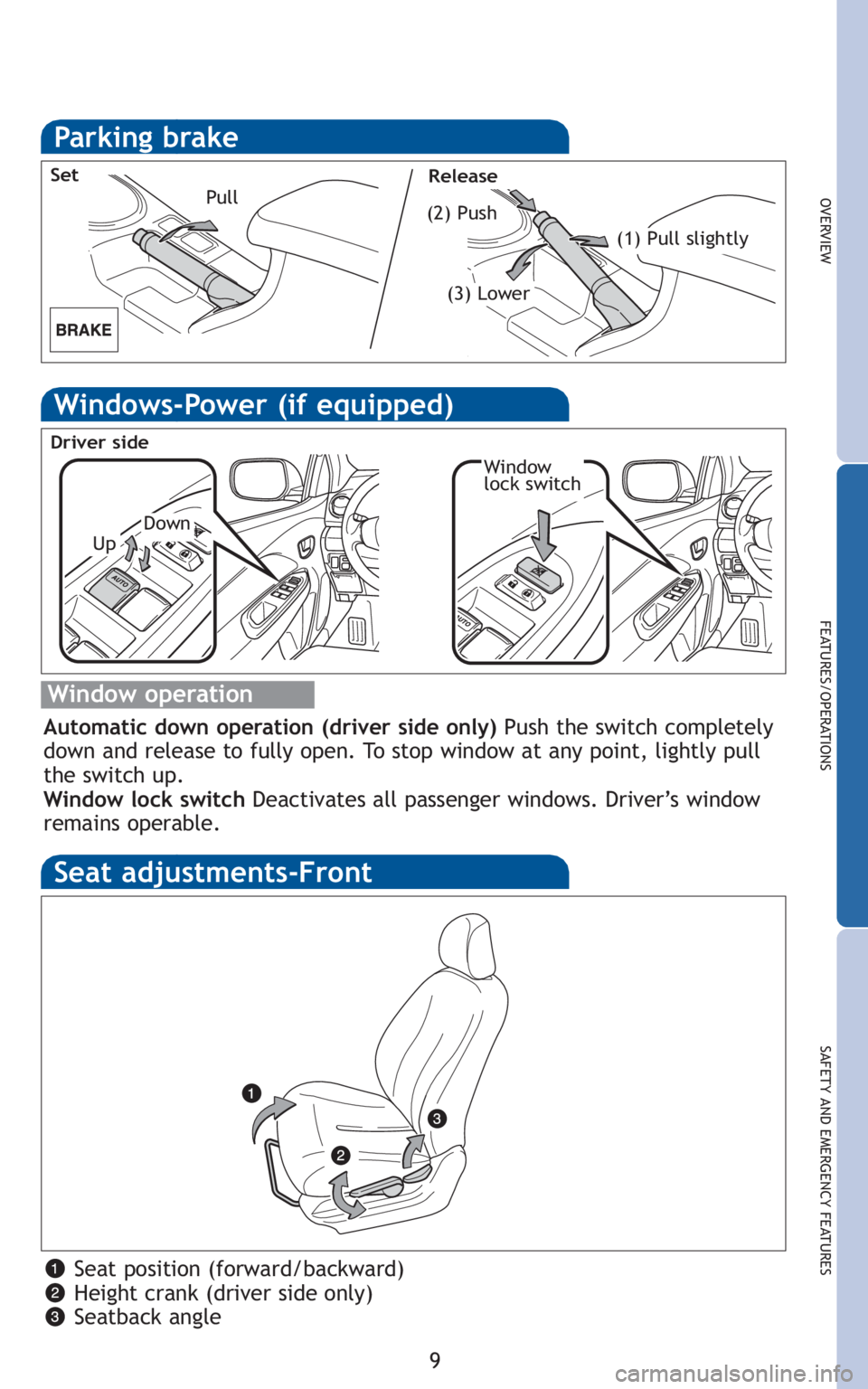

Parking brake
Windows-Power (if equipped)
Window operation
Window
lock switch
Up
Driver side
Down
Pull (2) PushSet Release
(1) Pull slightly
(3) Lower
Automatic down operation (driver side only) Push the switch completely
down and release to fully open. To stop window at any point, lightly pull
the switch up.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Page 12 of 386
10
FEATURES/OPERATIONS
Seats-Head restraints
Lock release button
Front

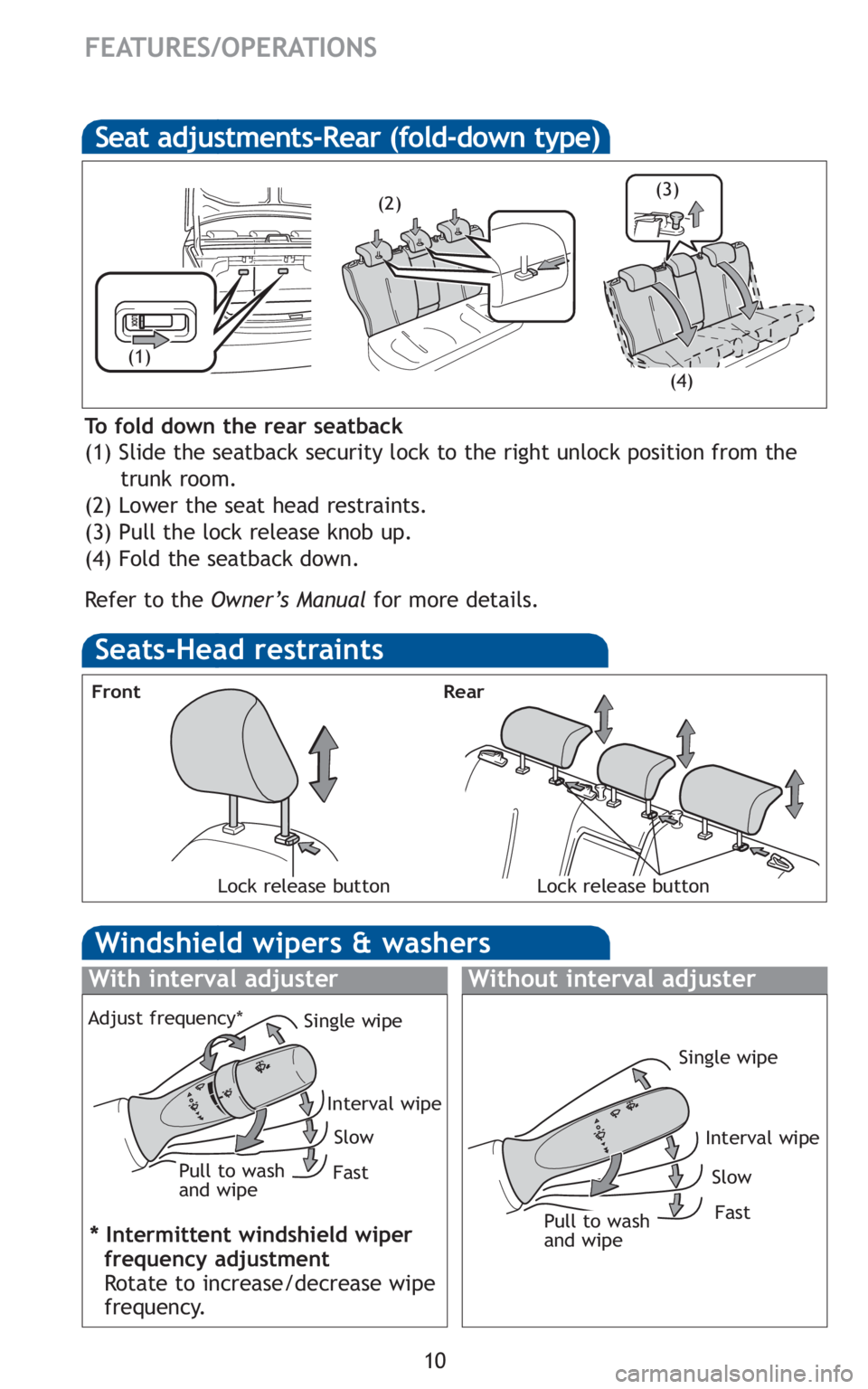

Seat adjustments-Rear (fold-down type)
To fold down the rear seatback
(1) Slide the seatback security lock to the right unlock position from thetrunk room.
(2) Lower the seat head restraints.
(3) Pull the lock release knob up.
(4) Fold the seatback down.
Refer to the Owner’s Manual for more details.
Windshield wipers & washers
Rear
(1)
(4)
(3)
(2)
Without interval adjusterWith interval adjuster
Pull to wash
and wipe
Single wipe
Interval wipe
Slow
Fast
Interval wipe
Single wipe
Slow
Fast
Adjust frequency*
* Intermittent windshield wiper
frequency adjustment
Rotate to increase/decrease wipe
frequency.
Pull to wash
and wipe
Lock release button
Page 13 of 386
11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

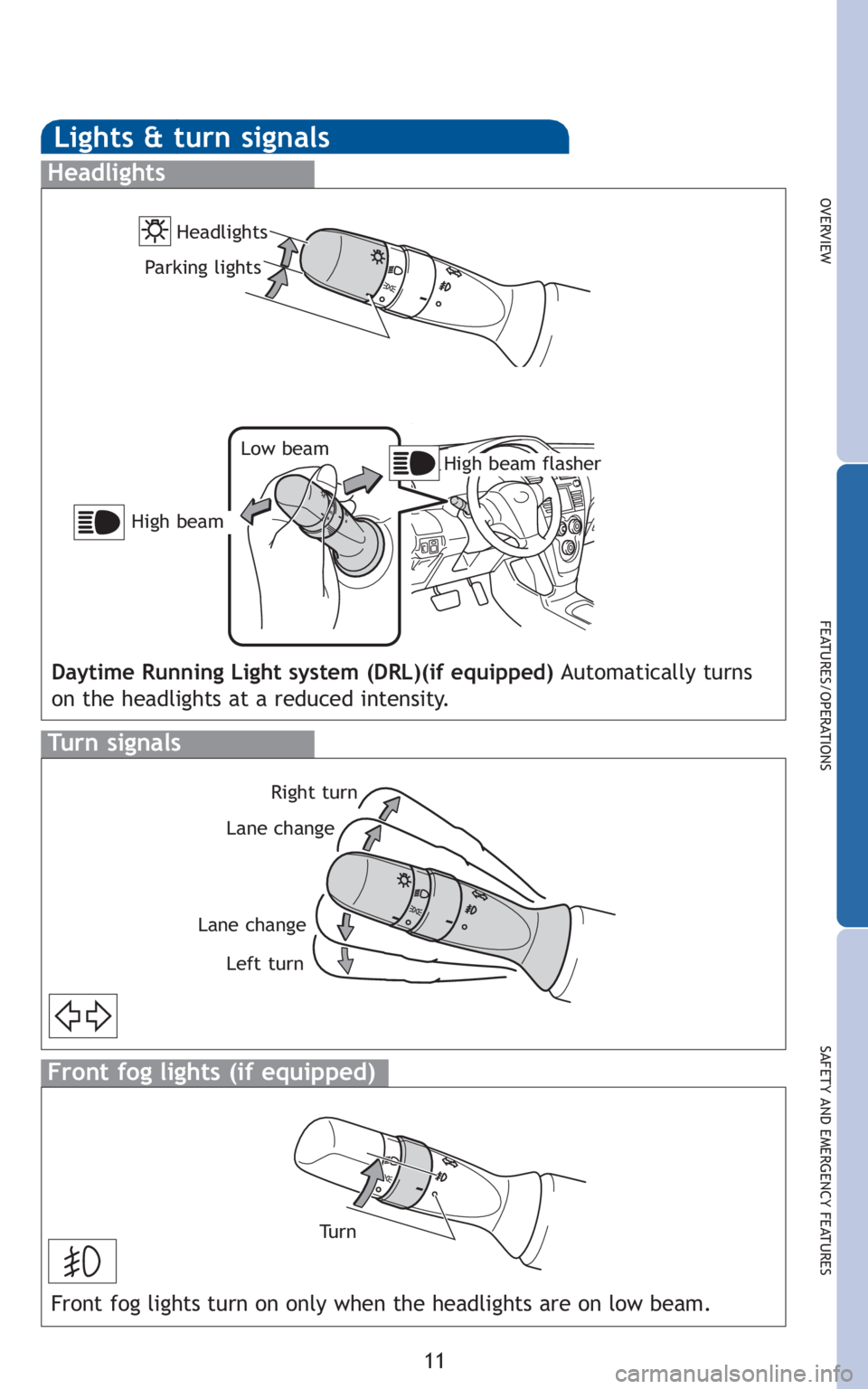

Lights&turnsignals
Headlights
Turn signals
High beam flasher
Right turn
Lane change
Lane change Left turnLow beam
Front fog lights (if equipped)
Tu r n
Headlights
Parking lights
High beam
Front fog lights turn on only when the headlights are on low beam.
Daytime Running Light system (DRL)(if equipped) Automatically turns
on the headlights at a reduced intensity.
Page 14 of 386
12
FEATURES/OPERATIONS
Ty p e 2
Audio (if equipped)
Eject CD
Push to turn
ON/OFF
Push to adjust tone & balance
Seek station/
CD track select Station/CD
track scanMode
Preset buttons - functions in other
modes indicated beside number.
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
RADIO
To preset stationsTune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push “SCAN.” Push and hold to scan preset stations. Push
again to hold selection.
CD PLAYER
Push to skip up
/down folder
View CD text
Mode
Ty p e 1
Preset buttons - functions in other
modes indicated above number.
View CD text
Push to skip up/
down folder
Eject CD
Push to turn
ON/OFF Push to adjust tone & balance
Mode
Seek station/
CD track select
Station/CD
track scan
Page 15 of 386
13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Fresh or recirculated cabin air
Fan speed
Air Conditioning ON/OFF
Airflow vent
In “ ” mode, use fresh air to reduce window fogging.
Temperature selector
Rear defogger
Air Conditioning/Heating

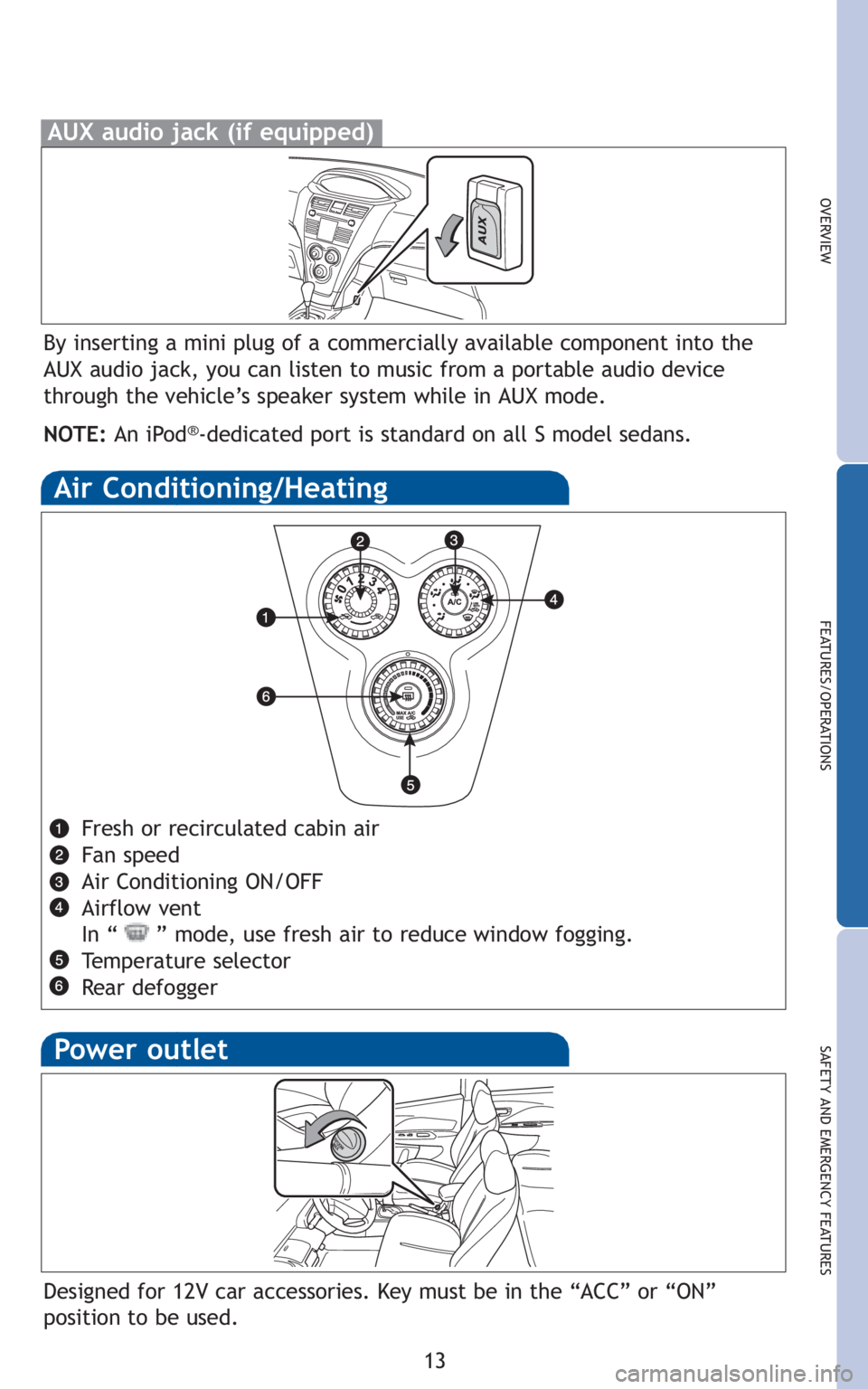

By inserting a mini plug of a commercially available component into the
AUX audio jack, you can listen to music from a portable audio device
through the vehicle’s speaker system while in AUX mode.
NOTE: An iPod
®-dedicated port is standard on all S model sedans.
AUX audio jack (if equipped)
Power outlet
Designed for 12V car accessories. Key must be in the “ACC” or “ON”
position to be used.
Page 16 of 386
14
FEATURES/OPERATIONS
Cruise control (if equipped)
1The set speed may also be cancelled by depressing the brake pedal orthe clutch pedal (Manual Transmission).
2Unless vehicle speed drops below 10 mph, the set speed may be resumed once vehicle exceeds 25 mph.
Refer to the Owner’s Manual for more details.
Turning system ON/OFF
Functions
Resume2/Increase speed
Set/Decrease speed
Cancel1
System ON/OFF
The VSC OFF button is used to switch between modes related to the TRAC
and VSC.
Refer to Section 2-4 of the Owner’s Manualfor more information.
VSC OFF button
VSC OFF button
Page 17 of 386
15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

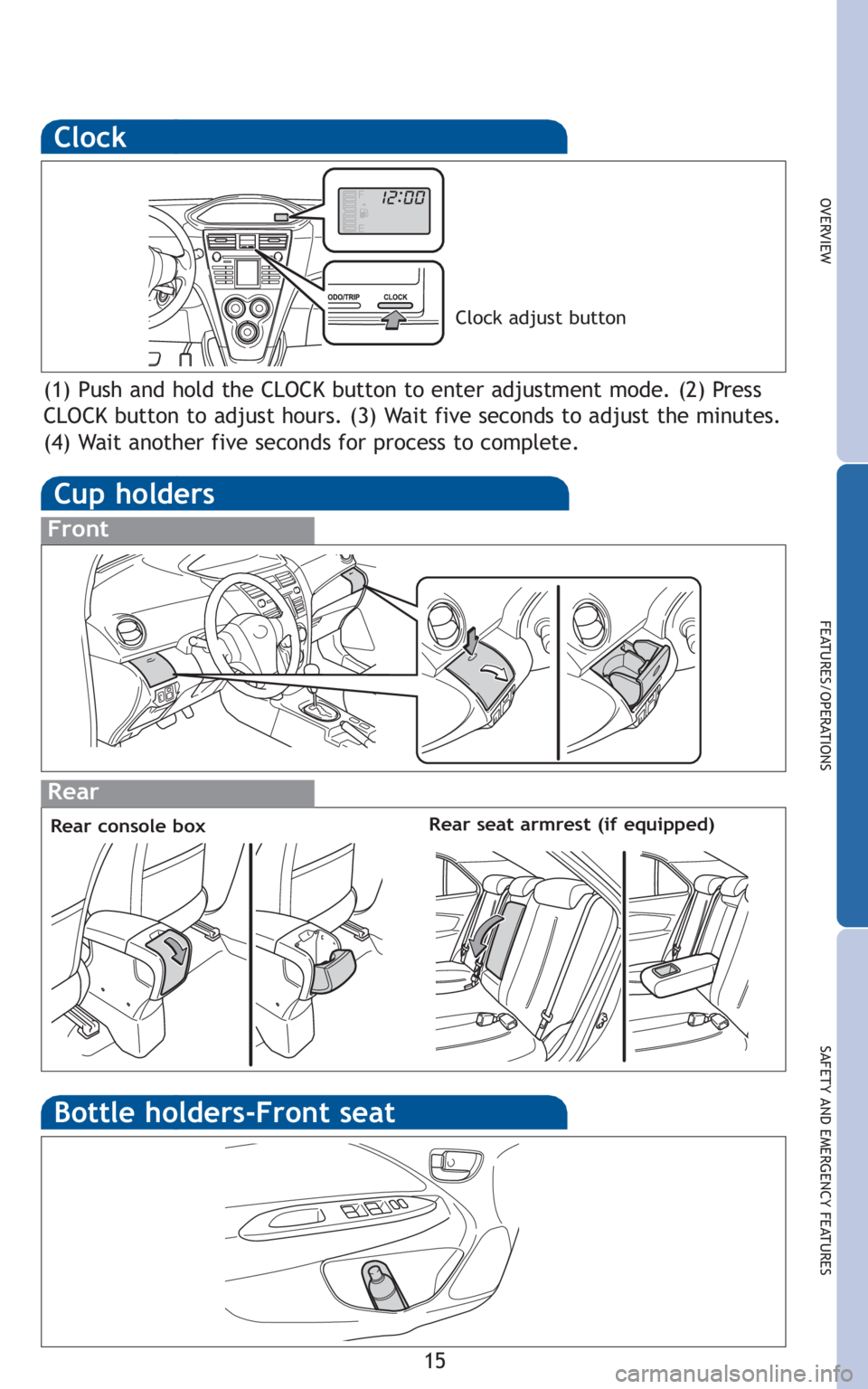

Clock
(1) Push and hold the CLOCK button to enter adjustment mode. (2) Press
CLOCK button to adjust hours. (3) Wait five seconds to adjust the minutes.
(4) Wait another five seconds for process to complete.
Clock adjust button
Cup holders
Front
Rear
Rear console boxRear seat armrest (if equipped)
Bottle holders-Front seat
Page 18 of 386
16
SAFETY AND EMERGENCY FEATURES
Keep as low on
hips as possible
Take up slack
To o h i g h
Seatbelts
Doors-Child safety locks
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seatbelts, and how to install a child
restraint system, refer to the Owner’s Manual.
Rear door
Door locks-Power (if equipped)
UnlockLock
If tire pressure becomes critically low on any of the tires (excluding the
spare), “ ” indicator will illuminate. Correctly adjusting tire inflation
will turn off the light after a few minutes. If the light does not turn off,
have the system checked by your Toyota dealer.
Refertothe Owner’s Manual for more details.
Tire Pressure Monitoring (warning)
System
Page 19 of 386
368
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
ABS Anti-Lock Brake System
ACC Accessory ALR Automatic Locking Retractor
CRS Child Restraint System
ECU Electronic Control Unit
EDR Event Data Recorder ELR Emergency Locking Retractor
EPS Electric Power Steering
GAWR Gross Axle Weight Ratings
GVWR Gross Vehicle Weight Rating I/M Emission inspection and maintenance
LATCH Lower Anchors and Tethers for Children LED Light Emitting Diode
LT Light truck
M + S Mud + Snow MMT Methylcy clopentadienyl Manganese Tricarbonyl
MTBE Methyl Tertiary Butyl Ether OBD On Board Diagnostics
ODO Odometer
RES Resume
SRS Supplemental Restraint System TIN Tire Identification Number
TPMS Tire Pressure Warning System TRAC Traction Control TWI Treadwear Indicators
VIN Vehicle Identification Number
VSC Vehicle Stability Control
Page 20 of 386
18
For your information
Main Owners Manual
Please note that this manual applies to all models explains and all equip-
ment, including options. Therefore, you may find some explanations for
equipment not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Noise from under vehicle after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound
coming from under the vehicle for several minutes. This is the sound of a fuel
evaporation leakage check and, it does not indicate a malfunction.
Accessories, spare parts and modification of your Toyota
A wide variety of non-genuine spare parts and accessories for Toyota
vehicles are currently available in the market. You should know that Toyota
does not warrant these products and is not responsible for their
performance, repair, or replacement, or for any damage they may cause to,
or adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non-genuine Toyota products.
Modification with non-genuine Toyota products could affect its performance,
safety or durability, and may even violate governmental regulations. In
addition, damage or performance problems resulting from the modification
may not be covered under warranty.
