TOYOTA YARIS SEDAN 2010 Owner's Guide

11
∗: If equipped
Console box P. 201
Power outlet∗
Cigarette lighter
∗
P. 211
P. 210
Cup holder P. 203
Parking brake lever P. 118

12
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch
∗
P. 130
P. 117
P. 132
Windshield wipers and
washer switch
P. 133
Tilt steering lock release lever P. 51
Hood opener
P. 231
Gauges and meters P. 121
Audio system P. 172
Shift lock override button∗ P. 320
Trunk opener P. 33
Glove box P. 201
Fuel filler door opener
P. 58
Auxiliary box
P. 204
Bottle holder
P. 204

13
Emergency flasher switch P. 286
CLOCK button P. 121, 208
ODO/TRIP button P. 121
∗: If equipped

14
Pictorial index
Rear window defogger switch∗/
Rear window defogger and outside rear
view mirror defogger switch
∗ P. 170
Air conditioning system P. 164
AUX adapter∗ P. 196
Instrument panel

15
Cruise control switch∗ P. 136
Engine (ignition) switch P. 110
∗: If equipped

16
Pictorial index

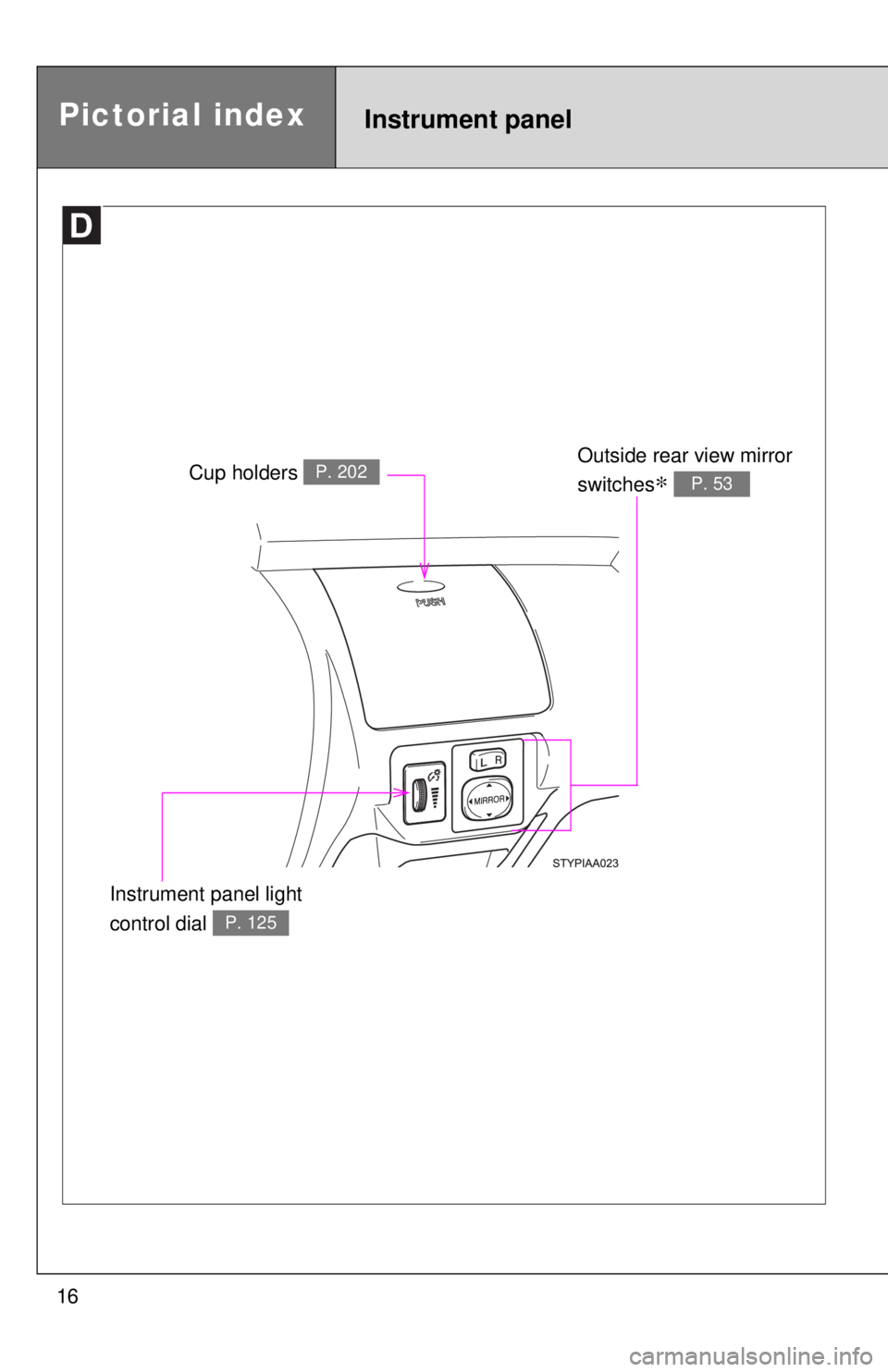

Instrument panel light
control dial
P. 125
Cup holders P. 202Outside rear view mirror
switches
∗ P. 53
Instrument panel

17
∗: If equipped

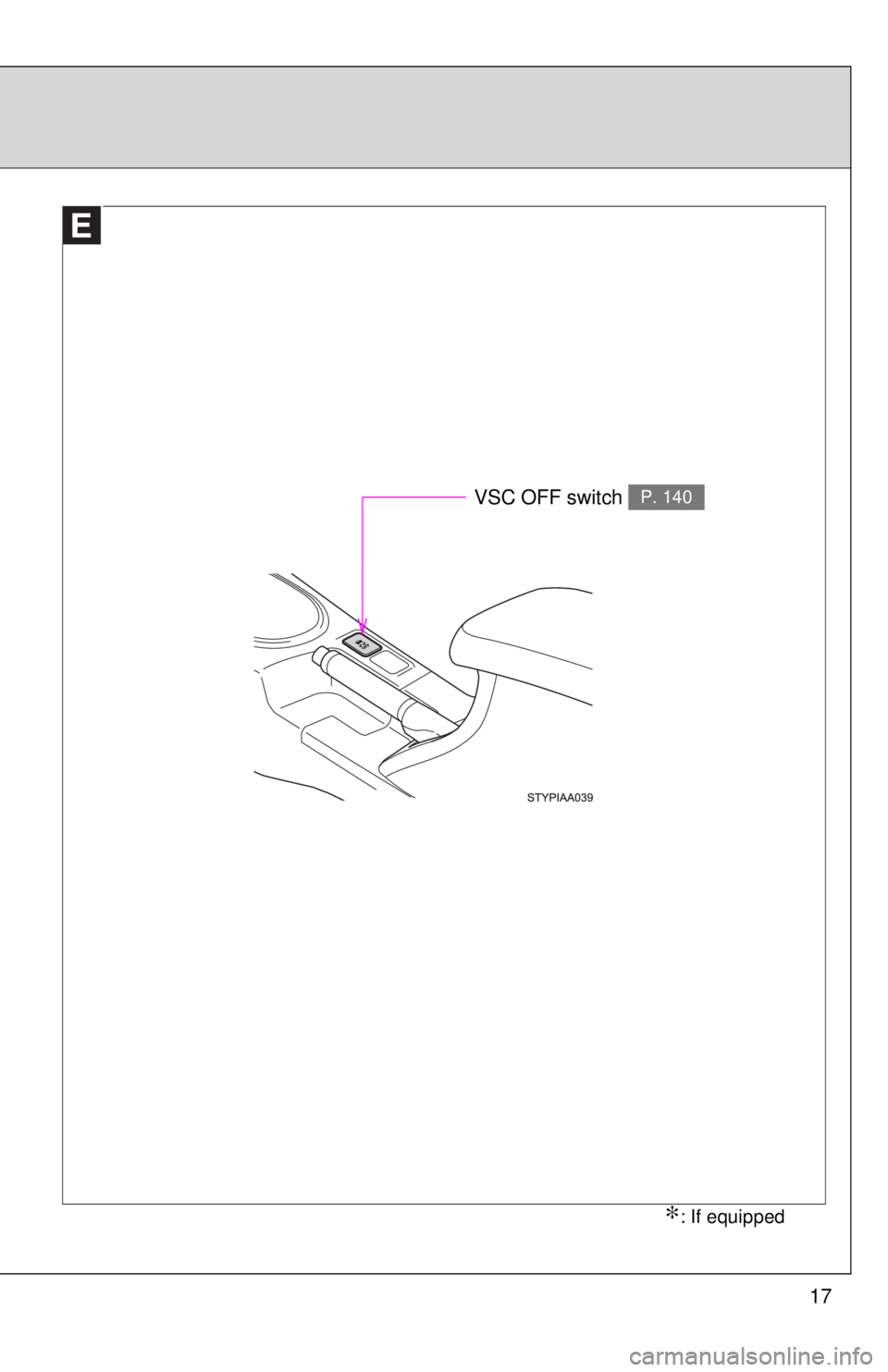

VSC OFF switch P. 140

24
1-1. Key information

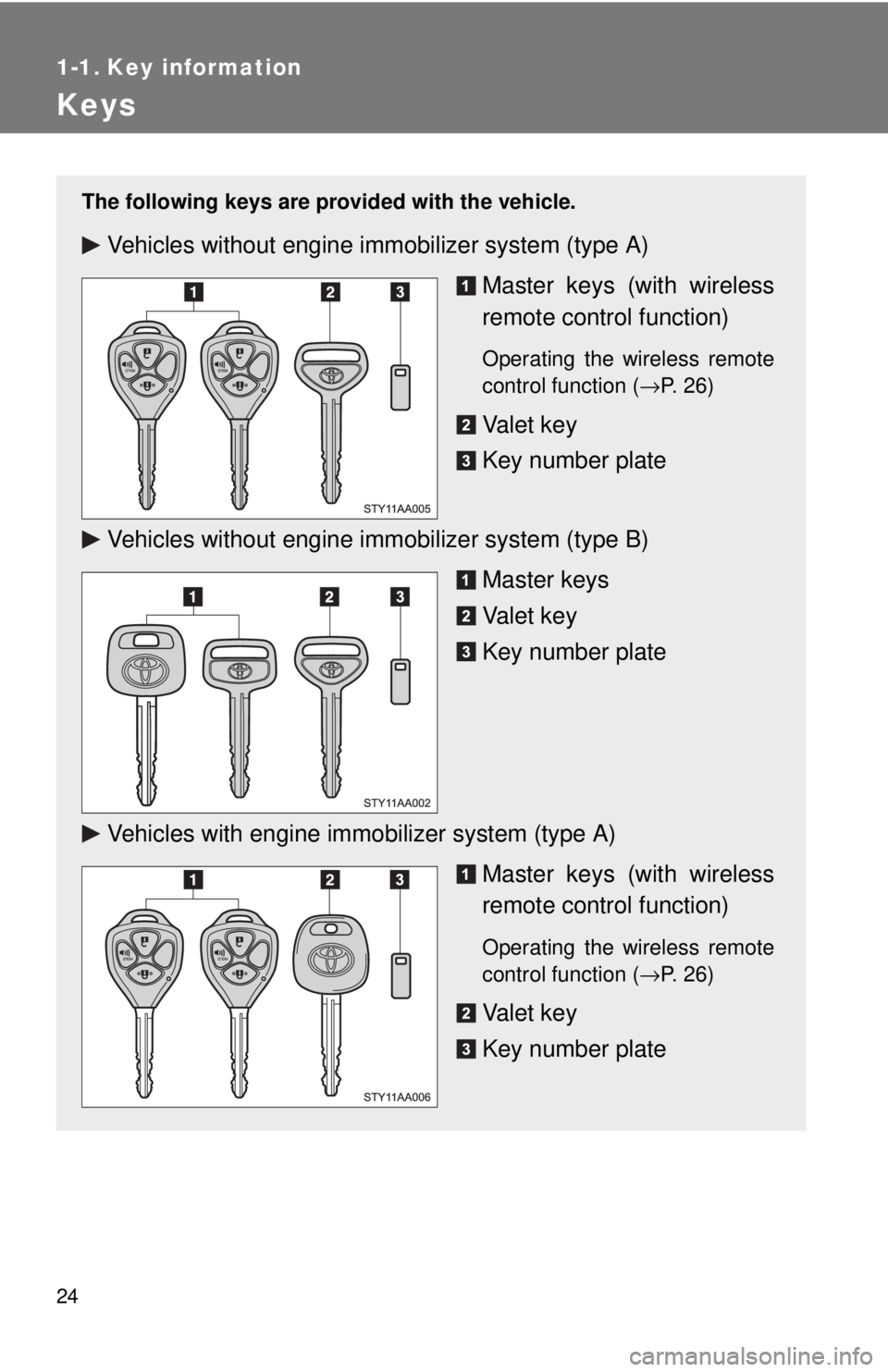

Keys
The following keys are provided with the vehicle.
Vehicles without engine immobilizer system (type A)
Master keys (with wireless
remote control function)
Operating the wireless remote
control function ( →P. 26)
Va l e t k e y
Key number plate
Vehicles without engine im mobilizer system (type B)
Master keys
Va l e t k e y
Key number plate
Vehicles with engine immobilizer system (type A) Master keys (with wireless
remote control function)
Operating the wireless remote
control function (→P. 26)
Va l e t k e y
Key number plate

25
1-1. Key information
1
Before driving
n
When required to leave a key to th e vehicle with a parking attendant
Turn the luggage security system on. ( →P. 3 4 )
Carry the master key for your own use and leave the valet key only with the
attendant.
n Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by your Toyota dealer using
the key number plate. ( →P. 321)
n When riding in an aircraft
When bringing a wireless remote control key onto an aircraft, make sure you
do not press any buttons on the wireless remote control key while inside the
aircraft cabin. If you are carrying a wireless remote control key in your bag
etc, ensure that the buttons are not likely to be pressed accidentally. Press-
ing a button may cause the wireless remote control key to emit radio waves
that could interfere with the operation of the aircraft.
NOTICE
nTo prevent key damage (vehicles with engine immobilizer system)
l Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
l Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
Vehicles with engine immobilizer system (type B)
Master keys
Va l e t k e y
Key number plate

26
1-2. Opening, closing and locking the doors
Wireless remote control∗
∗: If equipped
nOperation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
nPanic mode
nKey battery depletion
The standard battery life is 1 to 2 years. (The battery becomes depleted
even if the key is not used.) If the wireless remote control function does not
operate, the battery may be depleted. Replace the battery when necessary.
(→P. 261)
n Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
The wireless remote control can be used to lock/unlock the vehicle
from outside the vehicle.
Locks all doors
Sounds alarm
(push and hold)
Unlocks all doors
Pressing the button unlocks
the driver’s door. Pressing the
button again within 3 seconds
unlocks the other doors.
When is pushed for longer than about
1 second, an alarm will sound for about
60 seconds and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, push any button on the
wireless remote control.
