Page 171 of 406

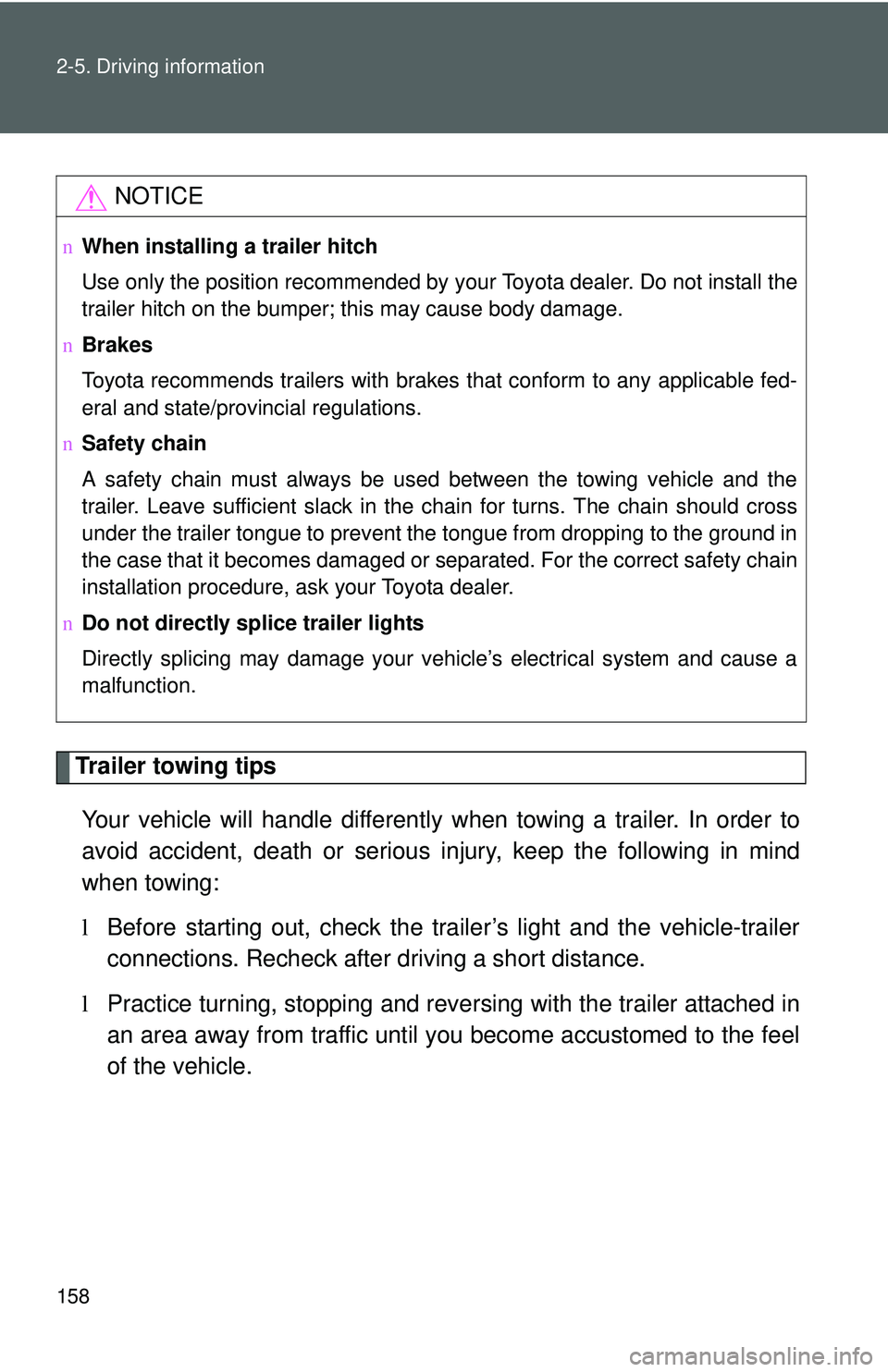

TOYOTA YARIS SEDAN 2011  Owners Manual 158 2-5. Driving information
Trailer towing tipsYour vehicle will handle differently w hen towing a trailer. In order to
avoid accident, death or serious in jury, keep the following in mind
when towin

Page 172 of 406

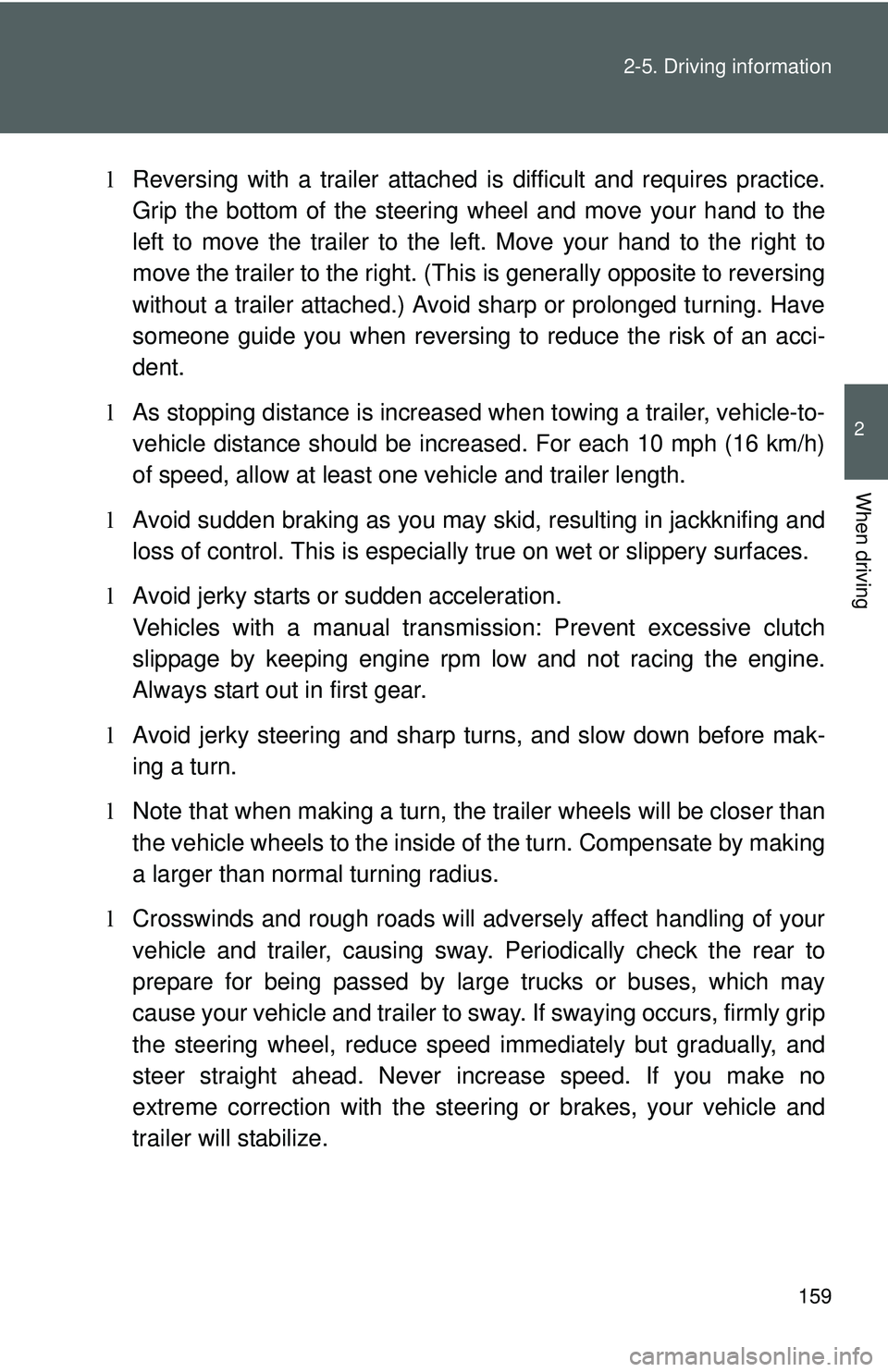

TOYOTA YARIS SEDAN 2011  Owners Manual 159
2-5. Driving information
2
When driving
l
Reversing with a trailer attached is  difficult and requires practice.
Grip the bottom of the steering  wheel and move your hand to the
left to move the t

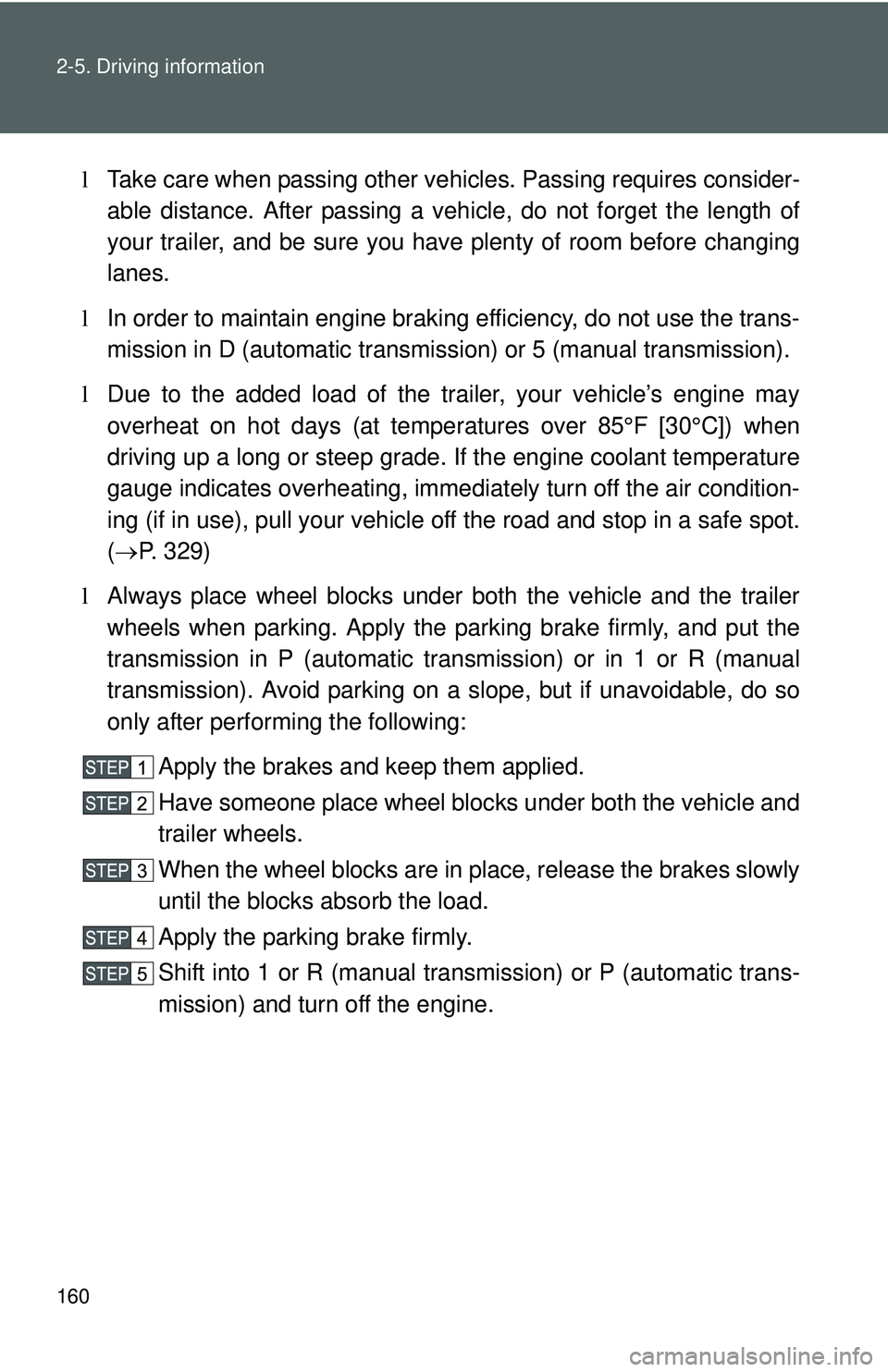

Page 173 of 406

TOYOTA YARIS SEDAN 2011  Owners Manual 160 2-5. Driving information
lTake care when passing other v ehicles. Passing requires consider-
able distance. After passing a vehi cle, do not forget the length of
your trailer, and be sure you hav

Page 174 of 406

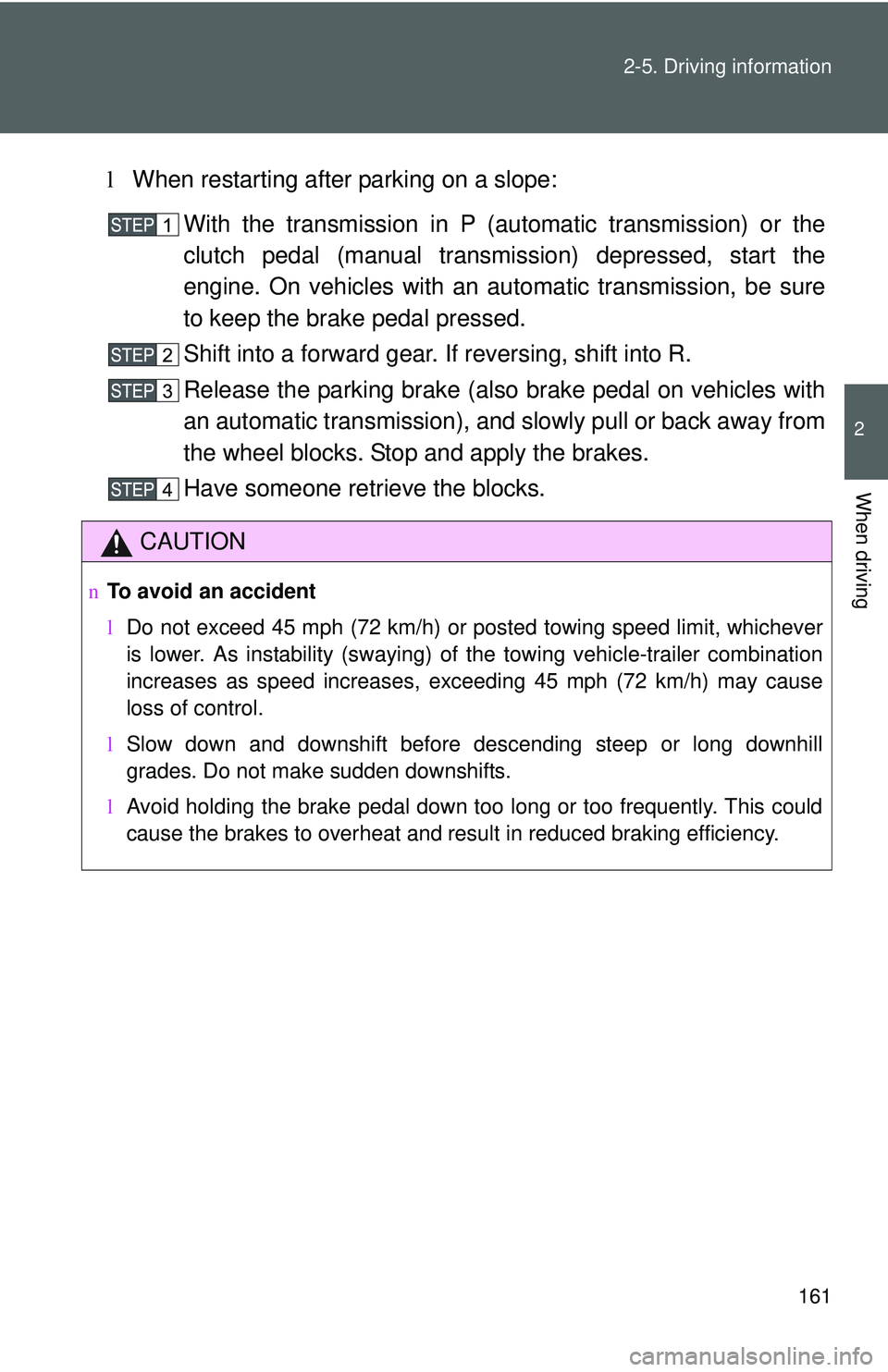

TOYOTA YARIS SEDAN 2011  Owners Manual 161
2-5. Driving information
2
When driving
l
When restarting after parking on a slope:
With the transmission in P (automatic transmission) or the
clutch pedal (manual transmission) depressed, start t

Page 175 of 406

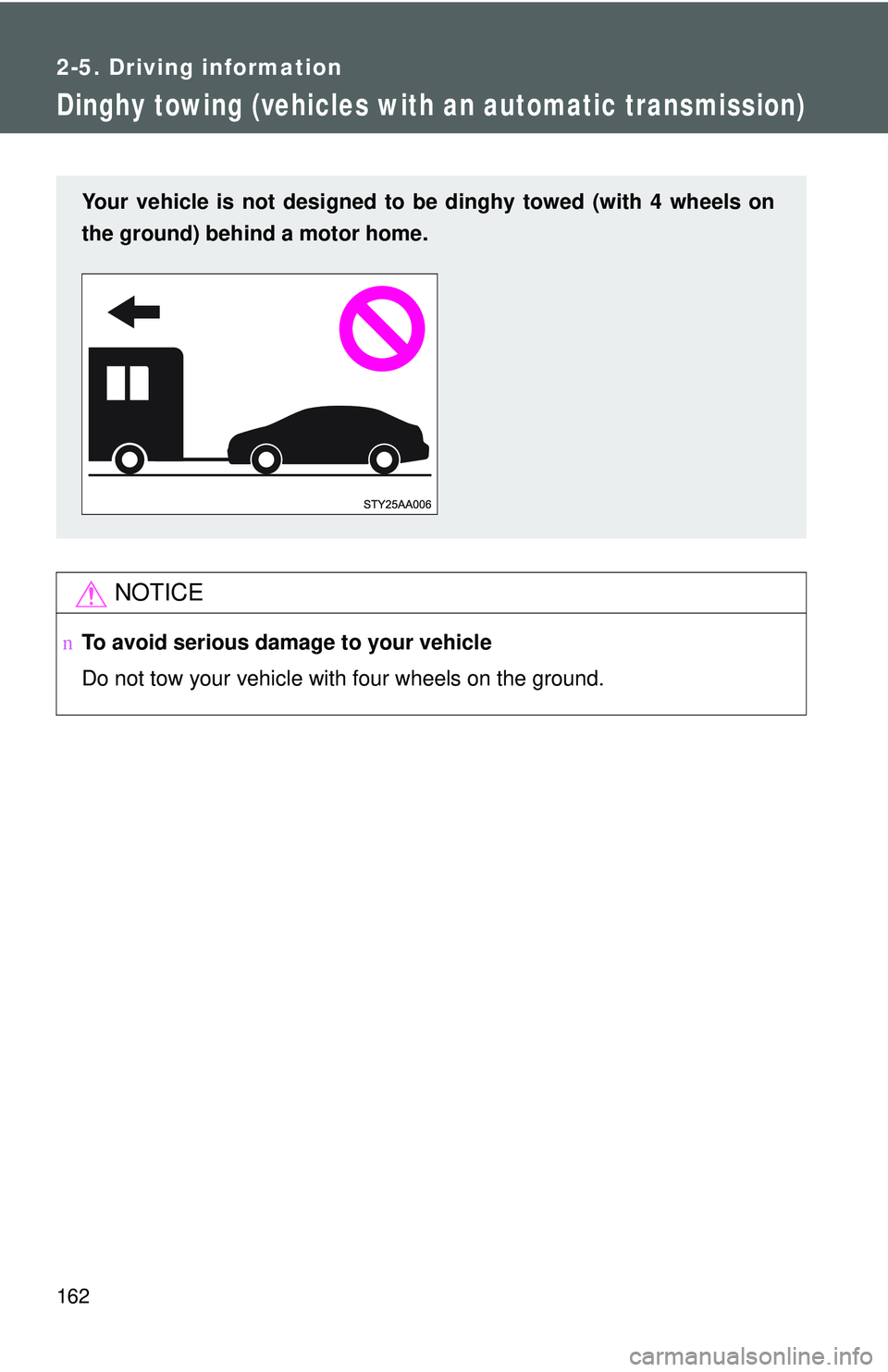

TOYOTA YARIS SEDAN 2011  Owners Manual 162
2-5. Driving information
Dinghy towing (vehicles with an automatic transmission)
NOTICE
nTo avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.
Your vehicl

Page 176 of 406

TOYOTA YARIS SEDAN 2011  Owners Manual 163
2-5. Driving information
2
When driving
Dinghy towing (vehicles with a manual transmission)
Towing your vehicle with 4 wheels on the groundTo prevent damage to your vehicle,  perform the following

Page 177 of 406

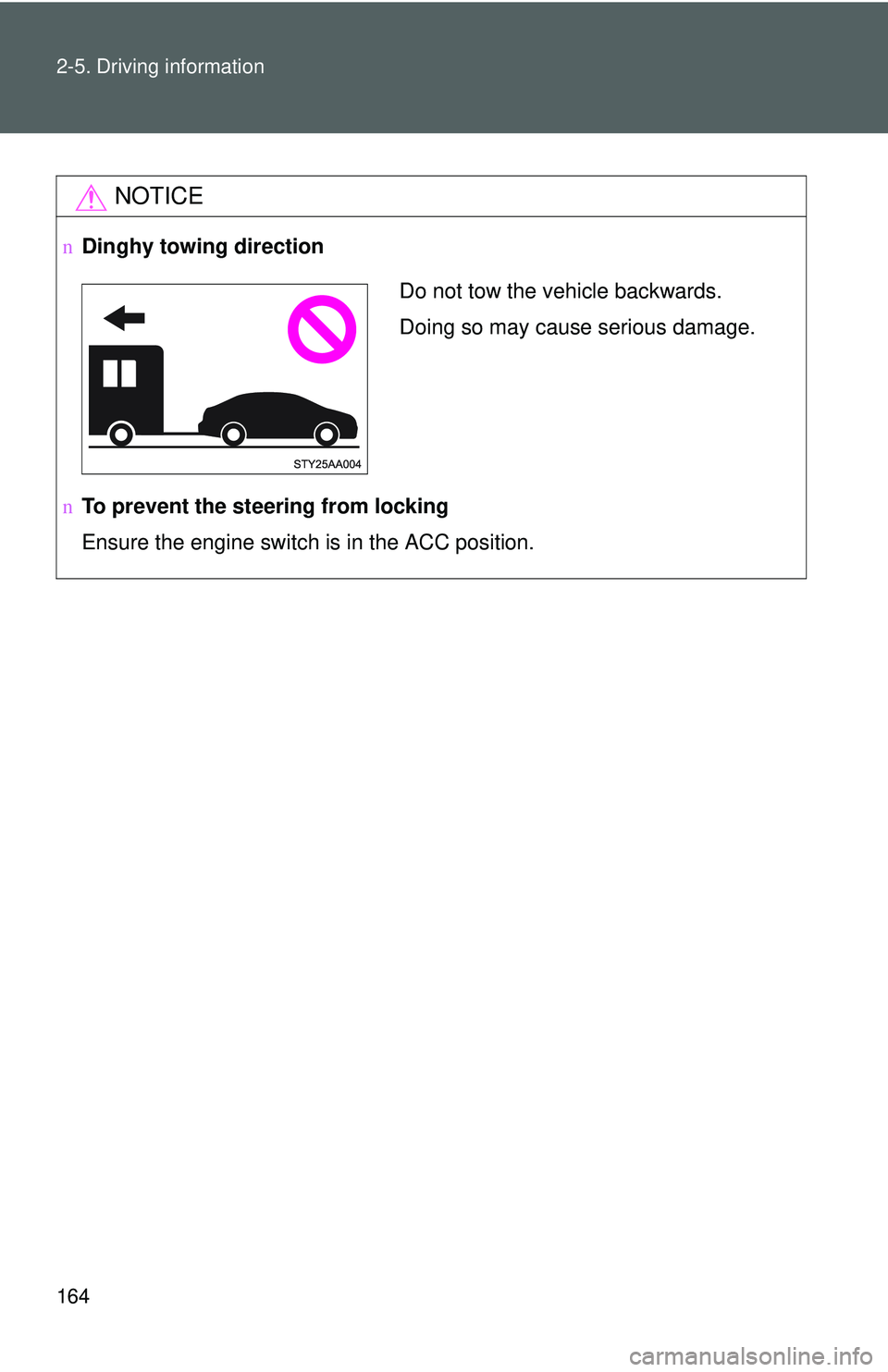

TOYOTA YARIS SEDAN 2011  Owners Manual 164 2-5. Driving information
NOTICE
nDinghy towing direction
n To prevent the steering from locking
Ensure the engine switch is in the ACC position.
Do not tow the vehicle backwards.
Doing so may caus

Page 178 of 406

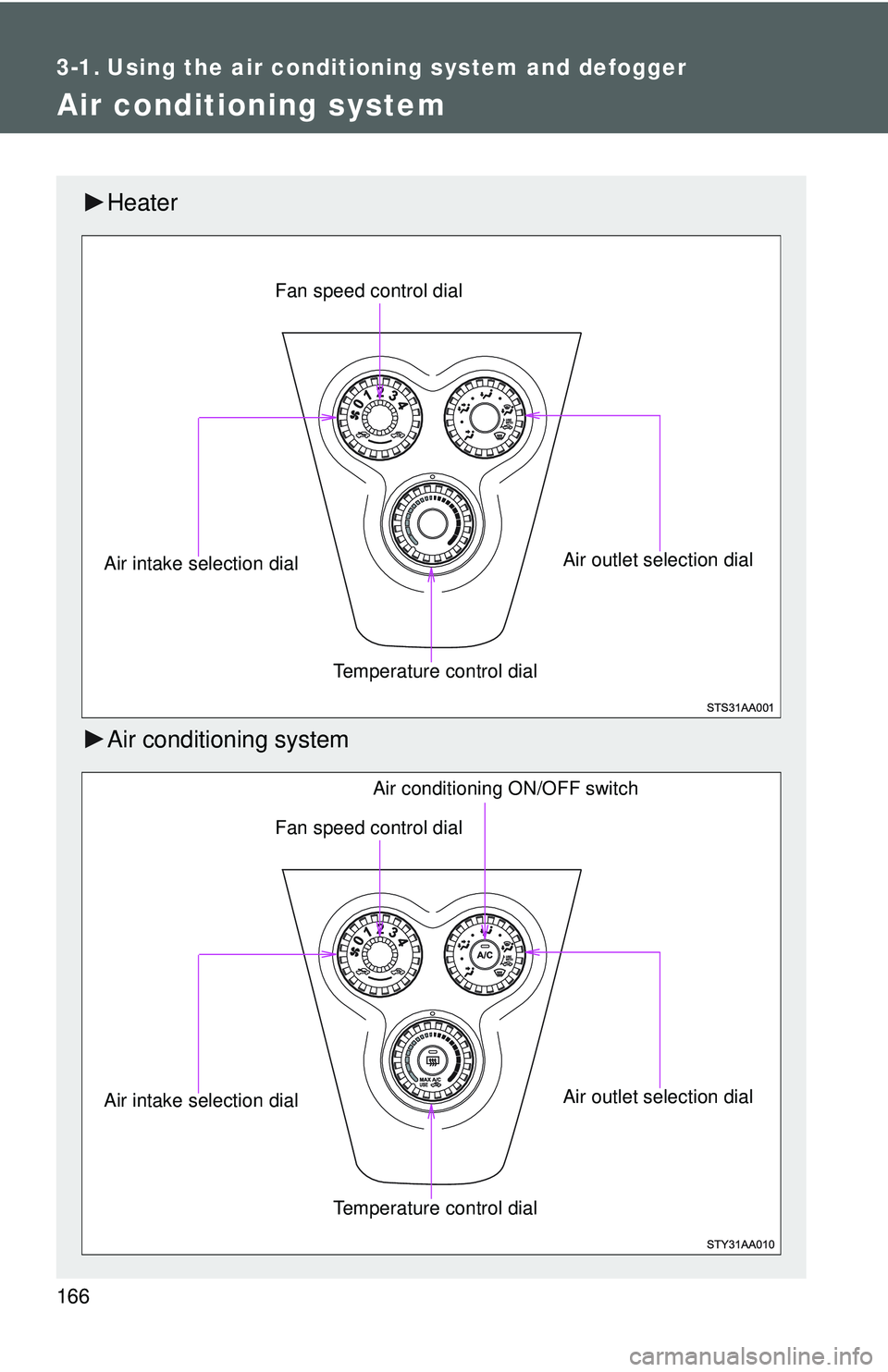

TOYOTA YARIS SEDAN 2011  Owners Manual 166
3-1. Using the air conditioning system and defogger
Air conditioning system
Heater
Air conditioning system
Fan speed control dialAir outlet selection dial
Temperature control dial
Air intake selec

Page 179 of 406

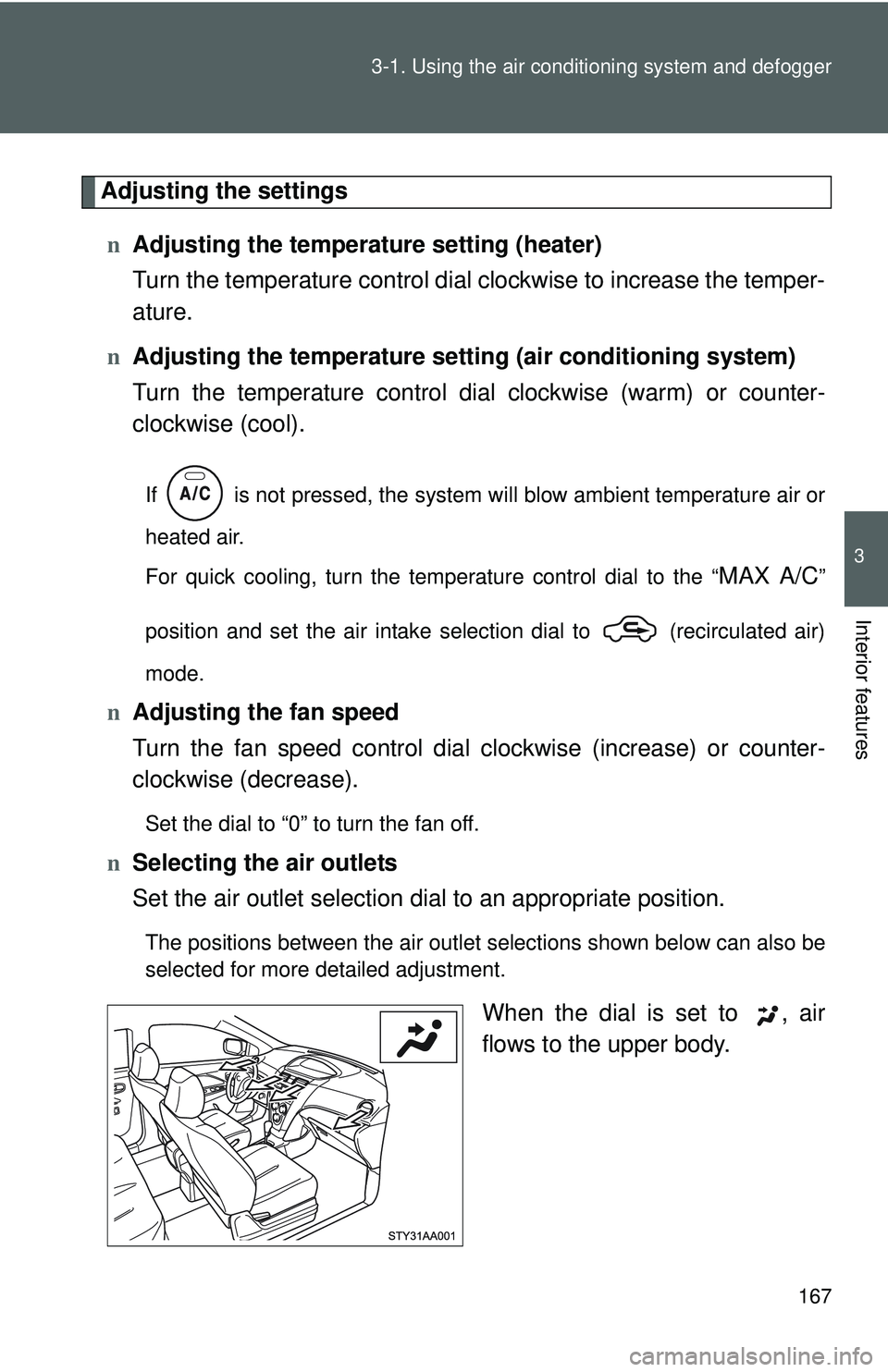

TOYOTA YARIS SEDAN 2011  Owners Manual 167
3-1. Using the air conditioning system
 and defogger
3
Interior features
Adjusting the settings
n Adjusting the temperature setting (heater)
Turn the temperature control dial clockwise to increase

Page 180 of 406

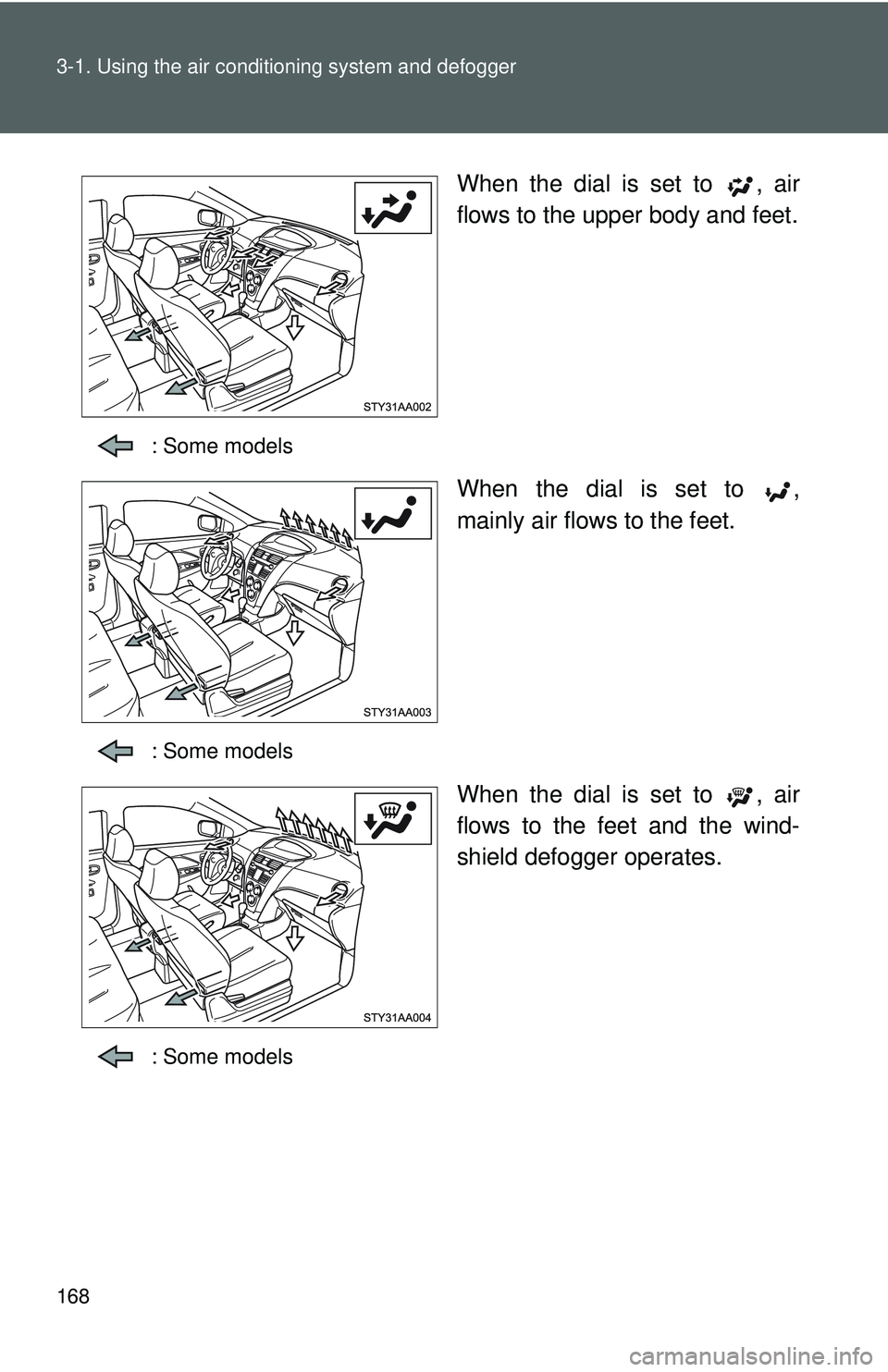

TOYOTA YARIS SEDAN 2011  Owners Manual 168 3-1. Using the air conditioning system and defogger
When the dial is set to  , air
flows to the upper body and feet.
: Some models
When the dial is set to  ,
mainly air flows to the feet.
: Some m
