Page 191 of 406

TOYOTA YARIS SEDAN 2011  Owners Manual 179
3-2. Using the audio system
3
Interior features

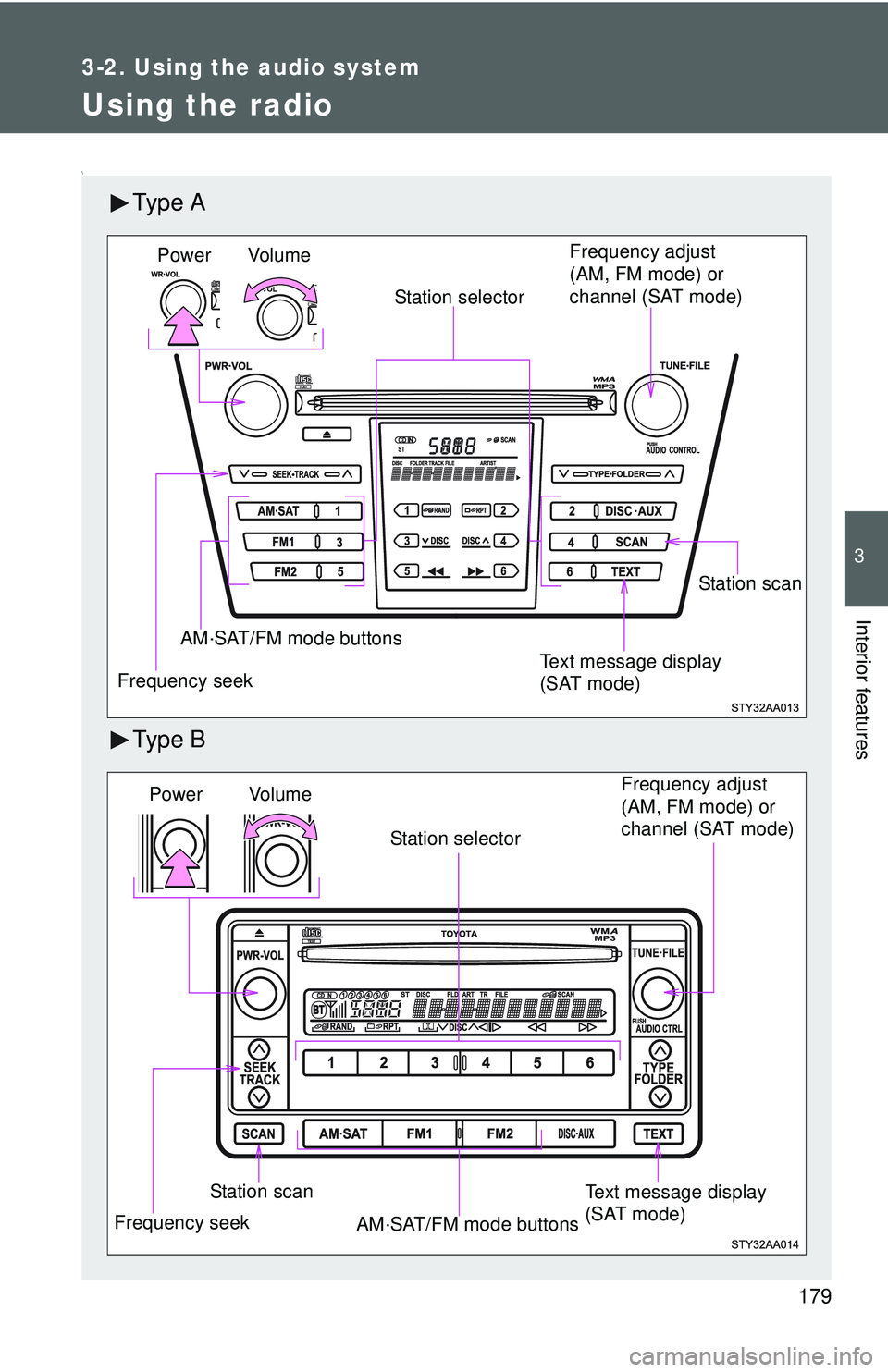

Using the radio
\
Ty p e  A
Ty p e  B
Vol u m eStation selector
Frequency seek Frequency adjust
(AM, FM mode) or
channel (SAT mode)
AM·SAT/FM mod

Page 192 of 406

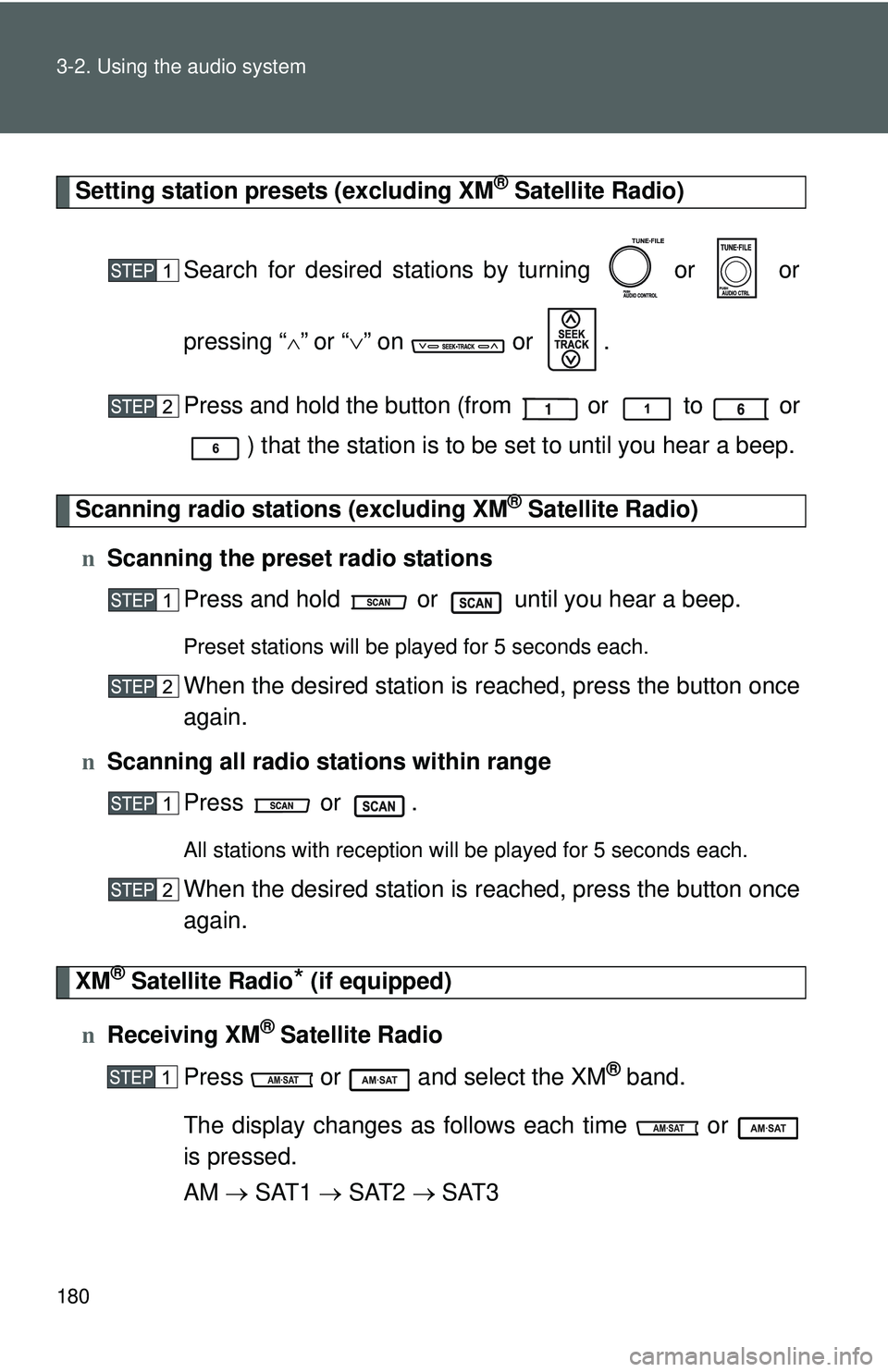

TOYOTA YARIS SEDAN 2011  Owners Manual 180 3-2. Using the audio system
Setting station presets (excluding XM® Satellite Radio)
Search for desired stations by turning   or   or
pressing “
∧” or “ ∨” on   or  .
Press and hold th

Page 193 of 406

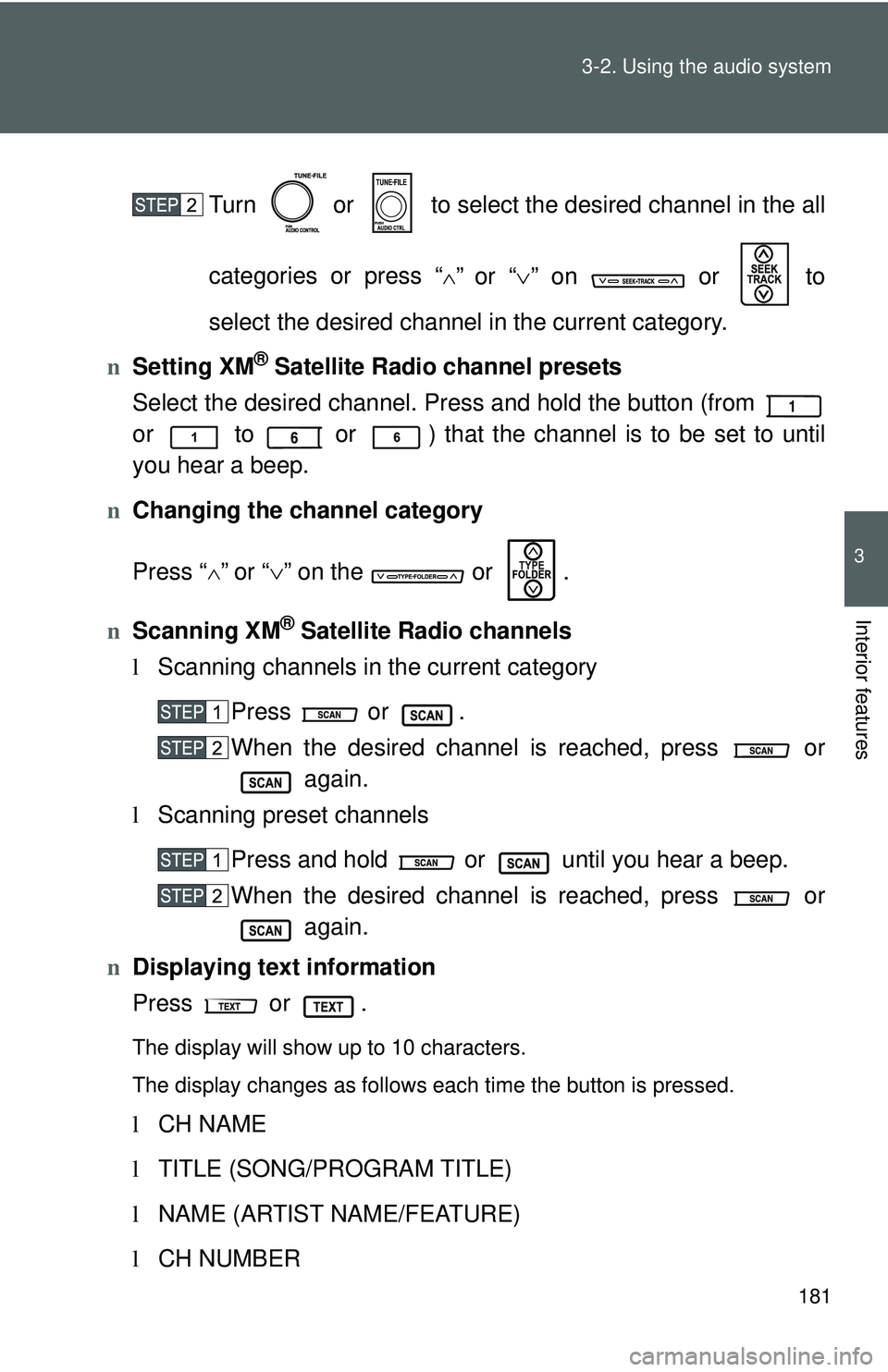

TOYOTA YARIS SEDAN 2011  Owners Manual 181
3-2. Using the audio system
3
Interior features
Turn   or   to select the desired channel in the all
categories or press “
∧” or “
∨” on   or  to
select the desired channel in the curr

Page 194 of 406

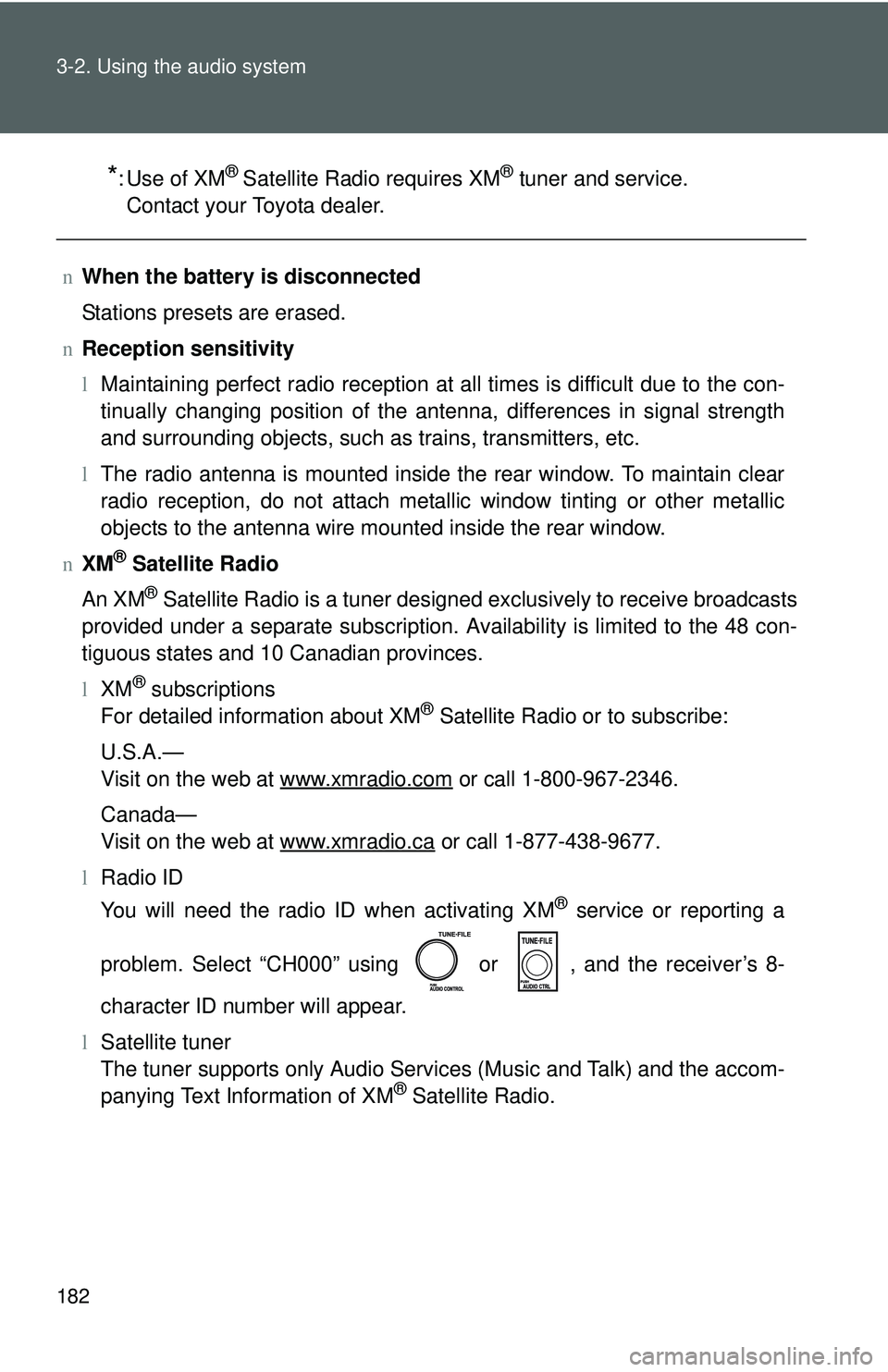

TOYOTA YARIS SEDAN 2011  Owners Manual 182 3-2. Using the audio system
*:Use of XM® Satellite Radio requires XM® tuner and service.
Contact your Toyota dealer.
n When the battery is disconnected
Stations presets are erased.
n Reception s

Page 195 of 406

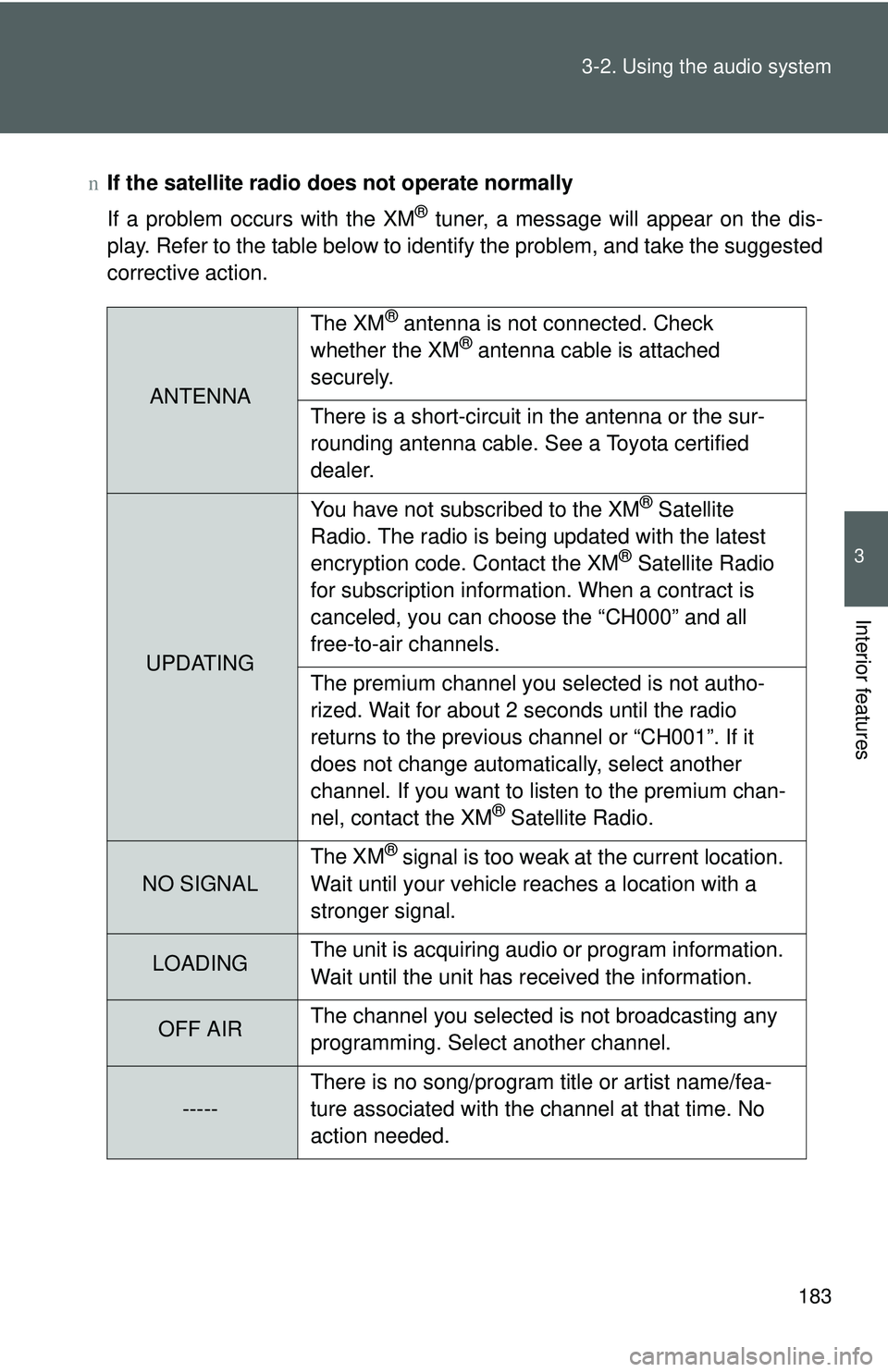

TOYOTA YARIS SEDAN 2011  Owners Manual 183
3-2. Using the audio system
3
Interior features
n
If the satellite radio does not operate normally
If a problem occurs with the XM
® tuner, a message will appear on the dis-
play. Refer to the ta

Page 196 of 406

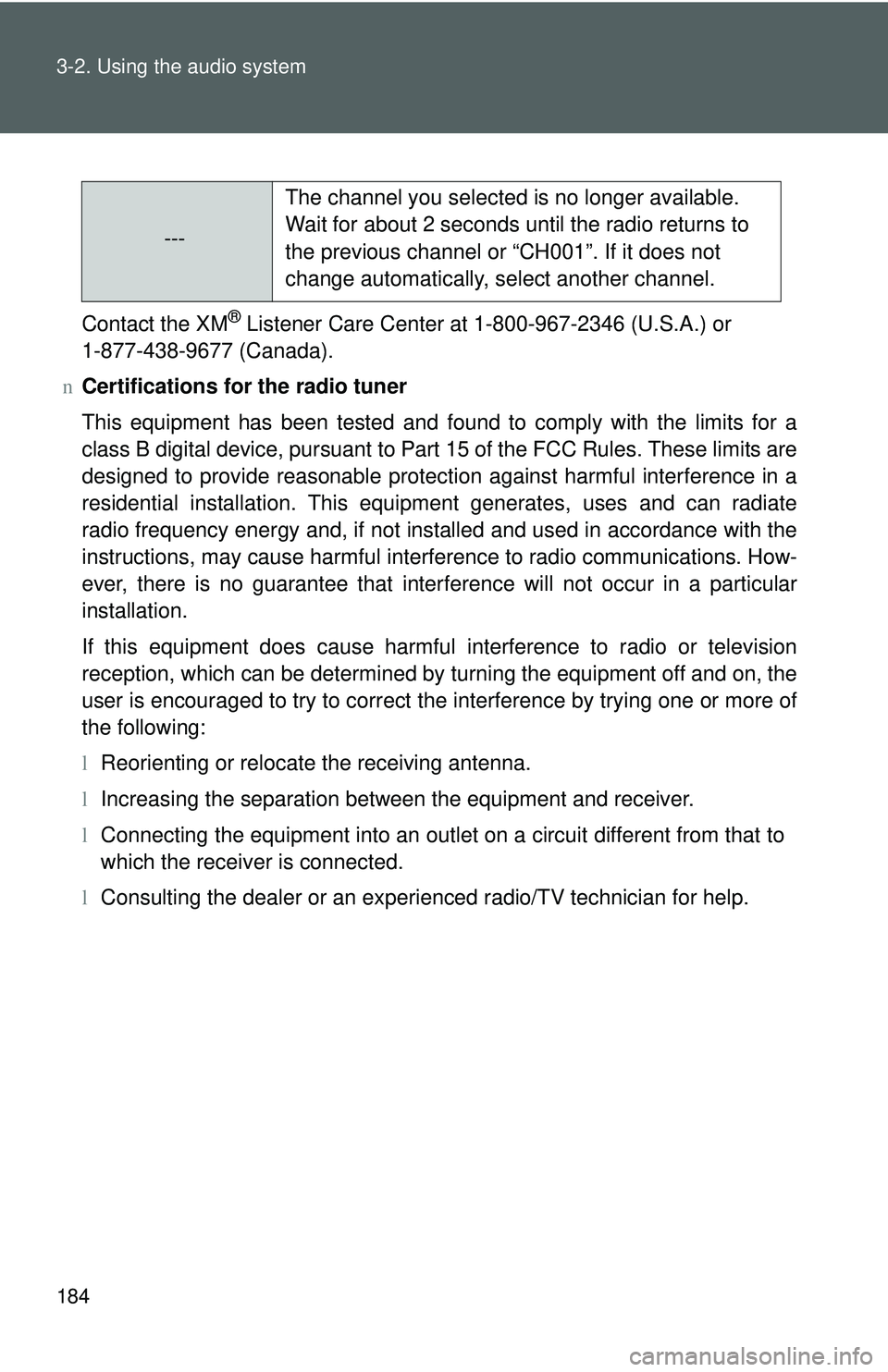

TOYOTA YARIS SEDAN 2011  Owners Manual 184 3-2. Using the audio system
Contact the XM® Listener Care Center at 1-800-967-2346 (U.S.A.) or
1-877-438-9677 (Canada).
n Certifications for the radio tuner
This equipment has been tested and fo

Page 197 of 406

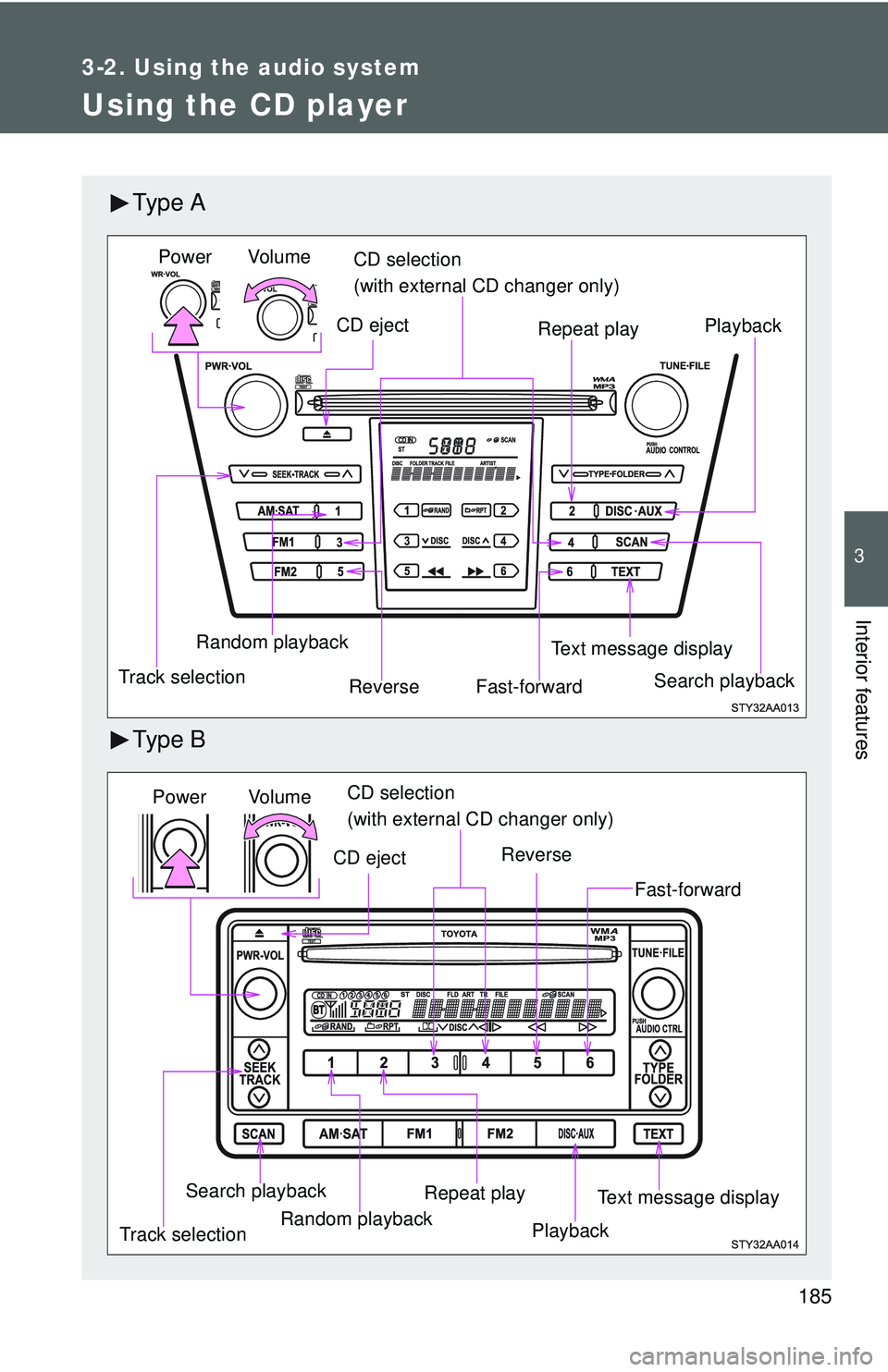

TOYOTA YARIS SEDAN 2011  Owners Manual 185
3-2. Using the audio system
3
Interior features
Using the CD player
Ty p e  A
Ty p e  B
Vol um e
Random playback
Track selection Repeat play
Playback
Power
CD eject
Text message display
CD selecti

Page 198 of 406

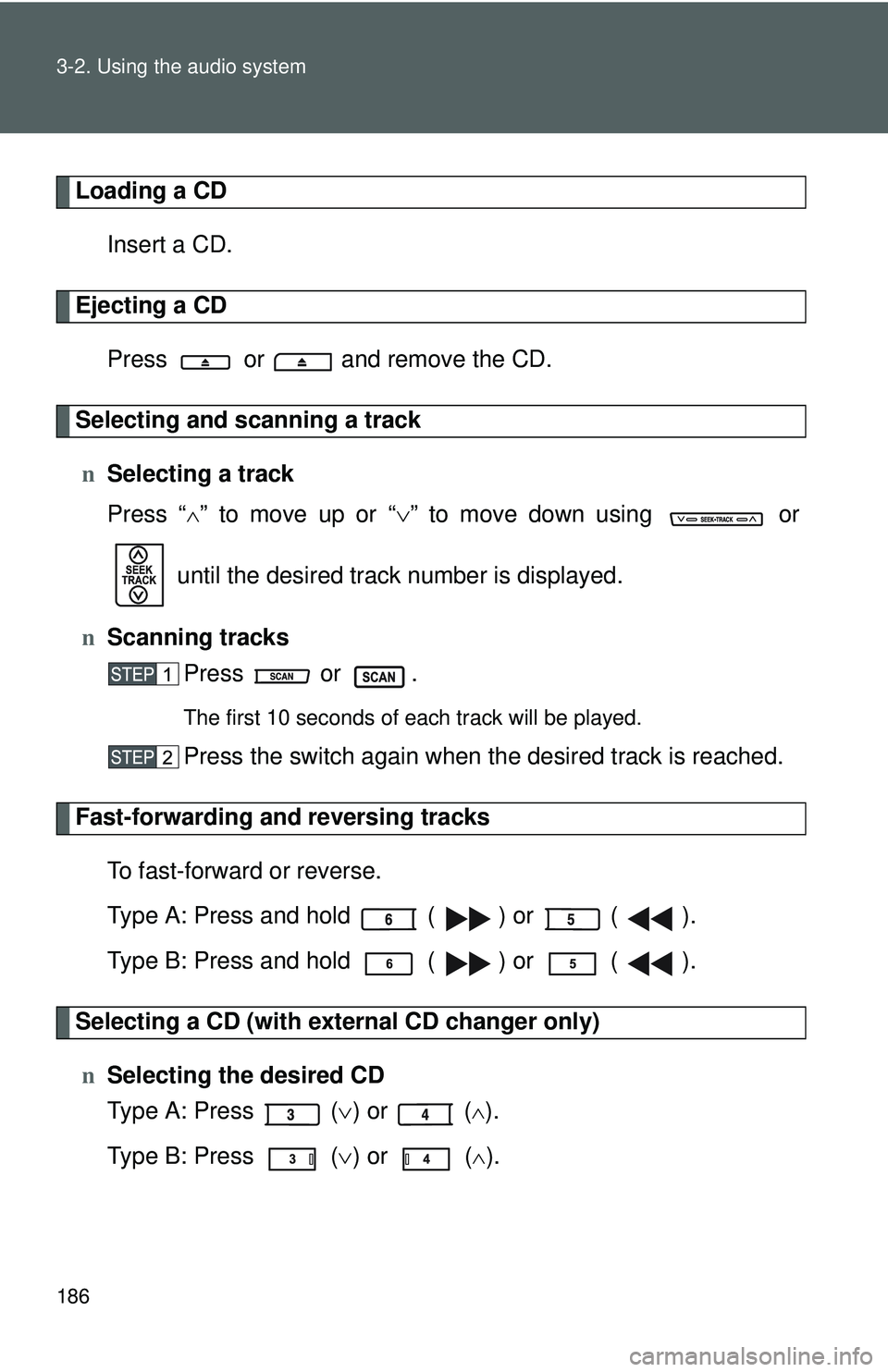

TOYOTA YARIS SEDAN 2011  Owners Manual 186 3-2. Using the audio system
Loading a CDInsert a CD.
Ejecting a CDPress   or   and remove the CD.
Selecting and scanning a trackn Selecting a track
Press “
∧” to move up or “ ∨” to mov

Page 199 of 406

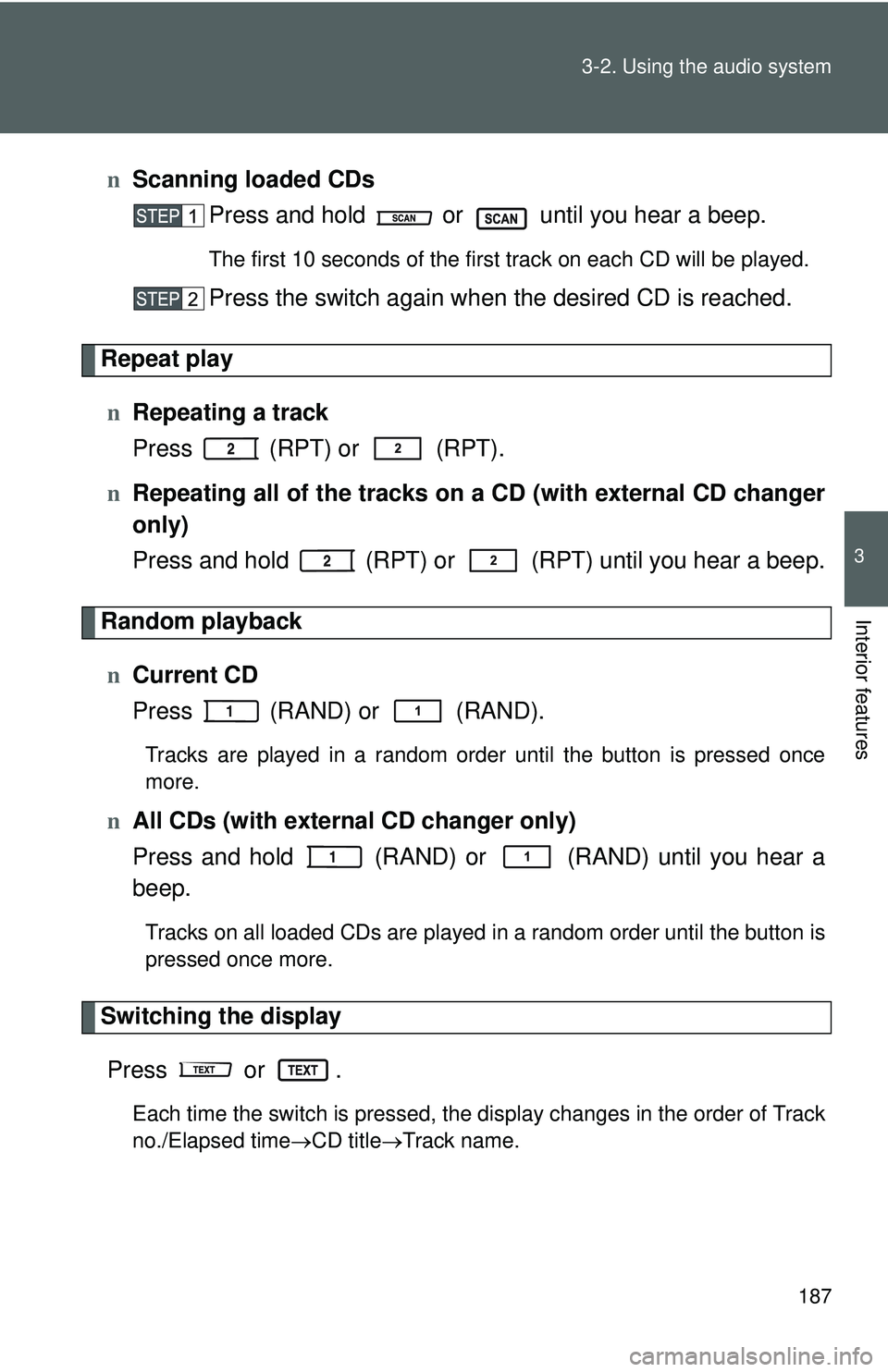

TOYOTA YARIS SEDAN 2011  Owners Manual 187
3-2. Using the audio system
3
Interior features
n
Scanning loaded CDs
Press and hold   or   until you hear a beep.
The first 10 seconds of the first track on each CD will be played.
Press the swit

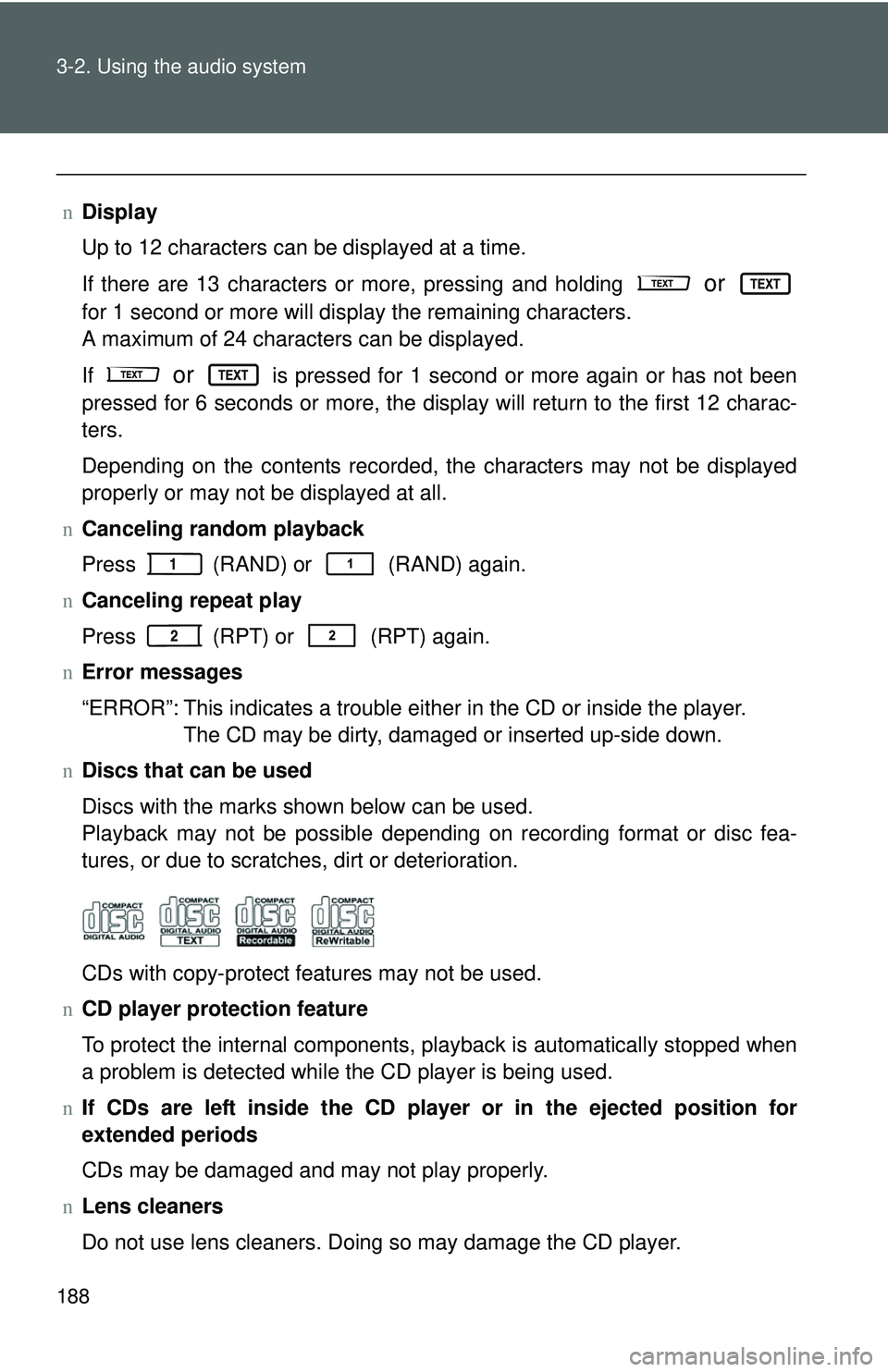

Page 200 of 406

TOYOTA YARIS SEDAN 2011  Owners Manual 188 3-2. Using the audio system
nDisplay
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding
  or
for 1 second or more will display the remaining
