112Lighting
Rear reading lights
Left and right rear reading lights are
individually operable. Press to
activate and deactivate.
Sunvisor lights
Illuminates when the vanity mirror
cover is opened 3 31.
Lighting features
Entry lighting
Welcome lighting Depending upon outside light
conditions, when unlocking the
vehicle with the remote control the
hazard warning lights flash twice and
the exterior and interior lights
illuminate for 20 seconds. This
function facilitates locating the vehicle
when it is dark.
Exit lighting The low beam and reversing lights
illuminate for 30 seconds after the
driver exits the vehicle and closes the
door.Switching on
1. Switch off ignition.
2. Remove ignition key.
3. Open driver's door.
4. Pull turn signal lever.
5. Close driver's door.
If the driver's door is not closed the
lights switch off after two minutes.
Exit lighting can be deactivated by
inserting the key in the ignition switch or by pulling the turn signal lever
again while the driver's door is open.

Climate control115
Demisting and defrosting■ Set the air distribution switch to l
or J
■ Set temperature control to warmest
level
■ Set fan to highest level
■ Close centre air vents
■ Open side air vents and direct them
towards the door windows
Heated rear window Ü 3 31.
Air conditioning system In addition to the heating and
ventilation system, the air
conditioning system has controls for:n=cooling4=air recirculationÜ=demisting and defrosting
Heated seats ß 3 38.
Cooling n
Press button
n to switch on cooling.
Activation is indicated by the LED in
the button. Cooling is only functional
when the engine is running and
climate control fan is switched on.
Press button n again to switch off
cooling.
The air conditioning system cools and
dehumidifies (dries) as soon as the
outside temperature is slightly above
freezing point. Therefore
condensation may form and drip from under the vehicle.
If no cooling or drying is required,
switch the cooling system off to save
fuel. Activated cooling might inhibit
autostops.
Air recirculation system 4
Press button 4 to activate air
recirculation mode. Activation is
indicated by the LED in the button.
Press button 4 again to deactivate
recirculation mode.9 Warning
The exchange of fresh air is
reduced in air recirculation mode.
In operation without cooling the air humidity increases, so the
windows may mist up from inside.
The quality of the passenger
compartment air deteriorates,
which may cause the vehicle
occupants to feel drowsy.
In warm and very humid ambient air conditions, the windscreen might mist
up from outside, when cold air is

Driving and operating127Engine exhaust9Danger
Engine exhaust gases contain
poisonous carbon monoxide,
which is colourless and odourless and could be fatal if inhaled.
If exhaust gases enter the interior
of the vehicle, open the windows.
Have the cause of the fault
rectified by a workshop.
Avoid driving with an open load
compartment, otherwise exhaust
gases could enter the vehicle.
Malfunction indicator light 3 84.
Diesel particle filter
The diesel particle filter system filters
harmful soot particles out of the
exhaust gases. The system includes
a self-cleaning function that runs
automatically during driving without
any notification.
The filter is cleaned by periodically
burning off the soot particles at high
temperature. This process takes
place automatically under set driving
conditions and may take more than
15 minutes. Autostop is not available
and fuel consumption may be higher
during this period. The emission of
smells and smoke during this process is normal.
Under certain driving conditions, e.g.
short distances, the system cannot
clean itself automatically.
If cleaning of the filter is required and previous driving conditions did not
enable automatic cleaning, it will be
indicated by control indicator %
3 87.
% illuminates, accompanied by a
warning chime, when diesel particle
filter is full. Start cleaning process as
soon as possible.
% flashes when diesel particle filter
has reached the maximum filling level. Start cleaning process
immediately to avoid damage to the
engine. A warning chime sounds every 3 minutes until the cleaning
process is complete.
Cleaning process
To activate the cleaning process,
continue driving, keeping engine
speed above 2000 revolutions per
minute. Shift down if necessary.
Diesel particle filter cleaning is then
started.
If control indicator Z illuminates
additionally in the instrument cluster
when the engine is running, there

Vehicle care151
■ Open the bonnet, close all doorsand lock the vehicle.
■ Disconnect the clamp from the negative terminal of the vehicle
battery. Beware that all systems are
not functional, e.g. anti-theft alarm
system.
Putting back into operation
When the vehicle is to be put back into
operation:
■ Connect the clamp to the negative terminal of the vehicle battery.
Activate the electronics of the
power windows.
■ Check tyre pressure.
■ Fill up the washer fluid reservoir.
■ Check the engine oil level.
■ Check the coolant level.
■ Fit the number plate if necessary.End-of-life vehicle
recovery
Information on end-of-life vehicle
recovery centres and the recycling of
end-of-life vehicles is available on our website, where legally required. Only
entrust this work to an authorised
recycling centre.Vehicle checks
Performing work9 Warning
Only perform engine compartment
checks when the ignition is off.
The cooling fan may start
operating even if the ignition is off.
9 Danger
The ignition system and Xenon
headlights use extremely high
voltage. Do not touch.

Vehicle care177

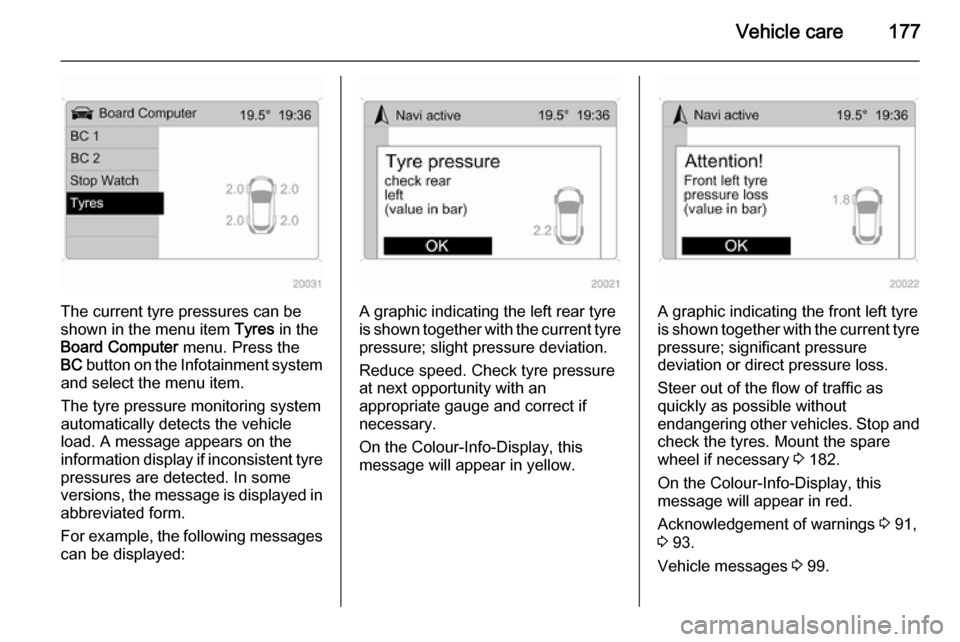

The current tyre pressures can be
shown in the menu item Tyres in the
Board Computer menu. Press the
BC button on the Infotainment system
and select the menu item.
The tyre pressure monitoring system
automatically detects the vehicle
load. A message appears on the
information display if inconsistent tyre
pressures are detected. In some
versions, the message is displayed in
abbreviated form.
For example, the following messages can be displayed:A graphic indicating the left rear tyre
is shown together with the current tyre
pressure; slight pressure deviation.
Reduce speed. Check tyre pressure at next opportunity with an
appropriate gauge and correct if
necessary.
On the Colour-Info-Display, this
message will appear in yellow.A graphic indicating the front left tyre is shown together with the current tyre
pressure; significant pressure
deviation or direct pressure loss.
Steer out of the flow of traffic as
quickly as possible without
endangering other vehicles. Stop and check the tyres. Mount the spare
wheel if necessary 3 182.
On the Colour-Info-Display, this
message will appear in red.
Acknowledgement of warnings 3 91,
3 93.
Vehicle messages 3 99.

211
Centre high-mounted brakelight.................................. 109, 164
Change engine oil .......................88
Changing tyre and wheel size ...178
Charging system .......................... 83
Check control................................ 99
Child locks ................................... 21
Child restraint installation locations ................................... 51
Child restraints.............................. 50
Child restraint systems ................50
Cleaning the vehicle ...................190
Climate control ............................. 14
Climate control systems .............114
Clock ............................................ 76
Clutch fluid ................................. 156
Coin storage ................................. 56
Console box.................................. 57
Console net .................................. 56
Control indicators.......................... 80
Control of the vehicle .................122
Controls ........................................ 72
Controls in steering wheel ............72
Convex shape .............................. 27
Coolant and antifreeze ...............195
Coupling ball bar ........................147
Cruise control ...................... 90, 140
Cupholders .................................. 55
Curtain airbag system .................. 48D
Danger, Warnings and Cautions ...3
Daytime running lights ...............107
Declaration of conformity ............208
Descent control system .......86, 138
Diesel fuel filter .......................... 158
Diesel fuel system bleeding .......159
Diesel particle filter .........84, 87, 127
Door open .................................... 90
Doors ............................................ 22
Drain fuel filter ............................. 89
Drink holders ................................ 55
Driver assistance systems ..........140
Driving characteristics and towing tips .............................. 146
Driving hints ................................ 122
E
Electric adjustment ......................27
Electrical parking brake .......85, 136
Electrical parking brake fault .......85
Electrical system......................... 165
Electronic climate control system 116
Electronic driving programmes ..130
Electronic Stability Control ..86, 137
Electronic Stability Control off ...... 87
End-of-life vehicle recovery .......151
Engine compartment fuse box ...167
Engine coolant ........................... 153Engine coolant temperature ........87
Engine data ............................... 202
Engine exhaust .......................... 127
Engine identification ...................198
Engine oil ................... 152, 195, 199
Engine oil life monitor ...................88
Engine oil pressure ......................87
Entry lighting .............................. 112
Event data recorders ..................208
Exhaust gases ............................ 127
Exit lighting ................................ 112
Exterior care .............................. 190
Exterior lighting ....................12, 105
Exterior mirrors ............................. 27
F
Fault ........................................... 131
Fire extinguisher ........................... 69
First aid kit ................................... 69
Fixed air vents ........................... 120
Flex-Fix system ............................ 57
Fog light ....................................... 89
Fog lights .................... 108, 109, 162
Folding mirrors ............................. 27
Front airbag system .....................46
Front fog lights ........................... 108
Front passenger seat undertray ...57
Front seats.................................... 34
Front storage ............................... 56
Fuel............................................. 143

212
Fuel consumption - CO2-
Emissions ............................... 145
Fuel economy mode ....................88
Fuel filler cap ................................ 84
Fuel for diesel engines ..............144
Fuel for petrol engines ...............143
Fuel gauge ................................... 80
Fuses ......................................... 165
G
Gauges ......................................... 79
General information ...................146
Glovebox ..................................... 55
Graphic-Info-Display, Colour- Info-Display .............................. 93
H Halogen headlights ....................160
Hand brake ................................. 136
Hazard warning flashers ............107
Headlight flash ........................... 106
Headlight range adjustment ......106
Headlights .................. 105, 106, 159
Headlights when driving abroad 107
Headlight washer ..........................73
Head restraint adjustment .............8
Head restraints ............................ 33
Heated mirrors ............................. 28
Heated rear window ..................... 31
Heating ........................................ 38Heating and ventilation system . 114
High beam ........................... 89, 106
Hill start assist ........................... 137
Horn ....................................... 13, 73
I
Identification plate .....................198
Ignition switch positions .............123
Immobiliser ............................ 26, 89
Indicators ...................................... 79
Information displays...................... 91
Instrument cluster ........................79
Instrument panel fuse box .........170
Instrument panel illumination .....165
Instrument panel illumination control .................................... 110
Instrument panel overview ........... 10
Interior care ............................... 192
Interior lighting ............................ 110
Interior lights ...................... 110, 164
Interior mirrors .............................. 28
Interruption of power supply ......131
Introduction .................................... 3
ISOFIX child restraint systems ....54
J
Jump starting ............................. 187K
Kerb weight........................... 70, 204
Keys ............................................. 18
Keys, locks ................................... 18
Kickdown .................................... 130
L Lashing eyes ............................... 69
Light covers, misted.................... 109
Lighting ....................................... 105
Lighting features .........................112
Light switch ................................ 105
Load compartment ................22, 67
Load compartment cover .............67
Load compartment lighting ........111
Load compartment storage ..........67
Loading information .....................70
Low engine oil level .....................88
Low fuel ....................................... 89
M Malfunction indicator light ............84
Manual anti-dazzle ......................28
Manual mode ............................. 130
Manual transmission .................. 132
Mirror adjustment ........................... 9
Mirrors .................................... 27, 28
Misted light covers .....................109

213
NNew vehicle running-in ..............122
Number plate light .....................164
O Object detection systems ...........141
Octane rating .............................. 202
Odometer ..................................... 79
Oil ............................................... 152
Oil, engine .......................... 195, 199
Oil life monitor............................... 88
Outside temperature ....................75
Overrun cut-off ........................... 124
P Parking ................................ 17, 126
Parking assist ............................ 141
Parking brake ....................... 85, 136
Parking lights ............................. 109
Particulate filter ........................... 127
Performance .............................. 203
Performing work ........................151
Pollen filter ................................. 120
Power outlets .......................... 57, 77
Power seat adjustment .................37
Power steering ............................. 86 Power steering fluid ....................154
Power windows ............................ 29
Preheating ................................... 87
Puncture ..................................... 182R
Radio Frequency Identification (RFID) ..................................... 209
Radio remote control ...................19
Rain sensor .................................. 73
Reading lights ............................ 111
Rear carrier system ......................57
Rear floor storage cover ..............68
Rear fog light ............................... 90
Rear fog lights ........................... 109
Rear seats ............................. 38, 39
Rear window wiper/washer .......... 75
Recommended fluids and lubricants ........................ 195, 199
Reduced engine power ................89
Refuelling ................................... 144
Remote control ............................. 19
Reversing lights .........................109
Roof .............................................. 31
Roof load ...................................... 70
Roof rack ..................................... 70
S
Safety belts ................................... 40
Seat adjustment ....................... 6, 35 Seat belt ........................................ 8
Seat belt reminder ..................41, 83
Seat belts ..................................... 40
Seat folding .................................. 36Seat heating ................................. 38
Seat position ................................ 34
Selector lever ............................. 129
Service ............................... 120, 194
Service display ......................80, 88
Service information ....................194
Service vehicle soon .................... 84
Side airbag system ......................47
Sidelights .................................... 105
Side turn signal lights ................164
Spare wheel ............................... 185
Speedometer ............................... 79
Speed warning.............................. 90
Starting and operating ................122
Starting off ................................... 16
Starting the engine ....................123
Steering wheel adjustment ......9, 72
Steering wheel controls ...............72
Stop-start system........................ 124
Storage ......................................... 55
Storage compartments .................55
Sunglasses storage .....................56
Sunroof ........................................ 31
Sunvisor lights ........................... 112
Sun visors .................................... 31
Symbols ......................................... 4
T
Tachometer ................................. 79
Tailgate ......................................... 22

214
Tailgate open ............................... 90
Tail lights ................................... 163
Technical data ............................ 202
Three-point seat belt .................... 41
Tools .......................................... 173
Top-tether fastening eyes ............54
Tow bar....................................... 146
Towing ................................ 146, 188
Towing another vehicle .............190
Towing a trailer ........................... 146
Towing equipment .....................147
Towing the vehicle .....................188
Trailer coupling ........................... 146
Trailer indicator ............................ 90
Trailer stability assist .................149
Trailer towing ............................. 146
Transmission ............................... 15
Transmission display ...........80, 128
Tread depth ............................... 178
Trip computer in Board-Info- Display ................................... 100
Trip computer in Graphic-Info- Display or Colour-Info-Display 101
Trip odometer .............................. 79
Turn and lane-change signals ...108
Turn signal ................................... 83
Tyre chains ................................ 179
Tyre changing ............................. 182
Tyre designations ......................175Tyre pressure ...................... 99, 176
Tyre pressure monitoring system ............................... 99, 176
Tyre pressures ........................... 207
Tyre repair kit ............................. 179
Tyres and wheel size, changing. 178
U Ultrasonic parking assist ...... 86, 141Underseat storage .......................57
Upholstery, cleaning ...................192
Upshift ......................................... 85
Using this manual ..........................3
V
Vehicle battery ........................... 156
Vehicle checks............................ 151
Vehicle data ................................ 199
Vehicle data recording and privacy ..................................... 208
Vehicle dimensions .................... 204
Vehicle Identification Number ....197
Vehicle jack ................................ 173
Vehicle security ............................ 23
Vehicle specific data ......................3
Vehicle storage ........................... 150
Vehicle tools ............................... 173
Vehicle unlocking ........................... 6
Vehicle weight ........................... 204
Ventilation ................................... 114W
Warning chimes ........................... 98
Warning lights ............................... 79
Warning triangle .......................... 69
Washer and wiper systems .........13
Washer fluid ............................... 155
Washing the vehicle ...................190
Welcome lighting ........................112
Wheel changing .........................182
Wheel covers ............................. 179
Wheels and tyres .......................175
Windows ....................................... 29
Windscreen................................... 29
Windscreen wiper/washer ...........73
Winter tyres ............................... 175
Wiper blade replacement ..........159
X Xenon headlights .......................161
