VAUXHALL ANTARA 2014 Owner's Manual

Vauxhall AntaraOwner's Manual

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............18
Seats, restraints ........................... 33
Storage ........................................ 55
Instruments and controls .............72
Lighting ...................................... 105
Climate control ........................... 114
Driving and operating .................122
Vehicle care ............................... 150
Service and maintenance ..........194
Technical data ........................... 197
Customer information ................208
Index .......................................... 210Contents

2IntroductionIntroduction

Introduction3Vehicle specific data

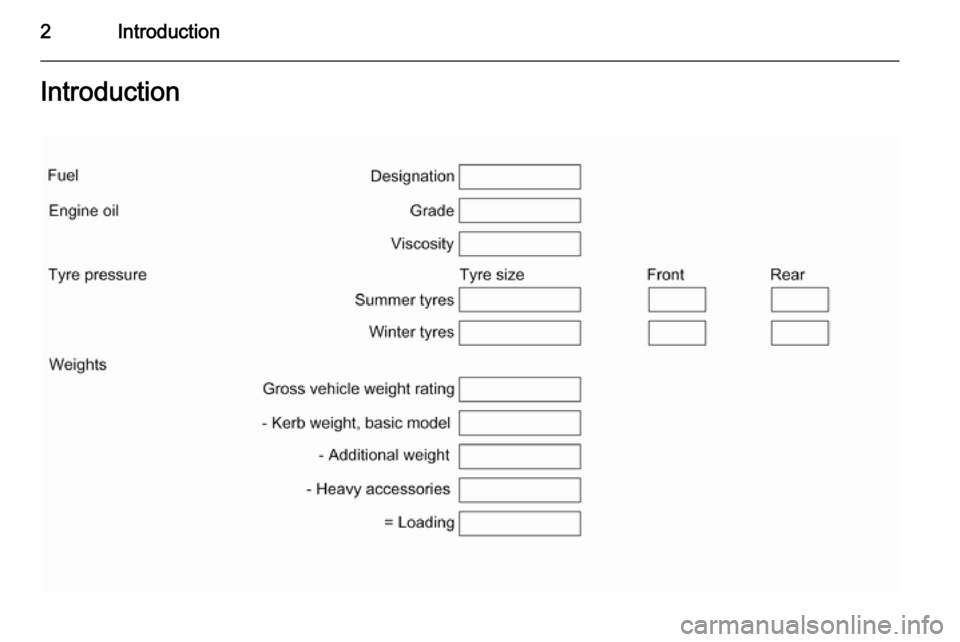

Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.When this Owner's Manual refers to aworkshop visit, we recommend your
Vauxhall Authorised Repairer.
All Vauxhall Authorised Repairers
provide first-class service at
reasonable prices. Experienced
mechanics trained by Vauxhall work
according to specific Vauxhall
instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ■ This manual describes all options and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model variant,
country specifications, special
equipment or accessories.
■ The "In brief" section will give you an initial overview.
■ The table of contents at the beginning of this manual and withineach section shows where the
information is located.■ The index will enable you to search
for specific information.
■ This Owner's Manual depicts left- hand drive vehicles. Operation is
similar for right-hand drive vehicles.
■ The Owner's Manual uses the factory engine designations. The
corresponding sales designations
can be found in the section
"Technical data".
■ Directional data, e.g. left or right, or
front or back, always relate to the
direction of travel.
■ The vehicle display screens may not support your specific language.
■ Display messages and interior labelling are written in bold letters.
Danger, Warnings and
Cautions9 Danger
Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.

4Introduction9Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".
Thank you for choosing a Vauxhall.
We wish you many hours of
pleasurable driving.
Your Vauxhall Team

Introduction5

6In briefIn briefInitial drive informationVehicle unlocking
Press button q to unlock the doors
and load compartment. Open the
doors by pulling the handles. To open
the tailgate, operate button above
number plate.
Radio remote control 3 19, Central
locking system 3 20, Load
compartment 3 22.
Seat adjustment
Seat positioning
Pull handle, slide seat, release
handle.
Seat position 3 34, Seat adjustment
3 35.
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.

In brief7
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the backrest to
engage audibly. Do not lean on the
seat backrest whilst adjusting it.
Seat position 3 34, Seat adjustment
3 35, Seat folding 3 36.
Seat height
Lever pumping motion
up=seat higherdown=seat lower
Seat position 3 34, Seat adjustment
3 35.
Power seat adjustment
Operate switches.

8In brief
Positioning=move front switch
forwards/backwardsHeight of
front part of
seat=move front part of
front switch
upwards/
downwardsHeight of
rear part of
seat=move rear part of
front switch
upwards/
downwardsHeight of
entire seat=move entire front
switch upwards/
downwardsBackrest=move upper part of
rear switch
forwards/backwards
Seat position 3 34, Power seat
adjustment 3 37.
Head restraint adjustment
Press release button, adjust height
and engage.
Head restraints 3 33.
Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 ° ).
To release belt, press red button on belt buckle.
Seat position 3 34, Seat belts
3 40, Airbag system 3 43.
