Page 231 of 343

VAUXHALL ASTRA J 2015  Owners Manual Vehicle care229
Lift the wiper arm until it stays in the
raised position, press button to
disengage the wiper blade and
remove.
Attach the wiper blade slightly angled
to the wiper arm and push until i

Page 232 of 343

VAUXHALL ASTRA J 2015  Owners Manual 230Vehicle careHalogen headlights5-door hatchback, 4-door
saloon, Sports tourer
Halogen headlights with separate
bulbs for low beam and high beam.
Low beam (1)  outer bulb.
High beam (2)  inner bulb.

Page 233 of 343

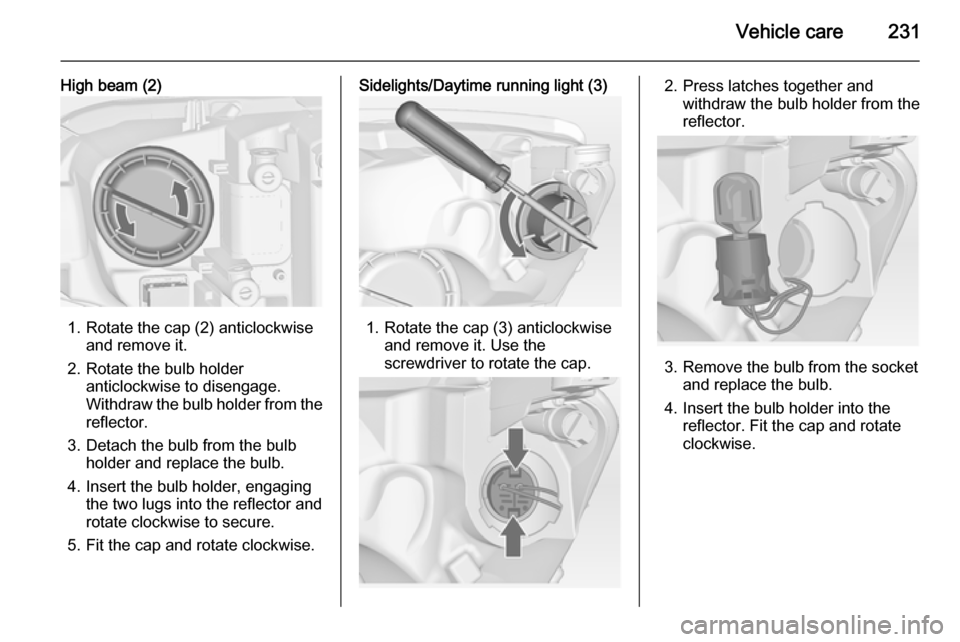

VAUXHALL ASTRA J 2015  Owners Manual Vehicle care231
High beam (2)
1. Rotate the cap (2) anticlockwiseand remove it.
2. Rotate the bulb holder anticlockwise to disengage.
Withdraw the bulb holder from the
reflector.
3. Detach the bulb fr

Page 234 of 343

VAUXHALL ASTRA J 2015  Owners Manual 232Vehicle care
3-door hatchback
Bi-Halogen Headlight (1) with one
bulb for low and high beam.
Sidelight/Daytime running light (2) .
Low/High beam (1)
1. Rotate the cap (1) anticlockwise
and remove it

Page 235 of 343

VAUXHALL ASTRA J 2015  Owners Manual Vehicle care233
Sidelight/Daytime running light (2)
1. Rotate bulb socket (2)anticlockwise to disengage.
Withdraw the bulb socket from the
reflector.
2. Remove the bulb from the socket by pulling.
3.

Page 236 of 343

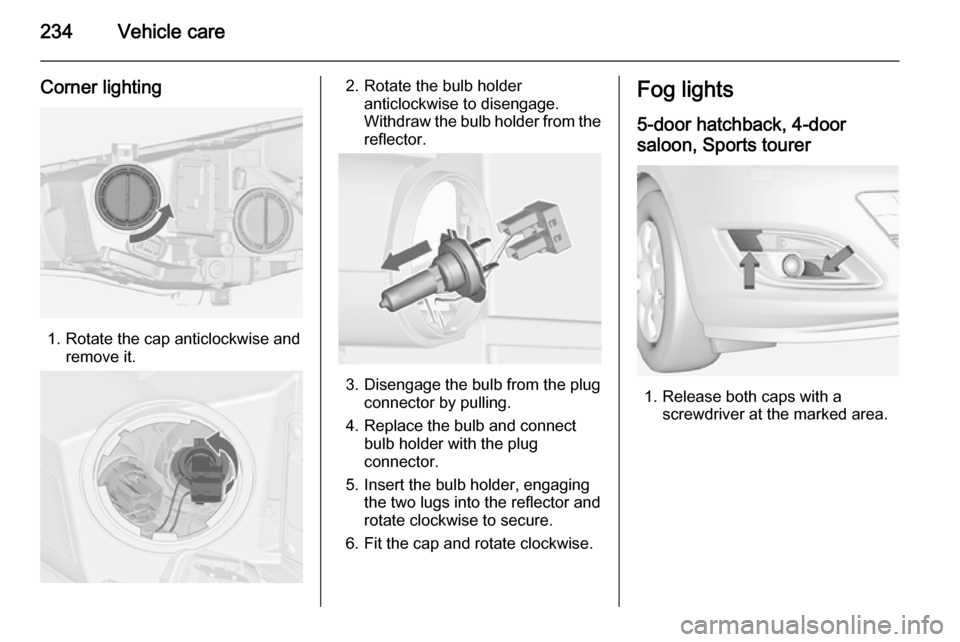

VAUXHALL ASTRA J 2015  Owners Manual 234Vehicle care
Corner lighting
1. Rotate the cap anticlockwise andremove it.
2. Rotate the bulb holderanticlockwise to disengage.
Withdraw the bulb holder from the
reflector.
3. Disengage the bulb fr

Page 237 of 343

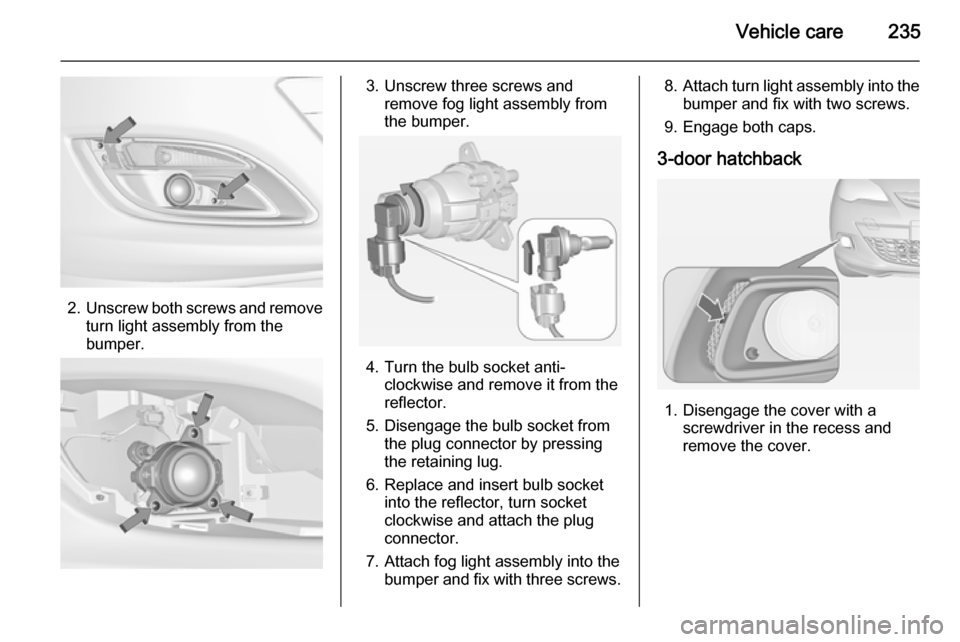

VAUXHALL ASTRA J 2015  Owners Manual Vehicle care235
2.Unscrew both screws and remove
turn light assembly from the
bumper.
3. Unscrew three screws and remove fog light assembly from
the bumper.
4. Turn the bulb socket anti- clockwise and

Page 238 of 343

VAUXHALL ASTRA J 2015  Owners Manual 236Vehicle care
2.Unscrew both screws and remove
light assembly from the bumper.
3. Turn the bulb socket anti- clockwise and remove it from the
reflector.
4. Disengage the bulb socket from the plug co

Page 239 of 343

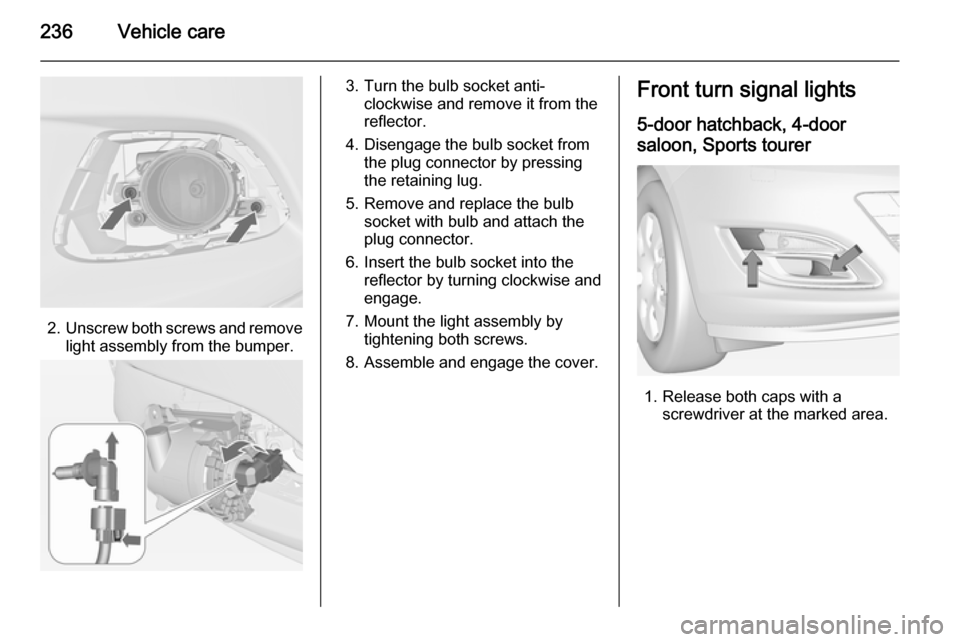

VAUXHALL ASTRA J 2015  Owners Manual Vehicle care237
2.Unscrew both screws and remove
light assembly from the bumper.
3. Disengage the bulb socket from the reflector by pressing both
retaining lugs.
4. Disengage the plug connector from t

Page 240 of 343

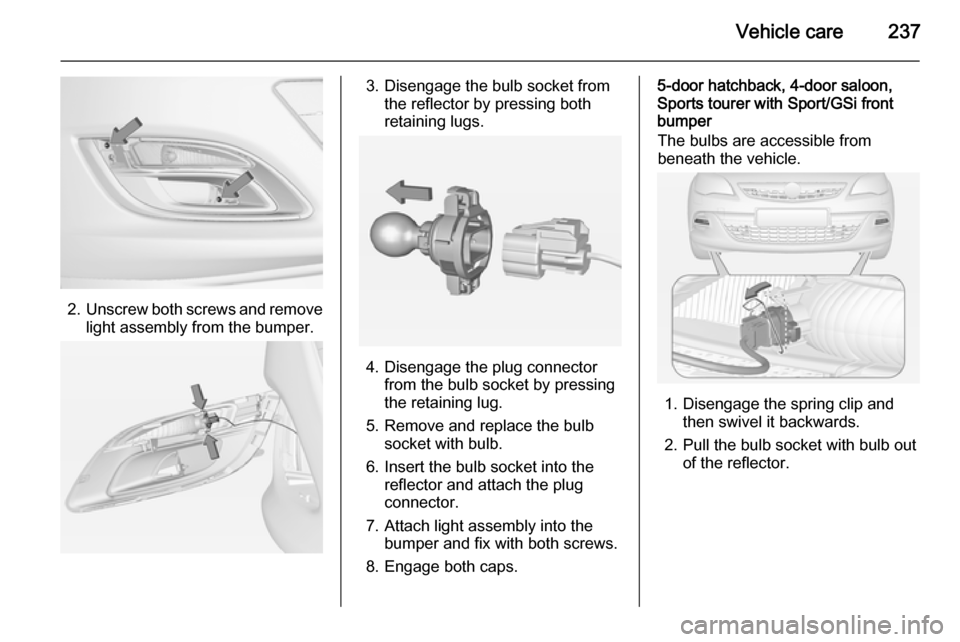

VAUXHALL ASTRA J 2015  Owners Manual 238Vehicle care
3. Disengage the bulb socket fromthe plug connector by pressing
the retaining lug.
4. Remove and replace the bulb socket with bulb.
5. Attach the plug connector.
6. Insert the bulb soc
