VAUXHALL ASTRA J 2015  Owners Manual Vehicle care249Electrical systemFuses
Data on the replacement fuse must match the data on the defective fuse.
There are three fuse boxes in the
vehicle:
■ in the front left of the engine compartment

Page 252 of 343

VAUXHALL ASTRA J 2015  Owners Manual 250Vehicle careEngine compartment fuse
box
The fuse box is in the front left of the
engine compartment.
Disengage the cover and fold it
upwards until it stops. Remove the
cover vertically upwards.
No.

Page 253 of 343

VAUXHALL ASTRA J 2015  Owners Manual Vehicle care251
No.Circuit15Engine control module16Starter17Transmission control module18Heated rear window19Front power windows20Rear power windows21Rear electrical centre22Left high beam (Halogen)23

Page 254 of 343

VAUXHALL ASTRA J 2015  Owners Manual 252Vehicle careInstrument panel fuse box
In left-hand drive vehicles, the fuse
box is behind the storage
compartment in the instrument panel.
Open the compartment and push it to the left to unlock. Fo

Page 255 of 343

VAUXHALL ASTRA J 2015  Owners Manual Vehicle care253
No.Circuit14Diagnostic connector15Airbag16Power outlet17Air conditioning system18Logistics19Body control module20Body control module21Instrument panel cluster, anti-
theft alarm system

Page 256 of 343

VAUXHALL ASTRA J 2015  Owners Manual 254Vehicle care
Fuse assignmentsNo.Circuit1–2Trailer outlet3Parking assist4–5–6–7Power seat8–9–10–11Trailer module, trailer socket12Trailer module13Trailer outlet14Rear seat, electrical

Page 257 of 343

VAUXHALL ASTRA J 2015  Owners Manual Vehicle care255
When assembling press the blind into
the rubber grommets to reach full
retention force.

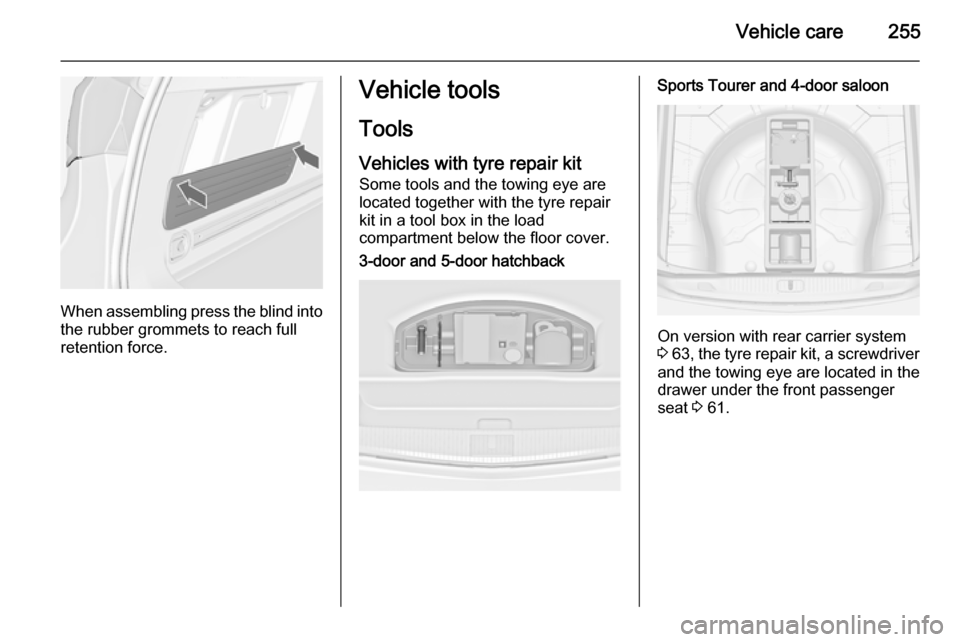

Vehicle tools
Tools
Vehicles with tyre repair kit
Some tools and the towing eye are
located toge

Page 258 of 343

VAUXHALL ASTRA J 2015  Owners Manual 256Vehicle care

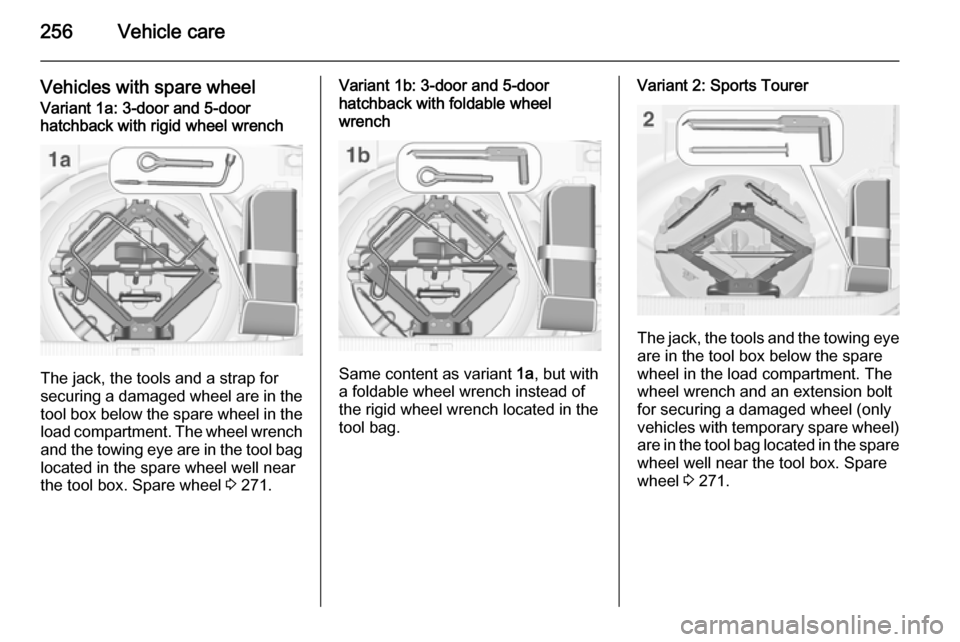

Vehicles with spare wheelVariant 1a: 3-door and 5-door
hatchback with rigid wheel wrench
The jack, the tools and a strap for
securing a damaged wheel are in the
tool box below the spar

Page 259 of 343

VAUXHALL ASTRA J 2015  Owners Manual Vehicle care257
Variant 3: 4-door saloon
The jack and the tools are in the tool
box below the spare wheel in the load
compartment. The wheel wrench, the towing eye and an extension bolt for
securing a

Page 260 of 343

VAUXHALL ASTRA J 2015  Owners Manual 258Vehicle careTyre pressureCheck the pressure of cold tyres at
least every 14 days and before any
long journey. Do not forget the spare
wheel. This also applies to vehicles
with tyre pressure monitor
