VAUXHALL CASCADA 2016.5 Owner's Guide

Keys, doors and windows29Exterior mirrors
Convex shape
The convex exterior mirror contains
an aspherical area and reduces blind spots. The shape of the mirror makes objects appear smaller, which will
affect the ability to estimate
distances.
Electric adjustment
Select the relevant exterior mirror by
turning the control to left (L) or right
(R) . Then swivel the control to adjust
the mirror.
In position 0 no mirror is selected.
Folding mirrors
For pedestrian safety, the exterior
mirrors will swing out of their normal
mounting position if they are struck
with sufficient force. Reposition the mirror by applying slight pressure tothe mirror housing.
Electric folding
Turn control to 0, then push the
control down. Both exterior mirrors
will fold.
Push the control down again - both
exterior mirrors return to their original position.
If an electrically folded mirror is
manually extended, pressing down
the control will only electrically extend
the other mirror.

30Keys, doors and windowsHeated mirrors
Operated by pressing Ü.
The LED in the button indicates
activation.
Heating works with the engine
running and is switched off
automatically after a short time.
Interior mirrors
Manual anti-dazzle
To reduce dazzle, adjust the lever on the underside of the mirror housing.
Automatic anti-dazzle
Dazzle from following vehicles at
night is automatically reduced.

Keys, doors and windows31Windows
Windscreen
Heat-reflecting windscreen
The heat-reflecting windscreen has a
coating which reflects solar radiation. Also data signals, e.g. from toll
stations, might be reflected.

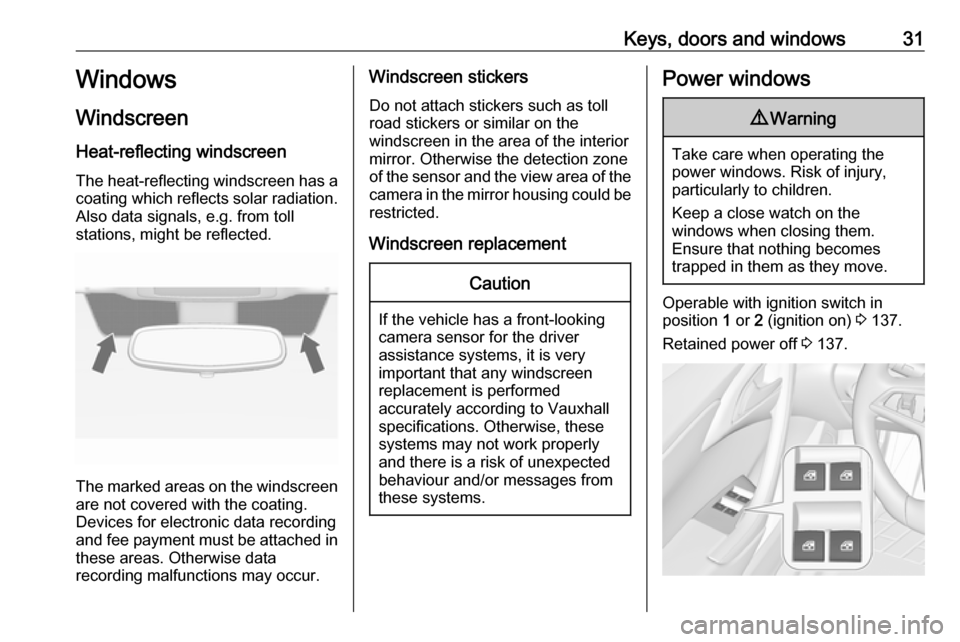

The marked areas on the windscreen are not covered with the coating.
Devices for electronic data recording
and fee payment must be attached in
these areas. Otherwise data
recording malfunctions may occur.
Windscreen stickers
Do not attach stickers such as toll
road stickers or similar on the
windscreen in the area of the interior
mirror. Otherwise the detection zone
of the sensor and the view area of the camera in the mirror housing could be
restricted.
Windscreen replacementCaution
If the vehicle has a front-looking
camera sensor for the driver
assistance systems, it is very
important that any windscreen
replacement is performed
accurately according to Vauxhall
specifications. Otherwise, these systems may not work properly
and there is a risk of unexpected
behaviour and/or messages from
these systems.
Power windows9 Warning
Take care when operating the
power windows. Risk of injury,
particularly to children.
Keep a close watch on the
windows when closing them.
Ensure that nothing becomes
trapped in them as they move.
Operable with ignition switch in
position 1 or 2 (ignition on) 3 137.
Retained power off 3 137.

32Keys, doors and windowsOperate the switch for the respective
window by pushing to open or pulling to close.
Pushing or pulling gently to the first
detent: window moves up or down as long as the switch is operated.
Pushing or pulling firmly to the second
detent then releasing: window moves
up or down automatically with safety
function enabled. To stop movement, operate the switch once more in the
same direction.
Central switch ,
Switch in the centre console to
operate all windows.
Push switch , briefly to open all
windows automatically.
Pull switch , briefly to close all
windows automatically.
Safety function If the window glass encounters
resistance above the middle of the window during automatic closing, it is
immediately stopped and opened again.
Override safety function In the event of closing difficulties due
to frost or the like, switch on the
ignition, then pull the switch to the first
detent and hold. The window moves
up with safety function disabled. To
stop movement, release the switch.
Comfort operating with the
remote control
The windows and the soft top can be
operated remotely from outside the
vehicle.
Opening
● Press c once briefly: the doors
are unlocked.
● Press c once more for two
seconds: the windows move
down automatically. Press c
longer: the soft top will be
opened. Press and hold c until
soft top is completely opened.
Release c during opening the soft
top: movement stops for 10 seconds;
pressing c once more continues
opening.
Closing ● Press e once briefly: the doors
are locked.

Keys, doors and windows33●Press e once more longer: the
soft top and the windows will be
closed. Press and hold e until soft
top is completely closed.
Release e during closing the soft
top: movement stops for
10 seconds; pressing e once
more continues closing.
● If the soft top is already closed but windows are opened:
pressing e for two seconds will
close the windows.
Confirmation
Complete opening or closing of the
soft top is confirmed by the hazard
warning flashers.
Overload If the windows are repeatedly
operated within short intervals, the window operation is disabled for
some time.Initialising the power windows
If the windows cannot be closed
automatically (e.g. after
disconnecting the vehicle battery), a
warning message is displayed in the
Driver Information Centre.
Vehicle messages 3 101.
Activate the window electronics for
each window, beginning with the rear windows, as following:
1. Soft top must be closed.
2. Close doors.
3. Switch on ignition.
4. Pull switch to the second detent until the window starts to close,
and hold pulled for an additional
4 seconds.
5. Push switch to the second detent until the window starts to open
automatically.
6. Repeat for each window.Heated rear window
Operated by pressing Ü.
The LED in the button indicates
activation.
Heating works with the engine
running and is switched off
automatically after a short time.
Heated rear window is deactivated
when the soft top is opened.
Sun visors
The sun visors can be folded down or swivelled to the side to prevent
dazzling.

34Keys, doors and windowsIf the sun visors have integral mirrors,the mirror covers should be closed
when driving.
A ticket holder is located on the
backside of the sun visor.Roof
Soft top9 Warning
Take care when operating the soft
top. Risk of injury. Monitor the
action zone above, to the side and to the rear of the vehicle during
operation.
Make sure that no body parts or
objects could get pinched. Make
sure that people stay clear of the
action zone of the soft top or soft
top lid. Risk of injury.
Check the height, length and width of the available space before
operating the soft top, e.g. in a
garage, parking garage or when a
bicycle rack is fitted.
Vehicle passengers should be
informed accordingly.
Before leaving the vehicle, remove the ignition key in order to prevent
unauthorised operation of the
windows and the soft top.
Operation with the switch in the
centre console
Operable with ignition switch in
position 1 or 2 (ignition on) 3 137.
The soft top can be opened and
closed while driving up to a speed of
31 mph.
Open soft top
Hold switch pulled until the soft top is completely opened and the soft top lid
is closed. All windows will be opened
during this operation.
To close all windows pull switch ,.

Keys, doors and windows35Close soft top
Hold switch pushed until the soft top
and the soft top lid are completely
closed. All windows will be opened
during this operation.
Pull switch , briefly to close all
windows.
Confirmation of operation
Complete opening or closing of the
soft top with the switch in the centre
console is confirmed by the sound of
an acoustic signal.
Operation with remote control
Open soft top
Press and hold c until the soft top is
opened completely and the soft top lid is closed. All windows will be opened
during this operation.
Close soft top
Press and hold e until the soft top, the
soft top lid and the windows are completely closed. All windows will be
opened at first during this operation.
Confirmation of operation
Complete opening or closing of the
soft top with the remote control is confirmed by the hazard warning
flashers.

36Keys, doors and windowsSafety stop
The button on the remote control or
the switch in the centre console must
be actuated until the soft top is in its
respective end position. Releasing
the button or the switch during
operation stops soft top movement
immediately. The soft top remains in
intermediate position only for a
certain time. After this time a warning chime sounds, the hydraulic pressure
in the system decreases and the soft
top can start to move by itself.
Actuating button or switch once more
continues operation.
Requirements for operation ● Vehicle is stationary or driving with a speed up to 31 mph.
● Load compartment partition isfolded out, pass-through flap is
closed 3 71.
● Soft top lid is engaged in closed position.
● Boot lid is completely closed.
● Outside temperature is not lower than -7 °C for opening and
-10 °C for closing.
● Vehicle battery voltage is sufficient.
● The system is not overloaded by repeated operation (max. 5
complete cycles in succession).If any of these requirements are
not fulfilled, a warning chime sounds and a message appears
in the Driver Information Centre
when the switch is actuated and
the soft top will not open or close.
● There must be no objects in front
of the rear window or in the pivot
area of the soft top and the soft
top lid.
If the automatic drive is not
operational when the soft top is open,
execute a manual closing process,
see the following instructions in
"Manual closing in the event of a
system fault".

Keys, doors and windows37General hintsNotice
● Always actuate the operation switch until the acoustic signal
sounds or the hazard warning
flashers illuminate, to ensure that
the soft top is completely opened or closed.
● The soft top can be held in an intermediate position to facilitate
cleaning of hood spaces and
gaskets. Release the switch in
the centre console during
operation to stop soft top
movement in intermediate
position for a maximum of
7 minutes when ignition is on.
After this time a warning chime
sounds, the hydraulic pressure in the system decreases and the
soft top can start to move by
itself.
● Do not open the soft top if it is wet,
frozen or dirty.
● Activating the soft top on uneven
ground can lead to malfunctions
and damage.
● Vehicle care 3 229.Manual closing in the event of a
system fault
In case of malfunction of the electro-
hydraulic actuation, the opened soft
top can be closed manually.
A warning chime sounds and a
message appears in the Driver
Information Centre.
Caution
We strongly advise performing manual closing of the soft top with two persons.
Manual operation of the soft top is permitted only for closing.
Read the following description
completely before starting to
operate.
Do not perform the manual closing with the vehicle parked on
downhill gradient or inclines.
Remove the large wind deflector
before starting to operate.
After closing, have the soft top
repaired by a workshop.
Prepare the following tools which are
required for manual operation:

38Keys, doors and windows
● allen key with 4 mm hexagon onthe long side and 6 mm hexagon
on the short side, located in the
glovebox
● two strings, located in the glovebox
● screwdriver, located in the tool box in the load compartment
3 209
1. Switch off ignition.
2. Open the boot lid and remove the
screwdriver from the tool box.3. On the inside of the upper load
compartment edge is a lever for
releasing the soft top lid. Locate
the lever and unlatch by swivelling
the lever downwards.
Notice
The boot lid cannot be opened from
next step on.
Remove the screwdriver from the
toolbox for further operation. It is
possible that the load compartment
cannot be opened until the vehicle is at a workshop. Therefore remove
any required objects from the load
compartment.
4. Close boot lid.5. Lift up soft top lid from both sides simultaneously up to approx. the
half raised position.
