VAUXHALL COMBO D 2018 User Guide

In brief9Exterior mirrorsManual adjustment
Swivel lever in required direction.
The lower mirrors are not adjustable.
Electric adjustment
Select the relevant exterior mirror by
turning the control to left _ or right 6.
Then swivel the control to adjust the
mirror.
In position o no mirror is selected.
Convex exterior mirrors 3 29.
Electric adjustment 3 29.
Folding exterior mirrors 3 30.
Heated exterior mirrors 3 30.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless
the vehicle is stationary and the
steering wheel lock has been
released.
Airbag system 3 47.
Ignition positions 3 114.

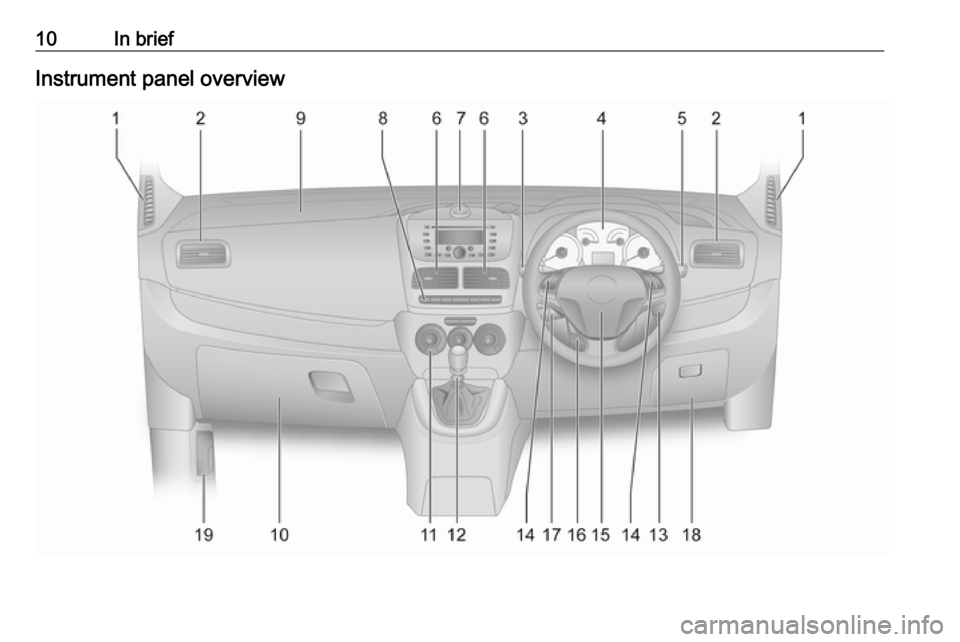

10In briefInstrument panel overview

In brief111Fixed air vents ..................... 111
2 Side air vents ...................... 110
3 Light switch .......................... 99
High beam, low beam ...........99
Headlight flash ......................99
Daytime running lights ........100
Turn and lane-change
signals ................................. 101
4 Instruments ........................... 76
Driver Information Centre ...... 90
5 Windscreen wiper/washer .....71
Rear window wiper/washer ..71
Headlamp washer .................72
Trip odometer reset ............... 76
6 Centre air vents .................. 110
7 Document holder, pocket
for Personal Navigation
Device .................................. 60
8 Headlight range
adjustment ......................... 100
Driver Information Centre
controls ................................ 90Trip computer........................ 96
Instrument illumination ........102
Hazard warning flashers .....100
Front fog lights ...................101
Rear fog light ...................... 101 Heated rear window ..............33
Heated exterior mirrors .........30
Clock ..................................... 72
Airbag deactivation ...............52
9 Front passenger airbag ........51
10 Glovebox .............................. 61
11 Heating and ventilation
system ................................. 106
Air conditioning system .......107
Electronic climate control
system ................................. 108
12 Selector lever, manual
transmission ....................... 121
Manual transmission
automated ........................... 122
13 Ignition switch with
steering wheel lock ............11414Steering wheel controls .......70
15 Horn ..................................... 70
Driver airbag ........................ 51
16 Steering wheel adjustment ..70
17 Cruise control .....................130
18 Fuse box ............................. 157
19 Bonnet release lever ..........142

12In briefExterior lighting
Turn light switch:
§:off / daytime running lights9:sidelights / headlights
Lighting 3 99.
Daytime running lights 3 100.
Fog lights
Press light switch:
>:front fog lightsø:rear fog light
Front fog lights 3 101.
Rear fog light 3 101.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:pull lever
Depending on version, pull lever
towards steering wheel to switch
between high and low beam.
High beam 3 99.
Headlight flash 3 99.

In brief13Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 101.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 100.
Horn
Press j.
Horn 3 70.

14In briefWasher and wiper systems
Windscreen wiper
Rotate lever:
§:offÇ:intermittent wipingÈ:slowÉ:fast
For a single wipe when the
windscreen wiper is off, move the
lever up.
Windscreen wiper 3 71.
Wiper blade replacement 3 148.
Windscreen and headlight
washer systems
Pull lever.
Windscreen and headlight washer
system 3 71.
Washer fluid 3 145.
Rear window wiper and washer
systems
Rotate band to position e to activate
the rear window wiper.
The rear window wiper comes on
automatically when the windscreen
wiper is switched on and reverse gear
is engaged.
Push lever: Washer fluid is sprayed
on the rear window and the wiper
wipes a few times.
Rear window wiper/washer 3 71.

In brief15Climate control
Heated rear window, heated
exterior mirrors
The heating is operated by pressing
Ü .
Heated rear window 3 33.
Heated exterior mirrors 3 30.
Demisting and defrosting the
windows
Air conditioning system
Set the temperature control to
warmest level.
Set fan speed to highest level.
Set air distribution control to V.
Cooling n on.
Heated rear window Ü on.
Heating and ventilation system
3 106.
Air conditioning system 3 107.
Electronic climate control system
Press Ê.
Temperature and air distribution are
set automatically and the fan runs at
a high speed.
To return to automatic mode: press
n or AUTO .
Electronic climate control system
3 108.

16In briefTransmission
Manual transmission
Reverse: with the vehicle stationary,
wait three seconds after depressing
the clutch pedal, pull up the collar on
the selector lever and engage the
gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 121.
Manual transmission automatedN:neutral positiono:drive position+:higher gear-:lower gearA/M:switch between automatic and
manual modeR:reverse gear (with selector
lever lock)
Manual transmission automated
3 122.
Starting off
Check before starting-off ● Tyre pressure and condition 3 160, 3 191.
● Engine oil level and fluid levels 3 143.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats, and seat belts 3 29, 3 35,
3 45.
● Brake function at low speed, particularly if the brakes are wet.

In brief17Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Operate clutch and brake.
● Manual transmission automated: operate brake, the transmission
automatically shifts to N (neutral).
● Do not operate accelerator pedal.
● Diesel engines: turn the key to
position 1 for preheating and wait
until control indicator ! goes
out.
● Turn key to position 2 and release.
Starting the engine 3 115.Stop-start system
If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
● Depress the clutch pedal.
● Engage neutral gear.
● Release the clutch pedal.
An Autostop is indicated when ^ is
displayed in the Driver Information
Centre 3 90.
To restart the engine, depress the
clutch pedal again.
Stop-start system 3 116.

18In briefParking9Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply parking brake without pressing release
button. Apply as firmly as
possible on a downhill slope or
uphill slope. Depress brake
pedal at the same time to
reduce operating force.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear before switching off
the ignition. On an uphill slope,
turn the front wheels away from
the kerb.
If the vehicle is on a downhill
slope, engage reverse gear
before switching off the ignition. Turn the front wheels towardsthe kerb.
● Close the windows.
● Turn the ignition key to position
0 and remove it from the
ignition switch. Turn the
steering wheel until the
steering wheel lock is felt to
engage.
● Lock the vehicle with e on the
remote control.
● The engine cooling fans may run
after the engine has been
switched off 3 142.
Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for approx.30 seconds before switching off, in
order to protect the turbocharger.
Keys, locks 3 19.
Laying the vehicle up for a long period
of time 3 141.
