Seats, restraints39Armrest
Raise or lower the front seat armrest
as required.
Heating
Activate seat heating by pressing ß
for the respective front seat.
Activation is indicated by the LED in
the button.
Press ß once more to deactivate seat
heating.
Seat heating is thermostatically
controlled and switches off
automatically when seat temperature
is sufficient.
Prolonged use for people with
sensitive skin is not recommended.
Seat heating is operational with the
ignition on and during an Autostop.
Stop-start system 3 116.

40Seats, restraintsRear seats
Second row seats9 Warning
When rear seats or backrests are
being adjusted or folded, keep
hands and feet away from the
moving area.
Never adjust seats while driving as they could move uncontrollably.
Drive only with engaged seats and
backrests.
Depending on version, the load
compartment area can be increased by folding the second row seats
(where fitted).
If a third row of seats are fitted, refer
to "Folding the seats" or "Removing
the seats" in the section "Third row
seats" 3 41 to increase the load
compartment area.
Folding the seats
● Press release buttons and push the head restraint downwards
3 34.
● Unfasten the seat belts and ensure they do not obstruct the
seat folding manoeuvre.
● Remove the load compartment cover if necessary 3 63.
1. Pull the backrest release lever
and fold down the backrest onto
the seat cushion.
Notice
The red mark on the release lever
becomes visible when the backrest
is disengaged.
Notice
The backrest is divided into two parts. Both parts can be folded
down, if necessary.
2. Pull release lever; the seat base is
tensioned and will start to rise
automatically.

Seats, restraints41
3. Fold the seat assembly forwardcompletely.
Notice
A label indicating the seat folding
procedure may be located on the
outer edge of the seat base.
9 Warning
When folding the seat use caution
- beware of moving parts. Ensure
the seat is secure when
completely folded.
Caution
For safety reasons, do not place
loads on the folded rear seats.
Unfolding the seats
1. Ensure that the seat belts are unfastened and that they do not
obstruct the unfolding
manoeuvre.
2. Lower the seat assembly to the floor, ensuring the seat is securely
latched into position.
3. Raise the backrest and adjust the
head restraint.
Notice
The backrest is properly engaged
when the red mark on the release
lever is no longer visible.
9 Warning
When unfolding the seat, ensure
that the seat assembly is securely
locked in position before driving.
Failure to do so may result in
personal injury in the event of hard braking or a collision.9 Warning
Only drive the vehicle if the
backrests are securely locked into position. Otherwise there is a risk
of personal injury or damage to the
load or vehicle in the event of hard
braking or a collision.
Third row seats
9 Warning
When rear seats or backrests are
being adjusted or folded, keep
hands and feet away from the
moving area.
Never adjust seats while driving as they could move uncontrollably.
Drive only with engaged seats and
backrests.

42Seats, restraintsDepending on version, the load
compartment area can be increased
by folding up the third row seats.
Folding the seats ● Press release buttons and push the head restraint downwards
3 34.
● Unfasten the seat belts and ensure they do not obstruct theseat folding manoeuvre.
● Remove the load compartment cover if necessary 3 63.
1. Pull the backrest release lever
and fold down the backrest onto
the seat cushion.
Notice
The red mark on the release lever
becomes visible when the backrest
is disengaged.
2. Pull the lower loop and fold the seat assembly forwards.
3. Secure the folded seat in theupright position by attaching the
flexible cord (located on the seat
frame) to the head restraint of the
seat in front of the folded seat.
Notice
A label indicating the seat folding
procedure may be located on the
lower rear part of the backrest.
9 Warning
When folding the seat use caution
- beware of moving parts. Ensure
the seat is secure when
completely folded.
9 Warning
No person is allowed to occupy a
rear seat when the seat in front is
in the folded position. Risk of
injury.
Caution
For safety reasons, do not place
loads on the folded rear seats.
Unfolding the seats
1. Ensure that the seat belts are unfastened and that they do not
obstruct the unfolding
manoeuvre.

Seats, restraints432. Remove the flexible cord andlower the seat assembly to the
floor, ensuring the rear support is
located on the anchor point and
securely latched into position.
3. Raise the backrest and adjust the
head restraint.
Notice
The backrest is properly engaged when the red mark on the release
lever is no longer visible.9 Warning
When unfolding the seat, ensure
that the seat assembly is securely locked in position before driving.
Failure to do so may result in
personal injury in the event of hard braking or a collision.
9 Warning
Only drive the vehicle if the
backrests are securely locked into position. Otherwise there is a risk
of personal injury or damage to the
load or vehicle in the event of hard braking or a collision.
Removing the seats
Depending on version, the load
compartment area can be increased
by removing the third row seats.
9 Warning
Removable rear seats are heavy!
Do not attempt to remove without assistance.
● Press release buttons and pull the rear seat head restraints
upwards to remove them 3 34.
● Ensure that the seat belts are unfastened and that they do not
obstruct the unfolding
manoeuvre.
● Remove the load compartment cover if necessary 3 63.
1. Fold the seat assembly (refer to "Folding the seats" above).
2.Push the lower lever to disengage
the locks and remove the seat
assembly from the floor anchor
points.
3. Store head restraints on the rear of the seat frame.

44Seats, restraintsInstalling the seats
1. Attach the seat assembly frontsupports to the front anchor
points.
2. Lower the rear of the seat assembly to the floor, ensuring
the rear support is located on the
anchor point.
3. Push the lower lever and pull it to ensure the locks are engaged andthe seat assembly is locked
securely in position.
4. Remove head restraints from the rear of the seat frame, then raise
the backrest and replace the head
restraints.
Notice
The backrest is properly engaged
when the red mark on the release
lever is no longer visible.9 Warning
When installing the rear seats,
ensure that the seat assembly is
properly located on the anchor
points, the locks are fully engaged, and the backrest is returned to the
correct position.
Failure to do so may result in
personal injury in the event of hard braking or a collision.
Seat belts
The seat belts are locked during
heavy acceleration or deceleration of
the vehicle holding the occupants in
the sitting position. Therefore the risk
of injury is considerably reduced.
9 Warning
Fasten seat belt before each trip.
In the event of an accident, people
not wearing seat belts endanger their fellow occupants and
themselves.

Seats, restraints45Seat belts are designed to be used by
only one person at a time. Child
restraint system 3 54.
Periodically check all parts of the belt system for damage, pollution and
proper functionality.
Have damaged components replaced by a workshop. After an accident,
have the belts and triggered belt pretensioners replaced by a
workshop.
Notice
Make sure that the belts are not
damaged by shoes or sharp-edged
objects or are trapped. Prevent dirt
from getting into the belt retractors.
Seat belt reminder
Front seats are equipped with a seat
belt reminder, indicated by control
indicator X in the instrument cluster
3 82.
Belt force limiters
On the front seats, stress on the body is reduced by the gradual release of
the belt during a collision.Belt pretensioners
In the event of a head-on or rear-end
collision of a certain severity, the front
seat belts are tightened.9 Warning
Incorrect handling (e.g. removal or
fitting of belts) can trigger the belt
pretensioners.
Deployment of the belt pretensioners
is indicated by continuous illumination
of control indicator v 3 82.
Triggered belt pretensioners must be replaced by a workshop. Belt
pretensioners can only be triggered
once.
Notice
Do not affix or install accessories or
other objects that may interfere with
the operation of the belt
pretensioners. Do not make any
modifications to belt pretensioner components as this will invalidate
the approval of your vehicle.
Three-point seat belt
Fastening
Withdraw the belt from the retractor,
guide it untwisted across the body
and insert the latch plate into the
buckle.
Tighten the lap belt regularly whilst
driving by pulling the shoulder belt.
Seat belt reminder X 3 82.

46Seats, restraints
Loose or bulky clothing prevents the
belt from fitting snugly. Do not place
objects such as handbags or mobile
phones between the belt and your body.
9 Warning
The belt must not rest against hard
or fragile objects in the pockets of
your clothing.
Height adjustment
1. Pull belt out slightly.
2. Shift the height adjuster upwards or press button down todisengage and push the height
adjuster downwards.
Adjust the height so that the belt lies
across the shoulder. It must not lie
across the throat or upper arm.
9 Warning
Do not adjust while driving.

Seats, restraints47Unfastening

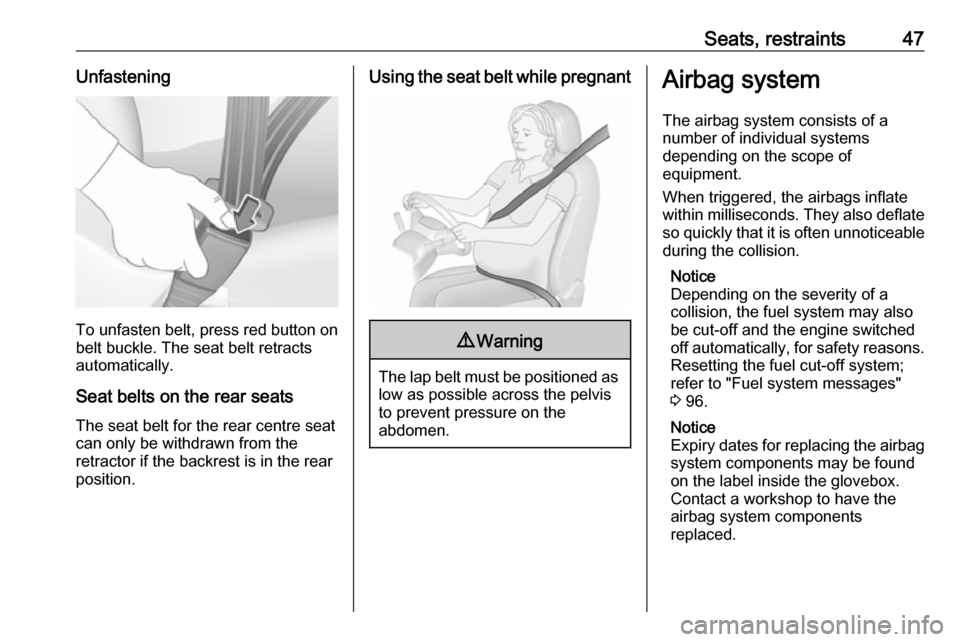

To unfasten belt, press red button on
belt buckle. The seat belt retracts automatically.
Seat belts on the rear seats The seat belt for the rear centre seat
can only be withdrawn from the
retractor if the backrest is in the rear
position.
Using the seat belt while pregnant9 Warning
The lap belt must be positioned as
low as possible across the pelvis
to prevent pressure on the
abdomen.
Airbag system
The airbag system consists of a
number of individual systems
depending on the scope of
equipment.
When triggered, the airbags inflate
within milliseconds. They also deflate
so quickly that it is often unnoticeable
during the collision.
Notice
Depending on the severity of a
collision, the fuel system may also be cut-off and the engine switched
off automatically, for safety reasons. Resetting the fuel cut-off system;
refer to "Fuel system messages"
3 96.
Notice
Expiry dates for replacing the airbag system components may be found
on the label inside the glovebox. Contact a workshop to have the
airbag system components
replaced.

48Seats, restraints9Warning
The airbag system deploys in an
explosive manner, repairs must be performed by skilled personnel
only.
9 Warning
Adding accessories that change
the vehicle's frame, bumper
system, height, front end or side
sheet metal, may keep the airbag
system from working properly. The operation of the airbag system can
also be affected by changing any
parts of the front seats, seat belts, airbag sensing and diagnostic
module, steering wheel,
instrument panel, inner door seals including the speakers, any of the
airbag modules, ceiling or pillar
trim, front sensors, side impact
sensors or airbag wiring.
Notice
The airbag systems and belt
pretensioner control electronics are
located in the centre console area.
Do not put any magnetic objects in
this area.
Do not affix any objects onto the
airbag covers and do not cover them with other materials. Have damagedcovers replaced by a workshop.
Each airbag is triggered only once.
Have deployed airbags replaced by
a workshop. Furthermore, it may be
necessary to have the steering
wheel, the instrument panel, parts of
the panelling, the door seals,
handles and the seats replaced.
Do not make any modifications to
the airbag system as this will
invalidate the vehicle operating
permit.
Control indicator v for airbag systems
3 82.Fault
If there is a fault in the airbag and belt tensioner system, the control
indicator v illuminates in the
instrument cluster. The system is not
operational.
Depending on version, a
corresponding warning message, e.g. Airbag failure , may also be
displayed in the Driver Information Centre 3 90.
Have the cause of the fault remedied by a workshop.
Control indicator v 3 82.
Child restraint systems on front passenger seat with airbag
systems
Warning according to ECE R94.02:
