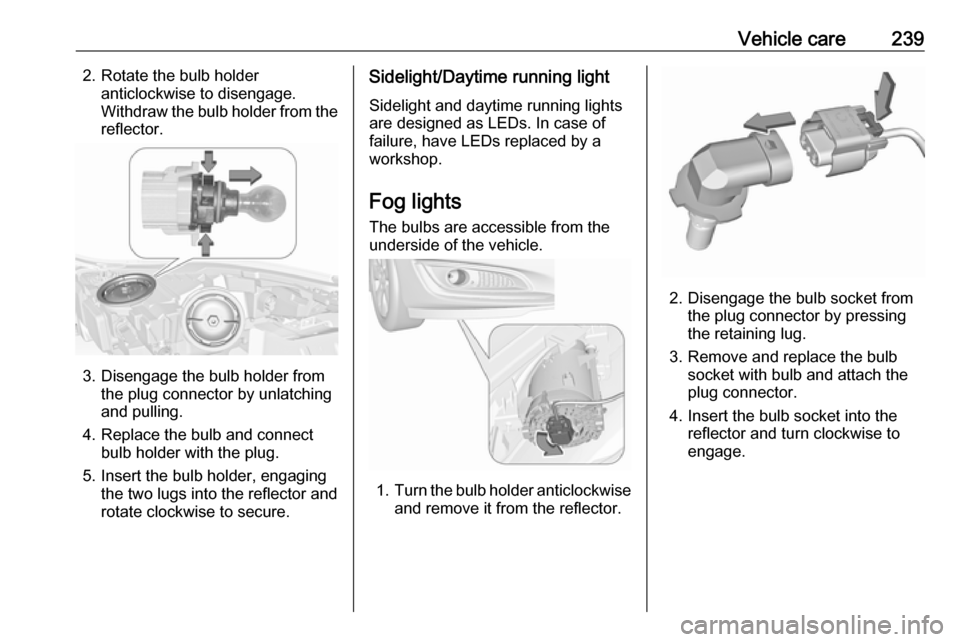

Vehicle care2392. Rotate the bulb holderanticlockwise to disengage.
Withdraw the bulb holder from the reflector.
3. Disengage the bulb holder from the plug connector by unlatching
and pulling.
4. Replace the bulb and connect bulb holder with the plug.
5. Insert the bulb holder, engaging the two lugs into the reflector androtate clockwise to secure.
Sidelight/Daytime running light
Sidelight and daytime running lights
are designed as LEDs. In case of
failure, have LEDs replaced by a
workshop.
Fog lights
The bulbs are accessible from the
underside of the vehicle.
1. Turn the bulb holder anticlockwise
and remove it from the reflector.
2. Disengage the bulb socket from the plug connector by pressing
the retaining lug.
3. Remove and replace the bulb socket with bulb and attach the
plug connector.
4. Insert the bulb socket into the reflector and turn clockwise to
engage.

240Vehicle careTail lights5-door Hatchback/4-door Saloon

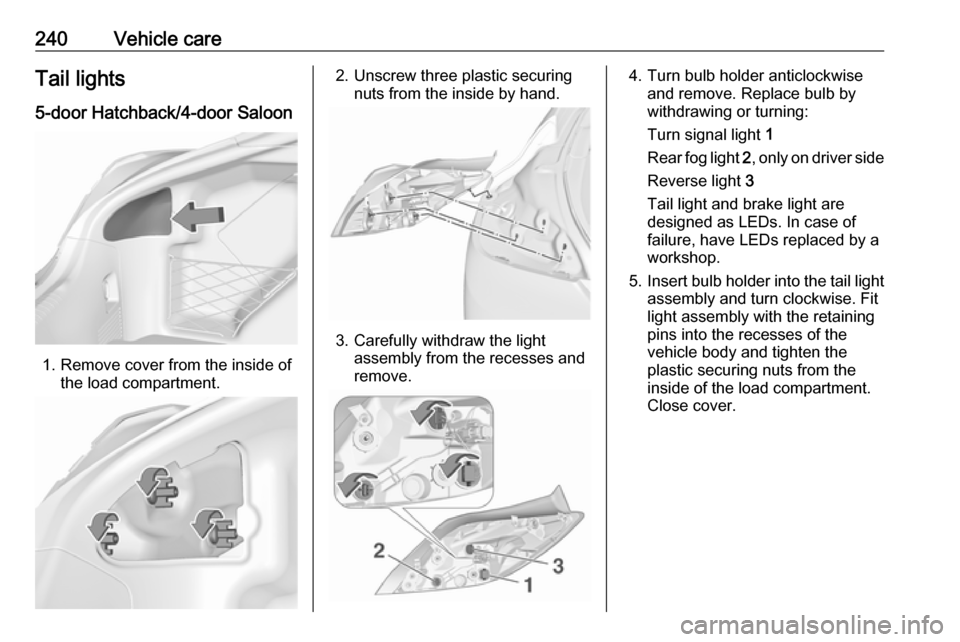

1. Remove cover from the inside of the load compartment.
2. Unscrew three plastic securingnuts from the inside by hand.
3. Carefully withdraw the lightassembly from the recesses and
remove.
4. Turn bulb holder anticlockwise and remove. Replace bulb by
withdrawing or turning:
Turn signal light 1
Rear fog light 2, only on driver side
Reverse light 3
Tail light and brake light are
designed as LEDs. In case of
failure, have LEDs replaced by a
workshop.
5. Insert bulb holder into the tail light
assembly and turn clockwise. Fit
light assembly with the retaining
pins into the recesses of the
vehicle body and tighten the
plastic securing nuts from the
inside of the load compartment.
Close cover.

Vehicle care241Sports Tourer/Country Tourer

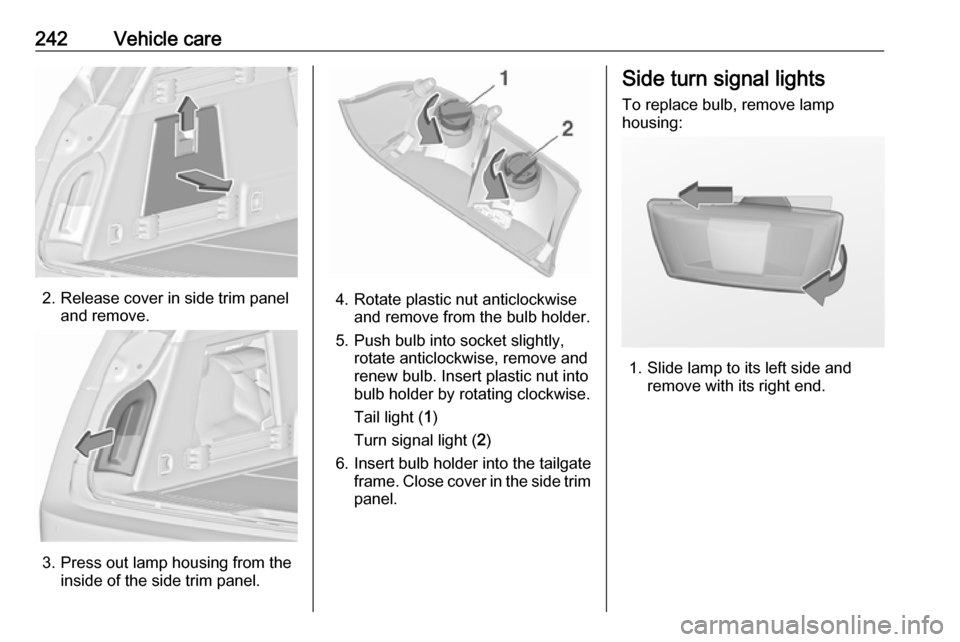

1.Release and open the cover in the
tailgate.
2. Unscrew three plastic securing nuts by hand.
3. Carefully withdraw the lightassembly from the recesses and
remove.
4. Turn bulb holder anticlockwise and remove. Replace bulb by
withdrawing:
Reverse light 1
Turn signal light 2
Tail light, brake light and rear fog
light are designed as LEDs. In
case of failure, have LEDs
replaced by a workshop.
5. Insert bulb holder into the tail light
assembly and turn clockwise. Fit
light assembly with the retaining
pins into the recesses of the
tailgate and tighten the plastic
securing nuts from the inside of
the tailgate. Close cover.
Additional tail lights in the tailgate
frame

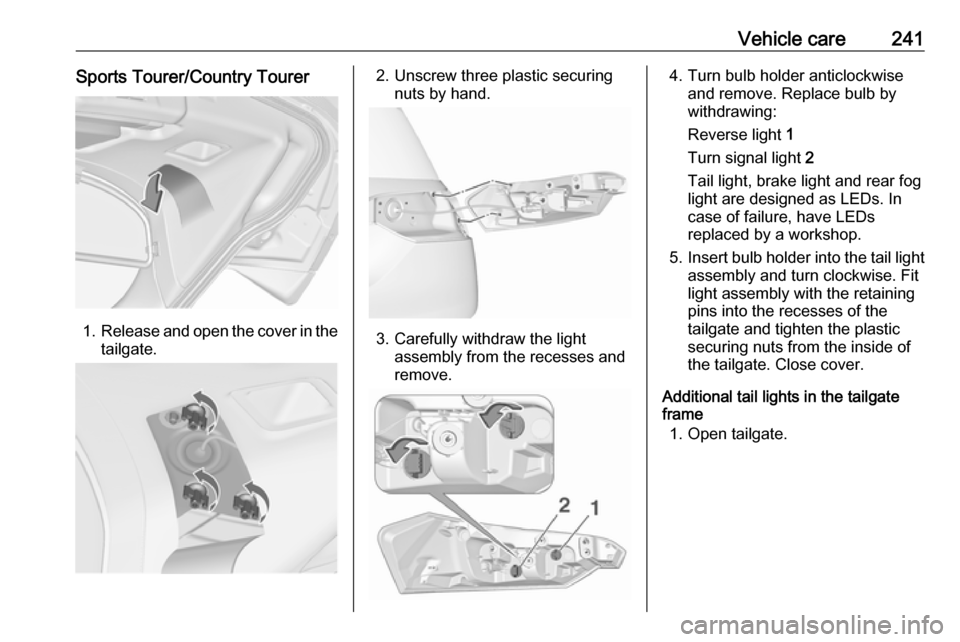

1. Open tailgate.

242Vehicle care
2. Release cover in side trim paneland remove.
3. Press out lamp housing from theinside of the side trim panel.
4. Rotate plastic nut anticlockwiseand remove from the bulb holder.
5. Push bulb into socket slightly, rotate anticlockwise, remove and
renew bulb. Insert plastic nut into
bulb holder by rotating clockwise.
Tail light ( 1)
Turn signal light ( 2)
6. Insert bulb holder into the tailgate frame. Close cover in the side trimpanel.
Side turn signal lights

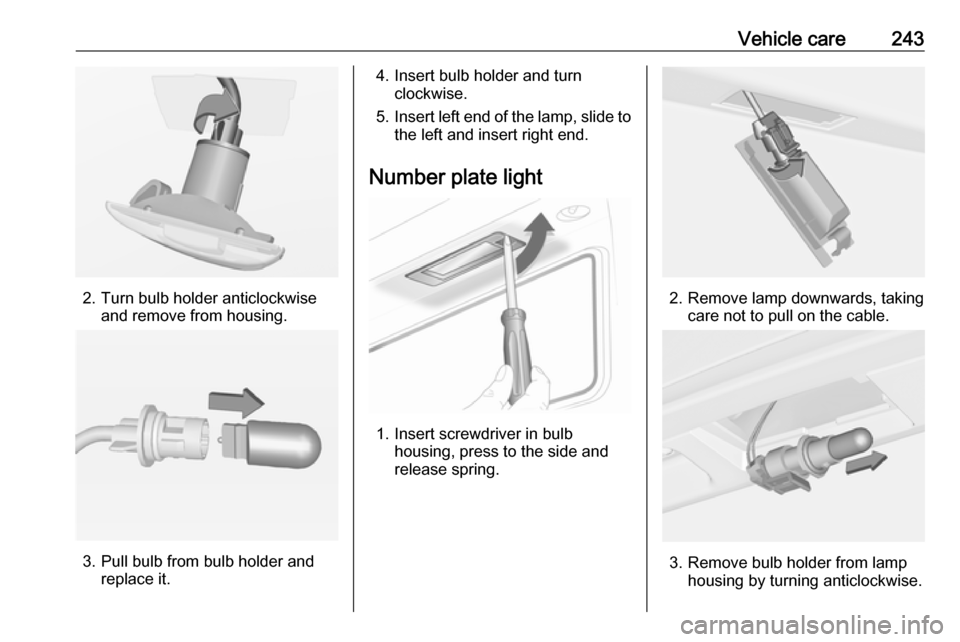

To replace bulb, remove lamp
housing:
1. Slide lamp to its left side and remove with its right end.

Vehicle care243
2. Turn bulb holder anticlockwiseand remove from housing.
3. Pull bulb from bulb holder andreplace it.
4. Insert bulb holder and turnclockwise.
5. Insert left end of the lamp, slide to
the left and insert right end.
Number plate light
1. Insert screwdriver in bulb housing, press to the side and
release spring.
2. Remove lamp downwards, taking care not to pull on the cable.
3. Remove bulb holder from lamphousing by turning anticlockwise.

244Vehicle care4. Pull bulb from bulb holder andreplace it.
5. Insert bulb holder into lamp housing and turn clockwise.
6. Insert lamp into bumper and let engage.
Interior lights Courtesy light, reading lights
Have bulbs replaced by a workshop.
Load compartment light
1. Prise the lamp out with a screwdriver.
2.Press bulb slightly towards spring
clip and remove.
3. Insert new bulb.
4. Install lamp.
Instrument panel illumination
Have bulbs replaced by a workshop.
Electrical system
Fuses Data on the replacement fuse must
match the data on the defective fuse.
There may be up to three fuse boxes
in the vehicle:
● in the front left of the engine compartment
● on the left side of the instrument panel
● behind a cover on the left side of the load compartment
Depending on the vehicle equipment
the configuration of fuses in the fuse
boxes are different, indicated by type
A and type B in the tables.
Type A means all 5-door hatchback
and 4-door saloon variants, and also
Sports Tourer or Country Tourer with
power tailgate or trailer hitch or rear
power outlets.
Type B means Sports Tourer or
Country Tourer without power
tailgate, without trailer hitch and
without rear power outlets.

Vehicle care245Before replacing a fuse, turn off the
respective switch and the ignition.
There are different kinds of fuses in
the vehicle.
Depending on the type of fuse, a
blown fuse can be recognized by its
melted wire. Do not replace the fuse until the cause of the fault has been
remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without existence of a function.
Fuse extractorA fuse extractor may be located in the
fuse box in the engine compartment.
Place the fuse extractor on the
various types of fuse from the top or
side, and withdraw fuse.

246Vehicle careEngine compartment fuse
box
The fuse box is in the front left of the
engine compartment.
Disengage the cover, lift it upwards
and remove.
No.Circuit1Transmission control module2Engine control module3–4–5Ignition/Transmission control
module/Engine control module6Windscreen wiper7–8Fuel injection/Ignition system9Fuel injection/Ignition system10Engine control module11Lambda probe12Starter13Sensor throttle heating14Lighting15Rear window wiper

Vehicle care247No.Circuit16Vacuum pump/Mass air flow
meter/Water in fuel sensor/DC
transformer17Additional tail lights (type B)18Adaptive forward lighting19Adaptive forward lighting20Fuel pump21Rear power windows22ABS23Variable effort steering24Front power windows25Power outlets (type A)
Additional tail lights (type B)26ABS27Electric parking brake28Heated rear window29Left power seat30Right power seatNo.Circuit31Air conditioning system32Body control module33Heated front seats34Sunroof (type A)
Tailgate locking (type B)35Infotainment system (type A)
Tailgate locking (type B)36–37Right high beam38Left high beam39–40–41Vacuum pump42Radiator fan43Vehicle battery/DC transformer
(only on vehicles with stop-start
system)44Headlamp washer systemNo.Circuit45Radiator fan46Terminal 87/Main relay47Lambda probe48Fog lights49Right low beam50Left low beam51Horn52Ignition53Ignition/Ventilated front seats54Ignition55Power windows/Mirror folding56Windscreen washer57–58–59Diesel fuel heating/Emission
control system60Mirror heating61Mirror heating

248Vehicle careNo.Circuit62Heated steering wheel (only
vehicles without load compart‐
ment fuse box)63Rear window sensor64Adaptive forward lighting65Auxiliary pump (only on vehicles with stop-start system)66Rear window washer system67Fuel system control module68–69Vehicle battery sensor70Rain sensor71Vehicle battery sensor
After changing of defective fuses,
close the fuse box cover and press
until it engages.
If the fuse box cover is not closed
correctly, malfunctions may occur.
Instrument panel fuse box
In left-hand drive vehicles, the fuse
box is behind the storage
compartment in the instrument panel.
Open compartment, compress the
locking tabs, fold compartment down and remove.
In right-hand drive vehicles, the fuse
box is located behind a cover in the
glovebox. Open the glovebox and
remove the cover.
