Storage79Lift cover at the rear.
Remove the cover.
Fitting cover
Engage cover in side guides and fold
downwards. Attach the retaining
straps to the tailgate.
Sports Tourer, Country Tourer
Closing roller blind
Pull the roller blind using the handle
towards the rear and upwards until it
engages in the sideward retainers.
Opening roller blindPull the roller blind handle to the rear
and downwards. It rolls up
automatically.
Opening roller blind in load position
Press the roller blind handle.
The rear of the roller blind is guided
upwards automatically.
Removing roller blind
Open the roller blind.
Pull the release lever on the right side
up an hold it. Lift the roller blind first
on the right side and remove from retrainers.
Installing roller blind
Insert the left side of the roller blind in
recess, then pull release lever up.
Hold and insert the right side of the roller blind in recess and engage.

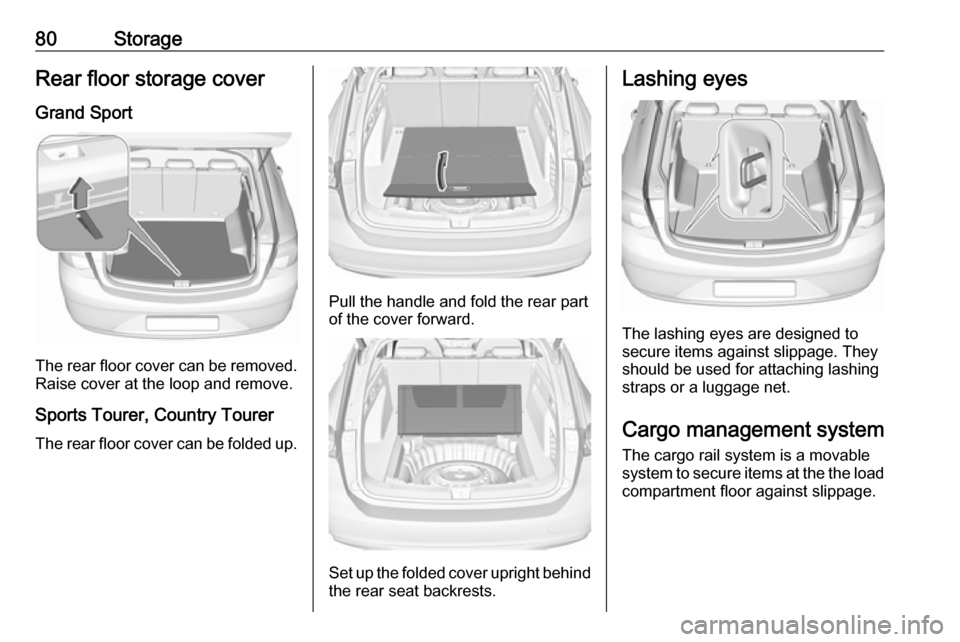

80StorageRear floor storage coverGrand Sport
The rear floor cover can be removed.
Raise cover at the loop and remove.
Sports Tourer, Country Tourer
The rear floor cover can be folded up.
Pull the handle and fold the rear part
of the cover forward.
Set up the folded cover upright behind the rear seat backrests.
Lashing eyes
The lashing eyes are designed to
secure items against slippage. They should be used for attaching lashing
straps or a luggage net.
Cargo management system The cargo rail system is a movable
system to secure items at the the load
compartment floor against slippage.

Storage81Mounting carriages in the rail
Insert carriages into the rails at the
load compartment floor. Thereby use
the recess in the rail and press the
button on the carriage while inserting
it.
Using the lashing eyes
Press the button on a carriage and
slide it to the required position. Fold out the lashing eyes to use them.
Removing
Retract the lashing eyes. Press the
button of a carriage and remove it
from the rail through the recess.
Safety net
The safety net can be installed behind the rear seats. If the rear seat
backrests are folded, the safety net
can be installed behind the front
seats.
Passengers must not be transported
behind the safety net.
Installation
Behind the rear seats
● Insert the cassette into retainers on left and right side. Note the
signs L (left side) and R (right
side) on the cassette as an
installation hint.
Turn cassette slightly forward until the arrows face each other,
to lock the cassette.

82Storage
● Pull holding rod out of cassette.Suspend and engage holding rod
into an installation opening on
one side of the roof frame.
Compress rod and suspend and engage at the other side.
Remove load compartment cover
3 78.
Behind the front seats
● Suspend and engage holding rod
into installation opening on one
side of the roof frame. Compress rod, suspend and engage at the
other side. Pull holding rod out of
cassette.
● Attach hooks of safety net cassette to lashing eyes in the
floor in front of rear seats. To get access to the lashing eyes, push
hooks in the perforated parts in
the floor cover on both sides.
● Tension both straps by pulling at the loose end.
● Push down head restraints and fold down rear seat backrests
3 75.

Storage83RemovalBehind the rear seats ● Remove and compress one side of holding rod from installation
opening. Remove other side of
holding rod from installation
opening.
● Roll up safety net.
● Turn cassette slightly backwards to unlock and remove from
retainers.
Behind the front seats
● Pull the flap at the tightener on both sides to release the straps.
● Remove and compress one side of holding rod from installation
opening. Remove other side of
holding rod from installation
opening.
● Roll up safety net.
● Detach hooks from the lashing eyes.
Warning triangle
Grand Sport
Stow the warning triangle in the
recess at the rear of the load
compartment.

84StorageSports Tourer, Country Tourer
Stow the warning triangle on the
tailgate inner panelling and secure it with the straps.
First aid kit
Grand Sport
Stow the first aid kit on the right side
of the load compartment and secure it with the strap.
Sports Tourer, Country Tourer
Stow the first aid kit on the tailgate
inner panelling and secure it with the straps.

Storage85Roof rack system
Roof rack For safety reasons and to avoiddamage to the roof, the vehicle
approved roof rack system is
recommended. For further
information, contact your workshop.
Mounting roof rack
Grand Sport
Open all doors.
Mounting points are located in each
door frame of the vehicle body.
Fasten the roof rack according to the installation instructions delivered with the roof rack.
Remove the roof rack when not in use.
Sports Tourer, Country Tourer
Mounting points are located in both
roof railings.
Fasten the roof rack on the first two
mounting points according to the
installation instructions delivered with the roof rack.
Remove the roof rack when not in
use.
Loading information
● Heavy objects in the load compartment should be placed
against the seat backrests. Make
sure that the backrests are
securely engaged, i.e. no longer
showing the red markings behind
the release levers. If objects can
be stacked, heavier objects
should be placed at the bottom.
● Prevent sliding of loose objects by securing them with straps
attached to the lashing eyes
3 80.

86Storage● Do not allow the load to protrudeabove the upper edge of the
backrests.
● Do not place any objects on the load compartment cover or theinstrument panel, and do notcover the sensor on top of the
instrument panel.
● The load must not obstruct the operation of the pedals, parking
brake and gear selector, or
hinder the freedom of movement
of the driver. Do not place any
unsecured objects in the interior.
● Do not drive with an open load compartment.9Warning
Always ensure that the load in the
vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or vehicle.
● The payload is the difference between the permitted grossvehicle weight (see identification
plate 3 279) and the EC kerb
weight.
To calculate the payload, enter the data for your vehicle in the
weights table at the front of this
manual.
The EC kerb weight includes
weights for the driver (68 kg),
luggage (7 kg) and all fluids (fuel
tank 90% full).
Optional equipment and
accessories increase the kerb
weight.
● Driving with a roof load increases
the sensitivity of the vehicle to
cross-winds and has a
detrimental effect on vehicle
handling due to the vehicle's
higher centre of gravity.
Distribute the load evenly and secure it properly with retaining
straps. Adjust the tyre pressure
and vehicle speed according to
the load conditions. Check and
retighten the straps frequently.
Do not drive faster than 75 mph.
The permissible roof load is
100 kg. The roof load is thecombined weight of the roof rack and the load.
