Page 13 of 237

In brief11
1Power windows .....................30
2 Exterior mirrors .....................28
3 Cruise control .....................147
4 Side air vents ...................... 129
5 Turn and lane-change
signals, headlight flash,
low beam and high beam ...117
Exit lighting ......................... 120
Parking lights ...................... 118
Driver Information Centre ...... 99
6 Instruments .......................... 88
7 Steering wheel controls .......81
8 Driver Information Centre ...... 99
9 Windscreen wiper,
windscreen washer
system, rear wiper, rear
washer system .....................83
10 Centre air vents .................. 129
11 Central locking system ..........21
Hazard warning flashers ....117
Control indicator for airbag
deactivation .......................... 94
12 Info-Display ......................... 10113Sensor for electronic
climate control system .......124
14 Glovebox .............................. 61
Fuse box ............................ 185
15 Traction Control system .....145
Electronic Stability Control . 146
Ultrasonic parking assist ....148
Eco button ........................... 135
Fuel selector ......................... 90
16 Climate control system ........ 122
17 Selector lever, manual
transmission ....................... 142
Automatic transmission ......139
18 Electrical parking brake ......144
19 Ignition switch with
steering wheel lock ............133
20 Horn ..................................... 82
Driver airbag ........................ 51
21 Bonnet release lever ..........166
22 Storage compartment ...........61
23 Steering wheel adjustment ..8124 Light switch ........................ 113
Headlight range
adjustment ......................... 115
Front fog lights ...................117
Rear fog light ...................... 118
Instrument illumination .......119
Page 16 of 237

14In briefWasher and wiper systems
Windscreen wiper2=fast1=slowP=interval wiping or automatic wiping with rain sensor§=off
For a single wipe when the
windscreen wiper is off, press the
lever down.
Windscreen wiper 3 83, Wiper
blade replacement 3 171.
Windscreen washer system
Pull lever.
Windscreen washer system 3 83,
Washer fluid 3 168.
Rear window wiper and washer
systems
Press the rocker switch to activate the
rear window wiper:
upper position=short intervallower position=long intervalmiddle position=off
Page 26 of 237

24Keys, doors and windowsAutomatic locking
Automatic locking after driving
off The vehicle is locked automaticallywhen exceeding a speed of 2 mph.
Opening from outside is not possible.
Additionally, opening of the rear
doors from inside is not possible
when the vehicle speed is above
2 mph.
Green LEDs indicate that opening
from inside is possible:
Hold the inner rear door handle to
activate the proximity sensor and
then pull the handle.
When the vehicle speed is below
2 mph, opening of the doors from
outside is possible after:
■ opening any door from inside
■ pressing the central locking button cCaution
Automatic locking is only active
with ignition on.
Fault in the automatic locking system
In case of a system fault, control
indicator ^ illuminates in the
instrument cluster and a warning
chime sounds to indicate that the rear
doors are not secured against
opening. Inform passengers to keep
clear of the door handles.
Stop immediately and activate the
child lock in both rear doors. If the
child lock is already activated, first
deactivate and then activate again.
The green LEDs will extinguish and
the warning chime will stop as soon
as both child locks are activated. Pull the inner rear door handles to check
if the doors are locked from inside.
Consult a workshop.
Automatic relock after unlocking A short time after unlocking with the
remote control, all doors, load
compartment and fuel filler flap are
locked automatically, provided that no
door has been opened.
Child locks
Page 32 of 237

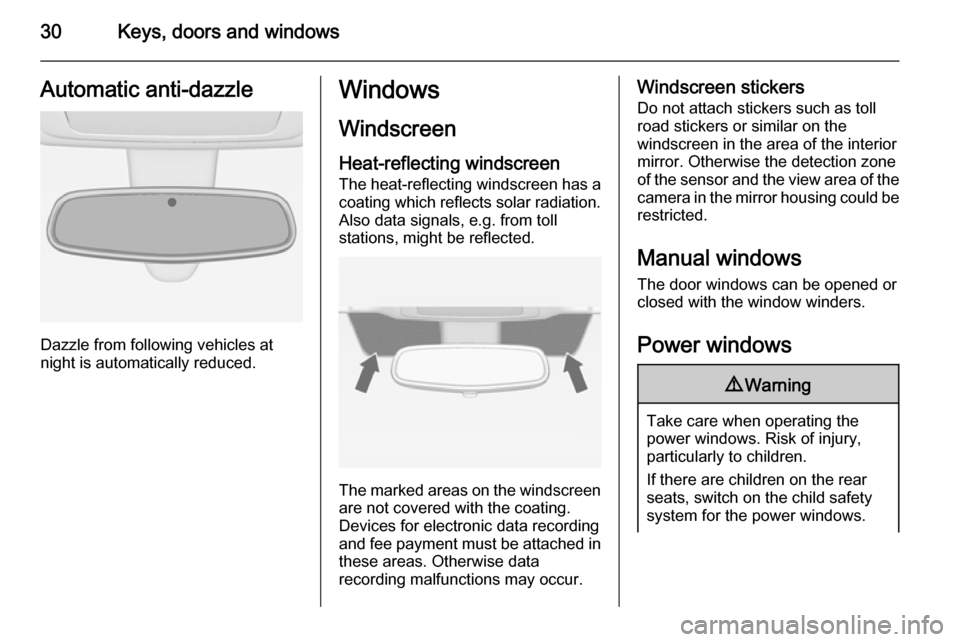

30Keys, doors and windowsAutomatic anti-dazzle
Dazzle from following vehicles at
night is automatically reduced.
Windows
Windscreen
Heat-reflecting windscreen
The heat-reflecting windscreen has a
coating which reflects solar radiation. Also data signals, e.g. from toll
stations, might be reflected.
The marked areas on the windscreen are not covered with the coating.
Devices for electronic data recording
and fee payment must be attached in
these areas. Otherwise data
recording malfunctions may occur.
Windscreen stickers
Do not attach stickers such as toll
road stickers or similar on the
windscreen in the area of the interior
mirror. Otherwise the detection zone
of the sensor and the view area of the camera in the mirror housing could be restricted.
Manual windows The door windows can be opened or
closed with the window winders.
Power windows9 Warning
Take care when operating the
power windows. Risk of injury,
particularly to children.
If there are children on the rear seats, switch on the child safety
system for the power windows.
Page 82 of 237

80Storage
■ Use the hook at the left sidewall ofthe load compartment for hanging
up carrier bags. Pull out the hook.
Maximum load: 3 kg.
■ Secure loose objects in the load compartment to prevent them from
sliding.
■ When transporting objects in the load compartment, the backrests of
the rear seats must not be angled
forward.
■ Do not allow the load to protrude above the upper edge of the
backrests.
■ Do not place any objects on the load compartment cover or the
instrument panel, and do not cover
the sensor on top of the instrument panel.
■ The load must not obstruct the operation of the pedals, parking
brake and gear selector, or hinder
the freedom of movement of the
driver. Do not place any unsecured objects in the interior.
■ Do not drive with an open load compartment.9 Warning
Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or vehicle.
■ The payload is the difference between the permitted gross
vehicle weight (see identification
plate 3 211) and the EC kerb
weight.
To calculate the payload, enter the
data for your vehicle in the Weights
table at the front of this manual.
The EC kerb weight includes
weights for the driver (68 kg),
luggage (7 kg) and all fluids (tank
90 % full).
Optional equipment and
accessories increase the kerb
weight.
■ Driving with a roof load increases the sensitivity of the vehicle to
cross-winds and has a detrimental
effect on vehicle handling due to
the vehicle's higher centre of
gravity. Distribute the load evenly
and secure it properly with retaining
straps. Adjust the tyre pressure and vehicle speed according to the load
conditions. Check and retighten the straps frequently.
Do not drive faster than 75 mph.
The permissible roof load is 60 kg. The roof load is the combined
weight of the roof rack and the load.
Page 85 of 237

Instruments and controls83Windscreen wiper/washerWindscreen wiper2=fast1=slowP=interval wiping§=off
For a single wipe when the
windscreen wiper is off, press the
lever down.
Do not use if the windscreen is frozen.
Switch off in car washes.
Adjustable wiper interval
Wiper lever in position P.
Turn the adjuster wheel to adjust the
desired wipe interval:
short
interval=turn adjuster wheel
upwardslong
interval=turn adjuster wheel
downwardsAutomatic wiping with rain sensorP=automatic wiping with rain
sensor
The rain sensor detects the amount of water on the windscreen and
automatically regulates the frequency
of the windscreen wiper.
Page 86 of 237

84Instruments and controls
Adjustable sensitivity of the rain
sensor
Turn the adjuster wheel to adjust the
sensitivity:
low
sensi‐
tivity=turn adjuster wheel
downwardshigh
sensi‐
tivity=turn adjuster wheel
upwards
Keep the sensor free from dust, dirt
and ice.
Windscreen washer
Pull lever. Washer fluid is sprayed
onto the windscreen and the wiper
wipes a few times.
Rear window wiper/washer
Press the rocker switch to activate the
rear window wiper:
upper position=short intervallower position=long intervalmiddle position=off
Page 98 of 237

96Instruments and controlsUpshift[ illuminates green or is shown as a
symbol in the Driver Information
Centre with Uplevel-Display when
upshifting is recommended for fuel
saving reasons.
Variable effort steering
c illuminates yellow.
Fault in variable effort steering
system. This may lead to a higher or
lower steering effort. Consult a
workshop.
Stop-start system 3 135.
Ultrasonic parking assist r illuminates yellow.
Fault in system
or
Fault due to sensors that are dirty or covered by ice or snow
orInterference due to external sources of ultrasound. Once the source ofinterference is removed, the system
will operate normally.
Have the cause of the fault in the
system remedied by a workshop.
Ultrasonic parking assist 3 148.
Electronic Stability Control
off
n illuminates yellow.
The system is deactivated.
Electronic Stability Control
and Traction Control
system
b illuminates or flashes yellow.
Illuminates A fault in the system is present.
Continued driving is possible. Driving
stability, however, may deteriorate
depending on road surface
conditions.Have the cause of the fault remedied by a workshop.
Flashes
The system is actively engaged.
Engine output may be reduced and
the vehicle may be braked
automatically to a small degree.
Electronic Stability Control 3 146,
Traction Control system 3 145.
Traction Control system off
k illuminates yellow.
The system is deactivated.
Preheating ! illuminates yellow.
Preheating is activated. Only
activates when outside temperature
is low.
Diesel particle filter
% illuminates or flashes yellow.
The diesel particle filter requires
cleaning.
Page 107 of 237

Instruments and controls105
No.Vehicle message55Diesel particle filter is full
3 13756Tyre pressure imbalance on
front axle57Tyre pressure imbalance on
rear axle58Tyres without TPMS sensors
detected59Open and then close driver
window60Open and then close front
passenger window61Open and then close rear left
window62Open and then close rear right
window65Theft attempted66Service theft alarm system67Service steering wheel lock68Service power steeringNo.Vehicle message69Service suspension system70Service level control system71Service rear axle74Service AFL75Service air conditioning76Service side blind zone alert
system79Top up engine oil81Service transmission82Change engine oil soon83Service adaptive cruise control84Engine power is reduced89Service vehicle soon94Shift to park before exiting95Service airbag128Bonnet open134Park assist fault, clean bumperNo.Vehicle message136Service parking assist174Low vehicle battery258Park assist off
Vehicle messages on the
Uplevel-Display
The vehicle messages are displayed
as text. Follow the instructions given
in the messages.
Page 114 of 237

112Instruments and controls
Personalisation by Driver:
Activates or deactivates the
personalisation function.
Auto Reverse Gear Wiper :
Activates or deactivates
automatically switching on of the
rear window wiper when reverse gear is engaged.
■ Collision Detection Systems
Park Assist : Activates or
deactivates the ultrasonic sensors.
■ Lighting
Vehicle Locator Lights : Activates or
deactivates the entry lighting.
Exit Lighting : Activates or
deactivates and changes the
duration of exit lighting.
■ Remote Lock/Unlock/Start
Remote Door Unlock : Changes the
configuration to unlock only the
driver's door or the whole vehicle
whilst unlocking.
■ Return to Factory Settings? :
Resets all settings to the default settings.
