VAUXHALL MOVANO_B 2014 Owner's Guide

Keys, doors and windows29
Activation without monitoring of
vehicle inclination
Additionally, disable monitoring of
vehicle inclination because of high
volume ultrasonic signals or
movements triggering the alarm, e.g.
when the vehicle is on a ferry or train:
Switch ignition on and off three times
in quick succession, then close doors and activate the anti-theft alarm
system.
An audible signal will sound as
confirmation.
The status will remain until the doors
are unlocked.
Alarm
When triggered, the alarm sounds via a separate battery-backed power
sounder, and the hazard warning
lights flash simultaneously. The
number and duration of alarm signals
are stipulated by legislation.
If the vehicle battery is disconnected
or its power supply is interrupted, the
alarm siren will be triggered. Firstdeactivate the anti-theft alarm system if the vehicle battery must be
disconnected.
To silence the alarm siren (if
triggered) and therefore deactivate
the anti-theft alarm system, reconnect vehicle battery and unlock vehicle
with remote control button c (or
switch on the ignition).
Immobiliser
The system is part of the ignition
switch and checks whether the
vehicle is allowed to be started with
the key being used.
The immobiliser is activated
automatically after the key has been removed from the ignition switch and
also if the key is left in the ignition
switch when the engine is turned off.
If the engine cannot be started, switch off the ignition and remove key, wait
approx. 2 seconds and then repeat
the start attempt.If start attempt is
unsuccessful, attempt to start the
engine using the spare key and seek
the assistance of a workshop.Notice
The immobiliser does not lock the
doors. You should always lock the
vehicle after leaving it and switch on the anti-theft alarm system 3 19,
3 27.

30Keys, doors and windowsExterior mirrors
Convex shape
The convex exterior mirror contains
an aspherical area and reduces blind spots. The shape of the mirror makes
objects appear smaller, which will
affect the ability to estimate
distances.
Manual adjustment
Adjust mirrors by swivelling in
required direction.
The lower mirrors are not adjustable.
Electric adjustment
Select the relevant exterior mirror by
switching the control to the left or
right, then swivel the control to adjust
the mirror.
No mirror is selected when the control is in the centre position.
The lower mirrors are not adjustable.
Folding mirrors
For pedestrian safety, the exterior
mirrors will swing out of their normal
mounting position if they are struck
with sufficient force. Reposition the mirror by applying slight pressure tothe mirror housing.

Keys, doors and windows31Heated mirrors
Operated by pressing the Ü button
on either system.
Heating works with the engine
running and is switched off
automatically after a short time.
Climate control system 3 94.
Electronic climate control system 3 96.Interior mirrors
Manual anti-dazzle
To reduce dazzle, adjust the lever on the underside of the mirror housing.

32Keys, doors and windowsWindows
Manual windows
The door windows can be opened or
closed with the window winders.
Power windows9 Warning
Take care when operating the
power windows. Risk of injury,
particularly to children.
Keep a close watch on the
windows when closing them.
Ensure that nothing becomes
trapped in them as they move.
Switch on ignition to operate power
windows.
Operate the switch for the respective
window by pushing to open or pulling to close.
For vehicles with automatic feature
for the driver's door window; when
opening pull or press the switch again
to stop window movement.
In the event of closing difficulties due
to frost or the like, operate the switch
several times to close the window in
stages.
Overload
If the windows are repeatedly
operated within short intervals, the
window operation is disabled for
some time.
Rear windows
Sliding side windows
Press catch and slide window to
open. Ensure catch engages when
closing.

Keys, doors and windows33
Press catch and slide window to
open. Ensure catch engages when
closing.
Opening side windows
Pull handle to open window.
Emergency exit
To provide an emergency exit from
the vehicle, use hammer 1 to strike
glass 2.
Heated rear window
Operated by pressing the Ü button
on either system.

34Keys, doors and windows
Heating works with the engine
running and is switched off
automatically after a short time.
Climate control system 3 94.
Electronic climate control system 3 96.
Sun visors The sun visors can be folded down orswivelled to the side to prevent
dazzling.
If the sun visors have integral mirrors, the mirror covers should be closed
when driving.
Sun visors also feature a holder for
parking tickets etc.Roof
Glass panel
Emergency exit
In an emergency, the glass can be
broken. Use the hammer to break the
glass panel 3 32.

Seats, restraints35Seats, restraintsHead restraints............................ 35
Front seats ................................... 36
Rear seats ................................... 41
Seat belts ..................................... 43
Airbag system .............................. 45
Child restraints ............................. 51Head restraints
Position9 Warning
Only drive with the head restraint
set to the proper position.
The upper edge of the head restraint
should be at upper head level.If this is not possible for extremely tall people,
set to highest position, and set to
lowest position for small people.
Height adjustment
Pull up to raise or press the catch and
lower head restraint.Ensure the head
restraint engages.
Notice
Approved accessories may only be
attached to the front passenger seat head restraint if the seat is not in use.

36Seats, restraints
Removal
Press both catches, pull the head
restraint upwards and remove.
Stow head restraints securely in load
compartment.Do not drive with head
restraints removed if the seat is
occupied.
Front seats
Seat position9 Warning
Only drive with the seat correctly
adjusted.
■ Sit with buttocks as far back against
the backrest as possible. Adjust the distance between the seat and the
pedals so that legs are slightly
angled when pressing the pedals.
Slide the front passenger seat as
far back as possible.
■ Sit with shoulders as far back against the backrest as possible.
Set the backrest rake so that it is possible to reach the steering
wheel with arms slightly bent.
Maintain contact between
shoulders and the backrest when
turning the steering wheel. Do not
angle the backrest too far back. We recommend a maximum rake of
approx. 25°.
■ Adjust the steering wheel 3 68.
■ Set seat height high enough to have a clear field of vision on allsides and of all display instruments.
There should be at least one hand
of clearance between head and the
roof frame. Thighs should rest
lightly on the seat without pressing
into it.
■ Adjust the head restraint 3 35.
■ Adjust the height of the seat belt 3 44.
■ Adjust the lumbar support so that it
supports the natural shape of the
spine 3 37.

Seats, restraints37Seat adjustment9Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
9 Warning
Never adjust seats while driving as
they could move uncontrollably.
Seat positioning
Pull handle, slide seat, release
handle.
Suspension seat positioning
Pull handle, slide seat, release
handle.

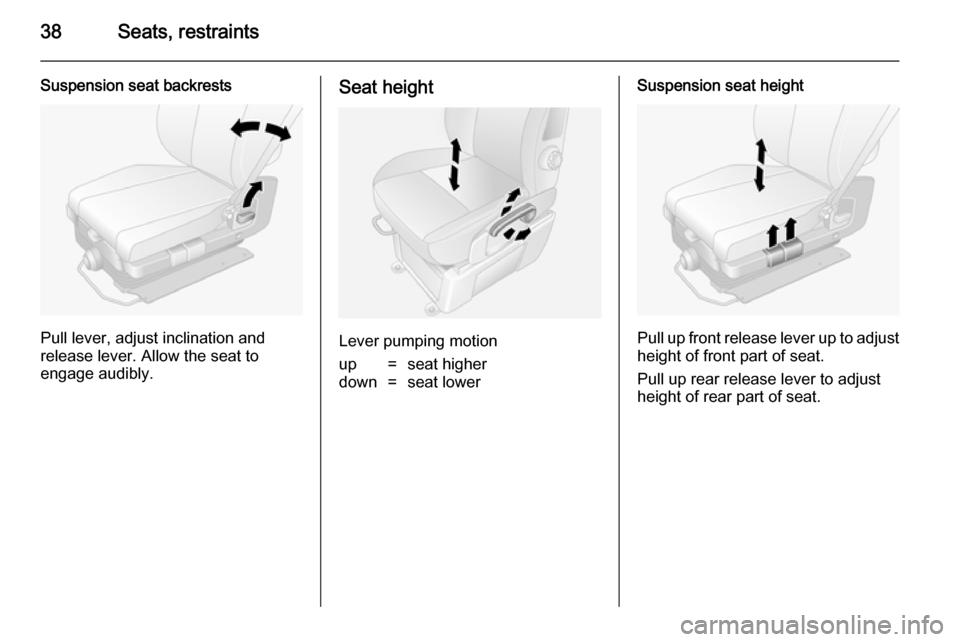

Seat backrests
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.

38Seats, restraints
Suspension seat backrests
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat height
Lever pumping motion
up=seat higherdown=seat lowerSuspension seat height
Pull up front release lever up to adjust height of front part of seat.
Pull up rear release lever to adjust height of rear part of seat.
