VAUXHALL MOVANO_B 2014 Owner's Guide

Keys, doors and windows19
Handle with care, protect it from
moisture and high temperatures and
avoid unnecessary operation.
Fault If the central locking system cannot
be operated with the remote control,
it may be due to the following:
■ Range exceeded.
■ Battery voltage too low.
■ Frequent, repeated operation of the
remote control while not in range,
which will require reprogramming
by a workshop.
■ Interference from higher-power radio waves from other sources.
Unlocking 3 19.

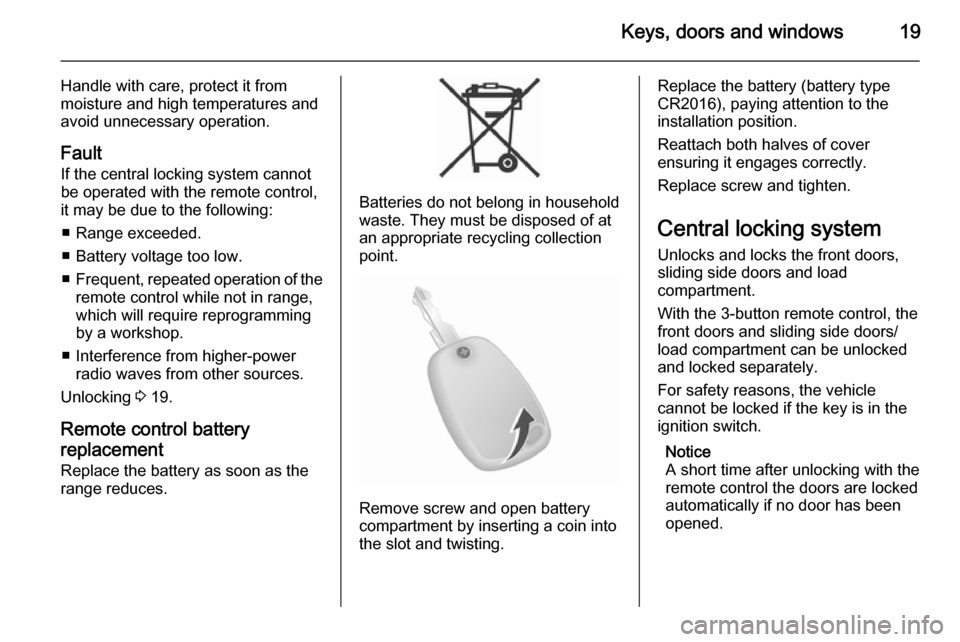

Remote control battery
replacement
Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Remove screw and open battery
compartment by inserting a coin into
the slot and twisting.
Replace the battery (battery type
CR2016), paying attention to the
installation position.
Reattach both halves of cover
ensuring it engages correctly.
Replace screw and tighten.
Central locking system Unlocks and locks the front doors,
sliding side doors and load
compartment.
With the 3-button remote control, the
front doors and sliding side doors/
load compartment can be unlocked
and locked separately.
For safety reasons, the vehicle
cannot be locked if the key is in the
ignition switch.
Notice
A short time after unlocking with the
remote control the doors are locked
automatically if no door has been
opened.

20Keys, doors and windows
Unlocking the vehicle

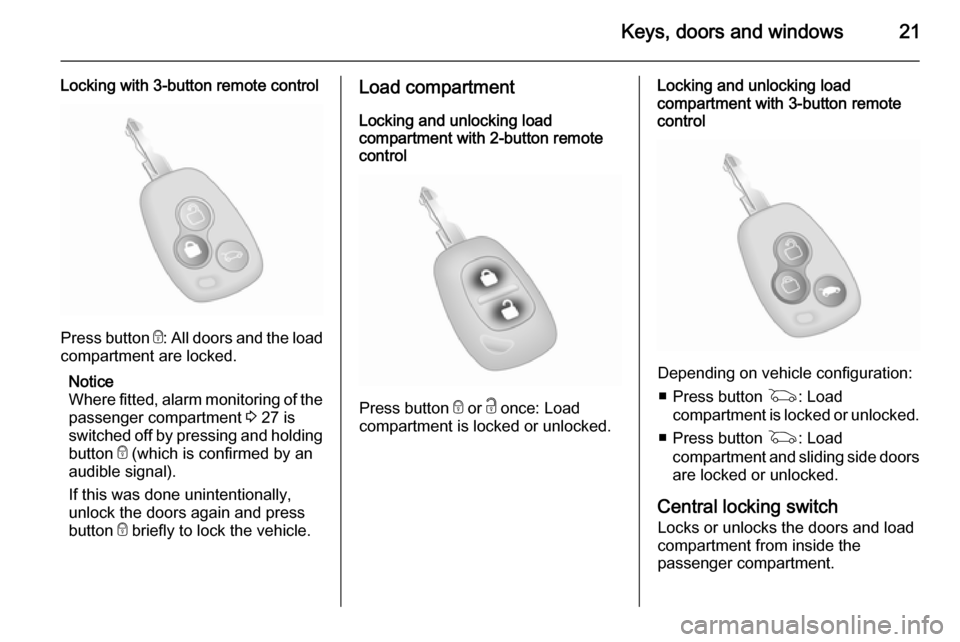

Unlocking with 2-button remote
control
Press button c: All doors and the load
compartment are unlocked.
Unlocking with 3-button remote
control
Depending on vehicle configuration:
■ Press button c: Front doors are
unlocked.
Press c again: Sliding side doors
and the load compartment are also
unlocked.
■ Press button c: All doors and the
load compartment are unlocked.
If no door is opened within approx. 2 minutes after the vehicle has been
unlocked, the vehicle is re-locked
automatically.

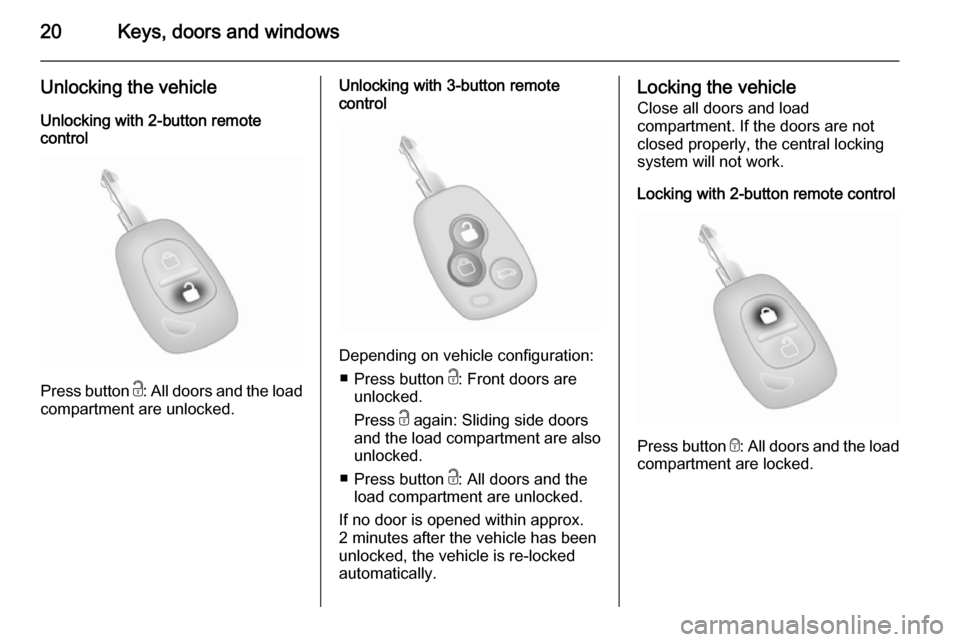

Locking the vehicle
Close all doors and load
compartment. If the doors are not
closed properly, the central locking
system will not work.
Locking with 2-button remote control
Press button e: All doors and the load
compartment are locked.

Keys, doors and windows21
Locking with 3-button remote control
Press button e: All doors and the load
compartment are locked.
Notice
Where fitted, alarm monitoring of the passenger compartment 3 27 is
switched off by pressing and holding
button e (which is confirmed by an
audible signal).
If this was done unintentionally,
unlock the doors again and press
button e briefly to lock the vehicle.

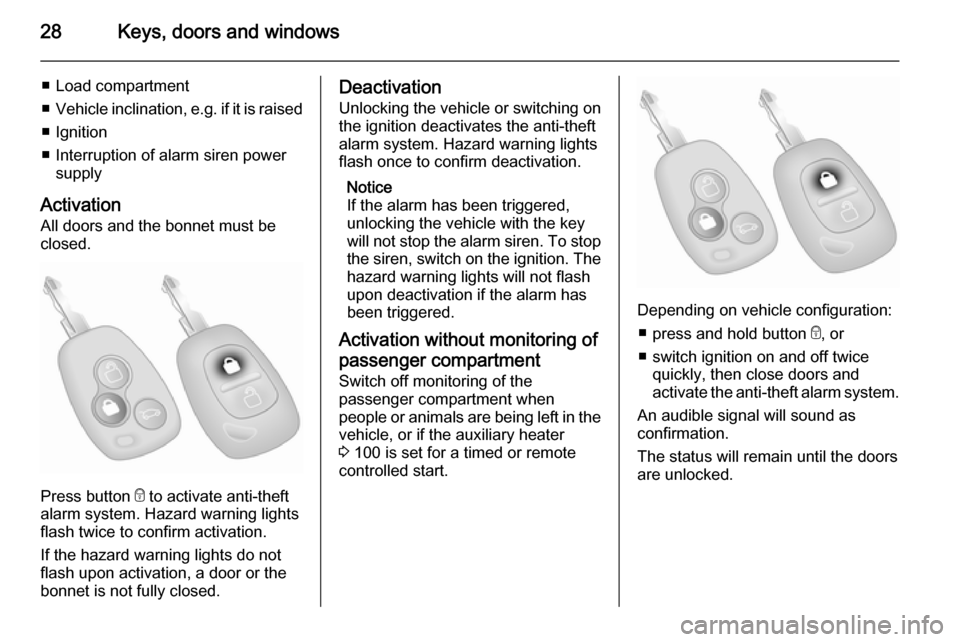

Load compartment
Locking and unlocking load
compartment with 2-button remote
control
Press button e or c once: Load
compartment is locked or unlocked.
Locking and unlocking load
compartment with 3-button remote
control
Depending on vehicle configuration:
■ Press button G: Load
compartment is locked or unlocked.
■ Press button G: Load
compartment and sliding side doors
are locked or unlocked.

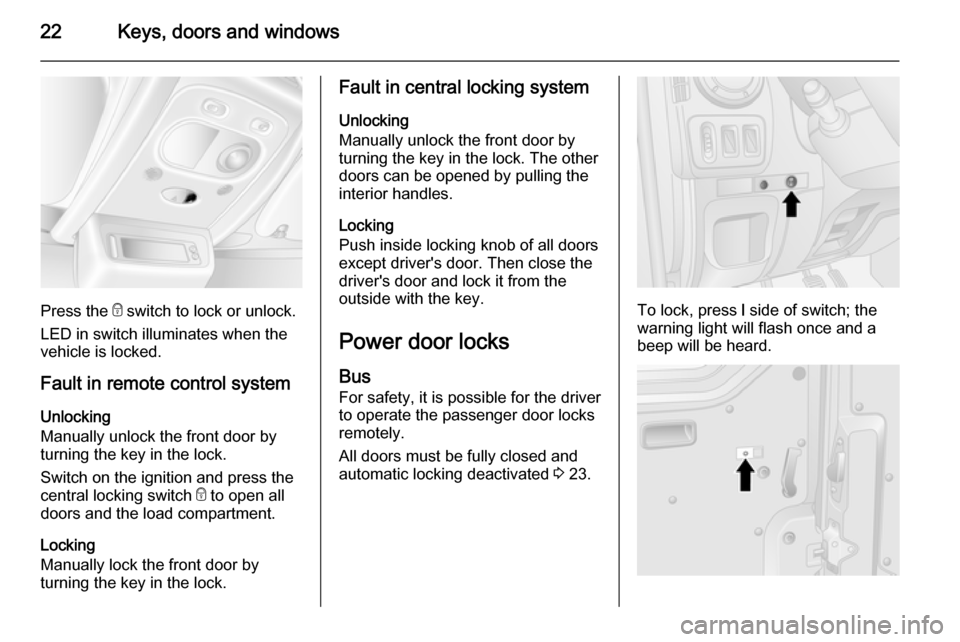

Central locking switch Locks or unlocks the doors and loadcompartment from inside the
passenger compartment.

22Keys, doors and windows
Press the e switch to lock or unlock.
LED in switch illuminates when the vehicle is locked.
Fault in remote control system
Unlocking
Manually unlock the front door by
turning the key in the lock.
Switch on the ignition and press the
central locking switch e to open all
doors and the load compartment.
Locking
Manually lock the front door by
turning the key in the lock.
Fault in central locking system
Unlocking
Manually unlock the front door by turning the key in the lock. The other
doors can be opened by pulling the
interior handles.
Locking
Push inside locking knob of all doors
except driver's door. Then close the
driver's door and lock it from the
outside with the key.
Power door locks
Bus For safety, it is possible for the driver
to operate the passenger door locks
remotely.
All doors must be fully closed and
automatic locking deactivated 3 23.
To lock, press l side of switch; the
warning light will flash once and a
beep will be heard.

Keys, doors and windows23
Warning lights in the appropriate
doors remain illuminated.
To unlock, press 0 side of switch.
Fault
In the event of a fault in the system,
the warning light alongside the switch remains illuminated and an audiblewarning will sound.
Check the doors are manually
unlocked (interior door lock switches).
If necessary, have the cause of the
fault remedied by a workshop.
Automatic locking
Automatic locking after driving
off This security feature can be
configured to automatically lock all
doors and the load compartment as
soon as the vehicle is driven.
Activation
With the ignition switched on, press
and hold e on the central locking
switch for approx. 5 seconds.An audible signal confirms activation.
Deactivation
With the ignition switched on, press and hold e for approx. 5 seconds.An
audible signal confirms deactivation.
Child locks9 Warning
Use the child locks whenever
children are occupying the rear
seats.
Press down the child lock, door
cannot be opened from the inside.
Raise to deactivate.

24Keys, doors and windowsDoors
Sliding door
Open and close the sliding side door
only when the vehicle is at a standstill with the parking brake applied. On
certain models, a warning chime will
sound when the sliding door is open
and the parking brake is released.
The sliding side door can be locked
from inside the vehicle with the
interior lock switch.
Ensure the side door is fully closed and secure before driving the vehicle.
Power sliding door
Opening
With vehicle at a standstill and the
parking brake applied, press switch
on instrument panel to open the
power sliding door automatically; the
LED in the switch flashes during
operation.
To stop movement at any time, press
the switch again. Press once more to
continue power sliding door
movement.
Closing
Press switch again; the LED flashes
and a chime sounds during operation.
In the event of opening or closing
difficulties, e.g. due to frost, press and
hold the switch to increase power to
the sliding door.9 Warning
Take care when operating the
power sliding door. Risk of injury,
particularly to children.
Take particular care when the
vehicle is parked on a slope: open
or close the door fully until it
latches into its locking position.
Keep a close watch on the moving door when operating. Ensure thatnothing becomes trapped during
operation and no-one is standing
within the moving area.
Notice
Do not operate power sliding door too often without engine running asthis will discharge the vehicle
battery.

Keys, doors and windows25
Emergency exit
In an emergency, the door can be
opened manually after releasing the
interior handle.
Reset
If the door has been opened
manually, the power sliding door
system must be reset: Open the door
halfway, return the handle to its
original position, then press and hold the switch to fully open and fully close the door.
Maintenance
It is the owner's responsibility to have
the drive belt replaced after every
15,000 cycles, and for this purpose a
counter is incorporated in the lower B- pillar. Seek the assistance of a
workshop.
If the drive belt should fail, the door
may still be opened and closed
manually.
Power side step
The power side step operates
automatically when the power sliding
door is opened or closed.
9 Warning
Ensure there is adequate
clearance to allow the power side
step to fully extend and retract
without obstruction.

26Keys, doors and windows
The indicator illuminates during
operation of the power side step. If it
remains illuminated with the door closed, the step has not retracted. In
this event, manually retract the power
side step by pulling the declutching
mechanism located behind the step.
Seek the assistance of a workshop.
Rear doors
To open the right-hand rear door, pull
the outside handle.
The door is opened from inside the
vehicle by pulling the interior handle.The left-hand rear door is released
using the lever.
9 Warning
The rear lights may be obscured if
the rear doors are open and the
vehicle is parked on the roadside.
Make other road users aware of the vehicle, by using a warning
triangle or other equipment
specified in the road traffic
regulations.
The doors are retained in the 90º
position by locking stays.
To open the doors to 180º or further,
release locking stays from the
catches on the door frames and swing doors open to the desired position.

Keys, doors and windows27
When opening the doors to 270º, the
doors are retained in the fully open
position by magnets on the body side.9 Warning
Ensure extended opening doors
are secured when fully opened.
Opened doors may slam closed due to the force of the wind!
When closing the doors, secure each
locking stay to the catch on the door
frame.
Close the left-hand door before the
right-hand door.
Vehicle security
Anti-theft locking system9 Warning
Do not use the system if there are
people in the vehicle! The doorscannot be unlocked from the
inside.
The system deadlocks the doors. All
doors must be closed or the system
cannot be activated.
Notice
The anti-theft locking system cannot be activated when the hazard
warning lights or sidelights are
switched on.
Activation and deactivation are not
possible with the central locking
switch.
Activation
Press button e twice.
Deactivation
Unlock the doors with button c on the
remote control.
Anti-theft alarm system The anti-theft alarm system is
operated in conjunction with the
central locking system.
It monitors:
■ Doors, tailgate, bonnet
■ Passenger compartment

28Keys, doors and windows
■ Load compartment
■ Vehicle inclination, e.g. if it is raised
■ Ignition
■ Interruption of alarm siren power supply
Activation
All doors and the bonnet must be
closed.
Press button e to activate anti-theft
alarm system. Hazard warning lights
flash twice to confirm activation.
If the hazard warning lights do not flash upon activation, a door or the
bonnet is not fully closed.
Deactivation
Unlocking the vehicle or switching on the ignition deactivates the anti-theft
alarm system. Hazard warning lights
flash once to confirm deactivation.
Notice
If the alarm has been triggered,
unlocking the vehicle with the key
will not stop the alarm siren. To stop
the siren, switch on the ignition. The hazard warning lights will not flash
upon deactivation if the alarm has
been triggered.
Activation without monitoring of
passenger compartment
Switch off monitoring of the
passenger compartment when
people or animals are being left in the
vehicle, or if the auxiliary heater
3 100 is set for a timed or remote
controlled start.
Depending on vehicle configuration:
■ press and hold button e, or
■ switch ignition on and off twice quickly, then close doors and
activate the anti-theft alarm system.
An audible signal will sound as
confirmation.
The status will remain until the doors
are unlocked.
