VAUXHALL MOVANO_B 2016.5 Owner's Manual

Vauxhall MovanoOwner's Manual

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............19
Seats, restraints ........................... 39
Storage ........................................ 66
Instruments and controls .............74
Lighting ........................................ 97
Climate control ........................... 105
Driving and operating .................118
Vehicle care ............................... 157
Service and maintenance ..........200
Technical data ........................... 203
Customer information ................227
Index .......................................... 230Contents

2IntroductionIntroduction

Introduction3Vehicle specific dataPlease enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.
Disregarding the description given in
this manual may affect your warranty.When this Owner's Manual refers to a
workshop visit, we recommend your
Vauxhall Authorised Repairer.
All Vauxhall Authorised Repairers
provide first-class service at
reasonable prices. Experienced
mechanics trained by Vauxhall work according to specific Vauxhall
instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ● This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model
variant, country specifications,
special equipment or
accessories.
● The "In brief" section will give you
an initial overview.● The table of contents at the beginning of this manual and
within each section shows where the information is located.
● The index will enable you to search for specific information.
● This Owner's Manual depicts left-
hand drive vehicles. Operation is similar for right-hand drive
vehicles.
● The Owner's Manual uses the factory engine designations. The
corresponding sales
designations can be found in the
section "Technical data".
● Directional data, e.g. left or right, or front or back, always relate to
the direction of travel.
● The vehicle display screens may not support your specific
language.
● Display messages and interior labelling are written in bold
letters.

4IntroductionDanger, Warnings andCautions9 Danger
Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
9 Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".
Page references and index entries
refer to the indented headings given
in the section table of content.
Thank you for choosing a Vauxhall.
We wish you many hours of
pleasurable driving.
Your Vauxhall Team

Introduction5

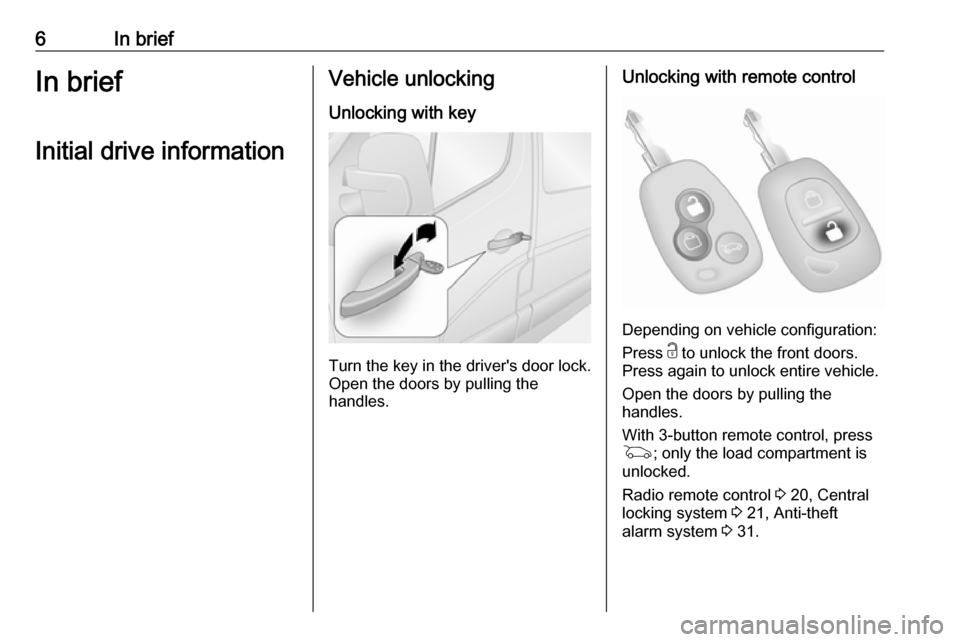

6In briefIn briefInitial drive informationVehicle unlockingUnlocking with key
Turn the key in the driver's door lock.
Open the doors by pulling the
handles.
Unlocking with remote control
Depending on vehicle configuration:
Press c to unlock the front doors.
Press again to unlock entire vehicle.
Open the doors by pulling the
handles.
With 3-button remote control, press
G ; only the load compartment is
unlocked.
Radio remote control 3 20, Central
locking system 3 21, Anti-theft
alarm system 3 31.

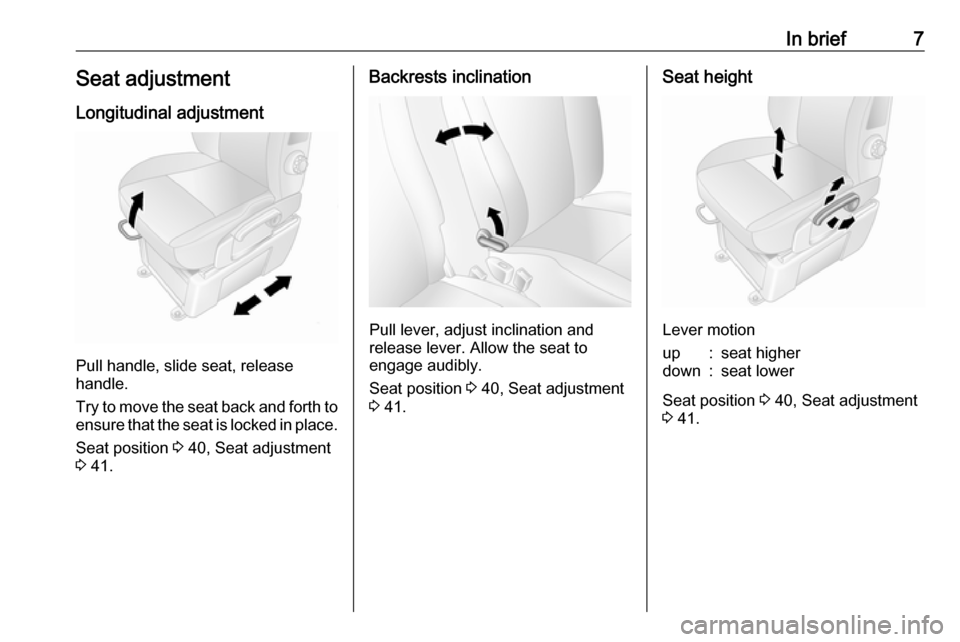

In brief7Seat adjustmentLongitudinal adjustment
Pull handle, slide seat, release
handle.
Try to move the seat back and forth to ensure that the seat is locked in place.
Seat position 3 40, Seat adjustment
3 41.
Backrests inclination
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat position 3 40, Seat adjustment
3 41.
Seat height
Lever motion
up:seat higherdown:seat lower
Seat position 3 40, Seat adjustment
3 41.

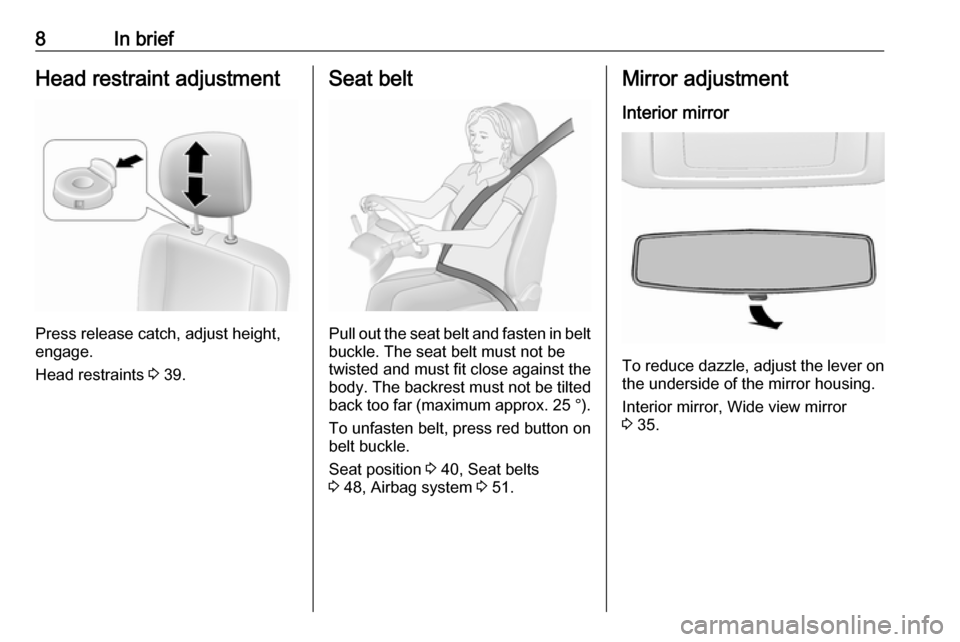

8In briefHead restraint adjustment
Press release catch, adjust height,
engage.
Head restraints 3 39.
Seat belt
Pull out the seat belt and fasten in belt
buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted back too far (maximum approx. 25 °).
To unfasten belt, press red button on belt buckle.
Seat position 3 40, Seat belts
3 48, Airbag system 3 51.
Mirror adjustment
Interior mirror
To reduce dazzle, adjust the lever onthe underside of the mirror housing.
Interior mirror, Wide view mirror
3 35.
