interior lights VAUXHALL MOVANO_B 2016.5 Owner's Manual

Keys, doors and windows25Warning lights in the appropriate
doors remain illuminated.
To unlock, press 0 side of switch.
Fault
In the event of a fault in the system,
the warning light alongside the switch
remains illuminated and an audible warning will sound.
Check the doors are manually
unlocked (interior door lock switches).
If necessary, have the cause of the
fault remedied by a workshop.
Automatic lockingAutomatic locking after driving off
Depending on version, this security
feature can be configured to
automatically lock all doors and the
load compartment as soon as the
vehicle is driven.
Activation
With the ignition switched on, press
and hold the central locking switch e
for approx. 5 seconds. An audible
signal confirms activation.
LED in switch illuminates when the
vehicle is locked.
Deactivation
With the ignition switched on, press
and hold e for approx. 5 seconds. An
audible signal confirms deactivation.
Child locks9 Warning
Use the child locks whenever
children are occupying the rear
seats.

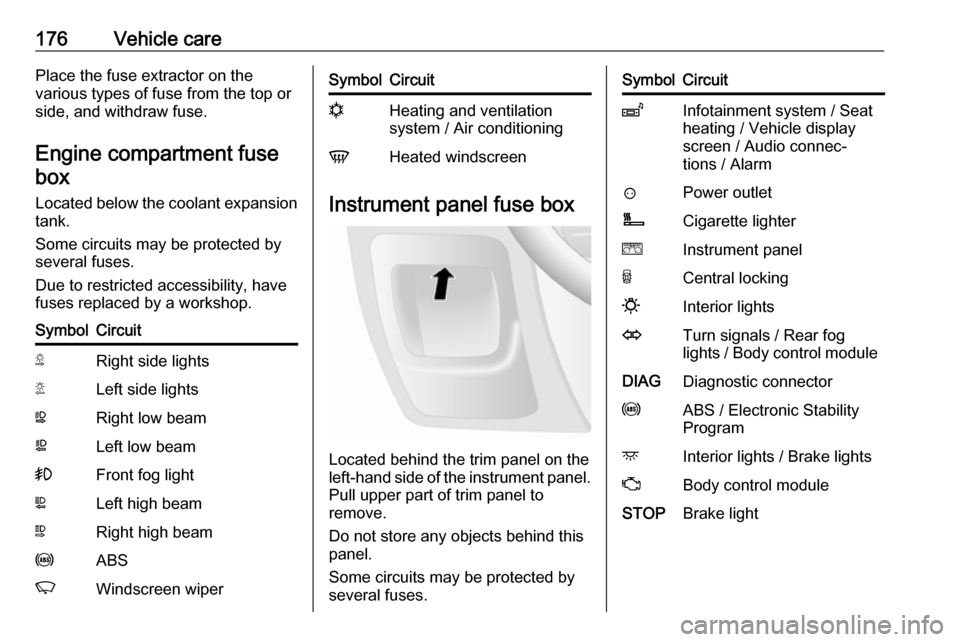

Press down the child lock, door
cannot be opened from the inside.
Raise to deactivate.

Keys, doors and windows29The power side step operates
automatically when the sliding door is
opened or closed.9 Warning
Ensure there is adequate
clearance to allow the power side
step to fully extend and retract
without obstruction.
The indicator illuminates during
operation of the power side step. If it
remains illuminated with the door
closed, the step has not retracted.
In the event of a failure, manually
retract the power side step by
unscrewing the orange handwheel
located at the rear of the step,
ensuring that there are no obstacles
preventing closure. When the step is
retracted, screw in the orange
handwheel. Seek the assistance of a
workshop.
Rear doors Lock and unlock the rear doors with
the remote control or key (if
equipped).
To open the right-hand rear door, pull
the exterior handle.
The right-hand door can also be
opened from inside the vehicle by
pulling the interior handle.
The left-hand rear door is then
released using the lever.
9 Warning
The rear lights may be obscured if
the rear doors are open and the
vehicle is parked on the roadside.
Make other road users aware of the vehicle, by using a warning
triangle or other equipment
specified in the road traffic
regulations.
The doors are retained in the 90º
position by locking stays.

32Keys, doors and windowsIf the hazard warning lights do not
flash upon activation, a door or the
bonnet is not fully closed.
Notice
Changes to the vehicle interior, e.g.
the use of seat covers, and open
windows, could impair the function
of passenger compartment
monitoring.
Deactivation
Unlocking the vehicle or switching on
the ignition deactivates the anti-theft
alarm system. Hazard warning lights
flash once to confirm deactivation.
Notice
If the alarm has been triggered,
unlocking the vehicle with the key
will not stop the alarm siren. To stop the siren, switch on the ignition. The
hazard warning lights will not flash
upon deactivation if the alarm has
been triggered.
Activation without monitoring of
passenger compartment
Switch off monitoring of the
passenger compartment when
people or animals are being left in thevehicle, or if the auxiliary heater
3 111 is set for a timed or remote
controlled start.
Depending on vehicle configuration:
● press and hold e, or
● switch ignition on and off twice quickly, then close doors and
activate the anti-theft alarm
system
An audible signal will sound as
confirmation.
The status will remain until the doors
are unlocked.
Alarm
When triggered, the alarm sounds via a separate battery-backed power
sounder, and the hazard warning
lights flash simultaneously. The
number and duration of alarm signals
are stipulated by legislation.
If the vehicle battery is disconnected
or its power supply is interrupted, the
alarm siren will be triggered. First
deactivate the anti-theft alarm system if the vehicle battery must be
disconnected.
To silence the alarm siren (if
triggered) and therefore deactivate
the anti-theft alarm system, reconnect vehicle battery and unlock vehicle
with remote control button c (or
switch on the ignition).
Immobiliser
The system is part of the ignition
switch and checks whether the
vehicle is allowed to be started with
the key being used.

Lighting97LightingExterior lighting............................ 97
Light switch ................................ 97
Automatic light control ...............97
High beam ................................. 98
High beam assist .......................98
Headlight flash ........................... 99
Headlight range adjustment ......99
Headlights when driving abroad ...................................... 99
Daytime running lights ...............99
Adaptive forward lighting .........100
Hazard warning flashers ..........100
Turn and lane-change signals . 100
Front fog lights ......................... 100
Rear fog lights ......................... 101
Reversing lights .......................101
Misted light covers ...................101
Interior lighting ........................... 101
Interior lights ............................ 101
Load compartment lighting ......102
Reading lights .......................... 102
Lighting features ........................103
Exit lighting .............................. 103
Battery discharge protection ....104Exterior lighting
Light switch
Turn outer light switch:
7:off0:sidelights9 P:headlightsAUTO:automatic light control:
headlights are switched on
and off automatically.
Turn inner light switch:
>:front fog lightsø:rear fog lights
High beam control indicator P 3 91.
Low beam control indicator 9 3 91.
Tail lights Tail lights are illuminated together
with low beam and sidelights.
Automatic light control
When the automatic light control
function is switched on and the
engine is running, the system
switches between daytime running
lights (where fitted) and headlights,
depending on the lighting conditions.
For reasons of safety, the light switch
should always remain in the AUTO
position.

Lighting101Front fog lights operate with engine
running and headlights switched on.

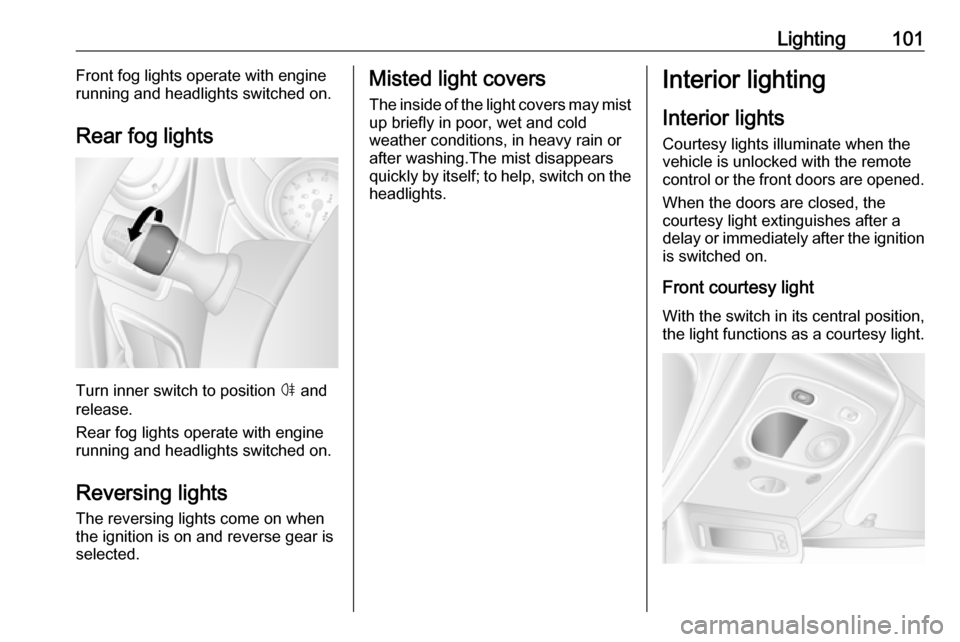

Rear fog lights
Turn inner switch to position ø
and
release.
Rear fog lights operate with engine
running and headlights switched on.
Reversing lights
The reversing lights come on when
the ignition is on and reverse gear is
selected.
Misted light covers
The inside of the light covers may mist up briefly in poor, wet and cold
weather conditions, in heavy rain or
after washing.The mist disappears
quickly by itself; to help, switch on the
headlights.Interior lighting
Interior lights
Courtesy lights illuminate when the vehicle is unlocked with the remote
control or the front doors are opened.
When the doors are closed, the
courtesy light extinguishes after a
delay or immediately after the ignition
is switched on.
Front courtesy light
With the switch in its central position,
the light functions as a courtesy light.

104LightingThe headlights are turned off
immediately by turning the light switch
to any position and returning to 7.
Battery discharge protection To prevent discharge of the vehicle
battery when the ignition is switched off, some interior lights may be
switched off automatically after some
time.

Vehicle care157Vehicle careGeneral Information...................158
Accessories and vehicle modifications .......................... 158
Vehicle storage ........................158
End-of-life vehicle recovery .....159
Vehicle checks ........................... 159
Performing work ......................159
Bonnet ..................................... 159
Engine oil ................................. 160
Engine coolant ......................... 161
Power steering fluid .................162
Washer fluid ............................ 163
Brakes ..................................... 163
Brake fluid ............................... 163
Vehicle battery ......................... 163
Diesel fuel filter ........................165
Diesel fuel system bleeding .....166
Wiper blade replacement ........166
Bulb replacement .......................167
Headlights ............................... 167
Adaptive forward lighting .........169
Fog lights ................................. 169
Front turn signal lights .............170
Tail lights ................................. 170
Side turn signal lights ..............171Centre high-mounted brake
light ......................................... 172
Number plate light ...................173
Interior lights ............................ 173
Instrument panel illumination ...174
Electrical system ........................174
Fuses ....................................... 174
Engine compartment fuse box . 176
Instrument panel fuse box .......176
Load compartment fuse box ....177
Vehicle tools .............................. 179
Tools ........................................ 179
Wheels and tyres .......................180
Tyres ....................................... 180
Winter tyres ............................. 180
Tyre designations ....................180
Tyre pressure .......................... 181
Tyre pressure monitoring system .................................... 182
Tread depth ............................. 184
Changing tyre and wheel size . 184 Wheel covers ........................... 184
Tyre chains .............................. 185
Tyre repair kit .......................... 185
Wheel changing .......................188
Spare wheel ............................ 190
Jump starting ............................. 193Towing....................................... 195
Towing the vehicle ...................195
Towing another vehicle ...........196
Appearance care .......................197
Exterior care ............................ 197
Interior care ............................. 198

Vehicle care1738. Replace the nut onto the locatingpin on the rear of the lamp
assembly.
9. Install cover on the inside of the rear door.
Number plate light
1. Unclip lens using a flat blade screwdriver.
2. Remove cover and renew bulb.
3. Reinstall lens.

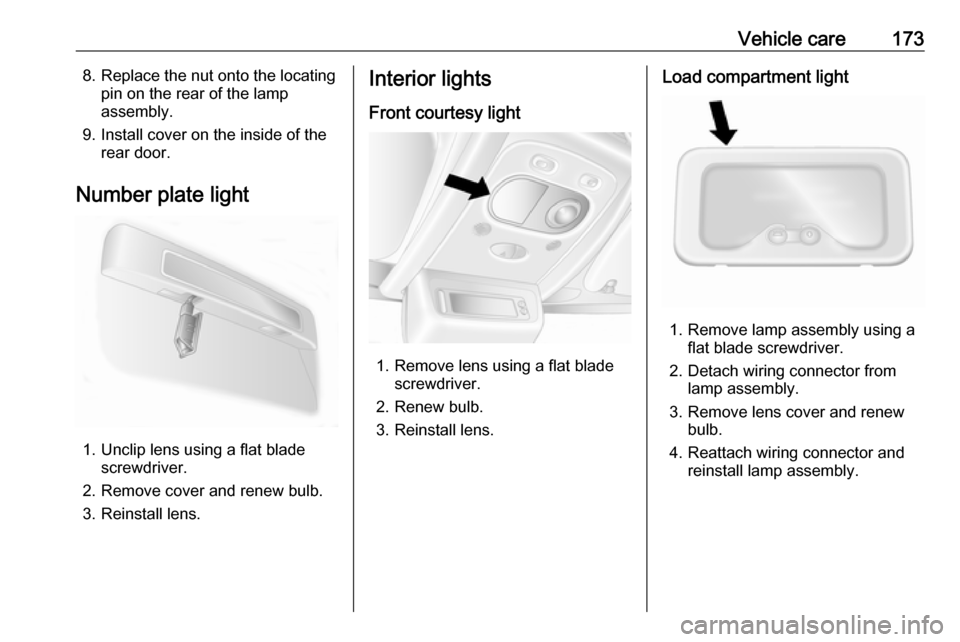

Interior lights
Front courtesy light
1. Remove lens using a flat blade screwdriver.
2. Renew bulb.
3. Reinstall lens.
Load compartment light
1. Remove lamp assembly using a flat blade screwdriver.
2. Detach wiring connector from lamp assembly.
3. Remove lens cover and renew bulb.
4. Reattach wiring connector and reinstall lamp assembly.

176Vehicle carePlace the fuse extractor on the
various types of fuse from the top or
side, and withdraw fuse.
Engine compartment fusebox
Located below the coolant expansion
tank.
Some circuits may be protected by
several fuses.
Due to restricted accessibility, have
fuses replaced by a workshop.SymbolCircuitSRight side lightsTLeft side lightsWRight low beamaLeft low beam>Front fog lightLLeft high beamNRight high beamuABSKWindscreen wiperSymbolCircuitnHeating and ventilation
system / Air conditioningVHeated windscreen
Instrument panel fuse box
Located behind the trim panel on the
left-hand side of the instrument panel.
Pull upper part of trim panel to
remove.
Do not store any objects behind this
panel.
Some circuits may be protected by
several fuses.
SymbolCircuitZInfotainment system / Seat
heating / Vehicle display
screen / Audio connec‐
tions / Alarm?Power outletÌCigarette lightereInstrument panelUCentral locking0Interior lightsOTurn signals / Rear fog
lights / Body control moduleDIAGDiagnostic connectoruABS / Electronic Stability
ProgramdInterior lights / Brake lightsZBody control moduleSTOPBrake light

232Front storage................................ 67
Front turn signal lights ...............170
Fuel consumption - CO 2-
Emissions ............................... 153
Fuel economy rating (ecoScoring) 94
Fuel for diesel engines ..............151
Fuel gauge ................................... 80
Fuel tank ..................................... 224
Fuse box ............................. 176, 177
Fuses ......................................... 174
G Gauges ......................................... 79
General information ...................153
Glass panel .................................. 38
Glovebox ..................................... 67
Glovebox cooler ......................... 116
Ground clearance .......................125
H Hand brake - see Parking brake. 138
Hazard warning flashers ............100
Headlight flash ............................. 99
Headlight range adjustment ........99
Headlights ...................... 97, 98, 167
Headlights when driving abroad ..99
Head restraint adjustment .............8
Head restraints ............................ 39
Heated exterior mirrors .................15
Heated mirrors ............................. 34
Heated rear window ...............15, 37Heating ........................................ 45
Heating and ventilation system . 105
High beam ............................. 91, 98
High beam assist ....................91, 98
Hill start assist ........................... 139
Horn ....................................... 14, 75
Hub cap hook ............................. 179
I
Identification plate .....................204
Idle speed control .......................121
Ignition switch positions .............120
Immobiliser .................................. 32
Indicators ...................................... 79
Info display ................................... 92
Information displays...................... 92
Initial drive information.................... 6
Instrument cluster ........................79
Instrument panel fuse box .........176
Instrument panel illumination .....174
Instrument panel overview ........... 10
Instrument panel storage .............66
Interior care ............................... 198
Interior lighting ............................ 101
Interior lights ...................... 101, 173
Interior mirrors .............................. 35
Interruption of power supply ......137
Introduction .................................... 3
ISOFIX child restraint systems ....65J
Jack ............................................ 179
Journey record.............................. 94
Jump starting ............................. 193
K Keys ............................................. 19
Keys, locks ................................... 19
L
Lane departure warning .......88, 150
Lashing eyes ............................... 69
Light covers, misted.................... 101
Lighting ......................................... 97
Lighting features .........................103
Light switch .................................. 97
Load compartment........................ 21 Load compartment fuse box ......177
Load compartment lighting .........102
Loading information .....................72
Low fuel ....................................... 90
M Malfunction indicator light ............87
Manual adjustment ......................33
Manual anti-dazzle ......................35
Manual door locks ........................21
Manual mode ............................. 135
Manual transmission............. 16, 133
Manual transmission automated ......................... 16, 134
