Seats, restraints59Bus - rear seatsWeight and age classRear seatsGroup 0: up to 10 kg
or approx. 10 months
Group 0+: up to 13 kg
or approx. 2 years
X
Group I: 9 to 18 kg
or approx. 8 months to 4 yearsXGroup II: 15 to 25 kg
or approx. 3 to 7 years
Group III: 22 to 36 kg
or approx. 6 to 12 years
X

60Seats, restraintsCrew cab - rear seatsWeight and age class2nd row seatsOuterCentreGroup 0: up to 10 kg
or approx. 10 months
Group 0+: up to 13 kg
or approx. 2 years
UX
Group I: 9 to 18 kg
or approx. 8 months to 4 yearsUXGroup II: 15 to 25 kg
or approx. 3 to 7 years
Group III: 22 to 36 kg
or approx. 6 to 12 years
UX
U:suitable for universal category restraint systems for use in this weight and age class, in conjunction with three-point
seat belt.UF:suitable for universal category forward-facing restraint systems for use in this weight and age class, in conjunction
with three-point seat belt.<:suitable for ISOFIX child restraint system with mounting brackets and anchorage points, where fitted. When mounting
an ISOFIX child restraint system, only systems that have been approved for the vehicle may be used. Refer to
"Permissible options for fitting an ISOFIX child restraint system".X:seat position not suitable for children in this weight and age class.

Seats, restraints61Permissible options for fitting an ISOFIX child restraint systemCombiWeight classSize classFixtureFront seats2nd row seats3rd row
seatsDriver side
outer seat
Centre seat
Passenger side
outer seatGroup 0: up to 10 kg
or approx. 10 monthsEISO/R1XILXXXGroup 0+: up to 13 kg
or approx. 2 yearsEISO/R1XILXXXDISO/R2XILXXXCISO/R3XILXXXGroup I: 9 to 18 kg
or approx. 8 months to 4 yearsDISO/R2XILXXXCISO/R3XILXXXBISO/F2XIL, IUFIL, IUFXXB1ISO/F2XXIL, IUFIL, IUFXXAISO/F3XIL, IUFIL, IUFXXIL:suitable for particular ISOFIX restraint systems of the "specific-vehicle", "restricted" or "semi-universal" categories.
The ISOFIX restraint system must be approved for the specific vehicle type.IUF:suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class.X:no ISOFIX child restraint system approved in this weight class.

62Seats, restraintsISOFIX size class and seat deviceA - ISO/F3:forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.B - ISO/F2:forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.B1 - ISO/F2X:forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.C - ISO/R3:rear-facing child restraint system for children of maximum size in the weight class up to 18 kg.D - ISO/R2:rear-facing child restraint system for smaller children in the weight class up to 18 kg.E - ISO/R1:rear-facing child restraint system for young children in the weight class up to 13 kg.

Seats, restraints63ISOFIX child restraintsystems
Fasten vehicle-approved ISOFIX
child restraint systems to the ISOFIX
mounting brackets.
When using ISOFIX mounting
brackets for seat mounting,
universally approved child restraint
systems for ISOFIX may be used.
Permissible mounting location
positions for ISOFIX child restraint
systems are marked in the tables by
< , IL and IUF.

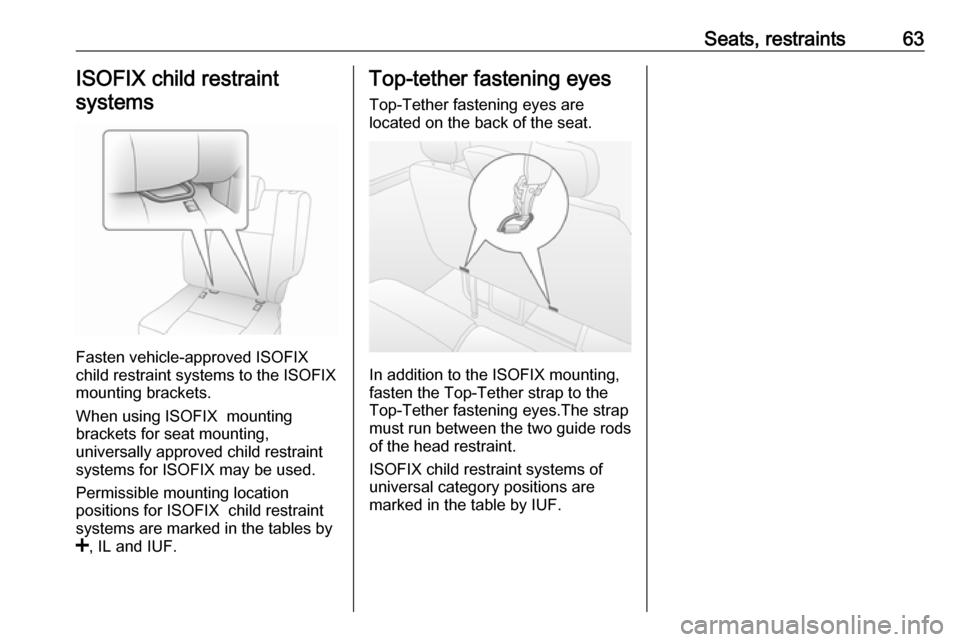

Top-tether fastening eyes
Top-Tether fastening eyes are
located on the back of the seat.
In addition to the ISOFIX mounting,
fasten the Top-Tether strap to the
Top-Tether fastening eyes.The strap must run between the two guide rods of the head restraint.
ISOFIX child restraint systems of
universal category positions are
marked in the table by IUF.

64StorageStorageStorage compartments................64
Instrument panel storage ...........64
Glovebox ................................... 65
Cupholders ................................ 65
Front storage ............................. 65
Sunglasses storage ...................65
Overhead console .....................66
Underseat storage .....................66
Overcab storage ........................67
Load compartment .......................67
Lashing eyes ............................. 67
Cargo management system ......67
Safety net .................................. 69
Warning triangle ........................69
First aid kit ................................. 69
Fire extinguisher ........................70
Roof rack system .........................70
Roof rack ................................... 70
Loading information .....................71Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise vehicle
occupants could be injured by
objects being thrown around in the
event of hard braking, a sudden
change in direction or an accident.

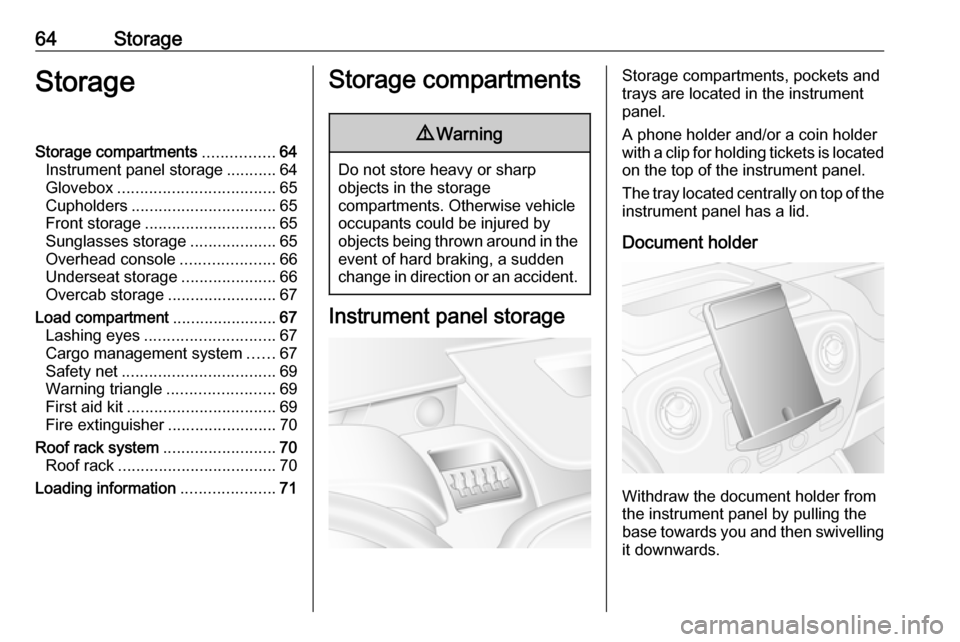

Instrument panel storage
Storage compartments, pockets and
trays are located in the instrument
panel.
A phone holder and/or a coin holder
with a clip for holding tickets is located on the top of the instrument panel.
The tray located centrally on top of the instrument panel has a lid.

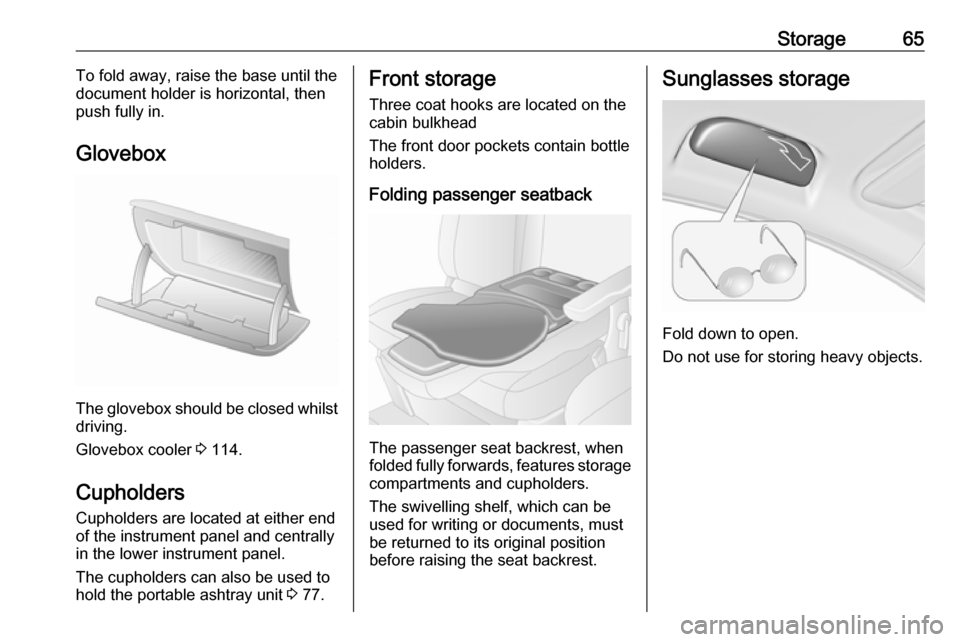

Document holder
Withdraw the document holder from
the instrument panel by pulling the
base towards you and then swivelling it downwards.

Storage65To fold away, raise the base until the
document holder is horizontal, then push fully in.
Glovebox
The glovebox should be closed whilst driving.
Glovebox cooler 3 114.
Cupholders Cupholders are located at either end
of the instrument panel and centrally
in the lower instrument panel.
The cupholders can also be used to
hold the portable ashtray unit 3 77.
Front storage
Three coat hooks are located on the
cabin bulkhead
The front door pockets contain bottle
holders.
Folding passenger seatback
The passenger seat backrest, when
folded fully forwards, features storage
compartments and cupholders.
The swivelling shelf, which can be
used for writing or documents, must
be returned to its original position
before raising the seat backrest.
Sunglasses storage
Fold down to open.
Do not use for storing heavy objects.

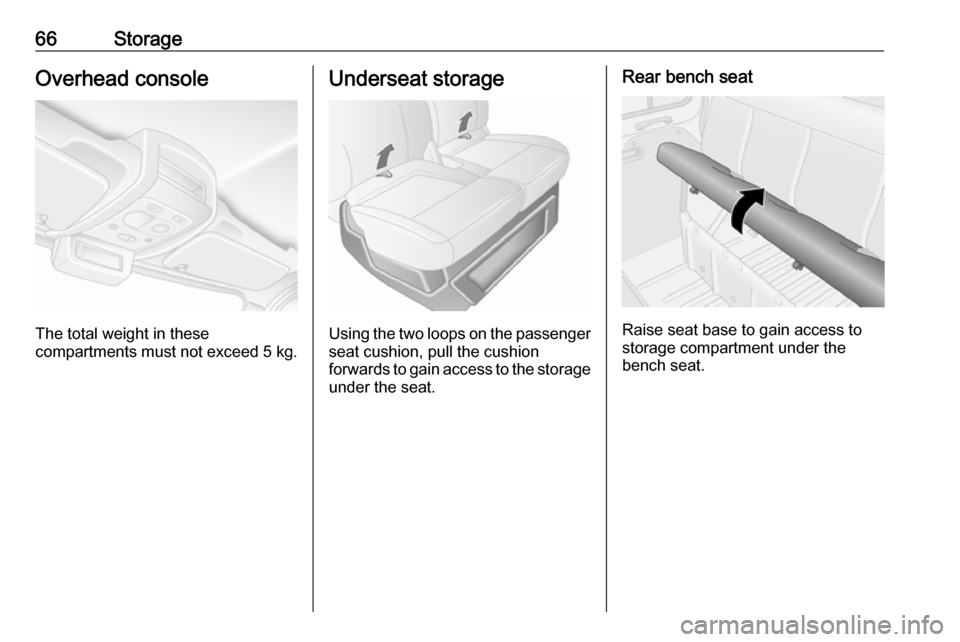

66StorageOverhead console
The total weight in these
compartments must not exceed 5 kg.
Underseat storage
Using the two loops on the passenger
seat cushion, pull the cushion
forwards to gain access to the storage
under the seat.
Rear bench seat
Raise seat base to gain access to
storage compartment under the
bench seat.

Storage67Overcab storage
The total weight in this compartment
must not exceed 35 kg.
Rear storage
Combi, Bus
Objects can be stored in the overhead
storage compartments above the rear passenger seats.
The total weight must not exceed
20 kg evenly distributed.
Load compartment
Lashing eyes

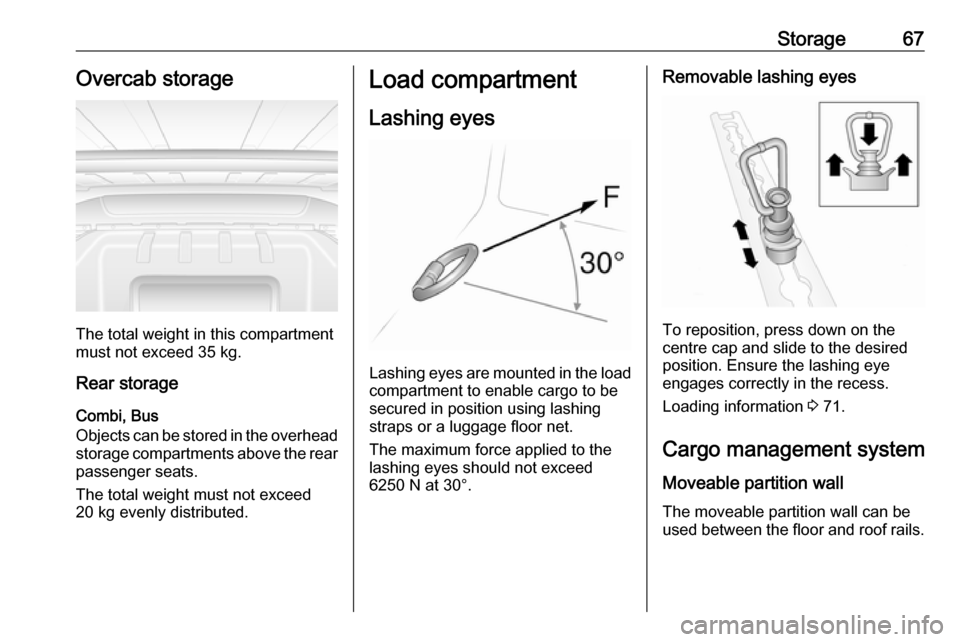

Lashing eyes are mounted in the load
compartment to enable cargo to be
secured in position using lashing
straps or a luggage floor net.
The maximum force applied to the
lashing eyes should not exceed
6250 N at 30°.
Removable lashing eyes
To reposition, press down on the
centre cap and slide to the desired position. Ensure the lashing eye
engages correctly in the recess.
Loading information 3 71.
Cargo management system
Moveable partition wall

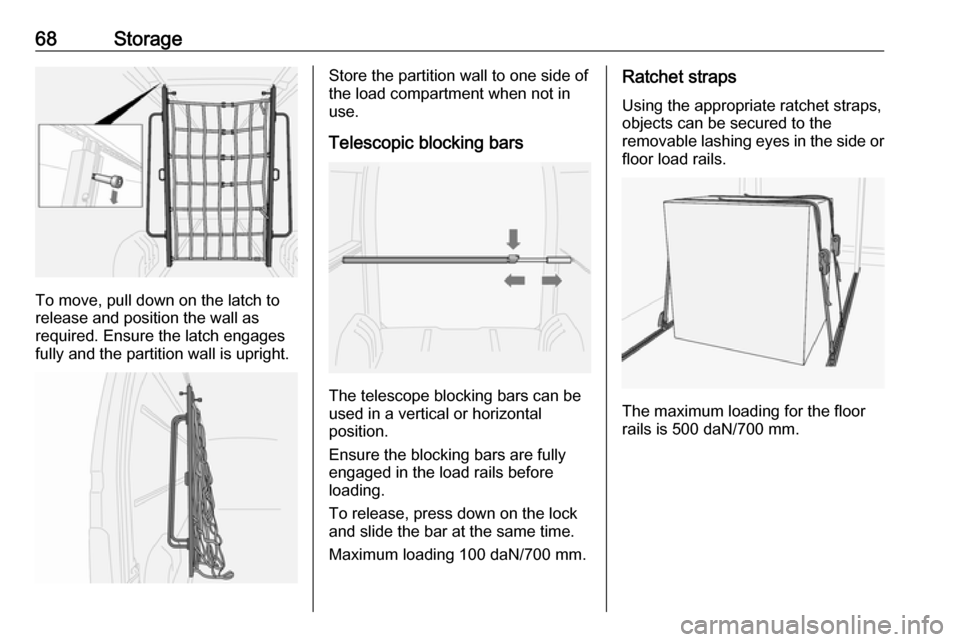

The moveable partition wall can be
used between the floor and roof rails.

68Storage
To move, pull down on the latch to
release and position the wall as
required. Ensure the latch engages fully and the partition wall is upright.
Store the partition wall to one side of
the load compartment when not in
use.
Telescopic blocking bars
The telescope blocking bars can be
used in a vertical or horizontal
position.
Ensure the blocking bars are fully
engaged in the load rails before
loading.
To release, press down on the lock
and slide the bar at the same time.
Maximum loading 100 daN/700 mm.
Ratchet straps
Using the appropriate ratchet straps,
objects can be secured to the
removable lashing eyes in the side or
floor load rails.
The maximum loading for the floor
rails is 500 daN/700 mm.
