VAUXHALL MOVANO_B 2016 Infotainment system

Vauxhall Vivaro / MovanoInfotainment System

Introduction.................................... 4
Radio ........................................... 45
CD Player .................................... 55
AUX input ..................................... 59
USB port ...................................... 61
Bluetooth music ........................... 65
External devices .......................... 72
Navigation .................................... 74
Voice recognition .......................118
Phone ........................................ 122
Index .......................................... 142Contents

4IntroductionIntroductionGeneral information.......................4
Control elements overview ............6
Theft-deterrent feature .................23
Usage .......................................... 24
Tone settings ............................... 36
Volume settings ........................... 39
System settings ........................... 40General information
The Infotainment system provides
state-of-the-art in-car information and
entertainment.
The radio is equipped with assignable channel presets for FM, AM and DAB wavebands.
The audio player plays audio CDs,
MP3 CDs and also WMA CDs.
External data storage devices, e.g.
iPod, MP3 player or USB stick, or a
portable player can be connected to
the Infotainment system. External
audio sources can also be connected
via Bluetooth.
The digital sound processor provides
several preset equalizer modes for
sound optimisation.
The navigation system's dynamic route planning will reliably guide you
to your destination and can help avoid traffic jams and other traffic problems.
Optionally, the Infotainment system
can be operated using controls on the steering column or via the voice
recognition system.In addition, the Infotainment system can be equipped with a handsfree
phone system.
The well-thought-out design of the
controls and the clear displays enable you to control the system easily and
intuitively.
Notice
This manual describes all options
and features available for the
various Infotainment systems.
Certain descriptions, including those
for display and menu functions, may not apply to your vehicle due to
model variant, country
specifications, special equipment or
accessories.
Important information on
operation and traffic safety9 Warning
Drive safely at all times when
using the Infotainment system.
If in doubt, stop the vehicle before operating the Infotainment
system.

Introduction5Radio receptionRadio reception may be disrupted bystatic, noise, distortion or loss of
reception due to:
● changes in distance from the transmitter
● multi-path reception due to reflection
● shadowing
In case of poor radio reception the
volume will automatically drop as to
minimize the disturbance effect.
Using this manual ● This manual describes features that may or may not be on your
specific vehicle, either because
they are optional or due to
changes subsequent to the
printing of this manual. Please
refer to the purchase
documentation to confirm each of the features found on the vehicle.
● Certain controls and descriptions, including symbols,displays and menu functions may
not apply to your vehicle due tomodel variant, country
specifications, special equipment or accessories.
● The table of contents at the beginning of this manual and
within each section shows where the information is located.
● The index will enable you to search for specific information.
● The vehicle display screens may not support your specific
language.
● Display messages and interior labelling are written in bold
letters.
● The operations given within this manual refer to Infotainment
system controls. For equivalent
steering column controls, refer to the control elements overview
3 6.Warnings and cautions9 Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".

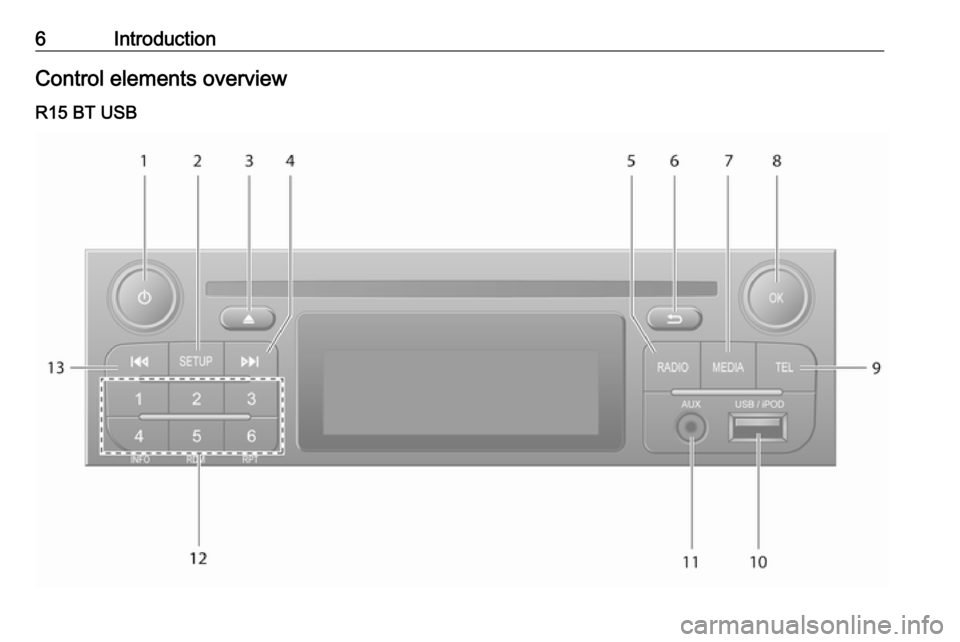

6IntroductionControl elements overviewR15 BT USB

Introduction71m - Press: Switch on/off ........24
Press: Mute/unmute ..............24
Turn: Adjust volume ..............24
2 SETUP - Short press:
Settings menu ....................... 24
Display radio text
information ............................ 51
Long press: Automatic
station storing ........................ 50
3 Mute/unmute ......................... 24
4 3 - Radio, Short press:
Search for next radio
frequency .............................. 47
Long press: Automatic
station search ........................ 47
5 RADIO - Change audio
source, waveband .................45
6 / - Return to previous
menu, cancel an action .........24
7 MEDIA - Change audio
source ................................... 56
8 OK rotary knob ...................... 24
Press: Confirm an action ....... 24Turn: Access display
menu options ........................ 24
Turn: Change radio
frequency .............................. 47
9 TEL - Telephone menu .......122
10 USB port ............................... 61
11 AUX input .............................. 59
12 Station buttons 1...6 ..............47
Short press: Select station ....47
Long press: Save station ......47
13 2 - Radio, Short press:
Search for previous radio
frequency .............................. 47
Long press: Automatic
station search ........................ 47

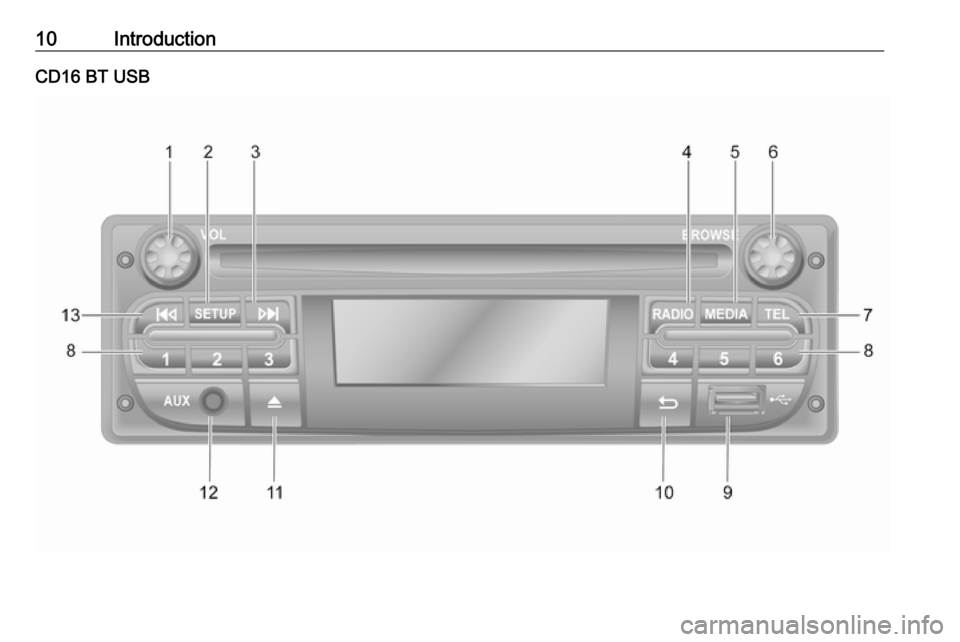

8IntroductionR16 BT USB

Introduction91m - Press: Switch on/off ........24
Turn: Adjust volume ..............24
2 Station buttons 1...6 ..............47
Short press: Select station ....47
Long press: Save station ......47
3 RADIO - Change audio
source, waveband .................45
4 MEDIA - Change audio
source ................................... 56
5 Rotary knob ........................... 24
Short press: Confirm an
action .................................... 24
Turn: Access display
menu options ........................ 24
6 / - Return to previous
menu, cancel an action .........24
7 3 - Radio, Short press:
Search for next radio
frequency .............................. 47
Long press: Automatic
station search ........................ 47Audio/MP3/WMA CD,
Short press: Skip track
forwards ................................ 56
Long press: Fast forward ......56
8 USB port ............................... 61
9 SETUP - Short press:
Settings menu ....................... 24
10 TEL - Telephone menu .......122
11 2 - Radio, Short press:
Search for previous radio
frequency .............................. 47
Long press: Automatic
station search ........................ 47
12 TEXT - Display radio text
information ............................ 51
13 AUX input .............................. 59

10IntroductionCD16 BT USB
