VAUXHALL MOVANO_B 2018.5 User Guide

In brief9Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Interior mirror, Wide view mirror
3 40.
Exterior mirrors
Manual adjustment
Swivel mirror in required direction.
Exterior mirrors 3 39.
Electric adjustment
Select the relevant exterior mirror and
adjust it by swivelling the control.
Convex exterior mirrors 3 39.
Electric adjustment 3 39.
Folding exterior mirrors 3 39.
Heated exterior mirrors 3 40.

10In briefSteering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Airbag system 3 59.
Ignition positions 3 136.

In brief11Instrument panel overview

12In brief1Fixed air vents .................... 132
2 Headlight range
adjustment ......................... 112
Ultrasonic parking assist .....167
Traction control system ......159
Electronic Stability
Program ............................. 160
3 Side air vents .....................131
4 Light switch ........................ 110
Turn and lane-change
signals ................................ 113
High beam and low beam,
headlight flash ....................111
Sidelights ............................ 110
Automatic light control .......110
Exit lighting ......................... 117
Front fog lights ...................114
Rear fog light ...................... 114
High beam assist ................111
5 Instruments .......................... 91
Transmission display ............95Driver Information Centre .... 104
Trip computer ...................... 107
6 Horn ..................................... 86
Driver airbag ........................ 62
7 Remote control on
steering wheel .......................86
Cruise control .....................162
8 Windscreen wiper,
windscreen washer system ..87
Trip computer ...................... 107
9 Coin tray ............................... 74
10 Power outlet, USB slot ..........89
11 Centre air vents .................. 131
12 Storage compartment ...........74
13 Info Display ......................... 105
14 Front passenger airbag .........62
15 Storage compartment ..........74
16 Glovebox .............................. 75
17 Seat belt reminder ................. 98
Front passenger airbag
deactivation ........................... 63
18 Cupholders ........................... 7519Climate control system ....... 118
Electronic climate control
system ................................. 120
20 Cigarette lighter .................... 91
Power outlet ......................... 89
21 Gear lever, Manual
transmission ........................ 152
Manual transmission
automated ........................... 153
22 Cruise control .....................162
Speed limiter ...................... 164
Manual transmission
automated,
Winter and Laden modes ....155
Idle speed control ...............138
Stop-start system ................138
ECO mode .......................... 135
23 Ignition switch with
steering wheel lock ............136
24 Steering column controls .....86
25 Steering wheel adjustment ..86
26 Bonnet release lever ..........180
27 Auxiliary heater ...................125

In brief1328Storage compartment ..........74
Fuse box ............................ 200Exterior lighting
Turn outer light switch:
7:off0:sidelights9 P:headlightsAUTO:automatic light control:
headlights are switched on
and off automatically.
Lighting 3 110.
Automatic light control 3 110.
Headlight warning device 3 106.
Cornering lights 3 113.
Front and rear fog lights
Turn inner light switch:
>:front fog lightsø:rear fog lights
Front fog lights 3 114.
Rear fog lights 3 114.

14In briefHeadlight flash, high beam and
low beam
Pull stalk.
High beam 3 111.
Headlight flash 3 112.
Turn lightsstalk up:right turn lightstalk down:left turn light
Turn lights 3 113.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 113.

In brief15Horn
Press j.
Horn 3 86.
Washer and wiper systems
Windscreen wiper0:offP /AUTO:timed interval wiping or
automatic wiping with
rain sensor1:slow2:fast
Windscreen wiper 3 87.
Wiper blade replacement 3 188.
Windscreen washer
Pull lever.
short
pull:wiper swipes once and
washer fluid is sprayed onto
the windscreenlong
pull:wiper swipes for a few strokes and washer fluid is
sprayed onto the
windscreen
Windscreen washer 3 87.
Washer fluid 3 184.

16In briefClimate control
Heated rear window
Heating is operated by pressing Ü.
Heated rear window 3 43.
Heated exterior mirrors
Pressing Ü also activates the heated
exterior mirrors.
Heated exterior mirrors 3 40.
Demisting and defrosting the
windows
Climate control system
● Set temperature control to warmest level.
● Set fan speed to highest level.
● Set air distribution control to V.
● Switch on heated rear window Ü.
● Switch cooling A/C on.
● Open side air vents as required and direct them towards door
windows.
Climate control system 3 118.
Electronic climate control system
Press V.
Temperature and air distribution are
set automatically and the fan runs at
a high speed.
Electronic climate control system 3 120.

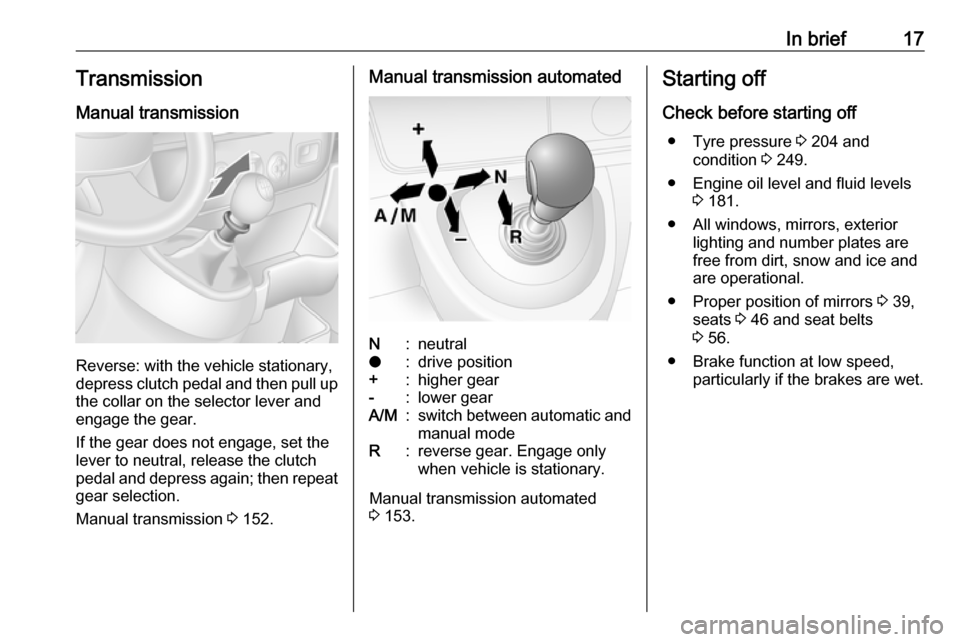

In brief17Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal and then pull up
the collar on the selector lever and
engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat gear selection.
Manual transmission 3 152.
Manual transmission automatedN:neutralo:drive position+:higher gear-:lower gearA/M:switch between automatic and
manual modeR:reverse gear. Engage only
when vehicle is stationary.
Manual transmission automated
3 153.
Starting off
Check before starting off ● Tyre pressure 3 204 and
condition 3 249.
● Engine oil level and fluid levels 3 181.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors 3 39,
seats 3 46 and seat belts
3 56.
● Brake function at low speed, particularly if the brakes are wet.

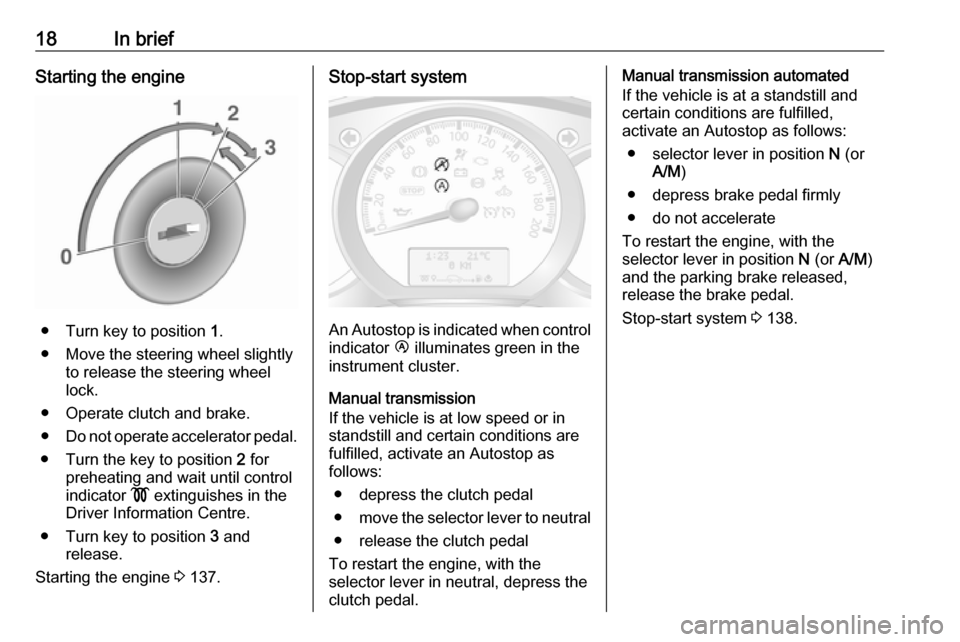

18In briefStarting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Operate clutch and brake.
● Do not operate accelerator pedal.
● Turn the key to position 2 for
preheating and wait until control
indicator ! extinguishes in the
Driver Information Centre.
● Turn key to position 3 and
release.
Starting the engine 3 137.
Stop-start system
An Autostop is indicated when control
indicator Ï illuminates green in the
instrument cluster.
Manual transmission If the vehicle is at low speed or in
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
● depress the clutch pedal● move the selector lever to neutral
● release the clutch pedal
To restart the engine, with the
selector lever in neutral, depress the
clutch pedal.
Manual transmission automated
If the vehicle is at a standstill and
certain conditions are fulfilled,
activate an Autostop as follows:
● selector lever in position N (or
A/M )
● depress brake pedal firmly
● do not accelerate
To restart the engine, with the
selector lever in position N (or A/M)
and the parking brake released,
release the brake pedal.
Stop-start system 3 138.
