Seats, restraints49Seat height

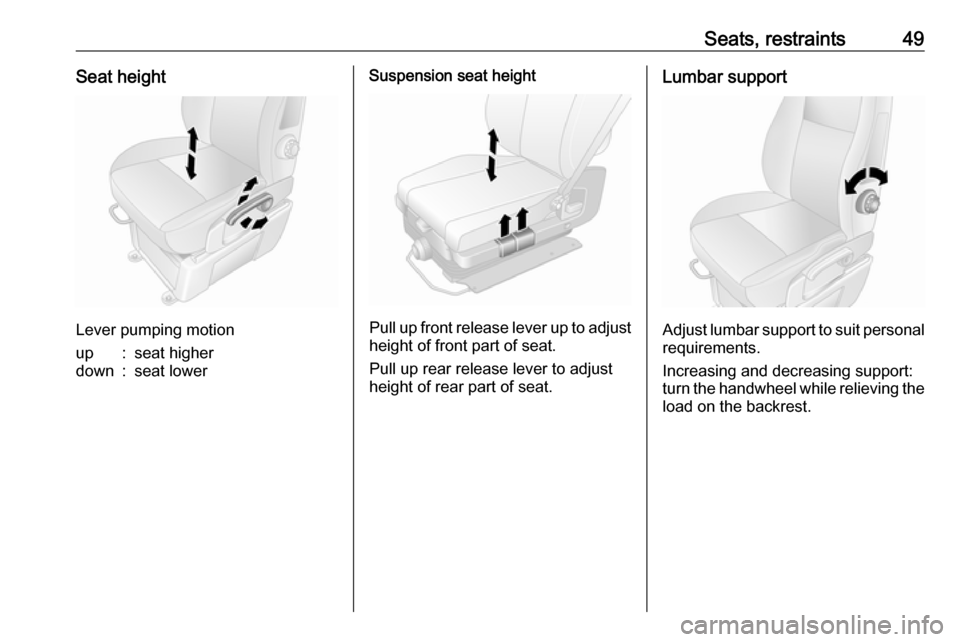

Lever pumping motion
up:seat higherdown:seat lowerSuspension seat height
Pull up front release lever up to adjustheight of front part of seat.
Pull up rear release lever to adjust height of rear part of seat.
Lumbar support
Adjust lumbar support to suit personal requirements.
Increasing and decreasing support:
turn the handwheel while relieving the load on the backrest.

50Seats, restraintsSuspension seat lumbar support
Adjust lumbar support to suit personalrequirements.
Operate hand pump repeatedly
(located on underside of unit) to
increase firmness.
Press release button (located at front
of unit) to decrease firmness.
Suspension seat sensitivity
Rotate knob to adjust the sensitivity of the suspension seat.

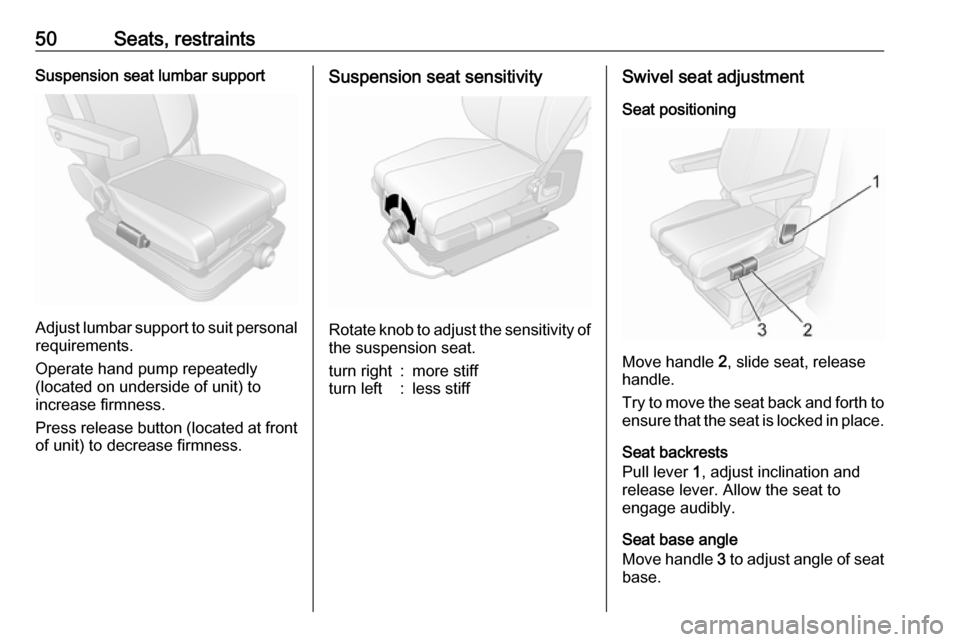

turn right:more stiffturn left:less stiffSwivel seat adjustment
Seat positioning
Move handle 2, slide seat, release
handle.
Try to move the seat back and forth to ensure that the seat is locked in place.
Seat backrests
Pull lever 1, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat base angle
Move handle 3 to adjust angle of seat
base.

Seats, restraints51Lumbar support
Adjust lumbar support to suit personalrequirements.
Operate hand pump 8 repeatedly
(located on underside of unit) to
increase firmness.
Press release button 7 to decrease
firmness.
Seat base positioning
Lift handle 5, move seat base
backwards or forwards, release handle.
Armrests

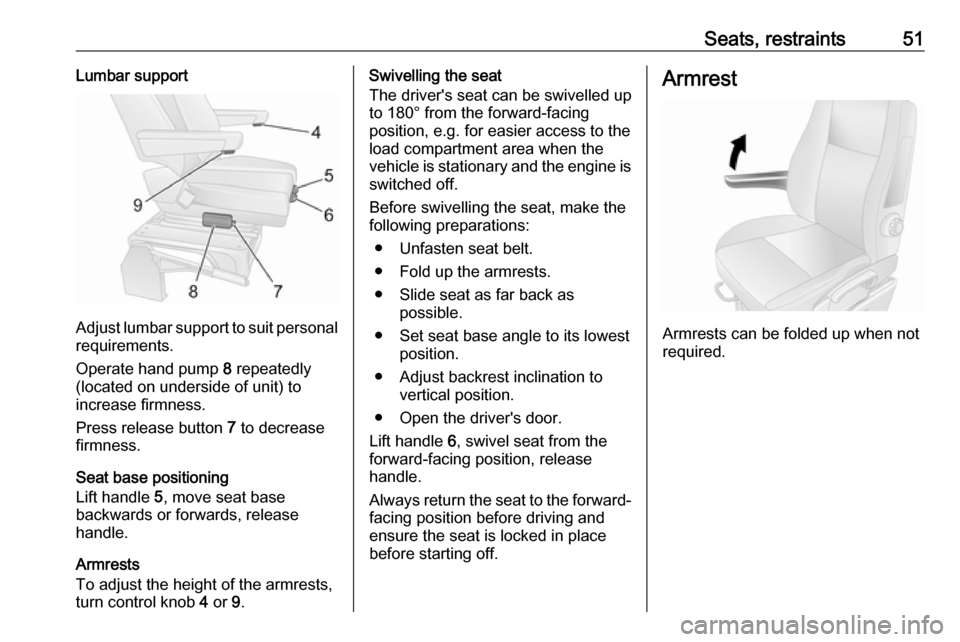

To adjust the height of the armrests, turn control knob 4 or 9.
Swivelling the seat
The driver's seat can be swivelled up
to 180° from the forward-facing
position, e.g. for easier access to the load compartment area when the
vehicle is stationary and the engine is
switched off.
Before swivelling the seat, make the
following preparations:
● Unfasten seat belt.
● Fold up the armrests.
● Slide seat as far back as possible.
● Set seat base angle to its lowest position.
● Adjust backrest inclination to vertical position.
● Open the driver's door.
Lift handle 6, swivel seat from the
forward-facing position, release
handle.
Always return the seat to the forward- facing position before driving and
ensure the seat is locked in place
before starting off.Armrest
Armrests can be folded up when not
required.

52Seats, restraintsHeating
Press ß for the respective seat; LED
in switch illuminates. Press other end of rocker switch to turn seat heating
off.
Vehicles with suspension seat: switch ß is located below the backrest
release lever on the outboard side of
the seat.
Seat heating is thermostatically
controlled and switches off
automatically when seat temperature
is sufficient. LED also illuminates
when the system is on, not just when
heating is active.
Prolonged use for people with
sensitive skin is not recommended.
Seat heating is operational when the
engine is running.Rear seats
Rear seat access
To facilitate access to the 3rd row
seats (where fitted), open sliding side door and pull release lever on foldingaccess seat in the 2nd row and fold
the seat backrest forwards. If
necessary, unfasten seat belts from
their buckles.

Seats, restraints539Warning
Ensure that the backrest returns to
its correct position and the seat
belt buckles are fastened
securely.
Fastening and unfastening seat belt 3 56.
Sliding door 3 30.
Removable rear seats
9 Warning
When rear seats are being
removed, keep hands and feet
away from the moving area.
Never remove seats while driving
as they could move uncontrollably.
Ensure that the rear seats and
backrests are fully engaged before occupying the rear seats.
Removal
On some variants, the load
compartment area can be increased by removing the rear seats.
9 Warning
Removable rear seats are heavy!
Do not attempt to remove without assistance.

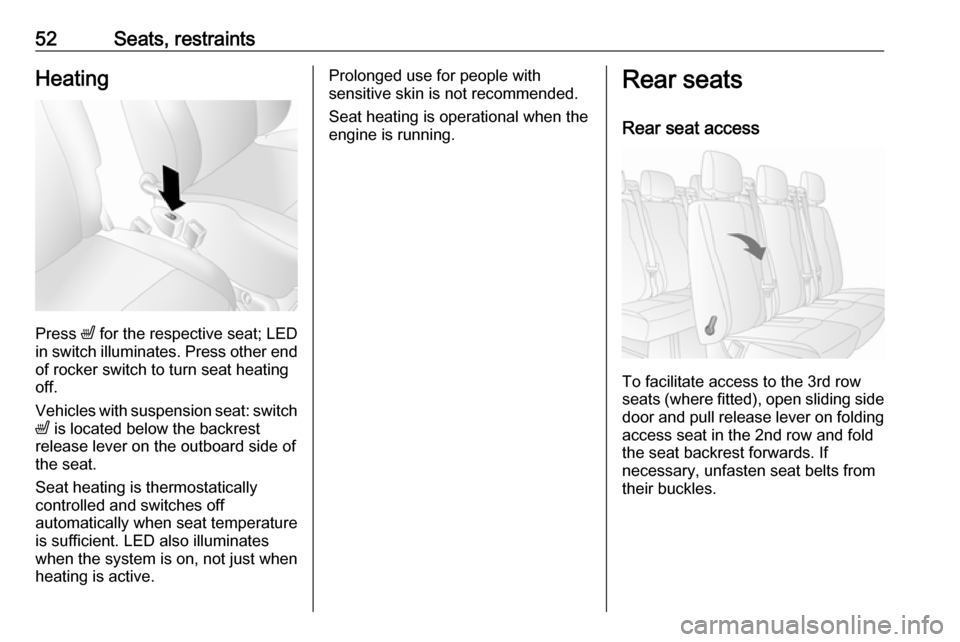

● Pull up lever 1
on both sides of
the seat. The pins 2 visibly
protrude to indicate that the seat is unlocked.
● Move the seat towards the rear to
release from the floor anchor
points.
● Lift seat to remove.
Installation
When re-installing seats, always
ensure that the row with the folding
access seat B is positioned correctly
in front of the fixed seat row A.
Caution
The 2nd and 3rd row seats are not
interchangeable and must be fitted back into their original position.

54Seats, restraintsNotice
Make sure that the anchor points are clean before installing the seat. They
should be free from grit or any other
item which may prevent the seat
from locking securely.
Position the seat guides immediately
behind the front floor anchor points,
and slide forwards to engage.
The seat locks automatically and the
pins 3 will no longer be visible, to
indicate that the seat is locked.
Caution
When installing the rear seats, ensure they are properly located
on the floor anchor points and that the locking catches are fully
engaged.
Consult a workshop if the seats
cannot be locked securely in position.
BusRemoval9 Warning
Removable rear seats are heavy!
Do not attempt to remove without assistance.

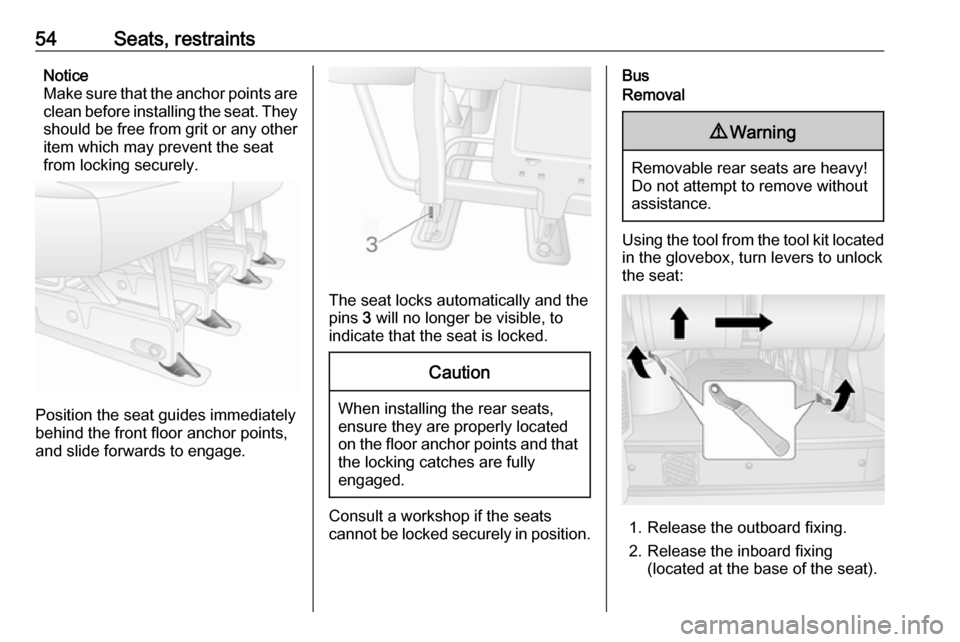

Using the tool from the tool kit located
in the glovebox, turn levers to unlock
the seat:
1. Release the outboard fixing.
2. Release the inboard fixing (located at the base of the seat).

Seats, restraints553. Lift the seat from the rear.
4. Pull the seat towards the centre of
the vehicle to release the seat
completely from its anchor points.Installation
Notice
Make sure that the anchor points are
clean before installing the seat. They should be free from grit or any other
item which may prevent the seat
from locking securely.
1. Position the seat over the anchor points.
2. Lower the seat until it audibly engages in the anchor points.
3. Ensure the seat is locked securely
in position by trying to move the
seat back and forth and from left
to right.
Repeat installation procedure if
necessary.
Consult a workshop if the seat cannot
be locked securely in position.Seat belts
The seat belts are locked during
heavy acceleration or deceleration of
the vehicle, holding the occupants in
the sitting position. Therefore, the risk of injury is considerably reduced.
9 Warning
Fasten seat belt before each trip.
In the event of an accident, people
not wearing seat belts endanger their fellow occupants and
themselves.
Seat belts are designed to be used by only one person at a time.
Child restraint system 3 65.
Periodically check all parts of the belt
system for damage and proper
functionality.
Have damaged components
replaced. After an accident, have the
belts and triggered belt pretensioners replaced by a workshop.
Notice
Make sure that the belts are not
damaged by shoes or sharp-edged
objects or are trapped. Prevent dirt
from getting into the belt retractors.
Seat belt reminder
Depending on version, both front
seats may be equipped with a seat
belt reminder, indicated by control
indicator X in the instrument panel
3 95, 3 98.
Belt force limiters
On the front seats, stress on the body is reduced by the gradual release of
the belt during a collision.

56Seats, restraintsBelt pretensionersIn the event of a head-on or rear-end
collision of a certain severity, the front
seat belts are tightened.9 Warning
Incorrect handling (e.g. removal or
fitting of belts) can trigger the belt
pretensioners.
Deployment of the belt pretensioners
is indicated by continuous illumination
of control indicator v 3 98.
Triggered belt pretensioners must be replaced by a workshop. Belt
pretensioners can only be triggered
once.
Notice
Do not affix or install accessories or
other objects that may interfere with
the operation of the belt
pretensioners. Do not make any
modifications to belt pretensioner components as this will invalidate
the vehicle operating permit.
Three-point seat belt
Seat belts on the front seats Fasten
Withdraw the belt from the retractor,
guide it untwisted across the body
and insert the latch plate into the
buckle.
Tighten the lap belt regularly whilst
driving by pulling the shoulder belt.
Loose or bulky clothing prevents the
belt from fitting snugly. Do not place
objects such as handbags or mobile
phones between the belt and your body.
9 Warning
The belt must not rest against hard
or fragile objects in the pockets of
your clothing.
Seat belt reminder X 3 98.

Seats, restraints57Height adjustment
1. Pull belt out slightly.
2. Shift the height adjustment upwards or press button to
disengage and push the height
adjustment downwards.
Adjust the height so that the belt lies across the shoulder. It must not lie
across the throat or upper arm.
9 Warning
Do not adjust while driving.
Unfasten
To unfasten belt, press red button on
belt buckle. The seat belt retracts automatically.

58Seats, restraintsSeat belts on the rear seats

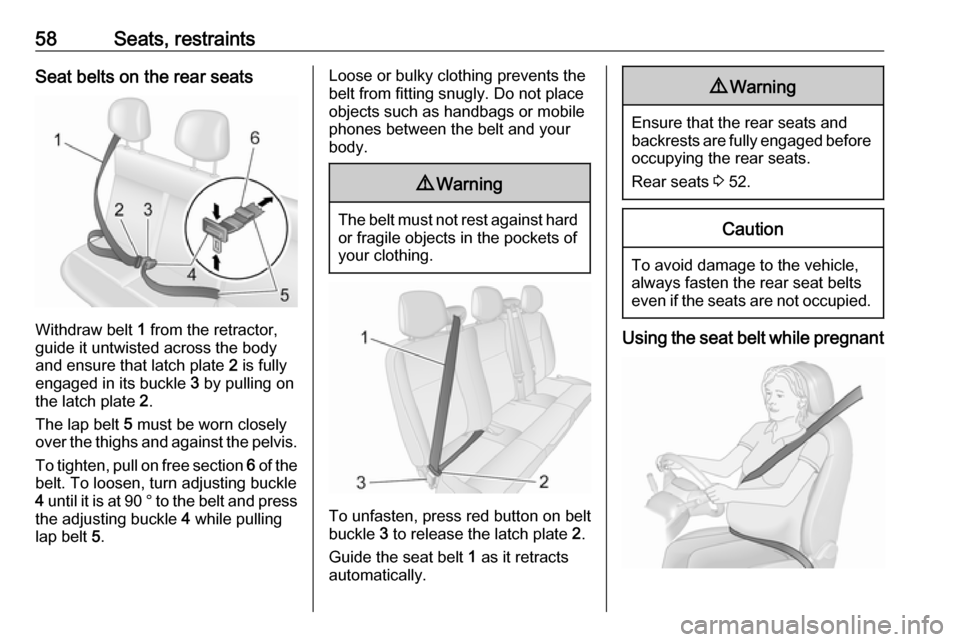

Withdraw belt 1 from the retractor,
guide it untwisted across the body
and ensure that latch plate 2 is fully
engaged in its buckle 3 by pulling on
the latch plate 2.
The lap belt 5 must be worn closely
over the thighs and against the pelvis.
To tighten, pull on free section 6 of the
belt. To loosen, turn adjusting buckle 4 until it is at 90 ° to the belt and press
the adjusting buckle 4 while pulling
lap belt 5.
Loose or bulky clothing prevents the
belt from fitting snugly. Do not place
objects such as handbags or mobile
phones between the belt and your
body.9 Warning
The belt must not rest against hard
or fragile objects in the pockets of
your clothing.
To unfasten, press red button on belt buckle 3 to release the latch plate 2.
Guide the seat belt 1 as it retracts
automatically.
9 Warning
Ensure that the rear seats and
backrests are fully engaged before occupying the rear seats.
Rear seats 3 52.
Caution
To avoid damage to the vehicle,
always fasten the rear seat belts
even if the seats are not occupied.
Using the seat belt while pregnant
