VAUXHALL MOVANO_B 2018 User Guide

In brief9Exterior mirrorsManual adjustment
Swivel mirror in required direction.
Exterior mirrors 3 34.
Electric adjustment
Select the relevant exterior mirror and
adjust it by swivelling the control.
Convex exterior mirrors 3 34,
Electric adjustment 3 35, Folding
exterior mirrors 3 35, Heated
exterior mirrors 3 35.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Airbag system 3 55, Ignition
positions 3 133.

10In briefInstrument panel overview

In brief111Fixed air vents .................... 129
2 Headlight range
adjustment ......................... 109
Ultrasonic parking assist .....162
Traction control system ......155
Electronic Stability
Program ............................. 156
3 Side air vents .....................128
4 Light switch ........................ 107
Turn and lane-change
signals ................................ 110
High beam and low beam,
headlight flash ....................108
Sidelights ............................ 107
Automatic light control .......107
Exit lighting ......................... 114
Front fog lights ...................111
Rear fog light ...................... 111
High beam assist ................108
5 Instruments .......................... 88
Transmission display ............92Driver Information Centre .... 101
Trip computer ...................... 103
6 Horn ..................................... 83
Driver airbag ........................ 58
7 Remote control on
steering wheel .......................83
Cruise control .....................158
8 Windscreen wiper,
windscreen washer system ..84
Trip computer ...................... 103
9 Coin tray ............................... 71
10 Power outlet, USB slot ..........86
11 Centre air vents .................. 128
12 Storage compartment ...........71
13 Info-display .......................... 101
14 Front passenger airbag .........58
15 Storage compartment ..........71
16 Glovebox .............................. 72
17 Seat belt reminder ................. 95
Front passenger airbag
deactivation ........................... 59
18 Cupholders ........................... 7219Climate control system ....... 115
Electronic climate control
system ................................. 117
20 Cigarette lighter .................... 88
Power outlet ......................... 86
21 Gear lever, Manual
transmission ........................ 149
Manual transmission
automated ........................... 149
22 Cruise control and speed
limiter ................................. 158
Manual transmission
automated,
Winter and Laden modes ....151
Idle speed control ...............135
Stop-start system ................135
ECO mode .......................... 132
23 Ignition switch with
steering wheel lock ............133
24 Steering column controls .....83
25 Steering wheel adjustment ..83
26 Bonnet release lever ..........175
27 Auxiliary heater ...................122

12In brief28Storage compartment ..........71
Fuse box ............................ 195Exterior lighting
Turn outer light switch:
7:off0:sidelights9 P:headlightsAUTO:automatic light control:
headlights are switched on
and off automatically.
Lighting 3 107, Automatic light
control 3 107, Headlight warning
device 3 102, Adaptive forward
lighting 3 110.
Front and rear fog lights
Turn inner light switch:
>:front fog lightsø:rear fog lights
Front and rear fog lights 3 111,
3 111.

In brief13Headlight flash, high beam and
low beam
Pull lever.
High beam 3 108, Headlight flash
3 109.
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 110.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 110.

14In briefHorn
Press j.
Horn 3 83.
Washer and wiper systems
Windscreen wiper0:offP /AUTO:timed interval wiping or
automatic wiping with
rain sensor1:slow2:fast
Windscreen wiper 3 84, Wiper
blade replacement 3 183.
Windscreen washer
Pull lever.
short
pull:wiper swipes once and
washer fluid is sprayed onto
the windscreenlong
pull:wiper swipes for a few strokes and washer fluid is
sprayed onto the
windscreen
Windscreen washer 3 84, Washer
fluid 3 179.

In brief15Climate control
Heated rear window
Heating is operated by pressing Ü.
Heated rear window 3 39.
Heated exterior mirrors
Pressing Ü also activates the heated
exterior mirrors.
Heated exterior mirrors 3 35.
Demisting and defrosting the
windows

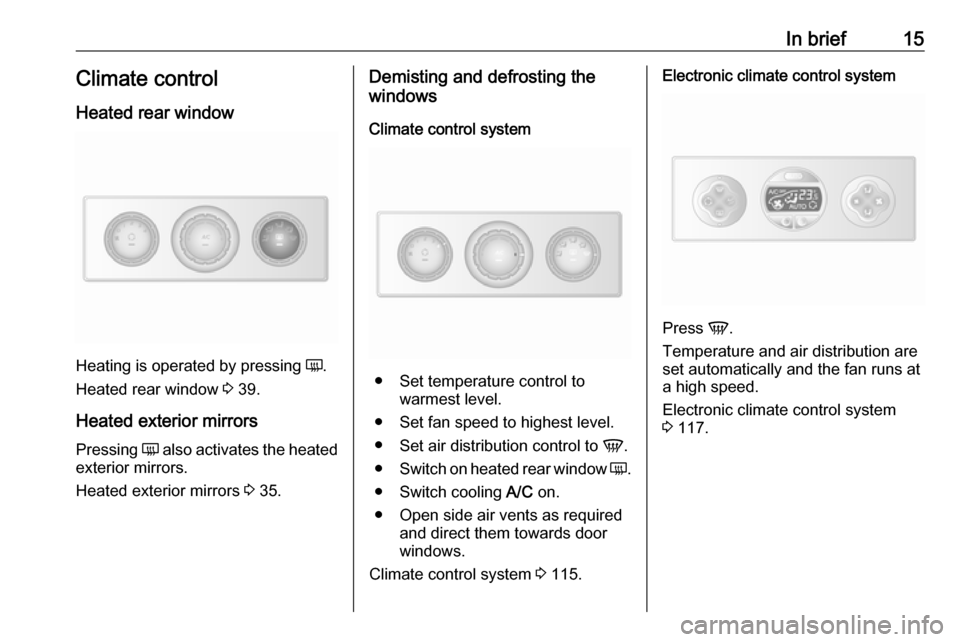

Climate control system
● Set temperature control to warmest level.
● Set fan speed to highest level.
● Set air distribution control to V.
● Switch on heated rear window Ü.
● Switch cooling A/C on.
● Open side air vents as required and direct them towards door
windows.
Climate control system 3 115.
Electronic climate control system
Press V.
Temperature and air distribution are
set automatically and the fan runs at
a high speed.
Electronic climate control system 3 117.

16In briefTransmission

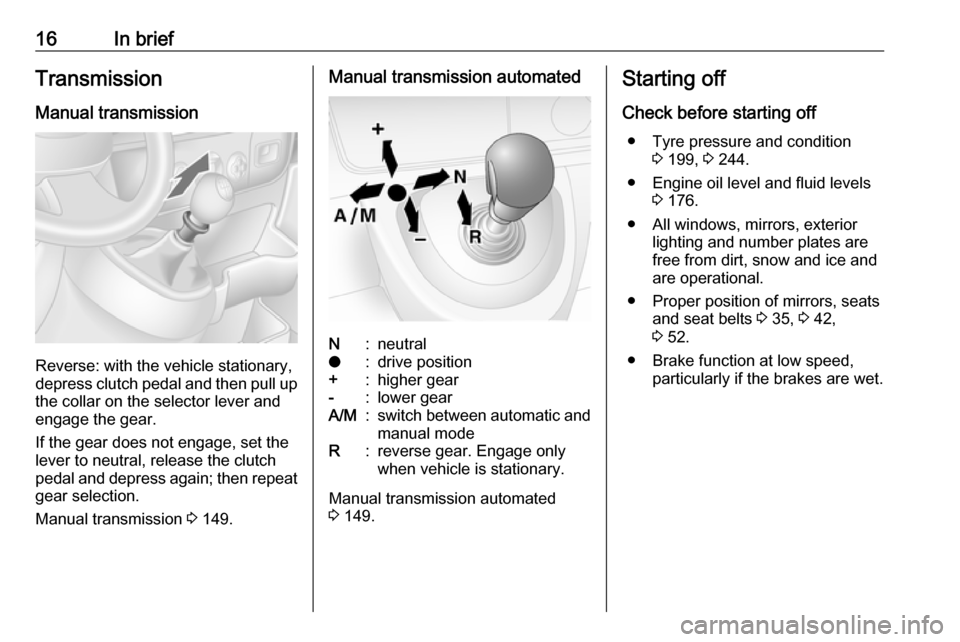

Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal and then pull up
the collar on the selector lever and
engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat gear selection.
Manual transmission 3 149.
Manual transmission automatedN:neutralo:drive position+:higher gear-:lower gearA/M:switch between automatic and
manual modeR:reverse gear. Engage only
when vehicle is stationary.
Manual transmission automated
3 149.
Starting off
Check before starting off ● Tyre pressure and condition 3 199, 3 244.
● Engine oil level and fluid levels 3 176.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats and seat belts 3 35, 3 42,
3 52.
● Brake function at low speed, particularly if the brakes are wet.

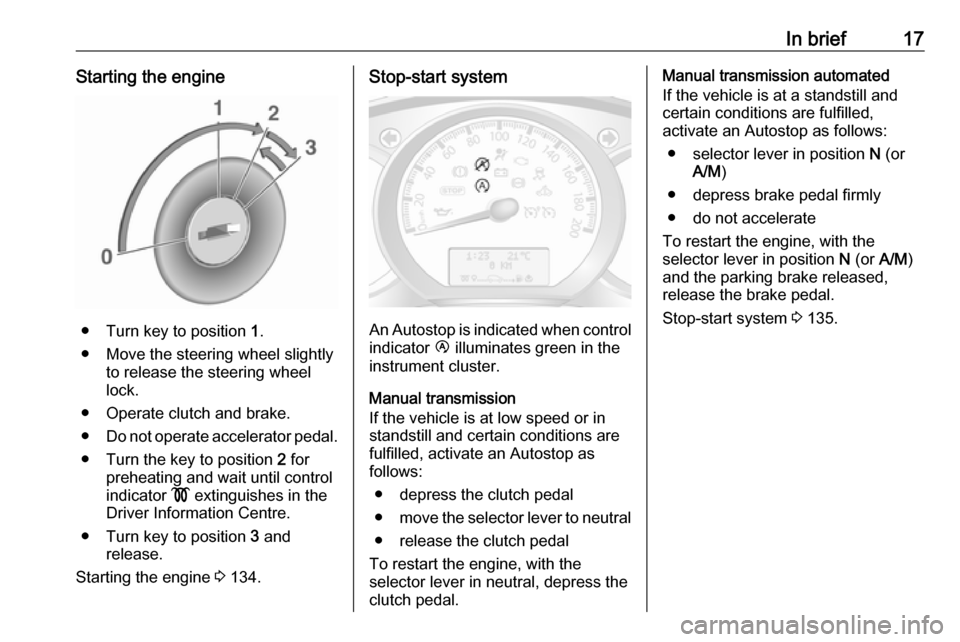

In brief17Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Operate clutch and brake.
● Do not operate accelerator pedal.
● Turn the key to position 2 for
preheating and wait until control
indicator ! extinguishes in the
Driver Information Centre.
● Turn key to position 3 and
release.
Starting the engine 3 134.
Stop-start system
An Autostop is indicated when control
indicator Ï illuminates green in the
instrument cluster.
Manual transmission If the vehicle is at low speed or in
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
● depress the clutch pedal● move the selector lever to neutral
● release the clutch pedal
To restart the engine, with the
selector lever in neutral, depress the
clutch pedal.
Manual transmission automated
If the vehicle is at a standstill and
certain conditions are fulfilled,
activate an Autostop as follows:
● selector lever in position N (or
A/M )
● depress brake pedal firmly
● do not accelerate
To restart the engine, with the
selector lever in position N (or A/M)
and the parking brake released,
release the brake pedal.
Stop-start system 3 135.

18In briefParking9Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply parking brake without pressing release
button. Apply as firmly as
possible on a downhill slope or
uphill slope. Depress brake
pedal at the same time to
reduce operating force.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear. On an uphill slope,
turn the front wheels away from
the kerb.
If the vehicle is on a downhill
slope, engage reverse gear.
Turn the front wheels towards the kerb.
● Close the windows.
● Remove the ignition key from the ignition switch. Turn the
steering wheel until the
steering wheel lock is felt to
engage.
● Lock the vehicle by pressing e on
the remote control 3 22.
● Activate the anti-theft alarm system 3 32.
● The engine cooling fans may run
after the engine has been
switched off 3 175.
Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for approx.30 seconds before switching off, in
order to protect the turbocharger.
Keys, locks 3 19, Laying the vehicle
up for a long period of time 3 174.
