VAUXHALL MOVANO_B 2020 User Guide

In brief9Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Interior mirror, wide view mirror
3 39.
Rear view display 3 40.
Exterior mirrors
Manual adjustment
Swivel mirror in required direction.
Exterior mirrors 3 38.
Electric adjustment
Select the relevant exterior mirror and
adjust it by swivelling the control.
Convex exterior mirrors 3 38.
Electric adjustment 3 38.
Folding exterior mirrors 3 38.
Heated exterior mirrors 3 39.

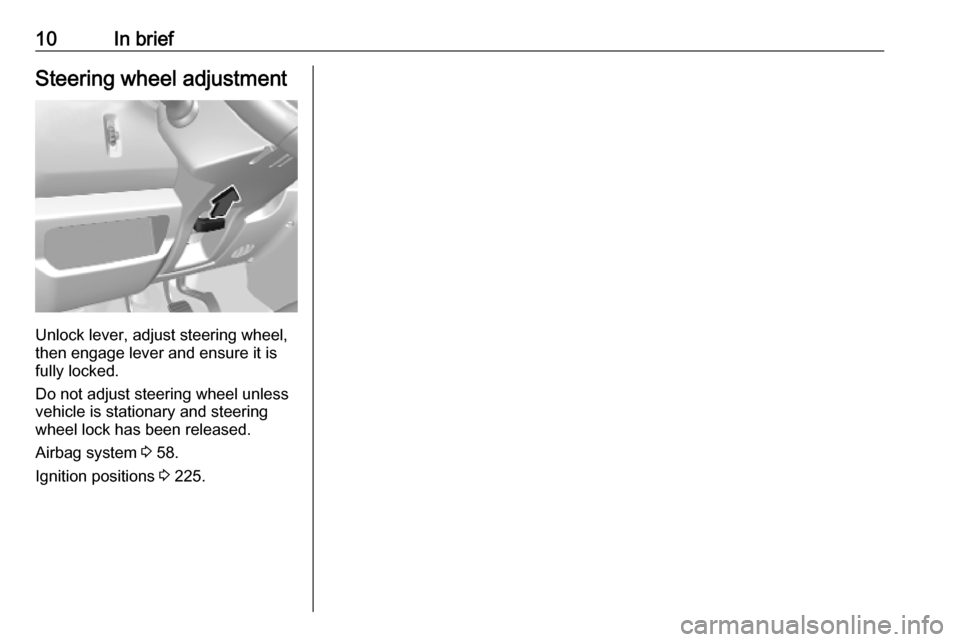

10In briefSteering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Airbag system 3 58.
Ignition positions 3 225.

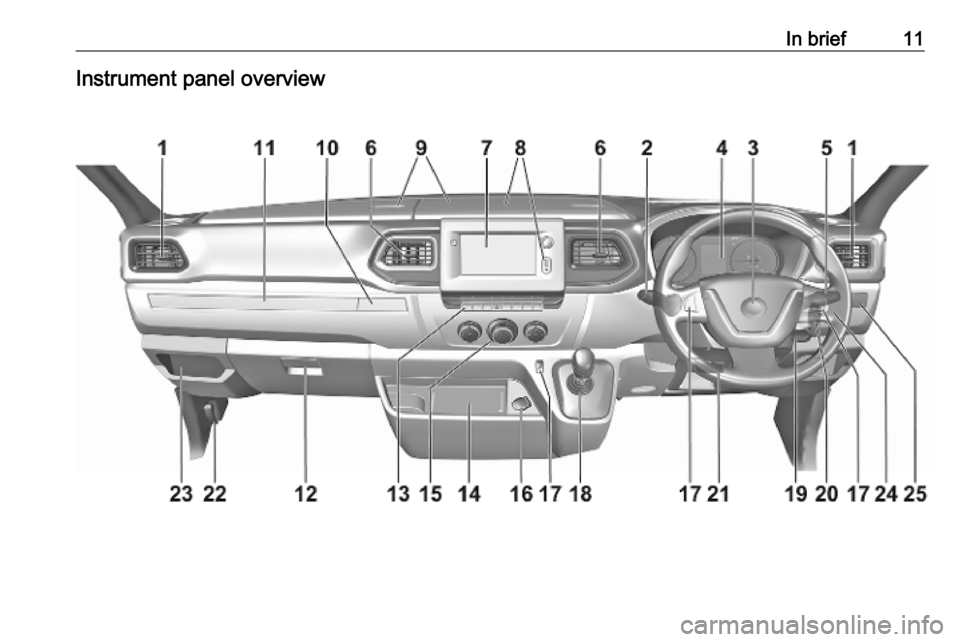

In brief11Instrument panel overview

12In brief1Side air vents ...................... 220
2 Light switch ........................ 109
Turn lights ........................... 112
Front / rear fog lights ..........112
Headlight flash ....................111
High beam ........................... 110
High beam assist ...............110
Exit lighting ......................... 115
3 Horn ..................................... 84
Driver airbag ......................... 61
4 Instruments .......................... 90
Driver Information Centre .... 104
5 Windscreen wiper and
washer, rear wiper and
washer ................................. 85
Buttons for Driver
Information Centre ..............104
6 Air vents ............................. 220
7 Info Display ........................ 104
8 USB socket, AUX socket,
SD card slot .......................... 87
9 Storage ................................. 7210Cupholder ............................. 73
11 Tray ....................................... 72
12 Glovebox .............................. 73
13 Parking assist ...................... 254
Lane departure warning ......260
Electronic Stability Control
and Traction Control ...........246
Hazard warning flashers ....112
Central locking system ..........23
Stop-start system ................227
Side blind spot alert ............256
ECO mode .......................... 224
14 Inductive charging .................89
15 Climate control system ........ 207
16 Power outlet .......................... 87
17 Cruise control .....................248
Speed limiter ....................... 250
18 Manual transmission ..........240
Manual transmission
automated .......................... 240
19 Ignition switch .....................22520Infotainment controls
21 Steering wheel adjustment ..84
22 Bonnet release lever ..........269
23 Fuse box ............................ 286
24 Headlight range
adjustment ......................... 111
25 Power take-off .....................265
Idle speed control ...............227
Laden mode kg ...................242

In brief13Exterior lighting
Turn outer light switch:
7:off0:sidelights9 P:headlightsAUTO:automatic light control:
headlights are switched on
and off automatically.
Lighting 3 109.
Automatic light control 3 109.
Headlight warning device 3 106.
Front fog lights 3 112.
Rear fog light 3 113.

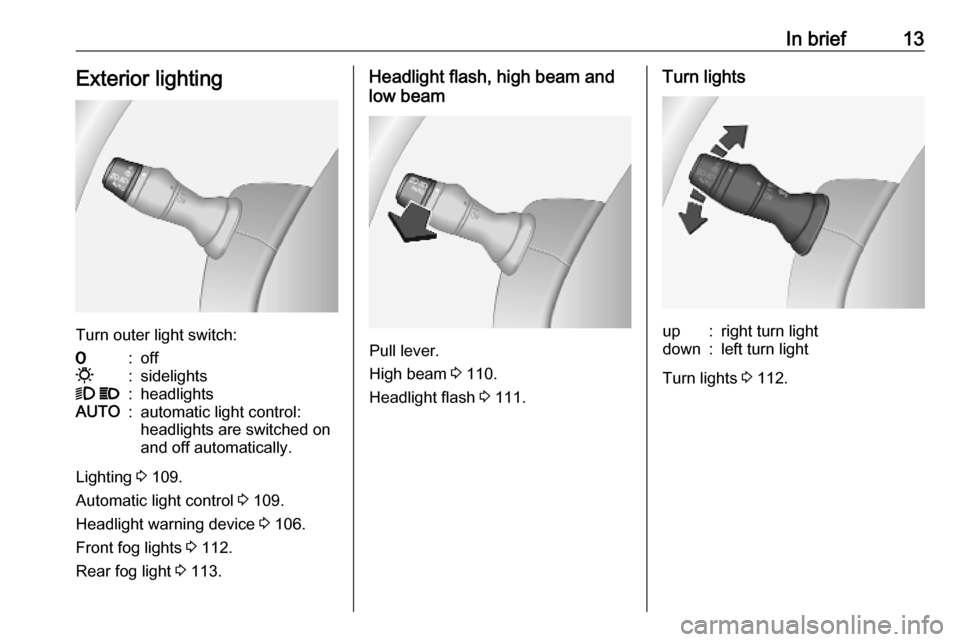

Headlight flash, high beam and
low beam
Pull lever.
High beam 3 110.
Headlight flash 3 111.
Turn lightsup:right turn lightdown:left turn light
Turn lights 3 112.

14In briefHazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 112.
Horn
Press j.
Horn 3 84.
Washer and wiper systems
Windscreen wiper0:offP /AUTO:timed interval wiping or
automatic wiping with
rain sensor1:slow2:fast
Windscreen wiper 3 85.
Wiper blade replacement 3 276.

In brief15Windscreen washer
Pull lever.
short
pull:wiper swipes once and
washer fluid is sprayed onto
the windscreenlong
pull:wiper swipes for a few strokes and washer fluid is
sprayed onto the
windscreen
Windscreen washer 3 85.
Washer fluid 3 272.
Climate control
Heated rear window
Heating is operated by pressing Ü.
Heated rear window 3 42.
Heated exterior mirrors
Pressing Ü also activates the heated
exterior mirrors.
Heated exterior mirrors 3 39.
Demisting and defrosting the
windows
Climate control system
● Switch cooling A/C on if
available.
● Set temperature control to warmest level.
● Set fan speed to highest level.
● Set air distribution control to V.
● Switch on heated rear window Ü.
● Open side air vents as required and direct them towards door
windows.
Climate control system 3 207.

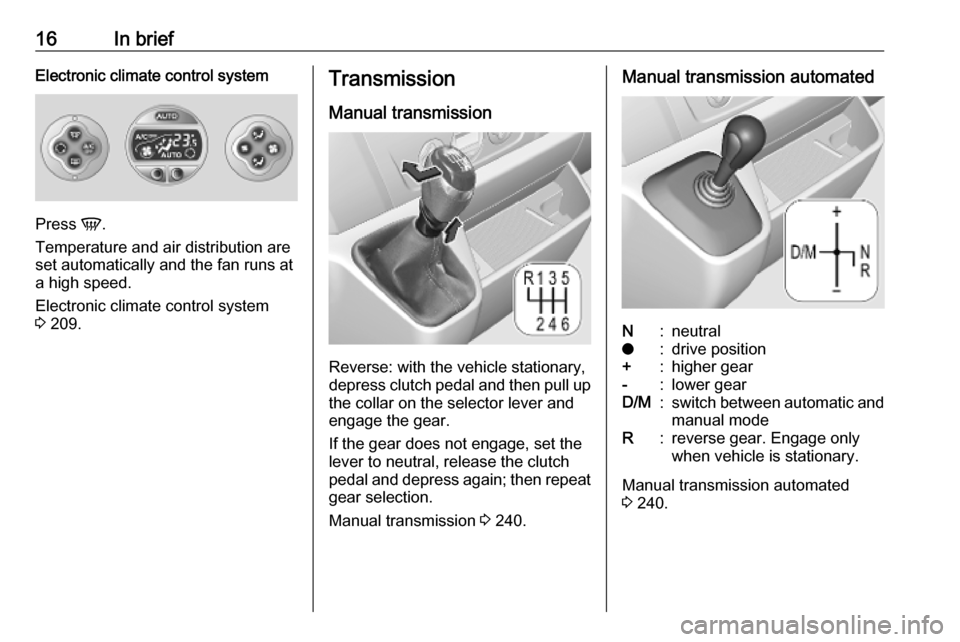

16In briefElectronic climate control system
Press V.
Temperature and air distribution are
set automatically and the fan runs at
a high speed.
Electronic climate control system 3 209.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal and then pull up
the collar on the selector lever and
engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat gear selection.
Manual transmission 3 240.
Manual transmission automatedN:neutralo:drive position+:higher gear-:lower gearD/M:switch between automatic and
manual modeR:reverse gear. Engage only
when vehicle is stationary.
Manual transmission automated
3 240.

In brief17Starting offCheck before starting off ● Tyre pressure 3 290 and
condition 3 315.
● Engine oil level and fluid levels 3 270.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors 3 38,
seats 3 45 and seat belts
3 55.

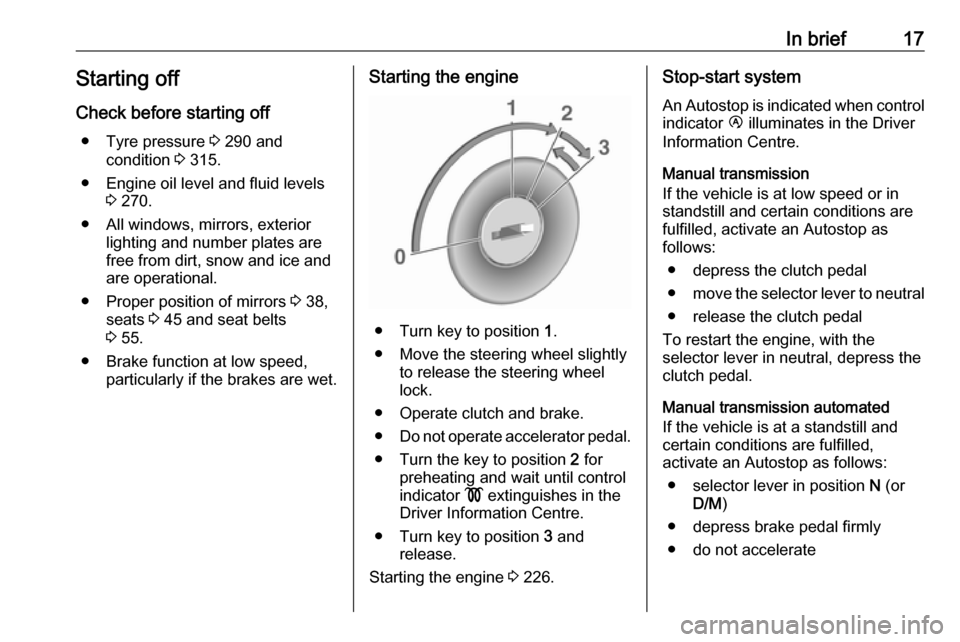

● Brake function at low speed, particularly if the brakes are wet.Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Operate clutch and brake.
● Do not operate accelerator pedal.
● Turn the key to position 2 for
preheating and wait until control
indicator ! extinguishes in the
Driver Information Centre.
● Turn key to position 3 and
release.
Starting the engine 3 226.
Stop-start system
An Autostop is indicated when controlindicator Ï illuminates in the Driver
Information Centre.
Manual transmission
If the vehicle is at low speed or in
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
● depress the clutch pedal
● move the selector lever to neutral
● release the clutch pedal
To restart the engine, with the
selector lever in neutral, depress the
clutch pedal.
Manual transmission automated
If the vehicle is at a standstill and
certain conditions are fulfilled,
activate an Autostop as follows:
● selector lever in position N (or
D/M )
● depress brake pedal firmly
● do not accelerate

18In briefTo restart the engine, with the
selector lever in position N (or D/M )
and the parking brake released, release the brake pedal.
Stop-start system 3 227.Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply parking brake without pressing release
button. Apply as firmly as
possible on a downhill slope or
uphill slope. Depress brake
pedal at the same time to
reduce operating force.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear. On an uphill slope,
turn the front wheels away from
the kerb.
If the vehicle is on a downhill
slope, engage reverse gear.
Turn the front wheels towards the kerb.
● Close the windows.
● Remove the ignition key from the ignition switch. Turn the
steering wheel until the
steering wheel lock is felt to
engage.
● Lock the vehicle by pressing e on
the remote control 3 23.
● Activate the anti-theft alarm system 3 35.
● The engine cooling fans may run
after the engine has been
switched off 3 269.
Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for approx.30 seconds before switching off, in
order to protect the turbocharger.
Keys, locks 3 19.
Laying the vehicle up for a long period
of time 3 268.
