VAUXHALL MOVANO_B 2020 Owner's Guide

Keys, doors and windows19Keys, doors and
windowsKeys, locks ................................... 19
Keys .......................................... 19
Car Pass .................................... 20
Radio remote control .................20
Electronic key system ................21
Door locks ................................. 22
Manual door locks .....................23
Central locking system ..............23
Power door locks .......................28
Automatic locking ......................28
Child locks ................................. 29
Doors ........................................... 29
Sliding door ............................... 29
Rear doors ................................. 33
Vehicle security ............................ 34
Anti-theft locking system ...........34
Anti-theft alarm system ..............35
Immobiliser ................................ 37
Exterior mirrors ............................ 38
Convex shape ........................... 38
Manual adjustment ....................38
Electric adjustment ....................38Folding mirrors .......................... 38
Heated mirrors ........................... 39
Interior mirrors ............................. 39
Manual anti-dazzle ....................39
Rear view display ......................40
Windows ...................................... 40
Windscreen ............................... 40
Manual windows ........................41
Power windows ......................... 41
Rear windows ............................ 41
Heated rear window ..................42
Sun visors .................................. 43
Roof ............................................. 43
Glass panel ............................... 43Keys, locks
KeysCaution
Do not attach heavy or bulky itemsto the ignition key.
Replacement keys
The key number is specified in the
Car Pass or on a detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
If the electronic key needs to be
replaced, the vehicle must be taken to a workshop.
Locks 3 307.
Radio remote control 3 20.
Electronic key system 3 21.
Central locking system 3 23.
Starting the engine 3 226.

20Keys, doors and windowsLock cylinders
Designed to free-wheel if they are
forcefully rotated without the correct
key or if the correct key is not fully
inserted. To reset, turn cylinder with
the correct key until its slot is vertical, remove key and then re-insert it. If the
cylinder still free-wheels, turn the key through 180° and repeat operation.
Car Pass The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.
When the vehicle is taken to a
workshop, this vehicle data is needed
in order to perform certain operations.Radio remote control
Used to operate:
● central locking system
● anti-theft locking system
● anti-theft alarm system
Depending on model, the vehicle may use a 2-button or 3-button remote
control.
The remote control has a range of
approx. 5 m. It can be affected by
external influences. The hazard
warning flashers confirm operation.
Handle with care, protect it from
moisture and high temperatures and
avoid unnecessary operation.
Fault
If the central locking system cannot
be operated with the remote control,
it may be due to the following:
● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of the remote control while not in
range, which will require
reprogramming by a workshop.
● Overload of the central locking system by operating at frequent
intervals; the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
Unlocking 3 23.
Remote control battery
replacement
Replace the battery as soon as the
range reduces.

Keys, doors and windows21

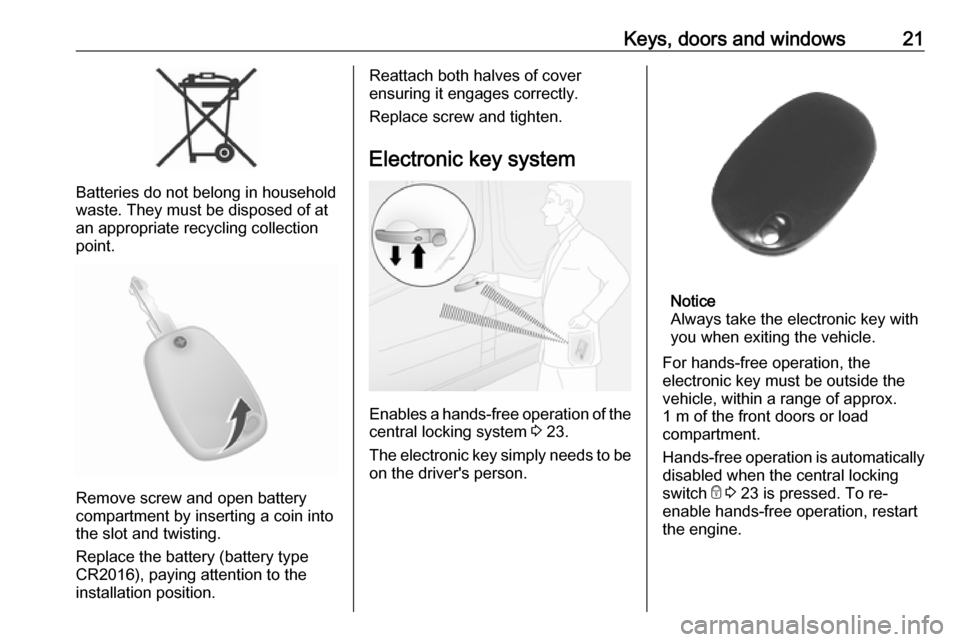

Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Remove screw and open battery
compartment by inserting a coin into
the slot and twisting.
Replace the battery (battery type
CR2016), paying attention to the
installation position.
Reattach both halves of cover
ensuring it engages correctly.
Replace screw and tighten.
Electronic key system
Enables a hands-free operation of the central locking system 3 23.
The electronic key simply needs to be on the driver's person.
Notice
Always take the electronic key with
you when exiting the vehicle.
For hands-free operation, the
electronic key must be outside the
vehicle, within a range of approx.
1 m of the front doors or load
compartment.
Hands-free operation is automatically
disabled when the central locking
switch e 3 23 is pressed. To re-
enable hands-free operation, restart
the engine.

22Keys, doors and windowsElectronic key battery
replacement
Replace the battery as soon as the
system no longer operates properly
or the range is reduced.

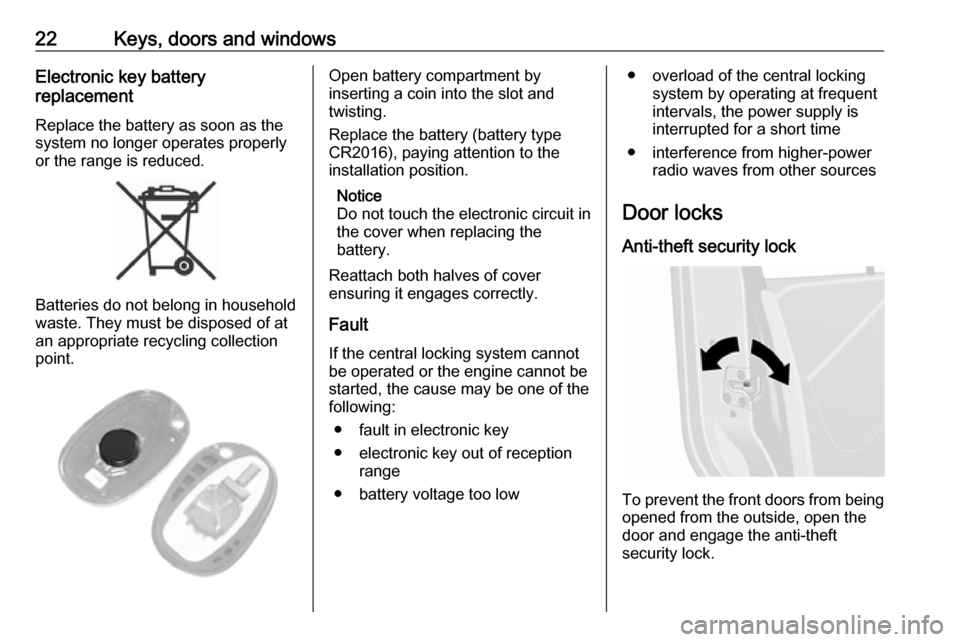

Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Open battery compartment by
inserting a coin into the slot and
twisting.
Replace the battery (battery type CR2016), paying attention to the
installation position.
Notice
Do not touch the electronic circuit in
the cover when replacing the
battery.
Reattach both halves of cover
ensuring it engages correctly.
Fault
If the central locking system cannot
be operated or the engine cannot be started, the cause may be one of the
following:
● fault in electronic key
● electronic key out of reception range
● battery voltage too low● overload of the central locking system by operating at frequent
intervals, the power supply is
interrupted for a short time
● interference from higher-power radio waves from other sources
Door locks
Anti-theft security lock
To prevent the front doors from being opened from the outside, open the
door and engage the anti-theft
security lock.

Keys, doors and windows23Using a suitable tool, turn the lock
switch on the door to the horizontal locked position. The door cannot be
opened from outside and can only be
opened from inside the vehicle or by
using the manual key.
To disengage, turn the switch to the unlocked position.

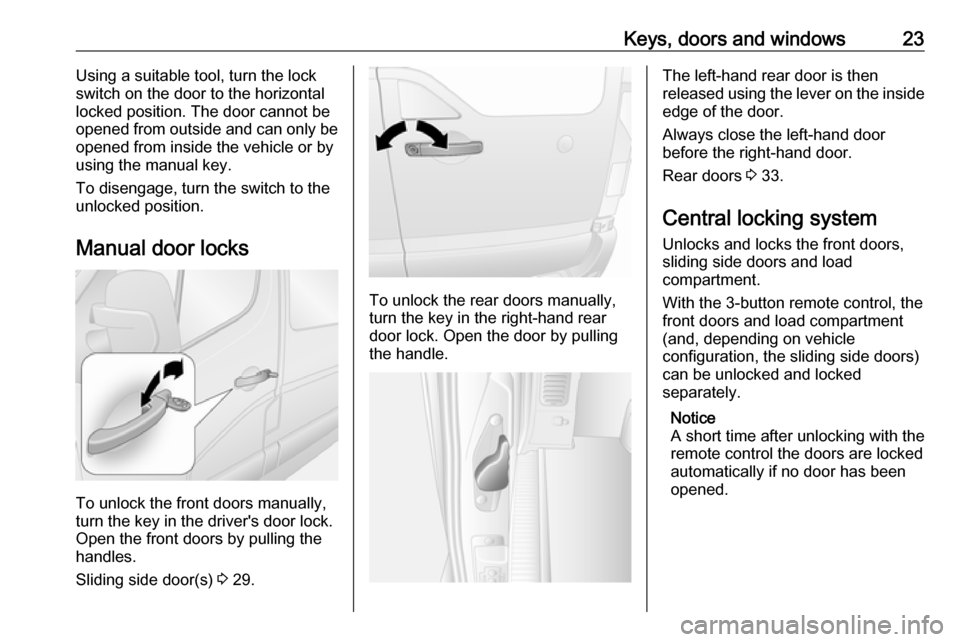

Manual door locks
To unlock the front doors manually,
turn the key in the driver's door lock.
Open the front doors by pulling the handles.
Sliding side door(s) 3 29.
To unlock the rear doors manually,
turn the key in the right-hand rear
door lock. Open the door by pulling
the handle.
The left-hand rear door is then
released using the lever on the inside
edge of the door.
Always close the left-hand door
before the right-hand door.
Rear doors 3 33.
Central locking system
Unlocks and locks the front doors,
sliding side doors and load
compartment.

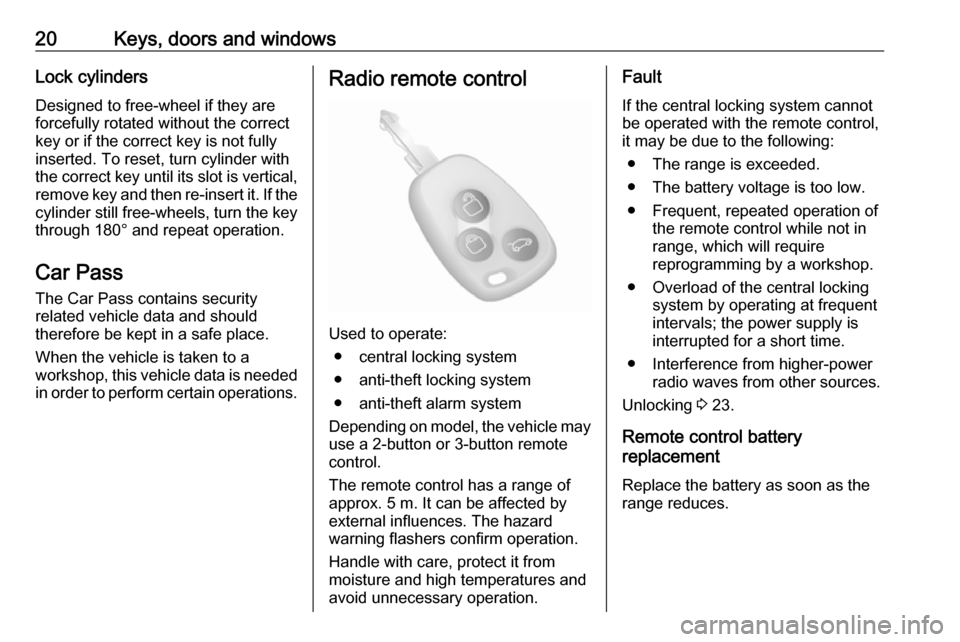

With the 3-button remote control, the
front doors and load compartment
(and, depending on vehicle
configuration, the sliding side doors)
can be unlocked and locked
separately.
Notice
A short time after unlocking with the
remote control the doors are locked
automatically if no door has been
opened.

24Keys, doors and windowsUnlocking the vehicle
Operation of central locking system
with the remote control is confirmed
by the hazard warning flashers. The
hazard warning flashers flash once to
indicate the vehicle is unlocked, and
twice to indicate the vehicle is locked.

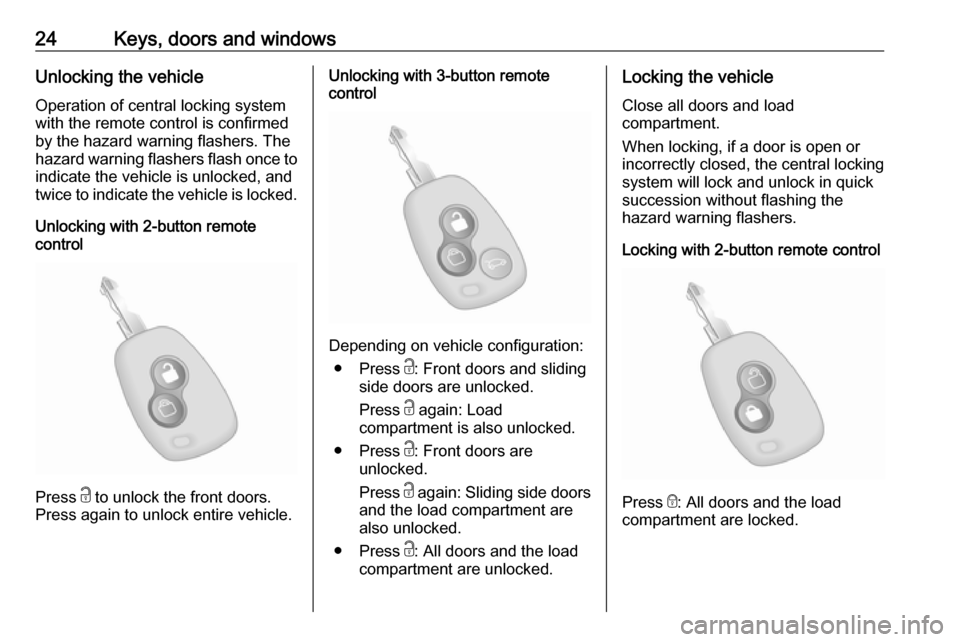

Unlocking with 2-button remote
control
Press c to unlock the front doors.
Press again to unlock entire vehicle.
Unlocking with 3-button remote
control
Depending on vehicle configuration:
● Press c: Front doors and sliding
side doors are unlocked.
Press c again: Load
compartment is also unlocked.
● Press c: Front doors are
unlocked.
Press c again: Sliding side doors
and the load compartment are
also unlocked.
● Press c: All doors and the load
compartment are unlocked.
Locking the vehicle
Close all doors and load
compartment.
When locking, if a door is open or
incorrectly closed, the central locking
system will lock and unlock in quick
succession without flashing the
hazard warning flashers.

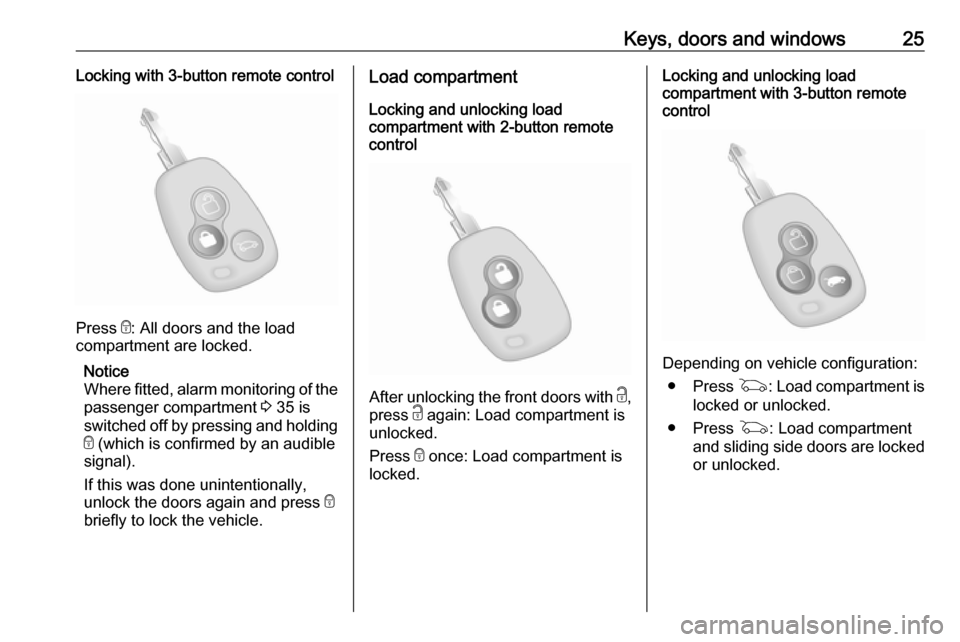

Locking with 2-button remote control
Press e: All doors and the load
compartment are locked.

Keys, doors and windows25Locking with 3-button remote control
Press e: All doors and the load
compartment are locked.
Notice
Where fitted, alarm monitoring of the passenger compartment 3 35 is
switched off by pressing and holding
e (which is confirmed by an audible
signal).
If this was done unintentionally,
unlock the doors again and press e
briefly to lock the vehicle.
Load compartment
Locking and unlocking load
compartment with 2-button remote
control
After unlocking the front doors with c,
press c again: Load compartment is
unlocked.
Press e once: Load compartment is
locked.
Locking and unlocking load
compartment with 3-button remote
control
Depending on vehicle configuration:
● Press G: Load compartment is
locked or unlocked.
● Press G: Load compartment
and sliding side doors are locked or unlocked.

26Keys, doors and windowsElectronic key system operation

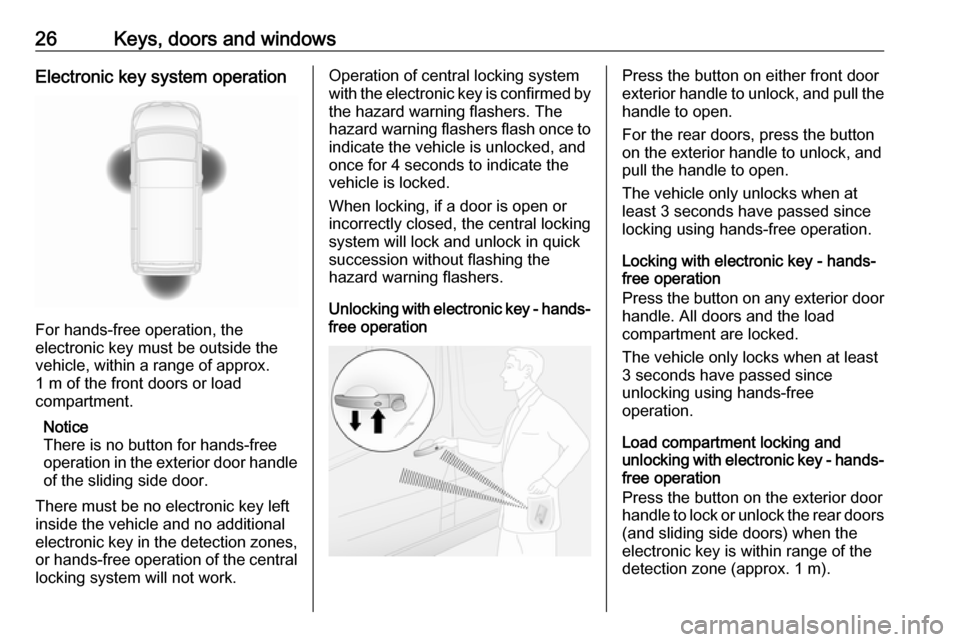

For hands-free operation, the
electronic key must be outside the
vehicle, within a range of approx.
1 m of the front doors or load
compartment.
Notice
There is no button for hands-free
operation in the exterior door handle
of the sliding side door.
There must be no electronic key left
inside the vehicle and no additional
electronic key in the detection zones, or hands-free operation of the centrallocking system will not work.
Operation of central locking system
with the electronic key is confirmed by
the hazard warning flashers. The
hazard warning flashers flash once to
indicate the vehicle is unlocked, and
once for 4 seconds to indicate the
vehicle is locked.
When locking, if a door is open or
incorrectly closed, the central locking
system will lock and unlock in quick
succession without flashing the
hazard warning flashers.
Unlocking with electronic key - hands-
free operationPress the button on either front door
exterior handle to unlock, and pull the
handle to open.
For the rear doors, press the button
on the exterior handle to unlock, and
pull the handle to open.
The vehicle only unlocks when at
least 3 seconds have passed since
locking using hands-free operation.
Locking with electronic key - hands-
free operation
Press the button on any exterior door
handle. All doors and the load
compartment are locked.
The vehicle only locks when at least
3 seconds have passed since
unlocking using hands-free
operation.
Load compartment locking and
unlocking with electronic key - hands- free operation
Press the button on the exterior door
handle to lock or unlock the rear doors
(and sliding side doors) when the
electronic key is within range of the
detection zone (approx. 1 m).

Keys, doors and windows27The rear doors (and sliding side
doors) only lock / unlock when at least
3 seconds have passed since the
button was last pressed.

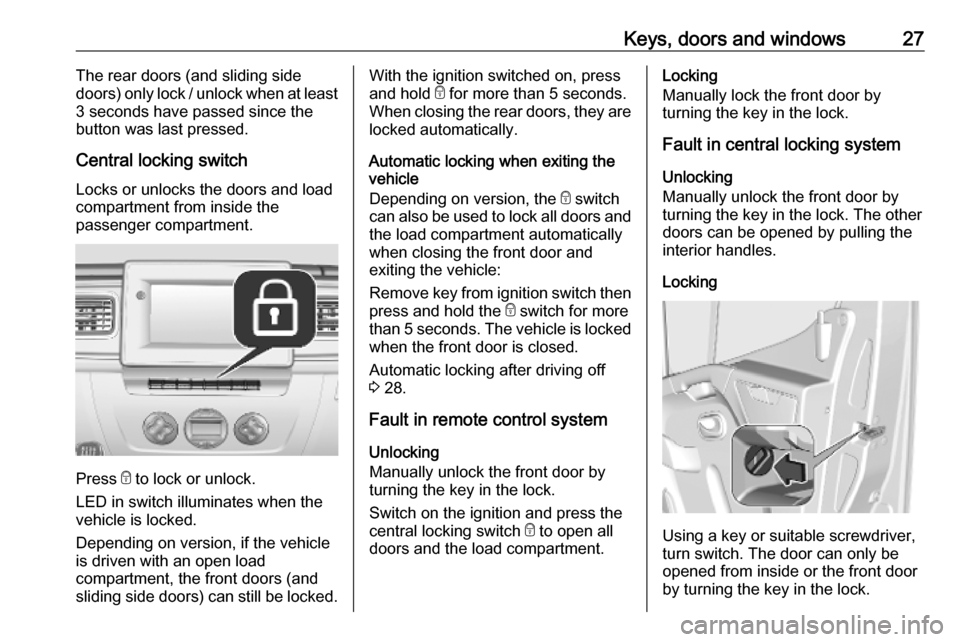

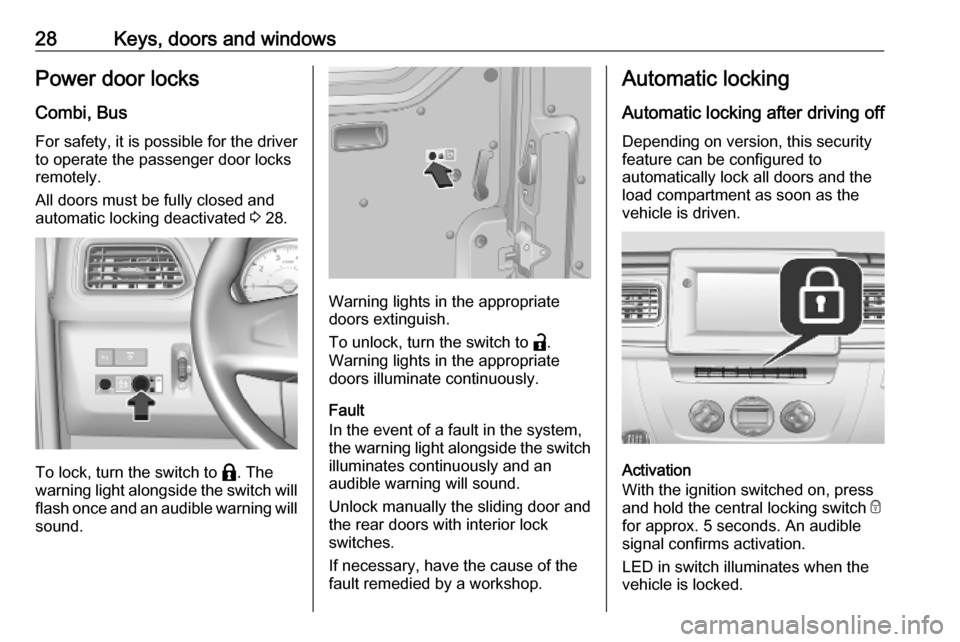

Central locking switch Locks or unlocks the doors and load
compartment from inside the
passenger compartment.
Press e to lock or unlock.
LED in switch illuminates when the
vehicle is locked.
Depending on version, if the vehicle
is driven with an open load
compartment, the front doors (and
sliding side doors) can still be locked.
With the ignition switched on, press
and hold e for more than 5 seconds.
When closing the rear doors, they are locked automatically.
Automatic locking when exiting the
vehicle
Depending on version, the e switch
can also be used to lock all doors and the load compartment automatically
when closing the front door and
exiting the vehicle:
Remove key from ignition switch then
press and hold the e switch for more
than 5 seconds. The vehicle is locked when the front door is closed.
Automatic locking after driving off
3 28.
Fault in remote control system Unlocking
Manually unlock the front door by
turning the key in the lock.
Switch on the ignition and press the central locking switch e to open all
doors and the load compartment.Locking
Manually lock the front door by
turning the key in the lock.
Fault in central locking system
Unlocking
Manually unlock the front door by
turning the key in the lock. The other
doors can be opened by pulling the
interior handles.
Locking
Using a key or suitable screwdriver,
turn switch. The door can only be
opened from inside or the front door
by turning the key in the lock.

28Keys, doors and windowsPower door locks
Combi, Bus For safety, it is possible for the driver
to operate the passenger door locks
remotely.
All doors must be fully closed and
automatic locking deactivated 3 28.
To lock, turn the switch to b. The
warning light alongside the switch will
flash once and an audible warning will
sound.
Warning lights in the appropriate
doors extinguish.
To unlock, turn the switch to a.
Warning lights in the appropriate
doors illuminate continuously.
Fault
In the event of a fault in the system,
the warning light alongside the switch illuminates continuously and an
audible warning will sound.
Unlock manually the sliding door and
the rear doors with interior lock
switches.
If necessary, have the cause of the
fault remedied by a workshop.
Automatic locking
Automatic locking after driving off Depending on version, this security
feature can be configured to
automatically lock all doors and the
load compartment as soon as the
vehicle is driven.
Activation
With the ignition switched on, press
and hold the central locking switch e
for approx. 5 seconds. An audible
signal confirms activation.
LED in switch illuminates when the
vehicle is locked.
