maintenance VAUXHALL VIVA 2015.75 Owner's Manual

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
ContentsIntroduction . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . 18
Seats and Restraints . . . . . . . . . . . 31
Storage . . . . . . . . . . . . . . . . . . . . . . . . . 52
Instruments and Controls . . . . . . . 59
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . 85
Infotainment System . . . . . . . . . . . . 92
Climate Controls . . . . . . . . . . . . . . 129
Driving and Operating . . . . . . . . . 138
Vehicle Care . . . . . . . . . . . . . . . . . . 159
Service and Maintenance . . . . . 198
Technical Data . . . . . . . . . . . . . . . . 205
Customer Information . . . . . . . . . 210
Index . . . . . . . . . . . . . . . . . . . . 213

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Introduction 3
Vehicle specific data
Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service
and maintenance" and "Technical
data" as well as on the identification
plate.
Introduction
Your vehicle is a designed
combination of advanced
technology, safety, environmental
friendliness and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of
accident and injury which may result
from improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in
this Owner's Manual.When this Owner's Manual refers to
a workshop visit, we recommend
your Vauxhall Authorised workshop.
For gas vehicles, we recommend a
Vauxhall Authorised workshop
licensed to service gas vehicles.
All Vauxhall Authorised workshops
provide first-class service at
reasonable prices. Experienced
mechanics trained by Vauxhall work
according to specific Vauxhall
instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this Manual
.
This manual describes all
options and features available
for this model. Certain
descriptions, including those for
display and menu functions, may
not apply to your vehicle due to
model variant, country
specifications, special equipment
or accessories.
. The "In brief" section will give
you an initial overview. .
The table of contents at the
beginning of this manual and
within each section shows where
the information is located.
. The index will enable you to
search for specific information.
. This Owner's Manual depicts
left-hand drive vehicles.
Operation is similar for
right-hand drive vehicles.
. The Owner's Manual uses the
factory engine designations.
The corresponding sales
designations can be found in the
section "Technical data".
. Directional data, e.g. left or right,
or front or back, always relate to
the direction of travel.
. The vehicle display screens may
not support your specific
language.
. Display messages and interior
labelling are written in bold
letters.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Climate Controls 129
Climate Controls
Climate Control Systems
Heating and VentilationSystem . . . . . . . . . . . . . . . . . . . . . . 129
Air Conditioning System . . . . . . 130
Electronic Climate Control System . . . . . . . . . . . . . . . . . . . . . . 132
Air Vents
Adjustable Air Vents . . . . . . . . . . 135
Fixed Air Vents . . . . . . . . . . . . . . . 136
Maintenance
Air Intake . . . . . . . . . . . . . . . . . . . . . 136
Passenger Compartment AirFilter . . . . . . . . . . . . . . . . . . . . . . . . 136
Air Conditioning Regular Operation . . . . . . . . . . . . . . . . . . . 137
Service . . . . . . . . . . . . . . . . . . . . . . . 137
Climate Control
Systems
Heating and Ventilation
System
Controls for:
. temperature
. air distribution
. fan speed
. demisting and defrosting
. air recirculation .
heated rear window
0Heated
Rear Window 029
Temperature
Adjust the temperature by turning
the knob.
Red: Warm
Blue: Cold
Heating will not be fully effective
until the engine has reached normal
operating temperature.
Air distribution
E: To head area via adjustable air
vents.
): To head area and foot well.
[:To foot well, with a small
amount of the air being directed to
windscreen, front door windows and
side air vents.
-: To windscreen and foot well,
with a small amount of the air being
directed to front door windows and
side air vents.
0: To windscreen and front door
windows, with a small amount of the
air being directed to side air vents.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
136 Climate Controls
{Warning
Do not attach any objects to the
slats of the air vents. Risk of
damage and injury in case of an
accident.
Fixed Air Vents
Additional air vents are located
beneath the windscreen and door
windows and in the foot wells.
These are fixed and cannot be
adjusted.
Maintenance
Air Intake
The air intake in front of the
windscreen in the engine
compartment must be kept clear to
allow air intake. Remove any
leaves, dirt or snow.
Passenger Compartment
Air Filter
Cabin air filtration
The particle filter cleans the cabin
air from solid particulates such as
pollen, dust, soot from the air. The
filter should be replaced as part of
routine scheduled maintenance.
Caution
More frequent maintenance of the
air filter is required if the driving
circumstances are dusty roads,
air pollution areas, and frequent
unpaved roads. It makes the filter
efficiency to be decreased and
the bronchus to be bad effected.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15

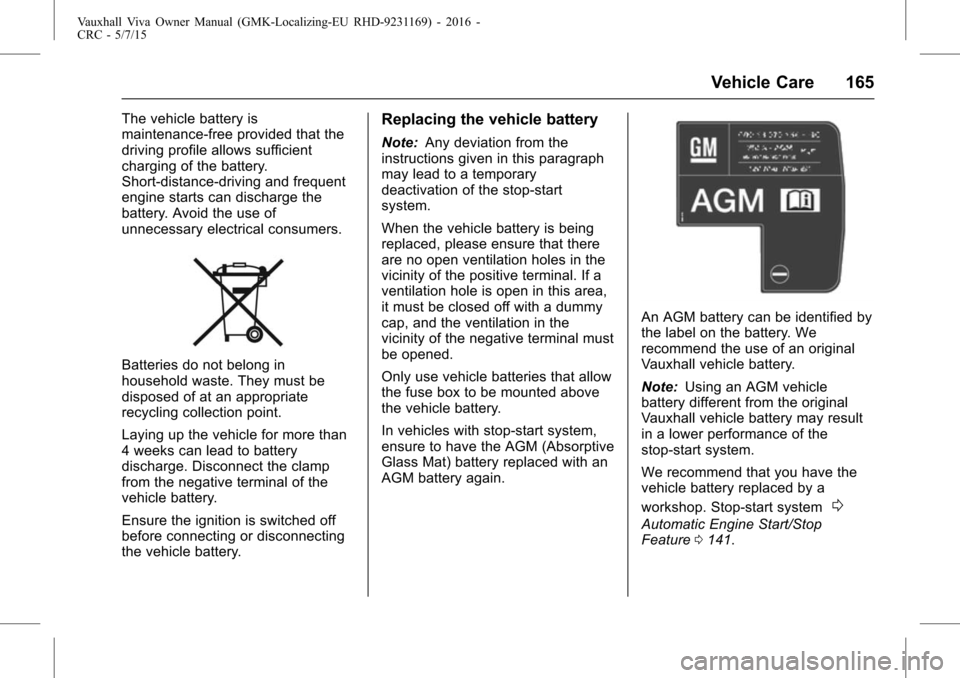

Vehicle Care 165
The vehicle battery is
maintenance-free provided that the
driving profile allows sufficient
charging of the battery.
Short-distance-driving and frequent
engine starts can discharge the
battery. Avoid the use of
unnecessary electrical consumers.
Batteries do not belong in
household waste. They must be
disposed of at an appropriate
recycling collection point.
Laying up the vehicle for more than
4 weeks can lead to battery
discharge. Disconnect the clamp
from the negative terminal of the
vehicle battery.
Ensure the ignition is switched off
before connecting or disconnecting
the vehicle battery.
Replacing the vehicle battery
Note:Any deviation from the
instructions given in this paragraph
may lead to a temporary
deactivation of the stop-start
system.
When the vehicle battery is being
replaced, please ensure that there
are no open ventilation holes in the
vicinity of the positive terminal. If a
ventilation hole is open in this area,
it must be closed off with a dummy
cap, and the ventilation in the
vicinity of the negative terminal must
be opened.
Only use vehicle batteries that allow
the fuse box to be mounted above
the vehicle battery.
In vehicles with stop-start system,
ensure to have the AGM (Absorptive
Glass Mat) battery replaced with an
AGM battery again.
An AGM battery can be identified by
the label on the battery. We
recommend the use of an original
Vauxhall vehicle battery.
Note: Using an AGM vehicle
battery different from the original
Vauxhall vehicle battery may result
in a lower performance of the
stop-start system.
We recommend that you have the
vehicle battery replaced by a
workshop. Stop-start system
0
Automatic Engine Start/Stop
Feature 0141.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
180 Vehicle Care
Tyre Pressure Monitor
System
The tyre pressure monitoring
system (TPMS) checks the pressure
of all four wheels once a minute
when vehicle speed exceeds a
certain limit.
Caution
Tyre pressure monitoring system
warns only about low tyre
pressure condition and does not
replace regular tyre maintenance
by the driver.
All wheels must be equipped with
pressure sensors and the tyres
must have the prescribed pressure.
Note: In countries where the tyre
pressure monitoring system is
legally required, the use of wheels
without pressure sensors will
invalidate the vehicle type approval.
The current tyre pressures can be
shown in the Vehicle Information
Menu in the Driver Information
Centre (DIC). The menu can be selected by the
buttons on the indicator lever.
Press the
MENUto select the
Vehicle Information MENU
g.
Turn the adjuster wheel to select the
tyre pressure monitoring system.
System status and pressure
warnings are displayed by a
message with the corresponding
tyre flashing in the DIC.
The system considers the tyre
temperature for the warnings.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
188 Vehicle Care
If unusual noise is heard or the
compressor becomes hot, turn
compressor off for at least
30 minutes.
Note the expiry date of the kit. After
this date its sealing capability is no
longer guaranteed. Pay attention to
storage information on sealant
bottle.
Replace the used sealant bottle.
Dispose of the bottle as prescribed
by applicable laws.
The compressor and sealant can be
used from approx. -30°C ~ 70°C
(-22 ~ 158°F).
Tyre Changing
Some vehicles are equipped with a
tyre repair kit instead of a spare
wheel.
Make the following preparations and
observe the following information :
.Park the vehicle on a level, firm
and non-skid surface. The front
wheels must be in the
straight-ahead position. .
Apply the parking brake.
For manual gearbox, engage
first gear or reverse gear.
. Remove the spare wheel.
See "Temporary spare wheel"
under Compact Spare
Tyre 0191.
. Never change more than one
wheel at once.
. Use the jack only to change
wheels in case of puncture, not
for seasonal winter or summer
tyre change. The jack is
maintenance-free.
. If the ground on which the
vehicle is standing is soft, a solid
board (max. 1cm (0.4 inches)
thick) should be placed under
the jack. Take heavy objects out
of the vehicle before jacking up.
. No people or animals may be in
the vehicle when it is jacked-up.
. Never crawl under a jacked-up
vehicle.
. Do not start the vehicle when it
is raised on the jack. .
Clean wheel nuts and thread
before mounting the wheel.
Do not grease wheel bolt, wheel
nut and wheel nut cone.
Wheel changing
Make the following preparations and
observe the following information:
.Park the vehicle on a level, firm
and non-skid surface. The front
wheels must be in the
straight-ahead position.
. Apply the parking brake and
engage first gear, reverse gear
or P.
. Never change more than one
wheel at once.
. Use the jack only to change
wheels in case of puncture, not
for seasonal winter or summer
tyre change.
. The jack is maintenance-free.
. If the ground on which the
vehicle is standing is soft, a solid
board (max. 1 cm thick) should
be placed under the jack.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
198 Service and Maintenance
Service and
Maintenance
General Information
Service Information . . . . . . . . . . . 198
Recommended Fluids,
Lubricants, and Parts
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 200
General Information
Service Information
In order to ensure economical and
safe vehicle operation and to
maintain the value of your vehicle, it
is of vital importance that all
maintenance work is carried out at
the proper intervals as specified.
The detailed, up-to-date service
schedule for your vehicle is
available at the workshop.
Service display
0Service
Display 068.
European service intervals
Maintenance of your vehicle is
required every 16,000 miles or after
1 year, whichever occurs first,
unless otherwise indicated in the
service display.
A shorter service interval can be
valid for severe driving behaviour,
e.g. for taxis and police vehicles. The European service intervals are
valid for the following countries:
Andorra, Austria, Belgium, Bosnia-
Herzegovina, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany,
Greece, Greenland, Hungary,
Iceland, Ireland, Italy, Latvia,
Liechtenstein, Lithuania,
Luxembourg, Macedonia, Malta,
Monaco, Montenegro, Netherlands,
Norway, Poland, Portugal, Romania,
San Marino, Serbia, Slovakia,
Slovenia, Spain, Sweden,
Switzerland, United Kingdom.
Service display
0Service
Display 068.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Service and Maintenance 199
International service intervals
Maintenance of your vehicle is
required every 10,000 miles or after
1 year, whichever occurs first,
unless otherwise indicated in the
service display.
The international service intervals
are valid for the countries which are
not listed in the European service
intervals.
Service display
0Service
Display 068.
Confirmations
Confirmation of service is recorded
in the Service and Warranty
Booklet. The date and mileage is
completed with the stamp and
signature of the servicing workshop.
Make sure that the Service and
Warranty Booklet is completed
correctly as continuous proof of
service is essential if any warranty
or goodwill claims are to be met,
and is also a benefit when selling
the vehicle.
Service interval with remaining
engine oil life duration
The service interval is based on
several parameters depending on
usage.
The service display lets you know
when to change the engine oil.
Service display
0Service
Display 068.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
200 Service and Maintenance
Recommended
Fluids, Lubricants,
and Parts
Recommended Fluids
and Lubricants
Only use products that meet the
recommended specifications.
Damage resulting from the use of
products not compliant with these
specifications will not be covered by
the warranty.
{Warning
Operating materials are
hazardous and could be
poisonous. Handle with care. Pay
attention to information given on
the containers.
Engine oil
Engine oil is identified by its quality
and its viscosity. Quality is more
important than viscosity when
selecting which engine oil to use.
The oil quality ensures e.g. engine
cleanliness, wear protection and oil
ageing control, whereas viscosity
grade gives information on the oil's
thickness over a temperature range.
Dexos is the newest engine oil
quality that provides optimum
protection for petrol and diesel
engines. If it is unavailable, engine
oils of other listed qualities have to
be used. Recommendations for
petrol engines are also valid for
Compressed Natural Gas (CNG),
Liquefied Petroleum Gas (LPG) and
Ethanol (E85) fuelled engines.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
0
Recommended Fluids and
Lubricants0200. Topping up engine oil
Engine oils of different
manufacturers and brands can be
mixed as long as they comply with
the required engine oil quality and
viscosity.
Use of engine oil with only ACEA
A1/B1 or only A5/B5 quality is
prohibited, since it can cause
longterm engine damage under
certain operating conditions.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
0
Recommended Fluids and
Lubricants
0200.
Additional engine oil additives
The use of additional engine oil
additives could cause damage and
invalidate the warranty.
