weight VAUXHALL VIVA 2015.75 Owner's Manual

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
46 Seats and Restraints

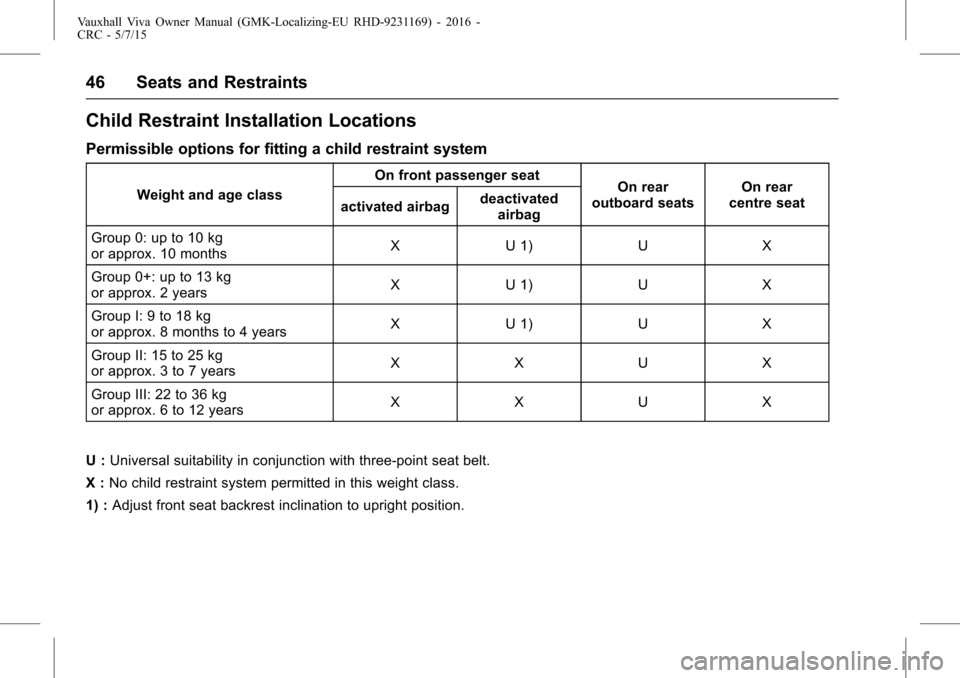

Child Restraint Installation Locations
Permissible options for fitting a child restraint system
Weight and age classOn front passenger seat
On rear
outboard seats On rear
centre seat
activated airbag deactivated
airbag
Group 0: up to 10 kg
or approx. 10 months X
U 1) UX
Group 0+: up to 13 kg
or approx. 2 years X
U 1) UX
Group I: 9 to 18 kg
or approx. 8 months to 4 years X
U 1) UX
Group II: 15 to 25 kg
or approx. 3 to 7 years X
XU X
Group III: 22 to 36 kg
or approx. 6 to 12 years X
XU X
U : Universal suitability in conjunction with three-point seat belt.
X : No child restraint system permitted in this weight class.
1) : Adjust front seat backrest inclination to upright position.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Seats and Restraints 47

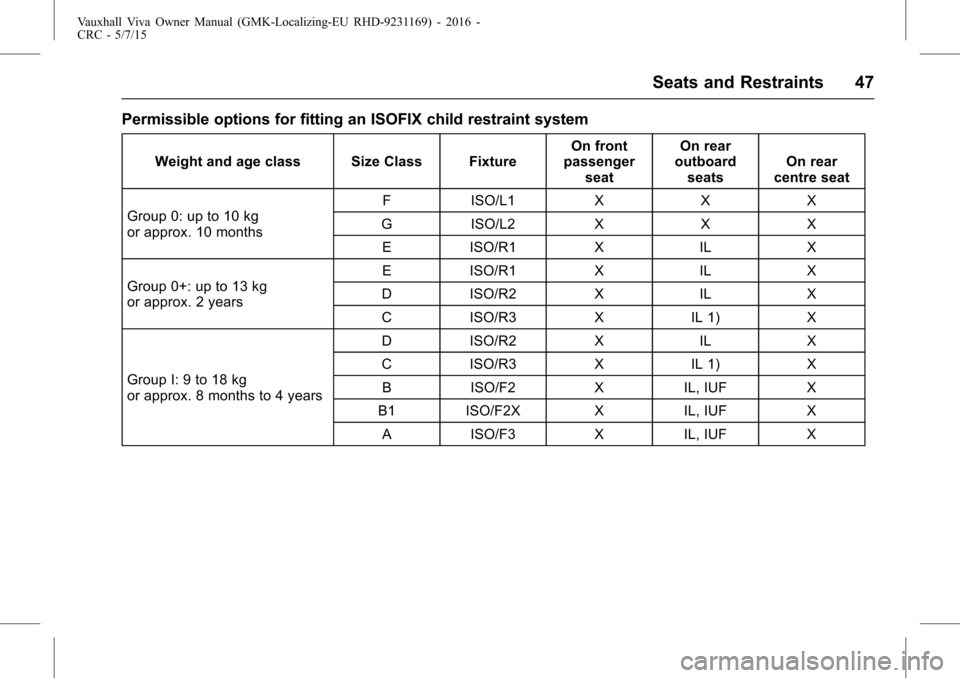

Permissible options for fitting an ISOFIX child restraint system
Weight and age class Size Class FixtureOn front
passenger seat On rear
outboard seats On rear
centre seat
Group 0: up to 10 kg
or approx. 10 months F
ISO/L1 XXX
G ISO/L2 XXX
E ISO/R1 XIL X
Group 0+: up to 13 kg
or approx. 2 years E
ISO/R1 XIL X
D ISO/R2 XIL X
C ISO/R3 XIL 1) X
Group I: 9 to 18 kg
or approx. 8 months to 4 years D
ISO/R2 XIL X
C ISO/R3 XIL 1) X
B ISO/F2 XIL, IUF X
B1 ISO/F2X XIL, IUF X
A ISO/F3 XIL, IUF X

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
48 Seats and Restraints

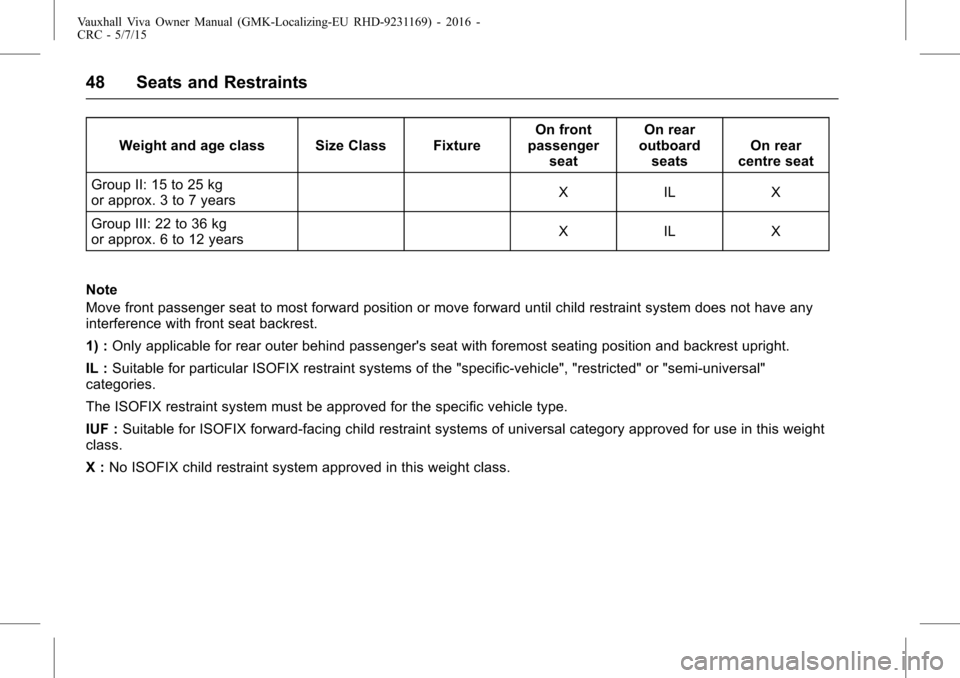

Weight and age class Size Class FixtureOn front
passenger seat On rear
outboard seats On rear
centre seat
Group II: 15 to 25 kg
or approx. 3 to 7 years X IL X
Group III: 22 to 36 kg
or approx. 6 to 12 years X IL X
Note
Move front passenger seat to most forward position or move forward until child restraint system does not have any
interference with front seat backrest.
1) : Only applicable for rear outer behind passenger's seat with foremost seating position and backrest upright.
IL : Suitable for particular ISOFIX restraint systems of the "specific-vehicle", "restricted" or "semi-universal"
categories.
The ISOFIX restraint system must be approved for the specific vehicle type.
IUF : Suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight
class.
X : No ISOFIX child restraint system approved in this weight class.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Seats and Restraints 49

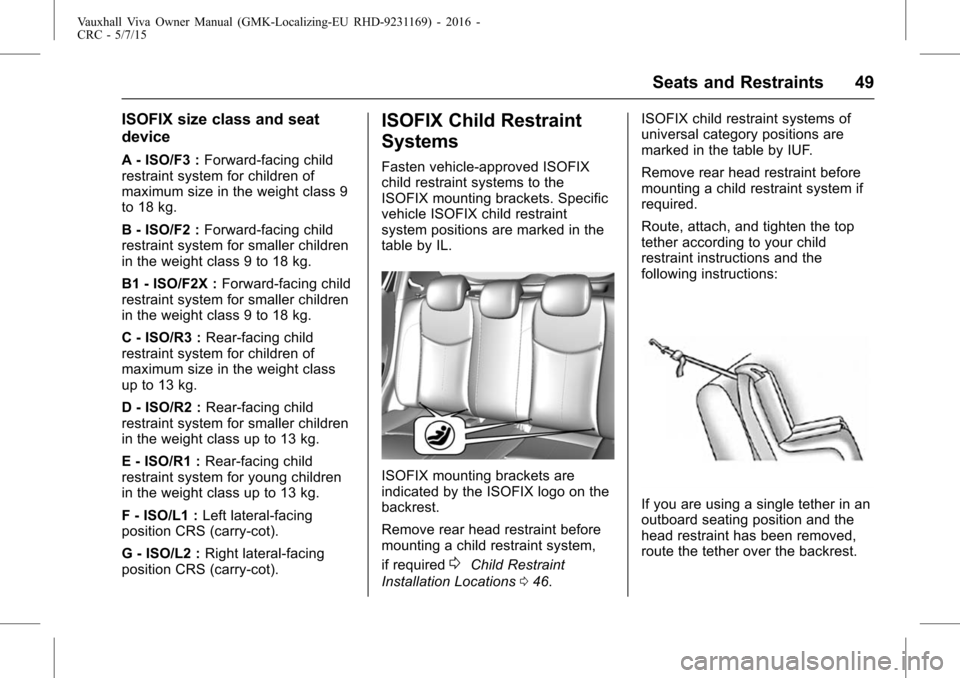

ISOFIX size class and seat
device
A - ISO/F3 :Forward-facing child
restraint system for children of
maximum size in the weight class 9
to 18 kg.
B - ISO/F2 : Forward-facing child
restraint system for smaller children
in the weight class 9 to 18 kg.
B1 - ISO/F2X : Forward-facing child
restraint system for smaller children
in the weight class 9 to 18 kg.
C - ISO/R3 : Rear-facing child
restraint system for children of
maximum size in the weight class
up to 13 kg.
D - ISO/R2 : Rear-facing child
restraint system for smaller children
in the weight class up to 13 kg.
E - ISO/R1 : Rear-facing child
restraint system for young children
in the weight class up to 13 kg.
F - ISO/L1 : Left lateral-facing
position CRS (carry-cot).
G - ISO/L2 : Right lateral-facing
position CRS (carry-cot).
ISOFIX Child Restraint
Systems
Fasten vehicle-approved ISOFIX
child restraint systems to the
ISOFIX mounting brackets. Specific
vehicle ISOFIX child restraint
system positions are marked in the
table by IL.
ISOFIX mounting brackets are
indicated by the ISOFIX logo on the
backrest.
Remove rear head restraint before
mounting a child restraint system,
if required
0Child Restraint
Installation Locations 046. ISOFIX child restraint systems of
universal category positions are
marked in the table by IUF.
Remove rear head restraint before
mounting a child restraint system if
required.
Route, attach, and tighten the top
tether according to your child
restraint instructions and the
following instructions:
If you are using a single tether in an
outboard seating position and the
head restraint has been removed,
route the tether over the backrest.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
58 Storage
.The load must not obstruct the
operation of the pedals, parking
brake and gear selector lever,
or hinder the freedom of
movement of the driver. Do not
place any unsecured objects in
the interior.
. Do not drive with an open load
compartment.
{Warning
Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or car. .
The payload is the difference
between the permitted gross
vehicle weight (see identification
plate
0Vehicle Identification
Number (VIN) 0205) and the
kerb weight. For the kerb weight
in detail, refer to the technical
data section.
The kerb weight includes
weights for the driver (68 kg),
luggage (7 kg) and all fluids
(tank 90% full).
Optional equipment and
accessories increase the kerb
weight. .
Driving with a roof load
increases the sensitivity of the
vehicle to cross-winds and has a
detrimental effect on vehicle
handling due to the vehicle's
higher centre of gravity.
Distribute the load evenly and
secure it properly with retaining
straps. Adjust the tyre pressure
and vehicle speed according to
the load conditions. Check and
retighten the straps frequently.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
158 Driving and Operating

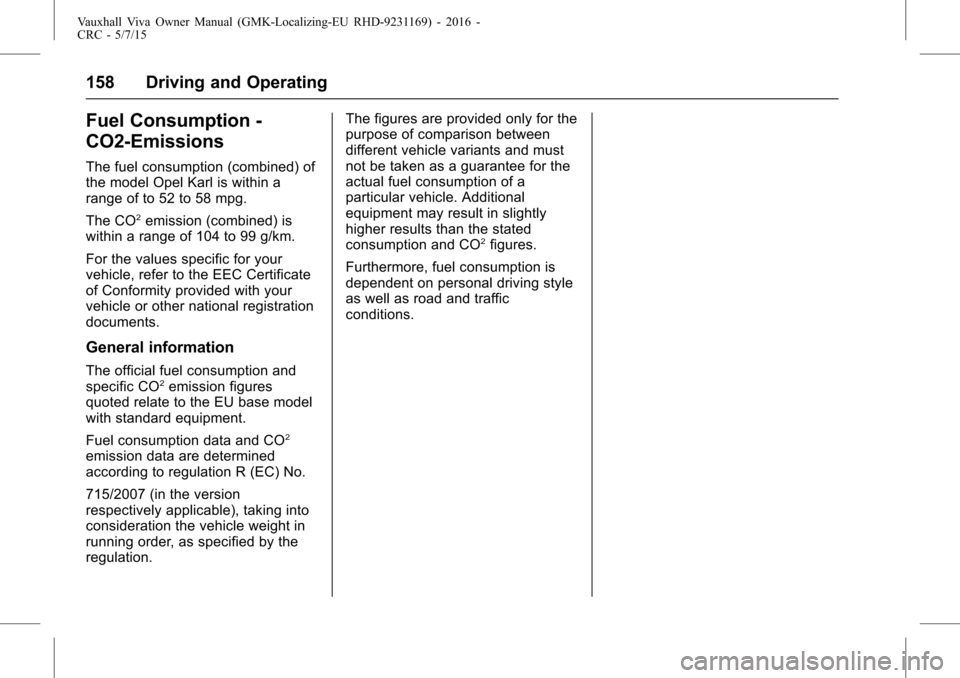

Fuel Consumption -
CO2-Emissions
The fuel consumption (combined) of
the model Opel Karl is within a
range of to 52 to 58 mpg.
The CO
2emission (combined) is
within a range of 104 to 99 g/km.
For the values specific for your
vehicle, refer to the EEC Certificate
of Conformity provided with your
vehicle or other national registration
documents.
General information
The official fuel consumption and
specific CO2emission figures
quoted relate to the EU base model
with standard equipment.
Fuel consumption data and CO
2
emission data are determined
according to regulation R (EC) No.
715/2007 (in the version
respectively applicable), taking into
consideration the vehicle weight in
running order, as specified by the
regulation. The figures are provided only for the
purpose of comparison between
different vehicle variants and must
not be taken as a guarantee for the
actual fuel consumption of a
particular vehicle. Additional
equipment may result in slightly
higher results than the stated
consumption and CO
2figures.
Furthermore, fuel consumption is
dependent on personal driving style
as well as road and traffic
conditions.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Technical Data 205
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 205
Engine Identification . . . . . . . . . . 205
Identification Plate . . . . . . . . . . . . 206
Vehicle Data
Engine Data . . . . . . . . . . . . . . . . . . 207
Performance . . . . . . . . . . . . . . . . . 207
Vehicle Weight . . . . . . . . . . . . . . . 208
Vehicle Dimensions . . . . . . . . . . 208
Capacities and Specifications . . . . . . . . . . . . . . . 209
Tyre Pressure . . . . . . . . . . . . . . . . 209
Vehicle Identification
Vehicle Identification
Number (VIN)
The Vehicle Identification Number is
located in the engine compartment.
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the
windscreen.
Engine Identification
The technical data tables show the
engine identifier code. Engine data
0Engine Data 0207.
To identify the respective engine,
refer to the engine power in the
EEC Certificate of Conformity
provided with your vehicle or other
national registration documents.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
206 Technical Data

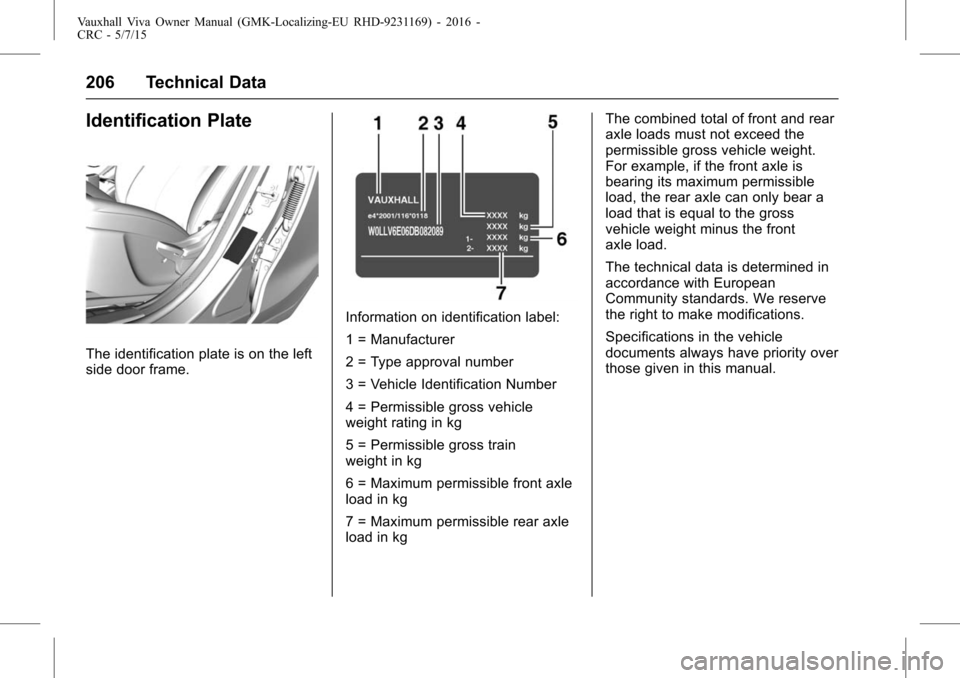

Identification Plate
The identification plate is on the left
side door frame.
Information on identification label:
1 = Manufacturer
2 = Type approval number
3 = Vehicle Identification Number
4 = Permissible gross vehicle
weight rating in kg
5 = Permissible gross train
weight in kg
6 = Maximum permissible front axle
load in kg
7 = Maximum permissible rear axle
load in kgThe combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight.
For example, if the front axle is
bearing its maximum permissible
load, the rear axle can only bear a
load that is equal to the gross
vehicle weight minus the front
axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
208 Technical Data
Vehicle Weight
Kerb weight, Basic model without any optional equipment
Engine4 seater 5 seater
Without/without air
conditioning [kg] L5Q
938/947 939/945
Optional equipment and accessories increase the Kerb weight.
Loading information.
Vehicle Dimensions
Length [mm] 3675
Width without exterior mirrors [mm] 1595
Width with two exterior mirrors [mm] 1876
Height (without aerial) [mm] w/o roof rack 1485
Length of load compartment floor [mm] 486
Length of load compartment with folded rear seats [mm] 1109
Load compartment width [mm] 978
Load compartment height [mm] 522
Height of load compartment opening [mm] 608
Wheelbase [mm] 2385
Turning circle diameter [m] 9.6(14"), 10.4(15")

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
220 Index
TowingVehicle . . . . . . . . . . . . . . . . . . . . . . . 194
Traction Control System (TCS) . . . . . . . . 147
Traction Control System (TCS) Off Light . . . . . . . . . . . . . . . . . 72
Tread Depth . . . . . . . . . . . . . . . . . . . . 183
Triangle, Warning . . . . . . . . . . . . . . . . 56
Trip Odometer . . . . . . . . . . . . . . . . . . . 64
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . . 86
Tyre Pressure . . . . . . . . . . . . . . . . . . 209
Tyre Pressure Monitoring System Light . . . . . . . . . . . . . . . . . . . 73
Tyre Repair Kit . . . . . . . . . . . . . . . . . 184
Tyres Chains . . . . . . . . . . . . . . . . . . . . . . . . 184
Changing . . . . . . . . . . . . . . . . . . . . . 188
Compact Spare . . . . . . . . . . . . . . . 191
Designations . . . . . . . . . . . . . . . . . 178
Pressure Monitor System . . . . . 180
Winter . . . . . . . . . . . . . . . . . . . . . . . . 178
Tyres and Wheels . . . . . . . . . . . . . . 178U
Ultrasonic Parking Sensor Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Using This Manual . . . . . . . . . . . . . . . . 3
V
Variable Effort Steering Light . . . . 72
Vehicle Control . . . . . . . . . . . . . . . . . . . . . . . 138
Identification Number (VIN) . . . 205
Messages . . . . . . . . . . . . . . . . . . . . . . 80
Personalisation . . . . . . . . . . . . . . . . . 82
Service Soon Light . . . . . . . . . . . . . 71
Towing . . . . . . . . . . . . . . . . . . . . . . . . 194
Vehicle Care
Tyre Pressure . . . . . . . . . . . . . . . . 179
Vehicle Dimensions . . . . . . . . . . . . . 208
Vehicle Identification Plate . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Vehicle Recovery
End-of-Life . . . . . . . . . . . . . . . . . . . . 161
Vehicle Storage . . . . . . . . . . . . . . . . . 160
Vehicle Weight . . . . . . . . . . . . . . . . . 208
Ventilation Adjustable Air . . . . . . . . . . . . . . . . 135
Fixed Air Vents . . . . . . . . . . . . . . . 136
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
W
Warning Caution and Danger . . . . . . . . . . . . . 4
Lane Departure (LDW) . . . . . . . 154
Warning Buzzers . . . . . . . . . . . . . . . . 81
Warning Triangle . . . . . . . . . . . . . . . . 56
Warnings
Hazard Lights . . . . . . . . . . . . . . . . . . . 86
Washer Fluid . . . . . . . . . . . . . . . . . . . 164
Weights Vehicle . . . . . . . . . . . . . . . . . . . . . . . 208
Wheel Covers . . . . . . . . . . . . . . . . . . 184
Wheels and Tyres . . . . . . . . . . . . . . 178
Windows Heated, Rear . . . . . . . . . . . . . . . . . . . 29
Manual . . . . . . . . . . . . . . . . . . . . . . . . . 27
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Windscreen Wiper/Washer . . . . . . . . . . . . . . . . . . 61
Winter Tyres . . . . . . . . . . . . . . . . . . . . 178
Wiper Blade Replacement . . . . . . 166
Wipers Rear Washer . . . . . . . . . . . . . . . . . . . 62
