Instruments and controls719Danger
Risk of fatal injury for a child using
a child restraint system together
with activated front passenger
airbag.
Risk of fatal injury for an adult
person with deactivated front
passenger airbag.
Airbag system 3 42, belt tensioners
3 39, airbag deactivation 3 47.
Charging system p illuminates red.
Illuminates when the ignition is
switched on and goes out shortly after
the engine starts.
Illuminates when the engine is
running
Stop, switch off engine. Vehicle battery is not charging. Engine
cooling may be interrupted. Power to
the brake servo unit may be cut. Seek the assistance of a workshop.
Malfunction indicator light
Z illuminates or flashes yellow.
Illuminates when the ignition is
switched on and goes out shortly after
the engine starts.
Illuminates when the engine is
running
Fault in the emission control system. The permitted emission limits may be exceeded. Seek the assistance of a
workshop immediately.
Flashes when the engine isrunning
Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the immediate assistance of a
workshop.
Service vehicle soon A illuminates in yellow.
Illuminates when the ignition is
switched on and goes out shortly after
the engine starts.May illuminate in combination with
another control indicator or a
message in the Driver Information
Centre. Seek the assistance of a
workshop immediately.
Stop engine C illuminates in red.
Illuminates together with p, I , W or
R ; stop engine immediately and seek
the assistance of a workshop.
Brake system
R illuminates red.
Illuminates when the parking brake is
released if the brake fluid level is too
low 3 121.9 Warning
Stop. Do not continue your
journey. Consult a workshop.
Illuminates after the ignition is
switched on if the parking brake is
applied 3 102.

72Instruments and controls
If the message BRAKING FAULT
appears in the Driver Information
Centre there is a fault in the braking
system. Seek the assistance of a
workshop immediately.
Brake system 3 101.
Antilock brake system
(ABS)
u illuminates yellow.
Illuminates briefly after the ignition is
switched on. The system is ready for
operation when u goes out.
If control indicator u does not go out
after a few seconds, or if it illuminates while driving, there is a fault in the
ABS. Control indicator A may also
illuminate in the instrument cluster together with the messages CHECK
ABS and CHECK ESP in the Driver
Information Centre. The brake
system remains operational but
without ABS regulation.
If control indicators u, A , R and
C illuminate, the ABS and ESP are
deactivated and the message
BRAKING FAULT appears in theDriver Information Centre. Seek the
assistance of a workshop
immediately.
Antilock brake system 3 101.
Upshift k or j illuminates green.
It is recommended to shift gear when
illuminated to improve fuel economy.
Electronic Stability
Program
v flashes or illuminates yellow.
Illuminates for a few seconds when
the ignition is switched on.
Flashing during driving
The system is actively engaged.
Engine output may be reduced and
the vehicle may be braked
automatically to a small degree.
Illuminates while driving
The system is switched off. The
message ESP OFF will also appear in
the Driver Information Centre.ESP® Plus
3 103.
Engine coolant
temperature W illuminates red.
Illuminates when the engine is running Stop, switch off engine.Caution
Coolant temperature too high.
Check coolant level 3 119.
If there is sufficient coolant, consult a workshop.
Preheating
! illuminates yellow.
Preheating is activated. Only
activates when outside temperature
is low.

Instruments and controls73Engine oil pressureI illuminates red.
Illuminates when the ignition is
switched on and goes out shortly after
the engine starts.
Illuminates when the engine isrunningCaution
Engine lubrication may be
interrupted. This may result in
damage to the engine and/or
locking of the drive wheels.
1. Depress clutch.
2. Select neutral gear, set selector lever to N.
3. Move out of the flow of traffic as quickly as possible without
impeding other vehicles.
4. Switch off ignition.
9 Warning
When the engine is off,
considerably more force is needed
to brake and steer.
Do not remove key until vehicle is stationary, otherwise the steeringwheel lock could engage
unexpectedly.
Check oil level before seeking
assistance of a workshop 3 117.
Low fuel
Y illuminates yellow.
Illuminates when level in fuel tank is
too low; refuel immediately 3 110
Catalytic converter 3 96.
Bleeding the diesel fuel system
3 123.
Exterior light
9 illuminates green.
Illuminated when the exterior lights
are on 3 79.
High beam
P illuminates blue.
Illuminated when high beam is on and during headlight flash 3 80.
Fog light > illuminates green.
Illuminated when the front fog lights
are on 3 81.
Rear fog light
r illuminates yellow.
Illuminated when the rear fog light is
on 3 82.
Cruise control
m , U illuminates green.
m illuminates green when a certain
speed is stored.
U illuminates green when the system
is on.
Speed limiter
U illuminates yellow.

74Instruments and controls
U illuminates yellow when the
system is on.
Cruise control, Speed limiter 3 104.Information displays
Driver Information Centre
Depending on vehicle configuration,
the following items appear in the
display:
■ Odometer, trip odometer 3 65
■ Fuel gauge 3 66
■ Engine oil level monitor 3 67
■ Service display 3 67
■ Transmission display 3 68
■ Vehicle messages 3 75
■ Trip computer 3 76
Triple-Info-Display
Displays time, outside temperature
and Infotainment system information.
■ Outside temperature 3 63
■ Clock 3 63
For further information, refer to the
Infotainment system manual.

Instruments and controls75Vehicle messages
Messages are shown in the Driver
Information Centre, in combination
with illumination of control indicator
A or C in the instrument cluster.
Information messagesInformation messagesBATTERY MODE: ECONOMYESP OFFAUTO LIGHTS DEACTIVATEDOIL LEVEL CORRECT
Fault messages Will be displayed in combination with
control indicator A. Drive with
caution and seek the assistance of a
workshop.
To remove fault message, press the
button on the end of the wiper lever.
After a few seconds the message
may disappear automatically and A
remains illuminated. The fault will
then be stored in the on board
system.Fault messagesCHECK ESPCHECK FUEL FILTERCHECK GEARBOXCHECK AUTO LIGHTS
Warning messages
These appear with control indicator
C . Stop engine immediately and
seek the assistance of a workshop.
Warning messagesINJECTION FAULTENGINE OVERHEATINGGEARBOX OVERHEATINGWarning chimes
When starting the engine or
whilst driving: ■ During operation of the turn and lane-change signals.
■ If seat belt is not fastened.
■ If the parking assist detects an object.
■ If the vehicle has manual transmission automated and the
clutch temperature is too high.
■ In vehicles with manual transmission automated; when a
door is open while neutral is not
selected. A corresponding
message appears in the Driver
Information Centre.
■ If the vehicle speed briefly exceeds
a set limit.

76Instruments and controls
When the vehicle is parked and/or the driver's door is opened: ■ When the key has been left in the ignition.
■ With exterior lights on.
■ If the vehicle has manual transmission automated; neutral is
not selected or the foot brake has
not been depressed.
Engine oil level
If the minimum engine oil level is
reached, the message OIL is
displayed in the Driver Information
Centre for 30 seconds after the
ignition is switched on. Check oil level 3 117.
The oil level message will only be reset if the ignition has been switched
off for more than 2 minutes.
To gain a more accurate indication of the oil level, press the button on the
end of the wiper lever within
30 seconds of switching on the
ignition. Engine oil level monitor
3 67.Trip computer
The trip computer provides
information on driving data, which is
continually recorded and evaluated electronically.
Depending on vehicle, the following
functions can be selected by pressing the button repeatedly on the end of
the wiper lever:
■ Fuel used
■ Average consumption
■ Instantaneous consumption
■ Range

Lighting79LightingExterior lighting............................ 79
Interior lighting ............................. 82
Lighting features ..........................83Exterior lighting
Light switch
Turn light switch:
7=Off0=Sidelights9P=Headlights
High beam control indicator P 3 73.
Low beam control indicator 9 3 73.
Automatic light control
When the automatic light control
function is activated and the engine is running, the system switches
between daytime running lights and headlights depending on the lighting
conditions.
To activate: 1. Switch on the ignition.
2. Turn light switch to 0 and return
to 7.

84Climate controlClimate controlClimate control systems ............... 84
Air vents ....................................... 90
Maintenance ................................ 91Climate control systems

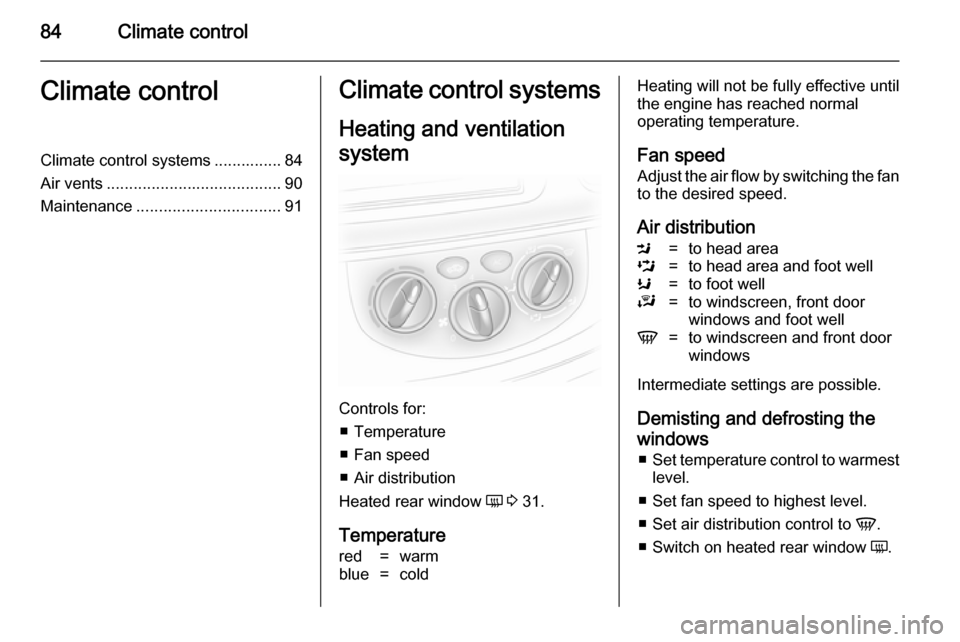

Heating and ventilation
system
Controls for: ■ Temperature
■ Fan speed
■ Air distribution
Heated rear window Ü 3 31.
Temperature
red=warmblue=coldHeating will not be fully effective until
the engine has reached normal
operating temperature.
Fan speed Adjust the air flow by switching the fan
to the desired speed.
Air distributionM=to head areaL=to head area and foot wellK=to foot wellJ=to windscreen, front door
windows and foot wellV=to windscreen and front door
windows
Intermediate settings are possible.
Demisting and defrosting thewindows ■ Set temperature control to warmest
level.
■ Set fan speed to highest level.
■ Set air distribution control to V.
■ Switch on heated rear window Ü.

Climate control85
■Open side air vents as required and
direct them towards door windows.
■ For simultaneous warming of the foot well, set air distribution control
to J.

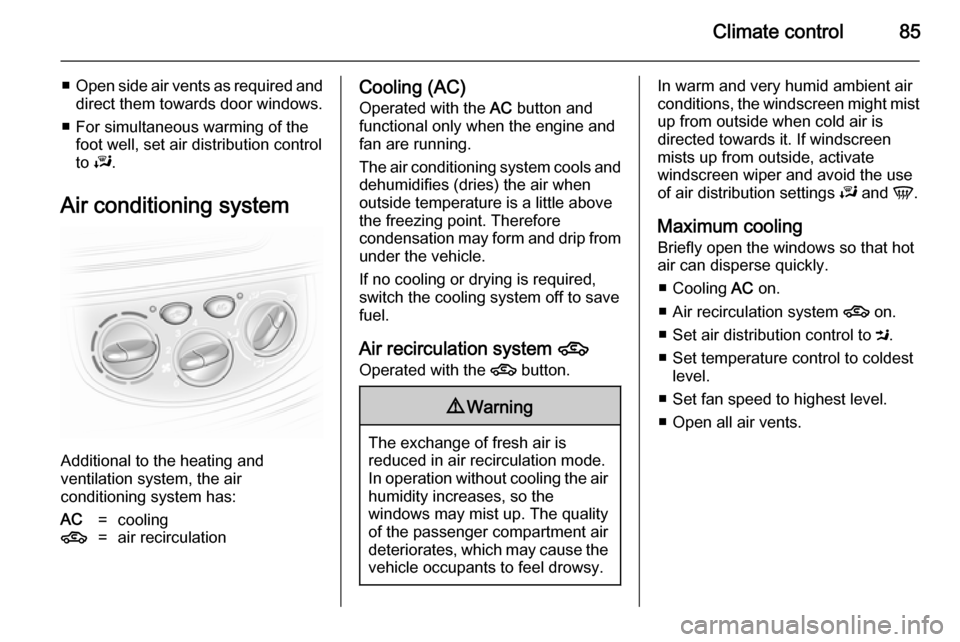

Air conditioning system
Additional to the heating and
ventilation system, the air
conditioning system has:
AC=cooling4=air recirculationCooling (AC)
Operated with the AC button and
functional only when the engine and
fan are running.
The air conditioning system cools and
dehumidifies (dries) the air when
outside temperature is a little above
the freezing point. Therefore
condensation may form and drip from under the vehicle.
If no cooling or drying is required,
switch the cooling system off to save
fuel.
Air recirculation system 4
Operated with the 4 button.9Warning
The exchange of fresh air is
reduced in air recirculation mode.
In operation without cooling the air humidity increases, so the
windows may mist up. The quality
of the passenger compartment air
deteriorates, which may cause the vehicle occupants to feel drowsy.
In warm and very humid ambient air
conditions, the windscreen might mist up from outside when cold air is
directed towards it. If windscreen
mists up from outside, activate
windscreen wiper and avoid the use
of air distribution settings J and V.
Maximum cooling Briefly open the windows so that hot
air can disperse quickly.
■ Cooling AC on.
■ Air recirculation system 4 on.
■ Set air distribution control to M.
■ Set temperature control to coldest level.
■ Set fan speed to highest level.
■ Open all air vents.

Climate control87Auxiliary heater
Coolant heater The Eberspächer engine-
independent, fuel-powered coolant
heater provides rapid heating of the
engine coolant to enable heating of
the vehicle interior without the engine running.9 Warning
Do not operate the system when
refuelling, when dust or
combustible vapours are present
or in enclosed spaces (e.g.
garage).
Before starting or programming the
system to start, turn the vehicle's climate control system to heat and the
air distribution to V.
Switch off when not required. Heating stops automatically after the
programmed runtime. It will also
cease to operate if the vehicle fuel
level drops too low.
During operation, power from the
vehicle battery is used. The driving
time should therefore be at least as
long as the heating time. For short
journey times, check the vehicle
battery regularly and recharge if
necessary.
To ensure efficient performance,
briefly operate the auxiliary heater
once a month.
Control units
The timer or remote control unit turns the system on and off, and is used to
programme specific departure times.
Timer1
X Activation
button=Switches the control
unit on/off and
changes displayed
information2 q Back
button=Selects functions in
the menu bar and
adjusts values3 Menu bar=Displays the
selectable functions
Y , x , P , Ö and Y4 r Next
button=Selects functions in
the menu bar and
adjusts values5 OK button=Confirms selection
Remote control
