VAUXHALL VIVARO 2016 Owner's Manual

Technical data189
ModelEngineWheelbaseTrim level
Additional minimum weights (approx.)3)Front axleRear axleTotalDouble cabR9ML1Base246185Mid276996Upper3278110L2Base315485Mid356196Upper41691103)
Final weight may vary according to the specification of the vehicle, e.g. options, deleted options and accessories. Refer to identification
plate on the right-hand door pillar.

190Technical dataVehicle dimensionsTypeVanCombiDouble cabPlatform cabWheelbaseL1L2L1L2L1L2L2Length [mm]4999539949995399499953995399Width without exterior mirrors [mm]1956195619561956195619561956Width with two exterior mirrors [mm]2283228322832283228322832185Height - unladen (without antenna) [mm]H1
1971197119711971197119712700
H224652465-----Wheelbase [mm]3098349830983498309834983498Track width [mm]
Front
1615161516151615161516151615
Rear1628 4)1628 4)162816281628162816284)
1630 with H2 Roof height.

Technical data191Loadspace dimensions
Wheelbase
VanL1L2Roof heightH1H2H1H2Maximum rear door aperture height [mm]1320182013201820Rear door aperture width (at floor) [mm]1391139113911391Maximum load area height [mm]1387189813871898Maximum load area width [mm]1662166216621662Width between wheel arches [mm]1268126812681268Maximum load floor length [mm]2537253729372937Maximum load floor length -
up to front passenger seat [mm] 5)2950295033503350Maximum load floor length -
up to front passenger footwell [mm] 5)3815381541504150Loading height unladen [mm]552527552525Sliding side door aperture width [mm]1229122912291229

192Technical data
Wheelbase
VanL1L2Roof heightH1H2H1H2Sliding side door aperture width - at 100 mm from floor [mm]1030103010301030Sliding side door aperture height [mm]12841284128412845)With load-through feature.
Wheelbase
CombiL1L2Roof heightH1H1Maximum rear door aperture height [mm]12951295Rear door aperture width (at floor) [mm]13911391Maximum load area height [mm]13691369Maximum load area width [mm]16621662Width between wheel arches [mm]12681268Maximum load floor length [mm]736/1650 6)1136/2050 6)Loading height unladen [mm]552552Sliding side door aperture width [mm]12291229

Technical data193
Wheelbase
CombiL1L2Roof heightH1H1Sliding side door aperture width - at 100 mm from floor [mm]10301030Sliding side door aperture height [mm]128412846)Depending on number of seats.
Wheelbase
Double cabL1L2Roof heightH1H1Maximum rear door aperture height [mm]13201320Rear door aperture width (at floor) [mm]13911391Maximum load area height [mm]13871387Maximum load area width [mm]16621662Width between wheel arches [mm]12681268Maximum load floor length [mm]20232423Maximum load floor length - behind rear seats [mm]13401740Loading height unladen [mm]552552Sliding side door aperture width [mm]12291229

194Technical data
Wheelbase
Double cabL1L2Roof heightH1H1Sliding side door aperture width - at 100 mm from floor [mm]10301030Sliding side door aperture height [mm]12841284

Technical data195Capacities
Engine oilEngineR9MEngine oil including filter [l] (approx.)6.0 - 7.4between MIN and MAX [l] (approx.)2.1 - 3.5
Fuel tank
Fuel tank, nominal capacity [l]80
AdBlue tank
AdBlue, nominal capacity [l]22.5

196Technical dataTyre pressuresTyreTyre pressure with full load7)Front
[kPa/bar] (psi)Rear
[kPa/bar] (psi)205/65 R16 C380/3.8 (55)420/4.2 (61)215/65 R16 C310/3.1 (45)340/3.4 (49)195/75 R16 C380/3.8 (55)420/4.2 (61)215/60 R17 C350/3.5 (51) 8)390/3.9 (57)9)7)
The spare wheel should be set to the highest applicable pressure shown in the table.
8) Combi: 320/3.2 (46) for non-motorway driving below 100 mph.
9) Combi: 350/3.5 (51) for non-motorway driving below 100 mph.
The tyre pressure information label on the driver's door frame indicates the original equipment tyres and the correspondent
tyre pressures. Always inflate tyres to the pressures shown on the label.
Tyre pressure information label 3 163.

Customer information197Customer
informationCustomer information ................197
Declaration of conformity .........197
Vehicle data recording and pri‐
vacy ........................................... 199
Event data recorders ...............199
Radio Frequency Identification (RFID) ..................................... 199Customer information
Declaration of conformity
Transmission systems
This vehicle has systems that
transmit and/or receive radio waves
subject to Directive 1999/5/EC.
These systems are in compliance
with the essential requirements and
other relevant provisions of
Directive 1999/5/EC. Copies of the
original Declarations of Conformity
can be obtained on our website.

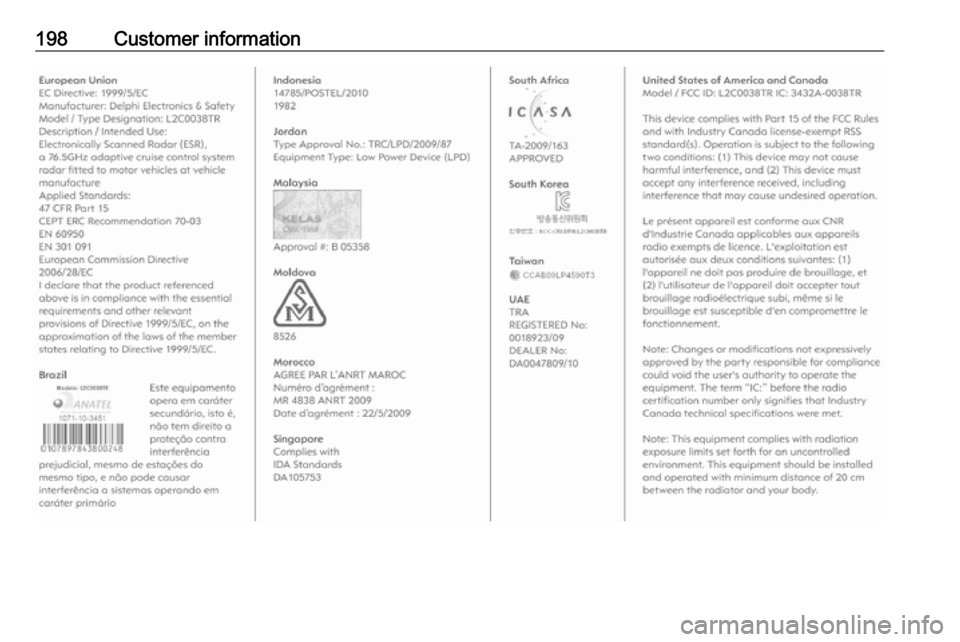

Radar systems
Country-specific Declarations of
Conformity for radar systems are
shown on the following page:

198Customer information
