Instruments and controls89Cupholders 3 73.Warning lights, gauges
and indicators
Instrument cluster
In some versions, the needles of the
instruments briefly rotate to the end
position when the ignition is switched on.

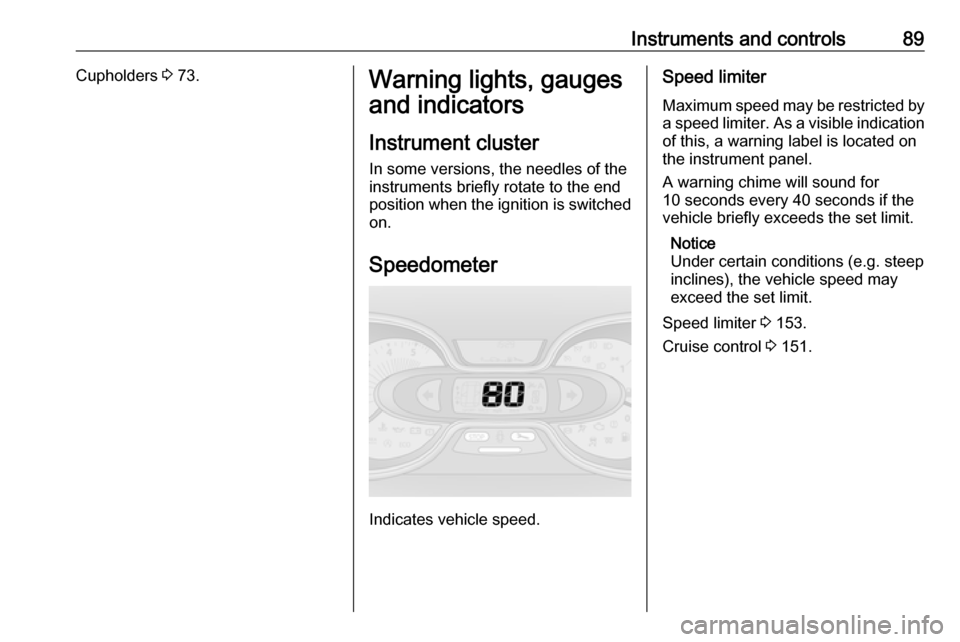

Speedometer
Indicates vehicle speed.
Speed limiter Maximum speed may be restricted by
a speed limiter. As a visible indication
of this, a warning label is located on
the instrument panel.
A warning chime will sound for
10 seconds every 40 seconds if the
vehicle briefly exceeds the set limit.
Notice
Under certain conditions (e.g. steep
inclines), the vehicle speed may
exceed the set limit.
Speed limiter 3 153.
Cruise control 3 151.

90Instruments and controlsOdometer
Displays the recorded distance.
Trip odometer The trip odometer appears below the
odometer in the Driver Information
Centre and displays the distance
travelled since the last reset.
To reset, with the trip odometer
displayed, press and hold button on
end of wiper lever for a few seconds
with the ignition on. The display will
flash and the value will reset to zero.
Driver Information Centre 3 101.
Tachometer
Displays the engine speed.
Drive in a low engine speed range for each gear as much as possible.
Caution
If the needle is in the yellow
warning zone, the maximum
permitted engine speed is
exceeded. Engine at risk.
Fuel gauge
Displays fuel level in the tank.
The arrow indicates the vehicle side
where the fuel filler flap is located.
Control indicator Y also illuminates in
instrument cluster 3 92 when fuel
level is low (range of approx.
30 miles): refuel immediately 3 159.
Never run the tank dry.
Diesel fuel system, bleeding 3 172.

Instruments and controls91Notice
To ensure the fuel level is displayed
correctly, the ignition must be
switched off before refuelling. Avoid
minor fuel top-ups (e.g. less than
5 l) to ensure accurate readings.
Because of the fuel remaining in the
tank, the top-up quantity may be less
than the specified tank capacity.
AdBlue level indicator
The current AdBlue percentage
remaining can be shown in the Driver
Information Centre 3 101.
Press button on end of wiper lever
repeatedly until the 'AdBlue
percentage remaining' menu is
displayed.
Level warnings
If the AdBlue level falls below a
certain value, a level warning will be
displayed in the Driver Information
Centre 3 101. Additionally, control
indicator Y 3 99 illuminates
continuously together with a warning
chime.
Refill the AdBlue tank as soon as
possible.
AdBlue 3 140.
Fuel economy gauge
Depending on version, the fuel
economy gauge (or 'driving style
indicator') provides an instantaneous
calculation of fuel efficiency based on
current driving style.
The gauge uses colours to indicate
current fuel efficiency:
Green:best fuel economy is being achievedYellow:driving style too
aggressiveOrange:least efficient fuel
economy

92Instruments and controlsThe fuel economy gauge is enabled
by default.
Depending on version, the fuel
economy gauge (or 'driving style
indicator') can be disabled via the
Infotainment system. Refer to
Infotainment manual for further
information.
Service display When the ignition is switched on, theremaining distance before the next
service is due may be shown briefly in
the Driver Information Centre. Based
on driving conditions, the interval at
which a service will be indicated can
vary considerably.
The 'distance before service' display
can also be shown by pressing button on end of wiper lever for approx.
5 seconds.
When the remaining distance before
the next service is less than
1000 miles or one month , a message
appears in the Driver Information
Centre.When the distance reaches 0 miles or
the service date is due, control
indicator j illuminates in the
instrument cluster and the Driver
Information Centre respectively, and
a corresponding message appears in the Driver Information Centre.
The vehicle needs a service. Seek the
assistance of a workshop.
Resetting the service displayAfter a service, the service display
must be reset:
Select the 'distance before service'
display in the Driver Information
Centre by pressing button repeatedly
on the end of the wiper lever, then
press and hold button for approx.
10 seconds until the 'distance before
service' is displayed continuously, i.e. the display no longer flashes.
On some vehicles, it may be
necessary to press and hold the
button twice. In this event, proceed as
follows:
After selecting the 'distance before
service' display, press and hold
button for approx. 10 seconds until
the 'distance before service' flashes inthe display. Then press and hold
button again for approx. 10 seconds
to reset the service interval.
If control indicator j does not
extinguish from the instrument
cluster, drive a minimum of 10 miles 
then switch off ignition for at least
1 minute before repeating procedure.
Trip computer 3 104.
Driver Information Centre 3 101.
Service information 3 203.
Control indicators The control indicators described are
not present in all vehicles. The
description applies to all instrument
versions.
Depending on the equipment the
position of the control indicators may
vary.
When the ignition is switched on,
most control indicators will illuminate
briefly as a functionality test.
The control indicator colours mean:red:danger, important reminderyellow:warning, information, faultgreen:confirmation of activation

Instruments and controls93blue:confirmation of activationwhite:confirmation of activation

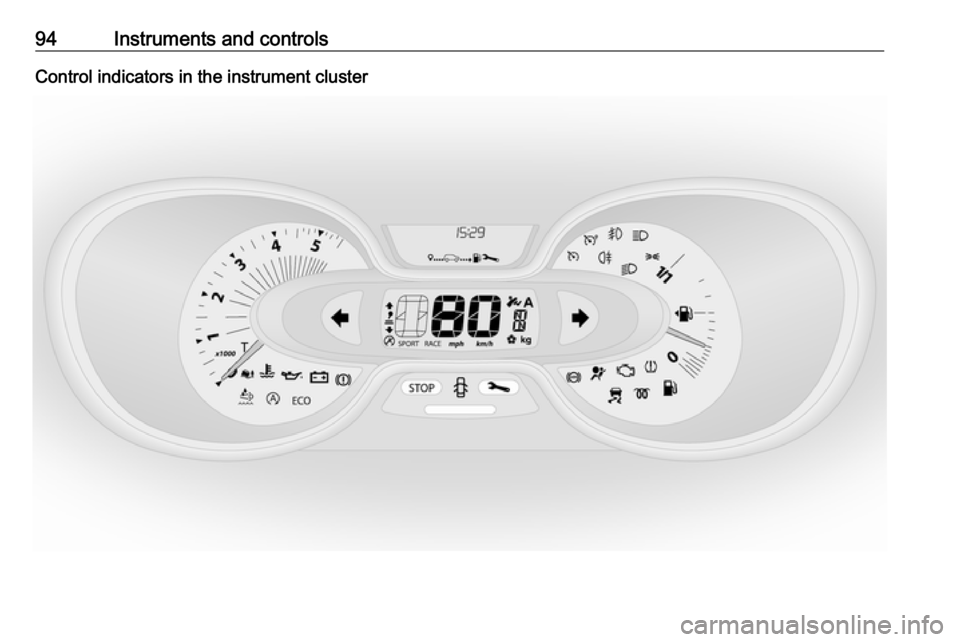

94Instruments and controlsControl indicators in the instrument cluster

Instruments and controls95Control indicators in the roof
console
Overview
OTurn lights 3 95XSeat belt reminder 3 96vAirbag and belt tensioners
3 96Ó ONAirbag activation 3 96* OFFAirbag deactivation 3 96pCharging system 3 97ZMalfunction indicator light
3 97jService vehicle soon 3 97CStop engine 3 97RBrake system 3 97uAntilock brake system (ABS)
3 98kjUpshift, downshift 3 98RElectronic Stability Program
3 98ØElectronic Stability Program
off 3 98WEngine coolant temperature
3 98!Preheating 3 99YAdBlue 3 99wTyre pressure monitoring
system 3 99IEngine oil pressure 3 99ECOFuel economy mode 3 100YLow fuel 3 100DAutostop (Stop-start system)
3 100\Autostop inhibited (Stop-
start system) 3 1009Exterior light 3 1008Exterior light 3 100CHigh beam 3 100>Fog light 3 101øRear fog light 3 101mCruise control 3 101USpeed limiter 3 101&Tachograph 3 101yDoor open 3 101
Turn lights
O flashes green.
Flashes if a turn light or the hazard
warning flashers are activated.
Rapid flashing: failure of a turn light or associated fuse.
An audible warning can be heard
when the turn lights are on.
Bulb replacement 3 174.
Fuses 3 180.

96Instruments and controlsTurn lights 3 111.
Seat belt reminder
X illuminates or flashes red.
If the seat belt is unfastened, control
indicator X will flash when vehicle
speed exceeds approx. 10 mph. A warning chime also sounds for up to
two minutes.
If the seat belt is fastened, the
indicator light extinguishes.
Notice
Heavy objects on the front seats
may cause control indicator X to
illuminate. Remove the object from
the seat or fasten the seat belt.9 Warning
Fasten seat belt before each trip.
In the event of an accident, people
not wearing seat belts endanger their fellow occupants and
themselves.
Three-point seat belts 3 54.
Airbag and belt tensioners
v illuminates yellow.
Illuminates briefly when the ignition is switched on.
If it does not illuminate or illuminates
whilst driving, there is a fault in the
belt tensioner or the airbag system.
The airbags and belt tensioners may
fail to trigger in the event of an
accident.
Deployment of the belt tensioners or airbags is indicated by continuous
illumination of v.9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
Belt tensioners 3 53.
Airbag system 3 58.
Airbag deactivation Ó ON illuminates yellow.
The front passenger airbag is
activated.
* OFF illuminates yellow.
The front passenger airbag is
deactivated 3 62.
If both control indicators ÓON and
* OFF are illuminated
simultaneously, there is a system
failure. The status of the system is not discernible, therefore no person is
permitted to occupy the front
passenger seat. Contact a workshop
immediately.
If illuminated in conjunction with v or
j , seek the assistance of a
workshop.9 Danger
Risk of fatal injury for a child using
a child restraint system together
with activated front passenger
airbag.
Risk of fatal injury for an adult
person with deactivated front
passenger airbag.
Airbag system 3 58.
Belt tensioners 3 53.
Airbag deactivation 3 62.

Instruments and controls97Charging system
p illuminates red.
Illuminates briefly when the ignition is switched on.
Illuminates when the engine is
running
If control indicator p illuminates
when the engine is running (together
with control indicator C and a
warning chime): Stop, switch off
engine.
Vehicle battery is not charging.
Engine cooling may be interrupted.
Power to the brake servo unit may be
cut. Seek the assistance of a
workshop.
Malfunction indicator light Z illuminates or flashes yellow.
Illuminates briefly when the ignition is
switched on.Illuminates when the engine is
running
Fault in the emission control system. The permitted emission limits may be exceeded. Seek the assistance of a
workshop immediately.
Flashes when the engine is
running
Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the immediate assistance of a
workshop.
Service vehicle soon j illuminates yellow.
Illuminates briefly when the ignition is
switched on.
May illuminate together with other
control indicators and a
corresponding message in the Driver
Information Centre 3 101. Seek the
assistance of a workshop
immediately.Stop engine
C illuminates red.
Illuminates briefly when the ignition is
switched on.
Illuminates together with other control indicators (e.g., p, I and R),
accompanied by a warning chime and a corresponding message in the
Driver Information Centre 3 101:
stop engine immediately and seek the
assistance of a workshop.
Brake system
R illuminates red.
Illuminates after the ignition is
switched on if the parking brake is
applied 3 147 and extinguishes
when the parking brake is released.
Illuminates when the parking brake is released if the brake fluid level is too
low 3 169.9 Warning
Stop. Do not continue your
journey. Consult a workshop.

98Instruments and controlsIf R illuminates together with control
indicator C and a warning chime,
there is a fault in the braking system.
A corresponding message also
appears in the Driver Information
Centre 3 101 . Seek the assistance of
a workshop immediately.
Brake system 3 146.
Antilock brake system
(ABS)
u illuminates yellow.
Illuminates briefly after the ignition is
switched on. The system is ready for
operation when u extinguishes.
If control indicator u does not go out
after a few seconds, or if it illuminates while driving, there is a fault in the
ABS. Control indicator j may also
illuminate in the instrument cluster together a corresponding message in
the Driver Information Centre 3 101.
The brake system remains
operational but without ABS
regulation and Electronic Stability
Program.If control indicators u, j , R and
C illuminate, there is a fault in the
braking system. A corresponding
message appears in the Driver
Information Centre. Seek the
assistance of a workshop
immediately.
Antilock brake system (ABS) 3 146.
Upshift k or j illuminates.
It is recommended to shift gear when
illuminated to improve fuel economy.
Electronic Stability Program
R flashes or illuminates yellow.
Illuminates briefly when the ignition is switched on.
Flashing during driving The system is actively engaged.
Engine output may be reduced and
the vehicle may be braked
automatically to a small degree.Illuminates while driving
The system is not available. A
corresponding message also
appears in the Driver Information
Centre 3 101.
ESP® Plus
3 149.
Traction Control system 3 148.
Electronic Stability Program off
Ø illuminates green.
If ESP ®Plus
has been deactivated with
Ø on the instrument panel, control
indicator Ø illuminates and a
corresponding message appears in
the Driver Information Centre 3 101.
ESP® Plus
3 149.
Traction Control system 3 148.
Engine coolant temperature
W illuminates blue or red.
Illuminates red briefly when the
ignition is switched on, then turns
blue.
