VAUXHALL ZAFIRA 2014.5 Owner's Guide

In brief19Notable featuresSeats in second row9Warning
When the row of seats or the
backrests are being adjusted,
keep hands away from the hinge
area.
Moving seats

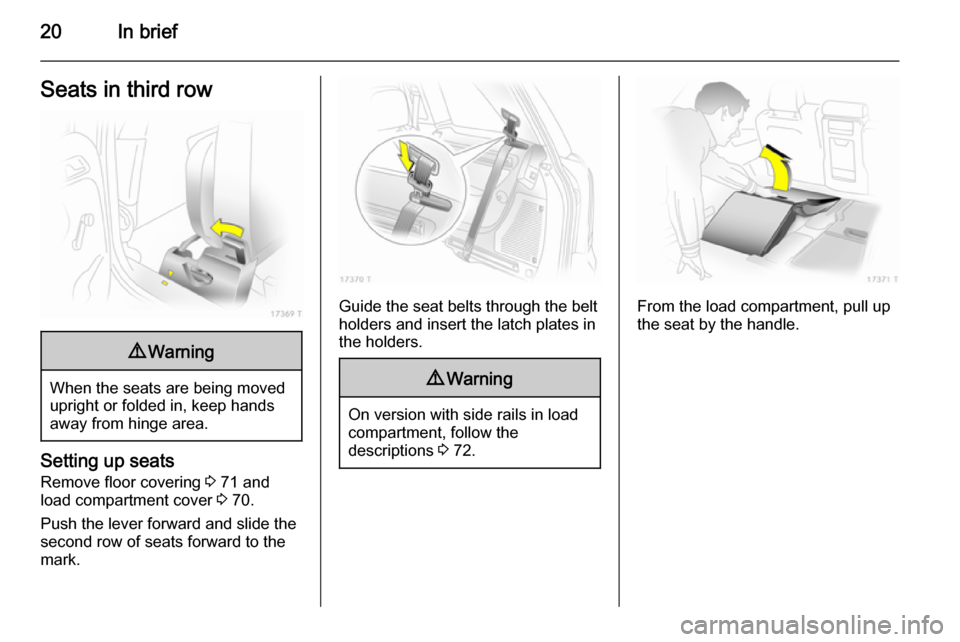

Push the release lever forward and
slide the seat row. Release the lever
and audibly engage the seats.
Adjust backrests of outboard
seats
Push the release lever down, adjust
inclination, release the lever and
engage the backrest.
9 Warning
Occupants may only travel on a
seat if its backrest is properly
engaged in the upright position.

20In briefSeats in third row9Warning
When the seats are being moved
upright or folded in, keep hands
away from hinge area.
Setting up seats
Remove floor covering 3 71 and
load compartment cover 3 70.
Push the lever forward and slide the
second row of seats forward to the
mark.
Guide the seat belts through the belt
holders and insert the latch plates in the holders.
9 Warning
On version with side rails in load
compartment, follow the
descriptions 3 72.
From the load compartment, pull up
the seat by the handle.

In brief21
Swivel the seat rearward until it is
upright and audibly engages. Support the top of the backrest with your hand.
Preparing belt buckles for use
3 54, Load compartment cover
3 70.
9 Warning
The belt must not be routed
through the belt holder when the seat belt is in use.
Slide the second row of seats to the
required position and engage.
Storing seats
Remove the load compartment cover 3 70.
Push the lever forward and slide the
second row of seats forward to the
mark.

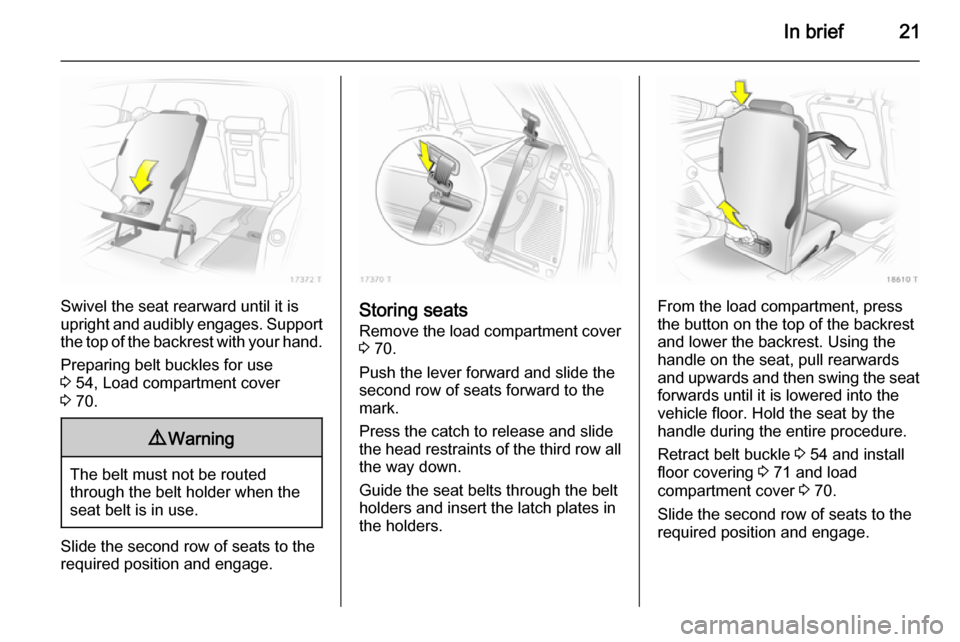

Press the catch to release and slide
the head restraints of the third row all
the way down.
Guide the seat belts through the belt
holders and insert the latch plates in the holders.From the load compartment, press
the button on the top of the backrest
and lower the backrest. Using the
handle on the seat, pull rearwards
and upwards and then swing the seat forwards until it is lowered into the
vehicle floor. Hold the seat by the
handle during the entire procedure.
Retract belt buckle 3 54 and install
floor covering 3 71 and load
compartment cover 3 70.
Slide the second row of seats to the
required position and engage.

22In briefActive head restraints on
front seats
In the event of a rear-end impact, the active head restraints tilt forwards
slightly. The head is more effectively
supported by the head restraint and
the risk of whiplash injury is reduced.
Active head restraints can be
recognised by the word ACTIVE.
Head restraints 3 43.
Trip computer
Functions:
■ Range
■ Instantaneous consumption
■ Distance
■ Average speed
■ Absolute consumption
■ Average consumption
■ Stop watch
■ Tyre pressure
Trip computer 3 103, 3 105.
Check control
The check control monitors:
■ Fluid levels
■ Tyre pressure
■ Radio remote control battery
■ Anti-theft alarm system
■ Important exterior lighting bulbs, including cables and fuses.
Display messages 3 101.

In brief23Sport mode
Activate by pressing the SPORT
button.
The Sport mode is used to make
suspension and steering more direct.
The engine is more responsive to
throttle application. With manual
transmission automated and
automatic transmission, gear
changing is altered.
Sport mode 3 141.
FlexOrganizer
The side walls contain retaining
strips, where various components can be attached to divide the load
compartment or fasten loads.
The system consists of: ■ adapters
■ variable partition net
■ mesh pockets for the side walls
■ hooks in the load compartment
FlexOrganizer 3 72.
Tyre pressure monitoring
system
A pressure sensor is integrated in
each wheel to monitor tyre pressure.
Low tyre pressure will be indicated
with a yellow control indicator A. The
current tyre pressure and warning messages may be displayed in the
Info-display.
Tyre pressure monitoring system
3 91, 3 176.

24In briefAdaptive Forward Lighting
The system improves lighting of
curves and increases the headlight
range.

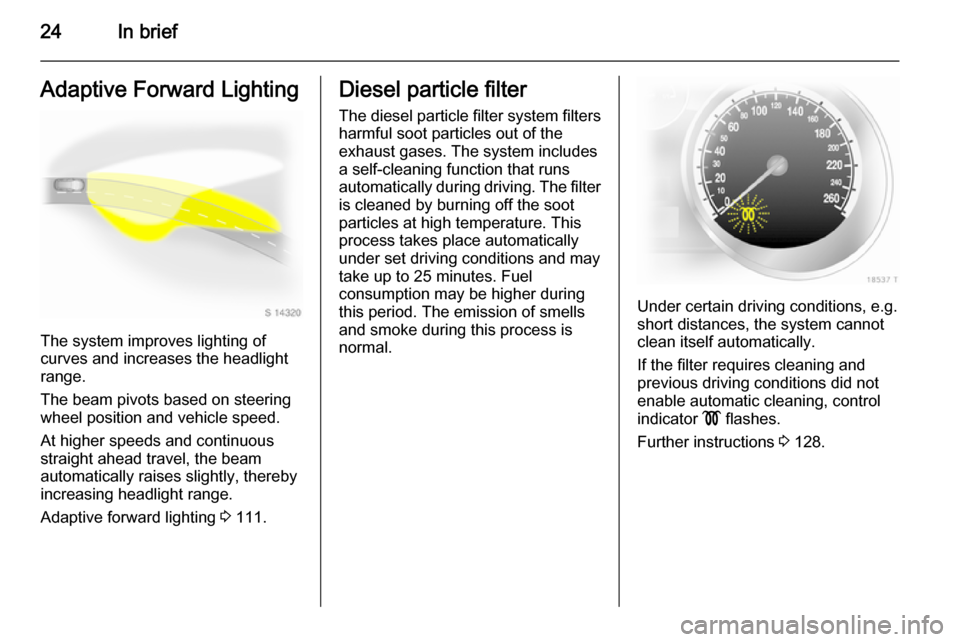

The beam pivots based on steering
wheel position and vehicle speed.
At higher speeds and continuous straight ahead travel, the beam
automatically raises slightly, thereby
increasing headlight range.
Adaptive forward lighting 3 111.
Diesel particle filter
The diesel particle filter system filters
harmful soot particles out of the
exhaust gases. The system includes
a self-cleaning function that runs
automatically during driving. The filter
is cleaned by burning off the soot
particles at high temperature. This
process takes place automatically
under set driving conditions and may take up to 25 minutes. Fuel
consumption may be higher during
this period. The emission of smells
and smoke during this process is
normal.
Under certain driving conditions, e.g.
short distances, the system cannot
clean itself automatically.
If the filter requires cleaning and
previous driving conditions did not
enable automatic cleaning, control
indicator ! flashes.
Further instructions 3 128.

Keys, doors and windows25Keys, doors and
windowsKeys, locks ................................... 25
Doors ........................................... 33
Vehicle security ............................ 34
Exterior mirrors ............................ 37
Interior mirrors ............................. 38
Windows ...................................... 39
Roof ............................................. 42Keys, locks
Keys Replacement keys
The key number is specified in the
Car Pass or on a detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
When electronic keys of the
Open&Start system are being
replaced, all keys requiring
programming must be handed over to the dealer.
Locks 3 189, Open&Start system,
electronic key 3 27.
Lock cylinders
Designed to free-wheel if they are
forcefully rotated without the correct
key or if the correct key is not fully
inserted. To reset, turn cylinder with
the correct key until its slot is vertical,
remove key and then re-insert it. If the cylinder still free-wheels, turn the key
through 180° and repeat operation.Key with foldaway key section
Press button to extend. To fold the
key, first press the button.
Car Pass The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.
When the car is taken to a workshop, this vehicle data is needed in order to
perform certain operations.

26Keys, doors and windowsRadio remote control
Used to operate:■ Central locking system,
■ Anti-theft locking system,
■ Anti-theft alarm system,
■ Power windows.
The radio remote control has a range of approx. 5 metres. This range can
be affected by outside influences.
The hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Fault
If the central locking system cannot
be operated with the radio remote
control, it may be due to the following:
■ Range exceeded,
■ Battery voltage too low,
■ Frequent, repeated operation of the
radio remote control while not in
range, which will require re-
synchronisation,
■ Overload of the central locking system by operating at frequent
intervals, the power supply is
interrupted for a short time,
■ Interference from higher-power radio waves from other sources.
Unlocking 3 30.
Radio remote control battery replacement
Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.Key with foldaway key section
Extend the key and open the unit.
Replace the battery (battery type CR 2032), paying attention to the
installation position. Close the unit
and synchronise.
Key with fixed key section
Have the battery replaced by a
workshop.

Keys, doors and windows27
Radio remote control
synchronisation After replacing the battery, unlock the
door with the key in the driver's door
lock. The radio remote control will be
synchronised when you switch on the
ignition.
Memorised settings
Whenever the vehicle is locked the
last settings are automatically saved
specifically for the used key:
■ Electronic climate control,
■ Info-Display,
■ Infotainment system,
■ Instrument panel illumination.
The saved settings are automatically
used next time that key is used for
unlocking.Open&Start system
Makes operation of the following
possible without the use of the
mechanical key
■ Central locking system,
■ Anti-theft locking system,
■ Anti-theft alarm system,
■ Power windows,
■ Ignition and starter.
The electronic key simply needs to be in the driver's possession.
Press the Start/Stop button. The
ignition is switched on. The
immobiliser and steering wheel lock
are deactivated.
To start the engine press and hold the
Start/Stop button whilst applying both
the brake and clutch pedals.
Automatic transmission: the engine
can only be started with the selector
lever in P or N.
The engine and the ignition are
switched off by pressing the
Start/Stop button again. The vehicle
must be stationary. The immobiliser is
activated at the same time.

28Keys, doors and windows
If the ignition has been switched off
and the vehicle is stationary, the
steering wheel lock activates
automatically when the driver's door
is opened or closed.
Control indicator 0 3 92.
Notice
Do not put the electronic key in the
load compartment or in front of the
Info-Display.
The sensor fields in the door handles
must be kept clean to ensure
unrestricted functionality.
If the battery is discharged, the
vehicle must not be towed, tow-
started or jump-started as the
steering wheel lock cannot be
disengaged.Radio remote control
The electronic key likewise has a
radio remote control feature.
Emergency operation
If the radio remote control also fails,
the driver's door can be locked or
unlocked with the emergency key
contained in the electronic key: press locking mechanism and remove the
cap by applying light pressure. Push
emergency key towards the outside
over the detent and remove.
