VAUXHALL ZAFIRA TOURER 2015 Owner's Manual

Technical data279
EngineManual transmissionAutomatic transmission5-seats/7-seats
[kg]B16DTH1701/1728–B16DTJ1701/1728–A20DTL1701/1728–A20DT1701/1728–A20DTH
121 kW1733/17601733/1760A20DTH
96 kW–1733/1760A20DTR1733/1760–
Optional equipment and accessories increase the kerb weight.
Loading information 3 91.
Vehicle dimensionsZafira TourerLength [mm]4656Width without exterior mirrors [mm]1884Width with two exterior mirrors [mm]2100Height (without antenna) [mm]1685

280Technical data
Zafira TourerLength of load compartment floor with folded third row [mm]1094Length of load compartment with folded second and third row [mm]1842Load compartment width [mm]1057Load compartment height at tailgate [mm]840Wheelbase [mm]2760Turning circle diameter [m]11.9

Technical data281CapacitiesEngine oilEngineB14NELB14NET,
B14NET LPGA16XNT CNGA16SHT,
A16XHTA18XEL,
A18XERincluding Filter [l]4.04.04.55.54.5between MIN and MAX [l]1.01.01.01.01.0EngineB16DTHB16DTJA20DTLA20DTA20DTHA20DTRincluding Filter [l]5.05.04.54.54.54.5between MIN and MAX [l]1.01.01.01.01.01.0
Fuel tank
Petrol/diesel, refilling quantity [l]58Natural gas CNG, refilling quantity [kg] or [l]
Petrol, refilling quantity25 kg 4)
or 144 l
14Liquid gas LPG, refilling quantity [l]604) At 20 MPa/200 bar/2900 psi and 15°C.

282Technical data
AdBlue tankAdBlue, refilling quantity [l]7.5Tyre pressuresComfort with up to
3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B14NEL,
B14NET215/60 R16,220/2.2 (32)220/2.2 (32)260/2.6 (38)260/2.6 (38)230/2.3
(33)300/3.0
(43)225/50 R17,235/45 R18,235/40 R19B14NET LPG225/50 R17,220/2.2 (32)220/2.2 (32)260/2.6 (38)260/2.6 (38)230/2.3
(33)300/3.0
(43)225/45 R18,235/45 R18,235/40 R19

Technical data283
Comfort with up to
3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B16XNT CNG225/50 R17220/2.2 (32)220/2.2 (32)260/2.6 (38)260/2.6 (38)230/2.3
(33)280/2.8
(41)A16SHT,
A16XHT225/50 R17,260/2.6 (38)240/2.4 (35)280/2.8 (41)280/2.8 (41)270/2.7
(39)320/3.2
(46)225/45 R18,235/45 R18,235/40 R19A18XEL,
A18XER215/60 R16,220/2.2 (32)220/2.2 (32)260/2.6 (38)260/2.6 (38)230/2.3
(33)280/2.8
(41)225/50 R17B16DTH,
B16DTJ215/60 R16,240/2.4 (35)240/2.4 (35)280/2.8 (41)280/2.8 (41)260/2.6
(38)300/3.0
(43)225/50 R17,235/45 R18,235/40 R19

284Technical data
Comfort with up to
3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])A20DTL215/60 R16,240/2.4 (35)240/2.4 (35)280/2.8 (41)280/2.8 (41)250/2.5
(36)300/3.0
(43)225/50 R17,235/45 R18,235/40 R19A20DT215/60 R16,240/2.4 (35)240/2.4 (35)280/2.8 (41)280/2.8 (41)260/2.6
(38)300/3.0
(43)225/50 R17,235/45 R18,235/40 R19A20DTH225/50 R17,260/2.6 (38)240/2.4 (35)280/2.8 (41)280/2.8 (41)280/2.8
(41)320/3.2
(46)235/45 R18,235/40 R19,225/45 R18

Technical data285
Comfort with up to
3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])A20DTR225/50 R17,260/2.6 (38)240/2.4 (35)280/2.8 (41)280/2.8 (41)280/2.8
(41)320/3.2
(46)235/45 R18,235/40 R19,225/45 R18AllTemporary spare
wheel420/4.2 (61)420/4.2 (61)––420/4.2
(61)420/4.2
(61)

286Customer informationCustomer informationCustomer information................286
Vehicle data recording and pri‐ vacy ........................................... 288Customer information
Declaration of conformity Transmission systems
This vehicle has systems that
transmit and/or receive radio waves
subject to Directive 1999/5/EC.
These systems are in compliance with the essential requirements and
other relevant provisions of
Directive 1999/5/EC. Copies of the
original Declarations of Conformity
can be obtained on our website.

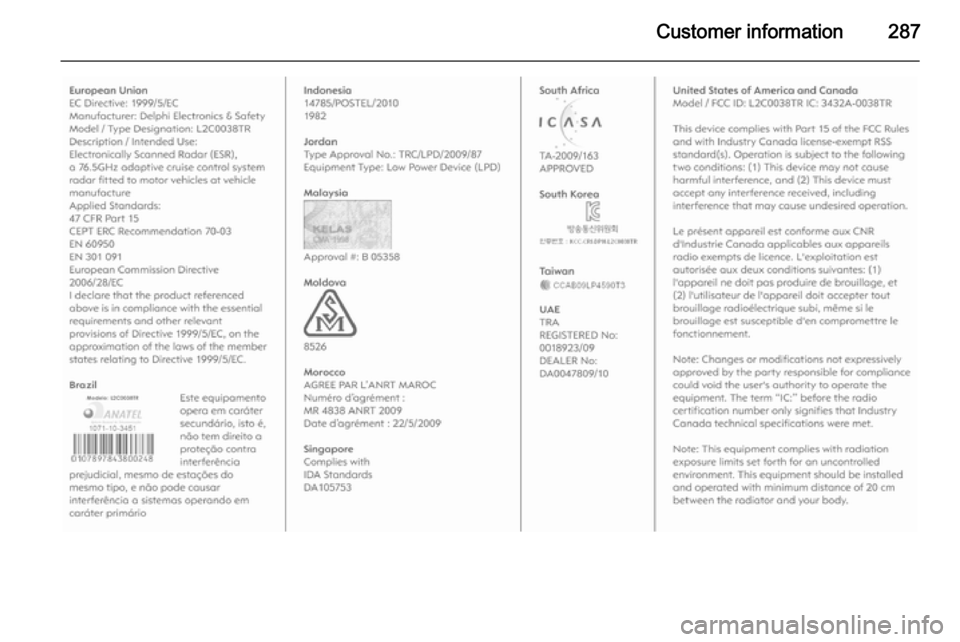

Radar systems Country-specific Declarations of
Conformity for radar systems are
shown on the following page:

Customer information287

288Customer information
Jack
Translation of the original declaration of conformity
Declaration of conformity according
to EC Directive 2006/42/EC
We declare that the product:
Product designation: Jack
Type/GM part number: 13348505,
13504504
is in compliance with the provisions of
Directive 2006/42/EC.
Applied technical standards:GMN9737=JackingGM 14337=Standard
Equipment Jack –
Hardware TestsGMN5127=Vehicle Integrity –
Hoisting and
Service Station
JackingGMW15005=Standard
Equipment Jack
and Spare Tire,
Vehicle TestISO TS 16949=Quality
management
systems
The signatory is authorised to
compile the technical documentation.
Rüsselsheim, 31st January 2014
signed by
Hans-Peter Metzger
Engineering Group Manager Chassis & Structure
Adam Opel AG
D-65423 Rüsselsheim
Vehicle data recording
and privacy
Event data recorders
Data storage modules in the vehicle A large number of electronic
components of your vehicle contain
data storage modules temporarily or
permanently storing technical data
about the condition of the vehicle,
events and errors. In general, this
technical information documents the
condition of parts, modules, systems
or the environment:
■ Operating conditions of system components (e.g. filling levels)
■ Status messages of the vehicle and
its single components (e.g. number
of wheel revolutions / rotational
speed, deceleration, lateral
acceleration)
■ Dysfunctions and defects in important system components
